NAD C316BEE User manual

NAD
SERVICE MANUAL
C 316BEE
STEREO
AMPLIFIER
C 316BEE STEREO AMPLIFIER

TABLE OF CONTENTS
DESCRIPTION P A G E
SERVICE CAUTION…………………………………………………………......3-4
REAR PANEL/FRONT PANEL VIEW………………………………………...5
SPECIFICATIONS…………………………………………………………....6

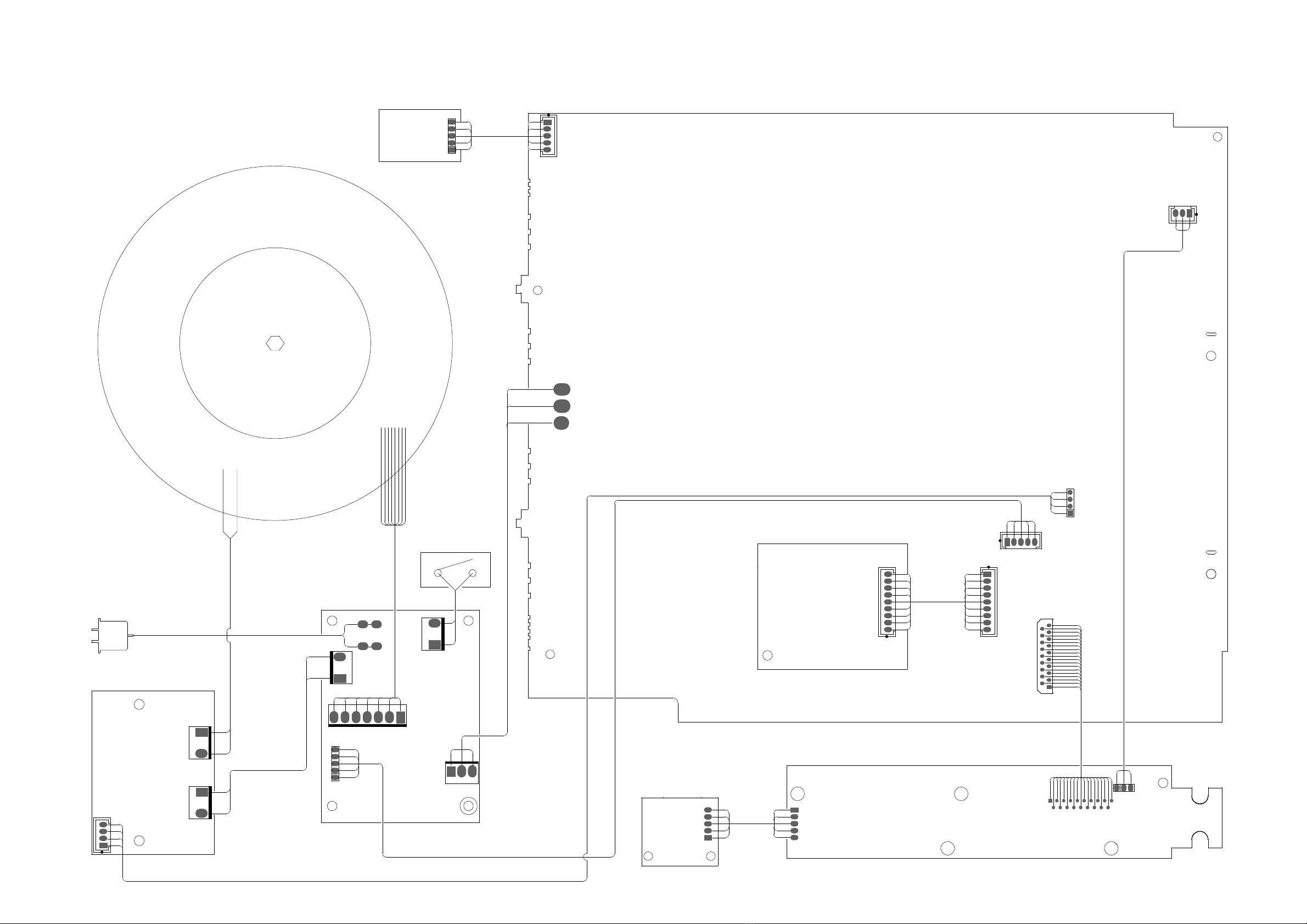

WIRING DIAGRAM………………………………………………………………7

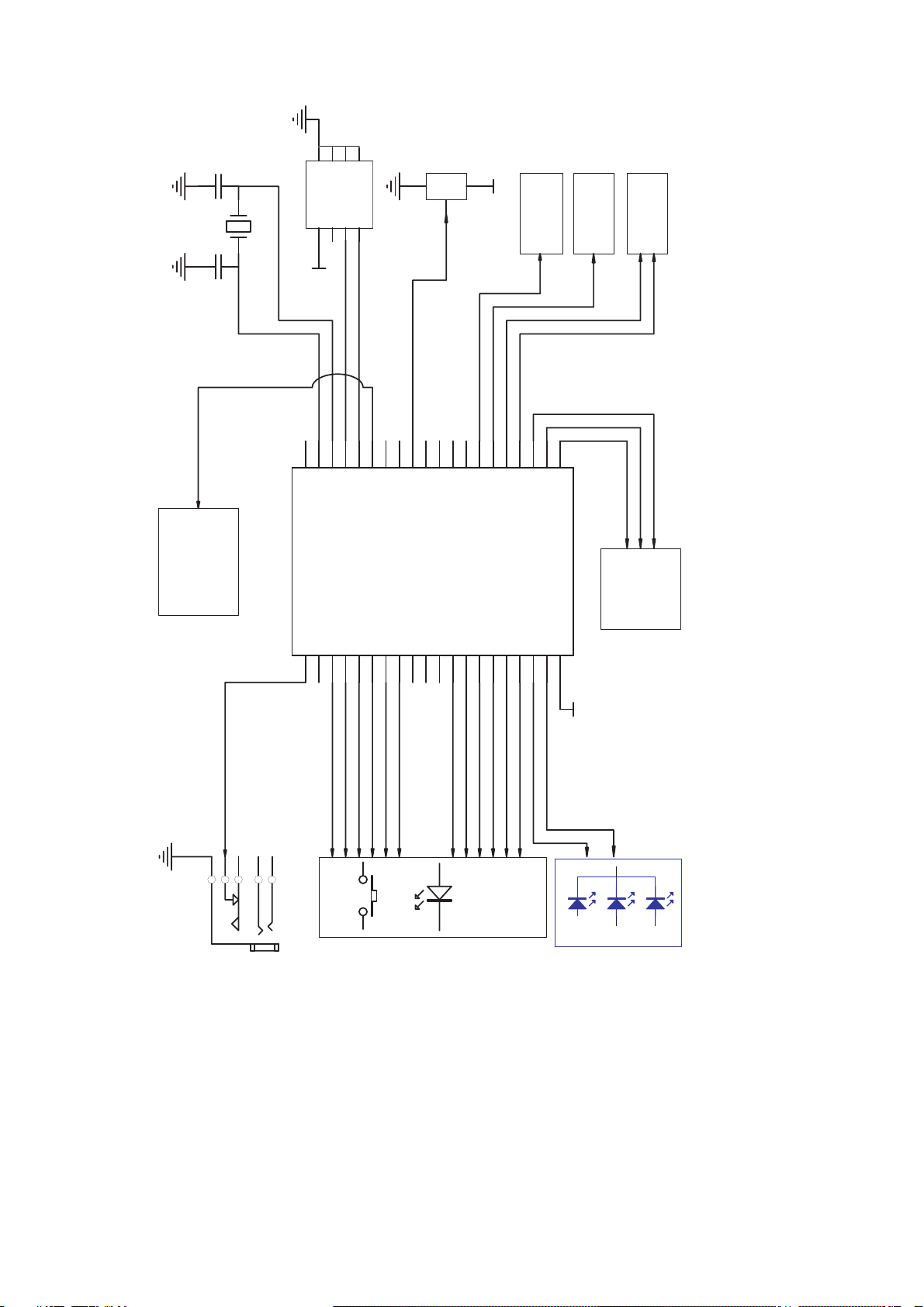

BLOCK DIAGRAM……………………………………………………. …….......8-12
ALIGNMENT PROCEDURE…………………………………………….....13

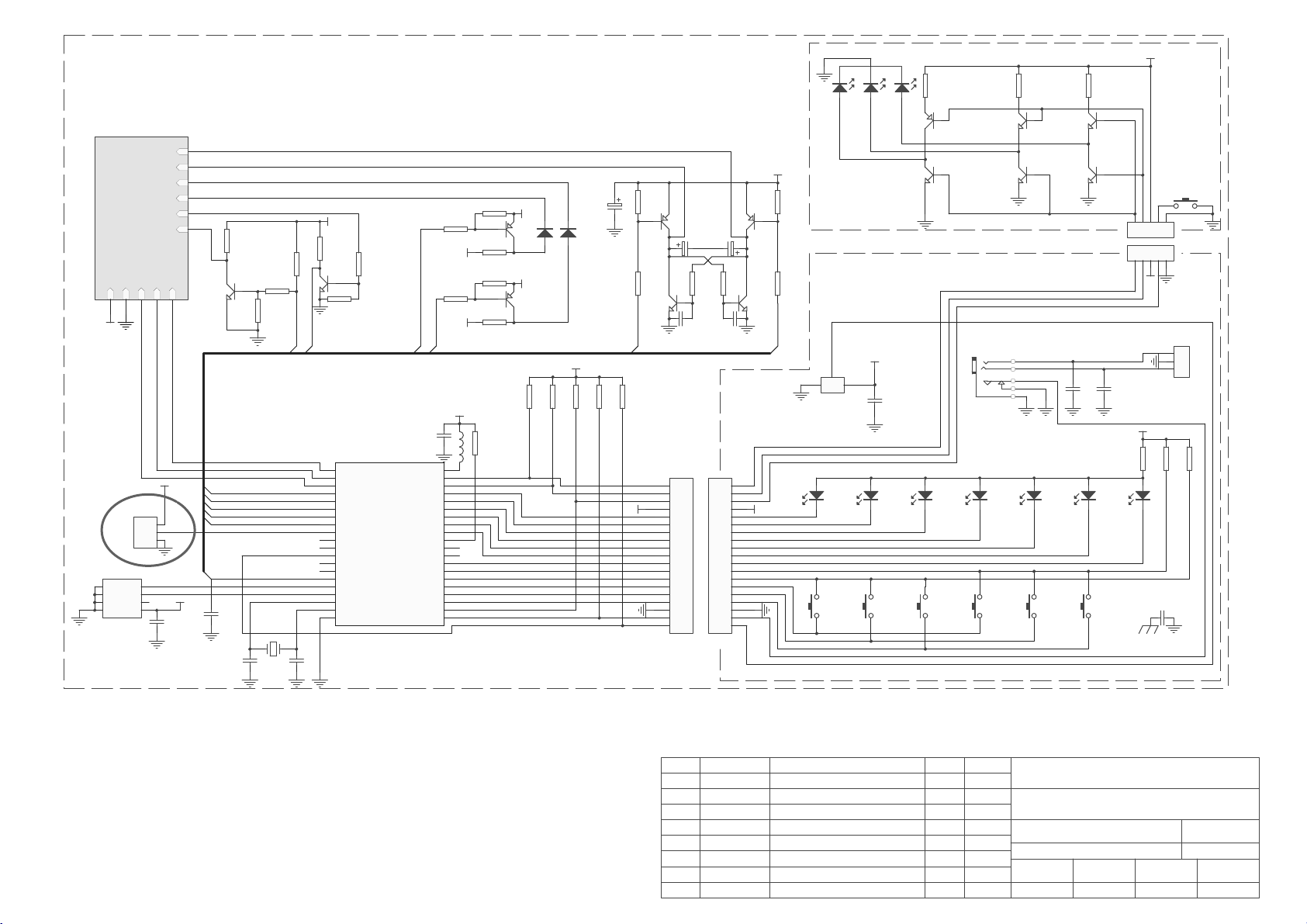

SCHEMATICS………………………………………………………………..........14-17

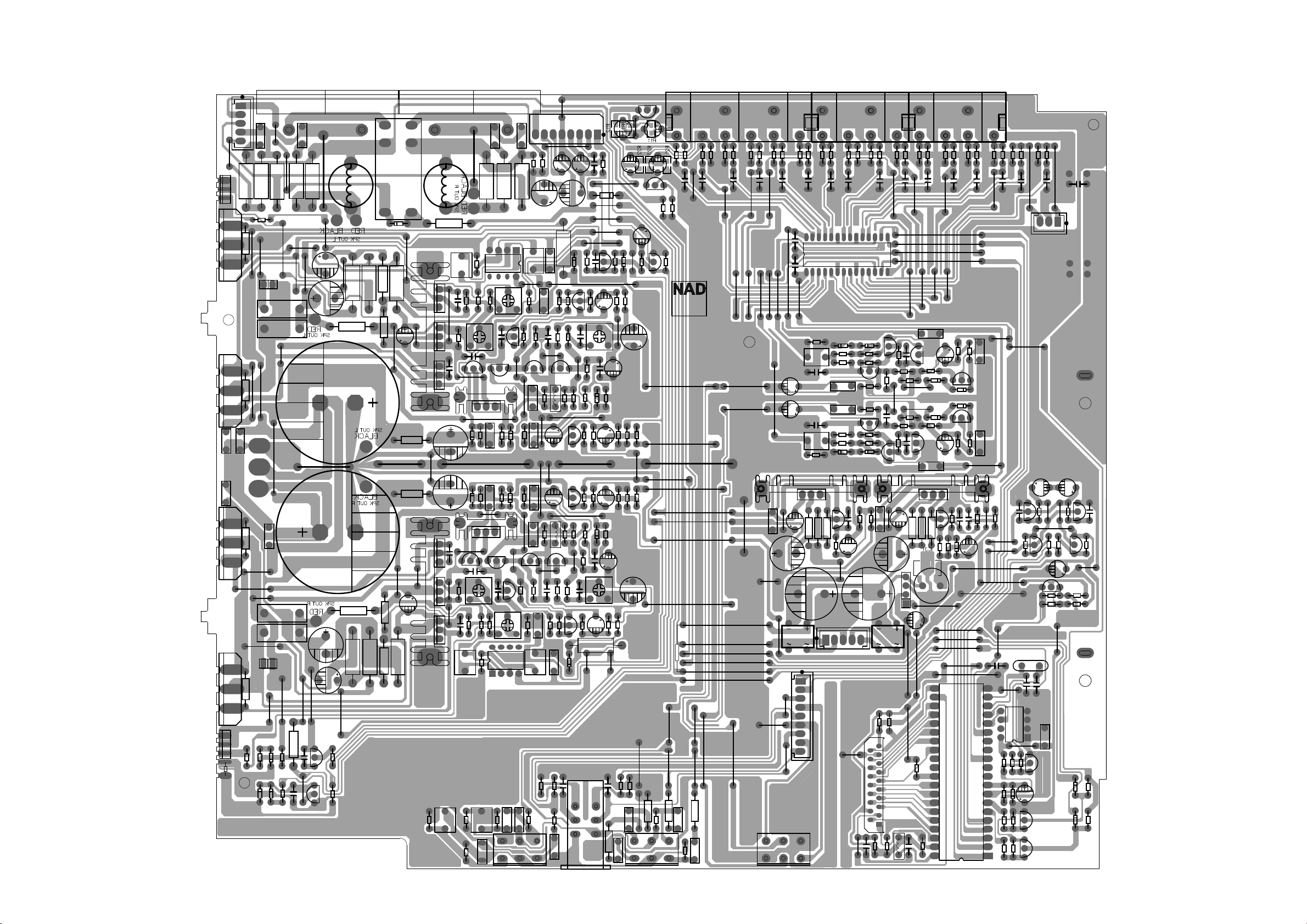

PCB LAYOUT………………………………………………………………..........18-21
TROUBLE SHOOTING GUIDE…………………..........................................22
ELECTRICAL PARTS LIST……………………………………………..........23-29
EXPLODED VIEW…………………………………………………………….....30
EXPLODED VIEW PARTS LIST…………………………………………….......31

PRODUCT SAFETY SERVICING GUIDELINES
CAUTION : DO NOT ATTEMPT TO MODIFY THIS PRODUCT IN
ANY WAY. NEVER PERFORM CUSTOMIZED INSTALLATIONS
WITHOUT MANUFACTURER’S APPROVAL. UNAUTHORIZED
MODIFICATIONS WILL NOT ONLY VOID THE WARRANTY, BUT
MAY LEAD TO YOUR BEING LIABLE FOR ANY RESULTING
PROPERTY DAMAGE OR USER INJURY.
SERVICE WORK SHOULD BE PERFORMED ONLY AFTER YOU
ARE THOROUGHLY FAMILIAR WITH ALL OF THE FOLLOWING
SAFETY CHECKS AND SERVICING GUIDELINES. TO DO
OTHERWISE, INCREASES THE RISK OF POTENTIAL HAZARDS
AND INJURY TO THE USER.
WHILE SERVICING, USE AN ISOLATION TRANSFORMER FOR
PROTECTION FROM AC LINE SHOCK.
SAFETY CHECKS
AFTER THE ORIGINAL SERVICE PROBLEM HAS BEEN
CORRECTED. A CHECK SHOULD BE MADE OF THE
FOLLOWING.
SUBJECT : FIRE & SHOCK HAZARD
1. BE SURE THAT ALL COMPONENTS ARE POSITIONED IN
SUCH A WAY AS TO AVOID POSSIBILITY OF ADJACENT
COMPONENT SHORTS. THIS IS ESPECIALLY IMPORTANT
ON THOSE MODULES WHICH ARE TRANSPORTED TO AND
FROM THE REPAIR SHOP.
2. NEVER RELEASE A REPAIR UNLESS ALL PROTECTIVE
DEVICES SUCH AS INSULATORS, BARRIERS, COVERS,
SHIELDS, STRAIN RELIEFS, POWER SUPPLY CORDS, AND
OTHER HARDWARE HAVE BEEN REINSTALLED PER
ORIGINAL DESIGN. BE SURE THAT THE SAFETY PURPOSE
OF THE POLARIZED LINE PLUG HAS NOT BEEN DEFEATED.
3. SOLDERING MUST BE INSPECTED TO DISCOVER POSSIBLE
COLD SOLDER JOINTS, SOLDER SPLASHES OR SHARP
SOLDER POINTS. BE CERTAIN TO REMOVE ALL LOOSE
FOREIGN PARTICLES.
4. CHECK FOR PHYSICAL EVIDENCE OF DAMAGE OR
DETERIORATION TO PARTS AND COMPONENTS. FOR
FRAYED LEADS, DAMAGED INSULATION (INCLUDING AC
CORD). AND REPLACE IF NECESSARY FOLLOW ORIGINAL
LAYOUT, LEAD LENGTH AND DRESS.
5. NO LEAD OR COMPONENT SHOULD TOUCH A RECEIVING
TUBE OR A RESISTOR RATED AT 1 WATT OR MORE. LEAD
TENSION AROUND PROTRUDING METAL SURFACES MUST
BE AVOIDED.
6. ALL CRITICAL COMPONENTS SUCH AS FUSES,
FLAMEPROOF RESISTORS, CAPACITORS, ETC. MUST BE
REPLACED WITH EXACT FACTORY TYPES, DO NOT USE
REPLACEMENT COMPONENTS OTHER THAN THOSE
SPECIFIED OR MAKE UNRECOMMENDED CIRCUIT
MODIFICATIONS.
7. AFTER RE-ASSEMBLY OF THE SET ALWAYS PERFORM AN
AC LEAKAGE TEST ON ALL EXPOSED METALLIC PARTS OF
THE CABINET, (THE CHANNEL SELECTOR KNOB, ANTENNA
TERMINALS. HANDLE AND SCREWS) TO BE SURE THE SET
IS SAFET TO OPERATE WITHOUT DANGER OF ELECTRICAL
SHOCK. DO NOT USE A LINE ISOLATION TRANSFORMER
DURING THIS TEST USE AN AC VOLTMETER, HAVING 5000
OHMS PER VOLT OR MORE SENSITIVITY, IN THE
FOLLOWING MANNER; CONNECT A 1500 OHM 10 WATT
RESISTOR, PARALLELED BY A .15 MFD, 150V AC TYPE
CAPACITOR BETWEEN A KNOWN GOOD EARTH GROUND
(WATER PIPE, CONDUIT, ETC.) AND THE EXPOSED
METALLIC PARTS, ONE AT A TIME.
MEASURE THE AC VOLTAGE ACROSS THE COMBINATION
OF 1500 OHM RESISTOR AND .15 MFD CAPACITOR.
REVERSE THE AC PLUG AND REPEAT AC VOLTAGE
MEASUREMENTS FOR EACH EXPOSED METALLIC PART.
VOLTAGE MEASURE MUST NOT EXCEED 75 VOLTS R.M.S.
THIS CORRESPONDS TO 0.5 MILLIAMP AC ANY VALUE
EXCEEDING THIS LIMIT CONSTITUTES A POTENTIAL
SHOCK HAZARD AND MUST BE CORRECTED IMMEDIATELY.
SUBJECT : GRAPHIC SYMBOLS
SUBJECT : TIPS ON PROPER INSTALLATION
1. NEVER INSTALL ANY PRODUCT IN A CLOSED-IN RECESS,
CUBBYHOLE OR CLOSELY FITTING SHELF SPACE. OVER
OR CLOSE TO HEAT DUCT, OR IN THE PATH OF HEATED
AIR FLOW.
2. AVOID CONDITIONS OF HIGH HUMIDITY SUCH AS:
OUTDOOR PATIO INSTALLATIONS WHERE DEW IS A
FACTOR, NEAR STEAM RADIATORS WHERE STEAM
LEAKAGE IS A FACTOR, ETC.
3. AVOID PLACEMENT WHERE DRAPERIES MAY OBSTRUCT
REAR VENTING. THE CUSTOMER SHOULD ALSO AVOID THE
USE OF DECORATIVE SCARVES OR OTHER COVERINGS
WHICH MIGHT OBSTRUCT VENTILATION.
4. WALL AND SHELF MOUNTED INSTALLATIONS USING A
COMMERCAL MOUNTING KIT MUST FOLLOW THE FACTORY
APPROVED MOUNTING INSTRUCTIONS A PRODUCT
MOUNTED TO A SHELF OR PLATFORM MUST RETAIN ITS
ORIGINAL FEET (OR THE EQUIVALENT THICKNESS IN
SPACERS) TO PROVIDE ADEQUATE AIR FLOW ACROSS
THE BOTTOM, BOLTS OR SCREWS USED FOR FASTENERS
MUST NOT TOUCH ANY PARTS OR WIRING. PERFORM
LEAKAGE TEST ON CUSTOMIZED INSTALLATIONS.
5. CAUTION CUSTOMERS AGAINST THE MOUNTING OF A
PRODUCT ON SLOPING SHELF OR A TILTED POSITION,
UNLESS THE PRODUCT IS PROPERLY SECURED.
6. A PRODUCT ON A ROLL-ABOUT CART SHOULD BE STABLE
ON ITS MOUNTING TO THE CART. CAUTION THE
CUSTOMER ON THE HAZARDS OF TRYING TO ROLL A CART
WITH SMALL CASTERS ACROSS THRESHOLDS OR DEEP
PILE CARPETS.
7. CAUTION CUSTOMERS AGAINST THE USE OF A CART OR
STAND WHICH HAS NOT BEEN LISTED BY UNDERWRITERS
LABORATORIES, INC. FOR USE WITH THEIR SPECIFIC
MODEL OF TELEVISION RECEIVER OR GENERICALLY
APPROVED FOR USE WITH T.V.’S OF THE SAME OR
LARGER SCREEN SIZE.
8. CAUTION CUSTOMERS AGAINST THE USE OF EXTENSION
CORDS, EXPLAIN THAT A FOREST OF EXTENSIONS
SPROUTING FROM A SINGLE OUTLET CAN LEAD TO
DISASTROUS CONSEQUENCES TO HOME AND FAMILY.
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN
EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF UNINSULATED “DANGEROUS VOLTAGE” WITHIN THE
PRODUCT’S ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO
CONSTITUTE A RISK OF ELECTRIC SHOCK.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS
INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT
OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE APPLIANCE.

SERVICING PRECAUTIONS
CAUTION : Before servicing the A/V Receiver covered by this
service data and its supplements and addends, read and follow the
SAFETY PRECAUTIONS. NOTE : if unforeseen circumstances
create conflict between the following servicing precautions and any
of the safety precautions in this publication, always follow the safety
precautions.
Remember Safety First:
General Servicing Precautions
1. Always unplug the A/V Receiver AC power cord from the AC
power source before:
(1) Removing or reinstalling any component, circuit board,
module, or any other assembly.
(2) Disconnecting or reconnecting any internal electrical plug or
other electrical connection.
(3) Connecting a test substitute in parallel with an electrolytic
capacitor.
Caution : A wrong part substitution or incorrect polarity installation
of electrolytic capacitors may result in an explosion hazard.
2. Do not spray chemicals on or near this A/V Receiver or any of its
assemblies.
3. Unless specified otherwise in this service data, clean electrical
contacts by applying an appropriate contact cleaning solution to
the contacts with a pipe cleaner, cottontipped swab, or
comparable soft applicator.
Unless specified otherwise in this service data, lubrication of
contacts is not required.
4. Do not defeat any plug/socket B+ voltage interlocks with which
instruments covered by this service manual might be equipped.
5. Do not apply AC power to this A/V Receiver and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.
6. Always connect test instrument ground lead to the appropriate
ground before connecting the test instrument positive lead. Always
remove the test instrument ground lead last.
Insulation Checking Procedure
Disconnect the attachment plug from the AC outlet and turn the
power on. Connect an insulation resistance meter(500V) to the
blades of the attachment plug. The insulation resistance between
each blade of the attachment plug and accessible conductive parts
(Note 1) should be more than 1M-ohm.
Note 1 : Accessible Conductive Parts including Metal panels, Input
terminals, Earphone jacks, etc.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by
static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical Es
devices are integrated circuits and some field effect transistors and
semiconductor chip components.
The following techniques should be used to help reduce the
incidence of component damage caused by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed for
potential shock reasons prior to applying power to the unit under
test.
2. After removing an electrical assembly equipped with ES devices,
place the assembly on a conductive surface such as aluminum
foil, to prevent electrostatic charge buildup or exposure of the
assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an antistatic solder removal device. Some solder
removal devices not classified a “anti-static” can generate
electrical charges sufficient to damage ES devices.
5. Do not use freonpropelled chemicals. These can generate
electrical charge sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically
shorted together by conductive foam, aluminum foil, or
comparable conductive material).
7. lmmediately before removing the protective material from the
leads of a replacement ES device, touch the protective material to
the chassis or circuit assembly into which the device will be
installed.
Caution : Be sure no power is applied to the chassis or circuit, and
observe all other safety precautions.
8. Minimize bodily motions when handing unpackaged replacement
ES devices. (Normally harmless motion such as the brushing
together of your clothes fabric or the lifting of your foot from a
carpeted floor can generate static electricity sufficient to damage
an ES device.)

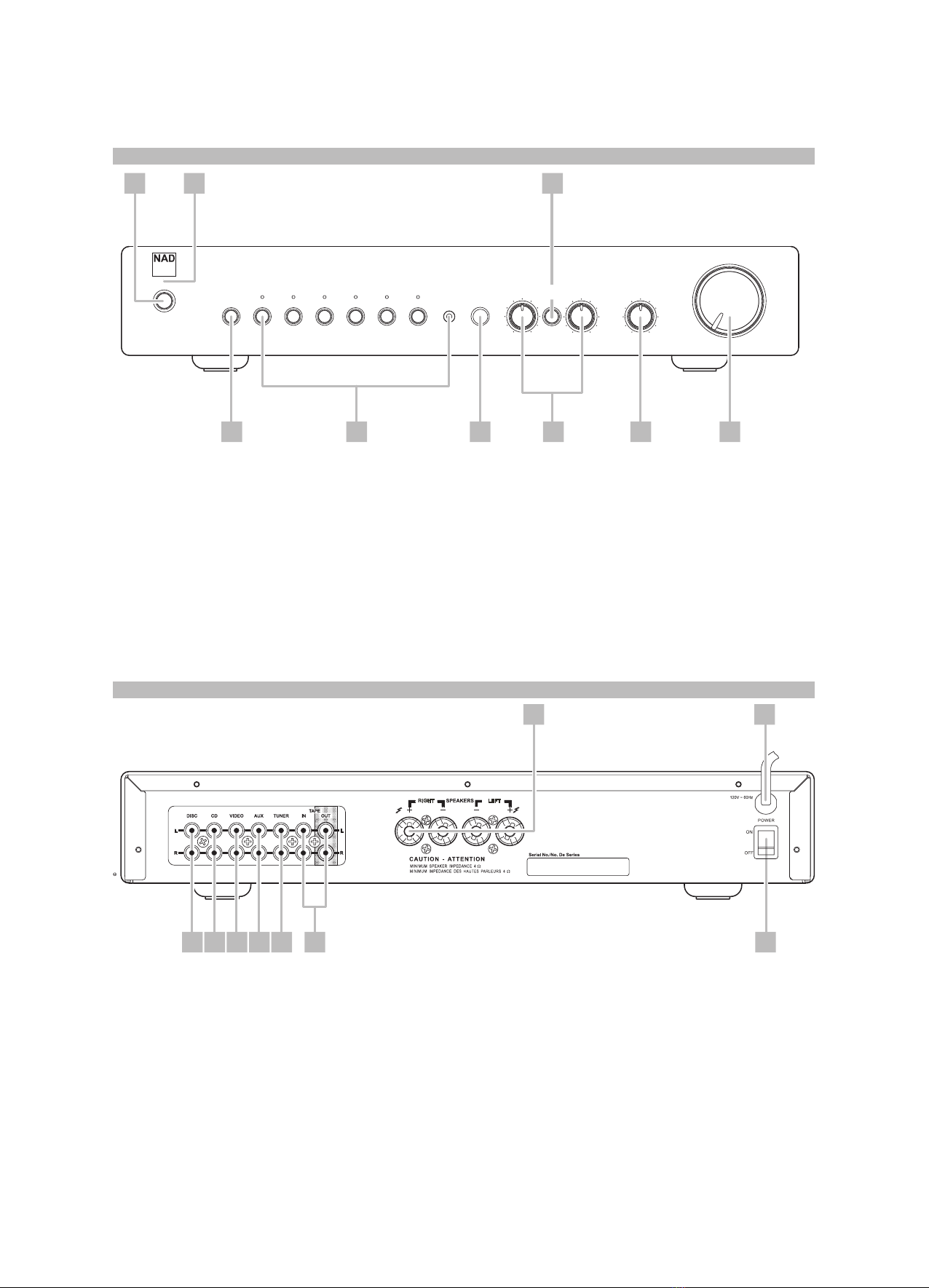

FRONT PANEL CONTROLS (FIGURE 1)
REAR PANEL CONNECTIONS (FIGURE 2)
VOLUME
TREBLE BALANCE
BASS
5
©
468 9
7
3
12
TON E
DEFEAT
PHONES TAPE V ID EOTUNER CD
AUX MP
DISC
Stereo Integrated Amplifier C 316BEE
1 2 7
3 4 5 6 8 9
7 8
1 2 3 4 5 6 9
AÇNARF
1. DISC INPUT
2. CD INPUT
3. VIDEO INPUT
4. AUX INPUT
5. TUNER INPUT
6. TAPE IN/OUT
7. SPEAKERS OUT
8. AC LINE CORD
9. POWER SWITCH
1. POWER
2. POWER/STAND BY/
PROTECTION LED
3. HEADPHONE
4. INPUT SELECTOR
5. IR RECEIVER
6. TONE CONTROLS
7. TONE DEFEAT
8. BALANCE CONTROL
9. VOLUME CONTROL
EEB613C DAN EEB613C DAN

SPECIFICATIONS
PREAMP IN , SPEAKERS OUT
CONTINUOUSAVERAGEPOWER 40W(16dBW)
OUTPUT INTO 8 OHMS OR 4 OHMS
(Min. power per channel, 20 Hz – 20 kHz,
with no more than rated distortion)
THD+Noise <0.02%
Clippingpower 45W
(maximum continuous power per channel 4 and 8).
IHF dynamic headroom:at8ohms + 3.6 dB
at4ohms + 4.8 dB
IHF dynamic power
(maximum short term power per channel) 8 ohms: 90W (19.5 dBW)
4ohms: 120W (20.8 dBW)
2ohms: 170 W (22.3 dBW)
Damping factor(ref. 8 ohms 1 kHz) > 200
Input Impedance R = 50 kohms
C = 100pF
Input sensitivity (forratedoutputinto8ohms) 200 mV
Voltage gain 39dB
Frequency response 20Hz–20kHz <+/-1.0 dB (tone defeat off)
<+/-0.2dB (tone defeat on)
Signal / Noise ratio,A-weighted 95dB ref. 1 W
111dB ref. 40 W
SMPTEI.M. <0.02%
(Intermodulation Distortion, 60 Hz + 7 kHz,
4:1, from 250 mW to rated output)
IHF I.M. < 0.01%
(CCIF IM Distortion, 19 + 20 kHz at rated output)
Headphones Output Impedance 68 ohms
Maximum input signal 7 V
CONTROLS
Treble +/- 5 dB at 10 kHz
Bass +/- 8 dB at 100 Hz
DIMENSIONS AND WEIGHTS NetWeight 5.52kg
ShippingWeight 6.65 kg
DIMENSION(WHD) 435X70X242mm

WIRINGDIAGRAM
AC POWER PLUG
WB01HS-001(C)
WB05HS-001(AH)
TRANSFORMER
UL1672 AWG#18, #16
POWER SWITCH BOARD
CB62
CB61
UL2468 AWG#26
POWER BOARD
UL2468 AWG#26
CB42
CB45
CB43
UL1672 AWG#18
CB41
CB44
CB47
CB63
TO
UL1672 AWG#18
CB46
UL2468 AWG#26
POWERSWITCH
UL1672 AWG#18
KEYBOARD
CB53
STANDBY BOARD
FPC 1.25-19P
CZ54
CZ32
UL2468 AWG#26
POTBOARD
MAINBOARD
UL2468 AWG#26
CZ34
CB34
CB32
CB54
TRANSFORMER HEADPHONEBOARD UL2468 AWG#26
CZ31 CB31

TAPE OUT L
DISC L
DISC R
CD R
VIDEO R
AUX R
TAPE1 IN R
TAPE1 IN L
AUX L
VIDEO L
CD L
PREAPM AMP CIRCUIT
BASS
RT31
RT32
RT34
TREBLE BALANCE
SW31
TONE DEFEAT
RT33
VOLUME
PRE-OUT L PRE-OUT R
MAIN IN R
MAIN IN L
POWER AMP
CIRCUIT L
CIRCUIT R
POWER AMP
PROTECTION
CIRCUIT
RL301
MCU(W78E52C)
JK31
R330
POSISTOR
(80 DEGREE C)
BLOCK DIAGRAM
HEADPHONE
TUNER R
TUNER L
CONTROL
MP R
MP L
TAPE OUT R
Speaker R
Speaker L
JQX-115F/24
VOL-
VOL+ VOLUME CONTROL
CIRCUIT (REMOTE)
MUTE
Q120 MUTE
Q220
MUTE CIRCUIT
FOR RECORD OUT
TEMP COMPENSATION
CIRCUIT(Q122,Q222 ON THE MAIN HEATSINK)
INPUT AND STANDBY INDICATION LEDS
INPUT SELECTION IC(TC9164CNG)
+/-17V SUPPLY CIRCUIT +/-45V SUPPLY CIRCUIT
MUTE
Q105 MUTE
Q205
MAIN MUTE
CIRCUIT

+5V
enil lortnoc ybdnaS ylppuS rewoP V81
tiucriC lortnoC
+5V
noitceles tupnI
SDEL dna syeK
+5V
etuM niaM
tiucriC etuM
tuO droceR
tiucriC
305CI
V
S
G
reviecer RI
emuloV
tiucriC
CN 1
CN 2
CN 3
ssV 4
ADS
5LCS
6CN
7ccV
8
205CI
10C42
405C
P72
505C
P72
105X
zHM2950.11
5ENOHP
NI PM
ATAD
KLC
BTS
103U
4619CT
CI noitceleS tupnI
MARGAID NOITCENNOC ROSSECORPORCIM
0.1P 1
TSR 9
0.3P/DXR 01
1.3P/DXT 11
2.3P/0TNI 21
3.3P/1TNI 31
4.3P/0T 41
5.3P/1T 51
6.3P/RW 61
7.3P/DR 71
2LATX 81
1LATX 91
SSV 02
8A/0.2P
12
9A/1.2P
22
01A/2.2P
32
11A/3.2P
42
21A/4.2P
52
31A/5.2P
62
41A/6.2P
72
51A/7.2P
82
NESP
92
ELA
03
AE
13
7DA/7.0P
23
6DA/6.0P
33
5DA/5.0P
43
4DA/4.0P
53
3DA/3.0P
63
2DA/2.0P
73
1DA/1.0P
83
0DA/0.0P
93
DDV
04 1.1P 2
2.1P 3
3.1P 4 4.1P 5
5.1P 6
6.1P 7 7.1P 8
105CI
15S98TA
105D DEL3
eulB
deR
rebmA
Power LED control circuit

24C01
KEY BOARD IC71
PIN CONFIGURATION
>
CONTROL
LOGIC
X
DECODER
SLAVE ADDRESS
REGISTER &
COMPARATOR
WORD ADDRESS
COUNTER
HIGH VOLTAGE
GENERATOR,
TIMING & CONTROL
EEPROM
ARRAY
Y
DECODER
DATA
REGISTER
Clock
DI/O
ACK
8
5
6
7
4
GND
WP
SCL
SDA
Vcc
nMOS
FUNCTIONAL BLOCK DIAGRAM
1
2
3
4 5
6
7
8
NC
NC
NC
VSS
VCC
NC
SCL
SDA

1 2 3 4 5 6 7
8 9 10 11 12 13 14 15 16 17 18 19 20 21
22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 Vcc
P0.0(AD0) P0.1(AD1) P0.2(AD2) P0.3(AD3) P0.4(AD4) P0.5(AD5) P0.6(AD6) P0.7(AD7) P2.0(A8) P2.1(A9) P2.2(A10) P2.3(A11) P2.4(A12) P2.5(A13) P2.6(A14) P2.7(A15) PSEN ALE/PROG EA/VPP
(T2)P1.0
(T2EX)P1.1
P1.2
P1.3 P1.4 P1.5 P1.6 P1.7 RST
(RXD)P3.0
(TXD)P3.1
(INT0)P3.2 (INT1)P3.3
(T1)P3.5 (T0)P3.4
(WR)P3.6
(RD)P3.7
XTAL1 XTAL2
GND
AT89S51/W78E052DDG
MAIN BOARD : IC501PIN CONFIGURATION
OSC
WATCH
DOG PORT 1
LATCH
LATCH
LATCH LATCH
PORT 0 PORT 2
PORT 0 DRIVERS
PORT 1 DRIVERS
PORT 2 DRIVERS
PORT 3 DRIVERS
QUICK
FLASH
RAM
RAM ADDR.
REGISTER
REGISTER
BACC STACK
PIONTER
PROGRAM
ADDRESS
REGISTER
BUFFER
PC
INCREMENTER
PROGRAM
COUNTER
DUAL DPTR
INTERRUPT,SERIAL PORT
AND TIMER BLOCKS
TMP2 TMP1
ALU
PSW
TIMING AND
CONTROL INSTRUCTION
REGISTER
P1.0 ------ P1.7P3.0 ------ P3.7
P2.0 ------ P2.7
P1.0 ------ P1.7
PORT 3 PORT
ISP PROGRAM
LOGIC

L-S1
2
L-S2
3
L-S3
4
L-S4
5
L-S5
7
L-S6
8
L-S7
10
L-S8
11
L-COM 1
6
L-COM 2
9
L-COM 3
12
STB
13
GND
14
R-S1 27 R-S2 26 R-S3 25 R-S4 24 R-S5 22 R-S6 21 R-S7 19 R-S8 18
R-COM 1 23 R-COM 2 20 R-COM 3 17
DATA 16
CLK 15
Vss
1Vdd 28
MAIN BOARD:U301
TC9164CNG
PIN CONFIGURATION
1
2
3
4
8
7
6
5
1OUT
1IN−
1IN+
VCC−
VCC+
2OUT
2IN−
2IN+
TL082, TL082A, TL082B
D, JG, P, PS, OR PW PACKAGE
(TOP VIEW)

ALIGNMENT PROCEDURES
A. LOWEST VOLUME ADJUSTMENT
3. Connect a oscilloscope to L channel binding posts.
1. Tune the volume pot to lowest state.
2. Input a high voltage signal such as 5V from CD input.
4. Observing the oscilloscope,adjust VR102,make the output of speakers become to the
5. Adjusting VR202,make R channel output become to the lowest level by same way.
B. IDLING CURRENT
4. Connect a DC voltmeter toTP3 and TP4 ,adjust VR101/VR103 for 12.5mV reading on voltmeter.
3. Connect a DC voltmeter toTP1 and TP2 ,adjust VR201/VR203 for 12.5mV reading on voltmeter.
1. Adjaut 25mV initial idling current for L/R channels,dismount top cover.
TP1TP2
TP3TP4
VR101
VR201 VR202
VR203
MAIN BOARD
lowest level.
C316BEE
VR103
2. Let unit run for 10 minutes.
5. Cover the top cover.
VR102

RCA31A
L
RCA31C
L
RCA32A
L
RCA32C
L
RCA33A
L
RCA33C
L
RCA33E
L
R101
470
R103
470
R105
470
C101
100p
C102
100p
C103
100p
R107
470
R109
470
R111
470
C104
100p
C105
100p
C106
100p
R113
470 C107
100p
RCA31B
R
RCA31D
R
RCA32B
R
RCA32D
R
RCA33B
R
RCA33D
R
RCA33F
R
R201
470
R203
470
R205
470
C201
100p
C202
100p
C203
100p
R207
470
R209
470
R211
470
C204
100p
C205
100p
C206
100p
R213
470 C207
100p
R212
1M
R214220K
R114 220K
R112
1M
R102
1M
R104
1M
R106
1M
R108
1M
R110
1M
R202
1M
R204
1M
R206
1M
R208
1M
R210
1M
Q101
2SC2240
Q103
2SD667A
Q102
2SA970
Q104
2SB647A
R122 1K
R125
2K2
R128
33
R129
10
D103
1N4148
D104
1N4148
R126
4.7K
R127
4.7K
R123
750 MF1%
R124
470 MF1%
C113
47uF/25V
C112
47pF/250V
C110
100pF/250V/NP0
R120
220
D102
1N4148 R121
330K
D101
1N4148
R119
390k
C109
0.47uF
1
2
3SW31A
C115 47uF/25V
R131
3K MF1%
R132 750 MF 1%
R134
3901% MF
R1 3 3 18 0 MF1 %
C1 1 7 22nF 5%
C1 1 8 0.1 u F 5%
R137
1K5MF1%
R138
412 MF1%
C119 0.22u 5%
C120
1u 5%
C121
470P
TONE DEFEATSW
R139
20K
OFF
ON
VOLUMEPOT
BALANCE POT
BASS POT
TREBLE POT
C116
0.1uF63V
RT31A 10KA
RT32A
10KA
RT34A 20K MN
C145
22nF
R136
220K
D303
1N4001
R320
22K
3
1
2
IC31
AMS1117-5.0
1
2
3
4
D306
DB104
C322
1000uF/16V C321 100uF/16V
R317
33 1/2WFS
R319
680
R316
680
C314
220uF50V
Q308
KSC2690
C313
330p
R311 680 R310 680
R309
680
D301
16V 1/2W
C311
47uF/25V
C307 47uF/25V R308 22K MF 1%
R314
33 1/2WFS
R318
680
R315
680
C315
220uF50V
Q306
2SC1815
C312
330p
R313
680
C310
10uF/25V
C309
47uF/25V
R307 20K MF 1%
Q307
KSA1220
Q305
2SA970-BL
C306 0.1u CL23B
C308 0.1uF CL23B
-17V
R312 N.I.
D302
N.I.
+17V
R321
510 1/2WPF
R118
220K
RL301
JQX-115F/24
C111
0.1uF
+17V
-17V
C114
0.1uF
Q220
2SC2878
Q120
2SC2878
+45V
Q201
2SC2240
Q203
2SD667A
Q202
2SA970
Q204
2SB647A
R222 1K
R225
2K2
R228
33
R229
10
D203
1N4148
D204
1N4148
R226
4.7K
R227
4.7K
R223
750 MF1%
R224
470 MF1%
C213
47uF/25V
C212
47pF
C210
100pF/250V/NP0
R220
220
D202
1N4148 R221
330K
D201
1N4148
R219
390k
C209
0.47uF
4
5
6SW31B
C215
47uF/25V
R231
3K
R232 750 1/6W MF
R234
390 MF1%
R233 180 MF 1%
C217 22nF 5%
C218 0.1uF 5%
R237
1K5MF1%
R238
412 MF1%
C219 0.22u 5%
C220
1u 5%
C221
470P 250V
TONE DEFEATSW
R239
20K
OFF
ON
BALANCE POT
BASS POT
TREBLE POT
C216
0.1uF
RT31B 10KA
RT32B
10KA
RT34B 20K MN
C245
22nF
R236
220K
R218
220K
C211
0.1uF
+17V
-17V
C214
0.1uF
R215
470
R216
1M
C208
100p
R115
470
R116
1M
C108
100p
DISC
CD
VIDEO
AUX
TUNER
TAPE
REC
CDL
CDR
DISCL
DISCR
VIDEOL
VIDEOR
AUX L
AUX R
TUNERL
TUNERR
TAPEL
TAPER
RECL
RECR
MPL
MPR
D305
1N4148
1
2
3
4
5
CB31
1
2
3
4
SPKOUT
BINDINGPOST
+5V
-45V+45V
1 2 3 4 5
CB32
+/-17Vand5VSupply
+35V
-35V
1
2
3
4
5
6
7
8
9
CB34
Volume
C323
10000uF/63V10%
C324
10000uF/63V10%
R332
10
C327
0.22uF
C328
0.1uF
ToPowerBoard
ToPowerBoard
1
2
3
CB54
MP Input
C329
2200uF,50V
C330
2200uF,50V
1
2
3
4
D307
DB104
R283 220/2WFP
R183 220/2WFP
R288
100/2W/FP
R188
100/2W/FP
L -S 1
2
L -S 2
3
L -S 3
4
L -S 4
5
L -S 5
7
L -S 6
8
L -S 7
10
L -S 8
11
L -C O M 1
6
L -C O M 2
9
L -C O M 3
12
S T B
13
GND
14
R - S 1 27 R - S 2 26 R - S 3 25 R - S 4 24 R - S 5 22 R - S 6 21 R - S 7 19 R - S 8 18
R - CO M 1 23 R - CO M 2 20 R - CO M 3 17
D A T A 1 6
CLK 15
V ss
1V d d 2 8
U301
TC9164CNG
CD L
CD R
DIS C L
DIS C R
VID EO L
VID EO R
AUX L
AUX R
TU N ER L
TU N ER R
TA P E L
TA P E R
REC L
REC R
MP L
MP R
IP SELDATA
IP SELCLK
IP SEL STB
MP R
L
JK31
1
2
3
4
5
CZ31
PHONES SOCKET
N8C320D03
RT33A
20KB
- +
M
RT33C
RT33B
20KB
1
2
3
4
5
6
7
8
9
CZ34
+35V
MOTOR
RecordMute
IPSEL STB
IPSEL CLK
IPSEL DATA
Volume-
Volume+
Remotemute
Protection
Standby
+ 5 V GND
Name
C315BEE MainBoard
+5V
Q114
KSC2690
Q111
2SA1360
Q107
2SA970
C123
10uFCD11A
C122
0.1uF
Q113
KSC2690
Q118
2SC2240
Q108
2SC2240
Q117
2SC5200
Q106
2SC2240
Q115 2SA1943
Q109
2SA970Q110
2SA1015
Q316
2SA970
Q116
KSA1220
R148
1K
R151
10K 1/6WCF R150 10K 1/6WCF R164 27 1/6WCF
R149
100 1/6WCF
R177
0.068R/2W
R166
360 1/6WCF
R160 82 1/6W C F
R162
4K71WFP
R165
412 1/6WCF
R163
4K71/2WFP
R181
51 1/6WMF
R153
240 1/6WCF
R173
51 1/6WMF
R174
0.068R/2W
C128
47uF/25V
C127
0.1uF63V
C130
47nF/63V CL2 3B
D108 1N4148
D109 1N4148
VR101
100
C132 10uF 25V
R167
1K 1WFP
R168
1K 3WFP
C131
47uF63VCD110
C133
220uF63VCD110
R147
1K11/6WCF
R155 82 1/6W M F 1%
R154
100 1/6WCF
R158
100K 1/6WMF C1 2 9 47pF/250V
L11
100uH
R143
100 1/6WCF
R146
470 1/6WCF
C125
470pF/250VNPO
R141
22K
D105
1N4148
R142
22K 1/6WCF
C126
10uF50V
C140
22N
C138
0.1uF63VCL23B
C139
0.1uF63VCL23B
C137
1uF/63VCL23B
R178
1K
R179
56K
D112
1N4148
R331
6K8
R180
22K
L12
1uH
R176
3R3/1WPF
R175
10R/1WPF
R157
4.3K 1/2WMF1%
-45V
IC11A
TL082D
C136
1uF/63VCL23B
R172
1M1/6WCF
C135
0.1uF
C134
0.1uF
R156
2.2K 1/6WCF
R171
1M1/6WCF
R140
220 1/6WCF
Q105
2SC2878
C142
22nF/63VCL23B
C141
0.1uF63VCL23B
R187
47,1/2W,FS
C143
220uF
C144
10pF
R189
390 C146
47pF
C124
220uF/10V
R190
3.3K/1W -45V
D113
4.7V
C147
75pF
C148
75pF
Q214
KSC2690
Q211
2SA1360
Q207
2SA970
C223
10uFCD11A
C222
0.1uF
Q213
KSC2690
Q218
2SC2240
Q208
2SC2240
Q217
2SC5200
Q206
2SC2240
Q215
2SA1943
Q209
2SA970 Q210
2SA1015
Q216
KSA1220
R248
1K
R251
10K 1/6WCF R250 10K 1/6WCF R264 27 1/6WCF
R249
100 1/6WCF
R277
0.068R/2W
R266
360 1/6WCF
R260 82 1/6W C F
R262
4K71WFP
R265
412 1/6WCF
R263
4K71/2WFP
R281
51 1/6WMF
R253
240 1/6WCF
R273
51 1/6WMF
R274
0.068R/2W
C228
47uF/25V
C227
0.1uF63V
C230
47nF/63V CL2 3B
D208 1N4148
D209 1N4148
VR201
100
C232 10uF 25V
R267
1K 1WFP
R268
1K 3WFP
C231
47uF63VCD110
C233
220uF63VCD110
R247
1K11/6WCF
R255 82 1/6W M F 1%
R254
100 1/6WCF
R258
100K 1/6WMF C2 2 9 47pF/250V
L21
100uH
R243
100 1/6WCF
R246
470 1/6WCF
C225
470pF/250VNPO
C224
220uF/10V
R241
22K
D205
1N4148
R242
22K 1/6WCF
C226
10uF50V
C240
22N
C238
0.1uF63VCL23B
C239
0.1uF63VCL23B
C237
1uF/63VCL23B
R278
1K
R279
56K
D212
1N4148 R280
22K
L22
1uH
R276
3R3/1WPF
R275
10R/1WPF
R257
4.3K 1/2WMF1%
-45V
IC21A
TL082D
R272
1M1/6WCF
C235
0.1uF
C234
0.1uF
R256
2K21/6WCF
R271
1M1/6WCF
R240
220 1/6WCF
Q205
2SC2878
C242
22nF/63VCL23B
C241
0.1uF63VCL23B
+45V
C243
220uF
R287
47,1W,FS
C236
1uF/63VCL23B
C244
10pF
R290
3.3K/1W
D213
4.7V
-45V
R289
390 C246
47pF
C247
75pF
C248
75pF
C320
100uF/50VCD110
R182
56K 1/6WCF
R282
56K 1/6WCF
Q315
2SC1815
R329
30K
R330
T0=80 degree C
+17V
C332
100uF/50VCD110
D310
1N4148
D311
1N4148
R339
33K
Standby
C333
N.I.
1 2 3 4 5 6 7 8
CB35
ProtectionModule
R342
4.7K,1/2W,FP
+45V
C338
0.22uF
C334
100uF/16V
C325
0.1uF
C326
0.1uF
+17V
-17V
C335
0.47uF/50V
C336
47uF/25V
R191 1 ,1/ 6W ,M F 1%
R192
15K,1/6W
VR102
20K,5%
VR202
20K,5%
R292
15K
R291 1 ,1/ 6W ,1 %
C249
N.I
C149
N.I
R343
100,1/6W
C337
39pF
R193
510
R293
510
R294
510
R194
510
-17V
+17V
+17V
-17V
Q121
2SA970 R195
1K 1/6WCF
Q221
2SA970 R295
1K 1/6WCF
+/-45VSupply
Headphone
C22
10uF
C12
10uF
C11
10uF
C21
10uF
R13 220K
R23 220K
R22 100K
R12 100K
R21 8.2
R11 8.2
+17V
+17V R26
22K
C23
10uF
R16
22K
R25
100K
R15
100K
R24
8.2
R14
8.2
+17V
+17V
C13
10uF
VR103
2K
R17
820
Q122
KSC2690
R196
3K3
VR203
2K
R27
820
Q222
KSC2690
R296
3K3
PCB-5: HEADPHONE BOARD Vm1.0
HEADPHONE CIRCUITVm1.0
PCB-3:POT BOARDVm1.0
POT CIRCUIT Vm1.0
PCB-1:MAINBOARD Vm1.0
MAINCIRCUITVm1.0
R344
10K
+35V
1
2
3
4
CZ32
CON4
S t an d by
+5V ToPowerSwitchBoard
+5 V R egulator I np ut
+5VRegulatorInput
4700uF/16V
1
2
3
4
8
7
6
5
1OUT
1IN−
1IN+
VCC−
VCC+
2OUT
2IN−
2IN+
TL082, TL082A, TL082B
D, JG, P, PS, OR PW PACKAGE
(TOP VIEW)

PHONE5
MPIN
C508
100pF C509 100pF
1
2
3
CZ54
MPInput
S502 S503 S505S501 S506S504
D504 D505 D507D503 D506 D508
R509
10K
R510
10K
DISCTAPE AUX CDVIDEOTUNER D502 MP
+5V
TAPE VIDEOAUXTUNER CD DISC/MP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
CZ53
+5V
R519
620
C502
0.1uF
+5V
IC503
HS0038B4
V
S
G
C510
0.1uF
IRreceiver
C504
27P C505 27P
X501
11.0592MHz
R508
10K
RemoteMute
Volume+
Volume-
NC
1NC
2NC
3Vss
4SDA 5
SCL 6
NC 7
Vcc 8
IC502
24C01 C506
0.1uF
R507
10K R502
10K
+5V
P1.0
1
RST
9
RXD/P3.0
10
TXD/P3.1
11
INT0/P3.2
12
INT1/P3.3
13
T0/P3.4
14
T1/P3.5
15
WR/P3.6
16
RD/P3.7
17
XTAL2
18
XTAL1
19
VSS
20 P2.0/A8 21
P2.1/A9 22
P2.2/A10 23
P2.3/A11 24
P2.4/A12 25
P2.5/A13 26
P2.6/A14 27
P2.7/A15 28
PSEN 29
ALE 30
EA 31
P0.7/AD7 32
P0.6/AD6 33
P0.5/AD5 34
P0.4/AD4 35
P0.3/AD3 36
P0.2/AD2 37
P0.1/AD1 38
P0.0/AD0 39
VDD 40
P1.1
2
P1.2
3
P1.3
4
P1.4
5
P1.5
6
P1.6
7
P1.7
8
IC501
W78E052DDG
RecordMute
Q119
2SA1015 R186
100K
-18V
R184
10K
R185
10K
+5V
R306
1K
R301
10K R303 10K
R302
1K R304 1K
R305
1K
C302
4u7/25V C303 4u7/25V
Q303
C1815
Q301
A1015
Q304
C1815
Q302
A1015
+5V
C304
220p C305 220p
C301
10uF
C507
0.1uF
+5V
+5V
Q219
2SA1015
R286
100K
-18V
R284
10K
R285
10K
+5V
R501
10K
+5V
C501
10uF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
CB53
InputsSelection
+5V
R513
10K
R503
10K
Q501
2SC1815
R505
47K
+5V
R504 100K
R514
10K
R515
10K
R516
10K
R517
2K2
Q502
C1815
S507
TACTSWITCH
C511
0.1uF
Remote mute Record mute
IRIN
Volume- Volume+
Standby
Standby Protection
Protection
Volume-
Volume+
RemoteMute
RecordMute
Protection
Standby
IP SEL STB IP SEL CLK IP SEL DATA GND +5V
Name
C315BEE MainBoard
+5V
D509
1N4148
L51
100uH
D114
1N4148
D214
1N4148
MainBoard
C512
0.1uF
SCHEMATICSDIAGRAM
PCB-1:MAINBOARD Vm1.0
MCU CONTROLCIRCUITVm1.0
PCB:STANDBY BOARD Vm1.0
PCB-6:KEY BOARD Vm1.0
KEY CIRCUITVm1.0
R522
220 R521
470
Q504
DTC114
Q503
DTC114
R524
330
1
1
3
3
4
4
22
D501
3LED
Blue Red
Amber
Q506
DTC114
Q505
DTC114
Q508
DTC114
+5V
1 2 3 4 5
CB52
1 2 3 4 5
CZ52
STANDBY
+5V
R511
470
R512
470
Q507
DTA114
STANDBY Circuit Vm1.0

PHONE5
MP IN
C508
100pF
C509
100pF
1
2
3
CZ54
MP Input
S502 S503 S505S501 S506S504
D504 D505 D507D503 D506
ECN NO.
D508
DESCRIPTION Date
R509
10K
APPRO
R510
10K
Document
DISC
Number:
TAPE AUX
Sheet:
CD
State:
VIDEO
Project:
TUNER
Checked:
by:
D502
by:
Date:
MP
Date: Date: Date:
+5V
TAPE VIDEOAUXTUNER CD DISC/MP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
CZ53
+5V
R519
620
C502
0.1uF
+5V
IC503
HS0038B4
V
S
G
C510
0.1uF
IR receiver
C504
27P
C505
27P
X501
11.0592MHz
R508
10K
Remote Mute
Volume+
Volume-
NC
1NC
2NC
3Vss
4SDA 5
SCL 6
NC 7
Vcc 8
IC502
24C01 C506
0.1uF
R507
10K
R502
10K
+5V
P1.0
1
RST
9
RXD/P3.0
10
TXD/P3.1
11
INT0/P3.2
12
INT1/P3.3
13
T0/P3.4
14
T1/P3.5
15
WR/P3.6
16
RD/P3.7
17
XTAL2
18
XTAL1
19
VSS
20 P2.0/A8 21
P2.1/A9 22
P2.2/A10 23
P2.3/A11 24
P2.4/A12 25
P2.5/A13 26
P2.6/A14 27
P2.7/A15 28
PSEN 29
ALE 30
EA 31
P0.7/AD7 32
P0.6/AD6 33
P0.5/AD5 34
P0.4/AD4 35
P0.3/AD3 36
P0.2/AD2 37
P0.1/AD1 38
P0.0/AD0 39
VDD 40
P1.1
2
P1.2
3
P1.3
4
P1.4
5
P1.5
6
P1.6
7
P1.7
8
IC501
W78E052DDG
Record Mute
Q119
2SA1015
R186
100K
-18V
R184
10K
R185
10K
+5V
R306
1K
R301
10K
R303
10K
R302
1K
R304
1K
R305
1K
C302
4u7/25V
C303
4u7/25V
Q303
C1815
Q301
A1015
Q304
C1815
Q302
A1015
+5V
C304
220p
C305
220p
C301
10uF
C507
0.1uF
+5V
+5V
Q219
2SA1015
R286
100K
-18V
R284
10K
R285
10K
+5V
+5V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
CB53
Inputs Selection
+5V
R513
10K
R503
10K
Q501
2SC1815
R505
47K
+5V
R504 100K
R514
10K
R515
10K
R516
10K
R517
2K2
Q502
C1815
S507
TACT SWITCH
C511
0.1uF
Remote mute Record mute
IR IN
Volume- Volume+
Standby
Standby Protection
Protection
Volume-
Volume+
Remote Mute
Record Mute
Protection
Standby
IP SEL STB IP SEL CLK IP SEL DATA GND +5V
Name
C315BEE Main Board
+5V
L51
100uH
D114
1N4148
D214
1N4148
Main Board
SCHEMATICS DIAGRAM
PCB-1:MAIN BOARD Vm1.0
MCU CONTROL CIRCUIT Vm1.1
PCB:STANDBY BOARD Vm1.0
PCB-6:KEY BOARD Vm1.0
KEY CIRCUIT Vm1.0
R522
220
R521
470
Q504
DTC114
Q503
DTC114
R524
330
1
1
3
3
4
4
22
D501
3LED
Blue Red
Amber
Q506
DTC114
Q505
DTC114
Q508
DTC114
+5V
1 2 3 4 5
CB52
1 2 3 4 5
CZ52
STANDBY
+5V
R511
470
R512
470
Q507
DTA114
STANDBY Circuit Vm1.0
REV.
Approved:
Vdd 1
RST 2
GND 3
IC504
MCP101
Delete D509,R501,C501,C512
Add IC504
100422
100422

C402
10nF250V
D402
KBU8D
C401 10nF 250V
D403
KBU8D
F41
T3.15AL/250VForAHVersion
1
2
3
4
5
6
7
CB41
Transformer
DS401
LAMP
DS402
LAMP
+45V
-45V
1
2
3
4
5
CB43
+/-45VSupply
1
2
3
CB42
+/-17V and 5V Supply
8V
0V
34.6V
34.6V
0V
25.2V
25.2V
1
2
3
CB45
1
3
CB44
C403
4.7nF/400V
C404
0.22uF
ACPOWERCORD
SW52
POWERSWITCH
!
T401
RED
VIO
GRY
1
2
3
CZ45
PowerSwitch
ORG
Transformer
!
1
2
3
CZ63
ToPowerSwitchBoardCB63
BLK
1
2
3
4
5
6
7
CZ41
BLUE
BLUE
!
!
CB46
CB47
CZ46
CZ47
To Main BoardTo Main Board
MainsIn
ToBulbs
T1.6AL/250VForCVersion
L41
F5BRH 26*30*16
ToPowerSwitchBoardCB61
1
3
CB63
D61
DB105
1
45
9T61
RL61
D62
LL4148
C63
4N7/400V
R64
1K
Q62
C3324
R65 1K
C64
10nF
R61
4K7 R63
10K
R62
4K7 Q61
C3324
+5V
1
2
3
4
CB62
CON4
+5V
+5V
ToMainBoard
ToPowerBoardCZ63
1
3
CB61
ToPowerBoardCB44
C316BEE Power Supply AH & C-Version

Mains In
To Bulbs
T1.6AL/250V For CCC Version
To Power Switch Board CB61
C402
10nF 250V
D402
KBU8D
C401 10nF 250V
D403
KBU8D
F41
1
2
3
4
5
6
7
CB41
Transformer
DS401
LAMP
DS402
LAMP
+45V
-45V
1
2
3
4
5
CB43
+/-45V Supply
1
2
3
CB42
+/-17V and 5V Supply
8V
0V
34.6V
34.6V
0V
25.2V
25.2V
1
2
3
CB45
1
3
CB44
C403
4.7nF/400V
C404
0.22uF
AC POWER CORD
SW52
POWER SWITCH
!
T401
RED
VIO
GRY
1
2
3
CZ45
Power Switch
ORG
Transformer
!
1
2
3
CZ63
To Power Switch Board CB63
BLK
1
2
3
4
5
6
7
CZ41
BLUE
BLUE
!
!
CB46
CB47
CZ46
CZ47
To Main BoardTo Main Board
L41
F5B RH 26*30*16
L42
25*15*12
C405
2.2nF
C406
2.2nF
(Only for CCC version)
(Only for CCC version)
(Only for CCC version)
!
C316BEE Power Supply CCC-Version

COPYRIGHT C 2010 C316BEE POT BOARD Vm1.
PCB-5: HEADPHONE BOARD
CZ31
JK31
NAD
NAD ELECTRONICS
RT33
J31
PCB-3:POTBOARD
PCB-2: POWERBOARD AH & C-VERSION
DS402
E POWER Vm1.0
(RED)
(WHITE)
GND
+45V
-45V
(BLACK)
CB42
C 2010
RONICS
NAD C316B
COPYRIGH
NAD ELECT
J42
D402
C401
C402
J43
CB43
To Power Switch
To ACCord
DS401
T3.15AL250V For 120V Mains
D403
RED
BLUE
T1.6AL250V For 230V Mains
CB45
C404
F41
CB44
CB47
ToPowerSwitchBoardCB61
CB41
BLUE
E
CZ34
T
CB46
J41 J44

SPKOUT
PCB-1: MAINBOARD
(-45V)
J153
C233
C131
SPK OUTL RL301 J81
D310 D311
R339
C333
Q315
R329
J176
R330 Q222
R279
Q217
R296
J181
R273
TP2
J141
R342
D212 R278 C240 J152
J142
TP1
(+45V)
J144
Q218
R280
C231
Q215
R274
R277
J139J140
SPKOUTR
J138
R281
C238
C141
C241 C138 R181
(+45V)
RED WHITE
(-45V)
BLACK
(GND)
J114
J115
J109 J110(+45V)
(-45V)
Q115
R177
Q117
R174
TP4
J107 J106(-45V)
J112
TP3
SPKOUTL
J108
J12
J88
J122
C133
J179
R133
D306
C337
R343
Q202
J48
Q102
R233
J149 C512
RT34
CB53
R508
C218 C118
J80
R136
RT31
R236 C217
R134 C117
R234
C245
C120
RT32
R139 C119 C145 R137
C219 R237
R238
R239 R138
C220 Q119
Q219
D214
C501
D114
R286 R186
R511
C507
IC501
R285
R512
L51
R185 R501
R284 R184 D509
R309
C307 Q308
C313
C328
J60
X501
C505
J69
(+5V)
J67
R513
R503
J66 J65
J52
J98 (+5V)
J64
C511
R504 R505
J58
J70
IC502
C504
Q501
C506
Q301
C301
R515
R514
R302 R306
(+5V)
R304 J55
J54
J56
R516
R517
Q502
(DGND)
J73
Q302 R305
R303 Q303
C304
CZ32
+
R317
C322
C321
R311
J183
R310
R319
R316
Q306
D301
J63
J62
C311
J87(DGND)
J51
J53
(+5V)
J49
R301
J50
D302
J137
R312
C305 Q304
R129
(-17V)
C212 R225
H2
C211
Q203
R229
J4
R224
R124
R228
J44
J43
R128
C213 R227 R226
J45 (+17V)
C214
D203
D103
Q204
D204
D104
Q104
C302 C303
CB54
R125
Q103
C112 J33
J34
J37
J38
J39
J40
C111
J35
C114
C113
J36
J42
R126
R127
J117
C243
(+17V)
C308
J46
Q307
C309 Q305
(+17V)
J170
R308 C306
C248 R265
J128
R272
VR203 R271 C234
VR201
R256 R27
R262 R268
R263 R267
H4
C236 IC21 C237
R232
C235
R231 C221
D213
SW31
C121
J182 J133
C246Q209
R253
R248
C244
C229
Q211
Q208
J167
J155
J156
Q207
J160
C227
R254
Q206
R247 R292
C249 VR202
J157
L21
R291
R255
J165
R243 R249
(AGND)
D205 R242
R257
R264
C232
J136
J134
J132
Q216
Q213
J131
Q214
C247 Q210
R266
H6
R290
J83
(+36V)
J166
(AGND)
J79 R131 R132
J76
J75
(AGND)
J57
J15
(PRE OUT L)
J91 (PRE OUT R)
(MAIN IN R)
J147 (MAIN IN L)
J162
J163
J161
J82
J71
(AGND)
J72
J86
CB34
D307
J150
R502 R507
CB32
J174
C315
C330
R318 R315
R314
J47 R313
C329
C310
C314
C312 R307
Q221 R289
R295 R250
C225 C226
C224
C228 R251
R246
J151
J84
(PREOUTR)
J169
J13
J90
(DGND)
J93
(+17V)
(-17V)
(PREOUTR)
C125 C126
NADELECTRONICS
NADC316BEE MAINVm1.0
COPYRIGHTC2010
(PREOUTL)
R24 R14 R25 R15
R140
R240 J89
J95 (MAININR)
J74
(AGND)
J97
J96
J85
(MAININL)
(PREOUTL)
J158
J94
H1
R218
C209 D201
R219
R220
J41
C215
C115
C210
C110
R221
D202
R222
Q201
C216
C116 R223
R123
J28
R118
C109 D101
J29 J30 J31
(PRE IN L) (PRE IN R) (+17V) (-17V)
J32 C326 C325
R119
R120
U301
Q101
R122
R121
D102
C124
R189 Q121 R195 R150 C128 R151 R146
D112 J1
R180
Q316
R331
J26
J27
Q110
VR101
J120
J113 R143
R172
R287
C324
J173
C323 R187
J119
C143 J126
J125
D208 D108
C147
J121
R260
C230
R160
C130
R258 R158 D209 R241
C222
R141 D109
C122
J168
J172
C123
Q111
H5
Q108
C127
J123
J8
Q107
R154
C223
Q205
R193 Q105
R293
J7
R26 R16 C23 C13
L11 J105
Q106
R191 R155 R149
D105
R142
C129
C146
Q109
VR103
R153
J11
R171
R148 C144
C134
R17
IC11
J145
C137 C135
R147
C149 VR102
R192 D113
R178
J99
Q118 R179 C140
J124
R157
J116 R164
C132
J178
R162
R168
R163
R167
D305
J103
J159
Q114
Q116
Q113
R166
J118
H3
C148
R321
R165 R156
C136
J10 R105
(+45V)
R320
SPKOUTR
L12 L22
J14
R276 R275 R283
C320
R182 R282
C239
C242
R190
C332
C334
D303
J6
J16
C335 J78
J9
J102
CB35
C338
C336
R194
Q220
C12
C21
J177
Q120
C22
C11
RCA33
R294 C107
J19
C207 R113
R114
J17
J18 C106
R213 R214 R111
R112
J77 C206
C105
R212 R211
C205
R110 R109 R210 R209
C104 R108
R107
C204 C103
R207 R208
R106
C203
R206 R205
J21
C102
J22
R104 R103
C202
C101 R202
R203 R204 R101 R102
J23
C201 C108 R201 R116 RCA32
RCA31
R115
J25 C208 R216
J24
C327
R215
R332
R173
Q122
R196
J101
R183
CB31
R188
J2 R288
R175
C142
J3
J5
C139
R176
IC31
R344
10K
