NAD T755 User manual

ENGLISHFRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ
®
Owner’s Manual
Manuel d’Installation
Manual del Usuario
Manuale delle Istruzioni
T 755
AV Surround Sound Receiver

1. Read instructions - All the safety and operating instructions should be
read before the product is operated.
2. Retain instructions - The safety and operating instructions should be
retained for future reference.
3. Heed Warnings - All warnings on the product and in the operating
instructions should be adhered to.
4. Follow Instructions - All operating and use instructions should be
followed.
5. Cleaning - Unplug this product from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
6. Attachments - Do not use attachments not recommended by the
product manufacturer as they may cause hazards.
7. Water and Moisture - Do not use this product near water-for example,
near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet
basement; or near a swimming pool; and the like.
8. Accessories - Do not place this product on an unstable cart, stand,
tripod, bracket, or table. The product may fall, causing serious injury
to a child or adult and serious damage to the product. Use only with a
cart, stand, tripod, bracket, or table recommended by the manufacturer,
or sold with the product. Any mounting of the product should follow
the manufacturer’s instructions, and should use a mounting accessory
recommended by the manufacturer.
9. Cart - A product and cart combination should be moved
with care. Quick stops, excessive force, and uneven surfaces
may cause the product and cart combination to overturn.
10. Ventilation - Slots and openings in the cabinet are provided for
ventilation to ensure reliable operation of the product and to protect it
from overheating. These openings must not be blocked or covered. The
openings should never be blocked by placing the product on a bed,
sofa, rug, or other similar surface. This product should not be placed in a
built-in installation such as a bookcase or rack unless proper ventilation
is provided or the manufacturer’s instructions have been adhered to.
11. Power Sources - This product should be operated only from the type
of power source indicated on the marking label and connected to
a MAINS socket outlet with a protective earthing connection. If you
are not sure of the type of power supply to your home, consult your
product dealer or local power company.
12. Power-Cord Protection - Power-supply cords should be routed so that
they are not likely to be walked on or pinched by items placed upon or
against them, paying particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the product.
13. Mains Plug - Where the mains plug or an appliance coupler is used
as the disconnect device, the disconnect device shall remain readily
operable.

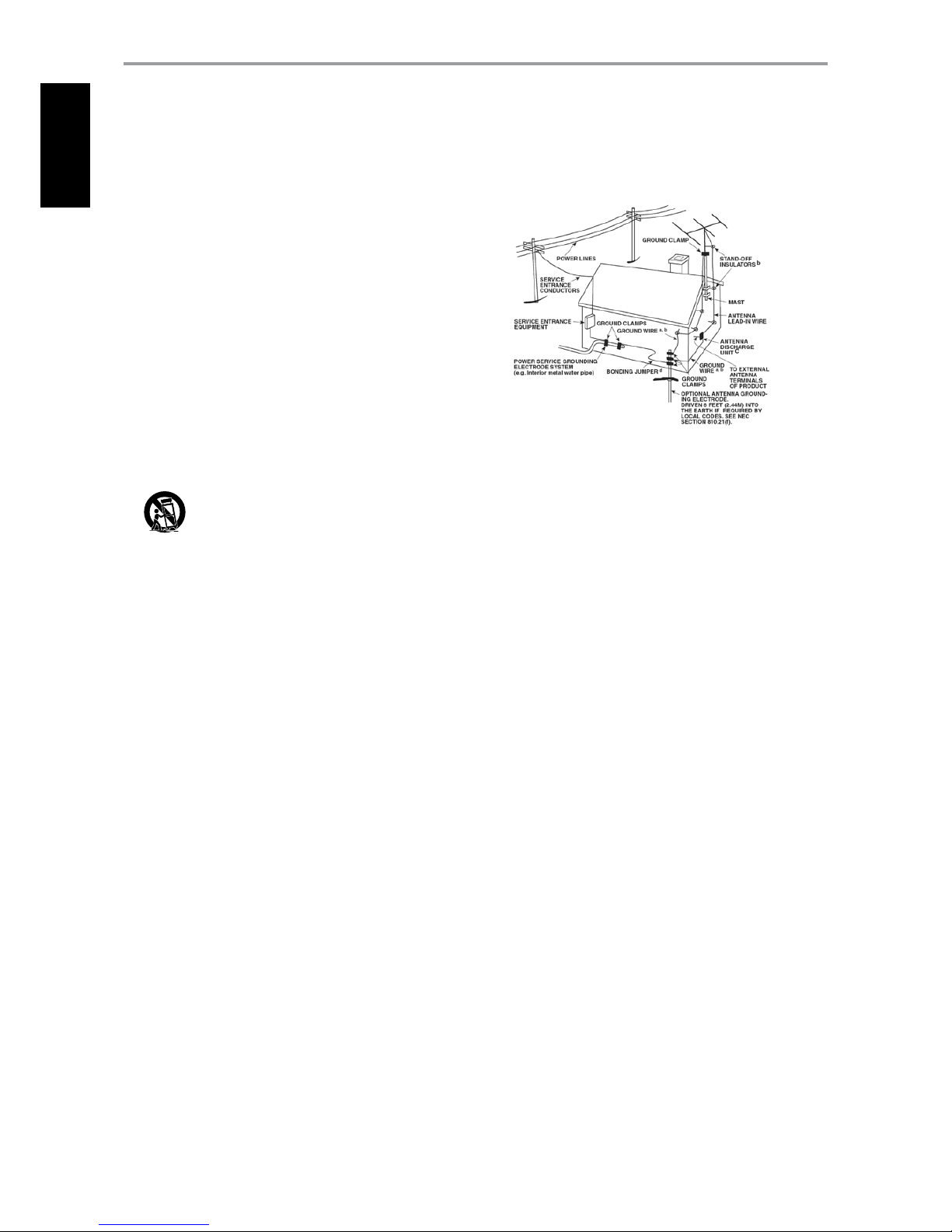

14. Outdoor Antenna Grounding - If an outside antenna or cable system
is connected to the product, be sure the antenna or cable system is
grounded so as to provide some protection against voltage surges
and built-up static charges. Article 810 of the National Electrical Code,
ANSI/NFPA 70, provides information with regard to proper grounding
of the mast and supporting structure, grounding of the lead-in wire
to an antenna discharge unit, size of grounding conductors, location
of antenna discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
NOTE TO CATV SYSTEM INSTALLER
Thisreminderis providedto callthe CATV systeminstaller’sattentiontoSection820-40of
theNECwhichprovidesguidelines forpropergroundingand,in particular, specifiesthat
thecableground shallbeconnectedtothegroundingsystemof thebuilding,asclose
tothepointofcableentry aspractical.
15. Lightning - For added protection for this product during a lightning
storm, or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet and disconnect the antenna or
cable system. This will prevent damage to the product due to lightning
and power-line surges.
16. Power Lines - An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or power circuits,
or where it can fall into such power lines or circuits. When installing an
outside antenna system, extreme care should be taken to keep from
touching such power lines or circuits as contact with them might be
fatal.
17. Overloading - Do not overload wall outlets, extension cords, or
integral convenience receptacles as this can result in a risk of re or
electric shock.
18. Flame Sources - No naked ame sources, such as lighted candles,
should be placed on the product.
19. Object and Liquid Entry - Never push objects of any kind into this
product through openings as they may touch dangerous voltage points
or short-out parts that could result in a re or electric shock. Never spill
liquid of any kind on the product.
20. Headphones - Excessive sound pressure form earphones and
headphones can cause hearing loss.
21. Damage Requiring Service - Unplug this product from the wall outlet
and refer servicing to qualied service personnel under the following
conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the
operating instructions as an improper adjustment of other controls
may result in damage and will often require extensive work by a
qualied technician to restore the product to its normal operation.
e. If the product has been dropped or damaged in any way.
f. When the product exhibits a distinct change in performance-this
indicates a need for service.
22. Replacement Parts - When replacement parts are required, be sure
the service technician has used replacement parts specied by the
manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in re, electric shock, or other
hazards.
IMPORTANT SAFETY INSTRUCTIONS
2
ENGLISH FRANÇAIS ESPAÑOL ITALIANO DEUTSCH NEDERLANDS SVENSKA РУССКИЙ

23. Battery Disposal - When disposing of used batteries, please comply
with governmental regulations or environmental public instruction’s
rules that apply in your country or area.
24. Safety Check - Upon completion of any service or repairs to this
product, ask the service technician to perform safety checks to
determine that the product is in proper operating condition.
25. Wall or Ceiling Mounting - The product should be mounted to a wall
or ceiling only as recommended by the manufacturer.

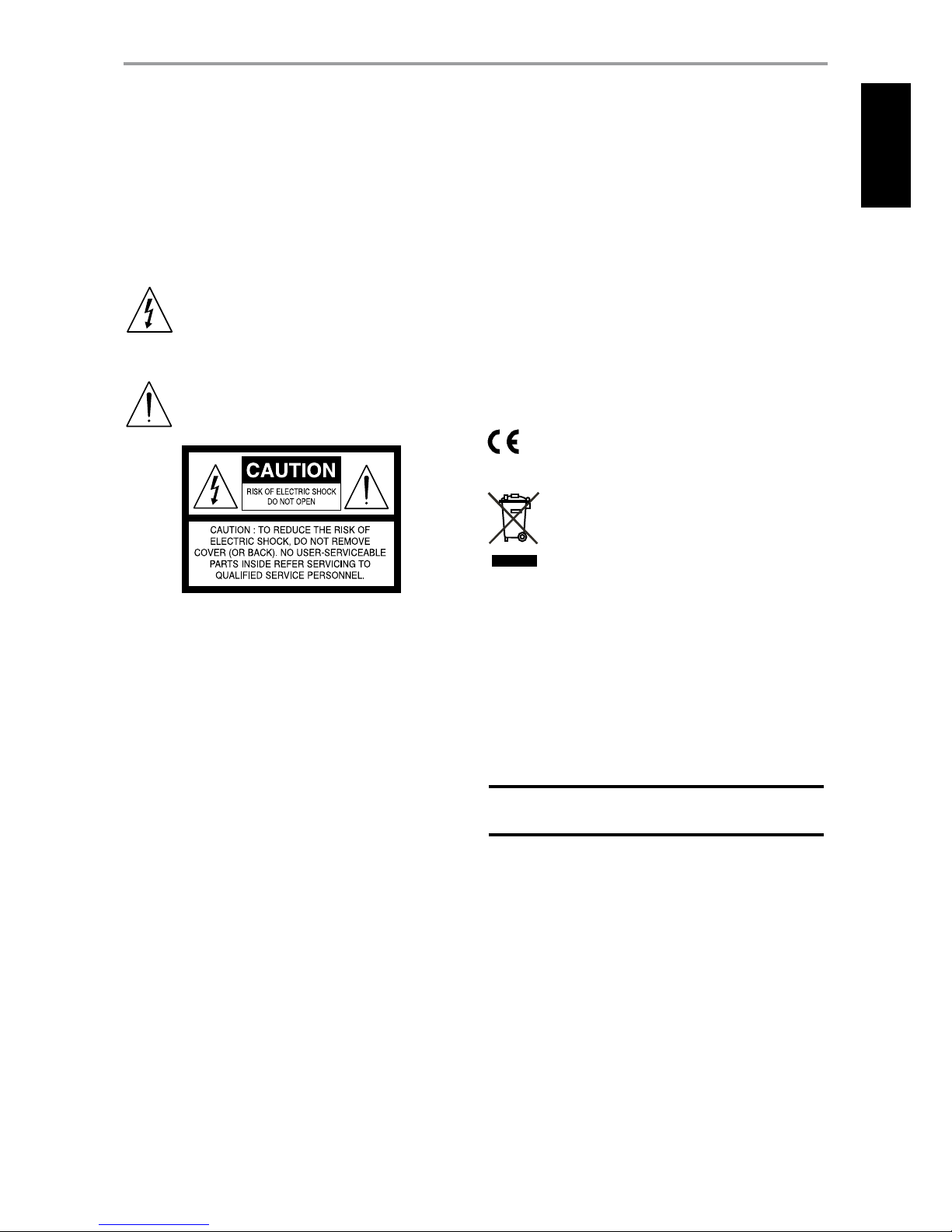

WARNING
The lightning ash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the presence
of uninsulated “dangerous voltage” within the product’s
enclosure that may be of sucient magnitude to constitute a
risk of electric shock to persons
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE AND
OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE
PLACED ON THIS APPARATUS.
THE EQUIPMENT MUST BE CONNECTED TO AN EARTHED MAINS SOCKET-
OUTLET.
CAUTION REGARDING PLACEMENT
To maintain proper ventilation, be sure to leave a space around the unit
(from the largest outer dimensions including projections) than is equal to,
or greater than shown below.
Left and Right Panels: 10 cm
Rear Panel: 10 cm
Top Panel: 50 cm
IMPORTANT INFORMATION TO UK CUSTOMERS
DO NOT cut o the mains plug from this equipment. If the plug tted is not
suitable for the power points in your home or the cable is too short to reach
a power point, then obtain an appropriate safety approved extension lead
or consult your dealer. If nonetheless, the mains plug is cut o, REMOVE
THE FUSE and dispose of the PLUG immediately, to avoid possible shock
hazard by inadvertent connection to the mains supply. If this product is
not provided with a mains plug, or one has to be tted, then follow the
instructions given below:
IMPORTANT
DO NOT make any connection to the larger terminal which is marked
with the letter ‘E’ or by the safety earth symbol or colored GREEN or GREEN
AND YELLOW. The wires in the mains lead on this product are colored in
accordance with the following code:
BLUE - NEUTRAL
BROWN - LIVE
As these colors may not correspond with the colored markings identifying
the terminals in your plug, proceed as follows:
• The BLUE wire must be connected to the terminal marked with the
letter ‘N’or colored BLACK.
• The BROWN wire must be connected to the terminal marked with the
letter ‘L’or colored RED
• When replacing the fuse, only a correctly rated and approved type
should be used, and be sure to re-t the fuse cover.
IF IN DOUBT CONSULT A COMPETENT ELECTRICIAN.
This product is manufactured to comply with the radio
interference requirements of EEC DIRECTIVE 2004/108/EC.
NOTES ON ENVIRONMENTAL PROTECTION
At the end of its useful life, this product must not be disposed
of with regular household waste but must be returned to a
collection point for the recycling of electrical and electronic
equipment. The symbol on the product, user’s manual and
packaging point this out.
The materials can be reused in accordance with their markings. Through
re-use, recycling of raw materials, or other forms of recycling of old
products, you are making an important contribution to the protection of
our environment.
Your local administrative oce can advise you of the responsible waste
disposal point.
RECORD YOUR MODEL NUMBER NOW, WHILE YOU CAN SEE IT
The model and serial number of your new T 755 are located on the back of
the cabinet. For your future convenience, we suggest that you record these
numbers here:
Model number : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Serialnumber:......................................
IMPORTANT SAFETY INSTRUCTIONS
NAD is a trademark of NAD Electronics International, a division of Lenbrook Industries Limited
Copyright 2008, NAD Electronics International, a division of Lenbrook Industries Limited
3
ENGLISHFRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ

THANK YOU FOR CHOOSING NAD.
The T 755 A/V Receiver is a technologically advanced and highly capable
product — yet we have invested great eort in making it simple and easy
to use. The T 755 delivers a range of genuinely useful options for surround
sound and stereo listening, using powerful digital signal processing and
superbly accurate digital-audio circuitry. However, we have also been
careful to ensure that the T 755 is as musically transparent and spatially
accurate as possible, incorporating much of what we’ve learned from
a quarter century’s experience designing audio and home-theater
components. As with all our products, NAD’s “Music First”design philosophy
guided the T 755’s design, such that it can condently promise you both
state-of-the-art surround home-theater and audiophile-quality music
listening for years to come.
We encourage you to take a few minutes now to read right through this
manual. Investing a little time here at the outset might save you a good
deal of time later, and is by far the best way to ensure that you make the
most of your investment in the NAD T 755, and get the most from this
powerful and exible home-theater component.
One more thing: We urge you to register your T 755 ownership on the NAD
Worldwide Web site:
<http://NADelectronics.com/warranty>
For warranty information contact your local distributor.
INTRODUCTION
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS.............................2
INTRODUCTION
ABOUTTHET755 ................................................5
E.A.R.S.ANDDIGITALSURROUND ....................................5
EASEOFUSE.........................................................5
INTEGRATION ........................................................5
ZONE.................................................................5
RS232................................................................5
UPGRADABILITY......................................................5
ABOUT THE HTR 3 SYSTEM REMOTE CONTROL . . . . . . . . . . . . . . . . . . . . . . .5
GETTINGSTARTED................................................6
WHAT’SINTHEBOX..................................................6
CHOOSINGALOCATION.............................................6
QUICKSTART.........................................................6
DEALINGWITHHUMANDNOISE.....................................6
IDENTIFICATION OF CONTROLS

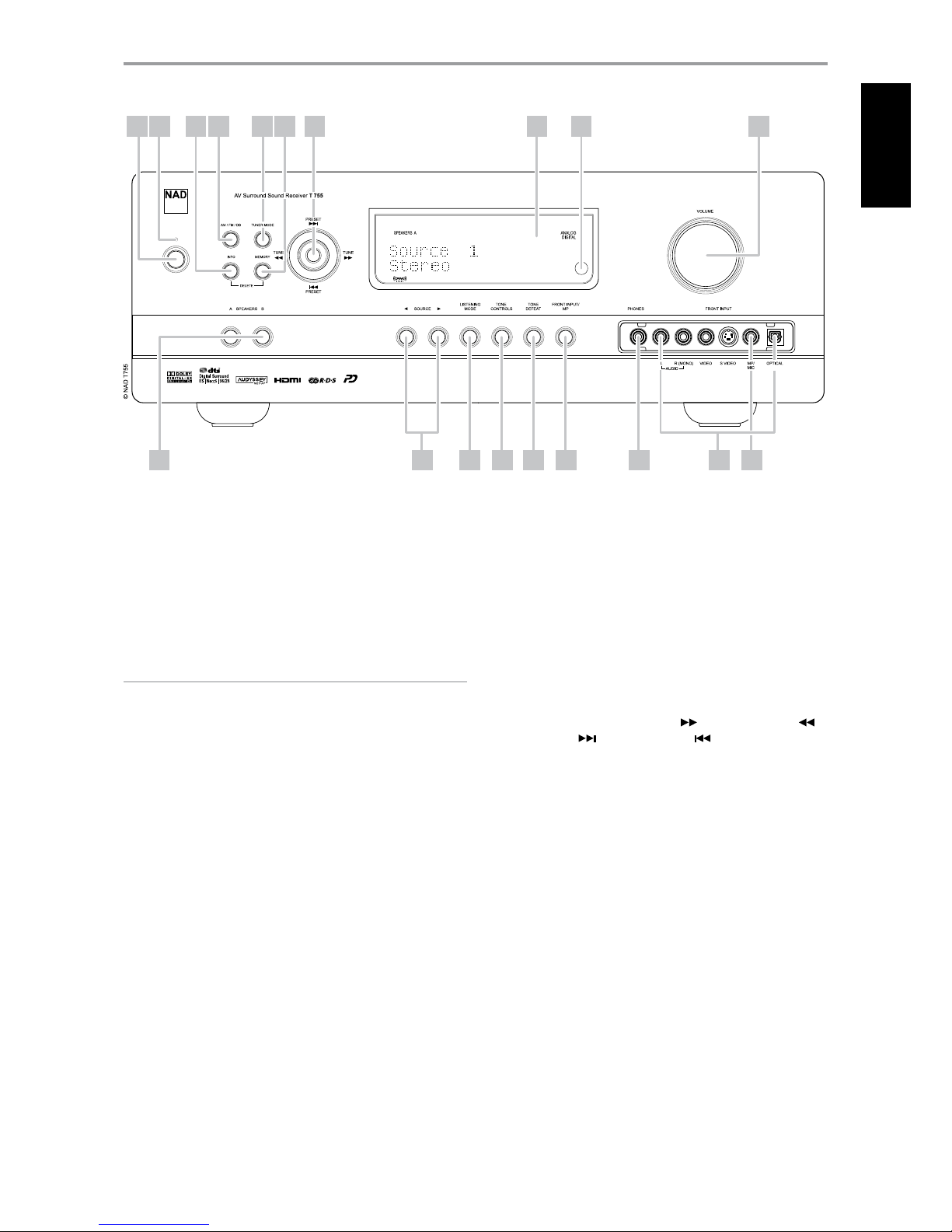

FRONTPANEL....................................................7
REARPANEL......................................................9
OPERATION
USINGTHET755–MAINMENU ..................................12
ABOUT THE ONSCREEN DISPLAY OSD. . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
MAINMENU........................................................ 12
LISTENINGMODE .................................................. 12
ADJUSTINGLISTENINGMODES .................................... 14
DSPOPTIONS ...................................................... 14
TONECONTROLS................................................... 14
ZONE CONTROLS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
USINGTHET755–SETUPMENU..................................16
SETUPMENU....................................................... 16
SOURCESETUP .................................................... 16
SOURCESETUPNORMALVIEW ................................... 16
SOURCESETUPTABLEVIEW....................................... 18

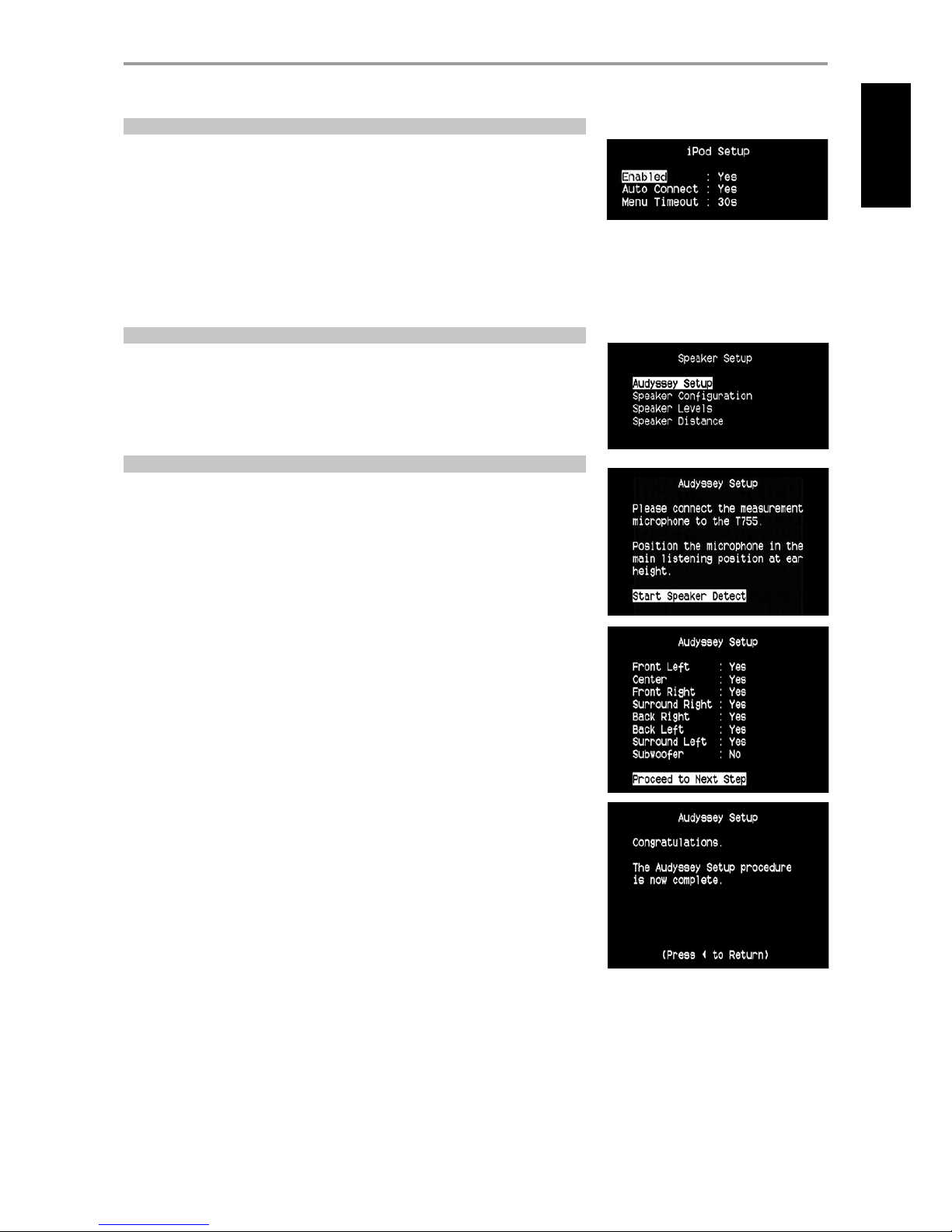

iPodSETUP......................................................... 19
SPEAKERSETUP.................................................... 19
AUDYSSEYSETUP .................................................. 19

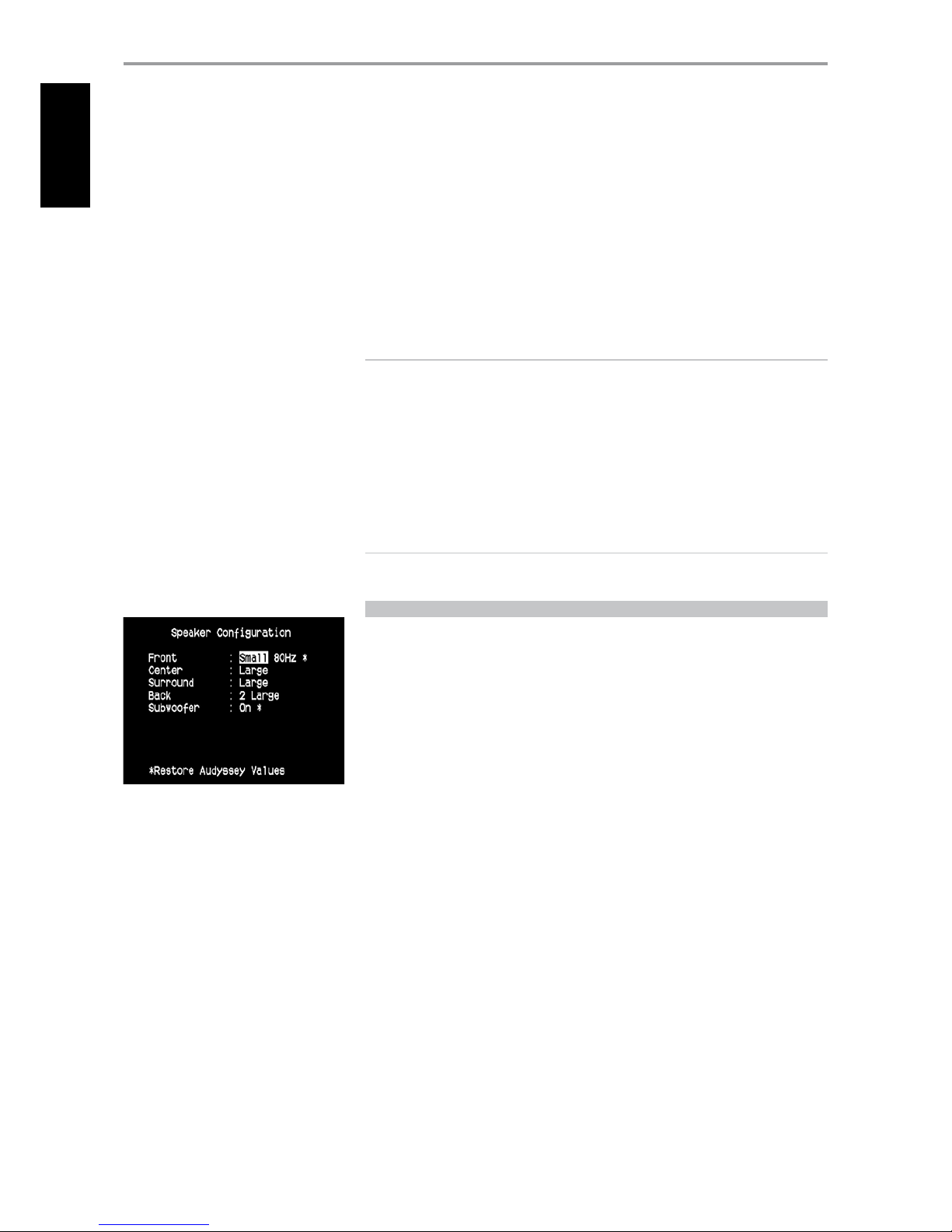

SPEAKERCONFIGURATION......................................... 20
SPEAKERLEVELS.................................................... 22
SPEAKERDISTANCE ................................................ 23
ADJUSTINGTHEVOLUME .......................................... 23
ADJUSTING CHANNEL LEVELS “ON THE FLY”. . . . . . . . . . . . . . . . . . . . . . . . 24
ZONESETUP ....................................................... 24
TRIGGERSETUP .................................................... 24
LISTENINGMODESETUP........................................... 25
DOLBYSETUP...................................................... 27
DTSSETUP ......................................................... 27
DTSSURROUNDMODES........................................... 27
ENHANCEDSTEREO................................................ 28
DISPLAYSETUP..................................................... 28
A/VPRESETS........................................................ 29
USINGTHET755–AM/FM/DB/iPod...............................30
LISTENINGTORADIO............................................... 30
ABOUTUSERNAMES............................................... 30
ABOUTRDS ........................................................ 31
ABOUTXMRADIO.................................................. 31
CONNECTINGTHEXMANTENNA .................................. 31
ABOUTDABRADIO................................................. 31
CONNECTINGTHEDABMODULE .................................. 31
DABOPERATION ................................................... 32
SERVICELIST ....................................................... 32
DABTUNERMODE ................................................. 32
STATIONORDER.................................................... 32
DRC................................................................ 32
MANUALSCAN..................................................... 33
PRUNELIST......................................................... 33
RESET .............................................................. 33
INFORMATIONSETTINGS........................................... 33
ABOUTTHEiPodINPUTFEATURE................................... 33
CONNECTING THE OPTIONAL “NAD IPD 1 DOCK WITH
iPod”AND iPod PLAYER TO THE T 755 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
USINGTHEHTR3REMOTECONTROL .............................35
SPECIFICATIONS.................................................... 35
CONTROLLINGTHET755........................................... 35
LEARNING CODES FROM OTHER REMOTES. . . . . . . . . . . . . . . . . . . . . . . . . 36
PUNCHTHROUGH.................................................. 36
COPY A COMMAND FROM ANOTHER KEY . . . . . . . . . . . . . . . . . . . . . . . . . . 36
MACROCOMMANDS............................................... 36
BUTTONILLUMINATIONTIMEOUT.................................. 37
FACTORYRESET.................................................... 37
DELETEMODE...................................................... 37
LOADINGCODELIBRARIES......................................... 38
SEARCHMODE..................................................... 38
CHECKING CODELIBRARY NUMBER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
USING THE ZR 4 REMOTE CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
REFERENCE
TROUBLESHOOTING.............................................40
SPECIFICATIONS.................................................41
4
ENGLISH FRANÇAIS ESPAÑOL ITALIANO DEUTSCH NEDERLANDS SVENSKA РУССКИЙ

INTRODUCTION
ABOUT THE T 755
Though the T 755 is among the most technically sophisticated A/V receiver,
we worked hard to make it one of the most musically transparent home-
theater components available as well; this is what we mean by NAD’s “Music
First”design philosophy. Here are just few examples:
• The T 755 uses NAD’s proprietary Power Drive™ amplier technology
for all channels to preserve accurate, linear reproduction regardless
of the loudspeaker. This uniquely ecient power-supply topology
provides the real-world benets of high dynamic power that remains
uncompromised by low-impedance speakers. The result is dynamic,
detailed,”un-receiver-like” sound in stereo and multi-channel modes
alike. NAD’s exclusive Soft Clipping™ circuitry further enhances sound
quality and dynamic potential.
• High-performance components used throughout the receiver’s analog
audio circuits to maximize quality from all sources, including multi-
channel analog sources such as DVD-Audio and SACD.
• Preamp output (all channels) and main-amp input jacks make potential
expansion as exible as possible.
• Zone pre-amp and video feed with assignable 12 V DC trigger control.
• A Second set of Speaker terminals (Speakers B) for remote listening.
• An RS-232 port for advanced zone control and software update through
a Windows® compatible PC.
• Gold-surfaced connectors are employed throughout to ensure
maximum signal integrity.
E.A.R.S. AND DIGITAL SURROUND
A key element of the T 755’s unique musical aptitude is NAD’s proprietary
Enhanced Ambience Recovery System (EARS). In sharp contrast to many
“ambience-synthesis”music-surround modes, EARS exploits the T 755’s
substantial DSP power to route the ambient content that is “encrypted” in
virtually all natural-acoustic recordings to the appropriate main, center and
surround speakers, without resorting to articially generated reections
or regeneration. EARS’natural ambience yields a subtle but exceptionally
eective surround mode that naturally enhances the spatial presentation in
a fashion suitable for serious music listening.
Dolby Pro Logic IIx Music and DTS Neo:6 Music modes can also create
enjoyable experience from 2-channel sources.
On the digital side, the T 755 combines extraordinarily high-speed DSP
processing employing one of the most advanced high-speed DSP“engines”
available, with fully 24-bit, 192 kHz-sampling-capable D/A converters for
all channels. A single, high-precision master clock synchronizes all digital
circuits to eliminate the timing errors (jitter) that otherwise compromise
sonics. The result is legitimately state-of-the-art surround decoding from
Dolby Digital and DTS sources, and 6.1/7.1-channel reproduction, with
genuinely superior sound quality in all modes.
EASE OF USE
Despite the eort NAD has invested in the T 755 A/V Receiver’s sonic
performance, we expended no less in making it powerfully easy to use.
Its design is uniquely simple for so sophisticated a component, and the
HTR 3 universal remote control is equally understandable, as are the T 755’s
own front-panel and on-screen displays. Its simple yet powerful system
of “presets” permits you to ne-tune your listening setup for dierent
conditions, sources, or listeners, and to recall these multiple parameters
with a single key press.
INTEGRATION
The T 755 A/V Receiver oers extensive, exible system-integration options
through its congurable DC trigger outputs and input, and its standard-
protocol IR communications links. The DC trigger outputs can be assigned
to Main, Zone and Source Setup locations.
ZONE
The T 755 A/V Receiver is equipped with a congurable Zone 2 that makes
full use of video and pre-amp level audio outputs. The ZR 4 remote control
will allow you complete access to Zone 2 applications including access to
volume On/O and all sources inputs.
RS 232
Flexible system conguration is possible with the RS-232 interface and
NAD’s proprietary Windows® compatible software. We are also certied
partners with AMX and Crestron and fully support these external devices.
This interface allows complete remote control of the T 755 from any remote
location via the PC. Complete remote control functionality is available to
the user by interface software. See your NAD audio specialist for further
information.
UPGRADABILITY
The T 755 A/V Receiver permits exible system growth via individually
accessible pre-out and main-in jacks for all channels. We have made the
more likely scenario of software upgrades easy to accomplish via the high
speed RS-232 port on the rear panel of the T 755. Owners who register
their T 755 on our international web site www.NADelectronics.com will be
advised of updates. Some of these may be free of charge, and some may
require royalty payments depending on the type of upgrade. The advanced
user will be able to perform these upgrades by downloading les from our
web site, via e-mail and installing them by connecting the T 755 to a PC.
Alternatively the dealer from whom you purchased your T 755 should be
able to assist in performing these upgrades.
ABOUT THE HTR 3 SYSTEM REMOTE CONTROL
Packed with your T 755 is the NAD HTR 3 remote control, a full-system
remote especially designed for easy use and understanding. Be sure to read
the section “Using the HTR 3 Remote Control”, to familiarize yourself with
the remote’s layout and operations before proceeding to setup your T 755.
You may opt to use your HTR 3 as your primary way to command your
entire AV system. The HTR 3 can be employed to operate additional NAD or
other-brand components such as a DVD/CD player, television, satellite/
HDTV tuner, VCR, or virtually anything else that operates via standard
infrared remote.
5
ENGLISHFRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ

INTRODUCTION
GETTING STARTED
WHAT’S IN THE BOX
Packed with your T 755 A/V Receiver you will nd
• An AM loop antenna.
• A FM ribbon-wire antenna with balun.
• A removable AC cable (if you wish, any IEC-standard AC cable of suitable
wattage may be substituted).
• The HTR 3 remote control with 4 (four) AAA batteries.
• The ZR 4 zone remote control with 3V CR2025 battery.
• This owner’s manual.
SAVE THE PACKAGING
Please save the box and all of the packaging in which your T 755 arrived.
Should you move or otherwise need to transport your T 755, this is by far
the safest container in which to do so. We’ve seen too many otherwise
perfect components damaged in transit for lack of a proper shipping
carton, so please: Save that box!
CHOOSING A LOCATION
Choose a location that is well ventilated (with at least several inches to both
sides and behind), and that will provide a clear line of sight, within 23 feet/7
meters, between the T 755’s front panel and your primary listening/viewing
position—this will ensure reliable infrared remote control communications.
The T 755 generates a modest amount of heat, but nothing that should
trouble adjacent components.
It is especially important that sucient ventilation be provided. If you are
contemplating on locating the T 755 within a cabinet or other furniture,
consult your NAD audio/video specialist for advice on providing adequate
airow.
QUICK START
Packed with your T 755 is a Quick Start Guide that will guide you through
typical setup congurations in combination with your ancillary devices. The
Quick Start Guide also features the contents of your T 755 package as well
as start up procedures.
The T 755 is defaulted to the following settings:
Source Audio Input Video Input Video Output
Source 1 Optical 1/
Audio 1 IN ComponentVideo 1 IN Component Video OUT
Source 2 Optical 2 IN/
Audio 2 IN/ HDMI 2 IN HDMI Monitor OUT
Source 3 Coaxial 3 IN /
Audio 3 IN S Video 3 IN S-Video Monitor OUT
Source 4 Audio 4 IN Video 4 IN Video Monitor OUT
iPod Audio 5 IN S-Video 5 IN S-Video Monitor OUT
Source 7 7.1 Input ComponentVideo 3 IN Component Video
OUT
Front
Input
Audio Front
Input/Optical
Front Input
S-Video Front IN S-Video Monitor OUT
Media
Player Audio MP input
Tuner
To modify the above default settings and for a better understanding of
source setting and combinations, please refer to the section on ‘Source
Setup’of the Setup Menu discussion.
NOTES
• Digital input will always take precedence over analog audio input even
if both are present.
• The T 755 is optimized for Component Video Output. Composite
video and S-video sources may be viewed in their native format or via
Component Video OUT.
DEALING WITH HUM AND NOISE
Hum and noise may sometimes prove a challenge in complex, multi-
channel audio systems. Note these considerations to help prevent hum and
noise problems:
• Power all your system’s audio component from AC outlets originating
from the same circuit of your house wiring. As far as possible, power
all audio components from the same outlet, or adjacent outlets on the
same circuit. It may be useful to power video displays (and computers!)
from outlets on another circuit, especially if that circuit is supplied from
the other “leg”of the house wiring.
• Do not bundle analog audio cables with AC power cables, or with
coaxial digital-audio cables. It is best if they cross at right angles if they
must be in close proximity.
• Employ high-quality, well-shielded audio cable throughout, and ensure
that all connections are secure.
• A pencil-eraser can be used to burnish copper- and gold-plated
contacts to ensure good, low-resistance contact; specialized contact-
cleaners can also be useful. Avoid unnecessary unplugging and
re-plugging since the gold (or copper) contact plating of typical cable
connectors, even very high-quality ones, is very thin and easily worn.
Track down hum/noise problems one component at a time, working
backwards from the A/V Receiver. That is
1 Connect the speakers to the A/V Receiver only, and check for hum.
2 Then connect one component only (a CD player, for example) alone,
with no other components connected and check for hum.
3 Connect additional components, one at a time, to the A/V Receiver and
check for hum.
At each stage, if hum/noise appears, examine the audio cabling and AC-
power routing of the new component. In some cases, moving the new
component’s AC cord to a dierent outlet, or installing a ground-lift (3-to-2-
prong adapter) on its power cord, will eliminate the hum.
6
ENGLISH FRANÇAIS ESPAÑOL ITALIANO DEUTSCH NEDERLANDS SVENSKA РУССКИЙ

1 POWER BUTTON: Press this button or the HTR 3 remote’s [ON] button
to switch ON the T 755. The Standby LED indicator will turn from amber
to blue and illuminate the VFD. Pressing the power button again turns
the unit back to standby mode.
TheT 755 can also be switched ON from standby mode by pressing any of
the front panel buttons. When both Main and Zone 2 are ON, press and hold
this button for more than ve seconds to place them at standby mode.
NOTES
• The rear panel POWER switch must be in the ON position for the Power
button to activate.
• If Auto Trigger IN at Trigger Setup menu is assigned to “Main” or “All” and
the TRIGGER switch is set to “AUTO” mode, the Power button in the front
panel as well as the corresponding ON/OFF function keys in the HTR 3
remote control will be disabled eectively handing this function to an
external controller. Switch TRIGGER to “OFF” to maintain normal power
ON/OFF function procedures. (See section also about “TRIGGER SETUP”
under the “SETUP MENU” discussions.)
2 STANDBY LED: This indicator will light up amber when the T 755 is
in standby state. When the T 755 main or zone 2 are in the ON state,
this indicator will illuminate blue. In the unlikely event that the T 755
switches to protection state, then this indicator will illuminate red.
When an infrared command from the HTR 3 is received, this indicator
will also ash momentarily.
3 INFO: Repeatedly toggle this button (press/hold rst if in Tuner mode
and then toggle) to display both at the Vacuum Fluorescent Display
(VFD) and On-Screen Display (OSD) the following – Current Source,
Volume level, Listening mode, Audio Source Format, and active Zone 2
with corresponding Source Input. While at Tuner mode, toggle this
button to cycle through RDS name and RDS text.
4 AM/FM/DB: Toggle this button to select either AM, FM, DAB (Europe
version) or XM (North America version) tuner functions.
5 TUNER MODE: In FM mode, this button will toggle between FM Stereo
and FM mono. Select FM Mono (FM stereo and FM Mute icons at VFD
are extinguished) for stations that have too much interference or are
too weak. In DAB (European version only) or XM (North America version
only) radio, this button enables the digital radio menus in conjunction
with the Navigation button and Enter buttons.
6 MEMORY: Press this button to store tuned AM, FM and digital radio
stations to the T 755’s 40 preset-memory locations. One can store a mix
of any AM, FM and digital radio stations to the 40 available presets.
7 NAVIGATION and ENTER buttons: These buttons are used to
navigate the T 755 OSD, Tune Forward [ ] and Tune Backward [ ],
Preset Forward [ ] and Preset Reverse [ ] as well as navigation of
DAB (European version), XM (North American version) tuner functions
and iPod. The middle round button is designated as “ENTER” button; this
is normally pressed to complete a selection, procedure, sequence or
other applicable functions.
8 VACUUM FLUORESCENT DISPLAY (VFD): Provide visual information
on all important modes of the T 755 as well as the settings and
functions for both Main and Zone 2 locations.
9 REMOTE SENSOR: Point the HTR 3 remote control at the remote sensor
and press the buttons. Do not expose the remote sensor of theT 755 to a
strong light source such as direct sunlight or illumination. If you do so, you
may not be able to operate the T 755 with the remote control.
Distance: About 23ft (7m) from the front of the remote sensor.
Angle: About 30o in each direction of the front of the remote sensor.
10 VOLUME: Use this control to adjust the volume level of the main speakers.
The default volume level is -20dB. The VOLUME knob is also used to
increment/ decrement other adjustable parameters like Tone Controls.
IDENTIFICATION OF CONTROLS
FRONT PANEL
3 4 5 6 7 9 10
11 171615
1 2
18 19141312
8
7
ENGLISHFRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ

11 A SPEAKERS B: Press either speaker A or B or both to select the
set of speakers you wish to listen to. Speaker A is the main set of 5
multichannel and surround speakers. Speaker B is an auxiliary set
for remote locations such as other rooms of your home. For Speaker
B selection, all surround sound sources are downmixed to stereo.
Combining Speaker A and Speaker B (SPEAKERS A + B) will also result to
the source being downmixed to stereo.
12 [ ] SOURCE [ ] : Press these buttons to toggle through the input
selections – Source 1, Source 2, Source 3, Source 4, iPod, Source 7, Front
Input, Media Player and Tuner. More Sources could be directly recalled
through these buttons upon enabling them at the Setup Menu (See the
section “SOURCE SETUP” at Setup Menu discussion).
13 LISTENING MODE: Use to step through the T 755’s Listening mode as
discussed in the section “LISTENING MODE”. Depending on the format of
the currently selected input (digital or analog, stereo or multichannel),
various listening modes are available.
14 TONE CONTROLS: Press to adjust TREBLE control using the VOLUME
knob over a ± 10dB range. Press again to adjust BASS control. See also
section about “TONE CONTROLS”under “MAIN MENU” discussions.
15 TONE DEFEAT: Tone Controls are enabled or disabled by pressing
this button. Tone controls are bypassed at “Tone Defeat” while at “Tone
Active”; the tone controls are enabled again. See also section about
“TONE CONTROLS” under “MAIN MENU” discussions.
16 FRONT INPUT/MP: Use this button to directly select Front Input and
Media Player. Toggle button to switch between Front Input and Media
Player input.
17 PHONES: Accepts stereo headphone using a standard 1/4-inch stereo
phone plug (use a suitable adapter for headphones equipped with a
smaller plug). Plugging in headphones will automatically switch the
T 755 to Stereo, Stereo Downmix or Analog Bypass modes.
18 FRONT INPUT jacks: Use these convenience jacks for occasional
sources such as a camcorder, tape player, video game console, any
analog audio or optical digital audio and composite or S-Video video
sources. If your source has a single audio out jack only or is marked
“Mono output”, plug this into the T 755’s Front“R (Mono)”input. On
the other hand, if your source has two output jacks indicative of stereo
output, insert both jacks into the T 755’s corresponding Front“L” and “R
(Mono)” input to achieve stereo output as well.
19 MP/MIC input: Connect your MP3’s standard stereo phone jack to
this input. This is the same input where Audyssey microphone jack is
connected. See also discussion about “AUDYSSEY SETUP”.
IDENTIFICATION OF CONTROLS
FRONT PANEL
8
ENGLISH FRANÇAIS ESPAÑOL ITALIANO DEUTSCH NEDERLANDS SVENSKA РУССКИЙ

1 IR IN/OUT: These mini-jacks accept and output remote-controlled
codes in electrical format, using industry-standard protocols, for use
with “IR-repeater” and multi-room systems and related technologies.
IR IN : This input is connected to the output of an IR (infrared) repeater
(Xantech or similar) or the IR output of another component to allow
control of the T 755 from a remote location.
IR OUT 2 : When connected to the IR IN of ancillary equipment, direct
the ancillary equipment’s own remote control to the T 755’s infrared
receiver to command or control the linked unit.
IR IN and IR OUT 3 : Connect the T 755’s IR IN to the IR OUT of ancillary
equipment. Connect also the T 755’s IR OUT 3 to another equipment
with IR IN feature. With this setup, the T 755 acts as an “IR-repeater”
allowing the equipment connected to the T 755’s IR IN control or
command of the other equipment linked to the T 755’s IR OUT 3.
IR OUT 1 : In conjunction with IR IN, IR OUT 1 can be used as an “IR-
repeater” just like the IR OUT 3 as described above. It can also stand
alone as an IR OUT similar to that of IR OUT 2 function.
All NAD products with IR IN/IR OUT features are fully compatible with
the T 755. For non-NAD models, please check with your other product’s
service specialists as to their compatibility to the T 755’s IR features.
2 +12 V TRIGGER OUT: There are three congurable +12V TRIGGER
OUTPUT. Use a 3.5mm mini-jack connector to pass +12 volts at a
maximum current of 200 milliamps to auxiliary equipment such as a
multichannel amplier or subwoofer. The centre conductor (hot) of the
3.5mm jack is the control signal. The outside conductor (shield) is the
ground return-path.
TRIGGER IN accepts 12V Trigger output of compatible components such
as power controllers and home automation devices.
TRIGGER OFF/AUTO. When at AUTO position, the T 755 selects the 12V
Trigger Input to turn ON (if so assigned at the“Trigger Setup”menu) and
at the same time disables the HTR 3 and ON/OFF function of the front
panel. When set to [OFF] position, the trigger input is disabled.
See discussion on “TRIGGER SETUP” at the “SETUP MENU”literature for
guidelines on how to congure TRIGGER IN/OUT.
WARNING
If Auto Trigger IN at Trigger Setup menu is assigned to “Main” or “All” and
the TRIGGER switch is set to “AUTO” mode, the Power button in the front
panel as well as the corresponding ON/OFF function keys in the HTR 3
remote control will be disabled eectively handing this function to an
external controller. Switch TRIGGER to”OFF” to maintain normal power
ON/OFF function procedures.
3 SOFT CLIPPING: Enables NAD’s proprietary Soft Clipping circuitry on
all channels. At [ON] position, Soft Clipping gently limits the output of
the T 755 to minimize audible distortion should the A/V Receiver be
over-driven. Soft Clipping may simply be left ON at all times to reduce
the likelihood of audible distortion from excessive volume settings.
However, for critical listening and to preserve optimum dynamics, you
may wish to defeat it by setting this switch OFF.
4 FM, AM ANTENNA INPUT: The supplied wire“dipole”FM antenna will
connect to the FM connector using the supplied “balun” adapter. It will
usually work best when mounted on a vertical surface such as a wall,
with arms fully outstretched forming a horizontal“T” perpendicular to
the origin point of the signal.
Connect the supplied AM loop antenna to these terminals. If an external
AM antenna is used, make connections to the AM and GND terminals
in accordance with the instructions supplied with the antenna. See also
section about “LISTENING TO RADIO”.
IDENTIFICATION OF CONTROLS
REAR PANEL
ATTENTION!
Please make sure that the T 755 is powered o or unplugged before making any connections. It is also advisable to power-down or unplug all associated
components while making or breaking any signal or AC power connections.
1 2 3 4 6 7 8
10 14 2011 15
5
9 12 13 19181716
9
ENGLISHFRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ

5 XM MODULE INPUT (North America version only): Connect XM
radio cable to this socket. Follow the instructions that came with your
XM radio. With XM radio, there are more than 100 channels of music,
news, sports, comedy, talk and entertainment. You will nd that the
coverage is continent wide. The music quality is digital with many
commercial-free music channels.
NOTES
Questions? Visit www.xmradio.com
Listeners can subscribe by visiting XM on the Web at www.xmradio.com
or by calling (at the time of printing this manual) XM’s Listener Care at
[phone]. Be ready with your Radio ID that can be found on the
radio by selecting Channel 0.
DAB MODULE INPUT (Europe version only): Plug-in the other end
of the Mini-Din connector from the NAD DAB Adaptor DB 1 module
output port into this socket. The T 755 is compatible only with NAD
DAB Adaptor DB 1 so check with your NAD dealer for this module’s
availability. With DAB, you can receive CD-like quality programs without
any annoying interference and signal distortion.
6 MP DOCK: The T 755 is equipped with a data port in the rear panel
where an optional “NAD IPD 1 Dock with iPod” (NAD IPD 1) can be
plugged in. Connect the “MP DOCK (DATA PORT)” jack of the T 755 to
the corresponding “DATA PORT” socket of the optional NAD IPD 1.
7 RS-232: Connect this interface via RS-232 serial cable (not supplied) to any
Windows® compatible PC to allow remote control of the T 755 through
NAD’s proprietary PC software or other compatible external controllers.
NAD is a certied partner of AMX and Crestron and fully supports these
external devices. See your NAD audio specialist for more information.
8 COMPONENT VIDEO 1-3 IN, COMPONENT VIDEO OUT : Connect
the Component Video IN 1-3 inputs to Component Video outputs
from compatible source components, typically a DVD player and
terrestrial or satellite HDTV tuner. Connect Component Video OUT to
the Component Video input of a compatible video monitor/TV. Be
sure to observe consistency in connecting the Y/Pb/Pr jacks to the
corresponding sources/inputs. The routing of the component video
inputs is fully congurable via the Setup Menu. The T 755’s component
video inputs and outputs are fully wideband and compatible with
allowable HDTV formats.
The T 755 is optimized for Component Video Output. Composite
video and S-video sources may be viewed in their native format or via
Component Video OUT.
MONITOR TYPE
VIDEO INPUT Component
Video OUT
S-Video Monitor
OUT
Composite Video
OUT
Composite Video
Input Yes Yes Yes
S-Video Input Yes Yes Yes
Component Video
Input Yes Yes (ComponentVideo Input - 480i only)
Yes (Component Video
Input - 480i only)
9 AUDIO 1 IN/VIDEO 1 IN, AUDIO 2 IN/VIDEO 2 IN, AUDIO 3
IN/VIDEO 3 IN, AUDIO 4 IN/VIDEO 4 IN, AUDIO 5 IN/VIDEO 5
IN, AUDIO 6 IN: These comprise the T 755’s principal input. Connect
S-Video, composite video, and analog stereo audio from source
components such as DVD players and HDTV/satellite tuners.
AUDIO 3 IN/VIDEO 3 IN, AUDIO 4 IN/VIDEO 4 IN may be used with
recording components such as videocassette or DVD-recorders by
connecting these components’record-inputs to the corresponding
T 755 AUDIO 3 IN/VIDEO 3 IN or AUDIO 4 IN/VIDEO 4 IN jacks. AUDIO
3 IN/VIDEO 3 IN or AUDIO 4 IN/VIDEO 4 IN may freely be used for
play-only components, in which case their OUT jacks would remain
unconnected. Refer also to“AUDIO 3 OUT/VIDEO 3 OUT, AUDIO 4 OUT/
VIDEO 4 OUT”discussion below.
AUDIO 6 IN is advisable to connect to dedicated analog output from
line-level audio sources like a CD player or Stereo tuner.
10 AUDIO 3 OUT/VIDEO 3 OUT, AUDIO 4 OUT/VIDEO 4 OUT: Connect
the T 755’s AUDIO 3 OUT/VIDEO 3 OUT or AUDIO 4 OUT/VIDEO 4 OUT
jacks to the analog audio/video input of a recording component
such as a cassette deck, DVD recorder or to an outboard audio/video
processor. Connect the T 755’s AUDIO 3 IN/VIDEO 3 IN or AUDIO 4
IN/VIDEO 4 IN jacks to the component’s corresponding output.
The signal present at these T 755 AUDIO/VIDEO OUT jacks is determined
by the source last selected via the front panel Source keys or the HTR 3’s
input select keys with the exception of Source 3 or Source 4. There will
be no output when Source 3 (Audio 3 IN/Video 3 IN) or Source 4 (Audio
4 IN/Video 4 in) is the selected source input. This prevents feedback
through the recording component thereby preventing possible
damage to your speakers.
11 MONITOR (S-VIDEO, VIDEO): Connect to video input of the monitor/
television using quality dual-RCA and/or S-Video cables designed for
video signals. In general, the S-Video connection is superior and should
be used if your TV/monitor provides the corresponding input.
12 ZONE 2: Sends zone selected audio and video output sources to the
corresponding audio and video input of another separate zone. Use
high quality patch cables to reduce noise pickup over long distance
runs. For a better understanding of zone settings, study below the
section on “ZONE CONTROLS”of the “MAIN MENU” discussion as well as
the item on “ZONE SETUP” under the “SETUP MENU”literatures.
13 7.1 CH INPUT: Connect to the corresponding analog audio outputs of a
multichannel source component such as a DVD-Audio or multichannel-
SACD player or external multichannel decoder (disc copy protected
formats only allow analog signal transfer). Typically, these sources will
produce 5.1-channel output, in which case the Surround Back jacks are left
unconnected. The signals present at these jacks may be heard by selecting
Source 7 (7.1 Channel Input is defaulted to this Source).
There is no bass-management or other processing (other than master-
volume control) available to this 7.1 Channel Input. While the multi-
channel audio outputs of a DVD-Video player can be connected to
these jacks, using the T 755’s own Dolby Digital and DTS decoding and
digital-analog converters via a digital connection will usually produce
superior results.
IDENTIFICATION OF CONTROLS
REAR PANEL
10
ENGLISH FRANÇAIS ESPAÑOL ITALIANO DEUTSCH NEDERLANDS SVENSKA РУССКИЙ

14 AUDIO PRE-OUT: The Audio PRE- OUT makes it possible to use the
T 755 as a pre-amplier to external power ampliers for some or all
channels. Connect FRONT L, FRONT R, SURR R, SURR L, SURR-BL, SURR-
BR and CENTER to the respective channel input of a power amplier or
an amplier driving the corresponding applicable speakers.
Unlike the full range channels, there is no power amplier built-into the
T 755 for a subwoofer. Connect the SUBW 1 or SUBW 2 output or both
to powered (“active”) subwoofers or to power amplier channels driving
a passive system.
NOTE
Never connect both the external amplier and T 755’s speaker outputs to
the same set of speakers.
15 DIGITAL AUDIO IN (OPTICAL 1-3, COAXIAL 1-3): Connect to the
optical or coaxial S/PDIF-format digital output of sources such as CD or
DVD players, HDTV or satellite tuners and other components. Coaxial
and Optical digital input association is congurable via the Setup Menu.
DIGITAL AUDIO OUTPUT (OPTICAL, COAXIAL): Connect the optical
or coaxial digital OUTPUT port to the corresponding S/PDIF digital
input of a compatible device such as CD recorders, receivers, computer
soundcard or other digital processors.
16 HDMI (HDMI 1-3, HDMI MONITOR OUT) : Connect HDMI inputs to
the HDMI OUT connectors of source components such as DVD player or
HDTV satellite/cable box. Connect the HDMI Monitor OUT to a HDTV or
projector with HDMI input.
NOTE
HDMI supports transmission of video signals only. For audio signal, you
may feed into any digital inputs of the T 755 your HDMI source’s optical
or coaxial digital audio output and correspondingly assign it as your
particular HDMI input’s digital audio source.
WARNING
Before connecting and disconnecting any HDMI cables, both the T 755
and the ancillary source must be powered OFF and unplugged from the
AC outlet. Failure to observe this practice may cause permanent damage
to all equipment connected via HDMI sockets.
17 SPEAKERS A, SPEAKERS B : Connect the respective SPEAKER A’s
FRONT L, FRONT R, SURR R, SURR L and CENTER channels to their
corresponding loudspeakers. Make sure the “+” (red) terminal and
“-“(black) terminal are connected to the corresponding“+” and
“-“terminals of the loudspeaker. Use extra care to ensure that no stray
wires or strands cross between posts or terminals at either end.
Connect left and right channels of Speakers B to the corresponding
remote loudspeakers. When Speakers B is activated, the output is
converted to “Stereo” as indicated in the VFD. Combining Speaker A
and Speaker B (SPEAKERS A + B) will also result to the source being
downmixed to stereo.
The T 755 is designed to produce optimum sound quality when
connected to speakers with impedances within its operating range.
Please make sure that all the speakers are rated 4 ohms minimum per
speaker.
NOTE
Use stranded wire of at least 16 gauge (AWG). Connections to the T 755
can be made with banana plugs (US model only) or by using bare wire
or pins. Use the transverse hole through the post for bare-wire or pin
connections. By loosening the terminal’s plastic nut, make a clean, neat
connection and re-tighten carefully. To minimize the danger of short-
circuit, ensure that only 1/2-inch of exposed wire or pin is employed
when connecting.
18 AC POWER INLET: Connect to the supplied IEC-standard removable
AC power cord or a compatible cord.
19 SWITCHED AC OUTLET: This convenience outlet can supply switched
power to another component or accessory. It is powered ON and OFF
by the front panel POWER SWITCH or by the HTR 3’s ON and OFF keys.
The total draw of all devices connected to this outlet must not exceed
120 watts for North America version and 115W for European version.
20 POWER: The POWER switch supplies the master AC mains power for
the T 755. When this switch is at ON position, the T 755 is in standby
mode as shown by the amber status condition of the standby LED. If
you intend not to use the T 755 for long periods of time (such as when
on vacation), switch the POWER switch to the OFF position. When the
POWER switch is at OFF position, the front panel power button, HTR 3
remote control or ZR 4 cannot activate the T 755.
IDENTIFICATION OF CONTROLS
REAR PANEL
11
ENGLISHFRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ

ABOUT THE ON-SCREEN DISPLAY (OSD)
The T 755 employs a simple, self-explanatory system of on-screen display“menus”that will appear on the
connected video monitor/TV. These are required during the setup process (and are useful in day-to-day
operation), so be sure to connect the monitor/TV before proceeding with setup.
DISPLAY THE OSD
Press either [ ] or [ENTER] buttons of the HTR 3 remote control or front panel to display the T 755’s Main
Menu on your video monitor/TV. If the OSD does not appear, check your MONITOR OUT connections.
NAVIGATING THE OSD AND MAKING CHANGES
To navigate through the OSD menu options, please do the following using the HTR 3 or corresponding
front panel buttons:
1 Press [ ] or [ENTER] to select a menu item. Use [ ] keys or in some cases, [ENTER] to move up or
down the Menu selections. Repeatedly press [ ] to advance or go further into sub-menus of a desired
menu item.
2 Use [ ] keys to set or change the parameter value (setting) of a menu item.
3 Press [ ] to save the settings or changes done on the current menu or sub-menu. Pressing [ ]
will also return the user to the previous menu or exit from a particular menu.
MAIN MENU
The Main Menu contains the menu options for “Listening Mode”, “DSP Options”,“Tone Controls”,“Zone
Controls” and access to “Setup Menu”.
To navigate through these Main Menu options and their sub-menu selections, please refer to and
follow the directions stated in the sections“DISPLAY THE OSD”and “NAVIGATING THE OSD AND
MAKING CHANGES”.
NOTE
The individual congurations set forth at “Listening Mode”, “DSP Options” and “Tone Controls”
are carried over whenever they are enabled during A/V Preset setting. Please see the section “A/V
PRESETS” for reference.
LISTENING MODE
The T 755 oers distinct listening modes, tailored for dierent types of recording or program material.
With a two-channel (Stereo) source, the following listening modes can be selected:
STEREO
All output is directed to the front left/right channels. Low frequencies are directed to the subwoofer
if one is present in the Speaker settings. Select “Stereo” when you wish to listen to a stereo (or
monaural) production, such as music CD or FM broadcast, without surround enhancement. Stereo
recordings whether in PCM/digital or analog form and whether surround-encoded or not encoded,
are reproduced as recorded. Multi-channel digital recordings (Dolby Digital and DTS) are reproduced in
“Stereo Downmix” mode via the front left/right channels only as Lt/Rt (left/right-total) signals.
PRO LOGIC
Two-channel recordings, whether stereo or surround-encoded, are reproduced with Dolby Pro
Logic surround processing, yielding output to front left/right, center and discrete left/right surround
channels (assuming these are present in the current“Speaker Conguration”). The surround channel is
monophonic, but it is reproduced in both surround speakers.
OPERATION
USING THE T 755  MAIN MENU
12
ENGLISH FRANÇAIS ESPAÑOL ITALIANO DEUTSCH NEDERLANDS SVENSKA РУССКИЙ

PRO LOGIC PLII
Dolby Pro Logic II is a more recent evolution of the original Dolby Pro Logic surround processing that
yields more stable imaging and full bandwidth sound to the rear channels in Movie mode, oering
sound that is more similar to Dolby Digital decoding.
PRO LOGIC IIx
Dolby Pro Logic IIx processes both stereo and 5.1 signals into a 6.1 or 7.1 channel output. At Dolby
Pro Logic IIx, you can choose PLIIx Movie or PLIIx Music modes to tailor your listening experience
to the source material. Dolby Pro Logic IIx surround processing yields more stable imaging and
full bandwidth sound to the rear channels in Movie mode oering sound that is more similar to
Dolby Digital decoding. For two channel signals, Dolby Pro Logic IIx Music mode also features three
additional user controls - Dimension, Center Width, and Panorama. See also section about “ADJUSTING
LISTENING MODES” below.
The following chart shows the channels available assuming they are enabled in the“Speaker
Conguration” menu;
Listening Mode
Two-Channel Sources
Active Decoded Output Channels
6.1 Speaker System 7.1 Speaker System
Dolby Pro Logic IIx Music
Dolby Pro Logic IIx Movie
Front (left & right), Center, Surround
(left & right), Back Surround,
Subwoofer
Front (left & right), Center, Surround
(left & right) and Back Surround (left
and right) and subwoofer
NOTE
The mention of “Back Surround (left, right)” refers to your external amplier’s corresponding “Back
Right” and “Back Left” speakers (if any) as interfaced with the T 755. The Audio PRE- OUT makes it
possible to use the T 755 as a pre-amplier to external power ampliers for some or all channels.
NEO:6
Two-channel recordings, whether stereo or surround-encoded, are reproduced with Neo:6 surround
with output to front left/right, center and discrete left/right surround channels plus subwoofer
(assuming these are present in the current“Speaker Conguration”). The T 755 provides two DTS Neo:6
variations - CINEMA and MUSIC. See also section about “ADJUSTING LISTENING MODES” below.
EARS
Two-channel recordings, whether stereo or surround-encoded, are reproduced with proprietary NAD
surround processing with signals output to the front left/right, center and discrete left/right surround
channels, plus subwoofer (assuming these are present in the current “Speaker Conguration”). EARS
does not employ the surround back speakers (if any).
EARS extracts the natural ambience present in nearly all well-produced stereo recordings. It does not
synthesize any ambience or other sonic elements and thus remains truer to the sound of the original
musical performance than most other music-surround options.
Select EARS for listening to stereo music recordings and broadcasts. EARS produces a subtle but highly
natural and believable ambience from nearly all “natural-acoustic” stereo recordings. Typically, these
include classical, jazz, and folk genres as well as numerous examples from others. Its virtues include
realistic, stable“front-stage”sonic imaging and spacious but unexaggerated ambient “virtual acoustics”
that remain faithful to the original recording.
ENHANCED STEREO
All recordings reproduced in stereo via the maximum speaker complement congured in the current
“Speaker Conguration”. Enhanced stereo can be useful for maximum volume from all channels or for
multi-speaker background music (cocktail party) listening. For this mode, Front, Center, Surround and
Back speakers can be turned ON/OFF as desired.
ANALOG BYPASS
All analog signals remain in the analog domain without analog-to-digital conversions. At Analog
Bypass, the DSP circuitry is bypassed but full tone control functions remain. “Bass management” or
“Speaker Setup”settingare also not in eect as these are DSP functions.
OPERATION
USING THE T 755  MAIN MENU
13
ENGLISHFRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ

ADJUSTING LISTENING MODES
Several of the T 755’s listening modes have one or more selectable variations and adjustable
parameters that you can modify to suit your personal preferences. At Listening Mode menu, use a
combination of the [ENTER] and [ ] keys to navigate and eect desired settings.
NOTE
Listening Mode parameter changes are maintained when you change listening modes. You may
also save a modied Listening Mode for easy recall by saving it to a Preset (See “A/V PRESETS” below
under Setup Menu discussions).
PRO LOGIC IIx
PLIIx MOVIE is optimized for lm soundtracks.
PLIIx MUSIC for music recordings.
CENTER WIDTH (0 to 7): Modies the“hard-centeredness” of the center image, by gradually mixing
mono center content to the Front left/right speakers as well. A setting of 0 retains the center-
channel-only default while a setting of 7 yields a fully phantom center channel.
DIMENSION (-7 to +7): Adjusts front-rear emphasis of the surround eect independently from the
relative channel levels.
PANORAMA (On/O ): Adds a “wrap around”eect by extending some stereo content into the
surround channels.
NOTES
• Pro Logic IIx mode will decode as Pro Logic II mode when the BACK surround speakers are set to
“O” from “Speaker Conguration” menu. See also section about “SPEAKER CONFIGURATION”
under “SPEAKER SETUP” of the Setup Menu.
• The mention of “Back Right” and “Back Left” refer to your external amplier’s corresponding “Back
Right” and “Back Left” speakers (if any) as interfaced with the T 755. The Audio PRE- OUT makes it
possible to use the T 755 as a pre-amplier to external power ampliers for some or all channels.
NEO:6
Neo:6 Cinema is optimized for lm soundtracks.
Neo:6 Music for music recordings.
CENTER GAIN (0 to 0.5): Adjust for better center image in relation to the surround sound channels.
DSP OPTIONS
DSP Options has the feature“Lip Sync Delay” whose function is to match any delay that may occur in
the picture relative to the audio.
By varying “Lip Sync Delay”from 0ms to 120ms, one can delay the audio output in order to synchronize
it with the video image.
TONE CONTROLS
The T 755 has Bass and Treble Tone Control levels which only aect the low bass and high treble
leaving the critical midrange frequencies free of coloration.
These controls allow one to tweak on-the-y, the frequency response of the source during playback.
The control setting could be adjusted by navigating through the Tone Controls OSD menu via a
combination of [ENTER] and [ ] keys. The same can be managed directly by pressing the front
panel’s “TONE CONTROLS”button and then rotating the Volume knob to select desired setting.
Maximum and minimum values for both Tone Control levels are +/- 10 dB.
“Tone Defeat” gives one the choice of varying or completely bypassing the tone control section of the
T 755. If “O” (Tone Active in the VFD) is selected, the Tone Control circuits are active.
Select “On”to bypass the Tone Controls eectively defeating the eect of the tone control circuits.
OPERATION
USING THE T 755  MAIN MENU
14
ENGLISH FRANÇAIS ESPAÑOL ITALIANO DEUTSCH NEDERLANDS SVENSKA РУССКИЙ

ZONE CONTROLS
Depending on the settings made at the separate “Zone Setup” menu under the “Setup Menu”section
discussion, Zone 2 can be congured and managed via this“Zone Controls”window.
Select “On”to activate Zone 2. When activated, the Source input for Zone 2 can be allocated by
selecting through the following inputs – All enabled Sources, Front Input, Media Player, Tuner and
Local.
Select “Local” as Zone 2’s Source input if you wish to enjoy the same source as the main Zone and allow
simultaneous listening, but with full separate volume levels.
If Zone 2 is set to “O”, it is deactivated or powered o.
“Volume”refers to the adjustable secondary Zone Volume level that can be increased or decreased
using the [ ] buttons of the HTR 3 or front panel’s.
When Zone 2 is activated, a corresponding Zone 2 icon is illuminated at the VFD.
OPERATION
USING THE T 755  MAIN MENU
15
ENGLISHFRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ

SETUP MENU
The Setup Menu allows one to customize the operation of the T 755 to the ancillary equipment used
in one’s specic AV system. Unless your system exactly matches the factory defaults as shown in the
accompanying Quick Start Guide, you will need to use the setup menu to congure the inputs of the T 755.
At Setup Menu, the following are congurable – Source Setup, Speaker Setup, Zone Setup, Trigger
Setup, Listening Mode Setup, Display Setup and A/V Presets.
To access and navigate through Setup Menu and its sub-menu selections, please refer to and follow
the directions stated in the sections “DISPLAY THE OSD” and “NAVIGATING THE OSD AND MAKING
CHANGES”.
SOURCE SETUP
From Source Setup menu, pressing [ ] will direct you to the Source Setup menu wherein you could
adjust allocate or change the settings of the following – Source Setup (Normal View), Source Setup
(Table View) and iPod Setup.
SOURCE SETUP (NORMAL VIEW)
The Source Setup (Normal View) makes it possible to set, allocate or change the following settings.
SOURCE
The T 755 is equipped with ten congurable Sources. The settings for each Source are dependent on
the congurations set forth in the parameters for that particular Source window.
To change or toggle through the Sources, scroll to “Source”, press the buttons [ ] and then ENTER or
[ ] to move up or down the Source selections.
NOTE
Source 5 is defaulted to iPod. For Source 5 to be changed and allocated for other inputs, go to “iPod
Setup” menu under the “Source Setup” menu. At iPod Setup menu, set “Enabled” to “No” – you can
now assign Source 5 to other inputs or settings as desired.
ENABLED
One can enable/disable a Source via this option. This is particularly useful if only few Sources are used
and one directly selects the Source from the front panel, bypassing unused sources.
To enable or disable a particular Source, scroll to“Enabled”and press [ ] keys to select “Yes”or “No”.
NAME
A new Name maybe assigned to a Source label. For example, if your DVD player is attached to “Source
1”, it is possible to rename “Source 1”to “DVD Player”.
In order to rename the Source label, scroll to “Name”and press [ ] to go the character.
Then, press [ ] to pick through the alphanumeric selections.
Press [ ] to move to the next character and at the same time save the changes done on the
current character. The name can be as long as twelve characters.
The new Name will be shown in the VFD as well as on the OSD.
OPERATION
USING THE T 755 –SETUP MENU
16
ENGLISH FRANÇAIS ESPAÑOL ITALIANO DEUTSCH NEDERLANDS SVENSKA РУССКИЙ

ANALOG AUDIO
The T 755 has nine analog audio inputs including 7.1 input. These analog inputs - Audio 1, Audio 2,
Audio 3, Audio 4, Audio 5, Audio 6, Audio Front, Audio MP and 7.1 Input can be variably assigned to
each Source.
Scroll to“Analog Audio”and then press [ ] to select and assign an analog audio input to the particular
Source. There are three choices – Audio, 7.1 Input or O.
When “Audio” is chosen, press [ ] and then [ ] keys to select and assign the desired audio input
– 1 to 6, Front and MP.
Select “7.1 Input” to choose the audio signal fed to“7.1 Channel Input”. If “O” is selected, no incoming
analog audio signal is selected by the particular Source.
NOTE
An incoming digital signal present at the assigned digital input will always take precedence over the
assigned analog audio input, even if both are present. To maintain the analog audio input for the
particular Source, select “O” at the “Digital Audio” setting of the same ”Source” menu.
GAIN
Gain adjustment allows all sources to play back at the same volume so you don’t need to adjust the
volume every time a new source is selected. It is generally preferable to reduce the level of the loudest
source rather than making louder the softer sources.
Scroll to“Gain”, press [ ] and then [ ] to step through the desired level from -12dB to 12dB.
DIGITAL AUDIO
To take advantage of the T 755’s high performance surround and digital audio circuitry, it is advisable
that its Digital Audio inputs are selected.
There are two types of Digital Audio input for the T 755: Optical and Coaxial. A third option is“O”whereby
no incoming digital audio signal is selected by the particular Source.
The desired digital audio input for a particular Source can be selected by scrolling to“Digital Audio”, press
[ ] and then [ ] to step through the desired digital input source. After nalizing which type of Digital
Audio input is desired, press [ ] and then [ ] again to select the specic Digital Audio input.
There are seven Digital Audio inputs selectable for the T 755. They are the following
Optical Optical 1, Optical 2, Optical 3, Optical Front
Coaxial Coaxial 1, Coaxial 2, Coaxial 3
NOTE
An incoming digital signal present at the assigned digital input will always take precedence over the
assigned analog audio input, even if both are present. To maintain the analog audio input for the
particular Source, select “O” at the “Digital Audio” setting of the same “Source” menu.
VIDEO
There are four types of video input a particular Source could be assigned. These are HDMI, Component,
S-Video and Video inputs. A fth option is“O” wherein the particular Source is prompted not to select
any Video input.
Navigating through the Video input selections involve a combination of pressing [ ] and then [ ]
to step through the selections. The following are the assignable Video inputs
HDMI HDMI 1, HDMI 2, HDMI 3
Component Video Component 1, Component 2, Component 3
S-Video S-Video 1, S-Video 2, S-Video 3, S-Video 4, S-Video 5, S-Video Front
Video Video 1, Video 2, Video 3, Video 4, Video 5, Video Front
NOTE
An audio input and video input should always be associated to a selected Source setting to ensure audio and video
output. If “O” is selected for any of the Analog Audio, Video or Digital Audio settings, there will be no corresponding
audio or video for the associated Source. For example, if the selected Video setting for a particular Source is
Component 1 and both Digital and Analog Audio are set to “O”, only video output will be available but no audio.
Ideally, when the selected Video input is Component 1, it follows that the Digital Audio input is set to Optical 1 or any
of the digital inputs. Refer also to the QUICK START section under the INTRODUCTION – GETTING STARTED page.
OPERATION
USING THE T 755 SETUP MENU
17
ENGLISHFRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ

ABOUT VIDEO FORMATS
For many years, there was only one type of video format used. Composite video signals include the
Luminance (black & White) and Chroma (color) signals combined on one wire. S-Video uses separate
wires in a single cable for Luminance and Chroma signals. Component Video goes a step further
with separate cables for Luminance and the two elements of Chroma. For NTSC (America, Japan)
as well as PAL signals(Europe, Asia) these are labeled Y, Cr, Cb. Television studios use the Component
Video format to keep these signals separate in order to maintain the best quality. As consumer video
equipment has improved this higher quality format has been included.
VIDEO FORMAT CONVERSION
The T 755 is equipped with a Video Format Converter. This allows for a simplied video connectionbetween
the T 755 and your TV Monitor when using multiple video formats such as Composite (CVBS), S-Video, and
Component (YUV). This format change is accomplished by encoding the analog video signal intoa digital
signal using a very high quality digital encoder to maintain the best possible picture quality. Once in a
digital format, it can be decoded into any of the three standard analog video formats.
It is suggested that you select the highest quality video format available on your TV Monitor and utilize this
for your Monitor OUT connection from theT 755 to the TV Monitor. In most cases this will be Component
Video, but on some olderTV’s S-Video may be the best quality connection. See also the item“3 COMPONENT
VIDEO 1-3, COMPONENT VIDEO OUT”under“Identication of Controls – Rear Panel”discussions.
NOTES
Video signals are converted between all three formats:
• Composite, S-video and Component Video.
• All three monitor outputs will always be active no mater what the source format is.
• OSD menu is always available on all three output formats.
A/V PRESET
A particular Source can be assigned a stored Preset. The parameters set up in the selected Preset
number will be adopted into the particular Source it is assigned (Please refer to the separate section on
“A/V PRESETS” for further understanding of Preset settings).
Scrolling to“A/V Preset” and by pressing [ ] and then [ ] keys, a Source could be assigned a
Preset number ranging from Preset 1 to 5.
If it is desired not to assign the particular Source a Preset setting, select“None”.
TRIGGER OUT
The Trigger Out for a particular Source is dependent on the congurations done in a separate menu on Trigger
Setup (See“TRIGGER SETUP”below). If all three available Trigger outputs are assigned to“Source Setup”in the
separate“Trigger Setup”window, a particular Source can have the followingTrigger Out combinations
Trigger Out 1 2 1 + 2 3 1 + 3 2 + 3 1+2+ 3
These combinations are dependent on the assignment of“Source Setup”for “Trigger 1 Out, Trigger 2
Out or Trigger 3 Out” at the Trigger Setup menu.
Another option is “O” whereby the particular Source is not assigned any Trigger Out.
For “Trigger Out”to become enabled and assignable at “Source Setup (Normal View)”menu, make sure
to carry out or note the following beforehand
• In the separate “Trigger Setup” menu, assign “Trigger 1 Out, Trigger 2 Out or Trigger 3 Out” to
“Source Setup”.
• “Trigger Out” will not appear as an option at the Source Setup (Normal View) menu if at the
separate “Trigger Setup” menu, “Trigger 1 Out, Trigger 2 Out or Trigger 3 Out” are all assigned to
“Main”or “Zone 2”without a single “Trigger Out”port allocated to “Source Setup”.
SOURCE SETUP (TABLE VIEW)
The Source Setup (Table View) reects the settings made in the Source Setup (Normal View) menu. All
the Source settings are summarized and displayed in tabulated form in the Source Setup (Table View).
Navigating through the Source Setup (Table View) via a combination of [ ] and then [ ] keys,
one will have the benet of directly changing the settings for “Audio, Video, Preset, Trigger and Source
Name”without going back to the Source Setup (Normal View) menu.
OPERATION
USING THE T 755 SETUP MENU
18
ENGLISH FRANÇAIS ESPAÑOL ITALIANO DEUTSCH NEDERLANDS SVENSKA РУССКИЙ

iPod SETUP
The iPod Setup menu allows you to preset the following associated settings when iPod is the selected
source:
Enabled: Select “Yes”to enable iPod as a Source or“No”to disable it.
Auto: Select “Yes” to automatically enable and connect the iPod player docked in the linked NAD
iPod docking station when Source 5 (the default iPod source allocation in the T 755) is selected.
Select “No”if you do not want for the iPod connection automatically connected.
Menu Timeout: Set the time for the OSD to revert to the “Now Playing” display when the iPod
menu has been left idle (no scrolling or navigation being done) for the specied time out time. For
the “Now Playing”OSD to be shown, there should be a song paused or being played before going
to the iPod menu. You can set the “Menu Timeout” between the range 5s to 60s at 5s increments. If
you do not want for the menu to timeout, select“O”.
SPEAKER SETUP
After connecting all ancillary sources and other combinations, the Speaker Setup menu will guide
you on how to manage and setup your speakers in order to achieve optimum sound acoustics in your
listening environment.
The following are the Speaker Setup Menu sections.
AUDYSSEY SETUP
It has been shown that many, if not most, surround sound systems are not accurately congured and setup.
This requires special knowledge and instrumentation that the average person probably doesn’t possess.
The T 755 has the capability to automatically setup your own unique Home Theatre’s speaker system.
This is achievable through the T 755’s Audyssey Setup feature along with the sophisticated digital
electronics built into your unit.
The installation of your new T 755 is greatly simplied by Audyssey Setup with the end result of
delivering the best quality sound possible given the type of speakers you have as well as your listening
room’s dimensions.
Audyssey Setup takes up only a fraction of time to run compared with setting up your speakers
manually and then achieve results that rival other expensive test and setup measuring devices.
The following measurements are performed:
• Detection : Speaker conguration is detected including the number of surround speakers and
whether a subwoofer and center channel is connected.
• Size : T 755 crossover is set based on each channel’s signal handling capability and the subwoofer
crossover is automatically set.
• Level : SPL of each speaker is matched within 1dB at the microphone position.
• Distance : is accurately set to within 1 foot (30 centimeters) of the microphone for each speaker
position.
• Polarity : the setup program will detect and notify the user if any speakers are connected
improperly. Incorrect polarity can ruin the illusion of realism oered by surround sound.
This is a one-time setup, unless speakers are moved or changed, in which case Audyssey Setup should
be performed again.
OPERATION
USING THE T 755 SETUP MENU
19
ENGLISHFRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ

MEASUREMENT IS THE FIRST STEP
Connect the Audyssey microphone jack into the front panel’s MP/MIC input and the Audyssey Setup
wizard will guide you through a simple step-by-step conguration.
The sound at your main listening position is setup using the supplied Audyssey microphone. A special
test tone is sent to each speaker and the data is memorized by the T 755. The duration of setup may
take some time depending on the number of speakers. After the measurements, Audyssey calculates
the ideal system response for your particular room and speaker setup.
If some inconsistencies or discrepancies are detected during the Audyssey setup, the process
maybe interrupted or the problem is shown in the particular setup window. A notice screen is
correspondingly displayed. After following and undertaking the displayed instructions, re-start the
Audyssey setup again. When the measurements are nalized, Audyssey calculates the ideal system
response for your particular room and speaker setup.
NOTES
• The test tone emitted during measurement is loud. This maybe bothersome for you and may aect
as well your other household members and even your neighbor.
• The mention of “Back Right” and “Back Left” refer to your external amplier’s corresponding “Back
Right” and “Back Left” speakers (if any) as interfaced with the T 755. The Audio PRE- OUT makes it
possible to use the T 755 as a pre-amplier to external power ampliers for some or all channels.
It is recommended that you take full advantage of the T 755’s Audyssey Setup feature for your speaker
setup. However, if you desire to setup your speakers manually or if you already had run Audyssey Setup
but would like to make adjustments, the following sections on Speaker Conguration, Speaker Levels
and Speaker Distance can also be followed and implemented.
NOTE
During manual setting of your speakers, previously calibrated Audyssey settings could be retrieved
by re-adjusting back the altered congurations as highlighted by an asterisk.
SPEAKER CONFIGURATION
Every surround-sound system requires“bass-management” to direct low-frequency content from any
or all channels to the speakers best able to reproduce it. For this function to operate correctly, it is
important that you correctly identify your speakers’ capabilities. We use the terms“Small”and “Large”
(and “O”), but note that physical size may be irrelevant.
• A “Small” speaker is any model, regardless of physical size, that lacks signicant deep-bass response,
that is, below about 80 Hz.
• A “Large”speaker is any full-range model, that is, one with deep-bass response
• An “O” speaker is one that is not present in your system. For example, you might not have any
surround-back speakers installed; in that case, you would set the“Back” setup item to “O”.
OPERATION
USING THE T 755 SETUP MENU
20
