Nakamichi DELTA 50B User manual

DELTA 100B / DELTA 100W
DELTA 50B / DELTA 50W
User manual

1
Delta 50 & Delta 100
Wireless Speaker Bluetooth Receiver
Instrucon Manual
CAUTION: Risk of electrical shock. Please do not open the unit.
1. Please read, keep and follow these instrucons.
2. Install in accordance with the manufacturer’s instrucons.
3. Do not install near any heat sources such as radiators, heat registers, stoves, or other products (including
amplifiers) that produce heat.
4. Only use aachments/accessories specified by the manufacturer.
5. Protect the power cord from being walked on or pinched, parcularly at plugs, convenience receptacles,
and the point where they exit from the product.
6. Unplug this product during lightning storms or when unused for long periods of me.
7. Do not let foreign objects or liquids enter the product.
8. Refer all servicing to qualified service personnel. Servicing is required when the product has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the product, the product has been exposed to rain or moisture, does not operate normally,
or has been dropped.
9. Opening the unit by unauthorized personnel will void the warranty.
CAUTION: Use of controls, adjustments or performance of procedures other than herein may result in
hazardous radiaon exposure or other unsafe operaon.
Cleaning: Use a so, dry cloth to avoid scratching to the surface. Do not use cleaning alcohol, or other
solvent fluids to clean the surface of the Cabinet as this can both damage the coang and also cause electrical
failures or fire if it enters the electronics in the unit! Before cleaning, please unplug the unit from the AC
power outlet.
Overloading: To prevent risk of fire or electric shock, avoid overloading wall outlets or extension cords.
Open fire: Keep this sound system a safe distance away from any open flames such as a lit candle. No open
flame sources, such as lighted candles, should be placed on the unit.
Operang temperatures: The recommended operang temperature range for the sound system is 5 to 40
degrees Celsius (41 to 104 degrees Fahrenheit).
Label locaon: The product labels and safety related markings are located on the back of the unit and the power
adaptor.
Unplugging while in operaon: Do not remove the AC power cord if music is playing.

2
FRONT PANEL
DC IN - Connect to Power with Power Adaptor
provided.
AUX IN - For use with external input source
(e.g Smartphones).
USB Input for charging - Connect to charge your
other mobile devices.
REAR PANEL
1.
2.
3.
Delta 50 LED Indicators1.
Delta 50•
DC IN - Connect to Power with Power Adaptor
provided.
AUX IN - For use with external input source
(e.g Smartphones).
USB Input for charging - Connect to charge your
other mobile devices.
1.
2.
3.
Delta 100•
No light - Standby
Blinking - Receiving remote signal
Solid Green - AUX IN mode, blinking when mute
Slow flashing Blue - Bluetooth waing for connecon
Fast flashing Blue - Bluetooth pairing mode
Solid Blue - Bluetooth device connected,
blinking when mute
•
•
•
•
•
•
Delta 100 LED Indicators2.
No light - Standby
Blinking - Receiving remote signal
Solid Green - AUX IN mode, blinking when mute
Slow flashing Blue - Bluetooth waing for connecon
Fast flashing Blue - Bluetooth pairing mode
Solid Blue - Bluetooth device connected,
blinking when mute
•
•
•
•
•
•
12
20V 3A 24V 2.5A

3
REMOTE CONTROL
CONTROL BUTTONS
Power / Standby
Bluetooth
Volume up
Play / Pause / Pairing
[EQ] Classic sound effect
[EQ] Rock sound effect
Mute
Auxiliary
Volume down
[EQ] Flat sound effect
[EQ] Pop sound effect
[EQ] Jazz sound effect

4

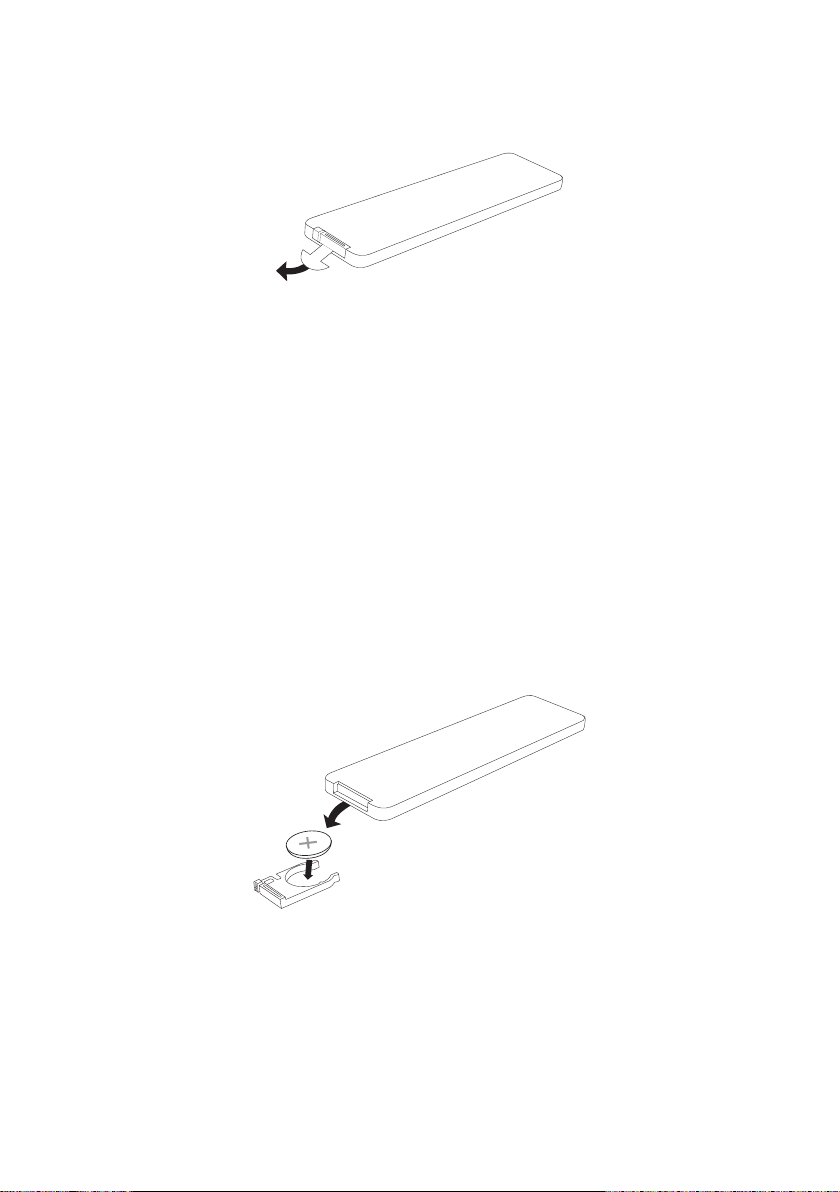

Slide out baery compartment on rear of remote control (remove baery if replacing).
Place new CR2025 in baery well as shown (make sure ‘+’ side is facing up).
Re-insert baery compartment.
1.
2.
3.
INSTALLING / REPLACING THE BATTERY
The remote control comes with one CR2025 baery which must be installed. When the range of the remote
seems reduced or if it ceases to work properly, it’s me to replace the baery.
Remove the protecon slip from the remote control baery compartment as shown below.
Your Nakamichi Delta 50 or Delta 100 comes supplied with one CR2025 baery.
1.
Connect the power adaptor’s DC plug to the power jack on the back of your product. Then connect the
power plug to your AC outlet.
Turn on the unit with the power - standby buon located on the remote control and the LED indicator
will turn Green or Blue.
2.
3.
GETTING STARTED
WARNING: Lithium baeries can cause burns if disassembled, shorted, recharged, exposed to water,
fire, or high temperatures. Do not place loose baeries in a pocket, purse, or other container containing metal
objects, mix with used or other baery types, or store with hazardous or combusble materials. Store in
cool, dry, venlated area. Follow applicable laws and regulaons for transport and disposal.

5
Press key on your remote to switch on.
Turn on the NFC funcon on your Bluetooth device (e.g. Smartphone).
Place your device surface near the NFC sensor area of your speaker (top of unit). Press the key on your
remote control for 3 seconds to pair your device. (Some devices may have a pop up message to confirm
the speaker connecon, select YES to accept).
To disable the connecon, just place your device surface near the NFC sensor area of the speaker again
or turn off the NFC funcon on your device.
IMPORTANT PLEASE NOTE: If you wish to connect a different device TURN unit off and then please
repeat steps (1-3) for new devices.
Your Bluetooth speaker can pair with most Bluetooth devices. Pairing may vary on your device.
Please consult your Bluetooth device’s owner’s manual for pairing instrucons.
1.
2.
3.
4.
5.
PAIRING YOUR BLUETOOTH DEVICE WITH NFC (NEAR FIELD COMMUNICATION)
FUNCTION
PAIRING WITH BLUETOOTH DEVICE
Press key on your remote to switch the unit on.
Press key on your remote. The LED light on the unit will show Slow Flashing Blue.
Turn on your Bluetooth device (e.g. Smartphone) and scan unl your device shows Delta 50 or Delta 100
on your Bluetooth list.
Select Delta 50 or Delta 100 on your device to pair with the speaker. Hold the key on your remote for
3 seconds unl you hear consecuve “Beep” sound. The LED on the front of the unit will fast flash blue
whilst waing for devices to pair. The LED on the front of the speaker will change to Solid Blue when pairing
has been successful.
You can now play your music wirelessly with your Bluetooth speaker.
IMPORTANT PLEASE NOTE: If you wish to connect a different device TURN unit off and then please
repeat steps (1-4) for new devices.
1.
2.
3.
4.
5.
6.
PAIRING
Your speaker can pair with most Bluetooth 2.0 & 2.1 devices. Pairing may vary by device. Consult your Bluetooth
device’s owner’s manual for pairing instrucons.

6
Please Note:
For mobile devices with Bluetooth 2.0, your device may request you to enter a passcode during pairing, press
0000. The Delta 50 or Delta 100 can remember up to 8 Bluetooth devices, to clear the memory press
on your remote unl you hear a “Beep”. The memory is now cleared.
ADJUSTING SOUND EFFECTS
Press either keys on the remote control to select your desired music mode.
AUXILIARY AUDIO OPERATION
Operang range of Bluetooth audio is up to 10 metres (Measured in open space. Any walls or structures may
affect the range device).
Connect a media player (e.g. Smartphone) to the AUX IN jack on the back of your unit.
Press key on your remote control. The LED light on the front of the unit will turn to Green.
In AUX mode, operate your device (e.g. Smartphone) directly for playback featuers.
1.
2.
3.

7
Speaker x 1 pc
Power Adaptor (DC 20V 3A) x 1 pc
Remote Control x1 pc
Bluetooth specificaon
ITEM’S INCLUDED
SPECIFICATIONS
•
•
•
Bluetooth v2.1 includes profiles: A2DP, AVRCP
Advanced Audio Distribuon Profile (A2DP) for wireless music streaming
Audio Video Remote Control Profile (AVRCP) for wireless audio playback control
Range up to (10M) in open areas
GENERAL SPECIFICATIONS
•
•
•
•
Model
Output power maximum
Transmission distance
AUX input
USB charging
Product size
Product weight
Bluetooth V2.1
Delta 50
2 x 25W
10m music transmission without barrier
3.5mm Stereo
DC 5V 2A
W340 x H201 x D201mm
4.4kg
Bluetooth V4.0 with APT-X
Delta 100
2 x 25W + 50W
10m music transmission without barrier
3.5mm Stereo
W380 x H215 x D261mm
5.9kg
CHARGING A DEVICE VIA USB CONNECTION
Connect your wireless speaker to Mains power using power lead supplied.
Plug one end of the USB cable (not supplied with unit) into the USB port on the back of your speaker, plug
the other end of the USB cable into your device (I.E. Smartphone) for USB charging.
1.
2.
TROUBLE SHOOTING AND SUPPORT
If your wireless speaker does not work as expected please first read this manual.
No operaon: Check the power adaptor and mains power have been turned on.
If sll not successful please contact Nakamichi Service Support. Please refer to details on page 8.
1.
2.
3.
Delta 50• Delta 100•
Speaker x 1 pc
Power Adaptor (DC 24V 2.5A) x 1 pc
Remote Control x1 pc
•
•
•
DC 5V 2A

8
New Zealand
Telephone: [phone]
Fax: [phone]
Email: warr[email protected]
Website: www.nakamichi.com.au
Address: 84 Kerrs Road, Manukau Auckland 2104
New Zealand
Hours of Operaon
Monday - Friday
9am to 5:00pm excluding Public Holidays
Or visit the Nakamichi website anyme 24/7 and use the e-warranty
service to make a claim.
NAKAMICHI SERVICE CONTACT DETAILS
Australia
Telephone: [phone]
Fax: [phone]
Email: warr[email protected]
Website: www.nakamichi.com.au
Address: 178 Boundary Road, Braeside Victoria 3195
Australia
Hours of Operaon
Monday - Friday
9am to 5:30pm AEST excluding Public Holidays
