Nanchang CJ-6A Manual

RedStar Pilots Association CJ-6A Maneuver Guide Version
1.0
RedStar PilotsAssociation
Nanchang CJ-6A
Maneuver Guide
Version 1.0 August 27,2003

RedStar Pilots Association CJ-6A Maneuver Guide Version
1.0

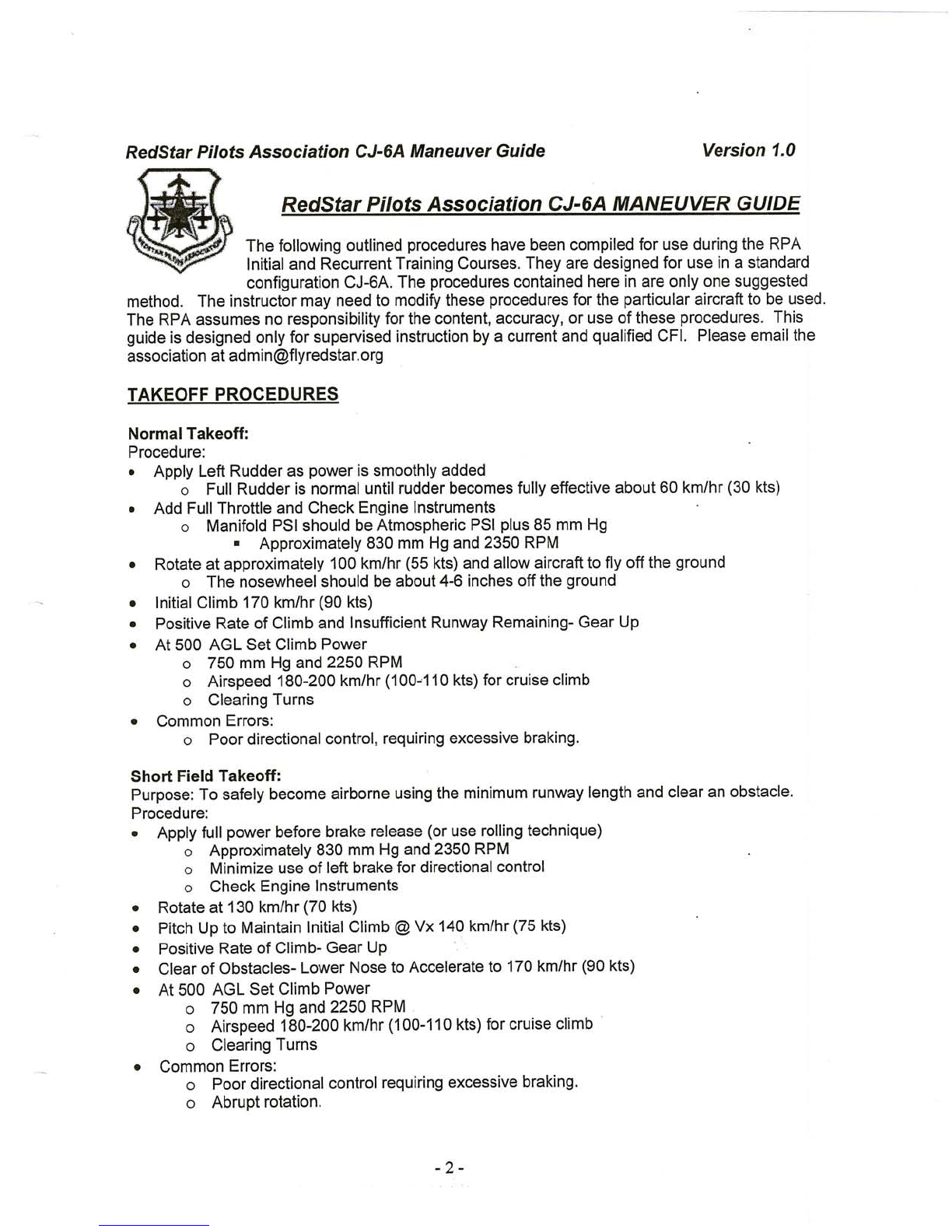

RedStar PilotsAssociation CJ-6A MANEUVER GUIDE
The followingoutlinedprocedureshave been compiledfor useduringthe RPA
Initialand RecurrentTrainingCourses.They are designedfor use ina standard
configurationCJ-6A. The procedurescontained here in are only one suggested
method. The instructormay needto modifythese proceduresfor the particularaircraftto be used.
The RPA assumes no responsibilityfor the content, accuracy, or use of these procedures. This
guide isdesignedonly for supervisedinstructionby a currentand qualifiedCFI. Please emailthe
associationat [email protected]
TAKEOFF PROCEDURES
NormalTakeoff:
Procedure:
Apply LeftRudderas power is smoothly added
o Full Rudder is normaluntil rudder becomesfully effectiveabout60 kmlhr (30 kts)
Add FullThrottleand Check Enginelnstruments
o ManifoldPSIshould beAtmospheric PSI plus 85 mm Hg
Approximately 830 mm Hgand2350 RPM
Rotateat approximately100kmlhr (55 kts) andallow aircraft to fly off the ground
o The nosewheelshould be about 4-6 inches off the ground
InitialClimb 170 kmlhr (90 kts)
Positive Rateof Climband InsufficientRunway Remaining-Gear Up
At 500 AGL Set Climb Power
o 750 mm Hg and 2250 RPM
o Airspeed 180-200kmlhr (100-110kts) for cruise climb
o ClearingTurns
Common Errors:
o Poordirectionalcontrol, requiring excessive braking.
Short Field Takeoff:
Purpose: To safely becomeairborneusing the minimum runway lengthand clear an obstacle.
Procedure:
Apply full power before brake release (or use rollingtechnique)
o Approximately 830 mm Hg and 2350 RPM
o Minimizeuse of left brakefor directionalcontrol
o Check Enginelnstruments
Rotateat 130kmlhr (70 kts)
PitchUpto Maintain lnitial Climb @ Vx 140kmlhr (75 kts)
Positive Rateof Climb- Gear Up
a Clear of Obstacles-Lower Noseto Accelerateto 170kmlhr (90 kts)
a At 500 AGL Set Climb Power
o 750 mm Hg and 2250 RPM
o Airspeed 180-200 kmlhr (100-110kts)for cruise climb
o ClearingTurns
Common Errors:
o Poordirectionalcontrol requiringexcessive braking.
o Abrupt rotation.

RedStar Pilots Association CJ-6A Maneuver Guide Version
1.0

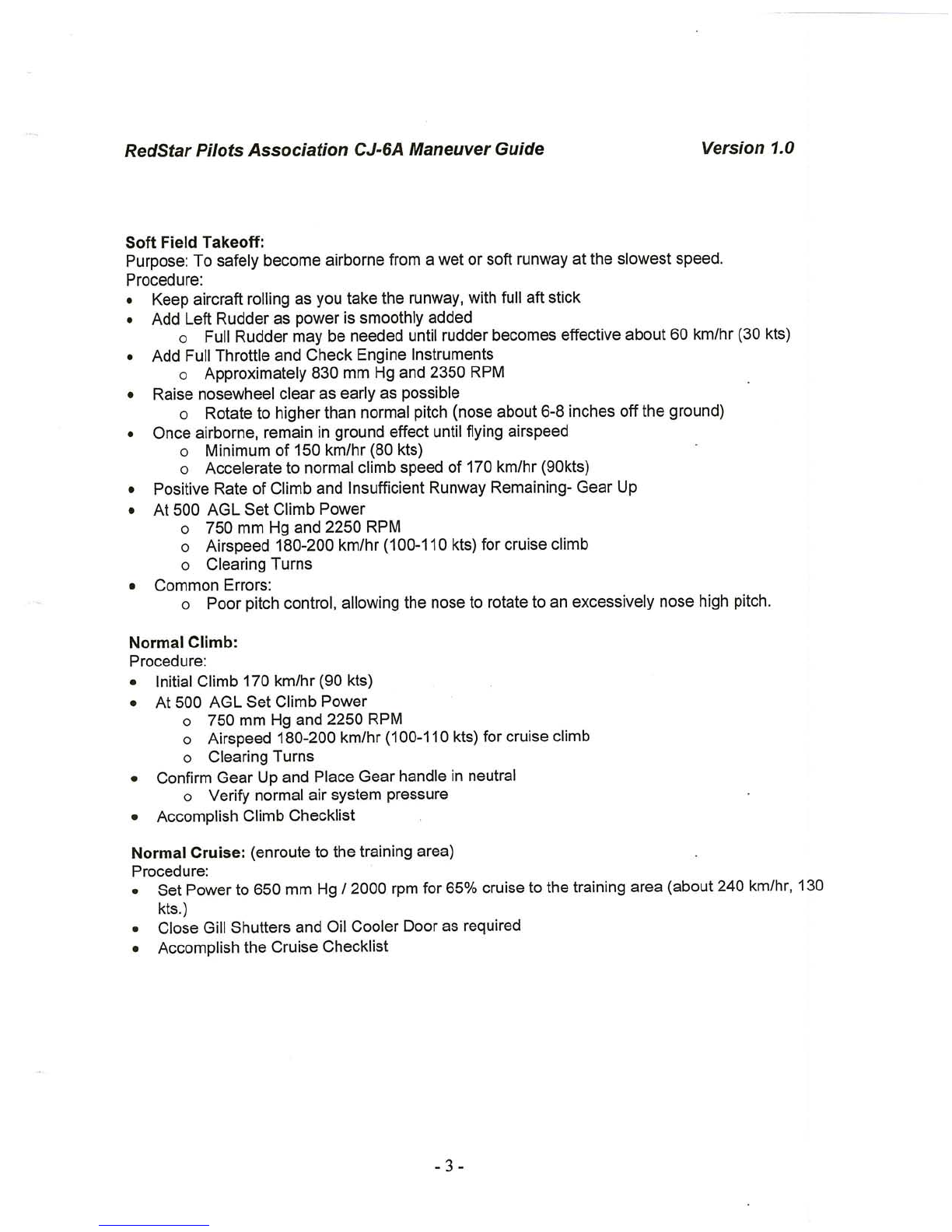

Soft FieldTakeoff:
Purpose: To safely becomeairbornefrom a wet or soft runway at the slowestspeed.
Procedure:
Keepaircraft rolling as you take the runway, with full aft stick
Add LeftRudderas powerissmoothly added
o Full Rudder may be neededuntilrudder becomeseffectiveabout60 kmlhr (30 kts)
Add FullThrottleand Check EngineInstruments
o Approximately 830 mm Hgand 2350 RPM
Raisenosewheel clear as early as possible
o Rotateto higherthan normalpitch (nose about 6-8 inchesoff the ground)
Onceairborne, remain in ground effect untilflying airspeed
o Minimumof 150kmlhr (80 kts)
o Accelerate to normalclimb speed of 170kmlhr (90kts)
PositiveRateof Climb and InsufficientRunway Remaining-Gear Up
At 500 AGL Set Climb Power
o 750 rnm Hg and 2250 RPM
o Airspeed 180-200 kmlhr (100-110kts) for cruise climb
o ClearingTurns
Common Errors:
o Poor pitchcontrol, allowingthe noseto rotateto an excessively nose high pitch.
NormalClimb:
Procedure:
InitialClimb 170kmlhr (90 kts)
At 500 AGL Set Climb Power
o 750 mm Hg and 2250 RPM
o Airspeed 180-200 kmlhr (100-110kts) for cruise climb
o ClearingTurns
Confirm Gear Up and PlaceGear handlein neutral
o Verify normalair system pressure
Accomplish ClimbChecklist
NormalCruise: (enrouteto the training area)
Procedure:
Set Powerto 650 mm Hg / 2000 rpm for 65% cruise to the training area (about 240 km/hr, 130
kts.)
Close Gill Shuttersand Oil Cooler Dooras required
Accomplish the Cruise Checklist

RedStarPilotsAssociation CJ-6A Maneuver Guide Version
1.0
AIRWORK PROCEDURES
Priorto each airwork maneuveror series of maneuvers,check that looseitems are stowed and that
the training area is clear of other traffic. Ensurea safe altitudewill be maintainedthroughout the
maneuvers.Set the Mixtureto Rich (or as required), set the prop to 2250 RPM, and check the
engine instruments. Adjust the Gill Shutters and Oil Cooler door as required, and continueto
monitortemps throughoutthe maneuvers.Check that the landing gear and flap leversare inthe up
position prior to maneuversrequiringconfigurationchanges.
Steep Turns:
Purpose:To gain skill maneuveringthe aircraft with increased bank. Also, to imp;ove composite
crosscheckand situational awareness.
Entry:
o Area: Clear
o Mixture: Rich (or as required)
o Prop: 2250 RPM
o Throttle: As requiredto maintaincruisespeed of 220 kmlhr, 120 kts (about 550 mm
Hg)
o Bank: 45" and60" bank turns will be practiced. Coordinateincreasedbackpressure
to maintainaltitude, andadd throttleto holdairspeed (about650 mm
Hg).
Performleft and rightturns of 360".
Recovery:
o Rollout of bank, reducingbackpressureand powerto maintainaltitudeand airspeed.
Common Errors: Imprecisealtitudeand airspeedcontrol.
Slow Flight:
Purpose:To gain skill maneuveringthe aircraft at slow speeds, learnproper ruddercoordination,
andbeable
6 recognize"benchmark pitchand power settings. Also, recognizingthe pitchattitude
for levelflight at approachspeedwill aid in performingpropergo-arounds.
Common Errors: Poor ruddercoordination, and imprecisealtitudecontrol.
Clean Slow Flight:
Entry:
o Area: Clear
o Mixture: Rich (or as required)
o Prop: 2250 RPM
o Throttle: 400 mm Hg initially,then 300 mm Hg to reduceairspeed
o Gear: Up
o Flap: UP
o Airspeed: Stabilizeat 140kmlhr,75 kts (about400 mm Hg)
PerformIeWright 15" bank turns, and practiceclimbsldescents at 2 meterslsec (400 Wmin).
Recovery:
o Apply full throttle,with coordinated left rudder, and acceleratetoward normalcruise.
LandingConfigurationSlow Flight:
Entry:
o Area: Clear
o Mixture: Rich (or as required)
o Prop: 2250 RPM

RedStar PilotsAssociation CJ-6A Maneuver Guide Version
1.0

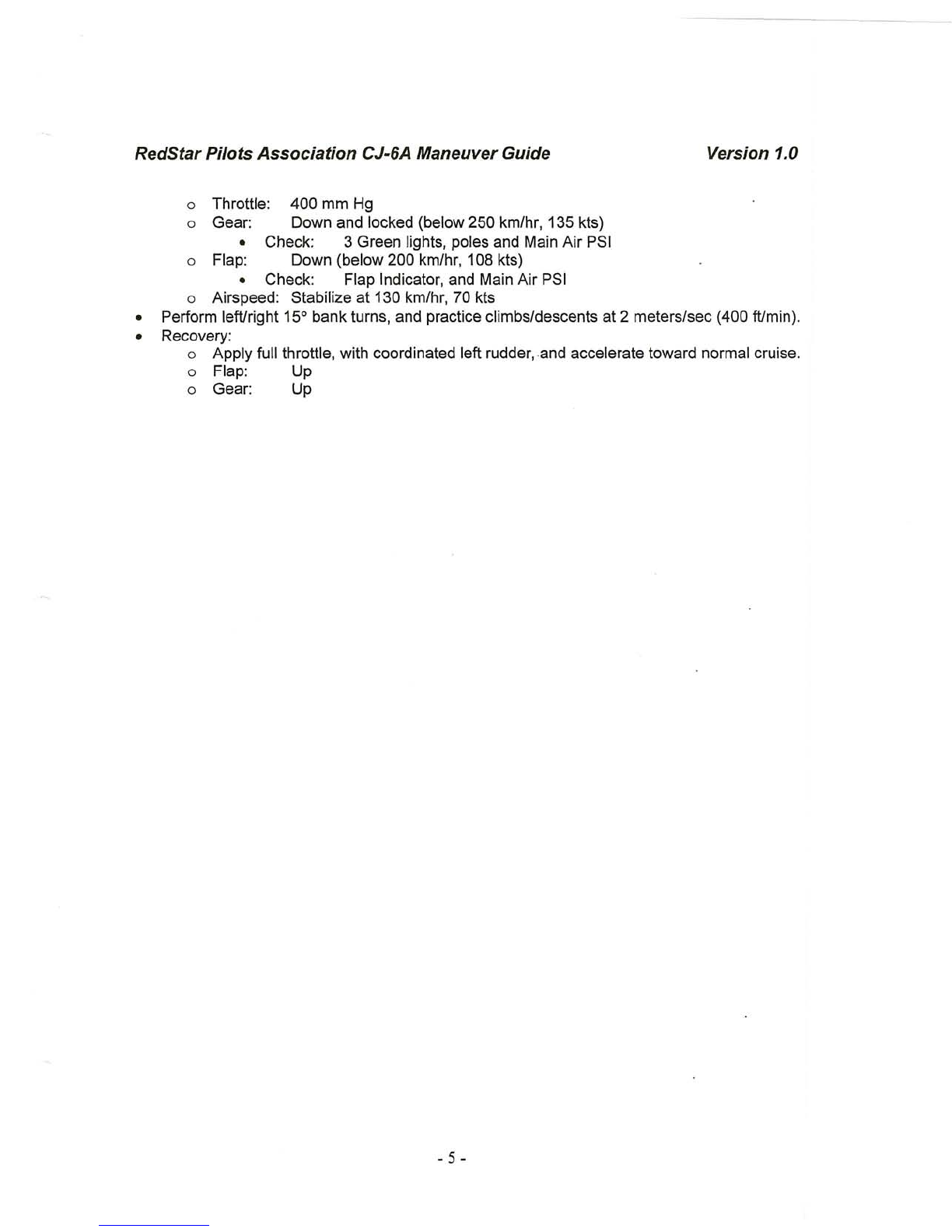

o Throttle: 400 mm Hg
o Gear: Downand locked(below250 kmlhr, 135 kts)
Check: 3 Greenlights, polesand MainAir PSI
Flap: Down (below200 kmlhr, 108kts)
Check: Flap Indicator,and MainAir PSI
o Airspeed: Stabilizeat 130 kmlhr, 70 kts
PerformIeWright 15O bankturns, and practiceclimbsldescents at 2 meterslsec (400 Wmin).
Recovery:
o Apply full throttle,with coordinated left rudder,.andacceleratetoward normalcruise.
o Flap: UP
o Gear: Up

RedStar Pilots Association CJ-6A Maneuver Guide Version 1.0

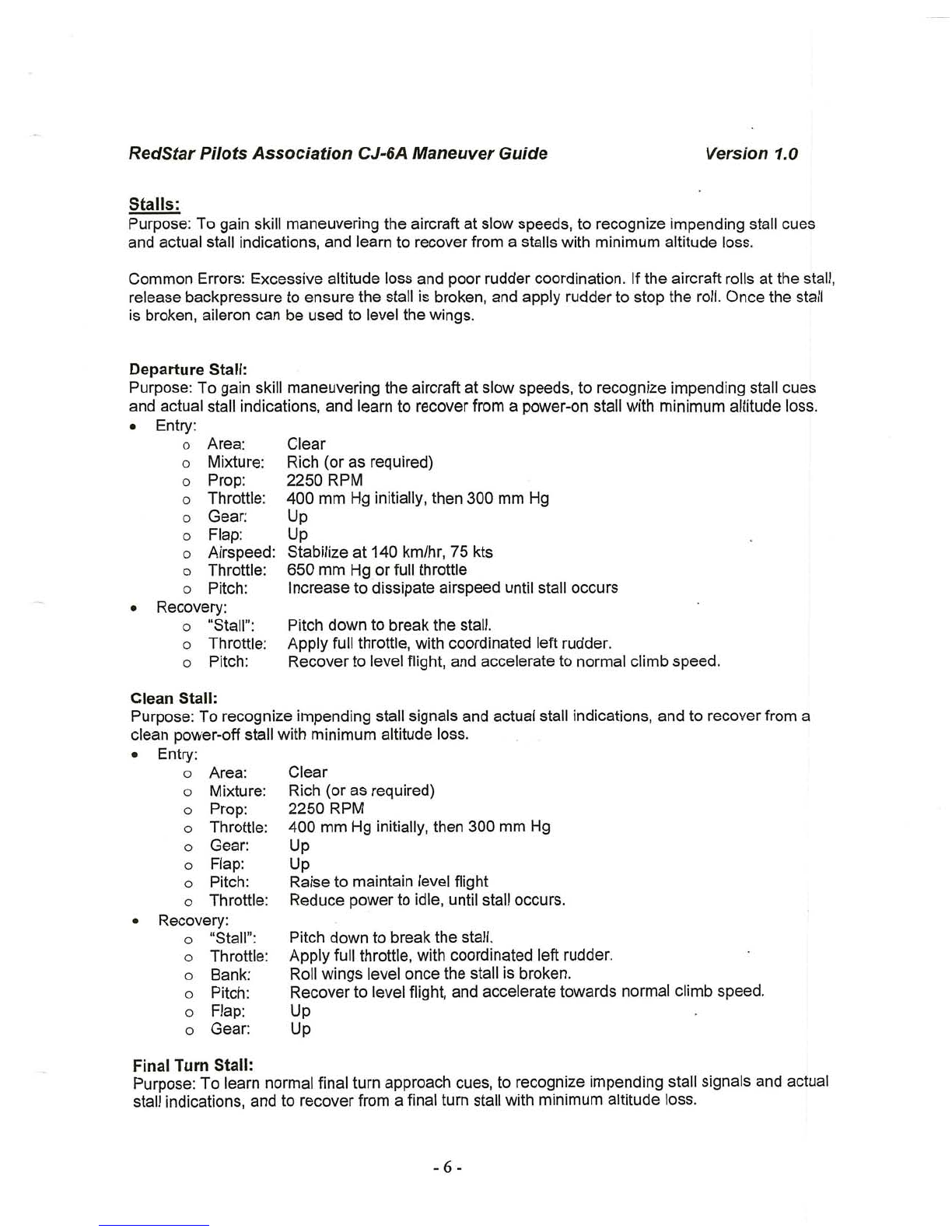

Stalls:
Purpose:To gain skill maneuveringthe aircraft at slow speeds, to recognizeimpendingstall cues
and actualstall indications,and learnto recoverfrom a stalls with minimumaltitudeloss.
Common Errors: Excessivealtitude lossand poor rudder coordination. Ifthe aircraft rolls at the stall,
release backpressureto ensurethe stall is broken, and apply rudderto stop the roll. Once the stall
is broken,aileroncan be usedto levelthe wings.
DepartureStall:
Purpose:To gain skill maneuveringthe aircraft at slow speeds, to recognizeimpendingstall cues
and actual stall indications,and learn to recoverfrom a power-onstallwith minimumaltitude loss.
Entry:
o Area: Clear
o Mixture: Rich (or as required)
o Prop: 2250 RPM
o Throttle: 400 mm Hg initially,then 300 mm Hg
o Gear: Up
I
o Flap: UP
o Airspeed: Stabilize at 140kmlhr, 75 kts
o Throttle: 650 mm Hgor full throttle I
o Pitch: Increaseto dissipateairspeed untilstall occurs
Recovery:
o "Stall": Pitchdownto breakthe stall.
o Throttle: Apply full throttle, with coordinated left rudder.
o Pitch: Recoverto levelflight, and accelerateto normalclimb speed.
Clean Stall:
Purpose: To recognizeimpendingstallsignals and actual stall indications,and to recoverfrom a
cleanpower-off stallwith minimumaltitudeloss.
Entry:
o Area: Clear
o Mixture: Rich (or as required)
o Prop: 2250 RPM
o Throttle: 400 mm Hg initially, then 300 mm Hg
o Gear: Up
o Flap: UP
o Pitch: Raiseto maintainlevelflight
o Throttle: Reducepowerto idle, until stall occurs.
Recovery:
o "Stall": Pitchdown to breakthe stall.
o Throttle: Apply full throttle, with coordinated left rudder. I
o Bank: Rollwings level once the stall is broken.
o Pitch: Recoverto levelflight, and accelerate towards normalclimb speed.
o Flap: UP
I
o Gear: Up
FinalTurn Stall:
Purpose: To learn normal final turn approachcues, to recognize impendingstall signals and actual
stall indications, and to recoverfrom a final turn stallwith minimumaltitude loss.

RedStar Pilots Association CJ-6A Maneuver Guide Version
1.0
Entry:
o Area: Clear
o Mixture: Rich (or as required)
o Prop: 2250 RPM
o Throttle: 400 mm Hg
o Gear: Downand locked (below250 kmlhr, 135 kts)
Check: 3 Green lights, polesand MainAir PSI
o Flap: Down(below200 kmlhr, 108kts)
Check: Flap Indicator,and MainAir PSI
o Airspeed: Stabilizeat 170kmlhr, 90 kts
o Throttle: 350 mm Hg
o Pitch: Downto establishnormal approach path.
o Bank: Set bank at 30" and holdairspeed.
o Pitch: Raiseto levelflight, leaving power set at 350 mm Hg, until stall occurs.
Recovery:
o "Stall": Pitchdownto breakthe stall.
o Throttle: Apply full throttle,with coordinated left rudder.
o Bank: Rollwings levelonce the stall is broken.
o Pitch: Recoverto levelflight, and accelerate towards normalclimb speed.
o Flap: Retract,with flying airspeed.
o Gear: Retract,with positiverateof climb.
Landing Stall:
Purpose: To learn normalfinal approach and flare cues, to recognizeimpendingstall signals and
actual stall indications,and to recoverfrom a stallwith minimumaltitude loss. This maneuverwill
alsoteach proper go-around procedures.
Entry:
o Area: Clear
o Mixture: Rich (or as required)
o Prop: 2250 RPM
o Throttle: 400 mm Hg
o Gear: Downand locked(below250 kmlhr, 135kts)
Check: 3 Green lights, polesand MainAir PSI
3 Flap: Down(below200 kmlhr, 108kts)
Check: Flap Indicator,and MainAir PSI
o Airspeed: Stabilizeat 150kmlhr,80 kts
o Throttle: 350 mm Hg
o Pitch: Downto establishnormal approach path.
o Pitch: Raiseto levelflight, reducing powerto idle, untilstall occurs.
Recovery:
o "Stall": Pitchdownto break the stall.
o Throttle: Apply full throttle, with coordinated left rudder.
o Bank: Rollwings level once the stall is broken.
o Pitch: Recoverto levelflight, and acceleratetowards normalclimb speed.
o Flap: Retract,with flying airspeed.
o Gear: Retract,with positiverateof climb.
Accelerated and Cross-ControlledStalls:
Purpose: To recognizeimpendingstall signals and actual stall indications, and to recoverfrom an
aggravated stallconditionwith minimum altitude loss.

RedStar Pilots Association CJ-6A Maneuver Guide Version
1.0
Entry:
o Area: Clear
o Mixture: Rich (or as required)
o Prop: 2250 RPM
o Throttle: 400 Initially,then 300 mm Hg
o Gear: Up
o Flap: UP
o Airspeed: Stabilize at 150kmlhr, 80 kts
o Bank: Set bankat 30"
o Apply excess bank and backpressureto attainan accelerated stall, or:
o Apply excess rudderand backpressureto attaina cross-controlled stall
Recovery:
o "Stall": Pitchdownto break the stall.
o Throttle: Apply full throttle, with coordinated left rudder.
o Bank: Rollwings levelonce the stall is broken.
o Pitch: Recoverto levelflight, and acceleratetowards normalclimb speed.
Normal
Spin:
Purpose:To recognizeimpendingstallsignals, spin entries, andto recoverfrom a normalspin with
minimumaltitudeloss.
Entry:
o Area: Clear
o Mixture: Rich (or as required)
o Prop: 2250 RPM
o Throttle: 400 mm Hg initially,then 300 mm Hg
o Gear: Up
o Flap: UP
o Throttle: Reducesmoothly to idle
o Pitch: Raisenoseto maintain levelflight. As stall is approached, increase
backpressureand apply full rudder in the desired direction. Maintainfull aft stick and full
rudder until recoveryis initiated.
Recovery:
o Throttle: Check in idle
o Ailerons: Neutral
o Rudder: Apply full rudder opposite spin direction
o
Elevator: Apply briskforward stick to slightly forward of neutralto break the.stall.
o Rudder: Neutralizethe rudderafter the stall is broken
o Pitch: Increasebackpressureto bring the nose up to the horizon

RedStar Pilots Association CJ-6A Maneuver Guide Version
1.0

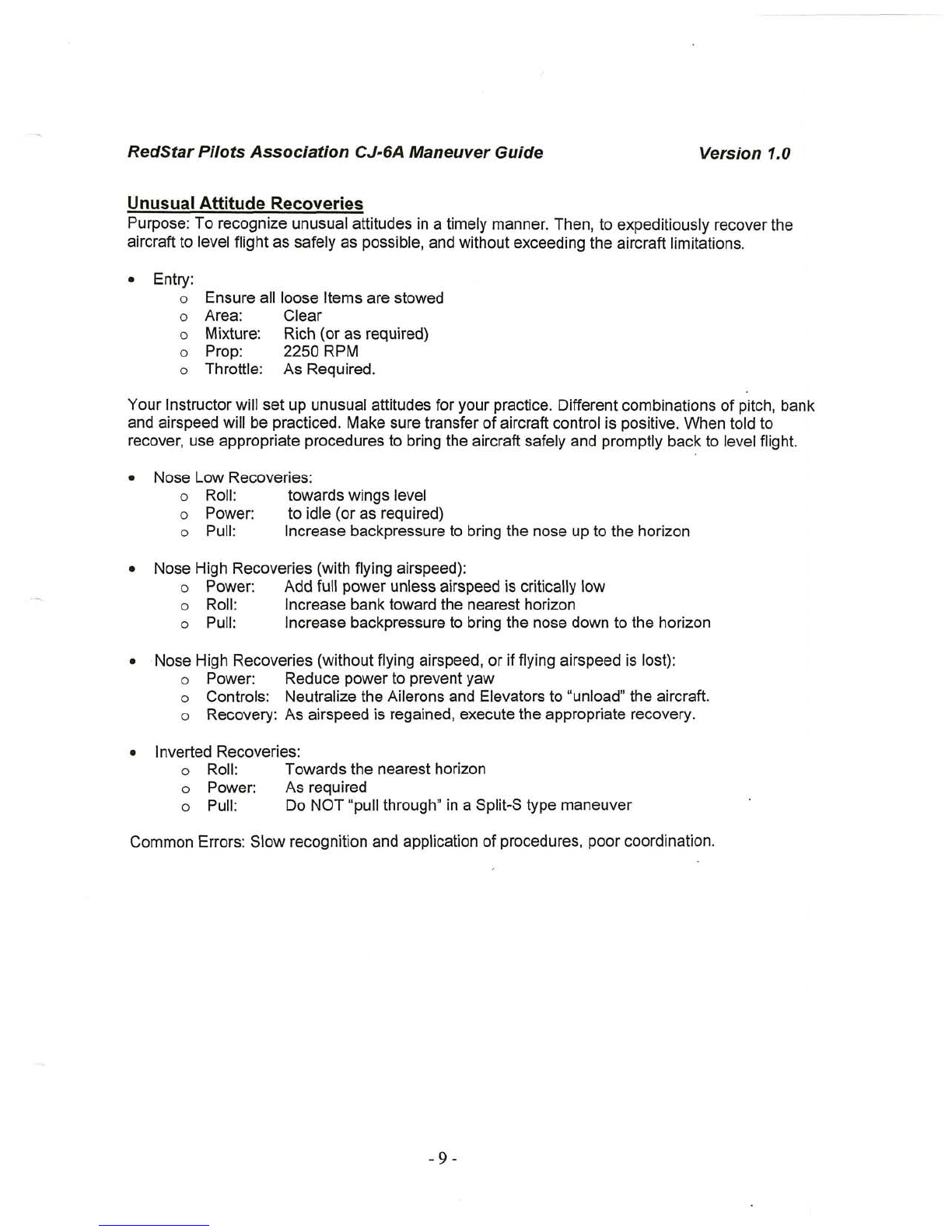

UnusualAttitude Recoveries
Purpose:To recognizeunusualattitudes in a timely manner. Then, to expeditiously recover the
aircraft to levelflight as safely as possible, and without exceeding the aircraft limitations.
Entry:
o Ensure all loose Itemsare stowed
o Area: Clear
o Mixture: Rich (or as required)
o Prop: 2250 RPM
o Throttle: As Required.
Your Instructorwill set up unusualattitudes for your practice. Differentcombinationsof pitch, bank
and airspeedwill be practiced. Makesure transfer of aircraft control is positive.When told to
recover,useappropriate proceduresto bring the aircraft safely and promptly backto levelflight.
Nose Low Recoveries:
o Roll: towards wings level
o Power: to idle (or as required)
o Pull: Increasebackpressureto bring the nose up to the horizon
Nose High Recoveries(with flying airspeed):
o Power: Add full powerunlessairspeed is critically low
o Roll: Increasebank toward the nearesthorizon
o Pull: Increasebackpressureto bringthe nose down to the horizon
Nose HighRecoveries(withoutflying airspeed,or if flying airspeed is lost):
o Power: Reducepower to preventyaw
o
Controls: Neutralizethe Ailerons and Elevatorsto "unload"the aircraft.
o Recovery: As airspeedis regained, executethe appropriaterecovery.
Inverted Recoveries:
o Roll: Towardsthe nearesthorizon
o Power: As required
o Pull: Do NOT"pull through" in a Split-Stype maneuver
Common Errors: Slow recognitionand application of procedures, poor coordination.

RedStar Pilots Association CJ-6A Maneuver Guide Version
1.0
TRAFFIC PATTERN PROCEDURES
NormalTraffic Pattern:
Procedure:
Traffic PatternEntry (45" to Downwind Leg)
o Approach ChecklistComplete (doublecheck gear and flap handlesup)
o Airspeed: 220km/hr, 120 kts (about 550 mm Hg)
o Mixture: Rich
o Prop: 2250 RPM
o Clear: Lookfor traffic on downwindand inthe traffic pattern
Midfield Downwind
o Gear: Downand locked(below250 kmlhr, 135 kts)
Check: 3 Green lights, polesand Main Air PSI
o Airspeed: 180kmlhr, 100kts
Abeam the Approach Endof the Runway
o Flap: Down (below200 kmlhr, 108kts)
Check: Flap Indicator,and MainAir PSI
o Airspeed: 170kmlhr, 90 kts
Base Leg
o Airspeed: 170kmlhr, 90 kts
o Prop: High RPM
o LandingChecklist:Accomplish
FinalApproach:
o Airspeed: 150kmlhr, 80 kts
360" Overhead Pattern:
Procedure:
Initial
o Approach ChecklistComplete (double check gear and flap handles up)
o Airspeed: 240 kmlhr, 130kts
o Mixture: Rich
o Prop: 2250 RPM
Overheadthe Runway
o Clear: Lookfor trafficon downwindand inthe traffic pattern
o Turn: Performa level45-60" bank levelturn to downwind
o Throttle: Reduceto 450 mm Hg
Rollingout on Downwind
o Gear: Downand locked (below250 kmlhr, 135 kts)
Check: 3 Green lights, polesand MainAir PSI
o Airspeed: 180kmlhr, 100kts
Abeam the Approach Endof the Runway
o Flap: Down(below200 kmlhr, 108 kts)
Check: Flap Indicator,and MainAir PSI
o Airspeed: 170kmlhr, 90 kts
Base Leg
o Airspeed: 170kmlhr, 90 kts
o Prop: High RPM
o LandingChecklist:Accomplish
FinalApproach:
o Airspeed: 150kmlhr, 80 kts

RedStar Pilots Association CJ-6A Maneuver Guide Version
1.0
No-Flap Landing
Procedure:
Traffic PatternEntry
o Approach Checklist Complete (doublecheck gear and flap handlesup)
o Airspeed: 220km/hr, 120kts
o Mixture: Rich
o Prop: 2250 RPM
Midfield Downwind
o Gear: Downand locked(below250 kmlhr, 135 kts)
Check: 3 Green lights, poles and Main Air PSI
o Airspeed: 180kmlhr, 100kts
Base Leg
o Airspeed: 170kmlhr, 90 kts
o Prop: High RPM
o LandingChecklist:Accomplish
FinalApproach:
o Airspeed: 160kmlhr, 85 kts
Short Field Landing
Procedure: Use normal proceduresuntilturning base.
Base Leg
o Airspeed: 160kmlhr, 85 kts
o Prop: High RPM
o LandingChecklist:Accomplish
FinalApproach:
o Airspeed: 140kmlhr, 75 kts
Clear of Obstacles:
o Smoothly coordinate powerand pitchto touchdownwith minimum float
After Touchdown
o Lower nose smoothly to runwayand apply brakingto a stop
Soft Field Landing
Procedure: Use normalproceduresuntilturning base.
Base Leg
o Airspeed: 160kmlhr, 85 kts
o Prop: High RPM
o LandingChecklist: Accomplish
FinalApproach:
o Airspeed: 140kmlhr, 75 kts
Touchdown:
o Touchdown smoothly with power slightly above idle
After Touchdown
o Keepnosewheelclearas long as feasible, then lower gently to the runway.
o Keepstick full aft throughout the landing roll.

Nanchang CJ. .. Pilot's Checklist Version 1.0
RedStarPilots Association
Nanchang CJ-6A
Pilot's Checklist
Version 1.0 August 2003
Introduction:
This Checklist is intended to promote safety and standardization within the RedStar
Pilots Association membership . The checklists contained here in are only one
suggested method
. The pilot alone is responsible for determining the accuracy and
applicability of this checklistfor use in hislher aircraft. as many aircraft aredifferent
. The
Red Star PilotsAssociation assumes no responsibility for the content. accuracy. or use
of this checklist
.
NormalChecklists: The Normal Checklistsare to be used as acheck.list .
Emeraencv and Abnormal Checklists: The Emergency Checklists contain time critical
action items. whereas the Abnormal Checklists cover less critical malfunctions
. The
Emergency and Abnormal Checklists are used as do-lists. with the exception of items
printed in bold
. Boldface itemsare time-critical itemsthat should be committed to. and
performedfrom memory
. Thereafter. use the appropriate checklist to verify all boldface
items are complete
. Any other checklist steps are performed by referring to the
appropriateEmergencyor Abnormal Checklist
.
3
. ranchang CJ-6APilot's Checklist Version 1.0
TABLE OF CONTENTS:
NormalChecklists
Tableof Contents ....................................................... Page i
Preflight .................................................................. Pages 1-3
BeforeStart
................................................................ Page4
EngineStart
............................................................... Page4
After Start
................................................................. Page 4
Taxi ............................................................................ Page 5
EngineRun-up
........................................................... Page5
BeforeTakeoff
............................................................ Page5
Climb
.......................................................................... Page 6
Cruise ........................................................................ Page 6
Descent ...................................................................... Page 6
Approach ................................................................... Page 6
BeforeLanding ........................................................... Page 6
After Landing .............................................................. Page 7
EngineShutdown ................................................... Page 7
SecuringAircraft ........................................................ Page 7
Operating LimitationsSummary ................................. Page 8
Emernencv Checklists
.................................................
Wheel Brakes Failure Pane E-1
.
EngineFireonthe Ground ......................................... Page E-I
EngineFireInFlight
.................................................. Page E-1
Bailout ......................................................................... Page E-1
ForcedLanding ......................................................... Page E-I
EngineFailureIn Flight ............................................... Page E-2
ElectricalFirelsmokeIn Flight
.................................... Page E-2
Abnormal Checklists
.......................... GeneratorWarning Light Illuminated PageA-1
..............................................
FuelSystem Imbalance PageA-1
LandingGear Retraction Failure ................................ PageA-2
Wing FlapRetractionFailure
.................................... PageA-2
................................. LandingGear ExtensionFailure PageA-3
...................................... . Wing Flap ExtensionFailure PageA-4
4
@ MainAir Pressure Low .............................................. PageA-5
F34
.
EmergencyAir SystemActivation .............................. Page.A-5

Nanchang CJ-,. . Pilot's Checklist

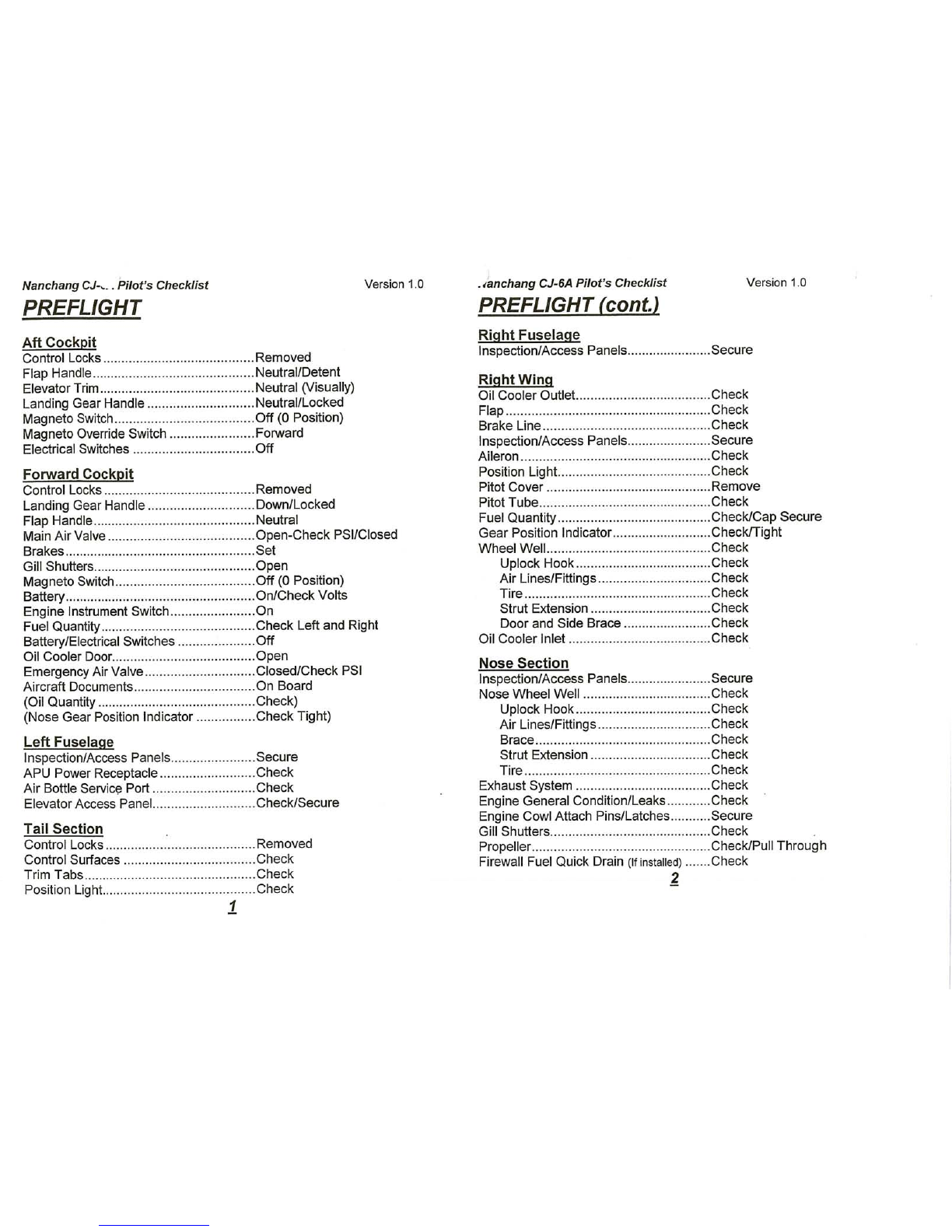

PREFLIGHT
Aft Cockpit
......................................... ControlLocks Removed
Version 1.0
............................................
Flap Handle NeutralIDetent
..........................................
ElevatorTrim Neutral(Visually)
.............................
LandingGear Handle NeutralILocked
MagnetoSwitch ...................................... Off (0 Position)
.......................
MagnetoOverrideSwitch Forward
...............................
ElectricalSwitches ..Off
ForwardCockpit
......................................... Control Locks Removed
............................. LandingGear Handle DownlLocked
Flap Handle ............................................ Neutral
MainAir Valve
........................................ Open-Check PSIlClosed
..................................................
Brakes.. Set
GillShutters
............................................ Open
......................................
MagnetoSwitch Off (0 Position)
....................................................
Battery OnlCheck Volts
......................
EngineInstrumentSwitch .On
FuelQuantity
.......................................... Check Left and Right
.....................
BatteryIElectricalSwitches Off
Oil Cooler Door
....................................... Open
..............................
EmergencyAir Valve ClosedICheckPSI
Aircraft Documents
............................... On Board
(Oil Quantity
........................................... Check)
................
(NoseGear PositionIndicator Check Tight)
Left Fuselage
.......................
Inspection/AccessPanels Secure
..........................
APU Power Receptacle Check
............................
Air BottleServicePort Check
ElevatorAccess Panel
............................ CheckISecure
Tail Section
......................................... ControlLocks Removed
....................................
ControlSurfaces Check
...............................................
Trim Tabs Check
........................................
PositionLight.. Check
I
-
. ranchang CJ-6APilot's Checklist
PREFLIGHT (cont.1
RightFuselage
.......................
Inspection/AccessPanels Secure
Jersion 1.0
RightWing
.....................................
Oil Cooler Outlet Check
.......................................................
Flap .Check
.............................................. Brake Line Check
.......................
InspectionIAccessPanels Secure
....................................................
Aileron Check
..........................................
PositionLight Check
............................................. PitotCover Remove
...............................................
PitotTube Check
..........................................
FuelQuantity ChecWCapSecure
........................... Gear PositionIndicator ChecWight
Wheel Well ............................................ Check
..................................... Uplock Hook Check
............................... Air LinesIFittings Check
Tire
.................................................. .Check
................................. Strut Extension Check
........................
Door and Side Brace Check
Oil Cooler Inlet
....................................... Check
NoseSection
.....................
InspectionIAccessPanels.. Secure
...................................
NoseWheel Well Check
.................................... Uplock Hook .Check
...............................
Air LinesIFittings Check
................................................ Brace Check
.................................
Strut Extension Check
................................................... Tire Check
..................................... Exhaust System Check
............ .
EngineGeneralConditionILeaks Check
...........
EngineCowlAttach PinsILatches Secure
............................................ Gill Shutters Check
................................................. Propeller ChecWPThrough
Firewall FuelQuick Drain (if installed) ....... Check
2
-

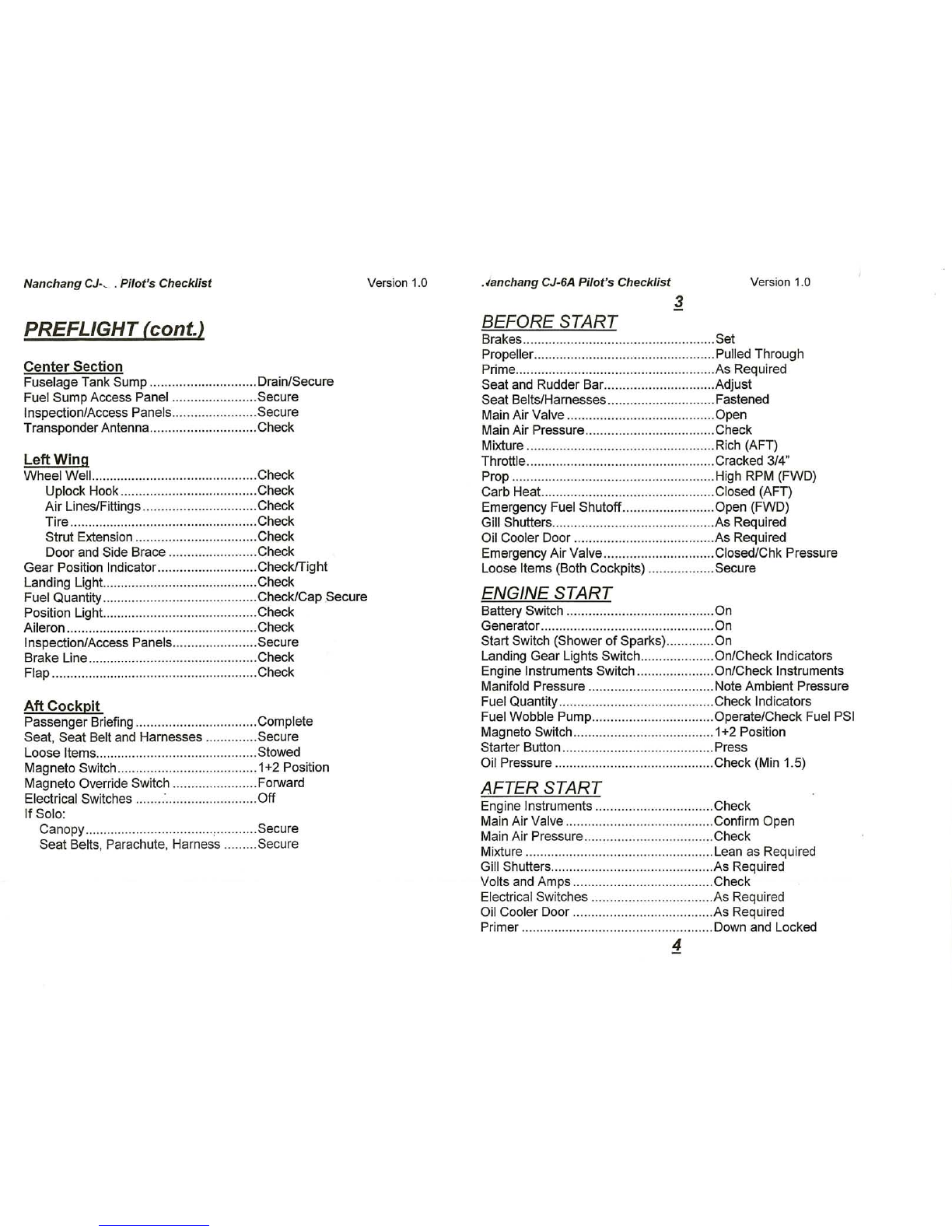

NanchangCJ-, . Pilot's Checklist
Version 1.0
PREFLIGHT (cont.)
Center Section
FuselageTank Sump ............................. DrainISecure
.......................
FuelSumpAccess Panel Secure
.......................
InspectionlAccessPanels Secure
TransponderAntenna
............................. Check
Left Wing
............................................
Wheel Well .Check
Uplock Hook ..................................... Check
Air LinesIFittings
............................... Check
...................................................
Tire Check
Strut Extension
................................. Check
........................
Doorand Side Brace Check
Gear Position Indicator
........................... Checmight
..........................................
Landing Light Check
..........................................
FuelQuantity ChecCapSecure
..........................................
PositionLight Check
....................................................
Aileron Check
.......................
InspectionIAccessPanels Secure
Brake Line
............................................. .Check
........................................................
Flap Check
Aft Cockpit
.................................
PassengerBriefing Complete
..............
Seat, Seat Belt and Harnesses Secure
............................................
Loose Items Stowed
......................................
MagnetoSwitch I +2 Position
.......................
MagnetoOverride Switch Forward
ElectricalSwitches
.................................. Off
IfSolo:
Canopy..
................................ .:. .......... Secure
.........
Seat Belts,Parachute,Harness Secure
Version 1.0 .ianchang CJ-6APilot's Checklist
3
-
BEFORE START
.................................................... Brakes Set
................................................. Propeller PulledThrough
......................................................
Prime As Required
Seat and Rudder Bar
.............................. Adjust
............................. Seat BeltsIHarnesses Fastened
MainAir Valve
........................................ Open
MainAir Pressure
................................... Check
................................................... Mixture Rich (AFT)
................................................... Throttle Cracked 314
....................................................... Prop HighRPM (FWD)
............................................. CarbHeat Closed(AFT)
......................... EmergencyFuelShutoff Open (FWD)
Gill Shutters
............................................ As Required
Oil Cooler Door
...................................... As Required
EmergencyAir Valve
.............................. ClosedIChk Pressure
Loose Items(Both Cockpits)
.................. Secure
ENGINE START
BatterySwitch ........................................ On
Generator..
............................................. On
StartSwitch (Showerof Sparks)
............. On
LandingGear LightsSwitch
.................... OnICheck Indicators
Engine InstrumentsSwitch
..................... OnICheck Instruments
ManifoldPressure
.................................. NoteAmbient Pressure
FuelQuantity
......................................... Check Indicators
FuelWobble Pump
................................. OperatelCheck Fuel PSI
MagnetoSwitch
...................................... I Position
Starter Button
......................................... Press
Oil Pressure
........................................... Check (Min 1.5)
AFTER START
EngineInstruments ................................ Check
MainAir Valve
........................................ Confirm Open
MainAir Pressure
................................... Check
Mixture
................................................... Lean as Required
Gill Shutters
............................................ As Required
Volts andAmps
...................................... Check
ElectricalSwitches
................................. As Required
Oil Cooler Door
...................................... As Required
Primer
.................................................... Down and Locked
4
-

Nanchang CJ-c. . f ilot's Checklist
TAXI
-
Brakes .................................................... Check
Attitude Indicator
.................................... Check
Turning Instruments
............................... Check
Version 1.0
ENGINE RUN-UP
Note: Check Enginelnstrumentsin NormalRangebeforeexceeding
1400 RPM.(~inhums:CHT 120" C, OilTemp
30" C)
NoseWheel
.......................................... Centered
....................................................
Brakes Set
Mixture
................................................... Rich(AFT)
.................................................
Propeller High RPM
Throttle
................................................... 1860 RPM
EngineInstruments
................................ Check
Propeller.
............................................... .Cycle
...............................................
Magnetos Check (Max Drop60)
Carb Heat
............................................... Check
ThrottleClose
................................... Check RPM (500Ih50 RPM)
..................................................
Throttle .Set 1000-1200RPM
BEFORE TAKEOFF
........................................
FlinhtControls Freeand Correct
-
MainAir Valve ........................................ ConfirmOpen
MainAir Pressure
................................... Check (30 Min)
Flap Handle
............................................ Neutral
Flap
........................................................ UpICheck Indicator
Mixture
................................................... Rich (AFT)
Propeller
................................................. High RPM
...............................................
Carb Heat Closed
.........................
EmergencyFuelShutoff Open
ElevatorTrim
.......................................... NeutralIGreenLight
Gill Shutters.............................. :.............As Required
Flight Instruments
................................... Check
Engine Instruments
................................ Check
FuelQuantity
.......................................... .Check
OilCooler Door .................................... As Required
Primer
.................................................... Down and Locked
Taking the Runway:
Transponder ..................................... OnIALT
Strobe Lights .................................... On
. ,anchang CJ-6APilot's Checklist
5
-
Version 1.0
CLIMB
..................... Landing Gear Handle UpIRed LtsOn
..................... LandingGear Handle Neutral
................................... Climb Power Set (750mm/2250RPM)
............................................
Mixture LeanAs Required
....................................
Gill Shutters As Required
............................... Oil Cooler Door As Required
........................
Engine Instruments Check
........................... MainAir Pressure Check
CRUISE
.................................. Cruise Power Set
............................................
Mixture LeanAs Required
.................................... GillShutters As Required
.............................
Oil Cooler Door.. As Required
FuelQuantity
.................................. Check
........................ Engine Instruments Check
MainAir Pressure
........................... Check
DESCENT
GillShutters .................................... Close
............................... Oil Cooler Door As Required
..........................................
Mixture.. As Required
Engine Instruments
........................ Check
APPROACH
LandingGear and Flap Handles ....Up
...........................
MainAir Pressure Check
Flightand Nav Instruments
............ Check and Set
Engine Instruments
........................ Check
BEFORE LANDING
LandingGear Handle ..................... DownILatch Engaged
............... LandingGear Indications 3 Green & 3 Poles
......................................... Propeller High RPM
................................................ Flap DownlCheck Indicator
MainAir Pressure
........................... Check
