NAPCO ISEE-IVR-250 - User manual

Record up to 30 days
of continuous video -
playback and control
online, installed with
plug-and-play ease
The iSee Video IVR Internet Video Recorder, ISEE-IVR-250, continuously
records and stores up to 30 days of video from up to six iSee Video
System cameras per account, for easy retrieval and viewing by the online
subscriber. This highly advanced IVR supports high-resolution video from
any iSee Video-Series Cameras (EOP, Pan/Tilt, etc) or the video from
any brand analog camera connected to the iSee Video Single Channel
Gateway (ISEE-SCHGW).
Video is stored at the highest resolution produced by those units
(640x480 from the ISEE-VCMPT and VCAM1 and 704x480 from the ISEE-
SCHGW). Up to four cameras’ video can be continuously recorded at
the fastest frame rate of 20 FPS (frames per second). If the maximum of 6
cameras are used, the frame rate will be only slightly reduced dynami-
cally. (Maximum storage capacity may even be increased in cases where
there is little activity, as the IVR uses MPEG4 compression technology.)
The ISEE-IVR-250 works without taxing or slowing the on-premises
internet network, because it doesn’t use any internet bandwidth while
collecting the video, as it’s connected on the same local network as the
cameras (plugged in either the subscriber’s router or optional G-Box).
While the IVR provides local storage for added protection, the video
can only be remotely accessed, viewed or downloaded through the
password-protected iSeeVideo internet site which offers user-friendly
navigation aids, quick-review/locate/calendar-lookup tools, time-/date-
stamped video and an easy-to-use file-export utility.
Unlike conventional DVRs which are one-time hardware sales with high-
failure rates, ISEE-IVR-250 has a very high-quality hard drive, features
both self-supervision and camera-supervision, and is designed to be
marketed by the security dealer as an incremental monthly service – a
new source of incremental recurring revenue. Also, the iSee Video
Dealer retains full administrative control of the account including logo-
customized customer viewing screens and can even turn off (disable)
subscriber access if necessary, e.g., lease non-renewal.
Specifications:
Recording
Video Channels: Up to 6 cameras/devices or 120 frames/second max at
640 x 480 resolution (or 720x480 with SCHGW)
Capacity: Up to 30 days with max of 6 cameras (Variable frame rate
~20fps). Max recorded days may vary depending on video activity.
Recording Mode: Continuous
File Format: MPEG-4
Internet: Recording is maintained even if internet connection is not
available. If the local network is available system will continue to store
video.
Playback
Method: Playback and other functions available through the NAPCO
iSeeVideo web portal.
Playback Mode: PLAY, PAUSE, FWD, REW, STOP
Video Search: Search by date, time, alarm events
Video Clip Export: Recorded files can be downloaded to the client’s PC
from the WEB page.
Live View
Video Compression: MPEG-4
Resolution: Resolution is the same as the configured resolution of the
cameras
Frame Rate: Up to 30 fps x camera
PT Support: Control camera through web page
Network
Protocols: TCP/IP, SMTP, HTTP, DHCP, NTP, RTSP/RTP
IP Configuration: DHCP Client, Static IP.
Plug and Play: Yes (featuring NAPCO proprietary firewall crossing in/
outbound)
Software
Operating System: Embedded Linux
Client Support: Any Browser and any Operating system though
NAPCO iSeeVideo Portal
Security: Username and Password SSL Authentication
Hardware
CPU: Marvell 88F5182, 500MHz
Flash: 16 MB
SDRAM: 64 MB
HDD Interface: Support two 3.5” STAT-II drives (Ships with pre-installed
250GB HD)
LAN: Marvell 88E1118, GIGA PHYRGMII, 10/100/1000 BaseT, Auto-
MDIX
LED indicators: Ready/Status, Ethernet, Disk Act, Disk Full, Disk 1, Disk
2, USB 1,USB 2
Connector: Ethernet RJ-45, 2xUSB, DC Power, Reset, Power Switch
Power Adapter: 12V/5A, 100~240 VAC
Certification: CE/FCC
Dimension: 7.5” (W) x 7.1” (H) x 3.75” (L) (190mm x 180mm x 95mm)
Ordering Information
ISEE-IVR-250: Internet Video Recorder
ISEE-VCAM1: Fixed IP Camera
ISEE-VCMPT: Pan Tilt IP Camera
ISEE-SCHGW: Single Channel IP Gateway
Napco Security Technologies, Inc.
333 Bayview Avenue, Amityville, NY 11701
1.800.645.9445 • www.napcosecurity.com
Preliminary specifications subject to change. © Napco, 3/2009 A594
iSeeVideo: ISEE-IVR-250
ISEE-IVR-250
stores continuous
video from up to 6
cameras or
devices at up to
20 frames per
second, up to 30
days.

Coax-free EOP
Cameras
OR - Gateways turn any 1 to 4 analog
cameras into IP cameras and put
subscriber video online
New! FREE
downloadable
Blackberry app for
full screen
streaming, pan/tilt
video in their hand
New RMR from the growing line of new
iSeeVideo internet remote control options
New! pan ... tilt ... capture!
Look up, down left or right! With high-res. quality, Napco’s
new EOP camera gives your customers panoramic views of their
premises, controlled on-screen with easy joystick controls, from
any PC or mobile device with internet access, anywhere in the
world.
Remote online Virtual Keypad
Complete alarm system control online! Works with any web-based
computer or smart phone, Blackberry, iPhone, Android, etc. Provides
all functions of a traditional keypad - arming functions, status, home
automation integration. Virtual keypad’s buttons work just like the
physical one of their home or business to control the system. Keypad’s
display mirrors the on premise display - anywhere they go.
Accounts access Virtual Keypad right from their iSee Video user screen
by selecting “My Security”. Online GUI automatically knows and
displays their premise’s keypad model for easiest system setup for you.
New! Single Channel
Gateway supports hi-res and
faster F.P.S
New! Let accounts control their
security system online
Let accounts view live/recorded video of their premises online

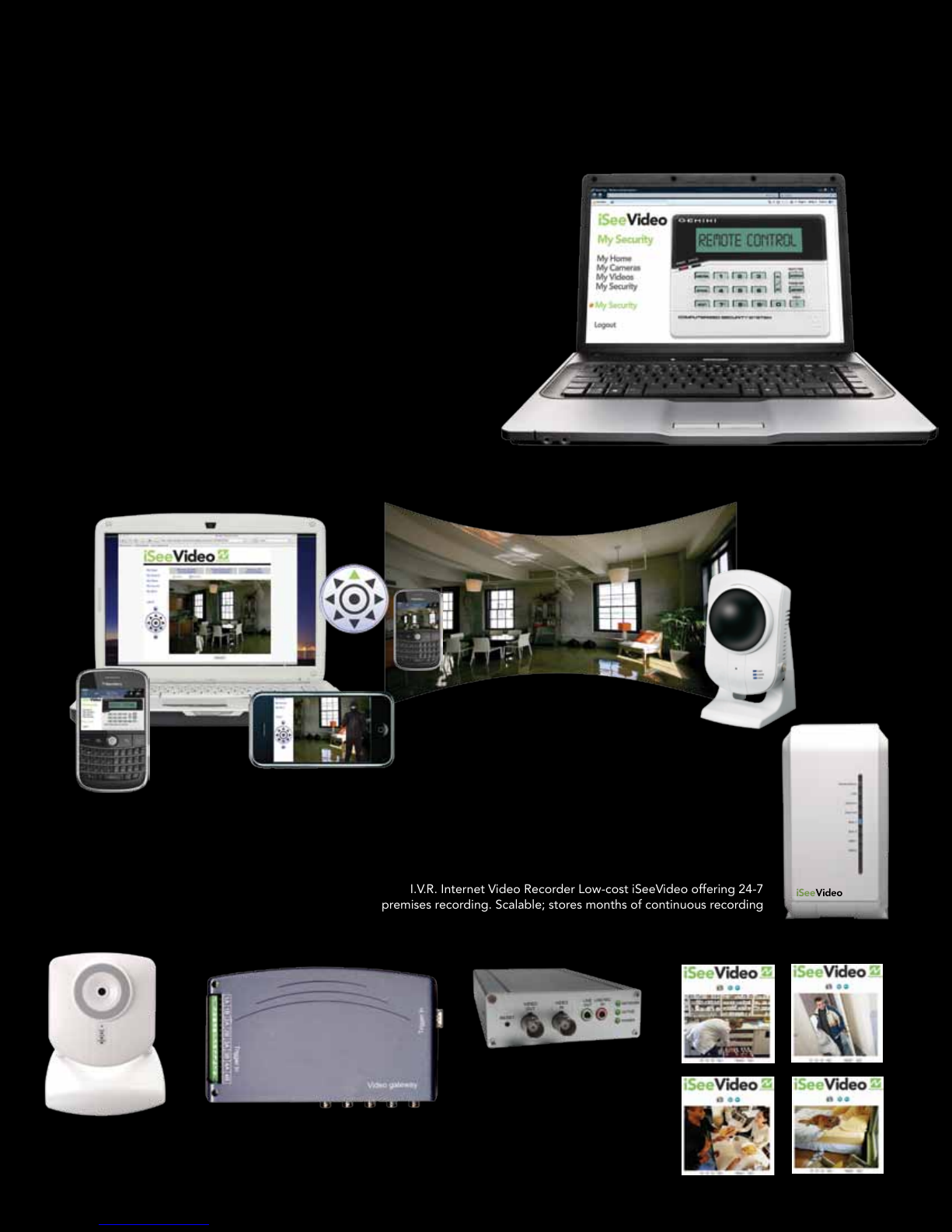

I.V.R. Internet Video Recorder Low-cost iSeeVideo offering 24-7
premises recording. Scalable; stores months of continuous recording
with EZ archive review feature, too.
New! Internet Video Recorder
iSeeVideoiSeeVideo
