Napoleon Allure Series User manual

W415-1699 / E / 06.01.20
MULTIPLE PRODUCT CODES (LEAVE BLANK IF N/A) ENGLISH
ADD MANUAL TITLE
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone [phone] • www.napoleon.com • [email protected]
CERTIFIED TO THE CANADIAN AND AMERICAN NATIONAL STANDARDS:
CSA 22.2 NO. 46 / UL 1278
INSTALLER:
Leave this manual with the appliance
CONSUMER:
Retain this manual for future reference
Product Name / Code
(MUST use title from Price Book)
(IF MULTIPLE, _____ ILLUSTRATED)
ADD PRODUCT IMAGE
ADD BUTTON BATTERY WARNING IF APPLICABLE
CSA /
INTERTEK
LOGO
SAFETY INFORMATION
- Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance.
FIRE OR EXPLOSION HAZARD
If the information in these instructions are
not followed exactly, a fire or explosion may
result causing property damage, personal
injury, or loss of life.
WARNING
!
$10.00
FOR INDOOR USE ONLY
IF INSTALLATION + OPERATION, ADD SERIAL
NUMBER LABEL HERE
IF SEPARATE MANUALS, ADD “PLACE
BARCODE LABEL ON THE OWNER’S MANUAL”
INSTALLATION AND
OPERATION MANUAL
Allure™ Series
(NEFL50FH-EU Illustrated)
NEFL32FH-EU / NEFL42FH-EU / NEFL50FH-EU / NEFL60FH-EU / NEFL72FH-EU / NEFL100FH-EU
The remote control for this appliance
uses two ‘AAA’ batteries. They are not
included.
note:
Wolf Steel Europe BV
De Riemsdijk 22, 4004 LC Tiel, The Netherlands

W415-1699 / E / 06.01.20
EN
2
safety information
• If equipped with a heater, this appliance can be hot when operated and can
cause sever burned if contacted.
• Do not operate appliance before reading and understanding operating instructions.
Failure to operate appliance according to operating instructions could cause fire or
injury.
• Do not install damaged, incomplete or substitute components.
• Do not burn wood or other materials in this appliance.
• All electric appliances have hot and arcing or sparking parts inside. Do not use it in
areas where a gas line, paint or flammable liquids are present.
• Any safety screen or guard removed for servicing must be replaced prior to operating
the appliance.
• It is imperative that the control compartments, circulating blower and its passageway
in the appliance are kept clean. The appliance should be inspected before use and at
least annually by a qualified service person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding material, etc. The appliance area must be
kept clear and free from combustible materials, gasoline and other flammable vapors
and liquids.
• Under no circumstances should this appliance be modified.
• Do not use this appliance if any part has been under water. Immediately call a qualified
service technician to inspect the appliance and to replace any part of the control system
which has been under water.
• Do not operate the appliance with the glass front removed, cracked or broken.
Replacement of the glass should be d by a licensed or qualified service person.
• Do not strike or slam shut the appliance glass front.
• Keep the packaging material out of reach of children and dispose of the material in a
safe manner. As with all plastic bags, these are not toys and should be kept away from
children and infants.
• Servicing should be done only while the appliance is disconnected from the power
supply circuit.
• Always unplug appliance when not in use.
• Do not operate this appliance with a damaged cord or plug after the appliance
malfunctions, has been dropped or damaged in any manner. Return appliance to
authorized service facility for examination, electrical or mechanical adjustment, or repair.
• Do not use outdoors.
• Never locate appliance where it may fall into a bathtub or other water container.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or the
like. Arrange cord away from traffic area and where it will not be tripped over.
• Connect to properly grounded outlets only.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this
may cause an electric shock or fire, or damage the appliance.
!WARNING

EN
W415-1699 / E / 06.01.20 3
safety information
• The heater must not be located immediately below a socket-outlet
• This appliance can be used by children aged from 8 years and above, and persons with
reduced physical sensory, mental capabilities, or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
• To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use
on soft surfaces, like a carpet, where openings may become blocked.
• Always plug appliances directly into a wall outlet/receptacle. Never use an extension cord
or re locatable power tap (outlet/power strip).
• These appliances are tested and listed for use only with the optional accessories listed in
these instructions. Use of optional accessories not specifically tested for this appliance
could void the warranty and/or result in a safety hazard.
For appliances equipped with a heater:
• Risk of burns. Power to the appliance should be turned off and the appliance allowed
to cool before servicing. To disconnect power to the appliance, turn controls to off, then
remove plug from outlet.
• Young children should be carefully supervised when they are in the same room as the
appliance. Toddlers, young children and others may be susceptible to accidental contact
burns. A physical barrier is recommended if there are at risk individuals in the house. To
restrict access to an appliance or stove, install an adjustable safety gate to keep toddlers,
young children and other at risk individuals out of the room and away from hot surfaces.
• Clothing or other flammable material should not be placed on or near the appliance.
• Due to high temperatures, the appliance should be located out of traffic and away from furniture
and draperies.
• Ensure adequate safety measures have been incorporated to protect infants/toddlers from
touching hot surfaces.
• Even after the appliance is out, the glass and/or screen will remain hot for an extended
period of time.
• Check with your local hearth specialty dealer for safety screens and hearth guards to
protect children from hot surfaces. These screens and guards must be fastened to the
floor.
• Ensure clearances to combustibles are maintained when building a mantel or shelves
above the appliance. Elevated temperatures on the wall or in the air above the appliance
can cause melting, discoloration or damage to decorations, a T.V. or other electronic
components.
!WARNING
!
WARNING:
This product can expose you to chemicals including lead and lead
compounds, which are known to the State of California to cause cancer, and chemicals includ-
ing BBP and DEHP, which are known to the State of California to cause birth defects or other
reproductive harm. For more information, go to www.P65Warnings.ca.gov.

W415-1699 / E / 06.01.20
EN
4
table of contents
1.0 general information 5
1.1 dimensions 5
1.2 product information 5
1.3 general instructions 6
1.4 unpacking and testing appliance 6
1.5 hardware list 7
1.6 rating plate information 8
1.7 locating appliance 8
2.0 installation 9
2.1 minimum clearance to combustibles 9
2.2 minimum mantel clearances 9
2.3 framing 10

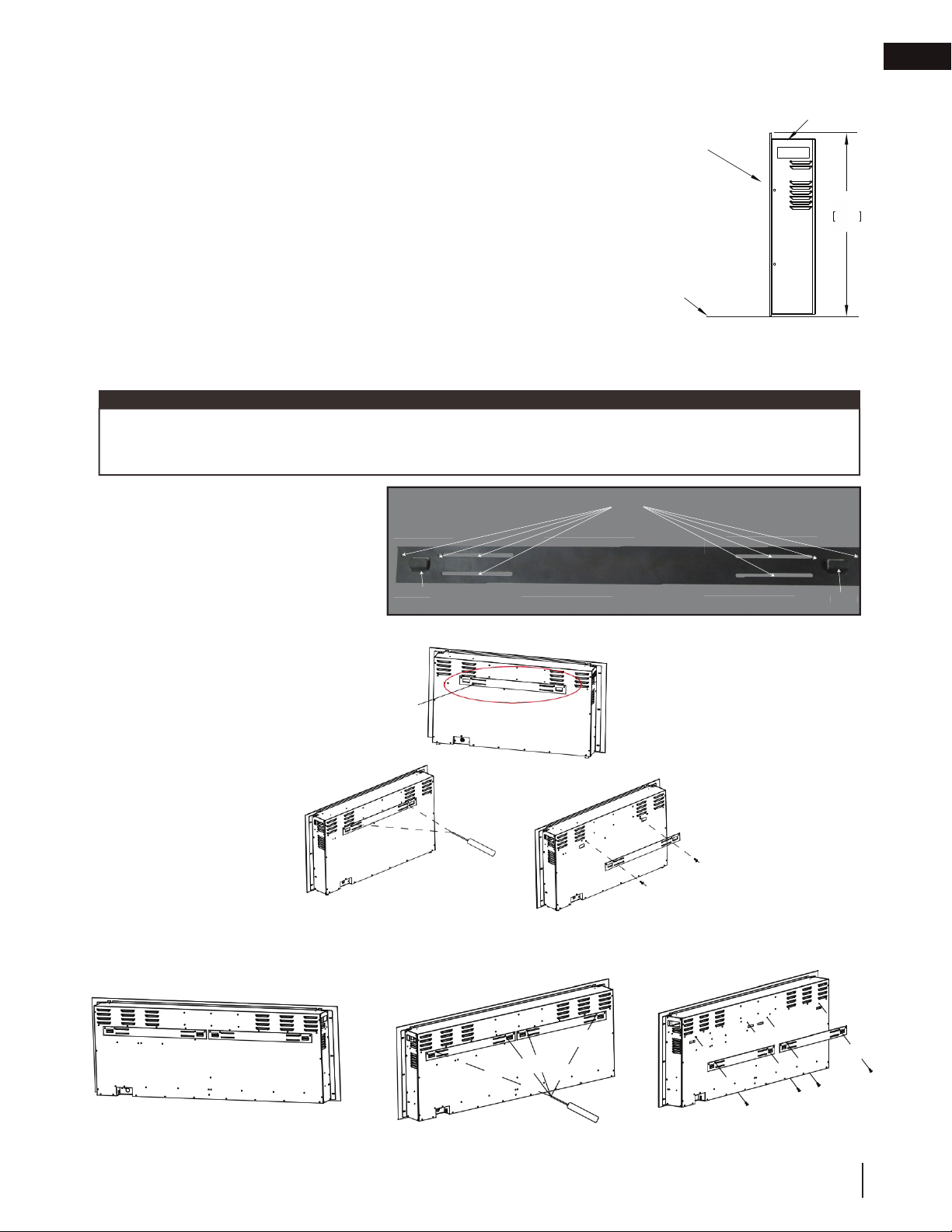

2.4 installing the appliance 11
2.5 recessing the appliance into the wall 12
2.6 installing the appliance into a mantel 13

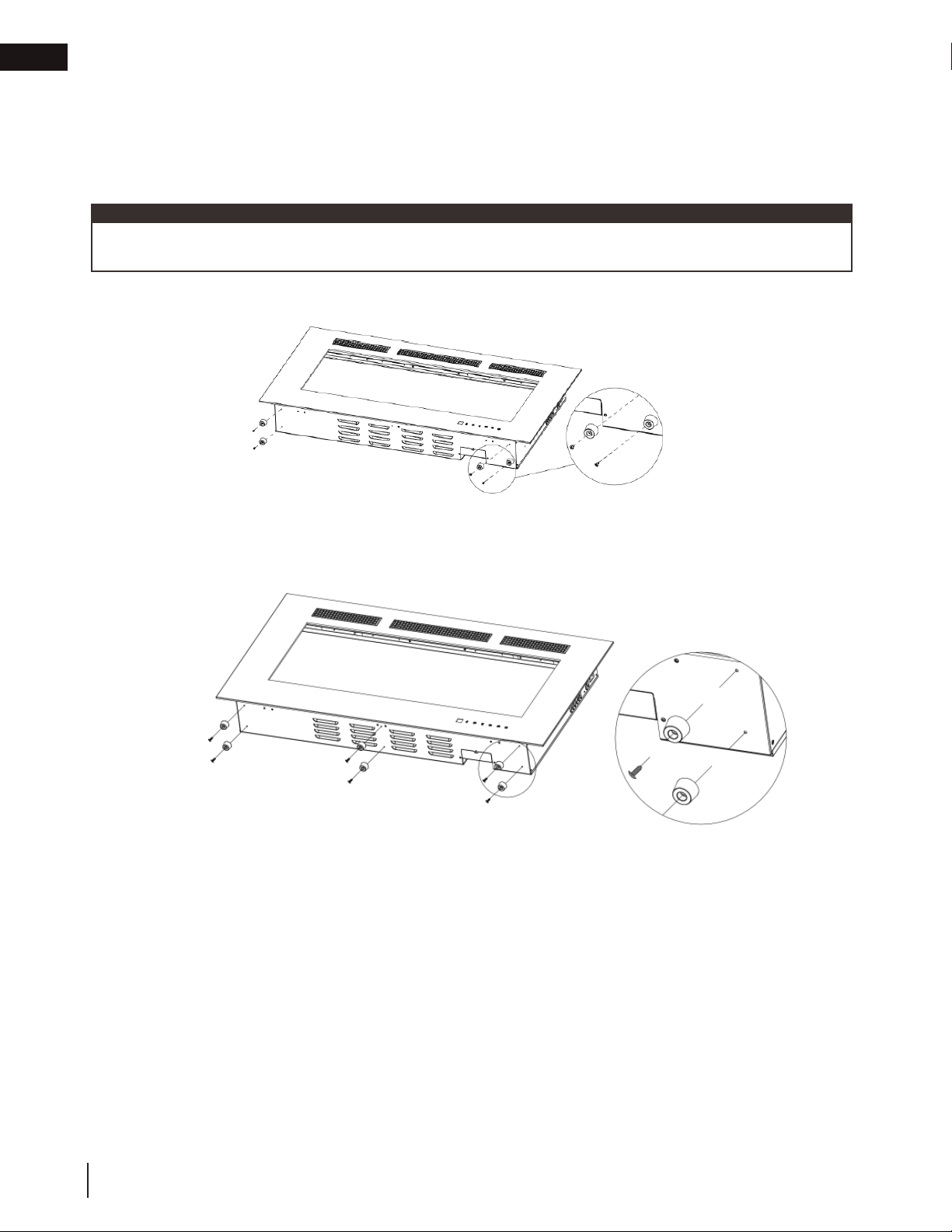

2.7 rubber feet installation 14
2.8 hard wiring installation 15
3.0 finishing 16

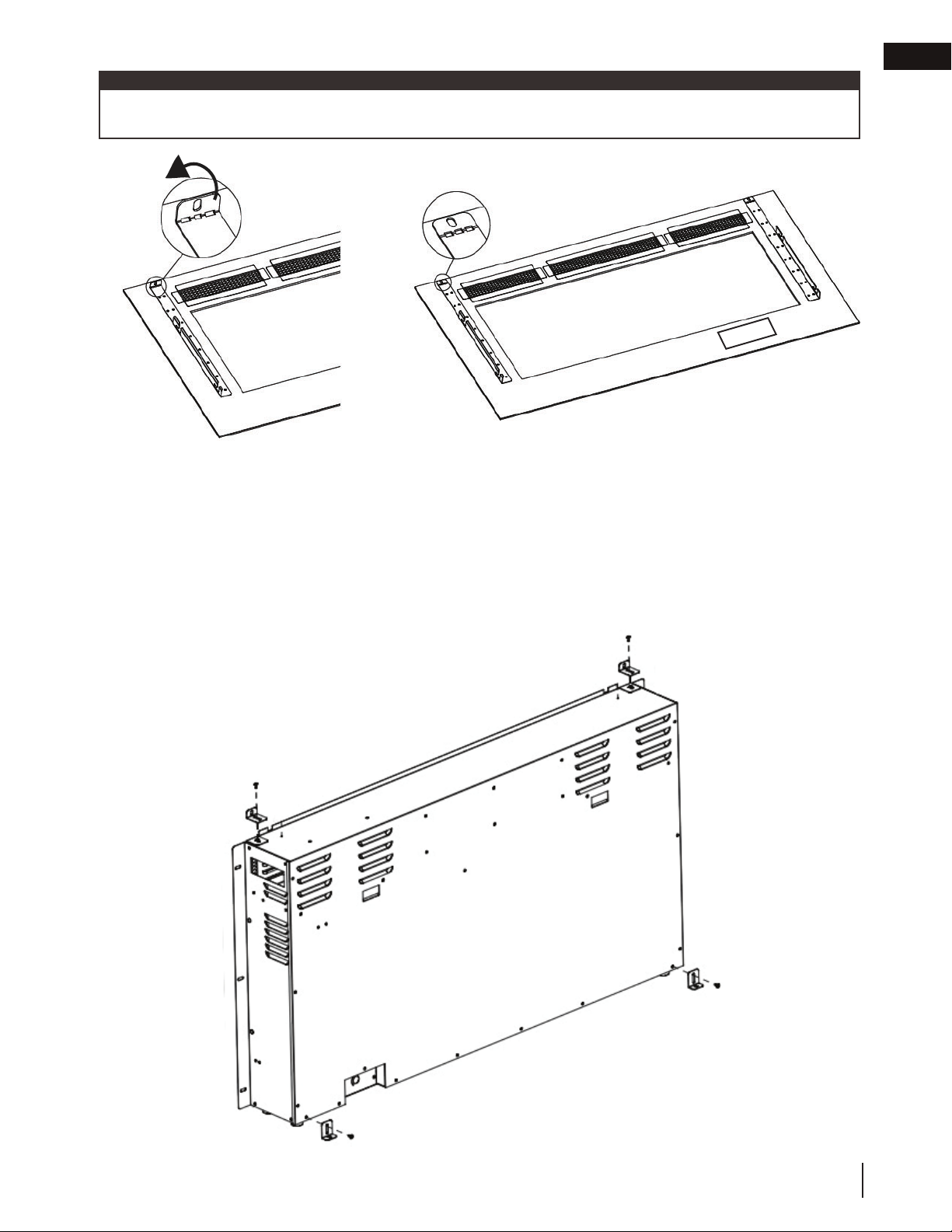

3.1 front glass installation 16
3.2 front glass removal 17
3.3 crystal ember installation 17
4.0 operating instructions 18
4.1 main power button 18
4.2 operating touch display panel 18

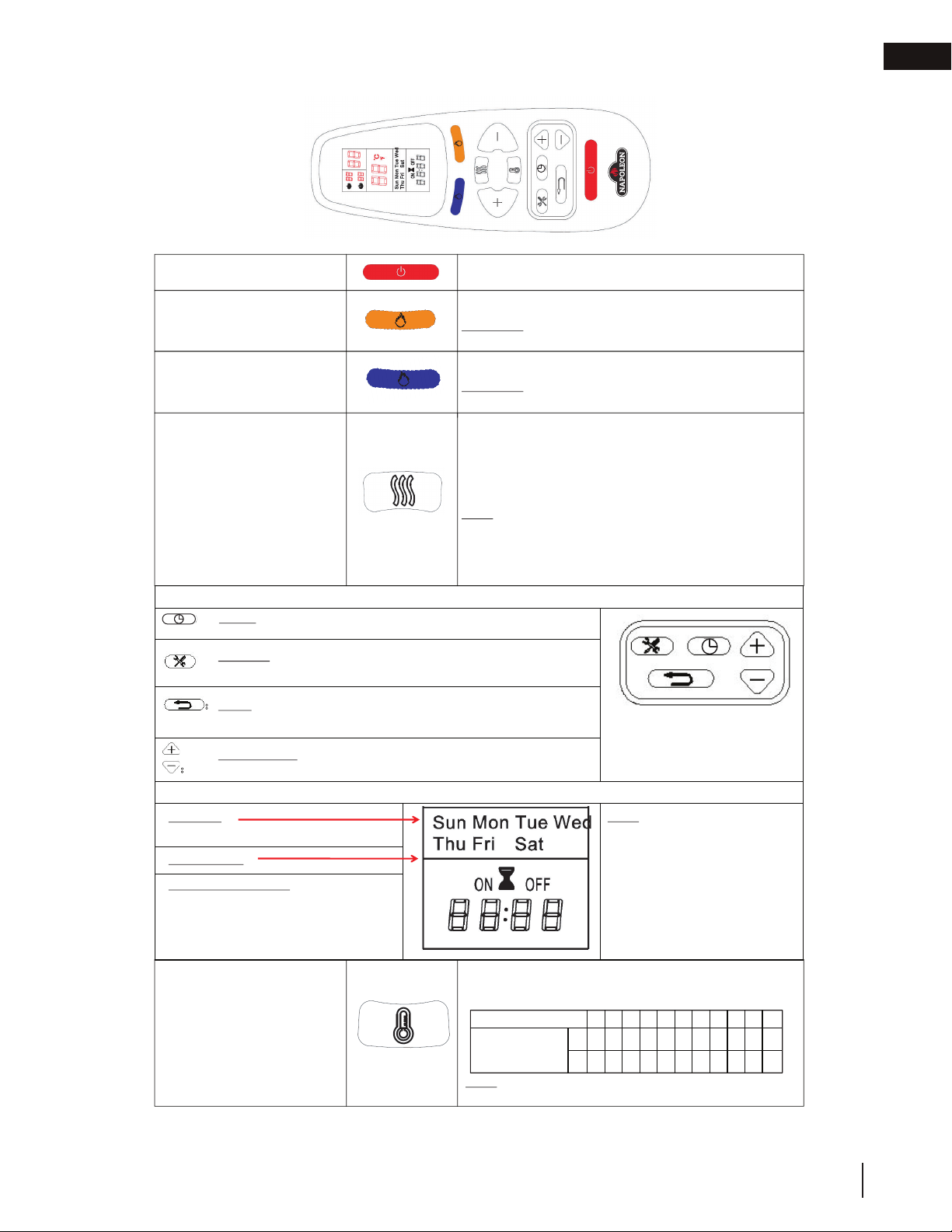

4.3 operating remote control 19
4.3.1 set current day and time 20
4.3.2 set ON/OFF time and temperature on a weekly cycle 20
4.3.3 open window warning 20
5.0 maintenance 21
5.1 remote battery installation 21
6.0 wiring diagram 22
7.0 replacement parts 24
8.0 troubleshooting 26
9.0 warranty 27
Changes, other than editorial, are denoted by a vertical line in the margin.
note:

EN
W415-1699 / E / 06.01.20 5
model designation
1.0 general information
1.1 dimensions
1.2 product information
This appliance has been tested in accordance with the GS Standards for fixed and location-dedicated electric
room appliances in Europe. If you need assistance during installation, please contact your local dealer.
Description Electric Appliance
Type 3 Way Mounting Appliance
Wall-Mount, Recess into Wall and
Assemble with Mantel
Voltage 220-240V AC
Watts MAX 1750-2000W
Model No. Net Weight Gross Weight
NEFL32FH-EU 34.6 lbs (15.7kg) 50.3 lbs (22.8kg)
NEFL42FH-EU 44.3 lbs (20.1kg) 60.2 lbs (27.3kg)
NEFL50FH-EU 50.9 lbs (23.1kg) 70 lbs (31.44kg)
NEFL60FH-EU 61.3 lbs (27.8kg) 82 lbs (37.17kg)
NEFL72FH-EU 81.8 lbs (37.1kg) 117.3 lbs (53.2kg)
NEFL100FH-EU 111.3 lbs (50.5kg) 159.4 lbs (72.3kg)
A
B
G
F
E
D
C
FRONT VIEW SIDE VIEW
TOP VIEW
Dimensions
ABCDEFG
NEFL32FH-EU 32"
(813mm)
21 5/8"
(550mm)
5"
(127mm)
20 1/2"
(520mm)
27 5/16"
(694mm)
12"
(304mm)
22 5/16"
(567mm)
NEFL42FH-EU 42"
(1067mm)
37 1/2"
(951mm)
32 5/16"
(821mm)
NEFL50FH-EU 50"
(1270mm)
45 7/16"
(1154mm)
40 5/16"
(1024mm)
NEFL60FH-EU 60"
(1524mm)
55 5/16"
(1405mm)
50 5/16"
(1278mm)
NEFL72FH-EU 72"
(1830mm)
67 3/8"
(1711mm)
62 5/8"
(1583mm)
NEFL100FH-EU 100"
(2540mm)
95 3/8"
(2422mm)
90 9/16"
(2300mm)

W415-1699 / E / 06.01.20
EN
6
general information
• Prior to plugging your appliance into an electrical outlet, verify that the house circuit breakers for the outlet
are on.
• The appliance may emit a slight, harmless odour when first used. This odour is normal and it is caused by
the initial heating of internal appliance elements and will not occur again.
• If your appliance does not emit heat when called for, consult the “operation” section of this manual for further
information.
• Use with a CSA or UL certified surge protector.
• Do not route the power cord directly underneath the appliance.
This electric appliance meets the construction and safety standards of H.U.D. for application in manufactured
homes when installed accordin
g
to these instructions.
1.3 general instructions
As with most electronic devices, your new electric appliance has been designed to operate at
temperatures between 5°C (41°F) and 35° C (95°F). During the colder winter months, allow the
appliance to reach room temperature before turning it on.
1.4 unpacking and testing appliance
Carefully remove the appliance from the box. Prior to installing the appliance, test to make sure the appliance
operates properly by plugging the power supply cord into a conveniently located 220-240 volt, minimum 10 amp
grounded outlet.
The NEFL72/100FH-EU appliances are shipped with the front glass not assembled onto the appliance (see
“front glass installation” section for assembly).
note:
CE- or GS-certified surge protector.

EN
W415-1699 / E / 06.01.20 7
general information

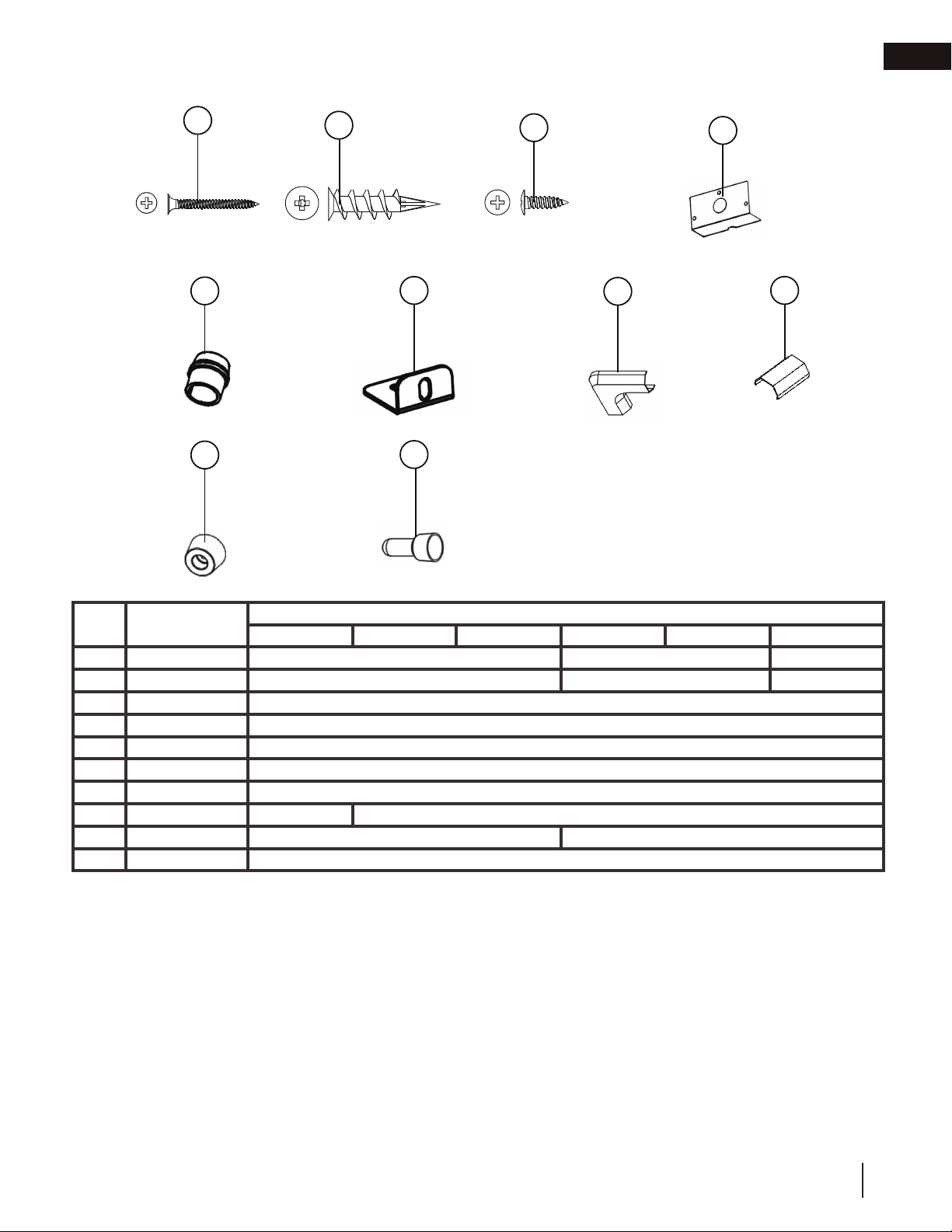

1.5 hardware list
Ref. Description Quantity
NEFL32FH-EU NEFL42FH-EU NEFL50FH-EU NEFL60FH-EU NEFL72FH-EU NEFL100FH-EU
A Wood Screws 6 12 16
B Drywall Anchors 6 12 16
C Metal Screws 8
D Cover Plate 1
E Strain Relief 1
F Metal Bracket 4
G Cord Corner 4
H Cord Corner 4 2
I Rubber Foot 4 6
J Wire Connector 3
EFGH
IJ
D
AC
B

W415-1699 / E / 06.01.20
EN
8
general information
W385-2178 / C
ELECTRIC FIREPLACE. SUITABLE FOR BEDROOM
AND BED-SITTING ROOM INSTALLATION. SUITABLE
FOR MOBILE HOME INSTALLATION.
VOLTAGE: 220-240 VAC
FREQUENCY: 50Hz
POWER: 1750-2000W
DATE CODE: XXXXX
Wolf Steel Ltd.
24 Napoleon Road,
Barrie, ON, L4M 0G8 Canada DESIGNED IN NORTH AMERICA
BY WOLF STEEL LTD.
MADE IN CHINA
Wolf Steel Europe BV
De Riemsdijk 22, 4004 LC Tiel,
The Netherlands
Manufacturer: Importer:
SERIAL NUMBER: NEFL
MODELS
NEFL32FH-MT-EU
NEFL42FH-MT-EU
NEFL50FH-MT-EU
NEFL60FH-MT-EU
NEFL72FH-MT-EU
NEFL100FH-MT-EU
NEFL32FH-EU
NEFL42FH-EU
NEFL50FH-EU
NEFL60FH-EU
NEFL72FH-EU
NEFL100FH-EU
The rating plate must remain with the appliance at all times. It must not be removed.
note:
1.6 rating plate information
This illustration is for reference only. Refer to the rating plate on the appliance for accurate
information.
1.7 locating appliance
• Due to high temperatures, this electric appliance should be located out of traffic. Keep combustible materials
such as furniture, pillows, bedding, papers, clothes, curtains, and similar items at least 36” (91.44cm) from the
front of the appliance.
• Never located this electric appliance where it may fall into a bathtub or other water container.
• Wear safety gloves and safety glasses for protection during installation and maintenance.
• To prevent contact with sagging or loose insulation, the electric appliance must not be installed against vapor
barrier or exposed insulation. Localized overheating could occur and fire could result.
• Do not expose the electric appliance to the elements (i.e. rain, snow, etc.)
!WARNING
d.
Road,
Road,
M 0G8 Canada0G8 Canad
Wolf SteelWolf Stee
De RR
T
I
mporter:
Importer:
N
EFL32FH-MT-E
UFL32FH-MT-EU
M
N
EFL42FH-MT-E
UNEFL42FH-MT-EU
AM
N
EFL50FH-MT-E
UNEFL50FH-MT-EU
AM
NEFL60FHL60F
PL
NEF
P
P
0FH-EUFH-EU

EN
W415-1699 / E / 06.01.20 9
installation
2.0 installation
Your appliance is a wall-mounted, recessed and/or mantel installed appliance. Select a suitable location that is not
susceptible to moisture and is away from drapes, furniture and high traffic areas.
2.1 minimum clearance to combustibles
!WARNING
• Risk of fire! The power cord must not be pinched against a sharp edge. Secure cord to avoid tripping or
snagging to reduce the risk of fire, electric shock, or personal injury. Do not run cord under carpeting. Do not
cover cord with throw rugs, runners, or similar items. Arrange cord away from traffic areas and where it will not
be tripped over.
• Risk of fire! To prevent a possible fire, do not block air intake or exhaust in any manner. Do not use on soft
surfaces where openings may become blocked.
• Risk of fire! Do not blow or place insulation against the appliance.
• This electric appliance is tested and listed for use only with the approved optional accessories. Use of optional
accessories not specifically tested for this electric appliance could void the warranty and/or result in a safety
hazard.
• If the information in these instructions is not followed exactly, a fire or explosion may result causing property
damage, personal injury, or death. Do not store or use gasoline or other flammable vapors in the vicinity of this
or any other appliance.
• This appliance is heavy. It is highly recommended that two people install this appliance.
• If your appliance is equipped with a heater, ensure the heater vents cannot, in any way, be covered as it may
create a fire hazard.
• Do not run the power cord horizontally, directly below the appliance.
Measurements are taken from the glass front:
Bottom
0”
Sides
Back
Top 8” (20.3cm) to ceiling / mantel
Follow all national and local electrical codes.
note:
2.2 minimum mantel clearances
• When using paint or lacquer to finish the mantel, the paint or lacquer must be heat resistant to prevent
discoloration.
!WARNING
Side View
8" (203mm)
Mantel
Floor
Wall

W415-1699 / E / 06.01.20
EN
10
installation
5"
127mm
A
3 1/2"
89mm
MIN MAX
A
BB
Finishing Material
2.3 framing
(Non-load
bearing)
MODEL NO. A B
NEFL32FH-EU
21" (53.5cm)
27 13/16" (70.7cm)
NEFL42FH-EU 38" (96.5cm)
NEFL50FH-EU 45 15/16" (116.6cm)
NEFL60FH-EU 55 13/16" (141.8cm)
NEFL72FH-EU 67 7/8" (172.5cm)
NEFL100FH-EU 95 7/8" (243.5cm)
Measurements are taken from the body:
Sides, back, and top 0”

EN
W415-1699 / E / 06.01.20 11
installation
2.4 installing the appliance
Due to the many different materials used on different walls, it is highly
recommended to consult your local builder before installing this
appliance on the wall.
A. Select a location that is not prone to moisture and is located at least
36" (91.4cm) away from combustible materials such as curtain drapes,
furniture, bedding, paper, etc.
B. Have 2 people hold the appliance against the wall to determine the final
location.
C. Place appliance face down on a soft, non abrasive surface. Remove the
bracket from the back of the appliance by removing the screws (Fig. 1
and 2).
D. Mark out location, then mount the bracket(s) onto the wall using the supplied screws. This bracket MUST
have the hooks facing upward and be level.
E. With the wall mounting bracket
installed, have 2 people lift the
appliance up and insert the 2
hooks on the bracket into the 2
slots on the back of the appliance.
F. Check the appliance for stability
ensuring that the bracket will not
pull free from the wall.
HOOK
SCREWS
HOOK
SIDE VIEW
BODY
FLOOR
GLASS FRONT
21 5/8"
55cm
NEFL32/42/50FH-EU Bracket Illustrated
NEFL60/72/100FH-EU Bracket Illustrated
It is strongly recommended that the mounting bracket be screwed into the wall studs where possible. If the wall
studs cannot be used, ensure that the supplied plastic anchors are used to affix the bracket to the wall and the
bracket is adequately secured.
note:
BRACKET
Fig. 1
Fig. 2

W415-1699 / E / 06.01.20
EN
12
installation
Due to the many different finish materials used on walls, it is highly recommended to consult your local builder
before installing this appliance in the wall.
Select a location that is not prone to moisture and is located at least 36" (91.4cm) away from combustible
materials such as curtain drapes, furniture, bedding, paper, etc.
2.5 recessing the appliance into the wall
A. Measure the appliance and create a rough-in with electrical.
B. Remove the front glass (see "front glass removal" section).
C. Hold the appliance up to ensure it will fit into the framing.
D. If the appliance is fully recessed into the wall:
• Bend the 2 top tabs upwards on the front glass (Fig. 3, next page).
• Use the 6 screws (provided) to lock the appliance into the wall with the existing 2 side flanges
(Fig. 1).
• Install the media and reinstall the glass front.
E. If partially recessed into the wall:
• Use the 2 mounting brackets (supplied) to lock the appliance to the wall (Fig. 2).
It is recommended the walls of the appliance enclosure be finished (i.e. drywall) to avoid exposed insulation or
vapour barrier coming in contact with the appliance. This will ensure clearance to combustibles is maintained.
2 sets of holes are provided for recessing into wall. The wall structure may limit how far the appliance can be
recessed. Use the appropriate set of holes when recessing to the frame. It may be necessary to use the 4 holes
on the top and bottom.
note:
note:
Fig. 1
Fig. 2

EN
W415-1699 / E / 06.01.20 13
installation
Fig. 3
2.6 installing the appliance into a mantel
A. Remove the glass front (see "front glass installation" section).
B. Install the rubber feet onto the bottom of the appliance for stability (see "rubber feet installation" section).
C. Install the top and bottom brackets provided.
D. Insert the appliance into the mantel and secure it with the brackets (see "electric appliance mantel"
installation manual for proper appliance installation instructions).
E. Place the crystal embers along the media tray (see "crystal ember installation" section).
F. Reinstall the glass front.
The appliance tabs come bent. The tabs must be unbent by hand when fully recessing the appliance into the
wall (Fig. 4).
note:
Fig. 4

W415-1699 / E / 06.01.20
EN
14
installation
2.7 rubber feet installation
A. Place the appliance face down on a soft surface.
B. Using a screw driver, remove the screws on the bottom of the appliance.
C. Install the 4 rubber feet (6 rubber feet for NEFL60/72/100FH) onto the bottom of the appliance using the
screws from Step B (Fig. 1 and 2).
NEFL32/42/50FH-EU Illustrated
NEFL60/72/100FH-EU Illustrated
The screws for installing the rubber feet are secured to the appliance. Removal of the screws is necessary for
installing the rubber feet.
note:
Fig. 1
Fig. 2

EN
W415-1699 / E / 06.01.20 15
installation
2.8 hard wiring installation
Hard Wiring Connection
If it is necessary to hard wire this appliance, a qualified electrician must remove the cord connection and wire the
appliance directly to the house hold wiring.
This appliance must be electrically connected and grounded in accordance with local codes.
A. Remove the cover plate from the right side
bottom of the appliance by removing the
3 screws (Fig. 1).
B. Remove the wire connectors from the power cord. The power cord may be discarded.
C. Locate the new cover plate, supplied in the hardware bag (Fig. 2). Punch out the 7/8" (22.2mm) hole
and install a box connector through the junction box. Snap the box connector clamp onto the supply
wires.
D. Using the wire connectors supplied in the hardware kit, connect the ground green wires (G), the
common white wires (N), and the hot black wires (L) (Fig. 3 and 4).
E. Reinstall the cover plate using the 3 screws.
Fig. 1
Cover Plate
• Turn off the appliance completely and let it cool down before servicing. Only a qualified service person should
service and repair this electric appliance.
!WARNING
Fig. 2
G
N
L
Fig. 3
Fig. 4
Fig. 3
7/8” (22.2mm)
Diameter
Fig. 2

W415-1699 / E / 06.01.20
EN
16
finishing
3.0 finishing
3.1 front glass installation
FOR MODELS NEFL72/100FH-EU ONLY:
A. Before installing the front glass, remove the screws securing the paper board on the inside of the
appliance that protects the control panel. Discard the paper board.
B. Reinstall the screws (for recessed-installed appliances only) (Fig. 1).
C. Remove the 2 screws from the top of the appliance.
D. Have 2 people lift the glass up and away from the appliance, holding the glass vertical - not flat - while
carrying. Place the glass face down onto a soft, non-abrasive surface, being careful not to flex the glass.
E. Bend the top tabs flat (Fig. 2).
F. Install the crystal embers (see "crystal ember installation" section).
G. Install the front glass by aligning with the pins on the appliance. Press the glass in and down to securely
engage with the brackets. It must be fully engaged to ensure the touch display panel performs properly.
H. Secure the front glass using the screws provided to the top of the appliance (Fig. 3, next page). If
appliance is fully recessed, this is not necessary.
Paper
Paper
Pin
Fig. 1
Fig. 2
• Power supply service must be completed prior to finishing to avoid reconstruction.
• Heat vents and air openings cannot be covered in any circumstances.
!WARNING
!WARNING
• Glass may be hot. Do not touch glass until cooled.
• If equipped with door latches that are part of a safety system, they must be properly engaged. Do not
operate the appliance with latches disengaged.
• Facing and/or finishing materials must not interfere with air flow through air openings, louvre openings,
operation of louvres, or doors/access for service. Observe all clearances when applying combustible
materials.
• Before door is removed, turn the appliance off and wait until appliance is cool to the touch. Doors are heavy
and fragile so handle with care.

EN
W415-1699 / E / 06.01.20 17
finishing
Fig. 3
The glass front must be removed and the appliance must be secured in its final location before the crystal embers
are installed.
A. Carefully place crystal embers into the bottom media tray on the
front of the appliance.
B. Apply an even layer from side to side.
A. Remove the 2 screws from the top of the appliance (Fig. 1).
B. Have 2 people lift the glass up and away from the appliance, holding the glass vertical - not flat - while
carrying. Place the glass face down onto a soft, non-abrasive surface, being careful not to flex the glass.
C. Install the crystal embers (see "crystal ember installation" section). Install the front glass by aligning with
the pins on the appliance. This ensures the touch display panel performs properly.
FOR WALL-MOUNT, PARTIAL-RECESS AND MANTEL-INSTALLED APPLIANCES ONLY:
3.2 front glass removal
3.3 crystal ember installation
Fig. 1

W415-1699 / E / 06.01.20
EN
18
operating instructions
4.0 operating instructions
Once the appliance has been plugged into a grounded electrical outlet, it is ready to operate.
The main power button is located on the front bottom right side of the appliance.
4.1 main power button
4.2 operating touch display panel
POWER Turns the appliance ON/OFF.
FLAME - ORANGE
FLAME - BLUE
TIMER
TEMPERATURE
Controls Orange Flame brightness.
6 Settings: F5-F4-F3-F2-F1-F0. Flame dims from F5 to F1.
F5 is the brightest setting and F0 is off.
Controls Blue Flame brightness.
6 Settings: F5-F4-F3-F2-F1-F0. Flame dims from F5 to F1.
F5 is the brightest setting and F0 is off..
Turns the timer ON/OFF.
9 Settings: 0.5h, 1h, 2h, 3h, 4h, 5h, 6h, 7h, 8h. Press button
until desired setting is reached.
Display Value
Temperature
0123456789N
18 19 20 21 22 23 24 25 26 27 ON
64 66 68 70 72 74 76 78 80 82 ON
° C
° F
HEATER Turns the heater ON/OFF.
(H0) - No heater or blower.
(BL) - Blower only.
(H1) - Heater blows warm air (950W).
(H2) - Heater blows hot air (2000W).
NOTE: Heater functions cycle from H0-BL-H1-H2. Press
and hold the heater button for 5s to lock the heater and
temperature setting onto the selected setting. Hold the button
for another 5s to unlock the heater and temperature setting.
1. Press once to turn the touch panel indicator ON.
2. Press button until desired setting is reached.Digital display
shows setting circles as follows:
NOTE: Holding the button for 5s will switch the temperature
from C° to F° and vice versa.
The touch display panel is shown by LED's on the front bottom right of the appliance. The LED's will
disappear after 10 seconds of no function change. The main power button will be dim.
Ensure the house circuit breakers for the power supply are turned on. In the event of a power failure, the
appliance will lose its memory function and will reset to factory mode when the power returns.
note:
• While the appliance is operating, do not remove the glass panel. This will cause the remote control and touch
panel to disfunction.
!WARNING
• Do not move or remove the glass panel when the appliance is plugged in and operating. This will cause the
remote control and touch panel to stop functioning.
!WARNING

EN
W415-1699 / E / 06.01.20 19
operating instructions
4.3 operating remote control
HEATER
POWER
FLAME - ORANGE
FLAME - BLUE
Turns the appliance ON/OFF.
Controls Orange Flame brightness.
Flame brightness.Controls Blue
Display Value
Temperature
0123456789N
18 19 20 21 22 23 24 25 26 27 ON
64 66 68 70 72 74 76 78 80 82 ON
° C
° F
(H0) - No heater or blower.
(BL) - Blower only.
(950W)
750W)
(H1) - Heater blows warm air
(H2) - Heater blows hot air (2000W)
1500W)
TIMER SETTINGS ON REMOTE CONTROL
˖
˖
˖
6 Settings: F5-F4-F3-F2-F1-F0. Flame dims from F5 to F1.
F5 is the brightest setting and F0 is off.
6 Settings: F5-F4-F3-F2-F1-F0. Flame dims from F5 to F1.
F5 is the brightest setting and F0 is off.
Turns the heater ON/OFF.
Note: Heater functions cycle from H0-BL-H1-H2. Press and
hold the heater button for 5s to lock the heater and
temperature setting onto the selected setting. Hold the
button for another 5s to unlock and heater and temperature
setting.
Timer: Displays current day, time, and week.
Press to enter or confirm timer settings.
Settings: Press to move to next step (use with Timer button).
Press to confirm week timer.
Back: Press to clear timer settings.
Press to return to the previous step (use with Settings button).
Up and Down (use with Settings button).
LCD Screen
Weekday
Mon, Tues, Wed, Thurs, Fri, Sat, Sun
Time Display
Current Time / Timer
From 00: 00 to 24
NOTE: 00-12:00 is AM / 13:00-24:00 is PM
TEMPERATURE
Note: The functions can only be
adjusted when the related letters
or digits are flashing.
1. Press once to turn the touch panel indicator ON.
2. Press button until desired setting is reached. Digital display
shows setting circles are follows:
Note: Holding the button for 5s will switch the temperature
from C° to F° and vice versa.
˖

W415-1699 / E / 06.01.20
EN
20
operating instructions
4.3.1 set current day and time
1. Press once. When “MON” (Monday) begins flashing, use to select the current day.
2. Press . When the hour digits begin flashing, use to select the current hour.
3. Press again. When the minute digits begin flashing, use to select the current minute.
4. Press again. The current time is now set.
4.3.2 set ON/OFF time and temperature on a weekly cycle
1. Press . When “MON” begins flashing, press 3 times. When “ON” begins flashing, use to
select the desired hour and minute to turn on the heater. Press at any time to clear the digits
and shut down “ON” timer.
The timer can only be adjusted in 30-minute increments (i.e. 00:00 - 00:30; 00:30 - 01:00, etc.)
note:
2. Press . When “OFF” begins flashing, use to select the desired hour and minute to turn off the
heater. Press at any time to clear the digits and shut down “OFF” timer.
3. Press again. When “18” begins flashing, use to select the desired temperature for Monday.
If the temperature was previously set, those digits will be shown instead of “18”.
note:
4. Press again. When “TUES” appears on the screen and “ON” begins flashing, use to select the
desired hour and minute to turn on the heater for Tuesday.
5. Press again. When “OFF” begins flashing, use to select the desired hour and minute to turn off
the heater for Tuesday.
6. Press again. When “18” begins flashing, use to select the desired temperature for Tuesday.
7. Repeat steps 1 to 6 to set the “ON/OFF” time and temperature for Wednesday, Thursday, Friday,
Saturday, and Sunday.
8. Press or to complete programming, ensuring to aim the remote control at the receiver, located
in the middle of the appliance. The appliance will “beep” once to confirm that programming has been
successful.
4.3.3 open window warning
If the room temperature decreases by 10 degrees within 3 minutes, the appliance will assume there is an open
window nearby. In order to conserve energy, the heater will automatically switch from High Heat to Low Heat, or if
the heater is already at Low Heat, it will turn off completely.
When switching from High Heat to Low Heat, the appliance will beep 3 times and the digital display will flash “88”
3 times before displaying the existing heating status.
When switching from Low Heat to Off, the appliance will beep 3 times and the digital display will flash “88”
continuously.
To reset the heating function, see “operating remote control” section.
