National Semiconductor SERDES05-40USB User manual

SERDES Evaluation Kit DS99R105/106 USB Version 0.1 Users Manual
National Semiconductor Corporation
Date: 5/14/2008
Page 1 of 37
SERDES Demonstration Kit
User Manual
NSID: SERDES05-40USB
(DS99R105/106)
Rev 0.1

SERDES Evaluation Kit DS99R105/106 USB Version 0.1 Users Manual
National Semiconductor Corporation
Date: 5/14/2008
Page 2 of 37
Table of Contents
TABLE OF CONTENTS ........................................................................................................................................... 2
INTRODUCTION:..................................................................................................................................................... 3
CONTENTS OF THE EVALUATION KIT:........................................................................................................... 4
SERDES TYPICAL APPLICATION:...................................................................................................................... 4
HOW TO SET UP THE EVALUATION KIT:........................................................................................................ 6
POWER CONNECTION: ......................................................................................................................................... 6
SERDES SERIALIZER BOARD DESCRIPTION:................................................................................................ 7
C ONFIGURATION S ETTINGS FOR THE T X B OARD ....................................................................................................... 8
T X LVCMOS AND FPD-LINKII P INOUT BY IDC C ONNECTOR ............................................................................. 11
BOM (B ILL OF M ATERIALS ) S ERIALIZER PCB:...................................................................................................... 12
RX SERDES DE-SERIALIZER BOARD:............................................................................................................. 13
C ONFIGURATION S ETTINGS FOR THE R X B OARD .................................................................................................... 14
R X FPD-LINKII P INOUT AND LVCMOS BY IDC C ONNECTOR ............................................................................. 16
BOM (B ILL OF M ATERIALS ) D E - SERIALIZER PCB: ................................................................................................ 17
TYPICAL CONNECTION AND TEST EQUIPMENT........................................................................................ 18
TROUBLESHOOTING........................................................................................................................................... 20
APPENDIX................................................................................................................................................................ 22
SERIALIZER (TX) PCB SCHEMATIC:............................................................................................................... 22
DE-SERIALIZER (RX) PCB SCHEMATIC:........................................................................................................ 26
SERIALIZER (TX) PCB LAYOUT:...................................................................................................................... 30
SERIALIZER (TX) PCB STACKUP:.................................................................................................................... 33
DESERIALIZER (RX) PCB LAYOUT:................................................................................................................. 34
DESERIALIZER (RX) PCB STACKUP:............................................................................................................... 37

SERDES Evaluation Kit DS99R105/106 USB Version 0.1 Users Manual
National Semiconductor Corporation
Date: 5/14/2008
Page 3 of 37
Introduction:
National Semiconductor’s SERDES evaluation kit contains one (1) DS99R105 Serializer
(Tx) board, one (1) DS99R106 De-serializer (Rx) board, and one (1) two (2) meter high
speed USB 2.0 cable.
Note: the demo boards are not for EMI testing. The demo boards were designed for
easy accessibility to device pins with tap points for monitoring or applying signals,
additional pads for termination, and multiple connector options.
The DS99R105/106 chipset supports a variety of display applications. The single FPD-
LINKII (FPD-LinkII) interface is well-suited for any display system interface. Typical
applications include: navigation displays, automated teller machines (ATMs), POS,
video cameras, global positioning systems (GPS), portable equipment/instruments,
factory automation, etc.
The DS99R105 and DS99R106 can be used as a 24-bit general purpose FPD-LinkII
Serializer and De-serializer chipset designed to transmit data at clocks speeds ranging
from 3 to 40 MHz.
The Serializer board accepts LVCMOS input signals. The FPD-LinkII Serializer converts
the LVCMOS parallel lines into a single serialized FPD-LINKII data pair with an
embedded FPD-LINKII clock. The serial data stream toggles at 28 times the base
clock rate. With an input clock at 40 MHz, the transmission rate for FPD-LinkII line is
960Mbps.
The De-serializer board accepts the FPD-LinkII serialized data stream with embedded
clock and converts the data back into parallel LVCMOS signals and clock. Note that
NO reference clock is needed to prevent harmonic lock as with other devices currently
on the market.
Suggested equipment to evaluate the chipset, an LVCMOS signal source such as a
video generator or word generator or pulse generator and oscilloscope with a bandwidth
of at least 40 MHz will be needed.
The user needs to provide the proper LVCMOS/RGB inputs and LVCMOS/clock to the
Serializer and also provide a proper interface from the De-serializer output to an LCD
panel or test equipment. The Serializer and De-serializer boards can also be used to
evaluate device parameters. A cable conversion board or harness scramble may be
necessary depending on type of cable/connector interface used on the input to the
DS99R105 and to the output of the DS99R106.
Example of suggested display setup:
1) video generator with LVCMOS output
2) 6-bit LCD panel with a LVCMOS input interface.

SERDES Evaluation Kit DS99R105/106 USB Version 0.1 Users Manual
National Semiconductor Corporation
Date: 5/14/2008
Page 4 of 37
Contents of the Evaluation Kit:
1) One Serializer board with the DS99R105
2) One De-serializer board with the DS99R106
3) One 2-meter high speed USB 2.0 cable (4-pin USB A to 5-pin mini USB)
4) Evaluation Kit Documentation (this manual)
5) DS99R105/106 Datasheet
SERDES Typical Application:

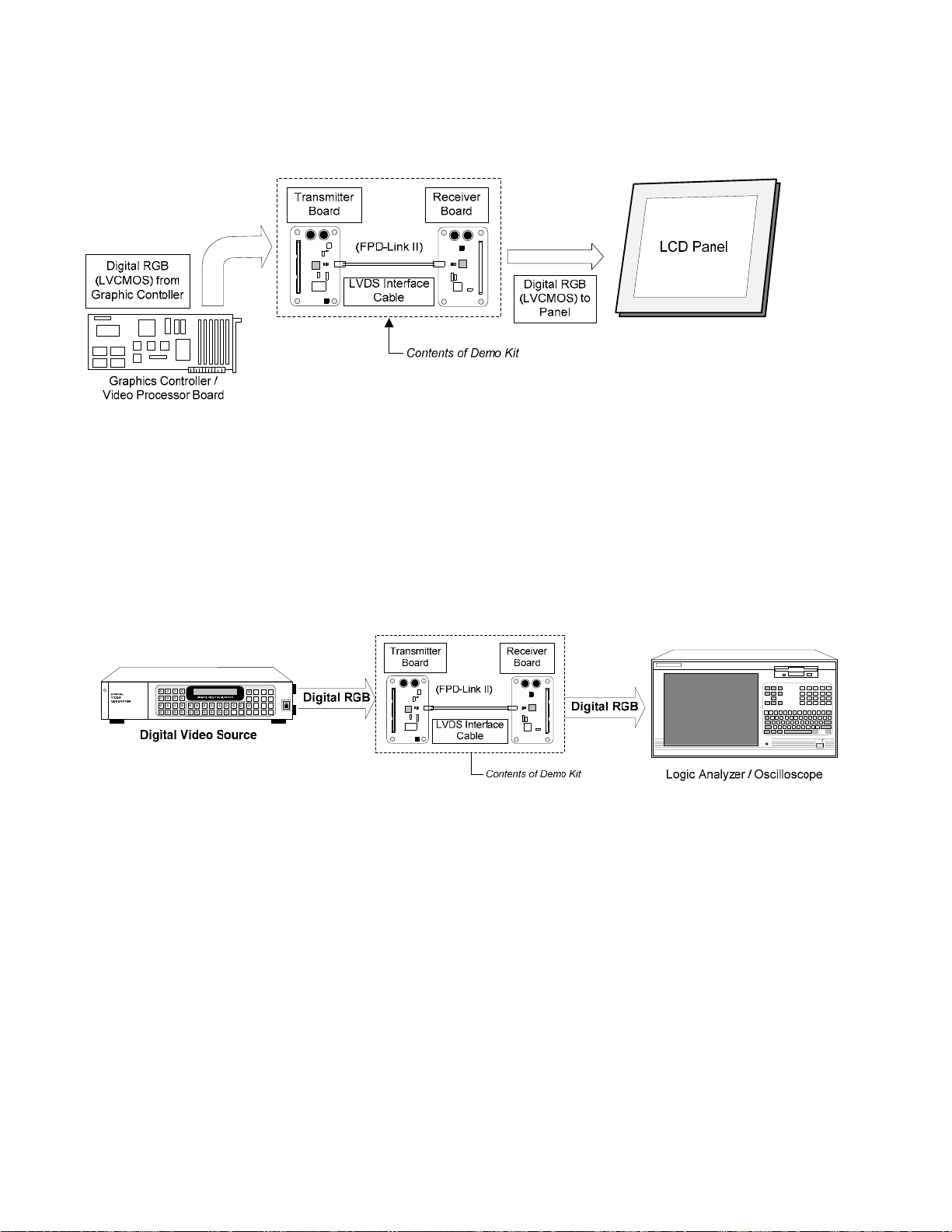

Figure 1a. Typical SERDES Application (18-bit RGB Color)
Figure 1b. Typical SERDES System Diagram

SERDES Evaluation Kit DS99R105/106 USB Version 0.1 Users Manual
National Semiconductor Corporation
Date: 5/14/2008
Page 5 of 37
Figures 1a and 1b illustrate the use of the Chipset (Tx/Rx) in a Host to Flat Panel
Interface.
The chipsets support up to 18-bit color depth TFT LCD Panels.
Refer to the proper datasheet information on Chipsets (Tx/Rx) provided on each board
for more detailed information.

SERDES Evaluation Kit DS99R105/106 USB Version 0.1 Users Manual
National Semiconductor Corporation
Date: 5/14/2008
Page 6 of 37
How to set up the Evaluation Kit:
The PCB routing for the Tx input pins (DIN) have been laid out to accept incoming
LVCMOS signals from 50-pin IDC connector. The TxOUT/RxIN (DOUT/RIN) interface
uses a single twisted pair cable (provided). The PCB routing for the Rx output pins
(ROUT) are accessed through a 50-pin IDC connector. Please follow these steps to set
up the evaluation kit for bench testing and performance measurements:
1) A two (2) meter high speed USB 2.0 cable has been included in the kit. A two (2)
meter USB connector / cable assembly has been included in the kit. Connect 4-pin
USB A side of cable harness to the serializer board and the other side
5-pin mini USB jack to the de-serializer board. This completes the FPD-
LINKII interface connection.
NOTE: The DS99R105 and DS99R106 are NOT USB compliant and should not
be plugged into a USB device nor should a USB device be plugged into the
demo boards.
2) Jumpers and switches have been configured at the factory; they should not require
any changes for immediate operation of the chipset. See text on Configuration
settings for more details.
3) From the Video Decoder board, connect a flat cable (not supplied) to the Serializer
board and connect another flat cable (not supplied) from the De-serializer board to
the panel. Note: For non 50 ohm signal sources, provide 3.3V LVCMOS input signal
levels into DIN[23:0] and TCLK or remove the 49.9 ohm parallel termination
resistors R1-R25 on the DS99R105 Serializer board.
4) Power for the Tx and Rx boards must be supplied externally through Power Jack
(VDD). Grounds for both boards are connected through Power Jack (VSS) (see
section below).
Power Connection:
The Serializer and De-serializer boards must be powered by supplying power externally
through J4 (VDD) and J5 (VSS) on Serializer Board and J4 (VDD) and J5 (VSS) on De-
serializer board. Note +4V is the MAXIMUM voltage that should ever be applied to the
SERDES Serializer (DS99R105) or De-serializer (DS99R106) VDD terminal. Damage
to the device(s) can result if the voltage maximum is exceeded.
1 3 42
A
1 2 3 4 MIN

SERDES Evaluation Kit DS99R105/106 USB Version 0.1 Users Manual
National Semiconductor Corporation
Date: 5/14/2008
Page 7 of 37
SERDES Serializer Board Description:
The 50-pin IDC connector J1 accepts 24 bits of LVCMOS RGB data along with the
clock input.
The SERDES Serializer board is powered externally from the J4 (VDD) and J5 (VSS)
connectors shown below. For the Serializer to be operational, the Power Down (S1-
TPWDNB) and Data Enable (S1-DEN) switches on S1 must be set HIGH. The board is
factory configured (with series capacitors on the FPD-LINKII outputs) in AC coupled
mode: S1- RESVRDA, RESVRDB, and VODSEL must be set LOW. Rising or falling
edge reference clock is also selected on S1-TRFB: HIGH (rising) or LOW (falling).
The USB connector P2 (USB-A side) on the bottom side of the board provides the
interface connection to the FPD-LINKII signals to the De-serializer board. Note: P1
(mini USB) on the top side is un-stuffed and not to be used with the cable provided in
the kit.
Note:
VDD and VSS MUST
be applied externally
from here.
c
P2
(BACKSIDE)
fJ4
,
J5
cFPD-LINKII OUTPUTS
dLVCMOS INPUTS
eFUNCTION CONTROLS
fPOWER SUPPLY
g 49.9ΩINPUT TERMINATION
(For 50
Ω signal sources,
remove otherwise if populated.)
e
JP3
J1 d
S1 e
g
g
g
g
cP1 (TOPSIDE)
(UNSTUFFED)
Note:
Connect cable
(USB A side)
to P2 on BACKSIDE.

SERDES Evaluation Kit DS99R105/106 USB Version 0.1 Users Manual
National Semiconductor Corporation
Date: 5/14/2008
Page 8 of 37

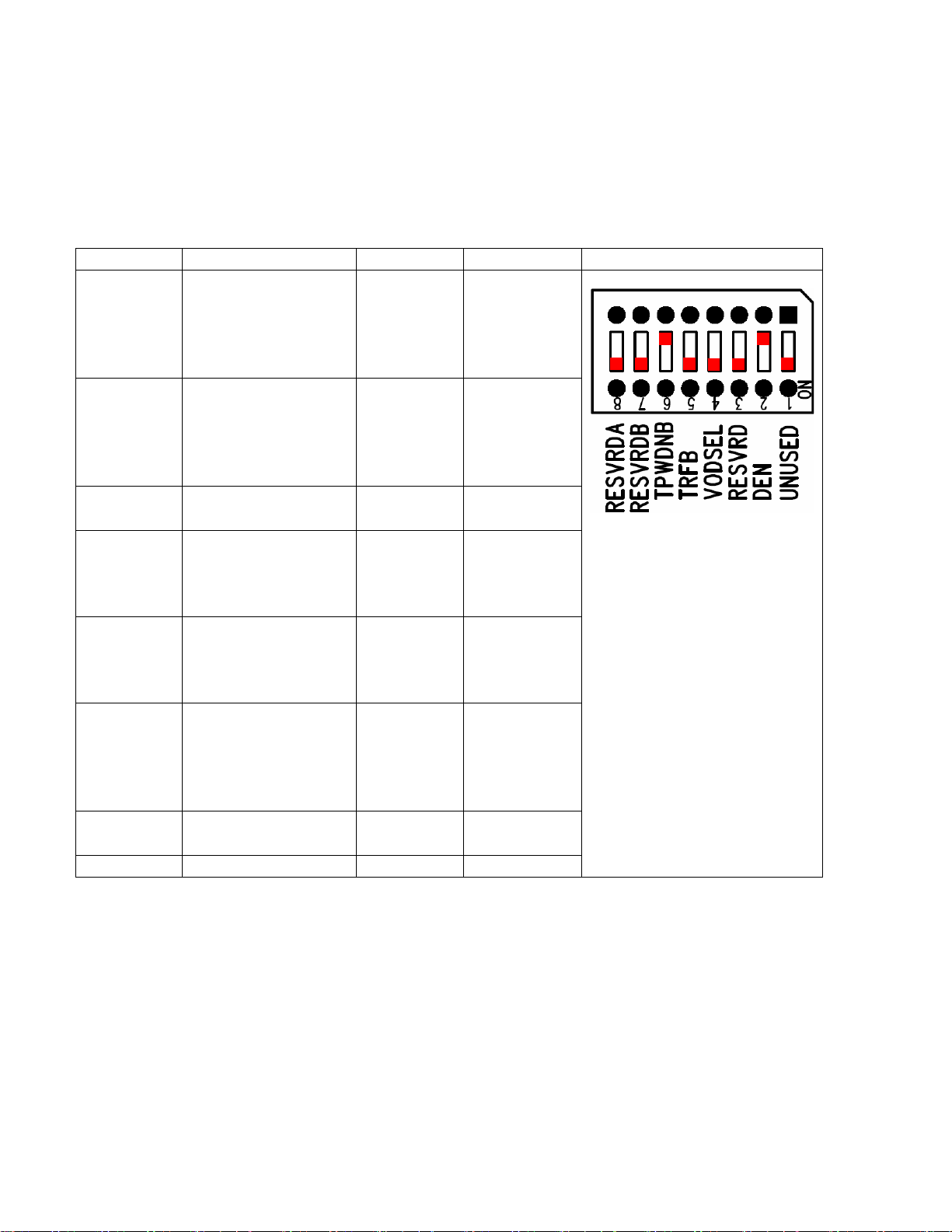

Configuration Settings for the Tx Board
S1: Serializer Input Features Selection
Reference Description Input = L Input = H S1
RESVRDA DCAOFF MUST be
tied low for
normal
operation
(Default)
-
RESVRDB DCBOFF MUST be
tied low for
normal
operation
(Default)
-
TPWDNB PoWerDowNBar Powers
Down Operational (Default)
TRFB Latch input data
on Rising or
Falling edge of
TCLK
Falling
Edge
(Default)
Rising Edge
VODSEL FPD-LINKII
output VOD
SELect
≈350mV
(Default) ≈700mV
RESVRD RESeRVeD MUST be
tied low for
normal
operation
(Default)
DEN Output Data
ENabled Disabled Enabled
(Default)
UNUSED UNUSED Don’t care Don’t care

SERDES Evaluation Kit DS99R105/106 USB Version 0.1 Users Manual
National Semiconductor Corporation
Date: 5/14/2008
Page 9 of 37
JP3: Pre-Emphasis Feature Selection
Reference Description OPEN
(tied H) CLOSED
(tied L)
JP3 Pre-Emphasis* – helps to
increase the eye pattern
opening in the FPD-LINKII
stream
Disabled –
no jumper
(Default)
Enabled –
With jumper
*Note: Pre-emphasis is only needed for lossy cables and/or long cable runs
JP1, JP2: USB Red and Black wire
Reference Description VDD VSS OPEN
JP1 Power wire in USB cable
thru P2 (and P1 not
mounted) connector
Jumper RED to VSS –
recommended
Note: Normally VDD in USB application
Red wire tied
to VDD
Red wire
tied to VSS
(Default)
Red wire
floating
(not
recommended)
JP2 Power wire in USB cable
thru P2 (and P1 not
mounted) connector
Jumper BLACK to VSS –
recommended
Note: Normally VSS in USB application
Black wire
tied to VDD
Black wire
tied to VSS
(Default)
Black wire
floating
(not
recommended)
pin 2
RED WIRE
+
BLACK WIRE
_
pin 4
P2
USB A
pin 3
pin 1
top side thru the board view
(mounted on solder side)

SERDES Evaluation Kit DS99R105/106 USB Version 0.1 Users Manual
National Semiconductor Corporation
Date: 5/14/2008
Page 10 of 37

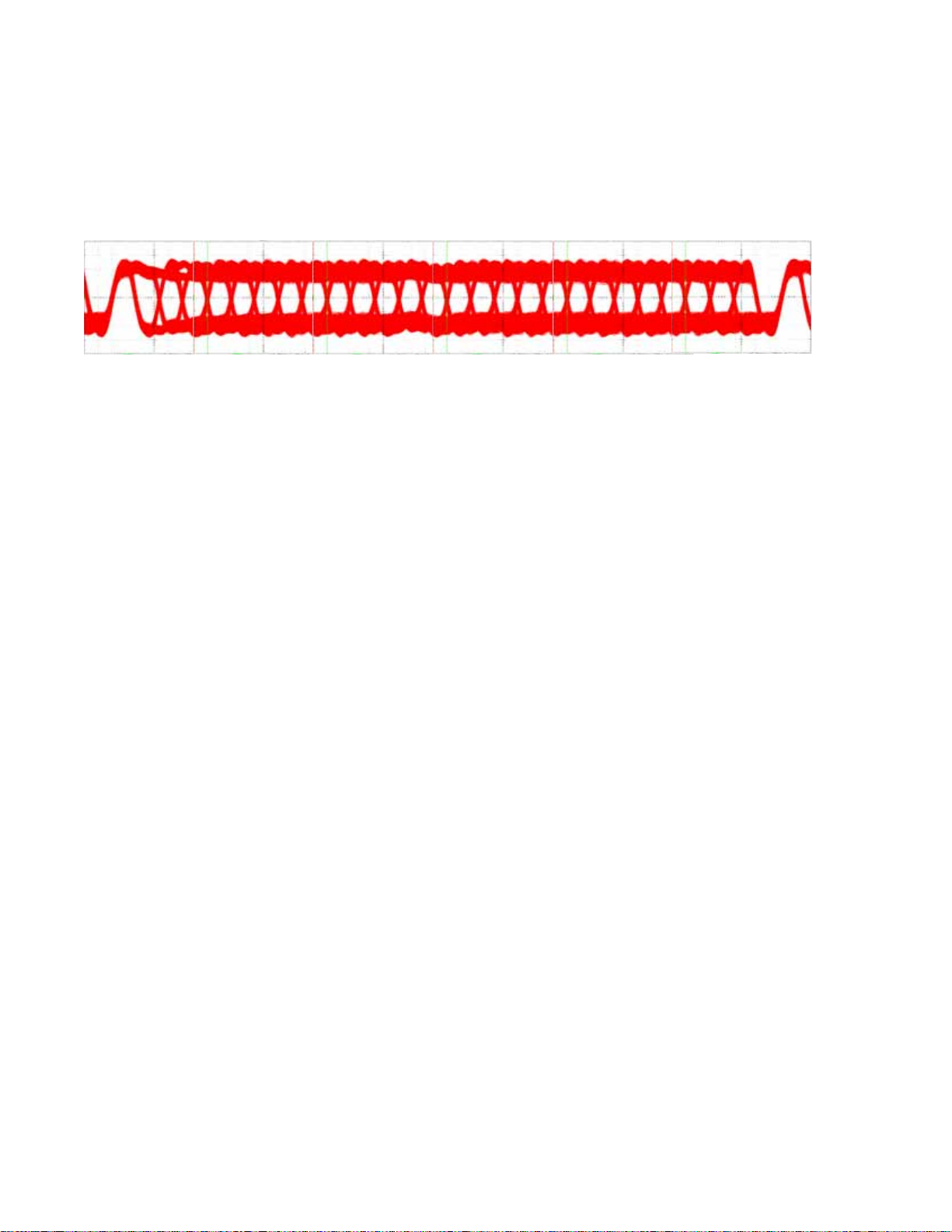

The following picture depicts a typical example of the FPD-Link II serial stream. This
snapshot was taken with a differential probe across the 100 ohm termination resistor R1
on the DS99R106 Rx evaluation board. R1 is the termination resistor to the RxIN +/-.
Note: The scope was triggered, with a separate probe, on TCLK, the input clock into the
DS99R105 Tx. To view the serial stream correctly, do not trigger on the probe
monitoring the serial stream.

SERDES Evaluation Kit DS99R105/106 USB Version 0.1 Users Manual
National Semiconductor Corporation
Date: 5/14/2008
Page 11 of 37
Tx LVCMOS and FPD-LINKII Pinout by IDC Connector
The following three tables illustrate how the Tx inputs are mapped to the IDC connector
J1, the FPD-LINKII outputs on the USB-A connector P2, and the mini USB P1 (not
installed) pinouts. Note – labels are also printed on the demo boards for both the
lvcmos input and FPD-LINKII outputs.
J1
P2 P1
LVCMOS INPUT (bottom side) (topside)
pin
no. name name pin no. FPD-LINKII OUTPUT (not mounted)
1 GND DIN0 2 pin no. name FPD-LINKII OUTPUT
3 GND DIN1 4 1 JP1 pin no. name
5 GND DIN2 6 2 DOUT+ 5 JP2
7 GND DIN3 8 3 DOUT- 4 NC
9 GND DIN4 10 4 JP2 3 DOUT-
11 GND DIN5 12 2 DOUT+
13 GND DIN6 14 1 JP1
15 GND DIN7 16
17 GND DIN8 18
19 GND DIN9 20
21 GND DIN10 22
23 GND DIN11 24
25 GND DIN12 26
27 GND DIN13 28
29 GND DIN14 30
31 GND DIN15 32
33 GND DIN16 34
35 GND DIN17 36
37 GND DIN18 38
39 GND DIN19 40
41 GND DIN20 42
43 GND DIN21 44
45 GND DIN22 46
47 GND DIN23 48
49 GND TCLK 50

SERDES Evaluation Kit DS99R105/106 USB Version 0.1 Users Manual
National Semiconductor Corporation
Date: 5/14/2008
Page 12 of 37
BOM (Bill of Materials) Serializer PCB:
DS99R105 Tx USB Demo Board - Board Stackup Revised: Thursday, March 23, 2006
DS99R105 Tx USB Demo Board Revision: 1
Bill Of Materials March 23,2006 18:52:42
Item Qty Reference Part PCB Footprint
1 2 C1,C2 0.1uF CAP/HDC-0402
2 1 C3 2.2uF 3528-21_EIA
3 1 C4 22uF CAP/N
4 1 C5 0.1uF CAP/HDC-1206
5 5 C6,C9,C10,C13,C20 22uF CAP/EIA-B 3528-21
6 5 C7,C11,C15,C16,C19 0.01uF CAP/HDC-0603
7 5 C8,C12,C14,C17,C18 0.1uF CAP/HDC-0603
8 2 JP2,JP1 3-Pin Header Header/3P
9 1 JP3 2-Pin Header Header/2P
10 1 J1 IDC2X25_Unshrouded IDC-50
11 2 J5,J4 BANANA CON/BANANA-S
12 1 P1 mini USB 5pin_open mini_USB_surface_mount
13 1 P2 USB A USB_TYPE_A_4P
14 24 R1,R2,R3,R4,R5,R6,R7,R8, 49.9ohm_open RES/HDC-0201
R9,R10,R11,R12,R13,R14,
R15,R16,R17,R18,R19,R20,
R21,R22,R23,R24
15 1 R25 49.9ohm_open RES/HDC-0805
16 1 R26 5.76K (3.01K) RES/HDC-0402
17 1 R27 100 ohm,0402 RES/HDC-0402
18 5 R28,R30,R32,R33,R35 0 Ohm,0402 RES/HDC-0402
19 8 R38,R39,R40,R41,R42,R43, 10K RES/HDC-0805
R44,R45
20 1 S1 SW DIP-8 DIP-16
21 1 U1 DS99R105 48 ld TQFP
22 1 VR1 SVR20K Surface Mount 4mm Square

SERDES Evaluation Kit DS99R105/106 USB Version 0.1 Users Manual
National Semiconductor Corporation
Date: 5/14/2008
Page 13 of 37

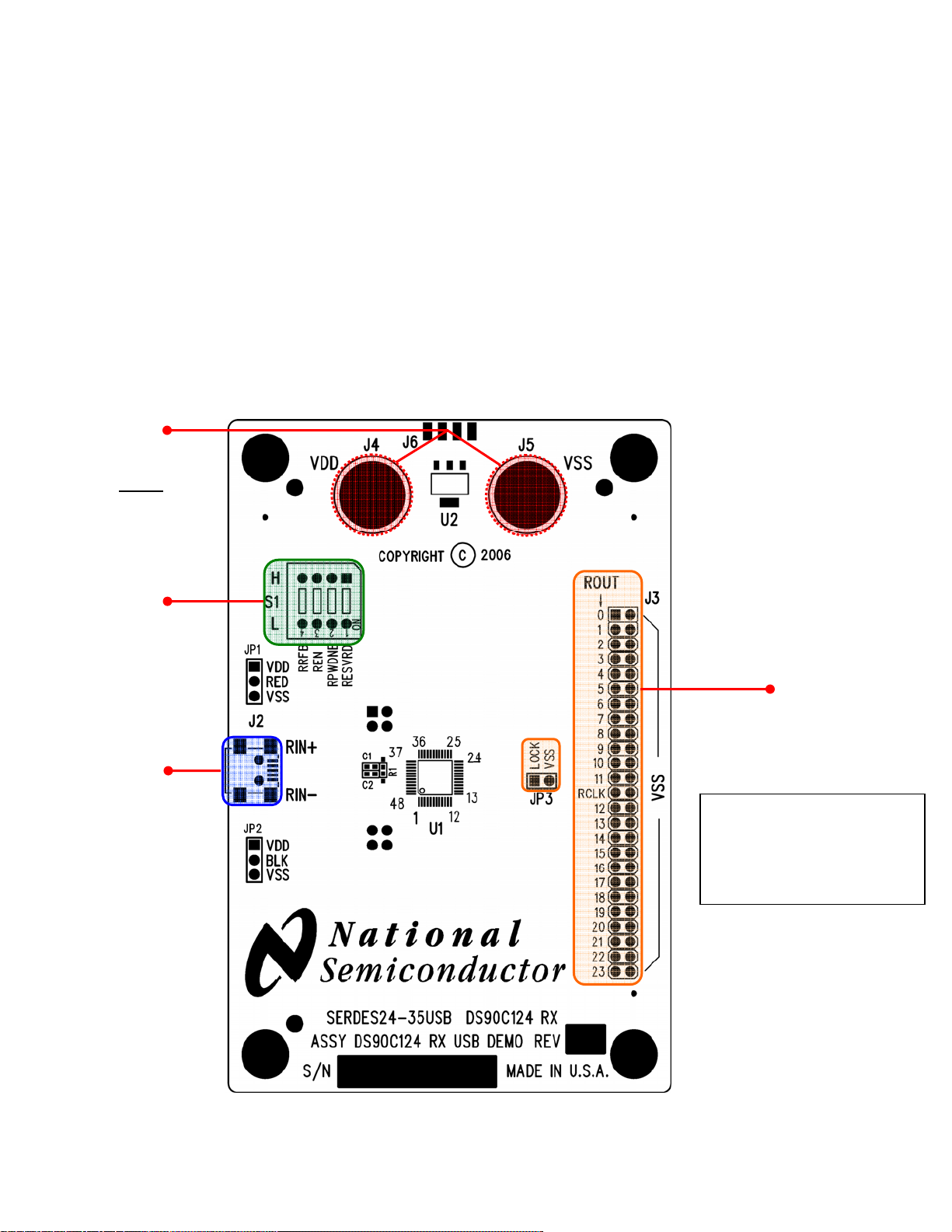

Rx SERDES De-serializer Board:
The USB connector J2 (mini USB) on the topside of the board provides the interface
connection for FPD-LINKII signals to the Serializer board. Note: J1 (mini USB) on the
bottom side is un-stuffed and not used with the cable provided in the kit.
The SERDES De-serializer board is powered externally from the J4 (VDD) and J5
(VSS) connectors shown below. For the De-serializer to be operational, the Power
Down (RPWDNB) and Receiver Enable (REN) switches on S1 must be set HIGH.
Rising or falling edge reference clock is also selected by S1: HIGH (rising) or LOW
(falling).
The 50 pin IDC Connector J3 provides access to the 24 bit LVCMOS and clock outputs.
f J4
,
J5
cJ1 (BACKSIDE)
(UNSTUFFED) cFPD-LINKII INPUTS
dLVCMOS OUTPUTS
eFUNCTION CONTROLS
fPOWER SUPPLY
dJ3
eS1
dJP3
Note:
Vcc and Gnd MUST be
applied externally here
cJ2
(
TOPSIDE
)
Note:
Connect cable
(mini USB side) to J2
on
(
TOPSIDE
)
.

SERDES Evaluation Kit DS99R105/106 USB Version 0.1 Users Manual
National Semiconductor Corporation
Date: 5/14/2008
Page 14 of 37

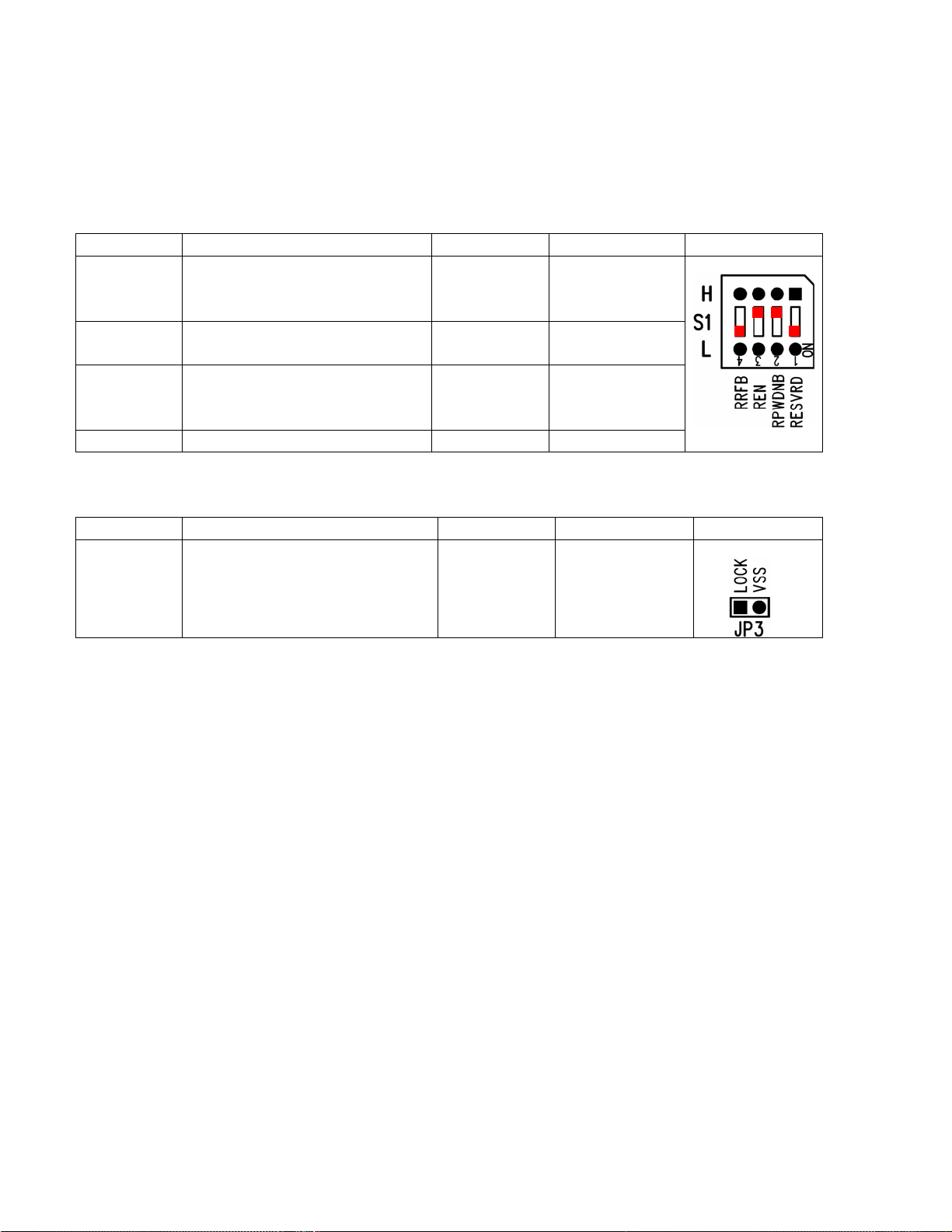

Configuration Settings for the Rx Board
S1: De-serializer Input Features Selection
Reference Description Input = L Input = H S1
RFB Latch output data on Rising
or Falling Data Strobe of
RCLK
Falling
(Default) Rising
REN Receiver Output ENabled Disabled Enabled
(Default)
RPWDNB PoWerDowNBar Power
Down
(Disabled)
Operational
(Default)
RESVRD RESeRVeD Don’t care Don’t care
JP3: Output Lock Monitor
Reference Description Output = L Output = H JP3
LOCK Receiver PLL LOCK
Note:
DO NOT PUT A SHORTING
JUMPER IN JP3.
locked unlocked

SERDES Evaluation Kit DS99R105/106 USB Version 0.1 Users Manual
National Semiconductor Corporation
Date: 5/14/2008
Page 15 of 37
JP1, JP2: USB Red and Black wire
Reference Description VDD VSS OPEN
JP1 Power wire in USB cable
thru J2 (and J1 not
mounted) connector
Jumper RED to VSS –
recommended
Note: Normally VDD in USB application
Red wire tied
to VDD
Red wire
tied to VSS
(Default)
Red wire
floating
(not
recommended)
JP2 Power wire in USB cable
thru J2 (and J1 not
mounted) connector
Jumper BLACK to VSS –
recommended
Note: Normally VSS in USB application
Black wire
tied to VDD
Black wire
tied to VSS
(Default)
Black wire
floating
(not
recommended)
NO connect
J2
pin 1
pin 5 BLACK WIRE
mini USB
top side view
(mounted on component side)
RED WIRE
pin 4
pin 3
pin 2
_
+

SERDES Evaluation Kit DS99R105/106 USB Version 0.1 Users Manual
National Semiconductor Corporation
Date: 5/14/2008
Page 16 of 37
Rx FPD-LINKII Pinout and LVCMOS by IDC Connector
The following three tables illustrate how the Rx outputs are mapped to the IDC
connector J3, the mini USB FPD-LINKII connector J2, and the mini USB FPD-LINKII
connector J1 (not installed) pinouts. Note – labels are also printed on the demo boards
for both the FPD-LINKII inputs and LVCMOS outputs.
J3
J2 J1
LVCMOS INPUT (topside) (bottom side)
pin no. name name pin no. FPD-LINKII OUTPUT (not mounted)
1
ROUT0
GND 2 pin no. name FPD-LINKII
OUTPUT
3 ROUT1 GND 4 1 JP1 pin no. name
5 ROUT2 GND 6 2 DOUT+ 5 JP2
7 ROUT3 GND 8 3 DOUT- 4 NC
9 ROUT4 GND 10 4 NC 3 DOUT-
11 ROUT5 GND 12 5 JP2 2 DOUT+
13 ROUT6 GND 14 1 JP1
15 ROUT7 GND 16
17 ROUT8 GND 18
19 ROUT9 GND 20
21 ROUT10 GND 22
23 ROUT11 GND 24
25 RCLK GND 26
27 ROUT12 GND 28
29 ROUT13 GND 30
31 ROUT14 GND 32
33 ROUT15 GND 34
35 ROUT16 GND 36
37 ROUT17 GND 38
39 ROUT18 GND 40
41 ROUT19 GND 42
43 ROUT20 GND 44
45 ROUT21 GND 46
47 ROUT22 GND 48
49 ROUT23 GND 50

SERDES Evaluation Kit DS99R105/106 USB Version 0.1 Users Manual
National Semiconductor Corporation
Date: 5/14/2008
Page 17 of 37
BOM (Bill of Materials) De-serializer PCB:
DS99R106 Rx USB Demo Board - Board Stackup Revised: Thursday, March 23, 2006
DS99R106 Rx USB Demo Board Revision: 1
Bill Of Materials March 23,2006 19:19:22
Item Qty Reference Part PCB Footprint
1 2 C2,C1 0.1uF CAP/HDC-0402
2 1 C3 2.2uF 3528-21_EIA
3 1 C4 22uF CAP/N
4 1 C5 0.1uF CAP/HDC-1206
5 26 C6,C7,C8,C9,C10,C11,C12, open0402 CAP/HDC-0402
C13,C14,C15,C16,C17,C18,
C19,C20,C21,C22,C23,C24,
C25,C26,C27,C28,C29,C30,
C39
6 8 C31,C32,C33,C38,C43,C49, 22uF CAP/EIA-B 3528-21
C54,C55
7 8 C34,C37,C40,C44,C45,C48, 0.1uF CAP/HDC-0603
C52,C53
8 8 C35,C36,C41,C42,C46,C47, 0.01uF CAP/HDC-0603
C50,C51
9 2 JP2,JP1 3-Pin Header Header/3P
10 1 JP3 2-Pin Header Header/2P
11 1 J1 mini USB 5pin_open mini_USB_surface_mount
12 1 J2 mini USB 5pin mini_USB_surface_mount
13 1 J3 IDC2X25_Unshrouded IDC-50
14 2 J4,J5 BANANA CON/BANANA-S
15 1 R1 100 ohm,0402 RES/HDC-0402
16 1 R2 10K_open RES/HDC-0805
17 3 R3,R4,R5 10K RES/HDC-0805
18 8 R7,R8,R9,R10,R11,R12,R13, 0 Ohm,0402 RES/HDC-0402
R14
19 1 S1 SW DIP-4 DIP-4
20 1 U1 DS99R106 48 pin TQFP

SERDES Evaluation Kit DS99R105/106 USB Version 0.1 Users Manual
National Semiconductor Corporation
Date: 5/14/2008
Page 18 of 37
Typical Connection and Test Equipment
The following is a list of typical test equipment that may be used to generate signals for
the TX inputs:
1) Digital Video Source – for generation of specific display timing such as Digital Video
Processor or Graphics Controller with digital RGB (LVCMOS) output.
2) Astro Systems VG-835 - This video generator may be used for video signal sources
for 6-bit Digital LVCMOS/RGB.
3) Any other signal / video generator that generates the correct input levels as specified
in the datasheet.
4) Optional – Logic Analyzer or Oscilloscope
The following is a list of typically test equipment that may be used to monitor the output
signals from the RX:
1) LCD Display Panel which supports digital RGB (LVCMOS) inputs.
2) National Semiconductor DS99R105 Serializer (Tx)
3) Optional – Logic Analyzer or Oscilloscope
4) Any SCOPE with a bandwidth of at least 40MHz for LVCMOS and/or 1GHz for
looking at the differential signal.
FPD-LINKII signals may be easily measured with high impedance / high bandwidth
differential probes such as the TEK P6247 or P6248 differential probes.

SERDES Evaluation Kit DS99R105/106 USB Version 0.1 Users Manual
National Semiconductor Corporation
Date: 5/14/2008
Page 19 of 37
The picture below shows a typical test set up using a Graphics Controller and LCD
Panel.
Figure 2. Typical SERDES Setup of LCD Panel Application
The picture below shows a typical test set up using a generator and scope.
Figure 3. Typical SERDES Test Setup for Evaluation

SERDES Evaluation Kit DS99R105/106 USB Version 0.1 Users Manual
National Semiconductor Corporation
Date: 5/14/2008
Page 20 of 37
Troubleshooting
NOTE: The DS99R105 and DS99R106 are NOT USB compliant and should not be
plugged into a USB device nor should a USB device be plugged into the demo
boards.
If the demo boards are not performing properly, use the following as a guide for quick
solutions to potential problems. If the problem persists, please contact the local Sales
Representative for assistance.
QUICK CHECKS:
1. Check that Power and Ground are connected to both Tx AND Rx boards.
2. Check the supply voltage (typical 3.3V) and also current draw with both Tx and Rx
boards. The Serializer board should draw about 40-50mA with clock and all data
bits switching at 40MHz. The De-serializer board should draw about 70-80mA with
clock and all data bits switching at 40MHz.
3. Verify input clock and input data signals meet requirements (VIL, VIH, tset, thold),
Also verify that data is strobed on the selected rising/falling (RFB pin) edge of the
clock.
4. Check that the Jumpers and Switches are set correctly.
5. Check that the cable is properly connected.
TROUBLESHOOTING CHART
Problem… Solution…
There is only the output clock.
There is no output data.
Make sure the data is applied to the correct input pin.
Make sure data is valid at the input.
No output data and clock. Make sure Power is on. Input data and clock are
active and connected correctly.
Make sure that the cable is secured to both demo
boards.
Power, ground, input data and
input clock are connected
correctly, but no outputs.
Check the Power Down pins of both Serializer and
De-serializer boards to make sure that the devices
are enabled (/PD=Vcc) for operation. Also check
DEN on the Serializer board and REN on the
Deserializer board is set HIGH.
The devices are pulling more
than 1A of current. Check for shorts in the cables connecting the TX and RX boards.
After powering up the demo
boards, the power supply
reads less than 3V when it is
set to 3.3V.
Use a larger power supply that will provide enough
current for the demo boards, a 500mA minimum
power supply is recommended.
