DROP XL WIRELESS CHARGER

WATCH EDITION

SET U P GUIDE

GUIDE D’INSTALLATION

說明書

说明书

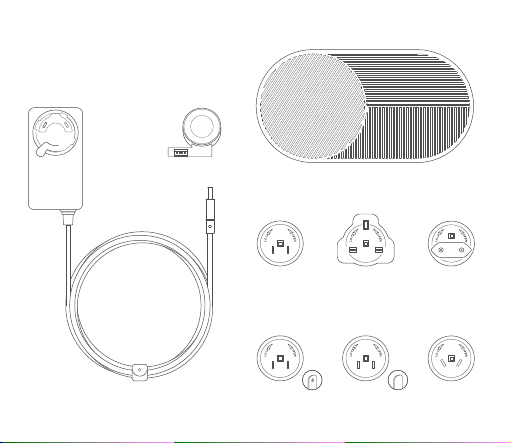

WHAT IS INSIDE

CONTENU / 內裡包含 / 内里包含

UK (Type G)

英國 / 英国

US (Type A)

美國 / 美国

EU (Type C)

歐盟 / 欧盟

CN (Type A)

中國 / 中国

US (Type A)

美國 / 美国

AU (Type I)

澳洲 / 澳洲

ref: DROP-XL-GRY-AW-UEU

ref: DROP-XL-GRY-AW-UCA

Drop XL Wireless Charger | Watch Edition

(Model No.: DROPXLW01 )

Power Supply:

Input 100-240V ~ 50/60Hz 1.5A

Output 15V 3A

Qi Wireless Charger:

Output 10W (max per pad),

Frequency 127.7 kHz

Charging Distance: ≤2 mm

USB-A Port: Output 5V 2.4A

Apple Watch Module:

Input 5V 2.4A, Output 5W

SPECIFICATION

CARACTÉRISTIQUES / 規格 / 规格

Drop XL Wireless Charger | Watch Edition

(N° de modèle: DROPXLW01)

Adaptateur secteur:

Entrée 100-240V~50/60Hz 1.5A

Sortie 15V 3A

Base de chargement Qi:

Sortie 10W (max par côté)

Fréquence 127.7 kHz,

Distance de chargement: ≤2 mm

Sortie USB-A: 5V 2.4A

Module Apple Watch:

Entrée 5V 2.4A, Sortie 5W

AirPods Charging:

Make sure the AirPods or AirPods Pro case is placed

on the center of the charging area. The white status

LED may blink or switch o repeatedly while charging

– this does not aect the charging progress.

AirPods Pro charging status can be checked by

tapping on the case. If the LED lights up orange,

charging is still in progress. If the LED lights up green,

charging is complete. A full charge takes 3-5 hours.

Recharge des Airpods:

Assurez-vous que les AirPods ou les AirPods Pro sont

placés au centre de la zone de charge. Le voyant

d’état blanc peut clignoter ou s’éteindre à plusieurs

reprises pendant la charge. Cela n’aecte pas la

progression de la charge.

L’état de charge des AirPods Pro peut être vériﬁé en

appuyant sur le boîtier. Si la LED s’allume en orange,

la charge est toujours en cours. Si la LED s’allume en

vert, la charge est terminée. Une charge complète

prend de 3 à 5 heures.

三用无线充电底座（苹果手表版）

(型号: DROPXLW01)

电源:

输入 100-240V ~ 50/60Hz 1.5A,

输出 15V 3A

Qi 无线充电:

输出 10W (每个最大输出)

频率 127.7 kHz

充电距离: ≤2 mm

USB-A : 输出 5V 2.4A

苹果手表模块:

输入 5V 2.4A, 输出 5W

三用無線充電底座 (蘋果手錶版)

(型號: DROPXLW01)

電源:

輸入 100-240V~50/60Hz 1.5A

輸出 15V 3A

Qi 無線充電:

輸出 10W (每個最大輸出)

頻率 127.7 kHz,

充電距離: ≤2 mm

USB-A : 輸出 5V 2.4A

蘋果手錶模塊:

輸入 5V 2.4A, 輸出 5W

AirPods充電：

確保將AirPods或AirPods Pro無線充電盒放在充電區的

中央。充電時，LED可能會閃爍白燈或反復開關‒這不會

影響充電進度。

輕按充電盒外殼即可檢查AirPods Pro的充電狀態。如

果LED閃爍橙燈，則表明充電仍在進行中。如果LED閃

爍綠燈，則代表充電已完成。充滿電需要 3 - 5 小時。

AirPods充电：

确保将AirPods或AirPods Pro无线充电盒放在充电区的

中央。充电时，LED可能会闪烁白灯或反复开关‒这不会

影响充电进度。

轻按充电盒外壳即可检查AirPods Pro的充电状态。如

果LED闪烁橙灯，则表明充电仍在进行中。如果LED闪

烁绿灯，则代表充电已完成。充满电需要 3-5小时。

USB-A

LED

Wireless charging area

Zone de chargement sans ﬁl

無線充電區 / 无线充电区

Apple Watch Module

Module Apple Watch / 蘋果手錶模塊

HOW TO INSTALL

CONNEXION / 連接方法 / 连接方法

LED INDICATION

TÉMOIN LUMINEUX LED / LED 燈光指示 / LED 灯光指示

White light Charging

Lumière blanche / 白燈 Chargement en cours / 充電中 / 充电中

Red light ﬂashing Foreign object detected (e.g. metallic object)

Lumière rouge clignotante Corps étranger détecté (un objet métallique) /

紅燈閃爍 / 红灯闪烁檢測到異物 e.g.金屬 / 检测到异物 e.g.金属
