DeWalt XR DCB094 User manual

DCB094

Copyright DeWALT
English (original instructions) 4

1
Fig. A
3
1
8
3
1
5
4
2

2
Fig. A
7
6

3
Fig. B
3
1
XXXX XX XX
9
Fig. C
10
11

4
ENGLISH
DCB094
Input
Battery VDC 18
USB Type C VDC 5‑15V @3A and 20V @5A
Output
USB Type A VDC 5, 2.4A
USB Type C VDC 5‑15V @3A and 20V @5A
Battery Port VDC 18, 6A
Type 1
USB charging port Type A, Type C
Battery type Li‑Ion
Battery Voltage 18
Weight kg 0.11
Power Adapter
Voltage VAC 100–240
Input AC frequency Hz 50/60
Model 2AEL1005
Power output (max) W100
Output voltage, current VDC, A 5V,3A / 9V, 3A / 12V,3A, 15V,3A / 20V,5A
Average active efficiency %84.8
Efficiency at low load (10%) %76.75
No‑load power consumption W0.086
Congratulations!
You have chosen a DeWALT tool. Years of experience, thorough product development
and innovation make DeWALT one of the most reliable partners for professional power
toolusers.
Technical Data
English (original instructions)
USB CHARGER
DCB094

5
ENGLISH
Batteries
Chargers/Charge Times (Minutes)
Cat #
DC
Weight
*Date code 201811475B or later
**Date code 201536 or later
**Battery charge times matrix provided for guidance only; charge times will vary depending on temperature and condition of batteries.
***Battery charge times matrix provided for guidance only; charge times will vary depending on temperature and condition of batteries.
Batteries DCB094*
Cat # VDC Ah Weight (kg) Chargers/Charge Times (Minutes)
DCB546 18/54 6.0/2.0 1.08 75
DCB547/G 18/54 9.0/3.0 1.46 110
DCB548 18/54 12.0/4.0 1.46 150
DCB549 18/54 15.0/5.0 2.12 190
DCB181 18 1.5 0.35 20
DCB182 18 4.0 0.61 50
DCB183/B/G 18 2.0 0.40 30
DCB184/B/G 18 5.0 0.62 65
DCB185 18 1.3 0.35 20
DCB187 18 3.0 0.54 40
DCB189 18 4.0 0.54 50
DCBP034/G 18 1.7 0.32 22
DCBP518/G 18 5.0 0.75 65
*Battery charge times matrix provided for guidance only; charge times will vary depending on temperature
and condition of batteries.
aWARNING: To reduce the risk of injury, read the instructionmanual.
Definitions: Safety Guidelines
The definitions below describe the level of severity for each signal word. Please read the
manual and pay attention to thesesymbols.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will
result in death or seriousinjury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could
result in death or seriousinjury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderateinjury.
NOTICE: Indicates a practice not related to personal injury which, if not avoided,
may result in propertydamage.
Denotes risk of electricshock.
Denotes risk offire.

6
ENGLISH
DCB094 DeWALT USB Charger SafetyWarnings
WARNING: This manual contains important safety and operating instructions for this
DCB094 DeWALT USB charger. Before using the DCB094 DeWALT USB charger, read this
manual and all labels on the DCB094 DeWALT USB charger, battery pack, charger and
product(s) using the powersource.
• Before using the DCB094 DeWALT USB charger, read all instructions and cautionary
markings on the DCB094 DeWALT USB charger, battery pack and product using the
batterypack.
• Shock hazard. Do not allow any liquid to get inside the DCB094 DeWALT USB charger.
Electric shock mayresult.
• Burn hazard. To reduce the risk of injury, use only DeWALT 18V lithium ion battery packs
with the DCB094 DeWALT USB charger. Do not attempt to use it on any other battery
packs. Other types of batteries may overheat and burst resulting in personal injury and
propertydamage.
• This DCB094 DeWALT USB charger is not intended for any uses other than
supplying power/charging small USB electronics. Any other uses may result in risk of
fire, electric shock orelectrocution.
• Do not expose the DCB094 DeWALT USB charger to rain orsnow.
• When operating the DCB094 DeWALT USB charger outdoors, always provide a
drylocation.
• Do not operate the DCB094 DeWALT USB charger if it has received a sharp
blow, been dropped or otherwise damaged in any way. Take it to an authorized
servicecenter.
• Do not disassemble the DCB094 DeWALT USB charger, there are no user
serviceableparts.
• Do not operate the DeWALT USB charger with a damaged power adapter or
USBcable.
• Do not force the power adapter or USB cable into the DeWALT USB charger's
USBport.
Chargers
DeWALT chargers require no adjustment and are designed to be as easy as possible
tooperate.
Using an Extension Cable
An extension cord should not be used unless absolutely necessary. Use an approved
extension cable suitable for the power input of your charger (see Technical Data). The
minimum conductor size is 1mm2; the maximum length is30m.
When using a cable reel, always unwind the cablecompletely.

7
ENGLISH
Important Safety Instructions for All BatteryChargers
SAVE THESE INSTRUCTIONS: This manual contains important safety and operating
instructions for compatible battery chargers (refer to TechnicalData).
• Before using charger, read all instructions and cautionary markings on charger, battery
pack, and product using batterypack.
WARNING: Shock hazard. Do not allow any liquid to get inside charger. Electric shock
mayresult.
WARNING: We recommend the use of a residual current device with a residual current
rating of 30mA orless.
CAUTION: Burn hazard. To reduce the risk of injury, charge only DeWALT rechargeable
batteries. Other types of batteries may burst causing personal injury anddamage.
CAUTION: Children should be supervised to ensure that they do not play with
theappliance.
NOTICE: Under certain conditions, with the charger plugged into the power supply,
the exposed charging contacts inside the charger can be shorted by foreign material.
Foreign materials of a conductive nature such as, but not limited to, steel wool,
aluminum foil or any buildup of metallic particles should be kept away from charger
cavities. Always unplug the charger from the power supply when there is no battery
pack in the cavity. Unplug charger before attempting toclean.
• DO NOT attempt to charge the battery pack with any chargers other than DeWALT.
DeWALT chargers and battery packs are specifically designed to worktogether.
• The intended uses of the DeWALT DCB094 are to charge DeWALT rechargeable
batteries, and to charge or provide power to USB powered devices. Any other uses
may result in risk of fire, electric shock orelectrocution.
• Do not expose charger to rain orsnow.
• Pull by plug rather than cord when disconnecting charger. This will reduce risk
ofdamage to electric plug andcord.
• Make sure that cord is located so that it will not be stepped on, tripped over, or
otherwise subjected to damage orstress.
• Do not use an extension cord unless it is absolutely necessary. Use of improper
extension cord could result in risk of fire,electric shock, orelectrocution.
• Do not place any object on top of charger or place the charger on a soft surface
that might block the ventilation slots and result in excessive internal heat. Place
the charger in a position away from any heat source. The charger is ventilated through slots
in the top and the bottom of thehousing.

8
ENGLISH
• Do not operate charger with damaged cord or plug—have them
replacedimmediately.
• Do not operate charger if it has received a sharp blow, been dropped, or otherwise
damaged in any way. Take it to an authorised servicecentre.
• Do not disassemble charger; take it to an authorised service centre when
service or repair is required. Incorrect reassembly may result in a risk of electric shock,
electrocution orfire.
• In case of damaged power supply cord, the supply cord must be replaced immediately by
the manufacturer, its service agent or similar qualified person to prevent anyhazard.
• Disconnect the charger from the outlet before attempting any cleaning. This will
reduce the risk of electric shock. Removing the battery pack will not reduce thisrisk.
Charging a Battery (Fig.A)
NOTE: To ensure maximum performance and life of lithium‑ion battery packs, charge the
battery pack fully before firstuse.
1. Plug power adapter7 into an appropriate outlet. For fastest charge rate, use the
provided DeWALT poweradapter.
NOTE: Slower charging blink pattern may occur if using lower poweradapters.
2. Attach the USB charger3 to the battery pack1, making sure it is fullyseated.
NOTE: Once the USB charger is inserted the user will see the red LED illuminate for two
seconds indicating the power‑upsequence.
3. Connect the power adapter7 USB port to the USB charger3 Type‑C USB port using
either the provided USB cable6 (for fastest charge rate) or a user suppliedcable.
4. The Stage 1Charging blink indicator represents the charge process that charges
approximately 80% of the battery's capacity. Stage2Charging blink indicator represents
the remainder, or top off charge process, for the battery to reach fullcapacity.
5. The completion of charge will be indicated by both LEDs remaining ON continuously.
The battery pack is fully charged and may be removed and used at this time or left in
the DeWALT USB charger.
The DeWALT USB charger will not charge a faulty battery pack. The charger refusing to light
could indicate a problem with the charger or a faulty batterypack.
NOTE: If the charger refuses to light, take the charger and battery pack to be tested at an
authorized servicecenter.

9
ENGLISH

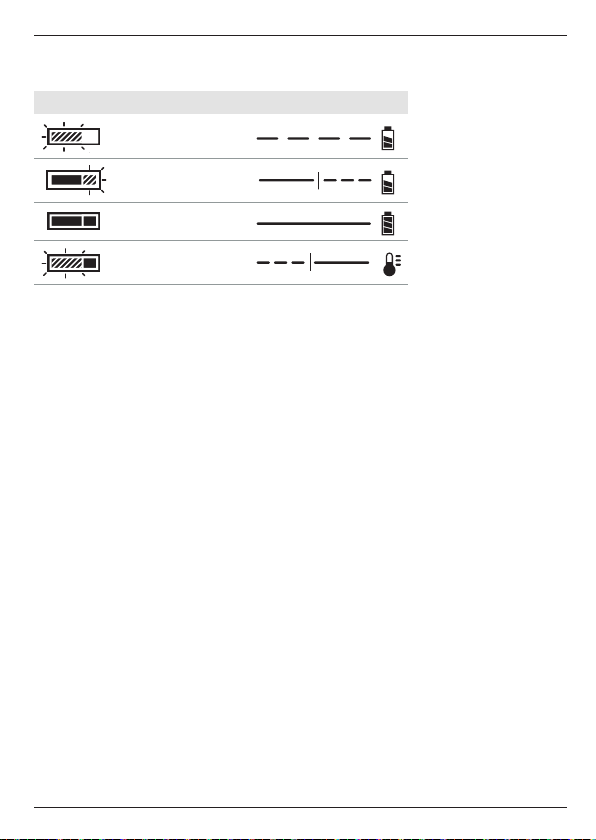

Charger Operation
Refer to the indicators below for the charge status of the batterypack.
Indicators
Stage 1 Charging
Stage 2 Charging
Fully Charged
Hot/Cold Pack Delay*
*The red light will continue to blink, but a yellow indicator light will be illuminated during
this operation. Once the battery pack has reached an appropriate temperature, the yellow
light will turn off and the charger will resume the chargingprocedure.
The compatible charger(s) will not charge a faulty battery pack. The charger will indicate
faulty battery by refusing tolight.
NOTE: This could also mean a problem with acharger.
If the charger indicates a problem, take the charger and battery pack to be tested at an
authorised servicecentre.
Hot/Cold Pack Delay
When the charger detects a battery pack that is too hot or too cold, it automatically
starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an
appropriate temperature. The charger then automatically switches to the pack charging
mode. This feature ensures maximum battery packlife.
During hot/cold pack delay, the red LED will blink and the yellow LED will remain solid.
Once the battery pack has reached an appropriate temperature, the yellow light will turn off
and the charger will resume the chargingprocedure.
A cold battery pack may charge at a slower rate than a warm batterypack.
Never operate the USB charger the if ventilation slots are blocked. Do not permit foreign
objects to enter the interior of the USBcharger.
Electronic Protection System
XR Li‑Ion tools are designed with an Electronic Protection System that will protect the
battery pack against overloading, overheating or deepdischarge.
The tool will automatically turn off if the Electronic Protection System engages. If this
occurs, place the lithium‑ion battery pack on the charger until it is fullycharged.

10
ENGLISH
Battery Packs
Important Safety Instructions for All BatteryPacks
When ordering replacement battery packs, be sure to include catalogue number
andvoltage.
The battery pack is not fully charged out of the carton. Before using the battery pack and
charger, read the safety instructions below. Then follow charging proceduresoutlined.
READ ALL INSTRUCTIONS
• Do not charge or use battery in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Inserting or removing the battery from the charger
may ignite the dust orfumes.
• Never force battery pack into charger. Do not modify battery pack in any way to
fit into a non‑compatible charger as battery pack may rupture causing serious
personalinjury.
• Charge the battery packs only in DeWALTchargers.
• DO NOT splash or immerse in water or otherliquids.
• Do not store or use the tool and battery pack in locations where the temperature
may fall below 4˚C (39.2˚F) (such as outside sheds or metal buildings in winter),
or reach or exceed 40˚C (104˚F) (such as outside sheds or metal buildings
insummer).
• Do not incinerate the battery pack even if it is severely damaged or is completely
worn out. The battery pack can explode in a fire. Toxic fumes and materials are created
when lithium‑ion battery packs areburned.
• If battery contents come into contact with the skin, immediately wash area with
mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for
15minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is
composed of a mixture of liquid organic carbonates and lithiumsalts.
• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If
symptoms persists, seek medicalattention.
WARNING: Burn hazard. Battery liquid may be flammable if exposed to spark orflame.
Charger Cleaning Instructions
WARNING: Shock hazard. Disconnect the power adapter from the AC outlet
before cleaning. Dirt and grease may be removed from the exterior of the charger
using a cloth or soft non‑metallic brush. Do not use water or any cleaning solutions.
Never let any liquid get inside the tool; never immerse any part of the tool into aliquid.

11
ENGLISH
WARNING: Never attempt to open the battery pack for any reason. If battery pack
case is cracked or damaged, do not insert into charger. Do not crush, drop or damage
battery pack. Do not use a battery pack or charger that has received a sharp blow,
been dropped, run over or damaged in any way (i.e., pierced with a nail, hit with a
hammer, stepped on). Electric shock or electrocution may result. Damaged battery
packs should be returned to service centre forrecycling.
WARNING: Fire hazard. Do not store or carry the battery pack so that metal
objects can contact exposed battery terminals. For example, do not place the
battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose
nails, screws, keys,etc.
CAUTION: When not in use, place tool on its side on a stable surface where it
will not cause a tripping or falling hazard. Some tools with large battery packs will
stand upright on the battery pack but may be easily knockedover.
Transportation
WARNING: Fire hazard. Transporting batteries can possibly cause fire if the battery
terminals inadvertently come in contact with conductive materials. When transporting
batteries, make sure that the battery terminals are protected and well insulated from
materials that could contact them and cause a short circuit. NOTE: Lithium‑ion
batteries should not be put in checkedbaggage.
DeWALT batteries comply with all applicable shipping regulations as prescribed by industry
and legal standards which include UN Recommendations on the Transport of Dangerous
Goods; International Air Transport Association (IATA) Dangerous Goods Regulations,
International Maritime Dangerous Goods (IMDG) Regulations, and the European Agreement
Concerning The International Carriage of Dangerous Goods by Road (ADR). Lithium‑ion
cells and batteries have been tested to section 38.3of the UN Recommendations on the
Transport of Dangerous Goods Manual of Tests andCriteria.
In most instances, shipping a DeWALT battery pack will be excepted from being classified
as a fully regulated Class 9Hazardous Material. In general, only shipments containing a
lithium‑ion battery with an energy rating greater than 100Watt Hours (Wh) will require
being shipped as fully regulated Class 9. All lithium‑ion batteries have the Watt Hour
rating marked on the pack. Furthermore, due to regulation complexities, DeWALT does not
recommend air shipping lithium‑ion battery packs alone regardless of Watt Hour rating.
Shipments of tools with batteries (combo kits) can be air shipped as excepted if the Watt
Hour rating of the battery pack is no greater than 100Wh.
Regardless of whether a shipment is considered excepted or fully regulated, it is the
shipper's responsibility to consult the latest regulations for packaging, labeling/marking
and documentationrequirements.

12
ENGLISH
The information provided in this section of the manual is provided in good faith and
believed to be accurate at the time the document was created. However, no warranty,
expressed or implied, is given. It is the buyer’s responsibility to ensure that its activities
comply with the applicableregulations.
Transporting the FLEXVOLTTM Battery
The DeWALT FLEXVOLTTM battery has two modes: Use andTransport.
Use Mode: When the FLEXVOLTTM battery stands alone or is in a DeWALT 18V product, it
will operate as an 18V battery. When the FLEXVOLTTM battery is in a 54V or a 108V (two 54V
batteries) product, it will operate as a 54Vbattery.
Transport Mode: When the cap is attached to the FLEXVOLTTM battery, the battery is in
Transport mode. Keep the cap forshipping.
When in Transport mode, strings of cells are electrically
disconnected within the pack resulting in 3batteries with a
lower Watt hour (Wh) rating as compared to 1battery with
a higher Watt hour rating. This increased quantity of
3batteries with the lower Watt hour rating can exempt the pack from certain shipping
regulations that are imposed upon the higher Watt hour batteries.
For example, the Transport Wh rating might
indicate 3x36Wh, meaning 3batteries of 36Wh
each. The Use Wh rating might indicate 108Wh
(1batteryimplied).
Storage Recommendations
1. The best storage place is one that is cool and dry away from direct sunlight and excess
heat or cold. For optimum battery performance and life, store battery packs at room
temperature when not inuse.
2. For long storage, it is recommended to store a fully charged battery pack in a cool, dry
place out of the charger for optimalresults.
NOTE: Battery packs should not be stored completely depleted of charge. The battery pack
will need to be recharged beforeuse.
Labels on Charger and Battery Pack
In addition to the pictographs used in this manual, the labels on the charger and the battery
pack may show the followingpictographs:
LRead instruction manual beforeuse.
Example of Use and Transport Label Marking

13
ENGLISH
p See Technical Data for chargingtime.
q Do not probe with conductiveobjects.
r Do not charge damaged batterypacks.
s Do not expose towater.
t Have defective cords replacedimmediately
u Charge only between 4˚C and 40˚C.
v Only for indooruse.
x Discard the battery pack with due care for theenvironment.
y Charge DeWALT battery packs only with designated DeWALT chargers. Charging
battery packs other than the designated DeWALT batteries with a DeWALT charger
may make them burst or lead to other dangeroussituations.
z Do not incinerate the batterypack.
B USE (without transport cap). Example: Wh rating indicates 108Wh (1battery with
108Wh).
A TRANSPORT (with built‑in transport cap). Example: Wh rating indicates 3x 36Wh
(3batteries of 36Wh).
Battery Type
The DCB094 operates on 18V Li‑Ion volt battery packs.
These battery packs may be used: DCB181, DCB182, DCB183, DCB183B, DCB183G,
DCB184, DCB184B, DCB184G, DCB185, DCB187, DCB189, DCB546, DCB547, DCB547G,
DCB548, DCB549, DCBP034, DCBP034G, DCBP518, DCBP518G. Refer to Technical Data for
moreinformation.

14
ENGLISH
Markings on Tool
The following pictograms are shown on the tool:
Read instruction manual beforeuse.
Package Contents
The package contains:
1 DeWALT USB charger
1 USB power delivery cable
1 Power adapter
1 Instruction manual
1 Battery pack (included in battery starter kit only)
NOTE: Battery packs, chargers and kitboxes are not included with N models. Battery packs
and chargers are not included with NT models. Bmodels include Bluetooth® batterypacks.
NOTE: The Bluetooth® word mark and logos are registered trademarks owned by the
Bluetooth®, SIG, Inc. and any use of such marks by DeWALT is under license. Other
trademarks and trade names are those of their respectiveowners.
• Check for damage to the tool, parts or accessories which may have occurred
duringtransport.
• Take the time to thoroughly read and understand this manual prior tooperation.
Date Code Position (Fig.B)
The date code 9, which also includes the year of manufacture, is printed into thehousing.
Example:
2022XX XX
Year and Week of Manufacture
Description (Fig.A)
WARNING: Never modify the DCB094 USB charger or any part of it. Damage or
personal injury could result
1 Battery pack
2 Battery release button
3 DeWALT USB charger
4 USB Type‑A port
5 USB Type‑C port

15
ENGLISH
6 USB power delivery cable
7 Power adapter
8 Fuel gauge
Intended Use
The DCB094 DeWALT USB charger is equipped with a USB Type‑A charging port and a USB
Type‑C power delivery charging port and is designed to charge or supply power to USB
Type‑C compatible devices with the use of DeWALT 18V XR battery packs. Consult the chart
in this manual for compatibility of chargers and batterypacks.
DO NOT use under wet conditions or in the presence of flammable liquids orgases.
The USB charger is for professionalapplications.
DO NOT let children come into contact with the tool. Supervision is required when
inexperienced operators use thistool.
• Young children and the infirm. This appliance is not intended for use by young
children or infirm persons withoutsupervision.
• This product is not intended for use by persons (including children) suffering from
diminished physical, sensory or mental abilities; lack of experience, knowledge or skills
unless they are supervised by a person responsible for their safety. Children should
never be left alone with thisproduct.
OPERATION
Instructions for Use
WARNING: Always observe the safety instructions and applicableregulations.
WARNING: To reduce the risk of serious personal injury, turn tool off and
disconnect battery pack before making any adjustments or removing/
installing attachments or accessories. An accidental start‑up can causeinjury.
Installing and Removing the Battery Pack (Fig.B)
NOTE: For best results, make sure your battery pack is fullycharged.
IMPORTANT: To avoid battery charge depletion, remove the battery pack from the
DeWALT USB charger when not inuse.
Over‑Discharge Protection
Over‑discharge protection will completely shut down the USB charger and require the user
to remove the battery pack for at least 5seconds and re‑insert into the DeWALT USB charger
to useagain. The user should ensure they see the power‑up blink pattern upon insertion to
ensure properoperation.

16
ENGLISH
USB Charging Ports (Fig.A)
The DeWALT USB charger3 is equipped with a USB Type‑A port4 and a bi‑directional USB
Type‑C Port5.
Type-C port supports: Source – Power Delivery 3.0, Qualcomm*** QC3.0/2.0, Samsung™
AFC, BC 1.2, Type C only
‑ Sink – BC 1.2, Apple**** charging, PD 3.0, Type C only
‑ USB Type C can sink or source up to 100W
Type-A port supports: BC1.2 and Apple FastCharge and Samsung™FastCharge (AFC).
Output only. USB Type‑A port capable of12W.
NOTE: Do not plug in devices that exceed the output ratings on the power source’s
label. Doing so will shorten the USB charger's usefullife.
DeWALT batteries will charge, via the USB Type C port from most USB power supplies. Some
power supplies may require a different cable not supplied with this kit, and may charge at
a slowerrate.
Charging a Device
Insert a USB plug into the USB Type‑A port4 or bi‑directional USB Type‑C port5 to supply
power or charge yourdevices.
NOTE: There will be no LED indication while supplying power to or charging user devices.
LEDs will only illuminate when charging DeWALTbatteries.
NOTE: The USB ports will shut down and the yellow LED will blink if the battery pack
temperture is out of acceptablerange.
***Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and
othercountries.
****Apple is a trademark of AppleInc.
To Install Battery Pack
Slide the battery pack1 into the DeWALT USB charger3 until the battery pack is
firmlyseated.
WARNING: Fire hazard. Do not store or carry the battery pack so that metal
objects can contact exposed batteryterminals.
To Remove the Battery Pack
Press the battery release button2 and pull the USB charger from thebattery.

17
ENGLISH
C
Lubrication
Your USB charger requires no additionallubrication.
MAINTENANCE
Your USB charger has been designed to operate over a long period of time with a minimum
of maintenance. Continuous satisfactory operation depends upon proper care and
regularcleaning.
WARNING: To reduce the risk of serious personal injury, disconnect battery
pack before making any adjustments or removing/installing attachments or
accessories. An accidental start‑up can causeinjury.
The charger and battery pack are notserviceable.
Belt Clip(Fig.C)
WARNING: To reduce the risk of serious personal injury, ensure the screw holding the
belt hook issecure.
IMPORTANT: When attaching or replacing the belt hook10, to the DeWALT USB charger, use
only the screw11that is provided. Be sure to securely tightenscrew.
If the hook is not desired at all, it can be removed from the DeWALT USBcharger.
To remove the belt hook, remove the screw11that holds the belt hook inplace.
D
Cleaning
WARNING: Blow dirt and dust out of the main housing with dry air as often as dirt
is seen collecting in and around the air vents. Wear approved eye protection and
approved dust mask when performing thisprocedure.
WARNING: Never use solvents or other harsh chemicals for cleaning the non‑metallic
parts of the tool. These chemicals may weaken the materials used in these parts. Use a
cloth dampened only with water and mild soap. Never let any liquid get inside the USB
charger; never immerse any part of the tool into aliquid.

18
ENGLISH
Protecting the Environment
wSeparate collection. Products and batteries marked with this symbol must not be
disposed of with normal householdwaste.
Products and batteries contain materials that can be recovered or recycled, reducing
the demand for raw materials. Please recycle electrical products and batteries
according to local provisions. Further information is available at www.2helpU.com.
Rechargeable Battery Pack
This long‑life battery pack must be recharged when it fails to produce sufficient power on
jobs that were easily done before. At the end of its technical life, discard it with due care for
ourenvironment:
• Run the battery pack down completely, then remove it from thetool.
• Li‑Ion cells are recyclable. Take them to your dealer or a local recycling station. The
collected battery packs will be recycled or disposed ofproperly.
Optional Accessories
WARNING: Since accessories, other than those offered by DeWALT, have not been
tested with this product, use of such accessories with this USB charger could be
hazardous. To reduce the risk of injury, only DeWALT recommended accessories should
be used with thisproduct.
Consult your dealer for further information on the appropriateaccessories.
