NATIVE UNION Dock Wireless Charger User manual

D O CK WIRELESS CHARGER
SET UP GUIDE
GUIDE D’INSTALLATION
GUÍA DE INSTALACIÓN
INSTALLATIONSANLEITUNG
無線充電座說明書

WHAT IS INSIDE
CONTENU / LO QUE HAY DENTRO / INHALT / 內容

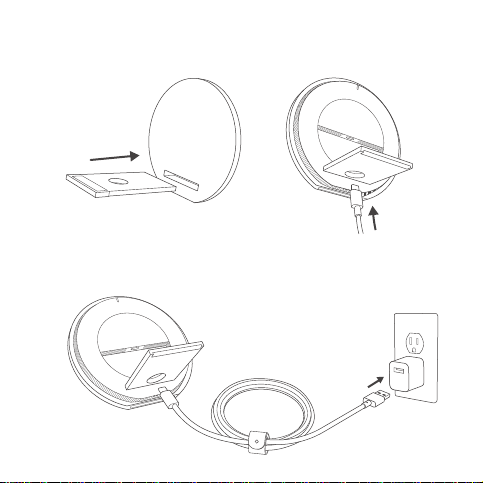

HOW TO CONNECT
CONNEXION / CÓMO CONECTAR / VERKABELUNG / 連接方法
HOW TO INSTALL
INSTALLATION / CÓMO INSTALAR / INSTALLATION / 安裝方法

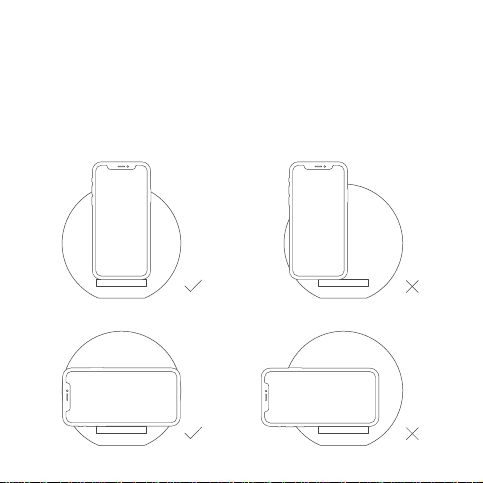

ALIGNMENT
PLACEZ L’APPAREIL CORRECTEMENT SUR LA BASE SANS
FIL / ALINEE EL DISPOSITIVO CORRECTAMENTE EN EL
CARGADOR INALÁMBRICO / KORREKTE AUSRICHTUNG /
充電擺放位置

NOTES
REMARQUES / OBSERVACIONES / BEMERKUNGEN / 注意

FCC STATEMENT (USA)
This device complies with Part 18 of the FCC Rules
WARNING: Changes or modifications to this unit not expressly approved by
the party responsible for compliance could void the user's authority to
operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B ISM equipment, pursuant to Part 18 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to
correctthe interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that
to which the receiver is connected.
- Consult the dealer or an experienced radio / TV technician for help.
The user is cautioned that changes and modifications made to the
equipment without the approval of manufacturer could void the user’s
authority to operate this equipment.
RSS STATEMENT (CANADA)
This device contains licence-exempt transmitter(s)/receiver(s) that comply
with Innovation, Science and Economic Development Canada’s licence-ex-
empt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that
may cause undesired operation of the device.
Caution: To maintain the compliance with the RF exposure guideline,
place the unit at least 10 cm from nearby persons.
SAFE T Y INFORMATION
1. This product is intended for home & oce use
2. For indoor use only
3. Consult local sta before using the product near medical or
industrial equipment or on board an aircraft
4. Prevent cables from being pinched or damaged
5. A damaged cable or device may malfunction and/or overheat
(Fire Hazard)
6. Unplug the product if not used for an extended period of time
LED INDICATIO N
White light
Charging
Red light flashing
Foreign object detected
e.g. metallic object
S P E CIFICATIO N
Input: DC5V, 2.0A; DC9V, 1.67A; DC12V, 1.5A
Frequency: 127.7 kHz
Output Power: 5W/7.5W/10W
Charging distance: ≤2mm
Operating Temperature (°C): 0°C – 35°C

REGULATORY INFORMATION
FCC STATEMENT (USA)
This device complies with Part 18 of the FCC Rules
