Nauxus NX-E90-30 Assembly instructions

Power Pack Range Hood Insert
Read and save these instructions.
NOTICE:
Installer: Leave this guide with the homeowner
Homeowner: Keep this guide for future reference
Installation Guide
and Users Manual
IMPORTANT: MODEL:
NX-E90-30
NX-E90-36
Questions, problems, missing parts? Before returning to the store,
call NAUXUS Customer Service
8 a.m.-6 p.m.,EST, Monday-Friday
1-[phone] 1-[phone]
NAUXUS.COM

Important Safety Notice
Read all Instructions before Installing and operating this appliance
•The installation in this manual is intended for qualied installers, service technicians or persons with
similar qualied background. Installation and electrical wiring must be done by qualied profession-
als and in accordance with all applicable codes and standards, including re-rated construction.
•DO NOT attempt to install this appliance yourself. Injury could result from installing the unit due to
lack of appropriate electrical and technical background.
•Range hood may have very sharp edges; please wear protective gloves if it is necessary to remove any
parts for installing, cleaning or servicing.
•Activating any switch ON before completing installation may cause ignition or an explosion.
•Due to the size and weight of this range hood, two people installation is recommended.
To reduce the risk of re, electric shock, or injury to persons:
•For general ventilating use only. DO NOT use to exhaust hazardous or explosive materials and va-
pors.
•The combustion air ow needed for safe operation of fuel-burning equipment may be aected by this
unit’s operation. Follow the heating equipment manufacturer’s guideline and safety standards such
as those published by the National Fire Protection Association (NFPA), and the American Society of
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
•Before servicing or cleaning unit, switch power OFF at service panel and lock service panel to pre-
vent power from being switched ON accidentally.
•Clean grease laden surfaces frequently. To reduce the risk of re and to disperse air properly, make
sure to vent air outside. DO NOT vent exhaust into spaces between walls, crawl spaces, ceiling, attics
or garages.
•Ducted fans MUST always be vented to the outdoors.
•Use only metal ductwork and this unit MUST be grounded.
•Sucient air is needed for proper combustion and exhausting of gases through the duct to prevent
back drafting.
•When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hid-
den utilities.
•All electrical wiring must be properly installed, insulated and grounded.
•Old duct work should be cleaned or replaced if necessary to avoid the possibility of a grease re.
•Check all joints on duct work to insure proper connection and all joints should be properly taped.
•Use this unit only in the manner intended by the manufacturer. If you have questions, contact the
vendor.
To reduce the risk of a stove top grease re:
•Keep all fan, bae, spaces, lter, grease tunnel, oil container and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan, bae, spaces, lter, grease tunnel and oil container.
•Always turn range hood ON when cooking at high heat or when cooking aming foods.
•Use high settings on cooking range only when necessary.
•Never leave surface units unattended at high settings. Boil overs cause smoking and greasy spillovers
that may ignite. Heat oils slowly on low or medium settings. Page 1

All safety messages will follow the safety alert symbol and the word “WARNING”.
The manufacturer and/or distributor/reseller declines all responsibility in the event of failure to ob-
serve the instructions given here for installation, maintenance and suitable use of the product.
The manufacturer and/or distributor/reseller further declines all responsibility for injury due to neg-
ligence and the warranty of the unit automatically expires due to improper maintenance.
The manufacturer and/or distributor/reseller will not be held responsible for any damages to personal
property or real estate or any bodily injuries whether caused directly or indirectly by the range hood.
Important Safety Notice
Read all Instructions before Installing and operating this appliance
WARNING
Your safety and the safety of others is very important. We have provided many important safety mes-
sages in this manual and on your appliance. Always read and obey all safety messages. All safety mes-
sages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.
This is the safety alert symbol. This symbol alerts you to potential hazards that can hurt you and others.
•Clean ventilating fan frequently.
•Always use appropriate cookware and utensils size.
•Always use cookware appropriate for the size of the surface element.
To reduce the risk of injury to persons in the event of a stove top grease re:
•SMOTHER FLAMES with a close-tting lid, cookie sheet, or metal tray, then turn OFF the burner.
BECAREFUL TO PREVENT BURNS. NEVER PICK UP A FLAMING PAN—you may be burned.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the ames DO
NOT go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT or dial your local
emergency service immediately.
•DO NOT USE WATER, including wet dishcloths or towels — a violent steam explosion will result.
•Use an extinguisher ONLY if:
•You know you have a Class A, B, C extinguisher, and you already know how to operate it.
•The re is small and contained in the area where it is started.
•The re department is being called.
•You can ght the re with your back to an exit.
To reduce the risk of injury to persons in the event of a gas leaks:
•Extinguish any open ame.
•DO NOT turn on the range hood fan or any type of ventilator.
•DO NOT turn on the lights or any type of appliance.
•Open all doors and windows to disperse the gas. If you still smell gas, call the gas company and re
department, or dial your local emergency service immediately.
Page 2

Page 3
Tools needed:
Level
Flat-blade and
Phillips screw-
drivers
Powered
screwdriver
or drill
Measuring
tape
Utility knife
Marker or
pencil
Table of Contents
INSTALLATION
Tools needed....................................................3
Parts supplied...................................................4
Venting requirements.......................................5
Mount heights & clearance...........................5-6
Calculating vent system length.......................6
Venting methods&Charcoal filter Installation.7
Electrical requirements....................................8
Installation......................................................9
Range hood operations ..............................10-11
Product Dimension &Wiring Diagram...........12
USE AND CARE
Troubleshooting...........................................13
Use and care information...............................14
Specications..............................................14
MAINTENANCE
Cleaning& Replacing lter .....................15
Replacing light bulb.................................15-16
Disclaimer ....................................................17

Parts supplied:
Filter spacer
Range Hood
Qty: 10 PCS
A
Stainless Steel Bae
6" adapter for vertical evacuation 3.25" x 10" Adapter for horizontal evacuation
Page 4

Page 5
Venting Requirements
• Vent system must terminate to the outside
(roof or side wall).
• Do not terminate the vent system in an attic
or other enclosed area.
• Do not use 4” (10.2 cm) laundry-type wall
caps.
• Use metal/aluminum vent only. Rigid metal/
aluminum vent is recommended.
• Do not use plastic vent.
• Always keep the duct clean to ensure proper
airow.
• It is recommended that the range hood be
vented vertically through the roof through 6”
(15 cm) round metal/ aluminum vent work.
• The size of the vent should be uniform.
• Use no more than three 90° elbows.
• Do Not install two elbows together.
• The length of vent system and number of
elbows should be kept to a minimum to pro-
vide ecient performance.
• The vent system must have a damper. If roof
or wall cap has a damper, Do Not use damp-
er supplied with the range hood.
• Use duct tape to seal all joints in the vent
system.
• Use caulking to seal exterior wall or roof
opening around the cap.

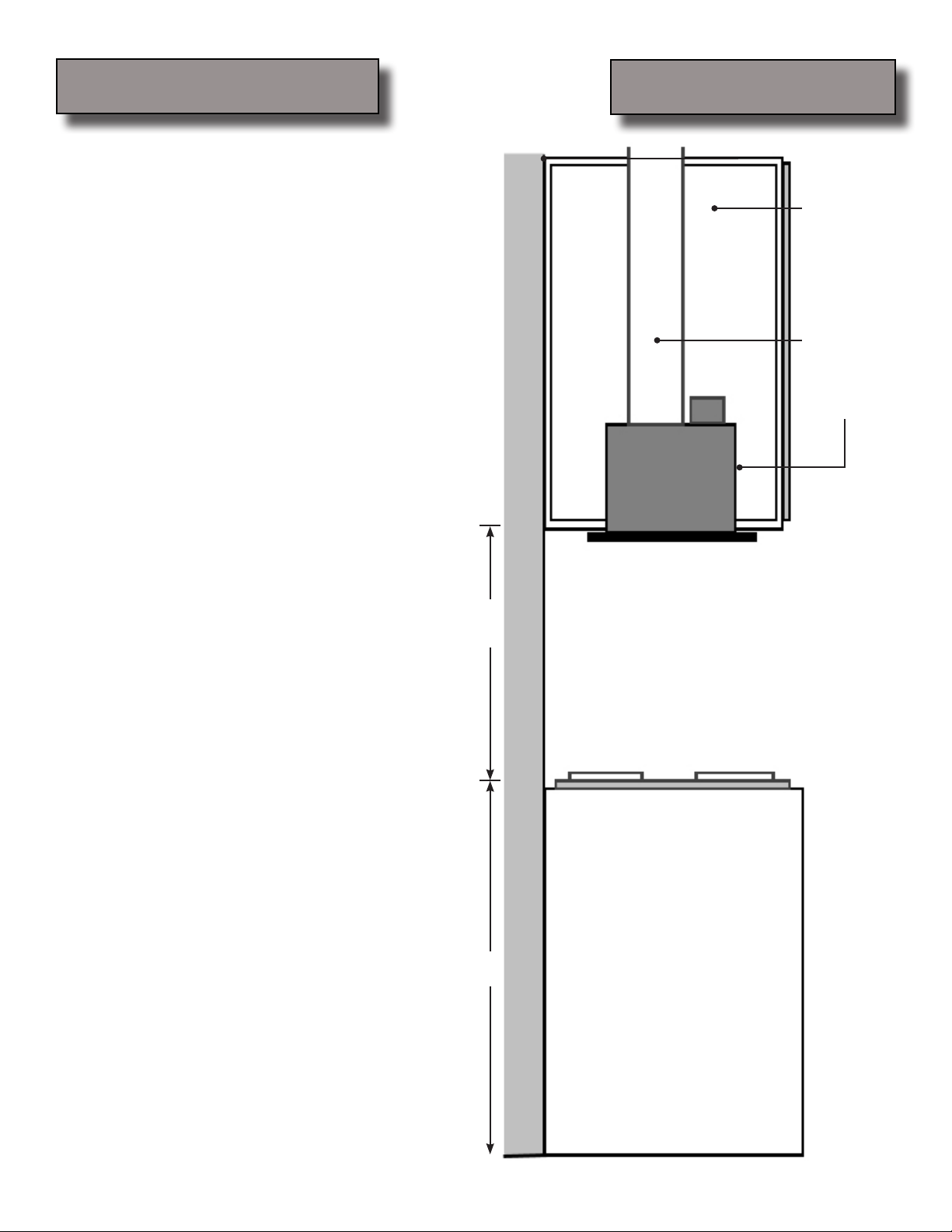

Height & Clearance
Cabinet
Range hood
Venting Pipe
36” base
•Make sure there is a minimum of 24” (61
cm) of straight vent between the elbows if
more than one elbow is used.
Min: 24”
Max: 30”
•Calculate the following gures before instal-
lation:
1. Distance from the oor to the ceiling.
2. Distance between the oor to the coun-
tertop/stove (US Standard: 36”).
3. Distance between the countertop/stove
to the range hood (recommend* 24” to
30”).
4. Height of hood and duct cover.
For the most ecient and quiet opera-
tion:

IMPORTANT:
•A minimum of 6” round (standard for this range hood) must be used to maintain maximum airow ecien-
cy.
•Always use rigid type metal/aluminum ducts if available to maximize airow when connecting to provided
duct.
•Please use Duct Run Calculation below to compute total available duct run when using elbows, transitions
and caps.
•ALWAYS, when possible, reduce the number or transitions and turns. If long duct run is required, increase
duct size from 6” to 7 or 8”. If a reducer is used, install a long reducer instead of a pancake reducer. Reduc-
ing duct size will restrict airow and decrease airow, thus reduce duct size as far away from opening as
possible.
•If turns or transitions are required: Install as far away from opening and as far apart, between 2, as possible.
•Minimum mount height between range top to hood bottom should be no less than 24”.
•Maximum mount height should be no higher than 31”
•It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat
damage and re hazard; while hoods mounted too high will be hard to reach and will loose its performance
and eciency.
•If available, also refer to manufacturer’s height clearance requirements and recommended hood mounting
height above range.
Minimum Duct Size:
•Round- 6” minimum
Duct Run Calculation:
Recommended maximum run
6” or 3-1/4 x 10” duct 50 ft
Vent piece deduction
Each 90º elbow used
Each 45º elbow used
Each 6” to 3/14 x 10” transition used
Side wall cap with damper
Roof cap
Calculating vent system length
To calculate the length of the system you need, deduct the equivalent feet for each vent piece used in the system
from the recommended maximum duct run.
Height & Clearance (Continued)
9 ft
5 ft
7 ft
0 ft
0 ft
Duct Run Calcuation example:
One roof cap, two 90º elbow, and one 45º elbow used:
0ft + 9ft + 9ft + 5ft = 23ft used.
Deduct 23ft from 50ft, 27ft maximum available for
straight duct run.
Page 6

Page 7
Venting Methods
•This power pack range hood insert is factory set for venting through the roof or wall.
•Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed.
IMPORTANT:
•NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or
garages. All exhaust must be ducted to the outside.
Use metal/aluminum duct work only.
Fasten all connections with sheet metal screws and tape all joints with certied Silver Tape or Duct Tape.
Use caulking to seal exterior wall or roof opening around the cap.
•
•
•
Round Duct
Wall Cap
Round Elbow
Roof Cap
Power Pack
Range Hood
Insert
24” to 30” Above
Cooking Surface
Charcoal Filter Installation
NOTE:
1.Remove grease filters from the hood.
2.Position the charcoal filters onto the side of the motor, aligning the mounting points, turn until it locks.
average of 1 to 2 hours of daily cooking time). Available at your local resellers.
Re-install grease filters.
3.Charcoal filters must be replaced after 120 hours of use (or approximately every 3 months based on the
average of 1 to 2 hours of daily cooking time). Available at your local resellers.

Electrical Requirements
IMPORTANT: Observe all governing codes and ordinances.
(Please consult with a qualied electrician for 220-Volt 50 Hz voltage)
It is the customer’s responsibility:
To contact a qualied electrical installer.
To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/
NFPA 70 — latest edition*, or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22. 2 No.
0-M91 - latest edition** and all local codes and ordinances.
•If codes permit and a separate ground wire is used, it is recommended that a qualied electrician determine
that the ground path is adequate.
•A 120-volt, 60 Hz, AC-only, fused electrical supply is required on a separate 15-amp circuit, fused on both
sides of the line.
• Do not ground to a gas pipe.
• Do not have a fuse in the neutral or ground circuit.
•RISK OF ELECTRICAL SHOCK. This range hood must be properly grounded. Check with a qualied
electrician if you are not sure whether the range hood is properly grounded.
•The range hood should be connected directly to the fused disconnect (or circuit breaker) box through exi-
ble armored or non-metallic sheathed copper cable. A U.L. - or C.S.A. - listed strain relief must be provided
at each end of the power supply cable. Do not use extension cord or adapter plug with this appliance.
•The range hood must be connected with copper wire/plug only.
•Always use plug provided. If not possible, connect three wires according to its color (black to hot, white to
neutral, and green to ground) to house wires and cap with wire connectors:
Wire sizes (copper wire only) and connections must conform with the rating of the appliance as speci-
ed on the model/serial rating label. Wire sizes
must conform to the requirements of the National
Electrical Code ANSI/NFPA 70 — latest edition*,
or CSA Standards C22. 1-94, Canadian Electri-
cal Code Part 1 and C22. 2 No. 0-M91 - latest
edition** and all local codes and ordinances. A
U.L. - or C.S.A. - listed conduit connector must be
provided at each end of the power supply cable (at
the range hood and at the junction box).
Copies of the standards listed may be obtained from:
* National Fire Protection Association ** CSA International
Batterymarch Park 8501 East Pleasant Valley Road
Quincy, Massachusetts 02269 Cleveland, Ohio 44131-5575
Severe Injury

       
      
Severe Injury


󵈚󱀒󶔂󵰊󵘊󵔅󱀑󵔓󶌐󵷁
Page 8

Page 9
Installation
Excessive Weight
     

     
INSTALL THE HOOD
Due to excessive weight, two or more person is recommended for this step.
NOTE:
DO NOT INSTALL THIS POWER PACK RANGE HOOD INSERT BEFORE RUNNING A TEST AND
MAKE SURE THE UNIT IS IN GOOD CONDITION. MECHANICAL DAMAGE MIGHT HAVE OC-
CURRED DURING TRANSPORTATION.
1. Remove the decorative panel from the power pack range hood.
2. Cut an openning in the bottom of the cabinet, using the dimensions shown in the table below (ref. to Fig. A).
3. Insert the range hood in the cabinet and secure with the (4) mounting screws from the inner side of the range
hood (Fig. B). Note: Wood blocking might need to be built if it’s not available in order to secure the mounting
screws.
4. Connect the duct and power cord.
5. Replace the decorative panel.
Wood Blocking
Fig. B
Fig. A




Model X Y
NX-E90-30 28 1/8"16 5/8"
NX-E90-36 32 1/2"16 5/8"

• Press Power button once to turn off the system.
Note: The system saves user congurations, settings such as light, timer and blower (motor) speed will re-
main the same the next time it is turned on.
This range hood is designed to remove smoke, cooking vapors and odors from the cook top area. For best results,
start the range hood before cooking and allow it to operate several minutes after the cooking is completed to clear
all smoke and odors from the kitchen.
Button functions:•
Power: Power ON/OFF the range hood and activate power-off delay timer.
Decrease Value: Blower (motor) speed decrease, timer value decrease, and enter timer mode.
Increase Value: Blower (motor) speed increase, timer value increase, and cleaning reminder reset.
Blower Speed Indicator: Shows current blower (motor) speed (1-3).
Light: Turns ON/OFF and dim halogen lights.
Power-Off Delay Digital Timer: Indicates the length of time left for delay off function.
•
•
•
•
•
•
Controls:•
Automatic cleaning reminder:•
This range hood is equipped with a cleaning reminder that will activate following 30 hours of use.•
When blower (motor) starts to rotate, cumulative running time reached 30 hours then the Cleaning
Reminder Indicator “C” ashes and reminds user to clean the aluminum lter.
After cleaning the lter and when the motor is not in use, press and hold • Increase Value button over 3
seconds to reset the timer. Please note that turning off the system will not reset the Power-On Elapsed
Timer.
Adjusting the blower (motor) speed:•
• Press Power button once to turn on the system. The Blower Speed Indicator shows the blower (mo-
tor) speed level. Decrease Value button will decrease the speed of the blower (motor) from 3 to 1
(strongest to quietest). Increase Value button will increase the speed of the blower (motor) from 1 to
3 (quietest to strongest).
Range Hood Operations
3 Speed Electronic Touch Control
Power
Power-Off Delay
Decrease Value
Light
Increase Value
Blower Speed Indicator
Power-Off Delay Digital Timer
Cleaning Reminder Indicator
Page 10

Page 11
Controls:•
Adjusting the timer function:•
While the blower (motor) is not running, press and hold • Decrease Value button over 3 seconds to
enter timer mode. Adjust to desired period of delay off timer by pressing Increase Value or Decrease
Value button (minimum 1 minute to maximum 9 minutes). This setting will be saved immediately.
Activating the timer function:•
While the blower (motor) is running, press and hold • Power button for over 3 seconds to activate
delay off timer. Power-Off Delay Digital Timer begin to countdown, when it reaches zero, the blower
(motor) will shut down.
Adjusting the light:•
Press • Light button once to turn on the lights, and once again to turn off the lights.
While the lights are off, press and hold • Light button for over 3 seconds to dim the lights from high to
low. Level of brightness will be stored in system’s memory.
CAUTION: DO NOT touch the lights until switched OFF and cooled.
Note: Light settings are independent from other settings (including power-off delay) and lights has to be
manually turned on or off.
Note: The system saves user congurations, settings such as light, timer and blower (motor) speed will re-
main the same the next time it is turned on.
Range Hood Operations (Continued)
3 Speed Electronic Touch Control
Power
Power-Off Delay
Decrease Value
Light
Increase Value
Blower Speed Indicator
Power-Off Delay Digital Timer
Cleaning Reminder Indicator

Product Dimension
Wiring Diagram
NX-E90-30 / NX-E90-36
Page 12

Troubleshooting
1. If the range hood does not operate after installa-
tion:
•Check if the range hood has been plugged in, make
sure that all power has been turned back on and all
electrical wiring are properly connected.
•Swap out light assembly to working ones to deter-
mine whether it is caused by defective bulbs. (See
Replacing the light bulbs, page 14)
2. The range hood vibrates when the blower is on: •The range hood might not have been secured prop-
erly.
3. The blowers seems weak: •Check that the duct sized used is at least 6” or
3-1/4 x 10”. Range hood WILL NOT function
eciently with insucient duct size. For example:
7” duct over 6” hole and loosely secured.
•Check if duct is clogged or if damper unit is not
opening properly. A tight mesh on a side wall cap
unit might also cause restriction to the air ow.
4. The lights work but the blower is not spinning at
all, is stuck or is rattling.
•The blower might be jammed or scraping the bot-
tom due to shipping damage.
5. The hood is not venting out properly: •Make sure the distance between the cook top and
the bottom of the hood is within 28” and 31” in
range.
•Reduce the number of elbows and length of duct
work. Check if all joints are properly connected,
sealed, and taped.
•Make sure the power is on high speed for heavy
cooking
NOTE: For all other inquiries, please contact us. Our contact information can be found on the back cover page.
Page 13

Use and Care Information
WARNING — TO REDUCE THE RISK OF FIRE, ELEC-
TRIC SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING: Use this unit only in the manner in-
tended by the manufacturer. If you have questions, contact
the manufacturer. Before servicing or cleaning unit, switch
power o at service panel and lock switch power o at
service panel and lock service panel to prevent power from
being switched on accidentally. When the service discon-
necting means cannot blocked, securely fasten prominent
warning device such as a tag to the service panel.
CAUTION: For general ventilating use only. Do not use to
exhaust hazardous or explosive materials and vapors.
WARNING — TO REDUCE THE RISK OF A RANGE
TOP GREASE FIRE: Never leave surface units unattended
at high settings. Boil overs cause smoking and greasy spill-
overs that may ignite. Heat oils slowly on low or medium
settings.
Always turn hood ON when cooking at high heat or when
cooking aming foods.
Clean ventilating fans frequently. Grease should not be al-
lowed to accumulate on fan or lter.
Use proper pan size. Always use cookware appropriate for
the size of the surface element.
WARNING — TO REDUCE THE RISK OF INJURY TO
PERSONS IN THE EVENT OF A RANGE TOP GREASE
FIRE, OBSERVE THE FOLLOWING: SMOTHER
FLAMES with a close-tting lid, cookie sheet, or metal
tray, then turn o the burner. BECAREFUL TO PREVENT
BURNS. If the ames do not go out immediately, EVACU-
ATE AND CALL THE FIRE DEPARTMENT. NEVER
PICK UP A FLAMING PAN— you may be burned.
DO NOT USE WATER, including wet dishcloths or towels
— a violent steam explosion will result. Use an extinguish-
er ONLY if:
You know you have a Class ABC extinguisher, and you
already know how to operate it.
The re is small and contained in the area where it is
started.
The re department is being called. You can ght the re
with your back to an exit.
Specications*:
Body Stainless Steel / Sheet Metal
Power Rating
General Input Power 120W + # of Light x Votage of Light
Motor Input Power 120 W
Motor Revolution 600 RPM (±10%) to 1300 RPM (±10%)
Levels Of Speed Control
Control way Touch control
Air Pressure 150 Pa (200 Pa Maximum)
Noise Level (dB / sone) Approximately 35 / 0.7 to 67 / 6.5 (Lowest to highest Speed)
Motor Type Single Chamber Ultra Quiet
Fan Type Centrifugal / Sirocco
Control Type
Filtration Type
Illumination
Venting Size 6 inches Round and 3.25 x 10 inchs Rectangular
Interference Protection Radio Frequency Interference Protected
* Subject to change without notice, please contact your local reseller for details.
120V/60Hz (USA & Canada standard)
LED 3W 12V
3 Levels
3 Spd Electronic Touch Sensitive
Bae Filter
Page 14
Specifications

WARNING
Hazard of Burns!
Light bulb become extremely hot when turned on.
DO NOT touch bulb until switched o󰀨 and cooled.
Touching hot bulbs could cause serious burns.
Maintenance
SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating!
For optimal operation, clean range hood and all bae/spacer/lter/grease tunnel/oil container regularly. Regular care will
help preserve the appearance of the range hood.
Cleaning Exterior surfaces:
•Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent (e.g. Comet
Power Scruv®, EZ-O® oven cleaner), or steel wool/scoring pads, which will scratch and damage the stainless steel
surface. For heavier soil use liquid degrease such as “Forumla 409®” or “Fantastic®” brand cleaner.
•If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface of the hood. Avoid getting
cleaning solution onto or into the control panel. Follow directions of the stainless steel cleaner. CAUTION: Do not
leave on too long as this may cause damage to hood nish. Use soft towel to wipe o the cleaning solution, gently
rub o any stubborn spots. Use dry soft towel to dry the hood.
•After cleaning, you may use non abrasive stainless steel polish such as 3M® or ZEP®, to polish and bu out the stainless
luster and grain. Always scrub lightly, with clean cotton cloth, and with the grain.
• DO NOT allow deposits to accumulate or remain on the hood.
•DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface and cause rusting.
•DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact with stainless steel
for extended periods. Many of these compounds contain chemicals, which may be harmful. Rinse with water after ex-
posure and wipe dry with a clean cloth.
Cleaning Filters (Bae or Aluminum Grease):
IMPORTANT: Drain oil from oil containers before oil and residue overow!
•The metal lters tted by the factory are intended to lter out residue and grease from cooking. It need not be replaced
on a regular basis but are required to be kept clean.
•Filters should be cleaned after every 30 hours of use.
•Remove and clean by hand or dishwasher. Spray “Formula 409®” or equivalent degreasing detergent and leave to soak
if heavily soiled. Dry lters and re-install before using hood.
Replacing Filters:
•Should aluminum grease lters wear out due to age and prolonged use, please contact your local reseller for replace-
ment lters. (Note: Also replace damaged lter that has punctured or broken mesh, bent or broken frame.)
Replacing the light bulb:
•This range hood uses LED or halogen bulb (please refer to the actual specication of the hood purchased):
USA/Canada: LED 3W 12V
Page 15

WARNING
Hazard of Burns!
Light bulb become extremely hot when turned on.
DO NOT touch bulb until switched o� and cooled.
Touching hot bulbs could cause serious burns.
Maintenance (Continued)
Replacing LED Light Fixture:
•This range hood uses LED light xture: 3W Max 12V LED
•Make sure the range hood is unplugged or turn OFF breaker and the lights are cool to touch.
•Place a at-head screwdriver between light housing and hood body, gently pry up the light housing and search for the
metal clip.
•Apply force to the metal clip and pull out the light xture. Disconnect the power cable and discard the old light x-
ture.
•Reverse the steps to install a new halogen light xture. Turn ON breaker and range hood to test for operation.
Light Housing Flat-head Screwdriver
Hood
Body
Metal Clip
Power Plug
Page 16

Carefully inspect all items for damages before accepting delivery. note any damages on the freight bill or
express receipt. request name and signature of the carrier’s agent and keep copy to support your claim. Upon
acceptance of items, owner assumes responsibility for its safe arrival. Report damages to the carrier and le
a claim immediately. Failure to do so may result in the denial of your claim. The carrier will furnish you with
necessary forms for ling a claim.
Damages caused during transit are not covered under our warranty. Please contact us to le an insurance claim.
Please inspect contents of package(s) carefully upon receiving! We must be notied of any damages and/or
missing parts within ve (5) days upon your receipt of package(s). Claims will not be accepted after ve (5)
days. NOTE: Items were thoroughly tested and carefully packed in our factory before shipping.
Products must be returned in good working condition with ALL original parts and documentation packed in
ALL original cartons, llers and shipping cartons. A restocking fee of 15% will be charged for all approved
return(s). Exchanges or returns may not be accepted if any packaging is missing.
Make sure to inspect the hood for damages and defects before installation. Appearance aws of the hood found
after installation and not aecting hood performance is not covered under our warranty for returns or exchang-
es. Service visits not covered under warranty will carry a service charge.
Before Installation: Return for exchange or refund (please see above for acceptable returns).
After Installation: NO exchange or refund.
Disclaimer
The information in this document is subject to change without notice, please contact your local reseller for updated details. Page 17
