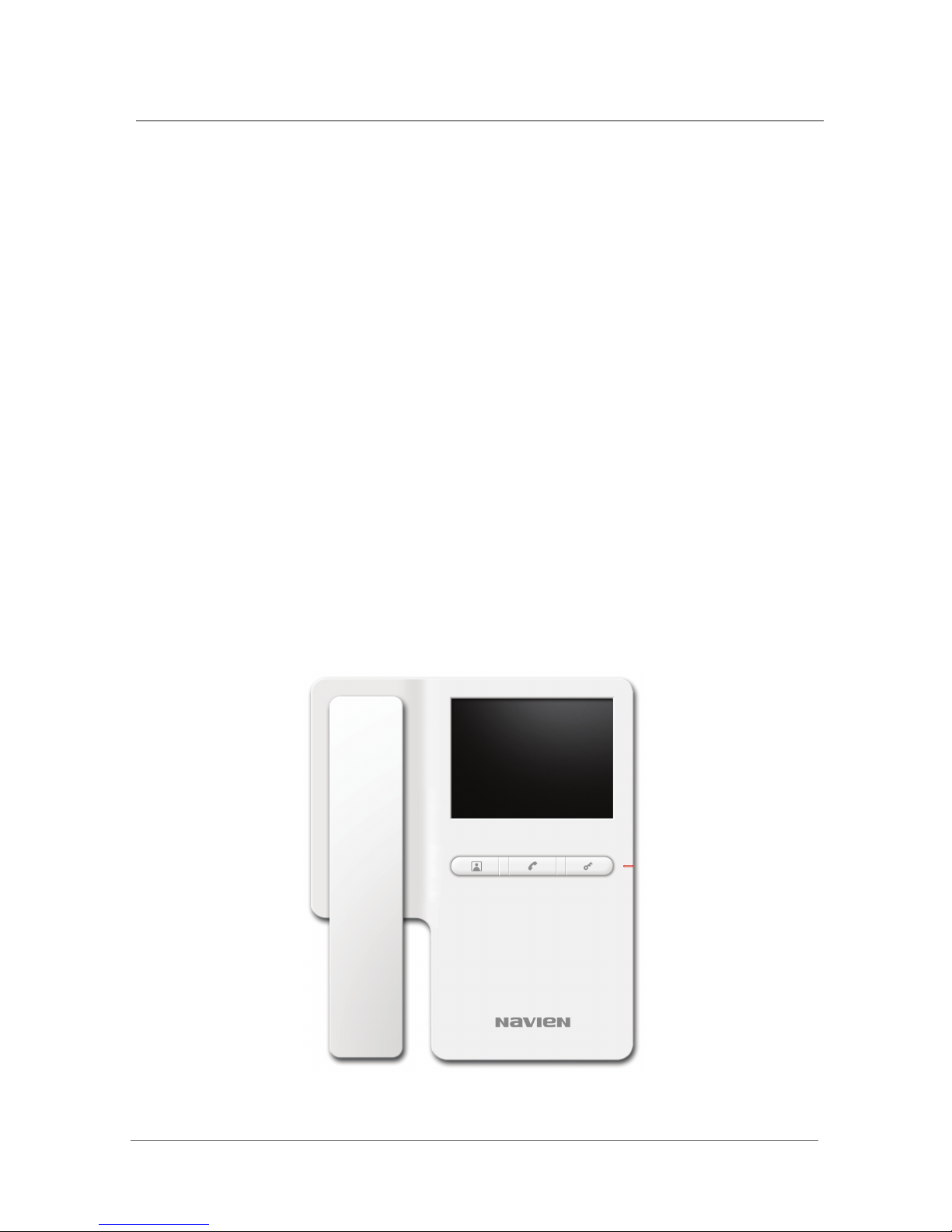

Navien UHA-432SG User manual
DIGITAL COLOR LCD HANDSET
VIDEO PHONE
UHA-432SG/M
• Please carefully read this User’s Guide (In particular,
precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents
caused by abnormal operation of the product.
Warning
Important safeguards
Components
Installation
Product specications
Operation
Wiring diagram
Warranty
3
5
7
8
9
10
20
23
Contents
• To prevent injury, the following safety precaution should be observed during
installation, use and servicing of the unit.
• Apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus.
• To prevent injury this apparatus must be securely attached to the floor/wall
in accordance with the installation instructions.
• The disconnect device shall remain readily operable.
Note : Change or modification not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This manual is based on the date as shown in the right and specification are
subject to change without notice for quality improvement.
This symbol is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
CAUTION
RISK OF ELECTRIC SHOCKS
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE, REFER SERVING
TO QUALIFIED SERVICE PERSONNEL
For the customers
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communication.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning equipment on and o, the user is
encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
1. Read Instructions
All the safety and operating instructions should be read before the unit is operated.
2. Retain Instructions
The safety and operating instructions should be retained for future reference.
3. Follow Instructions
All operating instructions, maintenance and all warnings should be followed.
4. Cleaning
Turn o the power of unit before cleaning. Do not use liquid or aerosol cleaners.
Use a dry cloth for the body of unit.
5. Attachments
Do not use attachments not recommended by the unit product manufacturer,
as they may be hazardous or cause damage.
6. Heat and Moisture
Do not expose this unit direct sunlight and rain for reliable operation.
7. Installation
Do not install this unit on an unstable place (hot, cold, humid or excessive dust).
Use only with a mounting accessory recommended by the manufacturer or sold
with the unit.
Installing this unit should follow instructions of manufacturer and qualied service
personnel.
8. Ventilation
Slot and opening in the cabinet are provided for ventilation to ensure reliable
operation of the unit and to protect it from overheating.
These openings must not be blocked or covered. Never place your unit on a bed,
sofa, rug, or similar surface or on near a radiator or heat register.
This unit should not be placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided.
9. Power Sources
This unit should be operated only from the type of power source indicated on the
label. If you are not sure of the type of power supply to your home, consult your
appliance dealer or local power company.
To operate the unit by battery or other power source, consult the operating
instructions.
10. Grounding and Polarization
This unit may be equipped with either a polarized 2-wire AC line plug (a plug
having one blade wider than the other) or a 3-wire grounding type plug, a plug
having a third (grounding) pin. The 2-wire polarized plug will t into the power
outlet only one way. This is a safety feature. If you are unable to insert the plug
fully into the outlet, try reversing the plug. If the plug still fails to t, contact
your electrician to replace your outlet.
Do not defeat the safety purpose of the polarized plug.
11. Overloading
When using this product, do not overload the power outlets or extension cords
as this could cause re or electric shock.
12. Accessories
Do not place this unit on an unstable cart, stand, tripod, bracket or table.
If the unit falls, it could cause injury or damage to the system.
13. Object and Liquids
Never push objects of any kind into this unit through the openings.
Never spill liquid of any kind on the unit.
14. Servicing
Do not attempt to service this unit yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to
qualied service personnel.
15. Power Line
The system should not be located near power lines or electric light
or power circuits.
16. Damage Requiring Service
Unplug this unit from the wall outlet and refer to servicing to a qualied
service technician if any of the following occur.
a. If the power supply cord or plug is damaged.
b. If any liquid has been spilled into objects have fallen in the unit.
c. If the unit has been exposed to rain or water.
d. If the unit has been dropped or otherwise damaged.
e. If the equipment exhibits a distinct change in performance.
17. Replacement Part
When replacement parts are required, use replacement parts specied by the
manufacturer.
■
Main body
(Front) (Side) (Rear Connector)

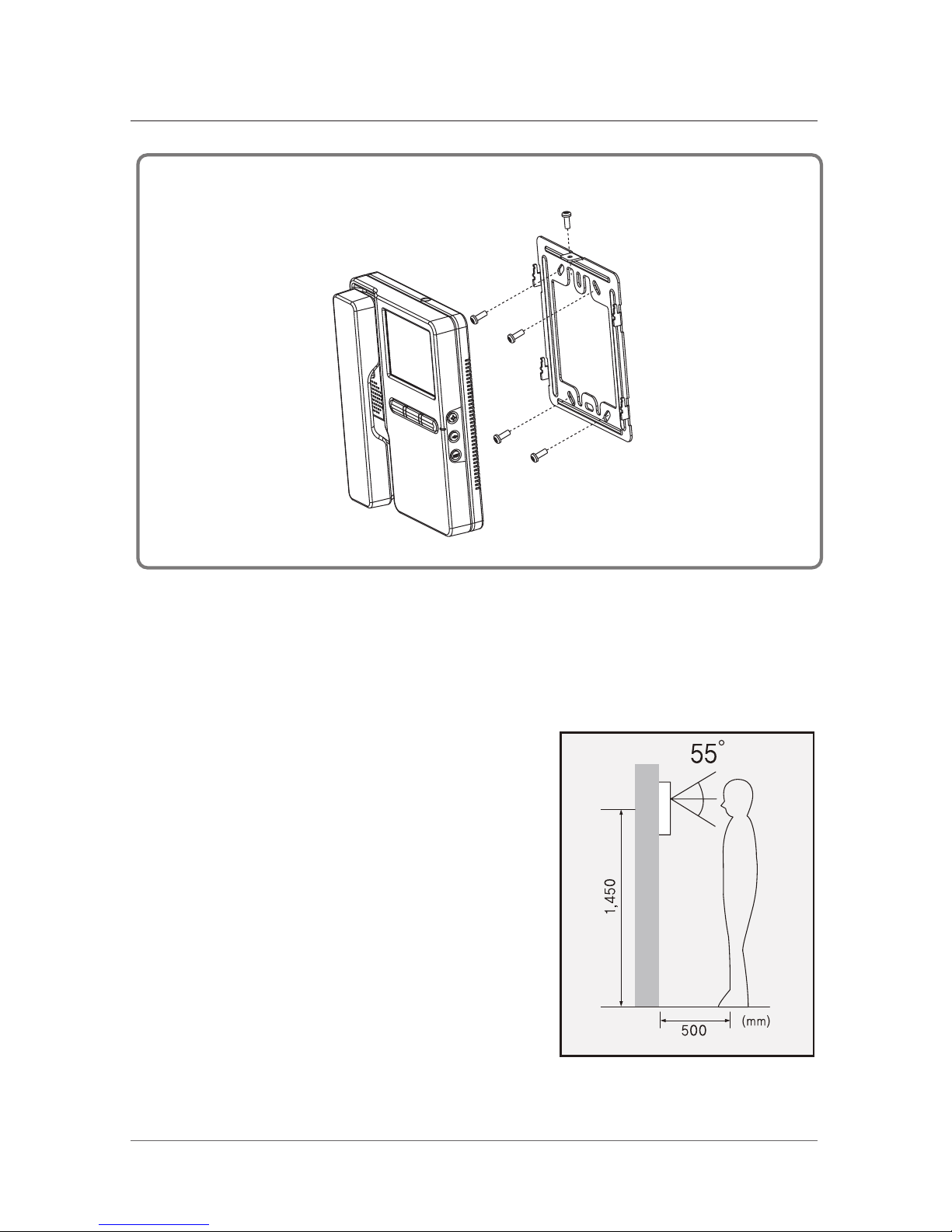

Fixing Bracket
■
Mounting Hardware & Cable
■
Standard height of video phone
1. After determining the mounting locations for
both the outside camera and inside monitor.
2. At the selected monitor mounting location,
1,450mm is suggested from the bottom.
<Caution>
Install the monitor away from the heat,
moisture and direct sun rays.
■
Specications
DIV.
Power Source
Wiring
System Composition
Distance
Video
Memory
(Option)
Still Cut
Movie
LCD
Video
input
Temp.
Humidity
Size
Weight
LCD
Screen
Environmental
Circumstance
Dimensions
Mounting
Specications
AC 100~240(50/60Hz)
Doorphone : 4 wires in polarity
(POWER, VOICE, VIDEO, GND)
Intercom : 2 wires in polarity
(VOICE, GND)
Interphone : 4 wires in polarity
(POWER, GND, VOICE, GND)
2 Door phones + 2 Monitors +
1 Interphone
- DOOR : TIV 0.5(28M), TIV 0.65(50M), TIV 0.8(70M)
(Up to the last videophone)
- INTERPHONE : TIV 0.5(20M)
256 Cuts
5f/s, 5sec, 32Clips
4" Color TFT LCD
1Vp-p/75Ω, Composite
NTSC/PAL(Color)
0℃∼40℃
Less than 90% (Relative humidity)
170(W) × 206(D) × 35(T) ㎜
UHA-432SG : 750 g
UHA-432SGM : 770 g
Wall surface mounted
■
When using the Monitoring function
■
When a visitor pushes a Call Button
1. Talk
When a visitor pushes the Call Button on the door-phone at the front door, the call is
transferred to the Videophone.
Call signal is ringing on
the Videophone, while
Power indicator LED is
ickering, and the image
of the visitor appears on
the screen.
(Approximately 30 seconds)
When Hang-o the
handset, the conversation
is start with the Visitor
(Max. 1 minute)
If you Hang-on the
Hand-set while talking
with the visitor or the time
limit of 1 minute is reached,
the screen goes blank and
the conversation ends.
If you push the
"Door Open” Button,
the relevant door
opens and the
conversation ends.
※"DOOR#1" or "DOOR#2" appears at the top of the screen.
※"DOOR#1" or "DOOR#2" appears at the top of the screen.
If you push the
“Monitoring” Button,
pictures captured by the
door-phone at the front
door will appear on the
screen.
(Max. 1 minute)
If two door-phones are
installed, door-phone #2
can also be monitored by
pushing the “Monitoring”
Button one more time.
If you Hang-o the handset
while using the monitoring
function, talking is enabled
through the door-phone
that is currently installed.
“Door Open” Button
during monitoring,
the relevant door opens
and monitoring ends.
■
Call signaling to another videophone
■
Intercommunication between videophones (when they are connected)
※‘INTERCOM’ appears at the top of the screen
※‘INTERCOM’ appears at the top of the screen.
When a call signal comes
from another videophone,
Power indicator LED is ickering
and home call melody ringing.
(Approximately 30 seconds)
When Hang-o the handset ,
talking starts.
If you Hang-on the Hand-set
while talking or the time limit
of 1 minute is reached,
the screen goes blank and
the conversation ends.
When Hang-o the handset and push the
Intercom button the conversation is start
with another videophone.
If you Hang-on the Hand-set
while talking or the time limit
1.5 minutes the screen goes blank
and the conversation ends.
It is not depends on the other
Videophone’s status.
■
Playing Images (Video memory equipped model)
■
Storing images of a visitor (Video memory equipped model)
2. Storing and playing Images
- Storing of images is done automatically during call signaling to the door-phone,
depending on how the user has set up STILL/VIDEO storing in the user menu.
- If there’s no storage space, the oldest image will be deleted so that a new image can
be stored . (VIDEO : 32CLIP, STILL : 256CUT)
- While the Handset is Hang-O, storing images are not available when door phone
is calling.
(This is a communication status between Video phone and door-phone.
- If VMM module is installed and there are stored images, push the “+” or “-” key on
the right and enter ‘PLAY’ mode. By pushing the “+” and “-” keys, the stored images
can be played in order.
- If VMM module is installed and there’s no stored image, push the “+” or “-” key on
the right and “NO Image” appears.
- If image storage type is set up as STILL, only STILL images are stored and played
if set up as VIDEO, only video images are stored and played.
- If you push SET button or about 10 Second passes, playing ends.
■
Setting the picture quality
■
How to control the call signal bell
3. Menu setting functions
- You can control the call signal bell volume the “+” or “-” switch located on the side
of the product when in-bound or out-bound calling.
- Using “+” or “-” switch, set the volume (1~3) and push the “SET” Button for conrm.
- You can control the picture quality on the screen.
- When the screen in ON, push the “SET” Button and can set the Brightness.
You can see an image of the screen Brightness set mode.
- Using “+” or “-” button, you can set the Brightness(0~8, up to 9 phases).
After adjusted screen brightness, press “SET” Button and enter the Contrast set mode.
- Using “+” or “-” button, you can set the Contrast (0~8, up to 9 phases).
After adjusted screen contrast, press “SET” Button and enter the Color set mode.
- Using “+” or “-” button, you can set the Color (0~8, up to 9 phases).
After adjusted screen contrast, press “SET” Button and setting is complete and the
indication disappears from the screen.
※[BRIGHT] : Screen Brightness, [CONTRAST] : Screen Contrast, [COLOR] : Screen Color
■

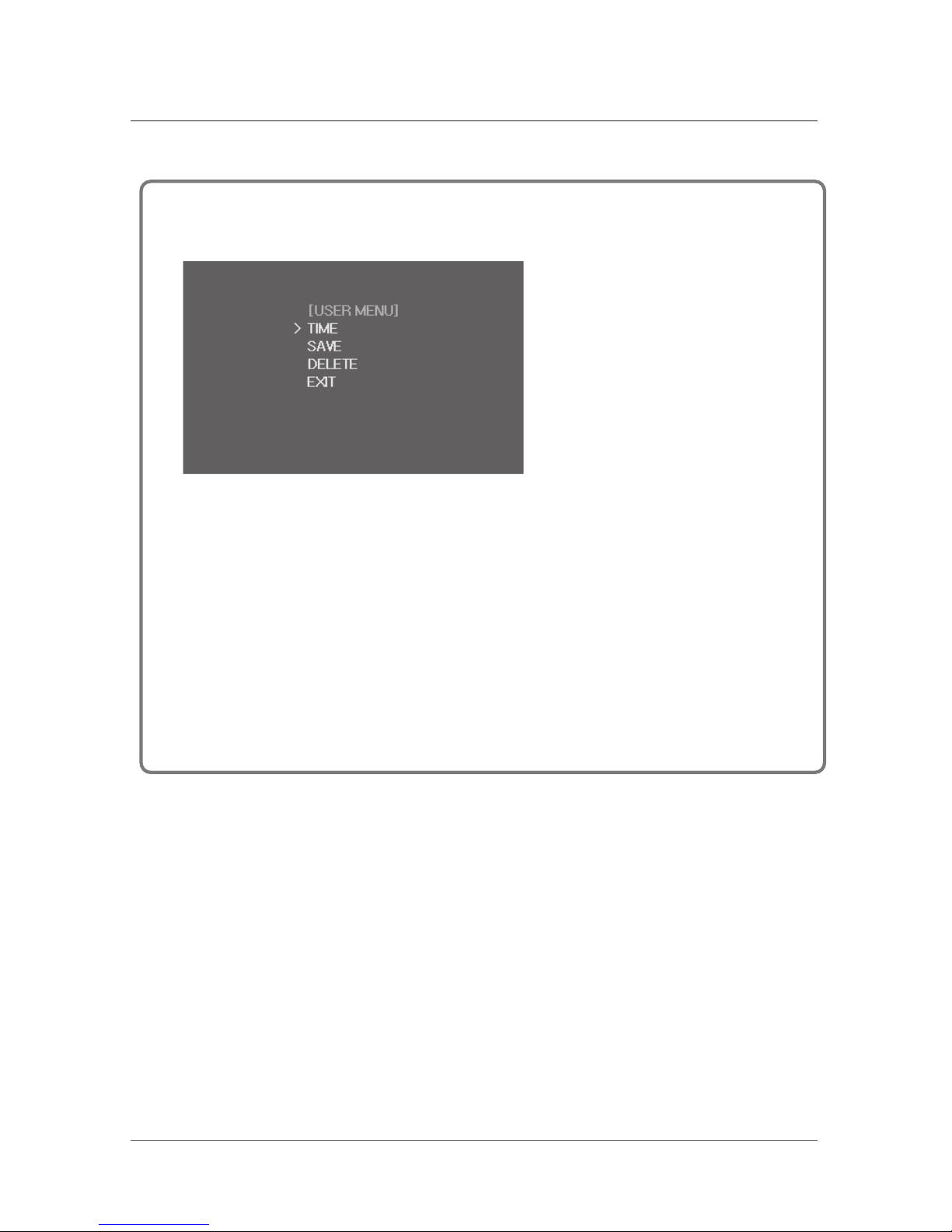

USER mode(Video memory equipped model)
- USER mode is for the Video Memory module(VMM).
- Enter “USER” mode by pressing the “SET” button in a standby state after power is on.
- If VMM is not installed on your device, when you press the “SET” button, ERROR TONE will ringing.
- USER mode ends automatically and standby mode is on when about 30sec passes without
button input.
- When you are in USER mode, you will not receive any door-phone, extension or interphone call.
EXIT : Ending setup
TIME : VMM Time setting (For time information on the recorded pictures and videos)
SAVE : STILL/VIDEO
DELETE : Delete all STILL or VIDEO les
※When power is OFF →ON in the middle of changing the conguration on USER mode,
the modication may fail to be applied.
■
Setting the time (Video memory equipped model)
- This setting is for the displaying time on the stored Video(Still/Video)
- In the USER mode, When the “+” or “-” button is pushed from the time set screen, “TIME” menu
screen appears.
- YEAR setting : Using “+”, “-” button for setting and press the “SET” button for next Month setting
mode.
- Month setting : Using “+”, “-” button for setting and press the “SET” button for next Date setting
mode.
- Date setting : Using “+”, “-” button for setting and press the “SET” button for next Hour setting
mode.
- Hour setting : Using “+”, “-” button for setting and press the “SET” button for next Minute setting
mode.
- Minute setting : Using “+”, “-” button for setting and press the “SET” button for end of set menu.
When minute setting is complete, the User menu screen appears again.
※If time set mode ends without completion of minute setting, the data being set up may not be
stored.
■
Video storage type set up mode(Video memory equipped model)
- Video storage type setup mode
- If you push “+” or “-” button from Main menu, entered the “SAVE” menu screen appears
(The present storage type appears under selection.)
- Select either VIDEO or STILL as storage type using “+” or “”
(VIDEO : video(5 seconds) storage / STILL : still image storage)
- After select save type, push the “SET” Button, selected type will display on the screen.
- Using “UP”, “DOWN” and press “EXIT” and press “SET” for go back to the USER mode menu.
※When the Type was set for STILL, storage and play will in STILL type only.
When the Type was set for VIDEO, storage and play will in VIDEO type only.
■
Video storage type set up mode(Video memory equipped model)
- Delete all stored images
- If you push “+” or “-” button from Main menu, entered the “DELETE” menu.
- Push the “SET” button, “ALL DELETE”
- Select either YES or NO using the “+” and “-” buttons and push “SET”
(YES : delete all images / NO : Do not delete images)
- User menu screen appears again after the operation is completed.
■

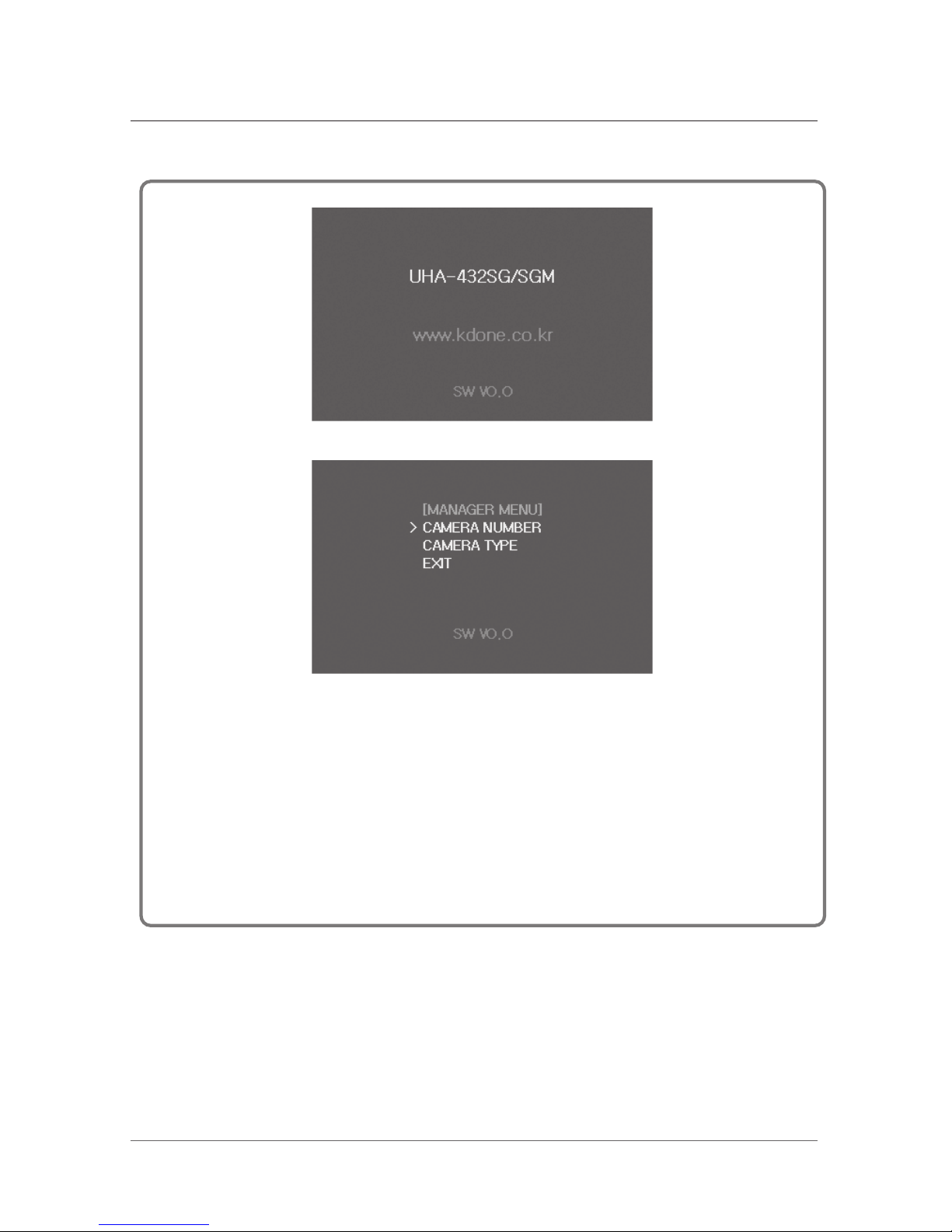

Manager Mode
* Manager mode is the product setting mode that allows a installer to conquer the device
environment(setting door-phone number and the type of door-phone camera) needed for operation.
- Manager mode ends automatically and standby mode is on when about 1 minute passes without
button input.
* When you are in Manager mode, you will not receive any door-phone, extension or interphone call.
- Enter “MANAGER” mode by pressing and holding the Door Open button for more than 3 seconds
in a standby state after power is on.
※When power is OFF →ON in the middle of changing the conguration on Manager mode,
the modication may fail to be applied.
■
Setting CAMERA Number
* This is the mode that allows you to set the number of door-phones in line with the
Videophone.
* Set up as Door-phone 1 by default.
- Select [CAMERA NUM] from the [MANAGER] MENU using the “UP” and “DOWN” buttons .
If you push the “SET” button, [CAMERA NUM] appears, which indicates the current setup.
- “Select the number of door-phones to be connected with videophone using the “UP” and
“DOWN” buttons at the bottom, and then push the “SET“ button.
- You can see what was set in “CAMERA NUMBER” on the screen.
- If you push the “EXIT”, using “UP” , ”DOWN”, the [MANAGER] MENU screen will appear again.
■
Setting CAMERA TYPE
* This is a mode that allows you to set the type of the door-phone camera to be connected with
the videophone.
* Set up as PAL by default.
- Select [CAMERA TYPE] from [MANAGER] MENU using the “UP” and “DOWN” buttons, and then
if you push the “SET” button, [CAMERA TYPE] menu appears, which indicates current setup
- Select the type of the door-phone camera to be connected with the videophone using the
“UP” and “DOWN” buttons at the bottom and then push the ‘SET’ button
- You can see what was set in “CAMERA TYPE” on the screen.
- If you push the “EXIT”, using “UP” , ”DOWN”, the [MANAGER] MENU screen will appear again.
※Caution: The camera must be connected that matches the conguration setup.
If you fail to do this, (e.g. connecting PAL camera while set up as NTSC) the screen image
may not appear correctly. Then, the screen is returned to the normal state when the power is
OFF →ON
■
System Diagram
c
o
l
o
r
D
o
o
r
C
a
m
e
r
a
c
o
l
o
r
D
o
o
r
C
a
m
e
r
a
This manual suits for next models
1
Table of contents
Other Navien Telephone manuals
