Navitar 12X Zoom User manual

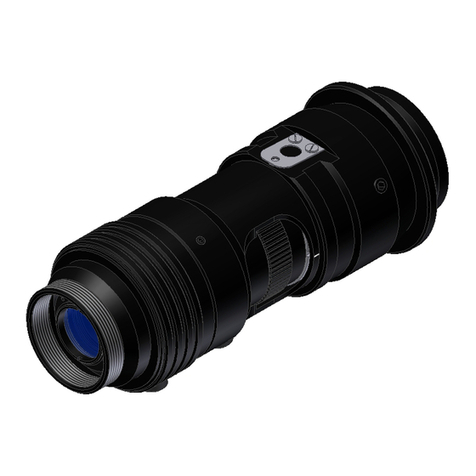

12X Zoom High Mag Zoom Lenses
• Incredible 12:1 Zoom ratio with dynamic magnification range
of 0.07X-583X.
• Telecentric attachment gives you the world’s first parfocal
telecentric zoom lens with field coverage up to 50 mm.
• Increased resolution with 0.018-0.1 N.A.
• Variable working distance from 32 to 341 mm.
• Field of view from 0.006 mm to 85.71 mm with attachments.
• Unmatched edge flatness and clarity.
• Works with 1/4”, 1/3”, 1/2” and 2/3” format cameras.
• The 12X Zoom System is compatible with Zoom 6000 adapter
tubes.
12X Zoom
High Mag Zoom Lenses

12X Zoom High Mag Zoom Lenses
28
h
ttp:
//
mac
h
inevision.navitar.com • emai
l
: in
f
[email protected]
Flexible by Design
The 12X Zoom system is designed
on a modular basis, offering
optical quality and mechanical
flexibility. This interchangeable
design, combined with a wide
range of lens adapters and attach-
ments, allows you to easily choose
the magnification, field of view
and working distance that best suit
your viewing needs. In fact, the
12X Zoom system is even com-
patible with existing Zoom 6000
adapters.
All 12X Zoom models have a
12X parfocal zoom lens system
with a high N.A. (0.018 - 0.1) to
achieve higher resolution and
The Highest Combination of
Zoom Range and Resolution
in a State-of-the-Art Optical
System
Navitar’s 12X Zoom is the next
generation in video zoom optics.
With a zoom ratio of 12:1, a
zoom range of 0.58X to 7X and a
dynamic magnification range of
.07 to 583X, the 12X is the only
single lens system to provide such
a high combination of zoom range
and resolution. This outstanding
combination of video clarity and
zoom range, coupled with unprec-
edented field coverage, means that
you will now be able to view a
wider range of parts with a single
video inspection system.
12X Zoom
Raising the Standard
for Optical Excellence

29
12X Zoom High Mag Zoom Lenses
Phone: [phone] or 585-359-4000 •Fax [phone]
improved contrast. Working dis-
tance can be varied from 32 mm
(1.25”) to 341 mm (13.4”) and
fields of view can be achieved
from 0.006 mm to 85.71 mm.
Designed to Increase
Productivity
The 12X Zoom system is ideal
for use in the inspection of a
wide range of products, such
as semiconductor chips, PC
boards and life science applica-
tions. It increases productivity by
eliminating the need to change
components to view a wider
range of parts. It’s easy to use
and displays crisp, clear images
on any monitor for individual or
group viewing.
Key Terms for Matrix Charts
Depth of Field
The distance allowing acceptable
image definition to be maintained
without refocusing.
Distortion
Distortion is a variation in magnifica-
tion across the field of view.
Field
Field of view for respective
camera format (normally measured
diagonally).
Magnification
A measure of the apparent
differences in size between the
object and image.
Matching Pixel Size
Matching pixel size is that which will
permit the minimum feature size to
overlap two pixels.
MTF (lp/mm)
A measurement of the ability of an
optical system to reproduce (trans-
fer) various levels of detail from the
object to the image, as shown by the
degree of contrast (modulation) in
the image.
N.A. Image (high or low mag.)
Measurement at the image point of
the largest cone of light rays that are
exiting the optical system.
N.A. Object (high or low mag.)
Measurement at the object point of the
largest cone or number of light rays
that are entering the optical system.
Object to Image Distance (O-I)
Total distance from the object to the
sensor inside the camera.
Resolvable Features (microns)
Measurement of lens system’s ability to
image closely spaced points, lines and
object surfaces as separate entities.
Working Distance (W.D.)
Clearance between object and lowest
mechanical part of the system.
Unbeatable Accuracy
Our 12X Zoom delivers unbeatable
accuracy and repeatability for even
the toughest die bonding, life sci-
ence, and FPD inspection applica-
tions. Superb Navitar optics deliver
remarkably high contrast, high
resolution video images. The 12:1
zoom ratio provides an incredible
magnification range that allows
both high magnification for preci-
sion measurement and inspection,
as well as low magnification for a
wider field of view. Bonding,
probing, scribing and aligning
applications can all be performed
better and more accurately than with
any other zoom lens on the market.

12X Zoom High Mag Zoom Lenses
30
Standard Adapters sretpadAiniM
UltraZoom
Infinity Corrected Objectives
*T = Tele
** Included with UltraZoom
Eng. Coupling Kit Includes All Items Below As
Part Number 1-60405
Bayonet
2-12045
Bayonet
2-12045
Bayonet
"Hot Shoe" 3-Chip
2-12046
C-Mount Spacer
3-11714
"C" Mount
Coupler
1-6010
1X NIRA T*
1-60182
"C" Mount
Coupler
1-6010
21mm Dia.
Retical
(sold separately) 1X Retical
Projector
1-60068
2X F-Mount
1-62922
2X
1-6030
1X
1-6015
1X T*
1-6218
5X
1-6105
.67X
1-6020
0.5X
1-60439
2X
1-62136
1.33X T*
1-61387
1X
1-61400
0.67X T*
1-61001
0.5X T*
1-62629
Non F.F.
1-50502
12mm F.F.
1-50504
3mm F.F. w/Coax
1-50503
Non F.F. w/Coax
1-51139
M26 x 36T
2-50025* *
0.800 x 36T RMS
2-50026**
M25 x .75T
2-51370
1X Converter Lens
2-50145
Univ. Coupler
2-50028
Laser
Injection Port
1-60380
M26 x 36T RMS
3-60160
0.800 x 36T RMS
3-60187
5X
1-60226
10X
1-60227
20X
1-60228
50X
1-60229
5X
1-62828
10X
1-62829
20X
1-62830
Mitutoyo Motic
Aperture
Detent
Motorized
Body Tube Options
h
ttp:
//
mac
h
inevision.navitar.com • emai
l
: in
f
[email protected]
12X Zoom System Diagram

31
12X Zoom High Mag Zoom Lenses
sretpadAelgnAthgiRsretpadAelgnAthgiR.vnI-noNsretpadAtrohS
Lens Attachments
Adapter Plates & Stands
Eye Piece Holder
1-6050
23mm
Microscope
Eye Piece
(sold separately)
(76mm)
1-50228
(82mm)
1-50232
(84mm)
1-50230
Mounting Clamp
1-6270
Stand (82mm)
1-6206
B&L/Leica Adapter Plate
1-50226
3.5X
1-62831
2X
1-6233
1X
1-6245
2X
1-60185
1X
1-60175
5X
1-60188
1X T*
1-60182
.67X
1-60172
2X
1-6120
1X
1-6118
1X T*
1-61997
5X
1-6187
0.71X
1-60060
2X F-Mount
1-63218
NIRA Mount w/Prism
1-60165
RT Angle Mount
1-6080
Analyzer
1-60816
Aux. Viewing Port
1-60370
Non F.F.
1-50330 12mm F.F .
1- 504 86 3mm F.F.
w/ Coax
1-50487
Manual
1-50993
Telecentric Zoom LensesZoom Lenses
Telecentric Attachments
Right Angle
1-50363
Straight w/ Coax
1-50387
Straight Non-Coax
1-50694
0.25X
1-50011
0.5X
1-50012
0.75X
1-50013
1.5X
1-50014
2X
1-50015
1" Spacer
For Ext. Coax
3-60164
For 1-50223
or 1-50224
Ring Light
Adapter
2-50017
Ext. Illum.
Adapter
2- 500 16
For Zooms w/ F.F. Rev.031708
RA Lens
At ac hme nt
1-51490
Phone: [phone] or 585-359-4000 •Fax [phone]

12X Zoom High Mag Zoom Lenses
32
h
ttp:
//
mac
h
inevision.navitar.com • emai
l
: in
f
[email protected]
12X Zoom Field of View Matrix (in mm)
12X Zoom
12X Zoom system dimensions can be found on
our website at www.machinevision.navitar.com.
(1) Vignetting occurs at zoom settings less than 0.9X.
(2) N.A. varies depending on zoom setting.
Lens
Attachment
Working
Distance
Camera
Formats/
Parameters
0.5X Adapter
Low - High
0.67X Adapter
Low - High
1X Adapter
Low - High
1.33X Adapter
Low - High
2X Adapter
Low - High
3.5 Adapter
Low - High
Resolve
Limit
(microns)
Low - High
Depth of
Field (mm)
Low - High
0.25X
(2)0.005 - 0.025 NA
1-50011
341
Mag. 0.07X - 0.87X 0.10X - 1.20X 0.15X - 1.75X 0.19X - 2.33X 0.29X - 3.50X 0.51X - 6.13X 33.33 - 6.67 20.00 - 0.80
Field 1/4” 57.14 - 4.59 41.16 - 3.40 27.60 - 2.28 21.05 - 1.72 13.79 - 1.14 7.84 - 0.65 33.33 - 6.67 20.00 - 0.80
Field 1/3” 85.71 - 6.89 61.73 - 5.10 41.38 - 3.42 31.57 - 2.57 20.69 - 1.71 11.76 - 1.79 33.33 - 6.67 20.00 - 0.80
Field 1/2” — 82.32 - 6.80 55.16 - 4.56 42.10 - 3.43 27.58 - 2.28 15.68 - 1.30 33.33 - 6.67 20.00 - 0.80
Field 2/3” — (1) 72.00 - 9.35 75.88 - 6.28 57.89 - 4.72 37.94 - 3.14 21.56 - 1.79 33.33 - 6.67 20.00 - 0.80
0.5X
0.009 - 0.051 N.A.
1-50012
165
Mag 0.14X - 1.75X 0.20X - 2.40X 0.29X - 3.50X 0.39X - 4.66X 0.58X - 7.00X 1.02X - 12.3X 18.52 - 3.33 6.17 - 0.19
Field 1/4” 28.57 - 2.28 20.58 - 1.70 13.79 - 1.14 10.25 - 0.86 6.90 - 0.76 3.92 - 0.32 18.52 - 3.33 6.17 - 0.19
Field 1/3” 42.85 - 3.42 30.87 - 2.55 20.69 - 1.71 15.38 - 1.29 10.34 - 0.86 5.88 - 0.48 18.52 - 3.33 6.17 - 0.19
Field 1/2” — 41.16 - 3.40 27.58 - 2.28 20.51 - 1.72 13.79 - 1.14 7.84 -0.65 18.52 - 3.33 6.17 - 0.19
Field 2/3” — (1) 36.0 - 4.68 37.94 - 3.14 28.20 - 2.36 18.97 - 1.57 10.78 - 0.89 18.52 - 3.33 6.17 - 0.19
0.75X
0.014 - 0.076 N.A.
1-50013
108
Mag. 0.22X - 2.62X 0.29X - 3.50X 0.44X - 5.30X 0.58X - 6.98X 0.87X - 10.50X 1.53X - 18.4X 11.90 - 2.22 2.55 - 0.09
Field 1/4” 18.18 - 1.52 13.72 - 1.14 9.19 - 0.76 6.89 - 0.57 4.60 - 0.38 2.61 - 0.22 11.90 - 2.22 2.55 - 0.09
Field 1/3” 27.27 - 2.29 20.58 - 1.70 13.79 - 1.14 10.34 - 0.85 6.89 - 0.57 3.92 - 0.32 11.90 - 2.22 2.55 - 0.09
Field 1/2” — 27.44 - 2.27 18.34 - 1.52 13.79 - 1.14 9.19 - 0.76 5.22 - 0.43 11.90 - 2.22 2.55 - 0.09
Field 2/3” — (1) 24.30 - 3.12 25.30 - 2.09 18.96 - 1.57 12.64 - 1.05 7.18 - 0.59 11.90 - 2.22 2.55 - 0.09
None
0.019 - 0.101 N.A. 86
Mag. 0.29X - 3.49X 0.39X - 4.70X 0.58X - 7.00X 0.77X - 9.31X 1.16X - 14.00X 2.03X - 24.5X 9.26 - 1.67 1.39 - 0.05
Field 1/4” 13.79 - 1.14 10.29 - 0.85 6.90 - 0.57 5.19 - 0.43 3.45 - 0.29 1.97 - 0.16 9.26 - 1.67 1.39 - 0.05
Field 1/3” 20.69 - 1.72 15.44 - 1.28 10.34 - 0.86 7.79 - 0.64 5.18 - 0.43 2.95 - 0.24 9.26 - 1.67 1.39 - 0.05
Field 1/2” — 20.58 - 1.70 13.79 - 1.14 10.39 - 0.86 6.90 - 0.57 3.94 - 0.32 9.26 - 1.67 1.39 - 0.05
Field 2/3” — (1) 18.20 - 2.34 18.97 - 1.57 14.28 - 1.18 9.49 - 0.78 5.42 - 0.44 9.26 - 1.67 1.39 - 0.05
1.5X
0.028 - 0.151 N.A.
1-50014
50
Mag. 0.43X - 5.23X 0.58X - 7.00X 0.87X - 10.50X 1.16X - 14.0X 1.74X - 21.00X 3.05X - 36.8X 6.17 - 1.12 0.64 - 0.02
Field 1/4” 9.30 - 0.76 6.86 - 0.57 4.60 - 0.38 3.44 - 0.28 2.30 - 0.19 1.31 - 0.11 6.17 - 1.12 0.64 - 0.02
Field 1/3” 13.95 - 1.14 10.29 - 0.85 6.89 - 0.57 5.17 - 0.44 3.45 - 0.29 1.96 - 0.16 6.17 - 1.12 0.64 - 0.02
Field 1/2” — 13.72 - 1.13 9.19 - 0.76 6.89 - 0.57 4.60 - 0.38 2.62 - 0.22 6.17 - 1.12 0.64 - 0.02
Field 2/3” — (1) 12.20 - 1.55 12.64 - 1.05 9.48 - 0.78 6.33 - 0.52 3.60 - 0.23 6.17 - 1.12 0.64 - 0.02
2.0X
0.038 - 0.202 N.A.
1-51473
32
Mag. 0.58X - 6.98X 0.78X - 9.40X 1.16X - 14.00X 1.54X - 18.6X 2.32X - 28.00X 4.06X - 49.0X 4.50 - 0.83 0.35 - 0.01
Field 1/4” 6.89 - 0.57 5.14 - 0.43 3.45 - 0.29 2.59 - 0.21 1.73 - 0.15 0.98 - 0.08 4.50 - 0.83 0.35 - 0.01
Field 1/3” 10.34 - 0.85 7.72 - 0.64 5.18 - 0.43 3.89 - 0.32 2.59 - 0.22 1.47 - 0.12 4.50 - 0.83 0.35 - 0.01
Field 1/2” — 10.29 - 0.85 6.90 - 0.57 5.19 - 0.43 3.45 - 0.29 1.97 - 0.16 4.50 - 0.83 0.35 - 0.01
Field 2/3” — (1) 9.10 - 1.17 9.49 - 0.78 7.14 - 0.59 4.75 - 0.40 2.71 - 0.22 4.50 - 0.83 0.35 - 0.01

33
12X Zoom High Mag Zoom Lenses
Phone: [phone] or 585-359-4000 •Fax [phone]
12X Zoom System Dimensions
12X Zoom Non F.F.
1-50330
12X Zoom w/ 12 mm F.F.
1-50486
12X Zoom w/ 3 mm F.F. & Coax
1-50487
Lenses*
Adapters*
Attachments*
All adapters have a diameter of
Ø40.64 mm (Ø1.600 inches)
*All measurements are in mm
unless otherwise specified.
0.25X
1-50011
0.5X
1-50012
0.75X
1-50013
1.5X
1-50014
2X
1-51473
.67X Mini
1-61001
1X Mini
1-61400
1X
1-6245
2X
1-6233
.67X
1-6020
1X
1-6015
(1-6218 Tele)
2X
1-6030
2X Mini
1-62136
Navitar offers a wide variety of lenses, adapters and attachments.
Dimensions of a few examples are provided here. For a complete
listing of lens dimensions, please visit www.machinevision.navitar.com.

12X Zoom High Mag Zoom Lenses
34
h
ttp:
//
mac
h
inevision.navitar.com • emai
l
: in
f
[email protected]
12X Zoom Performance Specifications
12X Zoom Combinations W.D. System Mag. N.A.
-obj-
Resolve Limit
micron
Matching
Pixel Size
microns
Depth of Field
Lens Attach. + Prime Lens + Adapter Low Mag. High Mag. Low Mag. High Mag. Low Mag. High Mag. Low Mag. High Mag. Low Mag. High Mag.
0.25x + 12X Zoom + 0.5x 341 0.07 0.87 0.005 0.025 33.33 6.67 2.33 5.8 20.00 0.80
0.25x + 12X Zoom + 0.67x 341 0.10 1.17 0.005 0.025 33.33 6.67 3.33 7.80 20.00 0.80
0.25x + 12X Zoom + 1.0x 341 0.15 1.75 0.005 0.025 33.33 6.67 5.00 11.67 20.00 0.80
0.25x + 12X Zoom + 1.33x 341 0.19 2.33 0.005 0.025 33.33 6.67 6.33 15.54 20.00 0.80
0.25x + 12X Zoom + 2.0x 341 0.29 3.50 0.005 0.025 33.33 6.67 9.67 23.34 20.00 0.80
0.25x + 12X Zoom + 3.5x 341 0.51 6.13 0.005 0.025 33.33 6.67 16.99 40.88 20.00 0.80
0.5x + 12X Zoom + 0.5x 165 0.14 1.75 0.009 0.051 18.52 3.33 2.59 5.82 6.17 0.19
0.5x + 12X Zoom + 0.67x 165 0.19 2.35 0.009 0.051 18.52 3.33 3.60 7.68 6.17 0.19
0.5x + 12X Zoom + 1.0x 165 0.29 3.50 0.009 0.051 18.52 3.33 5.38 11.45 6.17 0.19
0.5x + 12X Zoom + 1.33x 165 0.39 4.66 0.009 0.051 18.52 3.33 7.22 15.51 6.17 0.19
0.5x + 12X Zoom + 2.0x 165 0.58 7.00 0.009 0.051 18.52 3.33 10.74 22.89 6.17 0.19
0.5x + 12X Zoom + 3.5x 165 1.02 12.30 0.009 0.051 18.52 3.33 18.89 40.95 6.17 0.19
0.75x + 12X Zoom + 0.5x 108 0.22 2.62 0.014 0.076 11.90 2.22 2.61 5.81 2.55 0.09
0.75x + 12X Zoom + 0.67x 108 0.29 3.52 0.014 0.076 11.90 2.22 3.45 7.73 2.55 0.09
0.75x + 12X Zoom + 1.0x 108 0.44 5.25 0.014 0.076 11.90 2.22 5.24 11.52 2.55 0.09
0.75x + 12X Zoom + 1.33x 108 0.58 6.98 0.014 0.076 11.90 2.22 6.90 15.49 2.55 0.09
0.75x + 12X Zoom + 2.0x 108 0.87 10.50 0.014 0.076 11.90 2.22 10.35 23.05 2.55 0.09
0.75x + 12X Zoom + 3.5x 108 1.53 18.40 0.014 0.076 11.90 2.22 18.20 40.84 2.55 0.09
None + 12X Zoom + 0.5x 86 0.29 3.49 0.019 0.101 9.26 1.67 2.68 5.82 1.39 0.05
None + 12X Zoom + 0.67x 86 0.39 4.69 0.019 0.101 9.26 1.67 3.42 7.74 1.39 0.05
None + 12X Zoom + 1.0x 86 0.58 7.00 0.019 0.101 9.26 1.67 5.09 11.55 1.39 0.05
None + 12X Zoom + 1.33x 86 0.77 9.31 0.019 0.101 9.26 1.67 7.13 15.54 1.39 0.05
None + 12X Zoom + 2.0x 86 1.16 14.00 0.019 0.101 9.26 1.67 10.17 23.10 1.39 0.05
None + 12X Zoom + 3.5x 86 2.03 24.50 0.019 0.101 9.26 1.67 18.79 40.91 1.39 0.05
1.5x + 12X Zoom + 0.5x 50 0.43 5.23 0.028 0.151 6.17 1.12 2.65 5.85 0.64 0.02
1.5x + 12X Zoom + 0.67x 50 0.58 7.04 0.028 0.151 6.17 1.12 3.45 7.78 0.64 0.02
1.5x + 12X Zoom + 1.0x 50 0.87 10.50 0.028 0.151 6.17 1.12 5.18 11.60 0.64 0.02
1.5x + 12X Zoom + 1.33x 50 1.16 14.00 0.028 0.151 6.17 1.12 7.15 15.68 0.64 0.02
1.5x + 12X Zoom + 2.0x 50 1.74 21.00 0.028 0.151 6.17 1.12 10.74 23.34 0.64 0.02
1.5x + 12X Zoom + 3.5x 50 3.05 36.80 0.028 0.151 6.17 1.12 18.81 41.21 0.64 0.02
2.0x + 12X Zoom + 0.5x 32 0.58 6.98 0.038 0.202 4.50 0.83 2.61 5.79 0.35 0.01
2.0x + 12X Zoom + 0.67x 32 0.78 9.38 0.038 0.202 4.50 0.83 3.42 7.79 0.35 0.01
2.0x + 12X Zoom + 1.0x 32 1.16 14.00 0.038 0.202 4.50 0.83 5.09 11.62 0.35 0.01
2.0x + 12X Zoom + 1.33x 32 1.54 18.60 0.038 0.202 4.50 0.83 6.93 15.43 0.35 0.01
2.0x + 12X Zoom + 2.0x 32 2.32 28.00 0.038 0.202 4.50 0.83 10.17 23.24 0.35 0.01
2.0x + 12X Zoom + 3.5x 32 4.06 49.00 0.038 0.202 4.50 0.83 18.27 40.67 0.35 0.01
Assumptions:
1. Minimum resolvable feature size is half of the threshold line pair limit. Calculation = 1/(3000 x Lens N.A.)
2. Matching pixel size is that which will permit the minimum feature size to overlap two pixels. Calculation = 1/2(Feature Size x System Magnification)
3. If the matching pixel size is greater than the camera pixel size, the system is “lens limited.”
4. If the matching pixel size is less than the camera pixel size, the system is “camera limited.”

35
12X Zoom High Mag Zoom Lenses
Phone: [phone] or 585-359-4000 •Fax [phone]
12X Zoom Distortion %
This data is plus-minus
calibrated distortion based
on best-fit mag.
Mag % Distortion
0.580 0.109
0.600 0.107
0.650 0.100
0.700 0.089
0.800 0.077
0.900 0.068
1.000 0.060
1.250 0.048
1.500 0.042
1.750 0.039
2.000 0.038
2.250 0.037
2.500 0.037
2.750 0.038
3.000 0.039
3.250 0.041
3.500 0.042
3.750 0.044
4.000 0.037
4.499 0.040
4.999 0.044
5.499 0.047
5.998 0.051
6.497 0.057
6.995 0.062
12X Zoom Distorion Values Over Zoom Range
0.000
0.100
0.200
0.300
0.400
0.500
0.600
0.700
0.800
0.900
0.000 1.000 2.000 3.000 4.000 5.000 6.000 7.000
Magnification
% Distortion

12X Zoom High Mag Zoom Lenses
36
h
ttp:
//
mac
h
inevision.navitar.com • emai
l
: in
f
[email protected]
12X Zoom Field of View Matrix for Internal Co-axial Zoom - 1-50487 (mm)
12X Internal
Co-axial Zoom
Navitar’s 12X Zoom with Internal Co-axial Illumination (1-50487) is ideal for
applications involving highly reflective surfaces, such as wafers, polished
samples, and fluids. Designed to provide even illumination for higher
magnification applications, it provides extremely detailed resolution under
incident lighting, particularly when a high resolution camera is used. Various
illumination sources can be used. For more information on LED or fiber optic
illumination, see the Lighting Accessories section.
Lens
Attachment W. D.
Camera
Formats/
Parameters
.67X Adapter
Low - High
1X Adapter
Low - High
1.33X Adapter
Low - High
2X Adapter
Low - High
3.5X Adapter
Low - High
None
0.019 - 0.101
N.A.
86
Mag. 0.39X - 4.70X 0.58X - 7.00X 0.77X - 9.31X 1.16X - 14.00X 2.03X - 24.50X
Field 1/4” 10.29 - 0.85 6.90 - 0.57 5.19 - 0.43 3.45 - 0.29 1.97 - 0.16
Field 1/3” 15.44 - 1.28 10.34 - 0.86 7.80 - 0.64 5.18 - 0.43 2.95 - 0.24
Field 1/2” 20.58 - 1.70 13.79 - 1.14 10.39 - 0.86 6.90 - 0.57 3.94 - 0.32
Field 2/3” (1) 16.38 - 2.34 18.97 - 1.57 14.28 - 1.18 9.49 - 0.78 5.41 - 0.45
1.5X
0.028 - 0.151
N.A.
1-50014
50
Mag. 0.58X - 7.00X 0.87 - 10.50X 1.16X - 14.00X 1.74X - 21.00X 3.05X - 36.80X
Field 1/4” 6.86 - 0.57 4.60 - 0.38 3.45 - 0.29 2.30 - 0.19 1.31 - 0.11
Field 1/3” 10.29 - 0.85 6.89 - 0.57 5.17 - 0.43 3.45 - 0.29 1.96 - 0.16
Field 1/2” 13.72 - 1.13 9.19 - 0.76 6.89 - 0.57 4.60 - 0.38 2.62 - 0.22
Field 2/3” (1) 10.92 - 1.55 12.64 - 1.05 9.48 - 0.79 6.33 - 0.52 3.61 - 0.30
2.0X
0.038 - 0.202
N.A.
1-50015
32
Mag. 0.78X - 9.40X 1.16X - 14.00X 1.54X - 18.6X 2.32X - 28.00X 4.06X - 49.00X
Field 1/4” 5.14 - 0.43 3.45 - 0.29 2.59 - 0.22 1.73 - 0.15 0.98 - 0.08
Field 1/3” 7.72 - 0.64 5.18 - 0.43 3.89 - 0.32 2.59 - 0.22 1.47 - 0.12
Field 1/2” 10.29 - 0.85 6.90 - 0.57 5.19 - 0.43 3.45 - 0.29 1.97 - 0.16
Field 2/3” (1) 8.19 - 1.17 9.49 - 0.78 7.14 - 0.59 4.75 - 0.40 2.71 - 0.22
Notes:
The internal coax will illuminate a circular area of about 14 mm in diameter. Any field of view larger than 14 mm will have darkened corners.
Low power lens attachments can be used but produce increasing vingetting.
(1) Zoom Setting at 1.0=X.
(2) N.A. varies depending on zoom setting

37
12X Zoom High Mag Zoom Lenses
Phone: [phone] or 585-359-4000 •Fax [phone]
12X UltraZoom
Combine Infinity-Corrected Objectives for Maximum Resolution
and Magnification
The 12X UltraZoom (1-50502) is a high performance system ideal for
semiconductor inspection, flow cytometry, or other high magnification
applications. Its advanced design offers high resolution and outstanding
contrast. This system incorporates infinity corrected objectives to provide
long working distances and excellent edge flatness and clarity. The system’s
resolution exceeds 1,650 lines per mm, depending on the objective used.
The UltraZoom is also available with fine focus (1-50504) or with fine focus
and co-axial illumination (1-50503).
12X UltraZoom Field of View Matrix for 1-50502, 1-50503 and 1-50504 (mm)
Objective Lens
(Mitutoyo)
Long W.D.
W.D.
(mm)
Camera
Formats/
Parameters
1X Adapter
Low - High
1.33X Adapter
Low - High
2X Adapter
Low - High
3.5X Adapter
Low - High
5X
0.14 NA*
1-60226
34
Mag. (1) 3.57X - 16.66X 3.26X - 22.16X 2.77X - 33.31X 4.80X - 58.30X
Field 1/4” 1.12 - 0.24 1.22 - 0.18 1.44 - 0.12 0.83 - 0.07
Field 1/3” 1.68 - 0.36 1.84 - 0.27 2.17 - 0.18 1.25 - 0.10
Field 1/2” 2.24 - 0.48 2.45 - 0.36 2.89 - 0.24 1.66 - 0.14
Field 2/3” — 2.45 - 0.49 3.97 - 0.33 2.29 - 0.19
10X
0.28 NA*
1-60227
33
Mag. (1) 7.14X - 33.31X 6.50X - 44.30X 5.54X - 66.63X 9.70X - 116.60X
Field 1/4” 0.56 - 0.12 0.61 - 0.09 0.72 - 0.06 0.41 - 0.03
Field 1/3” 0. 84 - 0.18 0.92 - 0.13 1.08 - 0.09 0.62 - 0.05
Field 1/2” 1.12 - 0.24 1.23 - 0.18 1.44 - 0.12 0.82 - 0.07
Field 2/3” — 1.23 - 0.25 1.99 - 0.17 1.13 - 0.09
20X
0.42 NA*
1-60228
20
Mag. (1) 14.28X - 64.63X 13.10X - 85.96X 11.08X - 133.25X 19.40X - 233.20X
Field 1/4” 0.28 - 0.06 0.30 - 0.04 0.36 - 0.03 0.21 - 0.02
Field 1/3” 0.42 - 0.09 0.46 - 0.07 0.54 - 0.04 0.31 - 0.03
Field 1/2” 0.56 - 0.12 0.61 - 0.09 0.72 - 0.06 0.41 - 0.03
Field 2/3” — 0.61 - 0.13 0.99 - 0.08 0.57 - 0.05
50X
0.55 NA*
1-60229 13
Mag. (1) 35.69X - 166.57X 40.00X - 221.54X 27.50X - 333.13X 48.10X - 583.00X
Field 1/4” 0.11 - 0.02 0.10 - 0.02 0.14 - 0.01 0.08 - .006
Field 1/3” 0.17 - 0.04 0.15 - 0.05 0.22 - 0.02 0.12 - 0.01
Field 1/2” 0.22 - 0.05 0.20 - 0.04 (2) 0.17 - 0.03 0.16 - 0.01
Field 2/3” — 0.20 - 0.05 0.40 - 0.03 0.23 - 0.02
Note: This system is not recommended for use with a 2/3” CCD.
(1) Zoom setting at 1.5X.
(2) Zoom setting at 1.0X.
*N.A. at full zoom. N.A. varies with zoom setting.

12X Zoom High Mag Zoom Lenses
38
h
ttp:
//
mac
h
inevision.navitar.com • emai
l
: in
f
[email protected]
The World’s First Parfocal
Telecentric Zoom Lens
The 12X Telecentric Zoom
system allows users to reach
a true telecentric condition to
within less than 0.3° while
maintaining constant perspec-
tive and magnification. This
means that even if the object
is slightly out of focus, the
size of the image will not
change. The 12X Telecentric
Zoom provides field coverage
from 50 mm down to 4 mm
and the coaxial illumination
allows clear viewing, even
when working with mirror-like
surfaces.
Wide Magnification Range
and Ultra Long Working
Distance
In the past, a telecentric lens
was defined as having fixed
magnification. Not anymore!
The Navitar 12X Telecentric
Zoom lens allows you to
zoom in and focus over a wide
variety of magnifications with
a higher level of accuracy than
you ever thought possible.
The 12X Telecentric provides
adjustable focal lengths over a
0.16X to 1.94X magnification
range. You no longer have to
be limited by telecentric lenses
that only offer fixed magnifi-
cation. Now you have field
coverage from 50 mm down
to 4 mm at a 188 mm working
distance.
No Need to Change Lenses
The easily adjustable field of
view and magnification allow
our Navitar 12X Telecentric
lens to adjust to meet your
exact requirements. It’s no
longer necessary to change
lenses, mix and match base
lenses with attachment lenses
or recalibrate. One lens, the
12X Telecentric, really does
it all!
Wide Range of
Applications
Specifically designed for pre-
cise dimensional measurement
of objects or pattern recog-
nition, the 12X Telecentric
Zoom has many applications.
It’s ideal for measuring three-
dimensional objects with deep
features, such as well plates,
electrical connector pins, and
other precision parts. It’s also
the perfect lens for viewing
inconsistently placed parts on
a conveyer belt.
12X Telecentric Accuracy
12X Telecentric
Magnification
Telecentric Error Over Depth of Focus (mm)
-0.04
-0.03
-0.02
-0.01
0
0.01
0.02
0.03
0.04
0.00 0.50 1.00 1.50 2.00
1/4" format
1/3" format
1/2" format
1-6010
1-61400
1-50993
1-50387
1-50363

39
12X Zoom High Mag Zoom Lenses
Phone: [phone] or 585-359-4000 •Fax [phone]
12X Telecentric Lens Specifications
Constant Perspective for the
Highest Degree of Accuracy
Navitar’s 12X Telecentric lens
is designed for “straight on”
viewing of objects across the
entire field of view. Images are
not distorted and features are
easy to examine. Conventional
lenses view objects at different
angles across the field of view.
This changes the viewing per-
spective and can distort the size
and shape of the object, making
it difficult to view features ac-
curately.
Constant Magnification
Reduces Magnification
Errors
Magnification in the Navitar
12X Telecentric, unlike conven-
tional lenses, is independent of
working distance. Magnifica-
tion remains constant regardless
of how close or far away an
object is from the camera. This
reduces magnifications errors
and greatly extends gauging
depths of field. Conventional
lenses, however, view objects
that are closer to the camera
as larger than objects that are
farther away.
Conventional Lens 12X Telecentric Lens
Conventional Lens 12X Telecentric Lens
Telecentric Advantages Over Conventional Lenses
Mag.
Telecentric Error
(degrees) Object
N.A.
N.A.
Object
Depth of
Focus
(mm)
Telecentric Error
(mm) Object Size Approx.
MTF
(Ip/mm)
Resolvable
Features
(microns)
1/4” 1/3” 1/2” 1/4” 1/3” 1/2” 1/4” 1/3” 1/2”
0.16 0.05 0.06 -0.03 0.005 0.032 38.8 0.018 0.020 -0.009 25.0 37.3 49.7 15 33
0.23 -0.10 -0.09 -0.18 0.007 0.031 19.4 -0.017 -0.016 -0.030 17.4 26.1 34.8 22 23
0.33 -0.19 -0.18 -0.27 0.010 0.030 10.3 -0.016 -0.016 -0.024 12.1 18.2 24.3 30 17
0.47 -0.23 -0.23 -0.31 0.013 0.028 6.0 -0.012 -0.012 -0.016 8.5 12.8 17.0 39 13
0.67 -0.25 -0.25 -0.34 0.016 0.024 3.8 -0.008 -0.008 -0.011 5.9 8.9 11.9 49 10
0.96 -0.27 -0.27 -0.36 0.020 0.021 2.6 -0.006 -0.006 -0.008 4.2 6.3 8.4 59 8
1.36 -0.29 -0.29 -0.38 0.024 0.017 1.8 -0.004 -0.005 -0.006 2.9 4.4 5.9 71 7
1.94 -0.25 -0.24 -0.29 -0.028 0.015 1.3 -0.003 -0.003 -0.003 2.1 3.1 4.1 84 6
Distortion < 0.1% for all magnifications. Working Distance = 188 mm for all magnifications.

12X Zoom High Mag Zoom Lenses
40
h
ttp:
//
mac
h
inevision.navitar.com • emai
l
: in
f
[email protected]
12X NIR
Zoom Lens
System
Navitar’s 12X NIR Zoom lens
system offers high resolution and
unparalleled sensitivity for
capturing microscopic images. We
have specially coated the glass on
our 12X Zoom lens systems to be
optimized for imaging in the 700-
1550nm (0.7-1.5 microns) wave-
length range. Our 12X NIR lens
system is easy to configure and set
up. Simply find the field of view
and working distance required
just as you would with any of our
other standard 12X lenses.
For a complete listing of available
12X NIR parts, please reference
our website or contact your
Navitar sales representative.
Body tubes with detents and
aperatures or motorized are
available by custom order.
Applications Where
NIR Optics are Useful
• Wafer characterization.
• Laser beam profiling.
• Optical component
measurement and analysis.
•Fiber alignment and
inspection.
•Assembly and monitoring.
A list of all 12X NIR Zoom system components can be found on our website at
www.machinevision.navitar.com.
Transmission of 12X Zoom Lens
About Using NIR Lenses
The wavelength band just beyond the visible is known as Near Infrared
(NIR). NIR is the electromagnetic band of wavelengths between 0.7-1.5
microns (700-1550nm). When light strikes a glass surface, a portion is
bounced back, thereby reducing the strength of the transmitted image.
Apply this behavior to a zoom lens with many glass surfaces, and the
result is a severe reduction in image intensity. To counteract the loss, the
lenses are coated with materials that minimize this effect.
Note: Since NIR lenses are not operating within the visible spectrum,
the resulting image is slightly different than when using a standard 12X
system. The standard lens resolution limits of an NIR lens are based on an
assumed average wavelength of 0.5 microns and is inversely proportional
to wavelength (maximum MTF = 3000xNA in the visible wavelength).
Therefore, substituting a wavelength of 1.5 microns will reduce the
maximum resolution by a factor of 3. In practice, this means a slight
reduction of contrast at the higher wavelengths.
Lens focal lengths shift slightly with wavelength, which impacts the
Numerical Aperture (NA), which affects the depth of field (.0005/NA^2).
Generally, the NA is reduced, which produces a greater depth of field,
along with a reduction in maximum resolution. Standard NIR microscope
objectives are usually lower in NA, also reducing maximum resolution
values.

41
12X Zoom High Mag Zoom Lenses
Phone: [phone] or 585-359-4000 •Fax [phone]
12X Zoom
Detented System
Navitar’s Detented 12X Zoom provides twelve
discrete detented positions in the zoom travel.
Nominal positions at 1X, 1.5X, 2X, 2.5X, 3X, 3.5X,
4X, 4.5X, 5X, 6X, 6.5X and 7X on the zoom scale
allow the end user to make an exact calibration
repeatable within 0.05%. To order a detented zoom
system, place a “D” after the standard part number.
Reticle Projector
The Reticle Projector (1-60068) provides a means
for superimposing a reticle (crosshair, micrometer
scale, custom graphic) over the video image on the
monitor. The information on the reticle must be
contained to the size of the sensor. For example, if
a 1/2” camera sensor is used, the reticle must have
the information in a 4.8 x 6.4 mm area to be seen
on the monitor. This reticle can then be used as
a targeting device for measuring, machining, etc.
(Reticles must be 21 mm in diameter and are sold
separately.)
Advantages of Using a Reticle
• Enables quick identification of minute
dimensions in small parts.
• Costs less than an electronic crosshair
generator.
• The lines can be calibrated at various mag-
nifications and assigned measuring values.
•Reticle pattern can be rotated on its center
line to align with workpiece.
Reticle Projector

12X Zoom High Mag Zoom Lenses
42
h
ttp:
//
mac
h
inevision.navitar.com • emai
l
: in
f
[email protected]
12X Zoom Accessories
Right Angle (RA) Accessories
The RA mount (1-6080) introduces a 90° bend in the optical axis,
shortening the overall length of the system. The resulting image will
be mirrored, thus erect and read backwards
from right to left when viewed with a
camera. The 12X Zoom system uses the RA
adapters 1-60060 (.71X), 1-6118 (1X),
1-61997 (adjustable 1X RA), 1-6120 (2X)
and 1-6187 (5X).
Non-Inverting Right Angle
Accessories
The Non-Inverting RA mount (1-60165)
introduces a 90° bend in the optical axis.
The use of a penta prism results in an image
that is erect and reads left to right. The 12X
Zoom system utilizes the NIRA adapters
1-60172 (.67X), 1-60182 (1X Tele), 1-60175
(1X), and 1-60185 (2X), and 1-60188 (5X).
Object Side Right Angle Attachment
Navitar offers an object side right angle
attachment (1-51490) that is added to the
front of the 12X Zoom and can be used with
all lens attachments except for the 1-50015.
Adapter Plates
Navitar offers a variety of different microscope converter plates so you
can use your zoom system with Nikon, Olympus, Meiji, and Leica focus
mounts (see diagram at right for part numbers).
Auxiliary Viewing Port
The Auxiliary Viewing Port (1-60370) provides a second output port for an
additional camera or for direct vision using an eyepiece. A 50/50 beam
splitter cube is used for minimal image degradation. This assembly uses
the RA Adapters (1-60060, 1-6118, 1-6120, 1-6187) to provide a parfocal
image. Adapters are required in both vertical and horizontal viewing axis.
Laser Injection Port
Navitar’s Laser Injection Port (1-60380) provides a means of introducing
a laser beam into the Zoom 6000 system. It is normally used between the
end of the zoom lens and an infinity corrected objective so that the objec-
tive condenses the laser beam into a highly concentrated spot. A beamsplit-
ter cube, rather than a plate, is used to minimize aberrations. The port is
also useful for projecting targeting devices onto the object.
Adapter Plates

43
12X Zoom High Mag Zoom Lenses
Phone: [phone] or 585-359-4000 •Fax [phone]
12X Zoom UltraZoom Field of View
Mitutoyo
Objective Lens
Long WD
Working
Distance
2X F-Mount Zoom
Adapter
(Low-High)
5X
0.14 N.A.**
1-60226 34
Mag 2.8X - 33.0X
FOV 5.7 - 0.48*
10X
0.28 N.A.**
1-60227 33
Mag 5.5X - 67.0X
FOV 2.9 - 0.24*
20X
0.42 N.A.**
1-60228 20
MAG 11X - 133X
FOV 1.5 - 0.12*
50X
0.55 N.A.**
1-60229 13
Mag 55X - 333X
FOV 0.29 - 0.05*
*FOV for 16mm (max) sensor.
Low mag value is increased (total range reduced) and FOV adjusted accord-
ingly if coaxial illumination is required.
**N.A. at full zoom. N.A. varies with zoom setting.
Lens
Attachment
Working
Distance
2X F-Mount Zoom
Adapter
(Low-High)
0.25X
0.025 N.A.
1-50011 341
Mag 0.29X - 3.5X
FOV 55 - 4.6*
0.5X
0.050 N.A.
1-50012 165
Mag 0.58X - 7.0X
FOV 27.6 - 2.3*
0.75X
0.075 N.A.
1-50013 108
Mag 0.87X - 10.5X
FOV 18.4 - 1.5*
NONE
0.10 N.A. 86
Mag 1.16X - 14.0X
FOV 13.8 - 1.1*
1.5X
0.15 N.A.
1-50014 50
MAG 1.74X - 21.0X
FOV 9.2 - 0.8*
2.0X
0.20 N.A.
1-51473 32
Mag 2.32X - 28.0X
FOV 6.9 - 0.6*
12X Zoom Field of View
*FOV for 16mm (max) sensor.
2X F-Mount Zoom Adapter
Navitar’s 2X F-mount adapter (1-62922) is designed for larger format
sensors (up to 30 mm diagonal). The adapter is configured as an F-
mount, but its T-mount interface permits switching to other common
flange formats. An RA version is available (1-63218).
Not recommended for use with the 12X Zoom System with sensors
over 16 mm.
A complete listing of 12X Zoom accessories can be found on our web
site at www.machinevision.navitar.com.
Accessories continued

12X Zoom High Mag Zoom Lenses
44
h
ttp:
//
mac
h
inevision.navitar.com • emai
l
: in
f
[email protected]
Accessories continued
Differential Interference Contrast (DIC) Modules
Two Differential Interference Contrast (DIC) modules are
available from Navitar:
• the DIC Assembly Nikon-High Resolution module
(1-63726) and
• the original DIC Assembly module (1-63102).
Both modules can be used on any ultra coax version
(zoom or non-zoom) of the 12X Zoom.
DIC, when used with reflected light, can often be
interpreted as a true three-dimensional representation
of the surface geometry. It provides a clear distinction
between raised and lowered regions in the specimen
being viewed.
Using the DIC module in reflected light situations
Two polarizers, one in the illumination axis and one
in the viewing axis, are crossed at 90 degrees such that
when looking at a perfectly mirrored surface all light is
extinguished by the second polarizer.
A prism, made from two pieces of quartz, is then placed
between the illuminator beamsplitter and the objective.
Due to the optical properties of the quartz, the polarized
beam is split into two. The two beams, separated by a
Prism In Prism Out
Prism In Prism Out
minuscule amount, are polarized at 90 degrees to each
other and one beam is shifted in relation to the other -
a phase shift.
If the subject being viewed exhibits properties that
change the length of the optical path of either beam
(such as surface profiles, optical densities, etc.), both
beams will experience further phase shifts.
With transverse movement of the prism the phase shift-
ing performance of the prism may be accentuated and
the final image is modified. By adding a polarization
modifier, such as a 1/4 wave plate, after the illumination
polarizer, the final effects are modified further.
The DIC modules work with object side NAs ranging
from 0.05 to 0.50, with optimum performance in the
range from 0.15 to 0.4. Lens attachments, operating in
the above range will serve for macro applications. Any
infinity corrected objectives designed for incident light
will suffice for micro applications. Operating param-
eters, such as magnification and FOV, will be the same
as Navitar’s existing tables for the 12X Zoom system
being used.
3D topography of a flat panel display circuit highlighted
by employing differential interference contrast (DIC)
and the 12x Zoom.

45
12X Zoom High Mag Zoom Lenses
Phone: [phone] or 585-359-4000 •Fax [phone]
"C" Mount
Coupler
1- 601 0
2X RA
1-6120
1X RA T*
1-61997
Analyzer
1-60816
Polarizer
2-62827
Polarizer
2-51485
(WORKS
WITH 6X
INPUTS)
DIC
1-63102
mooZartlUX21mooZartlUX6
Ø8mm Input
2-60200***
Ø8mm Parallel Input
2-60263
Ø10mm I nput
2-61503
12mm Input
2-61955
Ø8mm Input
2-60200***
Ø8mm Parallel Input
2-60263
Ø10mm Input
2-61503
12mm Input
2-61955
M25 x .75T
Objective Adapter
2-51370
Infinity Corrected Incident Light Objectives
(Not Available From Navitar)
Contact Your Local Sales rep
For Objective Recommendations
M26 X 36T
2-50025**
.800 x 36T RMS
2-50026**
1X Converter Lens
2-50145
2X LA
1-50015
*T = Tele
** Included With 12X UltraZooms
*** Included With Manual 6000 UltraZooms
Any 6X UltraZoom
Body With Internal
Coaxial Port
Any 12X Ult raZ oo m
Body With Internal
Coaxial Port
2X
F-Mount RA
1-63218
M25 x .75T
Objective Adapter
2-51370
Rev.031708
DIC
1-63726
Accessories continued
DIC Module System Diagram

12X Zoom High Mag Zoom Lenses
46
h
ttp:
//
mac
h
inevision.navitar.com • emai
l
: in
f
[email protected]
Accessories continued
Polarizers
Polarization is a contrast enhance-
ment technique that can reduce
back reflections and bring out
salient features not readily visible
with normal viewing.
If you choose to add a polariza-
tion option to your lens system, it
requires an illumination polarizer
(2-51485), an analyzer above the
zoom, a quarter wave plate (op-
tional), and a shorter version of an
Adapter (RA) because the analyzer
shortens the optical path by
50.8 mm.
Analyzer
When used in conjunction with a
polarized light source, an analyzer
(1-60816) allows for cross polar-
ization of the light in the imaging
system. This reduces reflections
that can deteriorate the image
quality. The analyzer must be used
in conjunction with the right angle
adapters.
Aperture Control
Lens systems can be designed with
an internal iris that can be manipu-
lated without cutting into the field
of view. The iris permits the reduc-
tion of image intensity at the image
plane, which reduces “blooming”
and other damaging artifacts. The
iris can also be closed down to
essentially “stop down” the lens
to reduce the Numerical Aperture
of the lens. This narrowing of the
light gathering cone produces a
significant increase in the depth of
field (the thickness of the envelope
at the object, where various object
heights are still in reasonable
focus).
To have an aperture control feature
designed into your system place an
“A” after the standard part
number.
Infinity Corrected
Objectives
Infinity Corrected Objectives can
be attached to the Zoom 6000
UltraZoom to increase the sys-
tem magnification and decrease
working distance. Navitar offers
Mitutoyo long working distance
objective lenses in magnifications
of 5X, 10X, 20X, 50X (1-60226,
1-60227, 1-60228 and 1-60229)
and Motic long working distance
objective lenses in magnifications
of 5X, 10X and 20X (1-62828,
1-62829, 1-62830).
