LED-Based
Illumination
Illumination has proven to be one of the most important components when designing a suc-
cessful imaging system. Navitar thoroughly understands that the correct lighting can only
enhance the performance of our industry leading vision systems. This is why we are so excited
to introduce custom designed and integrated LED based illumination components for all of our
vision systems. The addition of our LED based products truly allows us to provide our custom-
ers with complete optical solutions for all their imaging needs.
Two LED based products are available from Navitar: BrightLight coaxial illuminators and Ring
Light illuminators. Designed to match the optical performance of our vision systems, each il-
lumination system was created to work with a specific system, such as Navitar’s Zoom 6000,
12X Zoom or Precise Eye system. Each lighting component incorporates the correct number of
individual LEDs, placed in the optimal optical position, to provide powerful, even illumination
across a given field of view.
Benefits of Navitar
LED-Based Illumination
All of our LED systems pro-
vide a number of benefits over
traditional fiber based illumi-
nation systems:
• Longer life.
• Minimum power loss.
• Narrow wavelength band
(red), constant color tem-
perature (white).
• Small packaging with opti-
mal heat management.
• No fan vibration.
• Lower cost.

101
Vision Illumination
Phone: [phone] or 585-359-4000 •Fax [phone]
BrightLight LED
Coaxial Illuminators
High Brightness, Long Life, Optimal Image Contrast
• Energy efficient, long-life design decreases production line
down time.
• Compact and robust design eliminates the vibration normally
associated with fiber optic Halogen light sources.
• RS-232 and USB computer controlled.
• National Instruments/LabViewTM VI or Windows interface.
• External knob regulates the intensity in fine increments.
• Black anodized enclosure for stand alone use.
Innovative Illumination

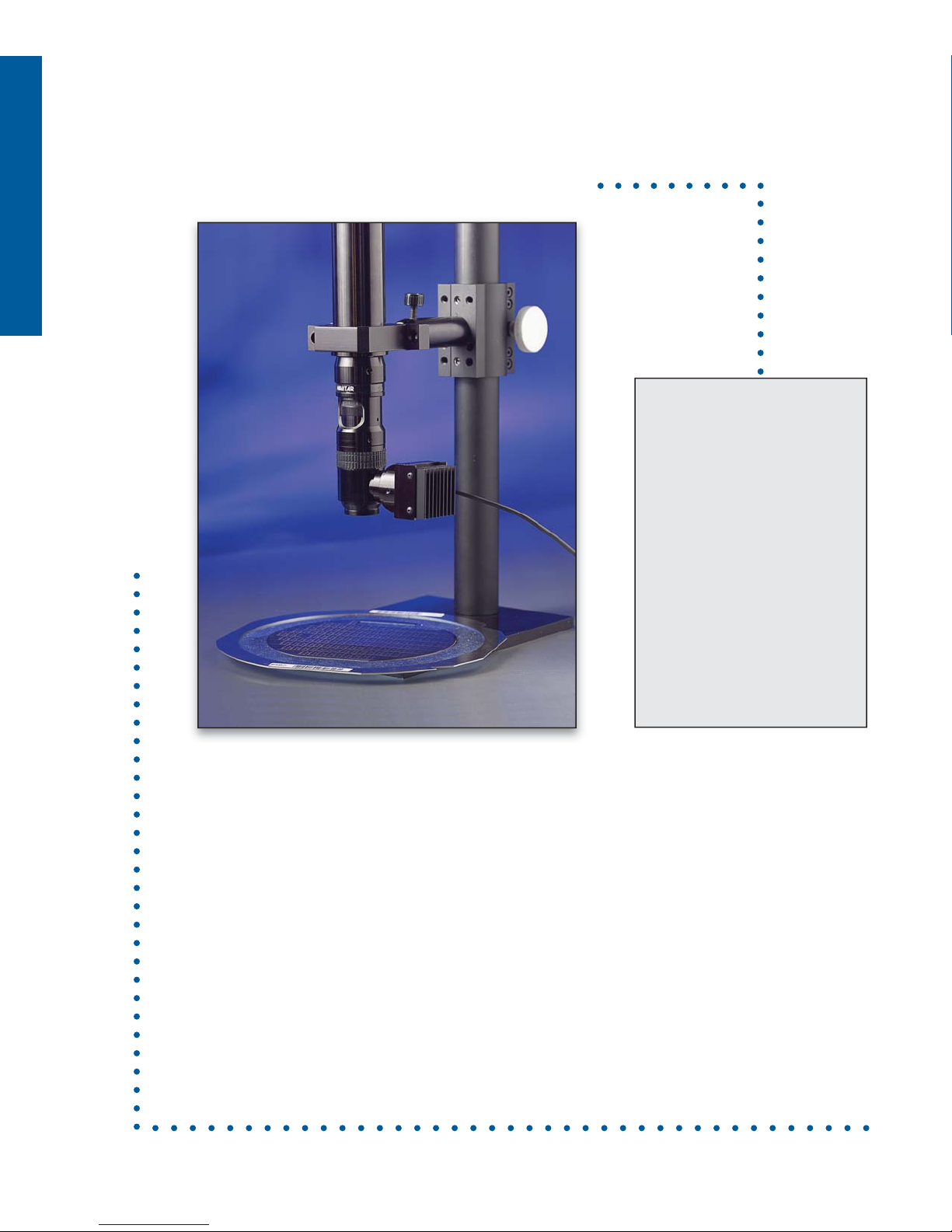

Designed and manufactured by Navitar, the BrightLight co-
axial illuminator is used to view highly reflective objects which
require an even distribution of light without hot spots. The
thermal design insures maximum life and a consistent output.
The BrightLight LED co-axial illuminator is for use with Navitar’s
Zoom 6000, 12X and Precise Eye systems. Available in either
red or white and with a life span measured in years, these il-
luminators are the perfect source for powerful, uninterrupted,
worry-free operation. Check our website for new colors.
Control Options
Control of the BrightLight could not be easier. Navitar has
developed two user-friendly Pulse Width Modulation (PWM)
controllers, an analog (manual control) and a digital (manual and
computer control).
Manual Analog Control: A simple control knob regulates the
pulse width (intensity) in continuous mode. The driver is sup-
plied in a black anodized enclosure. Simply plug the power
supply and BrightLight into the driver box, turn on the driver and
adjust the dimmer.
Digital Control: Designed for maximum flexibility, the digital
BrightLight controller is available in either board level or en-
closed similar to the analog model. In addition to manual con-
trol, the digital model also offers computer control via RS-232
or USB. Software is available on our website at www.navitar.
com/zoom/led_software.htm.
Required accessories include a power supply, either domestic
(120 VAC, 60Hz) or international (90-264 VAC, 47-63Hz), and
either a USB or RS-232 communication cable.
System Requirements
Operating Systems Supported for
Serial RS-232:
• Windows 98, ME, NT, 2000,& XP.
Operating Systems Supported for USB:
• Windows 98, ME, 2000, and XP.
Computer Requirements:
• Windows Operating System.
• Port: 1 serial or 1 USB port
(can be a hub).
• Hard Disk: 1 M bytes.
• RAM: Same as Operating System (if
OS works, BrightLight will work).
• Display: Any will work.

Vision Illumination
102 http://machinevision.navitar.com • email: [email protected]
LED System Diagram
High Brightness, Long Life, and Optimal Image Contrast
Our ring lights were designed with careful consideration for the
standard working distances that most of our customers use. The
components are low profile and provide bright, even illumination
to compliment the performance of your vision system.
Used on the Zoom 6000, 12X Zoom or Precise Eye, Navitar’s
Ring Lights are specifically designed to function at specific work-
ing distances. They are available in white and red with Fresnel
attachments of 50 mm, 100 mm, and 150 mm working distances.
The dimmer is a simple analog voltage type with a universal
power supply.
LED Ring Light Illuminators
Precise Eye
System
6X Zoom
System
12X Zoom
System
BRIGHTLIGHT
BRIGHTLIGHT II
Ring Lights
1-51156 Red 623nm
150mm W.D.
Fresnel Lens
Ring Light Controller &
Power Supply
(50/60Hz, 90-280Vac)
2-62226
1-62356
50mm W.D.
1-62357
100mm W.D.
1-62358
150mm W.D.
1-62350 WHITE 5500K
1-62351 RED 623nm
2-62731 Digital
1-62802 Digital**
2-62426 Digital 1-62409 Analog
1-62411 Digital*
1-62803
90-264 VAC
47-63 Hz
Required for Computer
Control of:
2-62426, 1-62411
6X Illuminator s:
1-62745 WHITE 5500K 2.6/4 Watt
1-62747 WHITE 5500K 4.8 Watt
1-62749 GREEN 530nm 4.8 Watt
1-62751 CYAN 505nm 4.8 Watt
1-62753 BLUE 470nm 4.8 Watt
1-62755 ROYAL BLUE 455nm 4.8 Watt
12X Illuminators:
1-51451 WHITE 5500K 2.6/4 Watt
1-51452 WHITE 5500K 4.8 Watt
1-51453 GREEN 530nm 4.8 Watt
1-51454 CYAN 505nm 4.8 Watt
1-51455 BLUE 470nm 4.8 Watt
1-51456 ROYAL BLUE 455nm 4.8 Watt
6' LONG
3.5mm M ono Plug
12X Illuminators:
1-51413 Warm White 3300K
1-51212 WHITE 5500K
1-51213 RED 625nm
6X Illuminators:
1-62722 WARM WHITE 3300K
1-62400 WHITE 5500K
1-62401 RED 625nm
Oval Light
Controllers
Controllers
Required for Computer
Control of:
2-62731, 1-62802
* USB & RS-232 CABLES
INCLUDED
** USB, RS-232, & POWER
SUPPLY INCLUDED
Power Supplies
1-62459
90-264Vac
47-63Hz
8-62429
120Vac
60Hz
Power Supply
Serial Cables
8-62501
6 Foot USB
8-62501
6 Foot USB
8-62502
6 Foot RS-232
8-62502
6 Foot RS-232
Serial Cables
2-62527 3-62355 3-51169

103
Vision Illumination
Phone: [phone] or 585-359-4000 •Fax [phone]
Model Description
1-6192 Ring light w/ 1.28” inside diameter,
0.5” input ferrule, 3 foot length
1-6192-6 Ring light w/ 1.28” inside diameter,
0.5” input ferrule, 6 foot length
1-6192-8 Ring light w/ 1.28” inside diameter, 0.5” input ferrule, 8 foot length
1-6192-10 Ring light w/ 1.28” inside diameter, 0.5” input ferrule, 10 foot length
1-6192-15 Ring light w/ 1.28” inside diameter, 0.5” input ferrule, 15 foot length
1-61214 Ring light w/ 1.28” inside diameter, 0.718” input ferrule, 3 foot length
1-61214-6 Ring light w/ 1.28” inside diameter, 0.718” input ferrule, 6 foot length
1-61214-8 Ring light w/ 1.28” inside diameter, 0.718” input ferrule, 8 foot length
1-60926 Ring light w/ 4.5” inside diameter, 0.718” input ferrule, 3 foot length
2-50017 Ring light adapter for any 12X with fine focus
1-60106 Flexible light pipe for co-axial, 0.5” input ferrule, 3 foot length
1-60106-6 Flexible light pipe for co-axial, 0.5” input ferrule, 6 foot length
1-60106-8 Flexible light pipe for co-axial, 0.5” input ferrule, 8 foot length
1-60106-10 Flexible light pipe for co-axial, 0.5” input ferrule, 10 foot length
1-60106-12 Flexible light pipe for co-axial, 0.5” input ferrule, 12 foot length
1-60106-15 Flexible light pipe for co-axial, 0.5” input ferrule, 15 foot length
1-60162 Flexible light pipe for co-axial, 0.718” input ferrule, 3 foot length
1-60162-6 Flexible light pipe for co-axial, 0.718” input ferrule, 6 foot length
1-60162-8 Flexible light pipe for co-axial, 0.718” input ferrule, 8 foot length
1-60162-12 Flexible light pipe for co-axial, 0.718” input ferrule, 12 foot length
1-6267 2” x 2” fiber optic back light, 0.718” input ferrule, 40” length
8-61313 Dual gooseneck, 0.718” input ferrule
1-60787 Coupler to convert 0.5” input ferrule to 0.718” input ferrule
EKE Long-life replacement lamp; 200 hour life, 21V, 3250° K
EJV Standard replacement lamp; 40 hour life, 21V, 3350° K

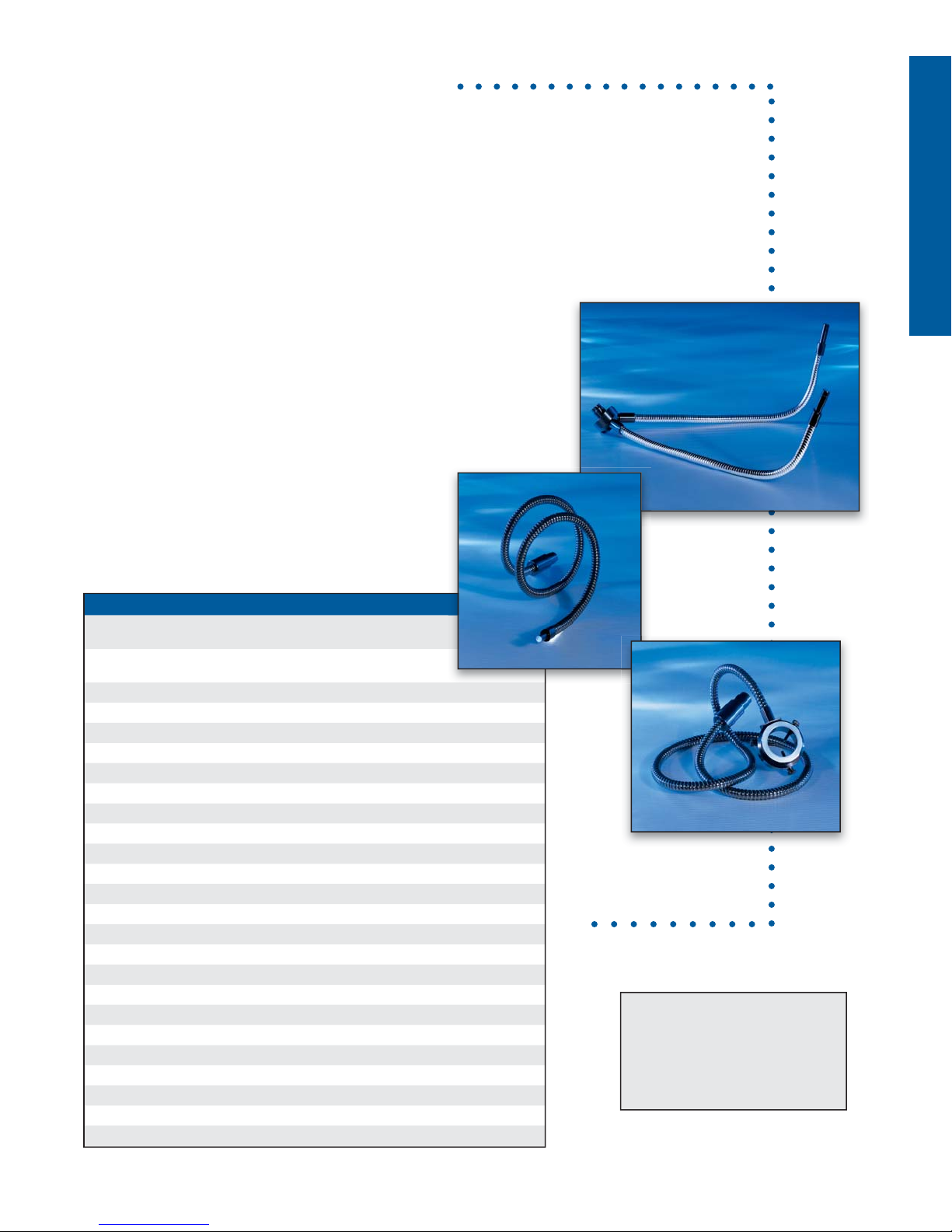

Available Fiber Optic Accessories
Fiber Optic
Lighting Accessories
Fiber Optic Illuminators
Fiber optic illuminators are the most versatile illuminators on the
market today. They consist of a high-powered light source which
can be used with ring lights or flexible light pipes for oblique or
co-axial illumination.
Navitar offers a series of high intensity fiber optic illuminators and
accessories that allow you to position your light for best possible
viewing. These fiber optic illuminators consist of a Halogen
illumination system with a variable light intensity
control. They accept a single or dual light pipe or an
attachable ring light for illuminating a wider area.
These illuminators offer low operating temperature
and low noise output.
Navitar can manufacture
fiber bundles and ring lights
in any length. Please contact
Navitar directly with your
specific requirements.

Vision Illumination
104 http://machinevision.navitar.com • email: [email protected]
Power Supply
Navitar offers a selection of compact, rugged, AC/DC Halogen light
sources with solid state dimmers for variable light intensity and
maximum lamp life. Each power supply provides consistent, even
illumination when used with a variety of fiber optic accessories,
including our ring lights and fiber optic bundles for co-axial lighting.
Available Fiber Optic Power Supplies
Uni-Lite Working Distance (in mm)
External Co-axial Illuminators
Navitar’s Uni-Lite is unbeatable for highly reflective applications requiring
a large field of view and even distribution of light without hotspots. No
other system offers Navitar’s “light-trap” design. It is specifically engi-
neered to trap stray light so that only the usable light reaches the camera.
Available External Co-axial Illuminators
Available Internal Co-axial Input Ports
For Zoom 6000 Description
1-60016 1X Uni-Lite with uniform illumination over a 16 mm field
1-60026 0.5X Uni-Lite with uniform illumination over a 32 mm field
For 12X Zoom
1-50223 1X Uni-Lite with uniform illumination over a 16 mm field
1-50224 0.5X Uni-Lite with uniform illumination over a 32 mm field
For Zoom 6000 Description
2-60200 8 mm diameter fiber input
2-61503 10 mm diameter fiber input
2-61955 12 mm diameter fiber input
2-60263 8 mm diameter input parallel coaxial
1-60812 8 mm diameter input polarizer
For 12X Zoom
2-50157 8 mm diameter fiber input
2-50751 10 mm diameter fiber input
2-50975 12 mm diameter fiber input
2-50602 8 mm diameter input parallel coaxial
1-50554 8 mm diameter input polarizer
Model Description
8-61172 120 volt fiber optic power supply, 150w EKE lamp, 0.720” fiber recep-
tacle (CSA, UL, CE compliant)
1-60563 220 volt fiber optic power supply, 150w EKE lamp, 0.720” fiber recep-
tacle (CSA, UL, CE compliant)
8-61892 90-265 volt DC regulated fiber optic power supply, 150w EKE lamp,
0.720” fiber receptacle (CSA, UL, CE compliant)
Uni-Lite External Lens Attachments
Illuminator .25X* .5X .75X None
For Zoom 6000 Fine Focus Type Working Distance
1-60016 No Fine Focus 289 125 63 35
Fine Focus 289 125 63 35
1-60026 No Fine Focus 274 84 22 —
Fine Focus 274 84 22 —
For 12X Zoom
1-50223 No Fine Focus 269 91 37 31**
Fine Focus 272 93 39 11
1-50225 No Fine Focus 256** 77** 23** —
Fine Focus 231 53 — —
*Use a 1” spacer (3-60164) with Uni-Lite model 1-60016 and the .25x lens attachment.
**No spacer required.
