Navman GPS 1240 User manual

NAVMAN
www.navman.com
Installation Manual
English.............. 3
Español............. 7
Português....... 10
GPS 1240/1330
A N T E N N A

Industry Canada
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.

3GPS 1240/1330 antenna installation manual NAVMAN
FCC Statement
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a normal installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an output on a circuit different from that to which the
receiver is connected
Consult the dealer or an experienced technician for help
A shielded cable must be used when connecting a peripheral to the serial ports
Important
It is the owner’s sole responsibility to install and use the antenna in a manner that will not cause
accidents, personal injury or property damage. The user of this product is solely responsible for
observing safe boating practices.
Global Positioning System: The Global Positioning System (GPS) is operated by the US
government which is solely responsible for its operation, accuracy and maintenance. The GPS
system is subject to changes which could affect the accuracy and performance of all GPS
equipment anywhere in the world.
Installation: If installation is not correct, the unit can not perform at its designed potential. If in
doubt, consult your Navman dealer. Ensure that any holes made are in a safe position and will
not weaken the boat’s structure. If in doubt, consult a qualified boat builder.
NAVMAN NZ LIMITED DISCLAIMS ALL LIABILITY FOR ANY USE OF THIS PRODUCT IN A
WAY THAT MAY CAUSE ACCIDENTS, DAMAGE OR THAT MAY VIOLATE THE LAW.
Governing language: This statement, any instruction manuals, user guides and other information
relating to the product (Documentation) may be translated to, or has been translated from,
another language (Translation). In the event of any conflict between any Translation of the
Documentation, the English language version of the Documentation will be the official version
of the Documentation.
This manual represents the installation procedures as at the time of printing. Navman NZ Limited
reserves the right to make changes to specifications without notice.
Copyright © 2004 Navman NZ Limited, New Zealand, all rights reserved. Navman is a registered
trademark of Navman NZ Limited.

4NAVMAN GPS 1240/1330 antenna installation manual
GPS 1240: includes 10 m (32.8 ft) cable
or
GPS 1330: includes 5 m (16.6 ft) cable
This installation guide
For surface mounting:
Gasket (doubles as mounting template)
4 threaded rods: thread M4 x 40 mm (2")
4 washers
4 nuts
For pole mounting:
Pole mount adaptor
4 screws
Also available:
GPS 1240: 10 m (32.8 ft) extension cable
GPS 1330: 5 m (16.6 ft) extension cable (Note:
only one extension cable may be used)
1 Introduction

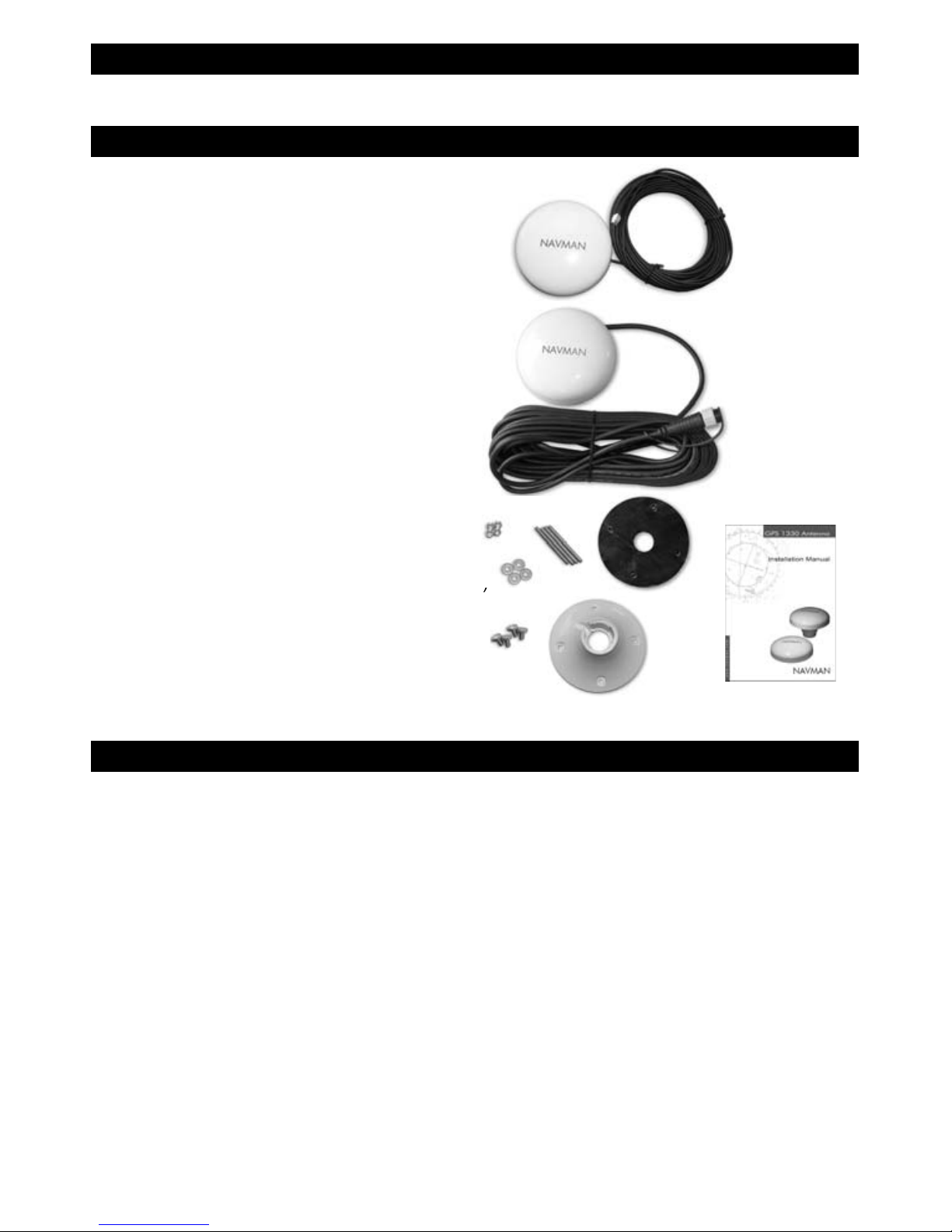

What comes with your GPS 1240 or 1330 antenna
This installation manual describes how to install Navman’s GPS 1240/1330 antenna using two
methods: surface mounting and pole mounting.
2 Choosing a suitable location for the antenna
Mount the antenna with a good view of the sky
and horizon. The view should not be blocked
by large parts of the superstructure.
The unit can be under glass, perspex, fibreglass
or fabric, but not under metal or wood.
Mount the antenna away from any source of
electrical signals or noise. Do not mount the
antenna within 3 m (10 ft) of a radio transmitter
antenna or within 0.5 m (20") of the plane of a
radar antenna.
Do not fit the antenna too high, such as up a
mast, or boat rocking will cause errors in speed
and bearing.
Do not mount the antenna where it can be
used as a hand hold, where it will interfere
with the operation of the boat or where it might
be submerged.
Mount the antenna within the connection range
of the cable in it's final secured position, keeping
the cable away from sources of electrical
signals or noise and ensuring the cable is not
pinched or crushed.
GPS 1330
GPS 1240

5GPS 1240/1330 antenna installation manual NAVMAN
4B If exiting the side of the
antenna, remove three
plastic tabs, then seal
cable into place with
silicon.
Ensure that the
channel is filled
with silicon to
provide a seal
when gasket is
in place.
5. Attach the four threaded
pins to the antenna.
6. Peel the plastic off the
gasket.
7. Place antenna in final
position.
8. Attach the four nuts to the threaded rod.
Do not overtighten.
9. Attach to instrument, then secure the
cable at regular intervals.

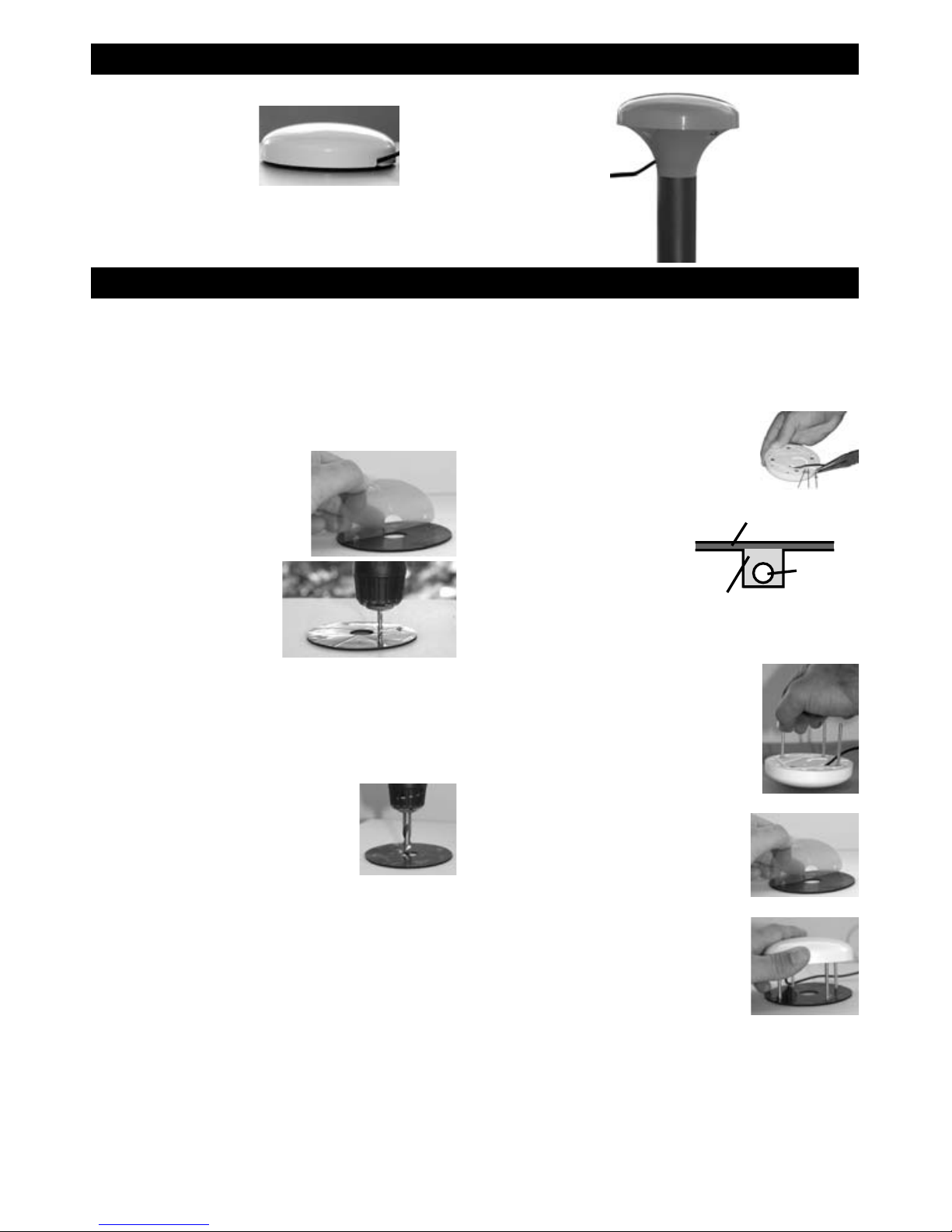

3-1 Surface mounting
Select a suitable location which allows access for affixing nuts and has a suitable mounting surface.
Avoid high traffic areas where the antenna may be a tripping hazard.
Ensure that any holes made are in a safe position and will not weaken the boat’s structure. If in
doubt, consult a qualified boat builder.
3 Mounting
There are two mounting options:
Pole mountedSurface mounted
1. Clean the surface where the antenna will
be mounted.
2. Peel the back off one
side of the gasket
and stick the gasket
in the final mounting
position.
3. Using the gasket
as a template, drill
four 4 mm (5/32")
holes.
4. The cable may either pass through the
surface the antenna is mounted on, or
exit the side of the antenna:
4A For GPS 1330 if
passing cable through
the surface, drill a 9
mm (3/8") hole for the
connector.
For GPS 1240 if
passing cable through
the surface, drill an 18 mm
(23/32") hole for the
connector.
Fill with
silicon
Gasket

6NAVMAN GPS 1240/1330 antenna installation manual
Clean the antenna with a damp cloth or mild
detergent. Avoid abrasive cleaners, petrol or
other solvents.
When repainting the surrounding area, cover the
antenna with masking to protect from paint. Do
not paint the antenna.
3-2 Pole mounting
Note: Do not mount the antenna too high, such as
up a mast, or boat rocking will cause errors in speed
and bearing.
Attach only to 1" (25.4 mm) diameter pole with a thread
of 14 TPI UNB.
Thread the cable through the pole mount adaptor.
Position the pole mount adaptor onto the antenna,
using the positioning tabs.
Attach with the four srews provided, do not overtighten.
The cable may pass through the pole, or exit the side
of the antenna.
Screw onto the pole. Do not overtighten.
Attach to instrument, then secure the cable at regular
intervals.
Technical specifications
GPS 1240 GPS 1330**
Weight (with cable): 490 g (16 oz) 225 g (8 oz)
Power supply: via instrument via instrument
Typical power consumption: 30 mA (at 12 V DC) 29 mA (at 6 V DC)
GPS dynamics: 950 m/s (2125 mph)
acceleration 4 G
950 m/s (2125 mph)
acceleration 4 G
Operating temperature: 0 to 60°C (32 to 140°F) 0 to 60°C (32 to 140°F)
Re-aquisition times: 2 sec typical (<10 sec
blockage)
2 sec typical (<10 sec
blockage)
TTFF* (warm start): < 38 sec < 38 sec
TTFF* (cold start): < 45 sec < 45 sec
Update rate: Typically every second once fix
established
Typically every second once fix
established
Output: NMEA: GGA, RMC, GSA, GSV,
VTG
50 ohms / SMA
Case: UV stable plastic radome UV stable plastic radome
Environment: IP67 IP67
Connector: 8 pin Liang Tei SMA
Notes: *Figures provided for Time To First Fix are for 90% or better for first fix. ** Performance when connected to a Navman chartplotter
4 Cleaning and maintenance
Positioning tabs

7Manual de Instalación Antena GPS 1330 NAVMAN
GPS 1330
GPS 1240
GPS 1240: La antena GPS incluye un cable 10 m (32.8 pies).
GPS 1330: La antena GPS incluye un cable 5 m (16.6 pies).
Esta guía de instalación
Para el montaje sobre superficie:
Junta de estanqueidad (doble como plantilla
de montaje)
4 varillas roscadas: rosca M4 x 40 mm (2”)
4 arandelas
4 tuercas
Para montaje sobre poste:
Un adaptador de montaje para poste
4 tornillos
También disponible:
GPS 1240: Alargo 10 m (32.8 pies)
GPS 1330: Alargo 5 m (16.6 pies)
(Nota: un solo alargo se puede utilizar).
1 Introducción
Qué se entrega con la antena GPS 1330
Este manual describe dos métodos posibles de instalación de la antena GPS 1330 Navman: el
montaje sobre superficie y el montaje sobre poste.
2 Elección de un emplazamiento correcto para la antena
Montar la antena de forma que disponga de
una vista despejada del cielo y del horizonte.
La vista no debe ser impedida por partes de
la estructura.
La unidad se puede colocar debajo de vidrio,
perspex, fibra de vidrio o tejido pero NO
debajo de metal o madera.
Montar la antena alejada de cualquier fuente
de señales o turbulencias eléctricas. Montar la
antena al menos a 3 m (10 pies) de la antena
de un transmisor radio o al menos a 0,5 m
(20”) del haz de una antena radar.
No montar la antena demasiado alto, por
ejemplo, en un mástil, ya que el balanceo
del barco podría causar errores en las
indicaciones de la velocidad y del rumbo.
No montar la antena en lugares donde se
podría confundir con pasamanos, donde
podría interferir con el buen funcionamiento
del barco o donde podría sumergirse.
Montar la antena de forma que el cable no
tenga tensiones, esté colocado de manera
segura, esté alejado de cualquier fuente de
señales o turbulencias eléctricas y asegurarse
que este cable no esté aplastado o pillado.

8NAVMAN Manual de Instalación Antena GPS 1330
4B Si el cable sale por
la parte lateral de la
antena, sacar
las 3 lengüetas
de plástico,
luego sellar
el cable con
silicona.
Asegurarse
que el cono
esté lleno de
silicona una vez colocada la junta de
estanqueidad.
5. Colocar las cuatro patillas
de rosca a la antena.
6. Sacar el film de
plástico de la junta de
estanqueidad.
7. Colocar la antena en su
posición definitiva.
8. Colocar las cuatro tuercas a la varilla de
rosca. No apretar demasiado.
9. Colocar al instrumento, luego asegurar el
cable a intervalos regulares.

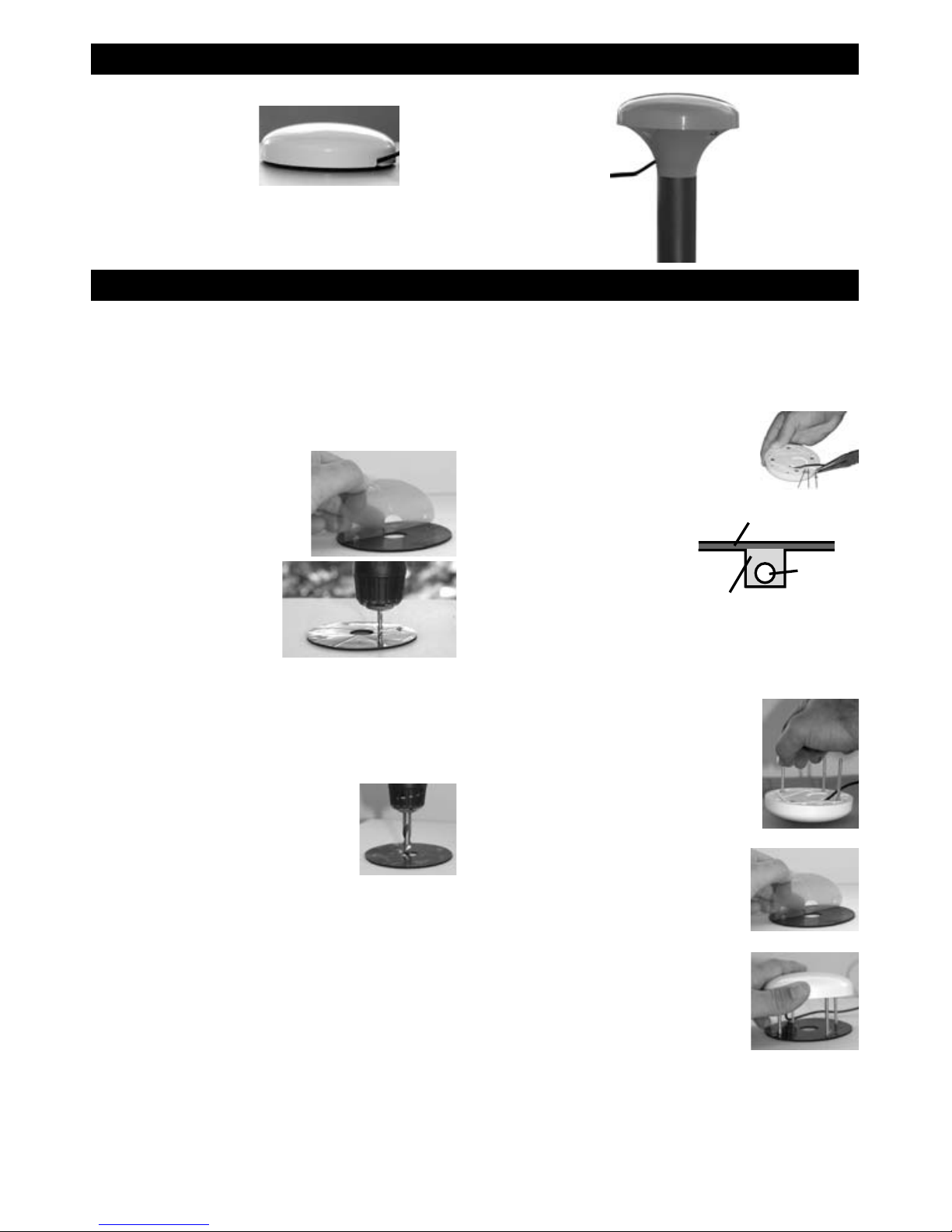

3-1 Montaje sobre superficie
Escoger un emplazamiento adecuado que permite acceder a las tuercas de fijación y que dispone
de una superficie suficiente para el montaje. Evitar las zonas donde la antena podría estorbar.
Asegurarse que todos los taladros se efectuarán de forma segura y que no afectarán la estructura
del barco. En caso de cualquier duda, por favor contactar con su distribuidor Navman.
3 Montaje
Existen dos opciones de montaje:
Montaje sobre
poste
Montaje sobre
superficie
1. Limpiar la superficie de montaje.
2. Sacar el film plástico
de la junta de
estanqueidad y
pegar la junta en su
posición definitiva.
3. Utilizar la junta
como plantilla,
taladrar 4
agujeros de 4 mm
(5/32”).
4. El cable puede pasar o bien por la
superficie de montaje de la antena, o salir
por la parte lateral de la antena.
4A En el GPS 1330, si
desea pasar el cable
por la superficie, realice
un orificio de 9 mm
(3/8”) para el conector.
En el GPS 1240, si desea pasar el
cable por la superficie, realice un
orificio de18 mm (23/32”) para el
conector.
Llenar de
silicota
Junta de estanqueidad
Cable

9Manual de Instalación Antena GPS 1330 NAVMAN
Especificaciones técnicas
Limpiar la antena con un paño húmedo o
un detergente suave. Evitar los limpiadores
abrasivos, petróleo u otros solventes.
En caso de pintar el área cercana a la antena,
proteger la antena con enmascaramiento. No
pintar la antena.
3-2 Montaje sobre poste
Nota: No montar la antena demasiado alto, por
ejemplo, en un mástil, ya que el balanceo del
barco podría causar errores en la velocidad
y el rumbo.
Colocar a un poste de 25,4 mm de diámetro
con una rosca de 14 TPI UNB.
Ensartar el cable por el adaptador de montaje
del poste.
Colocar el adaptador de montaje del poste
sobre la antena, utilizando las lengüetas de
colocación. Asegurar mediante los cuatro
tornillos previstos, no apretar demasiado.
Unir con los cuatro tornillos proporcionados,
No apretar demasiado.
El cable puede pasar por el poste o salir por
la parte lateral de la antena.
Atornillar al poste. No apretar demasiado.
4 Limpieza y mantenimiento
Lenguëtas de colocación
Colocar al instrumento, luego asegurar el
cable a intervalos regulares.
GPS 1240 GPS 1330**
Peso (con cable): 490 g (16 oz) 225 g (8 oz)
Alimentación: Vía el instrumento Vía el instrumento
Consumo eléctrico típico: 30 mA (a 12 V DC) 29 mA (a 6 V DC)
Dinámica GPS 950 m/s (2125 mph) aceleración 4 G 950 m/s (2125 mph) aceleración 4 G
Temperatura de funcionamiento: 0 to 60°C (32 to 140°F) 0 to 60°C (32 to 140°F)
Tiempo de re-adquisición de
señal:
2 segundos típicos (<10 seg
congestión)
2 segundos típicos (<10 seg
congestión)
TTFF* (Tiempo de adquisición
del primer fijo (arranque en
caliente):
< 38 seg < 38 seg
TTFF* (Tiempo de adquisición del
primer fijo (arranque en frío):
< 45 seg < 45 seg
Coeficiente de actualización: Típicamente cada segundo una vez
establecido el primer fijo de posición
Típicamente cada segundo una vez
establecido el primer fijo de posición
Salida: NMEA: GGA, RMC, GSA, GSV, VTG 50 ohmios / SMA
Caja: Protección de plástico UV estable Protección de plástico UV estable
Entorno: IP67 IP67
Conectador: 8 pin Liang Tei SMA
Notas: Las cifras proporcionadas para “Tiempo hasta la primera reparación” (Time To First Fix o TTFF) son para 90% o más para la primera
reparación ** Resultado cuando se conecta a un trazador de mapas Navman.

10 NAVMAN Manual de instalação da antena do GPS 1240/1330
Importante
É de exclusiva responsabilidade do proprietário instalar e utilizar a antena de forma a não
causar acidentes, ferimentos a pessoas ou danos a propriedades. O utilizador deste produto
é o único responsável pelo cumprimento de práticas seguras de navegação.
Sistema de Posicionamento Global: O Sistema de Posicionamento Global (GPS) é operado
pelo governo dos EUA, que é o responsável exclusivo por seu funcionamento, precisão e
manutenção. O sistema GPS está sujeito a alterações que podem afectar a precisão e o
desempenho de todos os equipamentos GPS ao redor do mundo.
Instalação: Se a instalação não for feita de maneira correcta, a unidade poderá não funcionar
em seu pleno potencial. Se estiver em dúvida, consulte o representante Navman. Assegure-
se de que quaisquer furos estejam em uma posição segura e que não enfraqueçam a
estrutura do barco. Se estiver em dúvida, consulte um construtor de barcos capacitado.
A NAVMAN NZ LIMITED REJEITA QUALQUER RESPONSABILIDADE POR QUALQUER
UTILIZAÇÃO DESTE PRODUTO DE MANEIRA QUE POSSA PROVOCAR ACIDENTES,
DANOS OU QUE POSSA VIOLAR A LEGISLAÇÃO.
Idioma prevalecente: Esta declaração, quaisquer manuais de instrução, guias de utilizadores
e outras informações relacionadas ao produto (Documentação) podem ser traduzidos de e
para qualquer outro idioma (Tradução). No evento de quaisquer conflitos entre qualquer
Tradução da Documentação, a versão da Documentação no idioma Inglês será considerada
como a versão oficial da Documentação.
Este manual representa os procedimentos de instalação como eram no momento de
sua impressão. A Navman NZ Limited reserva-se o direito de efectuar alterações nas
especificações sem aviso prévio.
Copyright © 2004 Navman NZ Limited, Nova Zelândia, todos os direitos reservados. NAVMAN
é uma marca comercial registada da Navman NZ Limited.previo aviso.
