Naxa NRC-190 User manual

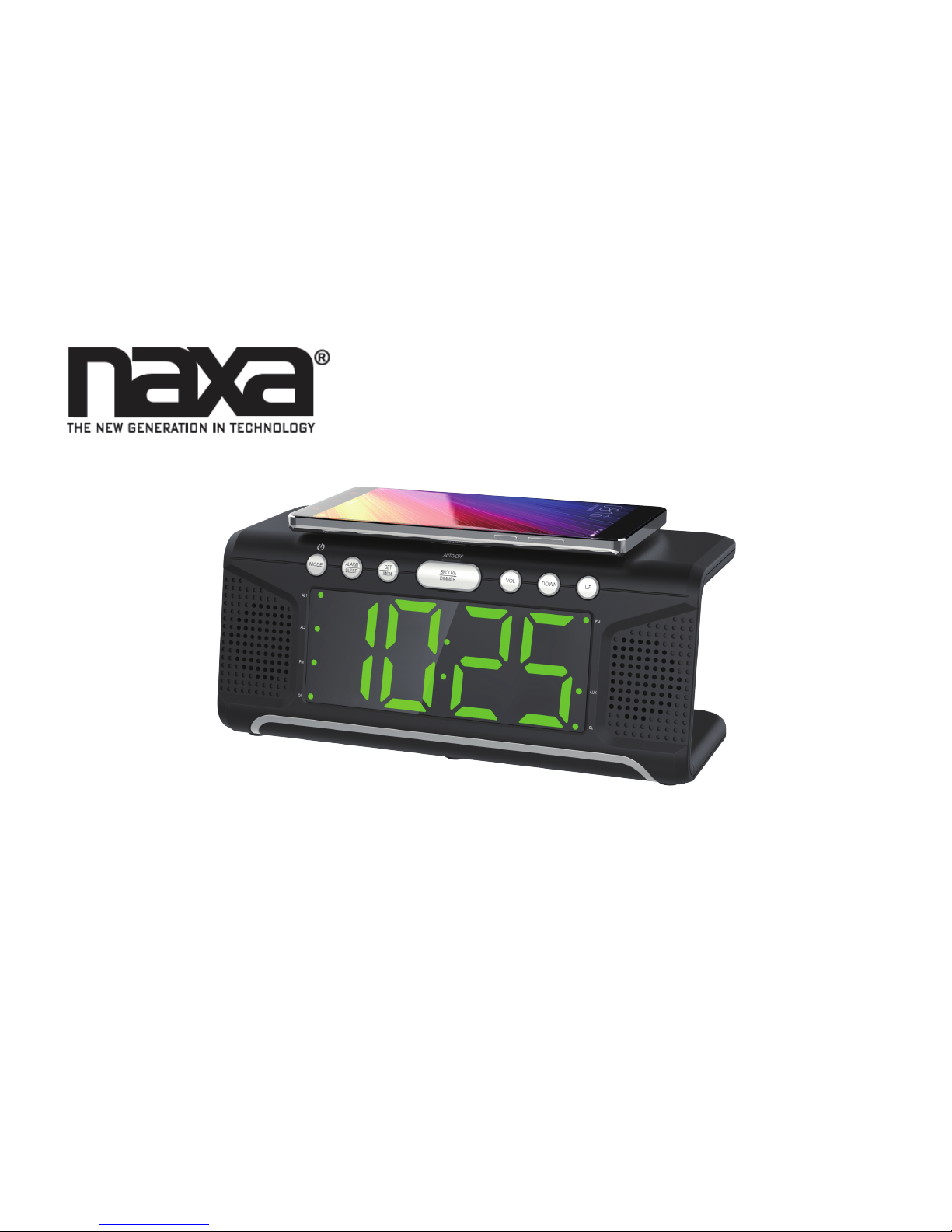

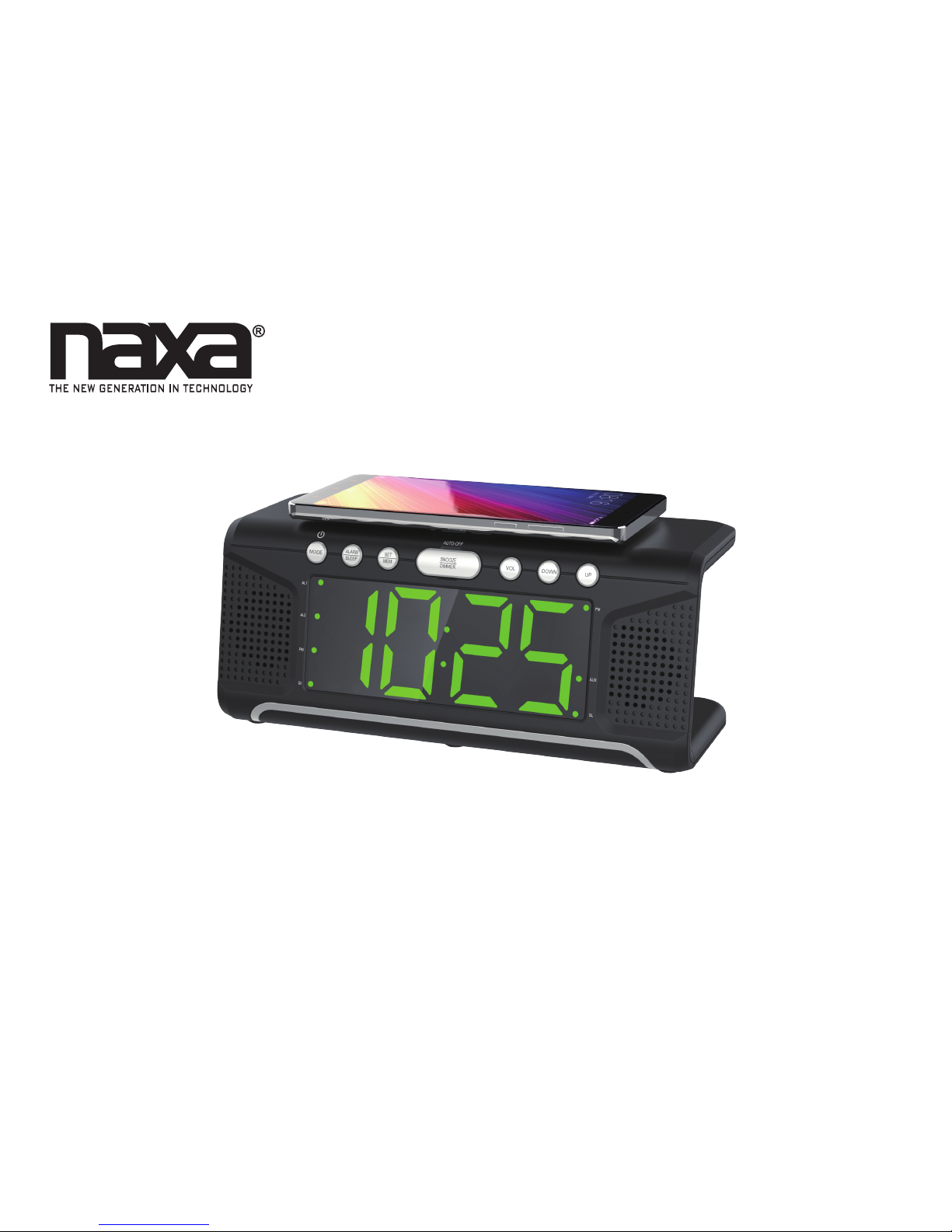

1.8” DUAL ALARM CLOCK DIGITAL FM RADIO
NRC-190
Instruction Manual
Please read carefully befor use and keepfor future reference.
with Wireless charging Technology

Important Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
an equilateral triangle, is intended to alert the user
to the presence of uninsulated “dangerous volt-
age” within the product’s enclosure that maybe of
shock to persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of impor-
tant operating and maintenance (servicing) instruc-
tions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR
MOISTURE.
WARNING: This product contains lead, a chemical known
to the State of California to cause cancer and birth defects
or other reproductive harm.Wash hands after handling.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accor-
dance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including am-
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has
two blades and a third grounding prong. The wide blade
or the third prong are provided for your safety. If the pro-
-
trician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
Page 2 Naxa Electronics

11. -
ufacturer.
12. Use only with the cart, stand, tripod,
-
facturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination
to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. -
ing is required when the apparatus has been damaged in
any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the ap-
paratus, the apparatus has been exposed to rain or mois-
ture, does not operate normally, or has been dropped.
FCC NOTICE
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must ac-
cept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reason-
able protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accor-
dance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and
receiver.
•Connect the equipment into an outlet on a circuit dier-
ent from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician
for help.
CAUTION ON MODIFICATIONS
grantee of this device may void the authority granted by the
FCC to operate the equipment.
www.naxa.com Page 3

Page 4 Naxa Electronics
At a Glance
3. SET/MEM
Memory button
2. ALARM/SLEEP
Button
1. (Standby)/
MODE Button
Press to deactivate alarm for 6
minutes.
Press to turn unit on. Press repeatedly
to change MODES.
Press to set Alarm
4. SNOOZE/
DIMMER
Button
Press to turn o the alarm when it
sounds.
Press repeatedly to set dimmer
setting.
5. VOL
(Volume)
Button
Press to adjust the volume control
6.
7.
Press to decrease the volume.
•
•Press to adjust time for Alarm/Clock
Press to increase the volume.
•
•Press to adjust time for Alarm/Clock
8. Qi (Wireless
Charging)
Area
Location where to place mobile
phone to charge wirelessly
9. Speakers
10. AL 1
(Alarm 1)
Indicator
11. AL 2
(Alarm 2)
Indicator
Alarm 1 Indicator light
Alarm 2 Indicator light
12. PM
Indicator PM Indicator light
Dual Speakers

At a Glance
20. USB Charge
Port
Antenna Wire for FM Radio
3.5 mm stereo mini jack to connect
external media player/mobile phone
19. AUX IN
Jack
21. DC 5V
Power Jack
Power Adapter port
22. Battery Door Battery door cover for 2 (AAA)
batteries for time/alarm backup.
www.naxa.com Page 5
13. Qi (Wireless
Charging)
Indicator
14. LED Display
15. SL (SLEEP)
Indicator
16. AUX
Indicator
17. FM Indicator
18. FM Antenna
Wire
USB charge port to connect to mobile
phone (charging only)
Qi Wireless Charging Indicator
light.
LED Display panel
SLEEP Indicator light
AUX Indicator light
FM Indicator light

Connecting the Unit to
Power
Before plugging in the AC/DC power adapter to the
outlet, make sure that the voltage ofyour electric-
ity supp ly is same as that indicated on the rating
plate or power adapter.
The provided power adapter works
with AC 100-240V,50/60Hz Power.
Battery backup
Battery backup will preserve the current time, alarm
settings in the case ofpower failure or interrupt-
ed AC power.
compartment. Be sure to observe the proper po-
battery compartment.
Setting the Clock
1.
2.
Take note of the PM LED indi cator
when setting the time.
Insert (2) two UM-4 batteries (AAA) into the battery
Connect the AC power adapter to a wall
outlet. The LED Display will illuminate
Press the SET/MEM button, the hour digit
to set the hour.
4.
12-Hour / 24-Hour Mode
Page 6 Naxa Electronics
Press the SET/MEM button twice, the minute
repeatedly to set the minutes.
Press the SET/MEM button 3 times, “12H” or
“24H” will display. Press the or buttons
repeatedly to set the 12 or 24 hour format.
5. Press the SET/MEM button repeatedly until
the actual time appears on the display to
exit.

Setting the Alarms
1.
2. Press the ALARM/SLEEP button again, the
minute digit will ash. Press the or
buttons repeatedly to set the minute.
Press the ALARM/SLEEP button again, the
Alarm 1 status will appear on the display.
Press the or buttons repeatedly to
activate alarm, turn o alarm, and set wake
up mode as illustrated below.
3.
With the unit in Clock mode:
www.naxa.com Page 7
Press the ALARM/SLEEP button once, the
AL 1 (Alarm 1) indicator will illuminate on
the screen and the hour digit will ash.
Press the or buttons repeatedly to set
the hour.
Wake up Mode:
Buzz
Radio
AUX
Display or Indicators
“ON”will appear on the display and AL 1
indicator light will illuminate
“FM”and AL 1 indicators will illuminate
“AUX”and AL 1 indicators will illuminate
After alarm has been set, wait a few seconds.
The unit will save the setings and exit while
going back to displaying the current time.
4.
Alarm 2 Settings:
1.
2. Press the ALARM/SLEEP button again, the
minute digit will ash. Press the or
buttons repeatedly to set the minute.
Press the ALARM/SLEEP button again, the
Alarm 3 status will appear on the display.
Press the or buttons repeatedly to
activate alarm, turn o alarm, and set wake
up mode as illustrated below.
3.
Press the ALARM/SLEEP button 4 times, the
AL 2 (Alarm 2) indicator will illuminate on
the screen. Alarm 2 time will appear on
the display and the hour digit will ash.
Press the or buttons repeatedly to set
the hour.
With the unit in Clock mode:

SNOOZE:
Turning OFF the Alarm
How to Set the SLEEP TIMER
Page 8 Naxa Electronics
Wake up Mode:
Buzz
Radio
AUX
Display or Indicators
“ON”will appear on the display and AL 2
indicator light will illuminate
“FM”and AL 2 indicators will illuminate
“AUX”and AL 2 indicators will illuminate
After alarm has been set, wait a few seconds.
The unit will save the setings and exit while
going back to displaying the current time.
buttons repeatedly to set the minute.
4.
Press the SNOOZE button when the alarm is sounding
to stop the alarm and have it sound again automatically
at your designated Snooze setting.
In Radio or AUX playback mode, press and hold the
ALARM/SLEEP button until the sleep timer appears
on the display to activate the sleep function. The SL
indicator on the display will illuminate. Press the
ALARM/SLEEP button repeatedly to set the sleep
timer from 05 - 90 minutes.
To turn o the sleep timer before time is up, press
and hold the /MODE button to shut o.
DIMMER:
Press the SNOOZE/DIMMER button repeatedly to set
the brightness level of the display.
Press the ALARM/SLEEP button to shut o the
alarm and alarm will reset for the next day.
To disable the alarm completely:
Alarm 1: Press the ALARM/SLEEP button 3 times,
the Alarm 1 status will display. Press the or
buttons repeatedly until “OFF” is displayed. Wait a
few seconds to save the settings.
Alarm 2: Press the ALARM/SLEEP button 6 times,
the Alarm 2 status will display. Press the or
buttons repeatedly until “OFF” is displayed. Wait a
few seconds to save the settings.
Press the SET/MEM button 4 times to set Snooze
interval between 5 - 60 mins. Press the or
buttons to adjust and set Snooze internval.

Listening to the Radio
1.
3.
2.
www.naxa.com Page 9
Press the /MODE button once to access the
Radio input. The radio station number will
display on the screen. (87.5 - 108)
Press and hold the or buttons to engage
the auto search and play to cycle through
dierent radio stations.
If reception is poor, press and release the
or buttons to ne tune your desired radio
station.
To adjust the volume, press the VOL button
once followed by the or buttons to
adjust your desired level. (L01- L15)
Press and hold the /MODE button to turn
OFF the radio.
4.
5.
Radio Station Preset
Press the /MODE button once to access the
Radio input and select your desired station.
1.
Press and hold the SET/MEM button, “01-20”
will appear on the screen and ash.
2.
Press the or buttons to repeatedly to
select the program number of your choice.
3.
Then press the SET/MEM button again to
store it.
4.
Repeat the steps above until all the desired
radio stations are stored in the program list.
Once you have completed and set your radio
station presets, simply press the SET/MEM
button repeatedly to select and play your
desired stored radio station.
5.
6.
If the back up batteries aren’t installed, the preset
stations may erase upon power failure to the unit.
The stored radio stations can be replaced by stor-
ing another new radio station.
A total of 20 FM radio stations can be stored in
the program.

BUILT-IN QI WIRELESS CHARGER
1.
3.
1.
2.
2.
BUILT-IN USB CHARGER
Connect the USB plug from the external USB
device to the USB Charger port at the back of
the unit.
1. Connect the AUX cable from the output jack
of your MP3 player or mobile phone to the
AUX input jack on the Radio.
AUX IN MODE
2. Press the /MODE button twice to access the
AUX input. AUX will be displayed on the
screen.
3.
Page 10 Naxa Electronics
When charging has completed, please
remove the mobile device from the unit.
Place a Qi supported mobile device on the
center of the charging surface as illustrated
below. The Qi inidicator light will display and
your mobile device should begin charging.
Check the mobile device’s charging status using
the charging icon displayed on the screen.
Unit should begin to charge.
Adjust the volume on both your MP3 player
or mobile device and on the unit to your
desired level.
When charging has completed, please
remove the mobile device from the unit.
