Naxa NAS-3074 User manual

Portable Bluetooth® Music System
NAS-3074
Instruction Manual
Please read carefully before use and keep for future reference.

Page 2 Naxa Electronics
Thank You
We know you have many choices when it comes to
technology; thank you for choosing us here at Naxa
Electronics. Established in 2001 in Los Angeles, Califor-
nia, we are dedicated to delivering products that en-
tertain and delight.
We trust that you will be happy with your purchase.
Please read this manual carefully and save it for refer-
ence. You may also nd the latest FAQ, documentation,
and other product material at our website. Come visit
us on the web at www.naxa.com and see all that we
have to offer!
In the Box
Please take a moment to make sure that you have ev-
erything in the list below. Although we make every ef-
fort to ensure that each Naxa device is securely packed
and sealed, we know a lot can happen in between us
and you. If anything is missing, check back with your
local retailer to get immediate assistance. If they can-
not help you, please contact our Naxa Support team at
www.naxa.com/naxa_support.
•NAS-3074
•Combination USB charge cable + 3.5mm AUX audio
adapter

www.naxa.com Page 3
At a Glance
1Power
switch
Set the switch to “ON” to to turn the speaker
on.
Set the switch to “OFF” to turn the speaker off.
2 DC5V/
AUX/FM
port
Use the large USB plug of the included cable
to charge the speaker from a standard USB 5 V
power source.
Use the 3.5 mm plug of the included cable to
connect the speaker to an AUX device.
Connect the included cable when listening to
FM radio.
3 microSD
slot
microSD mode. Load a microSD/SDHC
memory card here for MP3 playback.
4 USB port USB mode. Load a USB memory stick here for
MP3 playback.
5 Speaker Full-range driver delivers great sound.

Page 4 Naxa Electronics
6–/ Press and hold to decrease the volume
level.
MP3: Press to skip to the previous track.
FM: Press to tune to the previous station.
7/M Press to pause or resume playback.
Press and hold to change the active
source mode (Bluetooth®, FM, MP3, AUX).
FM: press to Auto Scan for stations.
8/+ Press and hold to increase the volume
level.
MP3: Press to skip to the next track.
FM: Press to tune to the next station.
9 LED Press to change the multicolor lighting
effect.
Press and hold to turn the Multicolor
LEDs on or off.
10 Microphone Use the microphone to speak when mak-
ing a call with a connected cellphone.
11 Multicolor
LEDs
Indicates speaker status and provides
multicolor light effects.

www.naxa.com Page 5
Connecting Power
Your speaker has an integrated rechargeable battery.
Upon initial use, the battery should be charged fully to
ensure optimal performance and battery life.
Use the included USB cable to connect the speaker to a
USB power source to charge the battery.
•Connect the small “micro USB” end of the cable to
the DC5V/AUX/FM charge port [2] of the unit. (The
3.5 mm plug is not used for power.)
•Connect the large USB plug of the cable to a high-
power USB port on a computer. The computer
should be powered on.
 You may also use the charge cable with a
USB power adapter that matches the pow-
er rating of this device. The power rating
can be found in the Specications section
of this manual.
⚠Never connect the speaker to a power
source that does not match its power rat-
ing.
⚠The battery used in this device may present
a re or chemical burn if mistreated. Do not
disassemble, incinerate, or heat the battery.
Do not leave the battery in a place subject
to direct sunlight, or in a car with its win-
dows closed.
Do not connect the unit to a power source
other than that which is indicated here or on
the label as this may result in the risk of re
or electric shock.
To turn the speaker on, set the Power switch [1] to the
“ON” position.
To turn the speaker off, set the Power switch [1] to the
“Off” position.

Page 6 Naxa Electronics
Using BT Mode (Blue-
tooth®)
Pairing a Device with Bluetooth®
A device must be paired with the speaker before using
them together for the rst time.
Set the Power switch [1] to the “ON” position to place
the speaker in Bluetooth mode. The speaker will emit a
tone and automatically search for a paired device. If it
does not detect a paired device, it will switch to Pairing
mode (the multicolor LEDs will ash quickly). Then:
1. Make sure Bluetooth®is enabled on your device.
Enable it if it hasn’t.
2. Use your device to search for available Bluetooth
devices. (This function is usually in the Bluetooth
settings menu; refer to your device’s instruction
manual to learn more.)
3. The speaker will announce itself as “NAXA NAS-
3074.” Select it from the list of devices.
4. If your device asks for a passcode, use “0000” to
complete the pairing process.
The speaker will provide an audio alert when it pairs to
and connects to your device.
 Make sure that the volume your device is
set to its maximum level, then use the con-
trols on the speaker to adjust the volume
to a comfortable level.
The speaker cannot be paired with more
than one device at a time.
Using the Speaker
When the speaker is connected to a Bluetooth® device:
To do this... ...do this
Start, pause, or resume audio
playback
Press /M.
Skip to the previous track Press –/ .
Skip to the next track Press /+.
Decrease the volume level Press and hold –/ .
Increase the volume level Press and hold /+.

www.naxa.com Page 7
To do this... ...do this
Change the speaker mode be-
tween FM, MP3, and AUX.
Press and hold /M.
Using the Speakerphone Functions
When the speaker is connected to a cellphone with
Bluetooth®:
To do this... ...do this
Answer an incoming call or end
the current call.
Press /M.
Call the last dialed number. Press /M twice quickly.
Change the speaker mode be-
tween FM, MP3, and AUX.
Press and hold /M.
Using the FM Radio
Connect the included combination cable to the DC5V/
AUX/FM connector [2] of the speaker. Set the Power
switch [1] to the “ON” position and then press and hold
/M [7] to set the speaker mode to FM.
 If a memory card has been loaded, the
speaker will automatically switch to MP3
mode when you set the Power switch to
“ON”. Press and hold /M [7] to change the
speaker mode back to FM.
 The combination cable must be connected
for the speaker to receive FM broadcasts.
The rst time you use the radio, you should perform an
Auto Scan. Press /M [7] to automatically nd and save
all FM stations within reception range.
 You should perform an Auto Scan when you
move to a different location or if the bat-
tery runs down completely.

Page 8 Naxa Electronics
To do this... ...do this
Auto scan for stations and save
them to preset memory.
Press /M.
Tune to the previous preset
station
Press –/ .
Tune to the next preset station. Press /+.
Decrease the volume level Press and hold –/ .
Increase the volume level Press and hold /+.
Change the speaker mode be-
tween FM, MP3, and AUX.
Press and hold /M.
Using the MP3 Player
Load a memory card that contains MP3 audio les into
the microSD slot [3] of the speaker or load a USB drive
into the USB port [4] of the speaker. Set the Power
switch [1] to the “ON” position, then press and hold
/M [7] to set the speaker mode to MP3.
 Learn which types of memory cards work
with this speaker in the Specications sec-
tion of this manual.
When the speaker is in MP3 mode:
To do this... ...do this
Start, pause, or resume audio
playback
Press /M.
Skip to the previous track Press –/ .
Skip to the next track Press /+.
Decrease the volume level Press and hold –/ .
Increase the volume level Press and hold /+.
Change the active source mode Press and hold /M.
⚠Do not remove a memory card or USB drive
while the speaker is on. Doing so may dam-
age the speaker system or memory device.

www.naxa.com Page 9
Using the AUX Input
Connector
Connect devices without Bluetooth®by using the in-
cluded combination USB + 3.5mm AUX audio cable.
Connect the 3.5mm plug of the combination cable to
the device’s headphone or line-out jack; connect the
other end to the DC5V/AUX/FM connector [2] of the
speaker. Set the Power switch [1] to the “ON” position,
then press and hold /M [7] to set the speaker mode
to AUX.
1. Press and hold –/ [7] to lower the volume on the
speaker.
2. Set the volume of the device to 80% of its maxi-
mum.
3. Start playback, then press and hold /+ [9] to
gradually increase the volume of the speaker to a
comfortable level.

Page 10 Naxa Electronics

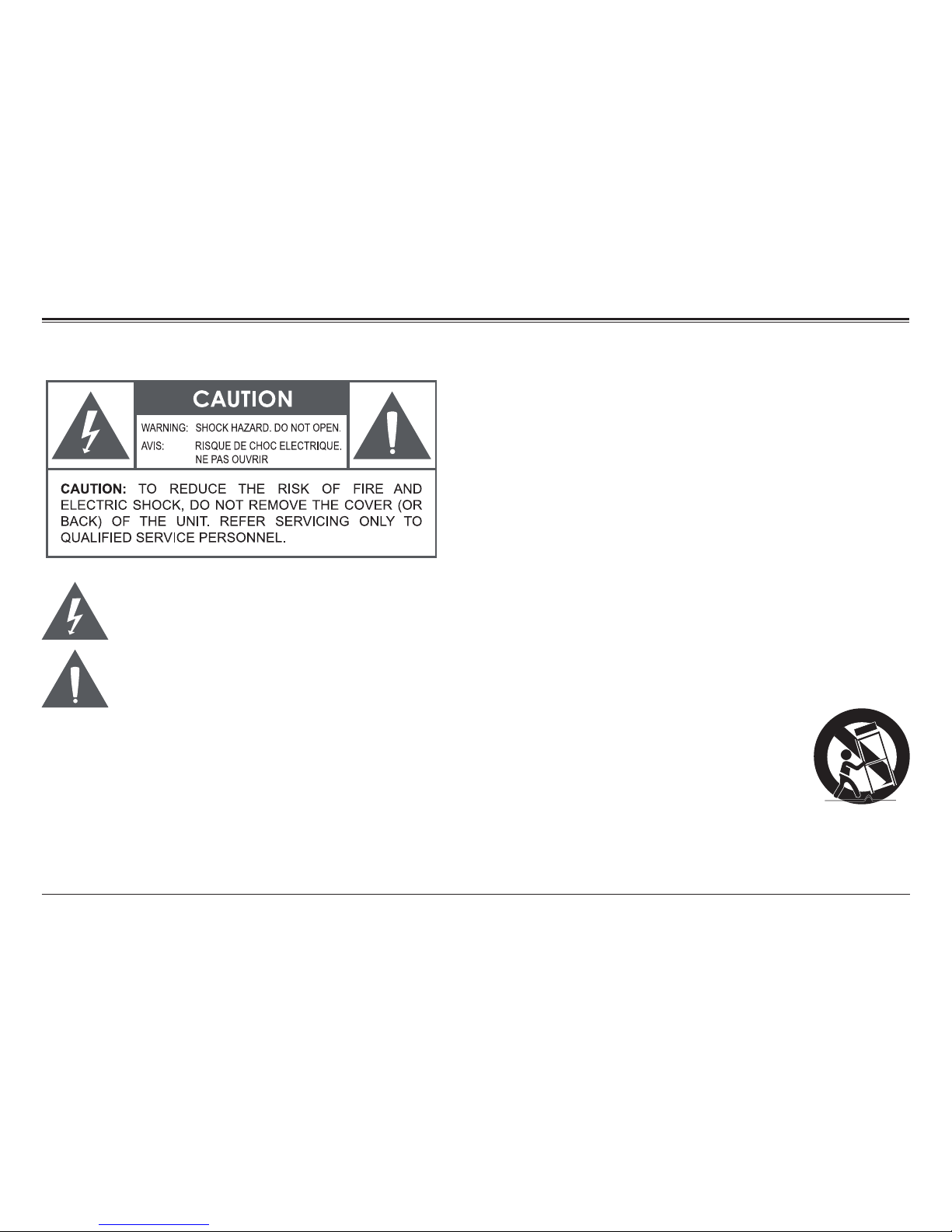

Warnings and Precautions
The lightning ash with arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of unin-
sulated “dangerous voltage” within the product’s enclosure that
may be of signicant magnitude to constitute risk of electric
shock
The exclamation point within an equilateral triangle is intended
to alert the userto the presence of important operation and ser-
vicing instructions in the literature accompanying the appliance.
CAUTION
• Do not block the ventilation openings or holes.
• Do not place any naked ames (such as lighted candles) on the ap-
paratus.
• When discarding batteries, follow all local rules and laws governing the
disposal of batteries. Consider the environmental impact of your actions!
• To prevent re or shock hazard, do not expose this appliance to rain
or moisture.
Important Safety Information
1. Read Instructions: All the safety and operating instructions should be
read before the product is operated.
2. Retain Instructions: The safety and operating instruction should be
retained for future reference.
3. Heed Warnings: All warnings on the product and in the operating in-
structions should be adhered to.
4. Follow Instructions: All operating and usage instructions should be
followed.
5. Cleaning: Unplug this product from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
6. Attachments: Use only attachments recommended by the manufac-
turer. Use of other attachments may be hazardous.
7. Water and Moisture: Do not use this product near water (e.g., near a
bathtub, washbowl, kitchen sink, laundry tub, in wet basements, or
near a swimming pool and the like).
8. Accessories: Do not place this product on an unstable
cart, stand, tripod, bracket, or table. Use only with
carts, stands, tripods, brackets, or tables recom-
mended by the manufacturer or sold with the
product. Any mounting of the product should fol-
low the manufacturer’s instructions and should use
a mounting accessory recommended by the manu-
facturer. A product and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause the
product and cart combination to overturn.

www.naxa.com Page 11
9. Ventilation: Slots and openings in the cabinet are provided for ven-
tilation to ensure reliable operation of the product and to protect it
from overheating. These openings should never be blocked by placing
the product on a bed, sofa, rug, or other similar surface. This product
should not be placed in a built-in installation such as a bookcase or
rack unless proper ventilation is provided or the manufacturer in-
structions have been adhered to.
10. Power Sources: This product should be operated only from the type of
power source indicated on the rating label. If you are not sure of the
type of power supply to your home, consult your product dealer or
local power company. For products intended to operate from battery
power or other sources, refer to the operating instructions.
11. Grounding or Polarization: This product may be equipped with a po-
larized alternating-current line plug that has one blade wider than
the other. This plug will only t into the power outlet in one direction.
This is a safety feature. If you are unable to insert the plug fully into
the outlet, try reversing the direction of the plug. If the plug should
still fail to t, contact an electrician to replace the obsolete outlet. Do
not defeat the safety purpose of the polarized plug.
12. Power-Cord Protection: Power supply cords should be routed so that
they are not likely to be walked on or pinched by items placed upon
or against them, paying particular attention to cords at plugs, conve-
nience receptacles, and at the point which they exit from the product.
13. Protective Attachment Plug: The product may be equipped with an at-
tachment plug with overload protection. This is a safety feature. See
the operating instructions for replacement or directions to reset the
protective device. If replacement of the plug is required, be sure the
service technician has used a replacement plug that has the same over-
load protection as the original plug as specied by the manufacturer.
14. Lightning: For added protection for this product, unplug it from the
wall outlet during a lightning storm or when it is left unattended and
unused for long periods oftime. This will prevent damage to the prod-
uct due to lightning or power-line surges.
15. Overloading: Do not overload wall outlets, extension cords, or inte-
gral convenience receptacles as this can result in a risk of re or elec-
tric shock.
16. Object and Liquid Entry: Never push objects of any kind into this prod-
uct through openings as they may touch dangerous voltage points or
short-out parts that could result in a re or electric shock. Never spill
liquid of any kind on the product.
17. Servicing: Do not attempt to service this product yourself as open-
ing or removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualied service personnel.
18. Damage Requiring Service: Unplug this product from the wall outlet
and refer servicing to qualied service personnel under the follow-
ing conditions: a) when the power-supply or plug is damaged; b) if
liquid has been spilled or if objects have fallen into the product; c) if
the product has been exposed to rain or water; d) if the product does
not operate normally by following the operating instructions. Adjust
only those controls that are covered by the operating instructions as
improper adjustment of other controls may result in damage and will
often require extensive work by a qualied technician to restore the
product to its normal operation; e) if the product has been dropped or
damaged in any way; f) when the product exhibits a distinct change in
performance—this indicates a need for service.
19. Replacement Parts: When replacement parts are required, be sure
that your service technician has used replacement parts specied
by the manufacturer or have the same characteristics as the original
part. Unauthorized substitutions may result in re, electric shock, or
other hazards.

Page 12 Naxa Electronics
20. Safety Check: Upon completion of any service or repairs to this
product,ask the service technician to perform safety checks to ensure
that the product is in proper operating condition.
21. Wall or Ceiling Mounting: The product should be mounted to a wall or
ceiling only as recommended by the manufacturer.
22. Heat: The product should be situated away from heat sources such as
radiators,heat registers, stoves, or other products (including ampli-
ers) that produce heat.
WARNING:
This product contains lead, a chemical known to the State of California to
cause cancer and birth defects or other reproductive harm. Wash hands
after handling.
FCC NOTICE
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the lim-
its for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful in-
terference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to ra-
dio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be de-
termined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION ON MODIFICATIONS
Any changes or modications not expressly approved by the grantee of
this device may void the authority granted by the FCC to operate the
equipment.
Trademark & Regulatory Statements
Bluetooth®is a registered trademark of Bluetooth SIG, Inc. Other trade-
marks and names are those of their respective owners.
microSD and microSDHC are trademarks or registered trademarks of SD-
3C, LLC in the United States, other countries or both.

www.naxa.com Page 13
Troubleshooting Guide
This guide lists common problems and their solutions.
Please refer to this guide before requesting service.
If you need further assistance, please contact Naxa
Technical Support (www.naxa.com/naxa_support/).
Symptom Possible Cause Possible Solution
There is no
power.
The battery is
exhausted.
Connect the unit to a
USB power source to
charge it.
The speaker hasn’t
been turned on.
Set the Power switch on
the back of the speaker
to the “ON” position.
The device
is unable to
connect to the
speaker.
The speaker is not
in pairing mode.
Reset the speaker (turn
it off and then set the
Power switch to the
“ON” position.
Bluetooth may be
disabled on the
device.
Make sure Bluetooth is
enabled on your device.
Turn it on if it isn’t.
Symptom Possible Cause Possible Solution
The device is
connected but
there is no
sound.
The AUX connector
may be in use.
Disconnect all cables
from the AUX in-
put connector of the
speaker.
The speaker may be
in the wrong mode.
Press and hold /M to
change the active mode.
Your device may be
beyond the effec-
tive range of the
speaker.
Move closer to the
speaker. Range may
be affected adversely
by environmental
conditions.
Your device may
not be in playback
mode.
Ensure that your device
is operating correctly.
Start playback on your
device.

Page 14 Naxa Electronics
Specications
Speakers 3W RMS
Frequency Response 150 - 20,000 Hz
Removable Memory
Support
microSD, microSDHC (max 32 GB)
Playable Media
Formats
MP3
Radio Tuner FM
Wireless Source Bluetooth®
Input 3.5mm AUX audio (via USB with
included adapter)
Built-in microphone
Power Rechargeable battery (200 mAh)
USB charge port (DC 5V)
Battery Life* Music: 1 hour
Talk: 1.5 Hours
* Estimated time based on Bluetooth use at 100% volume; battery life will
vary depending on use conditions.
Note: Product are improved continuously. We reserve the right to modify
the product and specications without prior notice.
Support
If you have problems with your device, please consult
the instructions in this manual. Please also visit us
on the web at www.naxa.com to get up to the minute
news, alerts, and documentation for your device. For
additional assistance, please contact Naxa Technical
Support.
NAXA Technical Support
2320 East 49th St.
Vernon, CA 90058
http://www.naxa.com/naxa_support/

www.naxa.com Page 15
