7772-K168
Issue B
Wireless Card and Antenna (Port C)
Kit Instructions

Confidential and proprietary information of NCRCorporation.
Unauthorized use, reproduction and/or distribution is strictly prohibited.
2
Copyright
The product described in this document is a licensed product of NCR Corporation.
NCR is a registered trademark of NCR Corporation. NCR CX7 All-in-One POS (7772) is a trademark of NCR
Corporation in the United States and/or other countries. Other product names mentioned in this publication may be
trademarks or registered trademarks of their respective companies and are hereby acknowledged.
Java is a registered trademark of Oracle and/or its affiliates.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing LLC in the United States and other countries.
Where creation of derivative works, modifications or copies of this NCR copyrighted documentation is permitted under
the terms and conditions of an agreement you have with NCR, NCR's copyright notice must be included.
It is the policy of NCR Corporation (NCR) to improve products as new technology, components, software, and firmware
become available. NCR, therefore, reserves the right to change specifications without prior notice.
All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some
instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR
representative or NCR office for information that is applicable and current.
Copyright © 2020–2024
By NCRCorporation
Global Headquarters
864 Spring St. NW
Atlanta, GA 30308
United States
All Rights Reserved

Confidential and proprietary information of NCRCorporation.
Unauthorized use, reproduction and/or distribution is strictly prohibited.
3
Table of Contents
Copyright 2
Wireless Card and Antenna (Port C) 5
Kit Contents 5
Installation Procedure 6

Confidential and proprietary information of NCRCorporation.
Unauthorized use, reproduction and/or distribution is strictly prohibited.
4
Revision Record
Issue Date Remarks
A Jun 2020 First Issue
B Dec 2021 Added Warning statement

Confidential and proprietary information of NCRCorporation.
Unauthorized use, reproduction and/or distribution is strictly prohibited.
5
Wireless Card and Antenna (Port C)
This kit provides a Wireless Card and Antenna for Port C of the NCR CX7 All-in-One POS
(7772) or NCRCX5 All-in-One POS(7773).
Kit Contents

Confidential and proprietary information of NCRCorporation.
Unauthorized use, reproduction and/or distribution is strictly prohibited.
6
Installation Procedure
Warning
Disconnect the AC power cord from the AC outlet and wait 30 seconds before
servicing the terminal.
1. Lay the Display face down on a flat surface.
Note
Always use a soft material (cloth, foam) to protect the display screen when
placing the terminal face down.
2. Remove the Cable Cover.
a. Remove the two (2) screws that secure the Cable Cover to the Back Cover.
b. Rotate and unhook the Cable Cover from the Back Cover.

Confidential and proprietary information of NCRCorporation.
Unauthorized use, reproduction and/or distribution is strictly prohibited.
7
3. Disconnect the Cables.
a. Loosen the thumbscrew of the 180-degree USB-C Cable then disconnect the
Cable.
b. Remove the Ethernet Cable from the Cable Management Hook then
disconnect the Cable.
4. Loosen the two (2) captive screws that secure the Back Cover to the Display.

Confidential and proprietary information of NCRCorporation.
Unauthorized use, reproduction and/or distribution is strictly prohibited.
8
5. Rotate the Back Cover away from the Display and unhook the Back Cover Tabs.

Confidential and proprietary information of NCRCorporation.
Unauthorized use, reproduction and/or distribution is strictly prohibited.
9
6. Insert a flat screw driver in the slot to unsnap the Peripheral Filler Plate from Port C
of the display housing.
7. Insert the Wireless Card into the connector.

Confidential and proprietary information of NCRCorporation.
Unauthorized use, reproduction and/or distribution is strictly prohibited.
10
8. Secure the Card with a screw.

Confidential and proprietary information of NCRCorporation.
Unauthorized use, reproduction and/or distribution is strictly prohibited.
11
9. Route the first Antenna Cable through the port opening located as shown and pull
the Cable completely through.
Note
If present, remove the protective cover from the Micro Coax Connector.

Confidential and proprietary information of NCRCorporation.
Unauthorized use, reproduction and/or distribution is strictly prohibited.
12

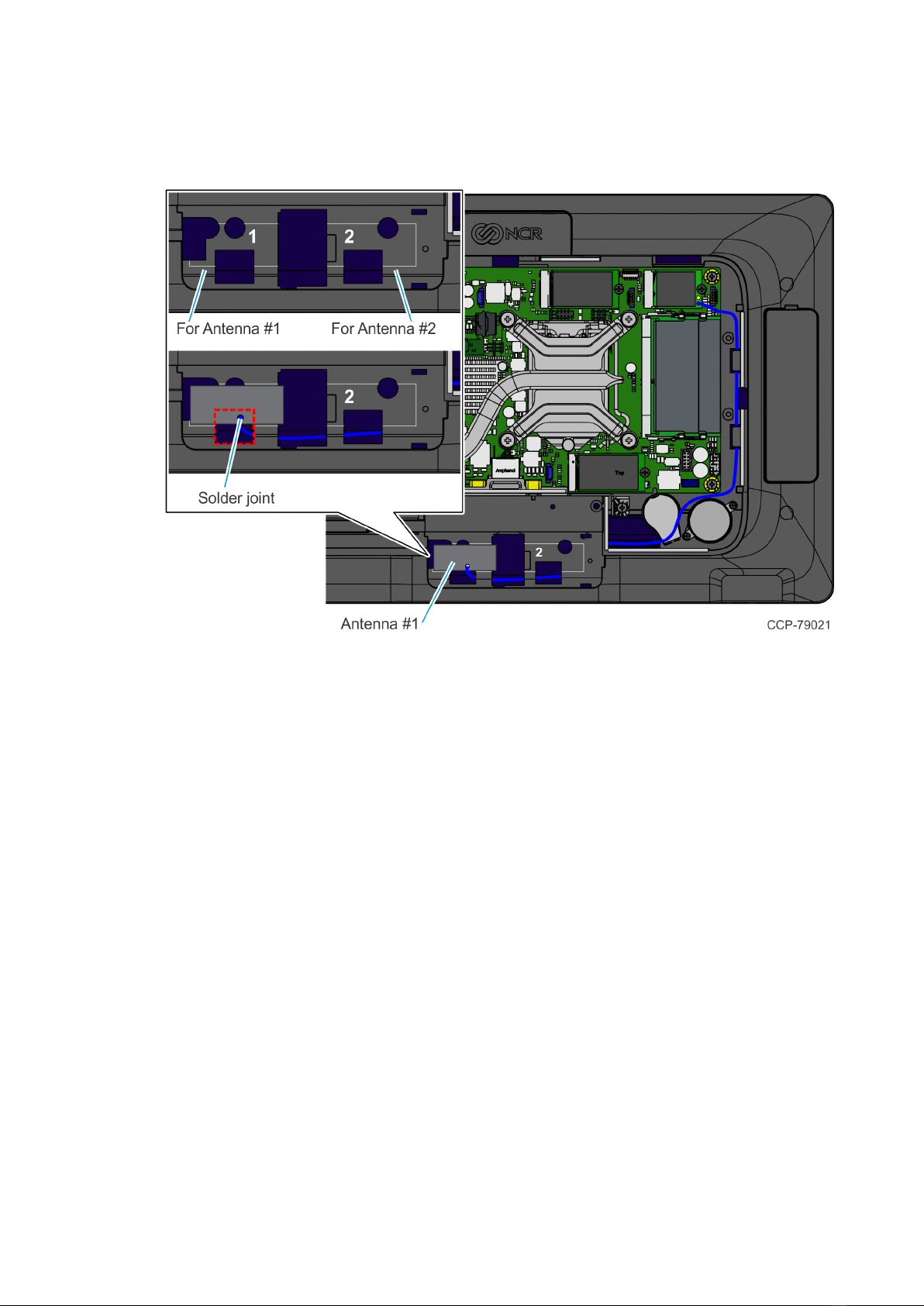

10. Remove the adhesive liner from the Antenna and place the Antenna on the location
marked “1” on the display housing. Ensure the solder joint of the Antenna is within
the opening.

Confidential and proprietary information of NCRCorporation.
Unauthorized use, reproduction and/or distribution is strictly prohibited.
13
11. Route and secure the Antenna Cable under the Cable Management Hooks as
shown.
Note
Route the Cable above the upper edge of the Speaker.
12. Connect the first Antenna Cable to Connector 1 (Aux)of the Wireless Card.

Confidential and proprietary information of NCRCorporation.
Unauthorized use, reproduction and/or distribution is strictly prohibited.
14
13. Route the second Antenna Cable through the port opening located as shown and
pull the Cable completely through.
Note
If present, remove the protective cover from the Micro Coax Connector.

Confidential and proprietary information of NCRCorporation.
Unauthorized use, reproduction and/or distribution is strictly prohibited.
15
14. Remove the adhesive liner from the Antenna and place the Antenna on the location
marked “2” on the display housing. Ensure the solder joint of the Antenna is within
the opening.

Confidential and proprietary information of NCRCorporation.
Unauthorized use, reproduction and/or distribution is strictly prohibited.
16
15. Route and secure the Antenna Cable under the Cable Management Hooks as
shown.
Note
Route the second Cable below the bottom edge of the Speaker.

Confidential and proprietary information of NCRCorporation.
Unauthorized use, reproduction and/or distribution is strictly prohibited.
17
16. Connect the second Antenna Cable to Connector 2 (Main)of the Wireless Card.
Note
For clarity, the first Antenna Cable is not shown in the illustration.
17. Hook the Peripheral Filler Plate into the display housing and snap into place.
18. Reinstall the Display Back Cover.
19. Reconnect the 180-degree USB-CCable and Ethernet Cable.
20. Reinstall the Cable Cover.
