NCR 7606-K300 User manual

KIT INSTRUCTIONS
Integration Tray
7606-K300/K301/K303
Issue C

The product described in this book is a licensed product of NCR Corporation.
NCR is a registered trademark of NCR Corporation. NCR RealPOS is a trademark of NCR Corporation in the United States
and/or other countries. Other product names mentioned in this publication may be trademarks or registered trademarks of their
respective companies and are hereby acknowledged.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks
of HDMI Licensing LLC in the United States and other countries.
Where creation of derivative works, modifications or copies of this NCR copyrighted documentation is permitted under the terms
and conditions of an agreement you have with NCR, NCR's copyright notice must be included.
It is the policy of NCR Corporation (NCR) to improve products as new technology, components, software, and firmware become
available. NCR, therefore, reserves the right to change specifications without prior notice.
All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances,
photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR
office for information that is applicable and current.
To maintain the quality of our publications, we need your comments on the accuracy, clarity, organization, and value of this book.
Address correspondence to:
Manager, Information Solutions Group
NCR Corporation
Discovery Centre, 3 Fulton Road
Dundee, DD2 4SW
Scotland
Internet Address:
http://www.info.ncr.com/Feedback
Copyright © 2012
By NCR Corporation
Duluth, GA U.S.A.
All Rights Reserved
Revision Record
Issue Date Remarks
A May 2012 First Issue
B Jun 2014 Added Series II Printer
C Jul 2014 Added black cabinetry

RealPOS 82XRT Integration Tray Kit Instructions
Introduction
The Integration Tray kit provides the necessary components for integrating the
displays, printers, and cash drawer with the RealPOS 80XRT terminal. There are two
versions of the kit:
• 7606-K300 - Beige
• 7606-K301 - Charcoal
• 7606-K303 - Black
Note: If the 7606-K301 kit is being used to convert a beige terminal to charcoal then
you also need the 7606-K306 Charcoal Front Bezel kit.

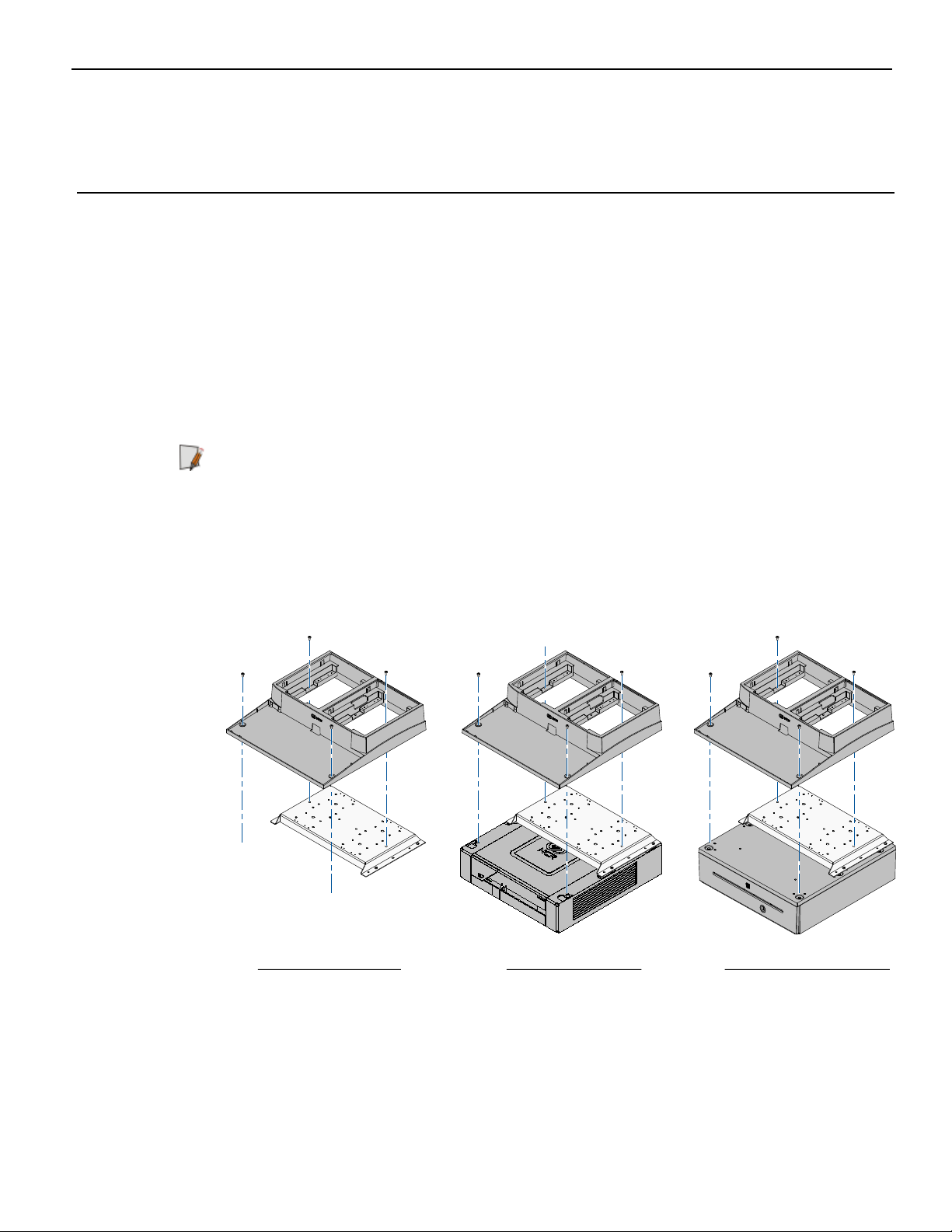

The Integration Tray can be mounted on a table top, on the terminal, or on the cash
drawer.
Mounting Options
31263
Mounted on Table-TopMounted on Table-Top Mounted on Terminal Mounted on Cash Drawer

2 RealPOS 82XRT Integration Tray Kit Instructions

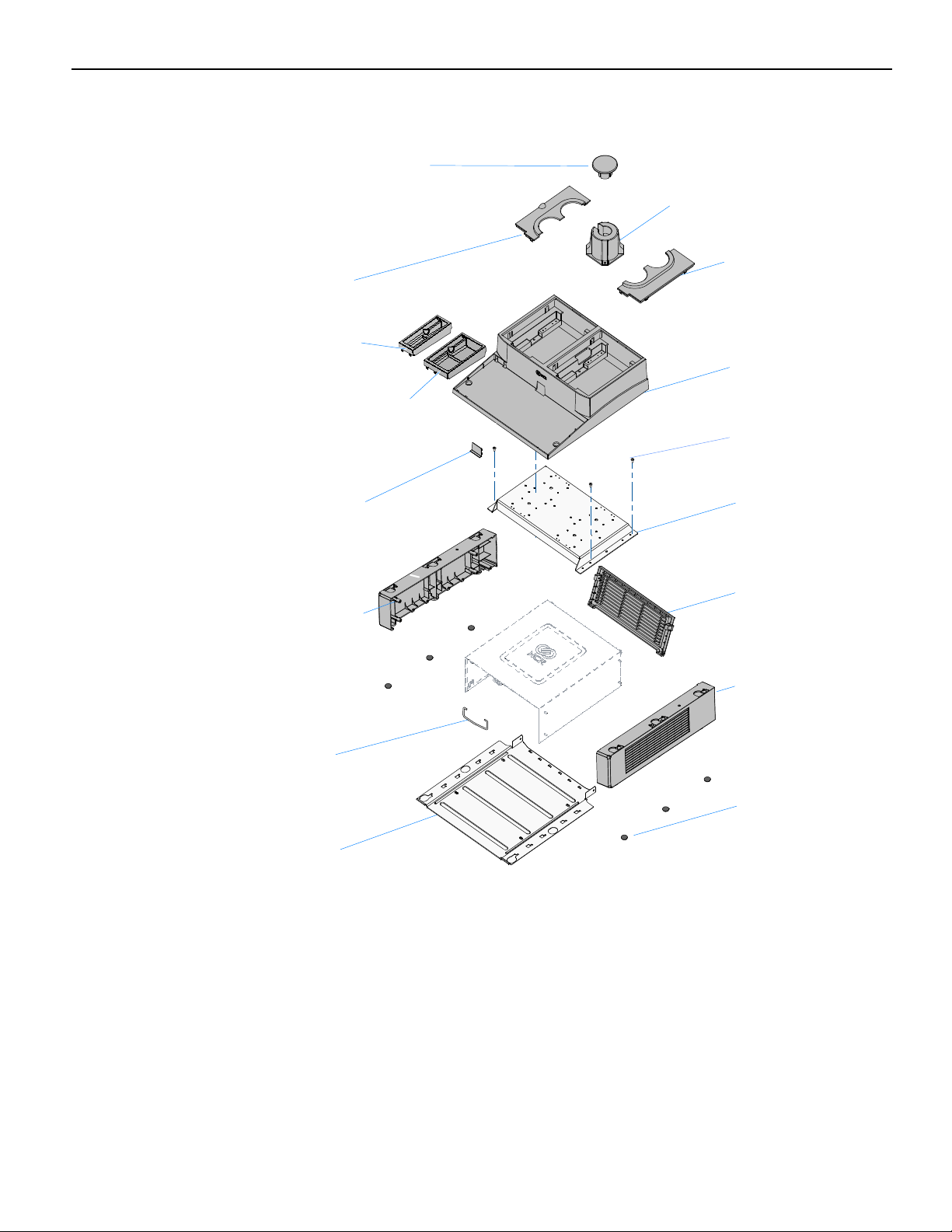

Kit Contents
31245
Cap,NoCustomerDisplay
497-0427256(G11)
497-0427257(CG1)
497-0427258(BLK)
CustomerDisplayPost
497-0427331(G11)
497-0427332(CG1)
497-0427333(BLK)
CableCover
497-0450624(G11)
497-0450625(CG1)
497-0450626(BLK)
ChassisHandle
497-0449420
IntegrationTray
497-0451780(G11)
497-0451781(CG1)
SwingArmSkirt,Left
497-0451788(G11)
497-0451789(CG1)
497-0503923(BLK)
SwingArmSkirt,right
497-0451790(G11)
497-0451791(CG1)
197-0503924(BLK
TraySupportBracket
497-0470778
ExtensionCabinet,Left
497-0473982(G11)
497-0473983(CG1)
497-0503928(BLK)
ExtensionCabinet,right
497-0473985(G11)
497-0473986(CG1)
497-0503929(BLK)
RubberBumper
497-0452652
IntegrationTrayPlug
497-0459015(G11)
497-0459016(CG1)
497-0503927(BLK)
CabinetBottom
497-0451604
Screw,8-32x0.375,
PanHd,Phillips
006-8611339
Compact Alpha w/o MSR Filler
497-0451847 (G11)
497-0451848 (CG1)
497-0503926 (BLK)
Compact Alpha w/MSR Filler
497-0451797 (CG1)
497-0503925 (BLK)

RealPOS 82XRT Integration Tray Kit Instructions 3
Installation Procedures
Removing the Cabinet
1. Disconnect all cables from the back of the terminal.
2. Remove the Bezel.
a. Turn the Keylock to the unlocked position.
b. Pull the top edge of the Bezel away from the chassis and remove the cover.
30629
3. Loosen the thumbscrews (2) that secure the Top Cover.
30634
Thumbscrews

4 RealPOS 82XRT Integration Tray Kit Instructions
4. Slide the Top Cover toward the rear of the terminal to remove it.
31260
Assembling the Integration Components
1. Lay the Top Cover on a flat work surface upside down.
2. Attach the Right and Left Cabinet Extensions (4 screws each @ 8 lbf). There is one
screw hole on each side with close tolerances. Install these screws first. Install the
second screw per the illustration below.
First screw to be installed (per each side)
Second screw to be installed (per each side)

RealPOS 82XRT Integration Tray Kit Instructions 5

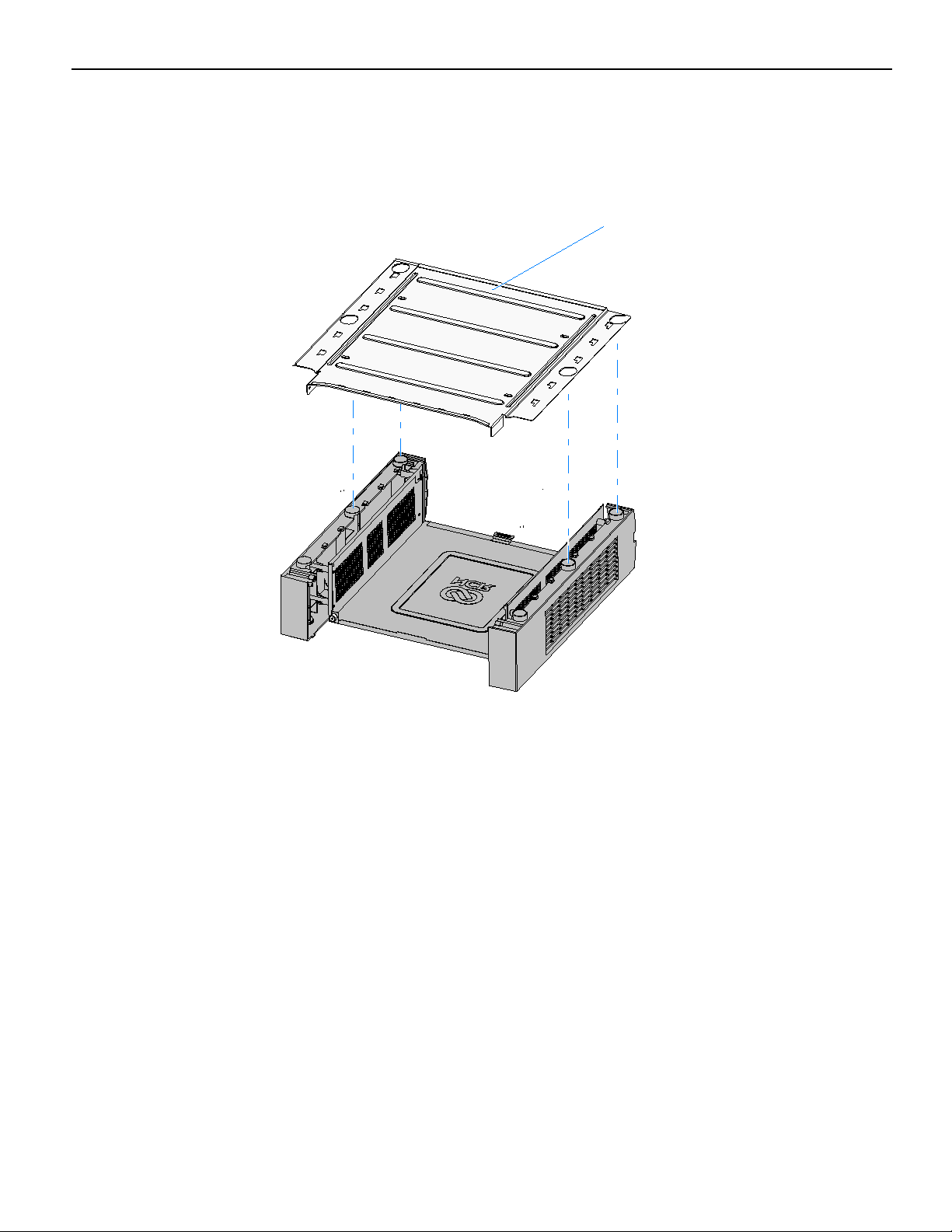

3. Attach the Cabinet Bottom.
a. Positions the Cabinet Bottom over the Cabinet Feet and align the slots (10) in the
Cabinet Bottom with the hooks on the Cabinet Extensions.
24618
Cabinet Bottom

6 RealPOS 82XRT Integration Tray Kit Instructions

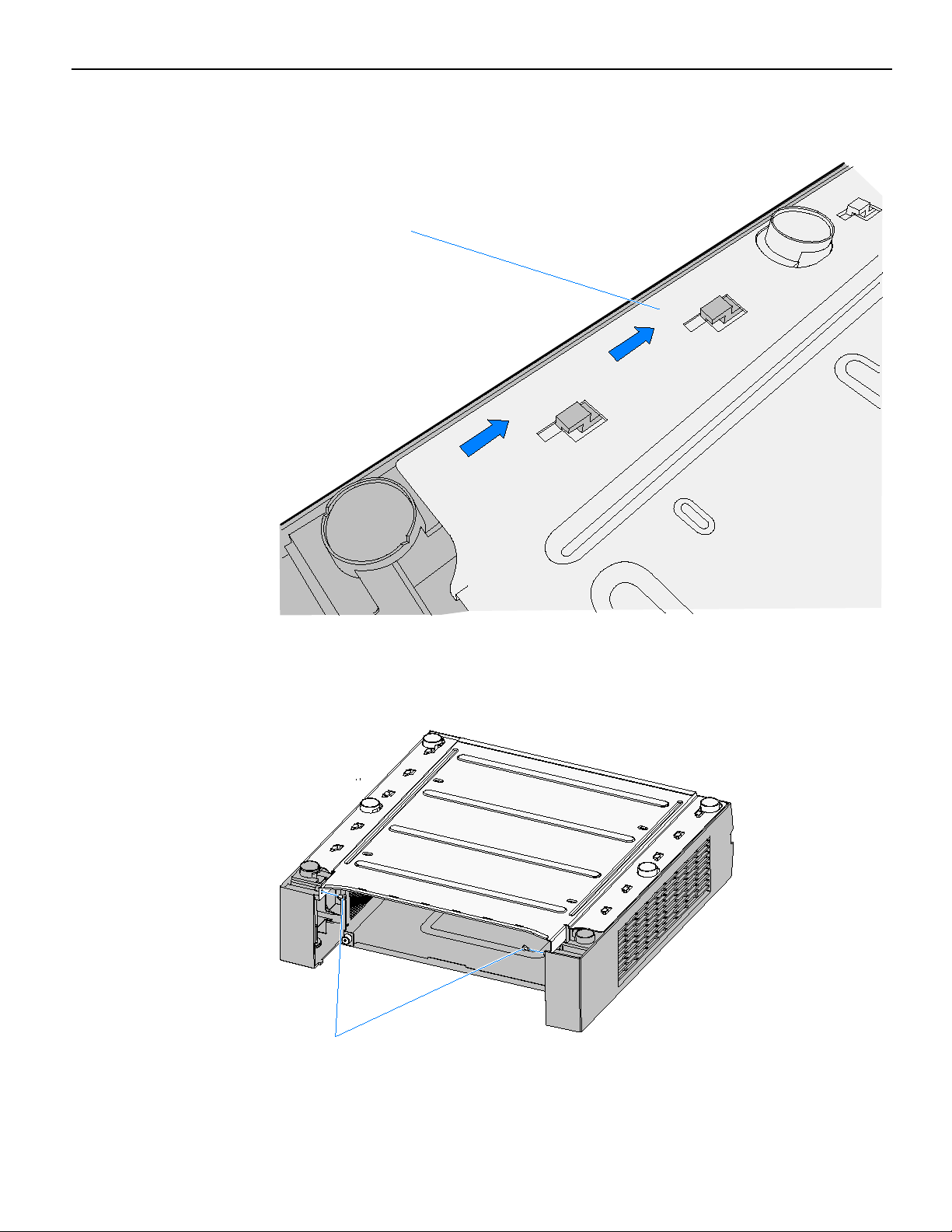

b. Slide the Cabinet Bottom toward the back of the unit to lock it into position.
24582
Cabinet Bottom
c. Secure the Cabinet Bottom to the Cabinet Extensions with screws (2 on the back
end of the unit and 4 on the front end @ 8 lbf).
24620
Screws

RealPOS 82XRT Integration Tray Kit Instructions 7

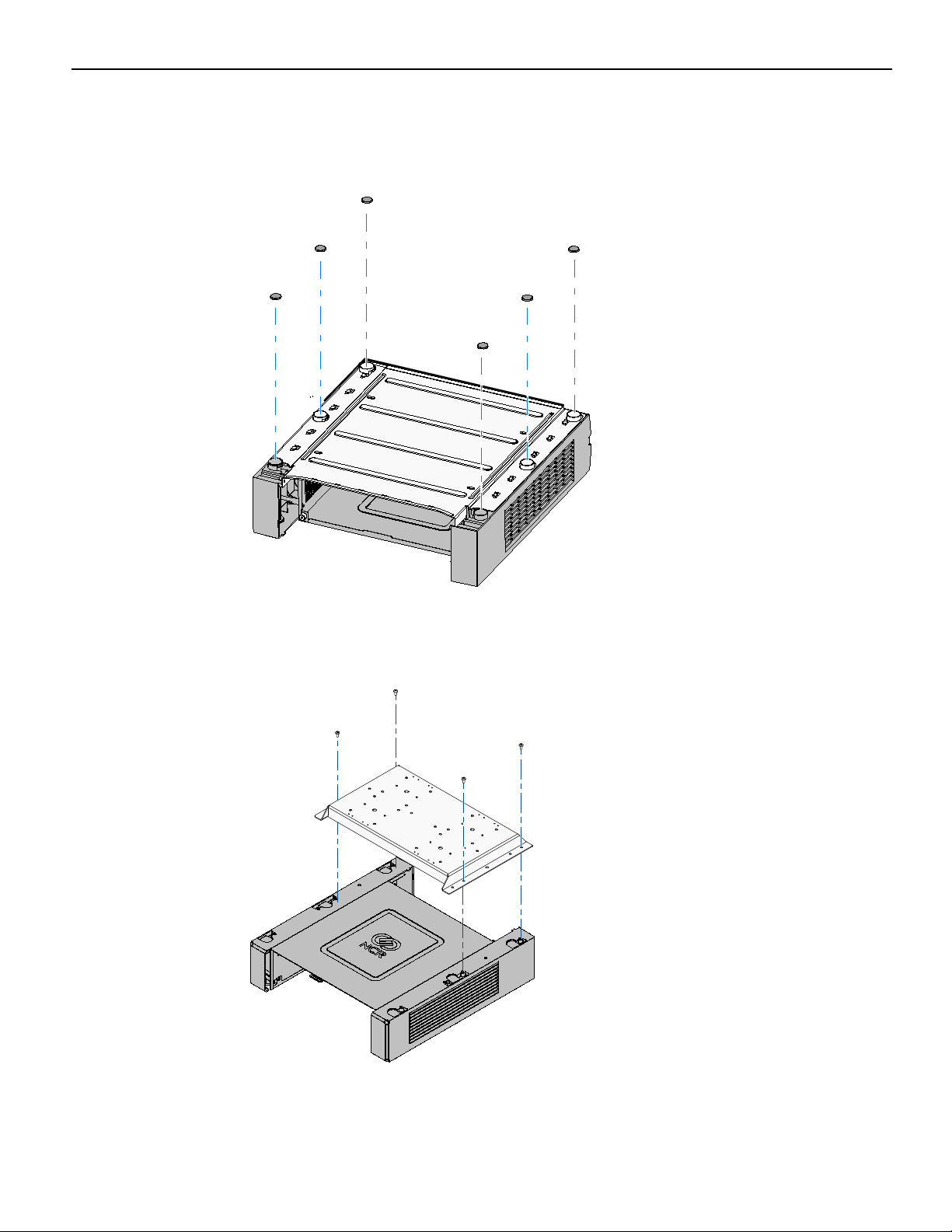

4. Install the adhesive-backed Rubber Bumpers (6) on the bottom of the Cabinet
Extensions. Clean the plastic surfaces with isopropyl alcohol before adhering the
rubber bumpers.
24619
5. Position the Tray Support Bracket on top of the terminal and secure it with screws (4
@ 8 lbf).
31264

8 RealPOS 82XRT Integration Tray Kit Instructions

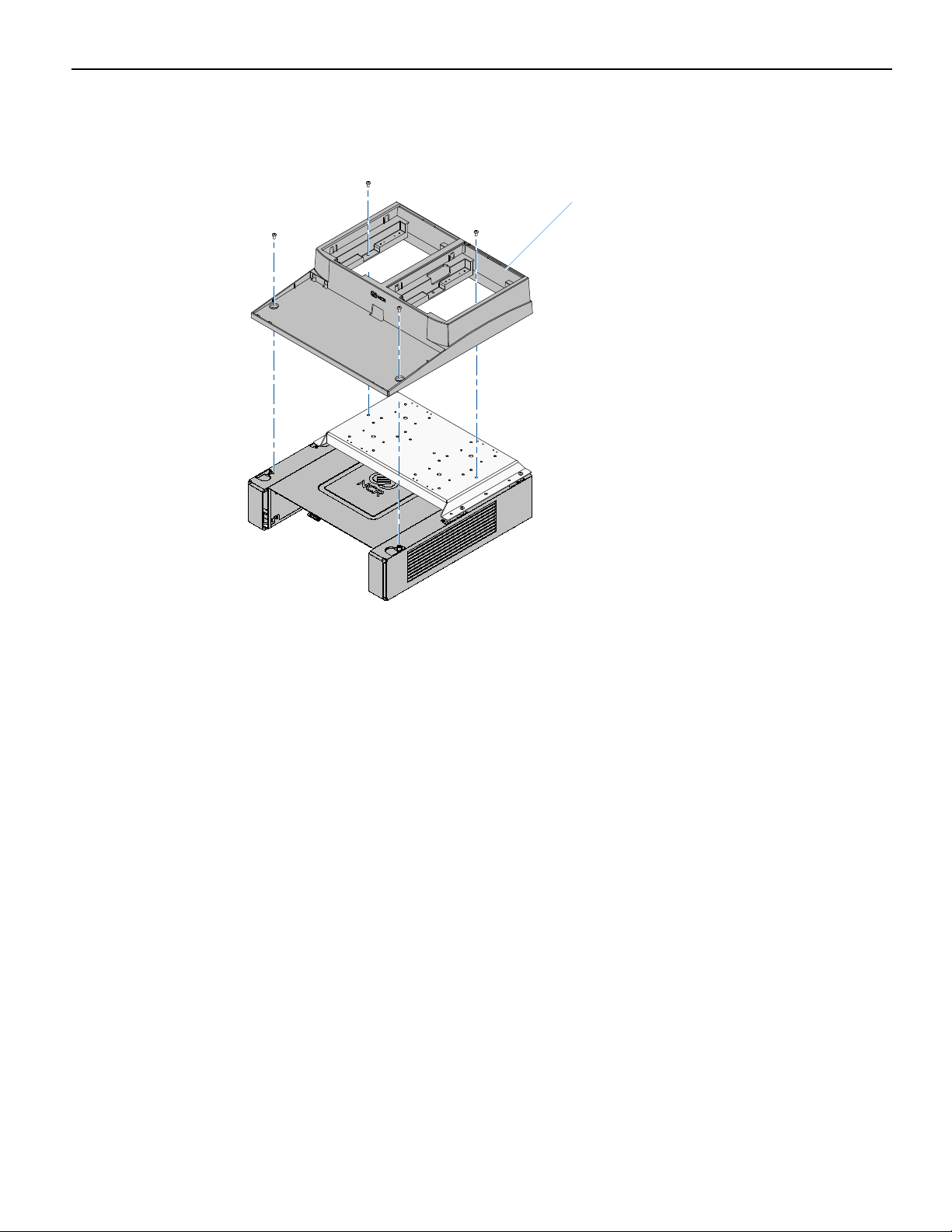

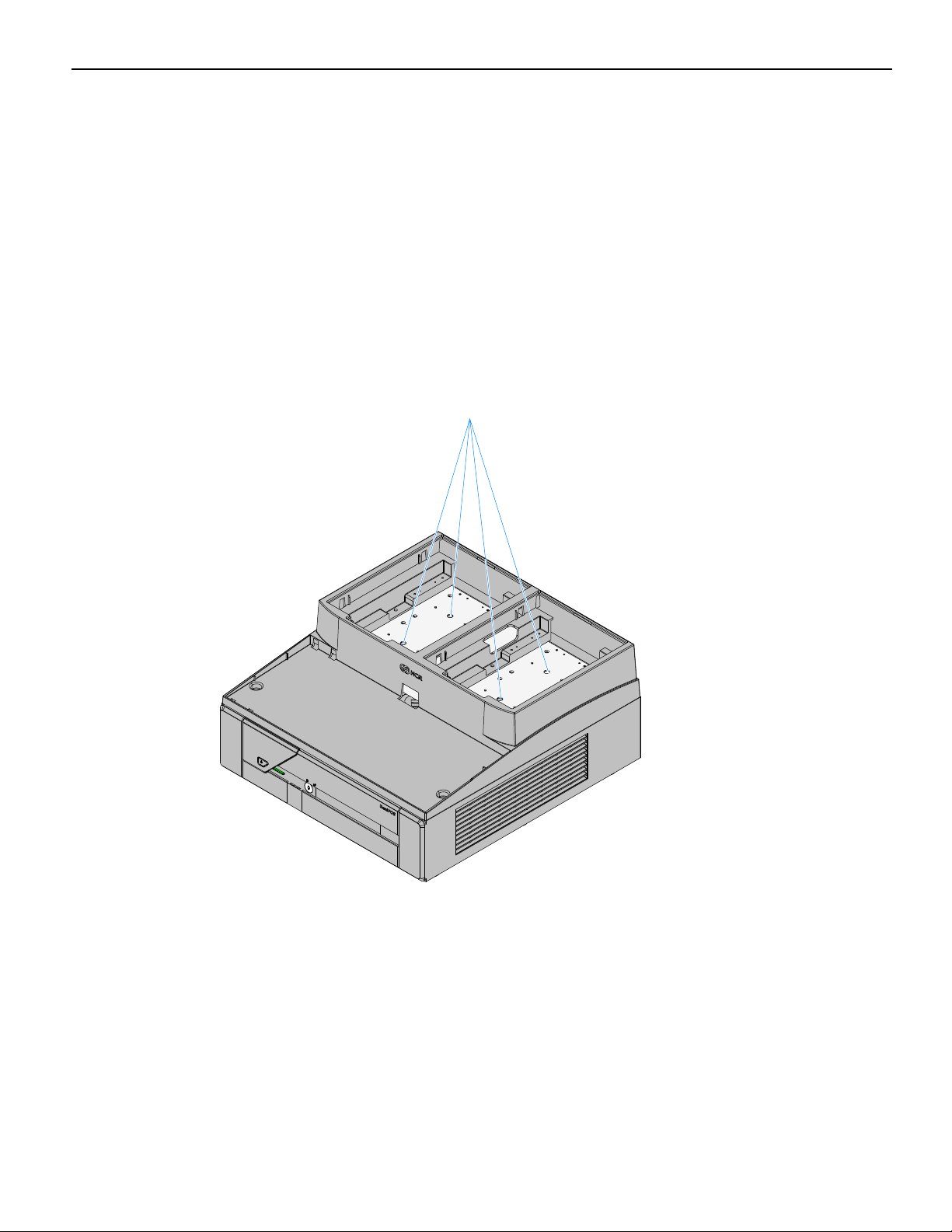

6. Position the Integration Tray on top of the Tray Support Bracket and secure it with
screws (4 @ 8 lbf).
31265
Integration Tray

RealPOS 82XRT Integration Tray Kit Instructions 9
Installing the Electronics Sled
1. Install the Chassis Handle onto the Electronics Sled.
a. Inserting one end of the handle into one of the slots on the Electronics Sled
Chassis.
b. Spread the other end of the handle out and insert it into the other slot.
27652
1. Insert one end.
2. Spread other end.
3. Insert other end.

10 RealPOS 82XRT Integration Tray Kit Instructions
2. Slide the Electronics Sled into the cabinet. Do not tighten the thumbscrews so the
sled can be pulled out for service.
Caution: Remember to tighten the thumbscrew before moving the terminal to
another location to prevent the sled from falling out.
31266
3. Replace the Bezel.
a. Turn the Keylock to the unlocked position.
b. Insert the hooks on the bottom edge of the Bezel in the slots in the chassis.
c. Pivot the top of the Bezel into the chassis until it snap into position.
31283
d. Turn the Keylock to the locked position.

RealPOS 82XRT Integration Tray Kit Instructions 11
Installing the Keyboard
Note: If a keyboard is not used insert the Integration Tray Plug into the opening where
the keyboard cable would normally be routed.
Keyboard installation varies, depending on which keyboard you are using. See the
following options.
• NCR 5932-5xxx USB Alphanumeric Big Ticket Keyboard
a. Install the keyboard in the Integration Tray.
b. Route the cable as shown.
31267
• NCR 5932-22xx 64-Key Programmable POS Keyboard

12 RealPOS 82XRT Integration Tray Kit Instructions
• NCR 5932-6xxx Compact Alpha-Numeric Keyboard
a. Install the keyboard in the Integration Tray.
b. Route the cable as shown.
c. Install the Keyboard Tray Insert, if applicable.
Note: There are two Keyboard Tray Inserts in the kit. The narrow tray is used in all
cases except when using the 5932-65xx PS/2 model without an MSR.
31268
5932-6xxx Compact Keyboard w/MSR
Wide Insert - Use with 5932-6xxx Compact Keyboard w/o MSR
Narrow Insert - Use with 5932-6xxx Compact Keyboard w/MSR

RealPOS 82XRT Integration Tray Kit Instructions 13
Installing the Transaction Printer
The NCR 7167, 7168, 7197, or 7198 printer can be located on either side of the Integration
Tray.
Note: The Printer Cable Strain Relief is different on the Release 1.0 and the Series II
printers. The Cable Strain Relief on Release 1.0 printers prevents the printer from sitting
properly in the Integration Tray and must be removed from the printer and installed in
the Integration Tray.

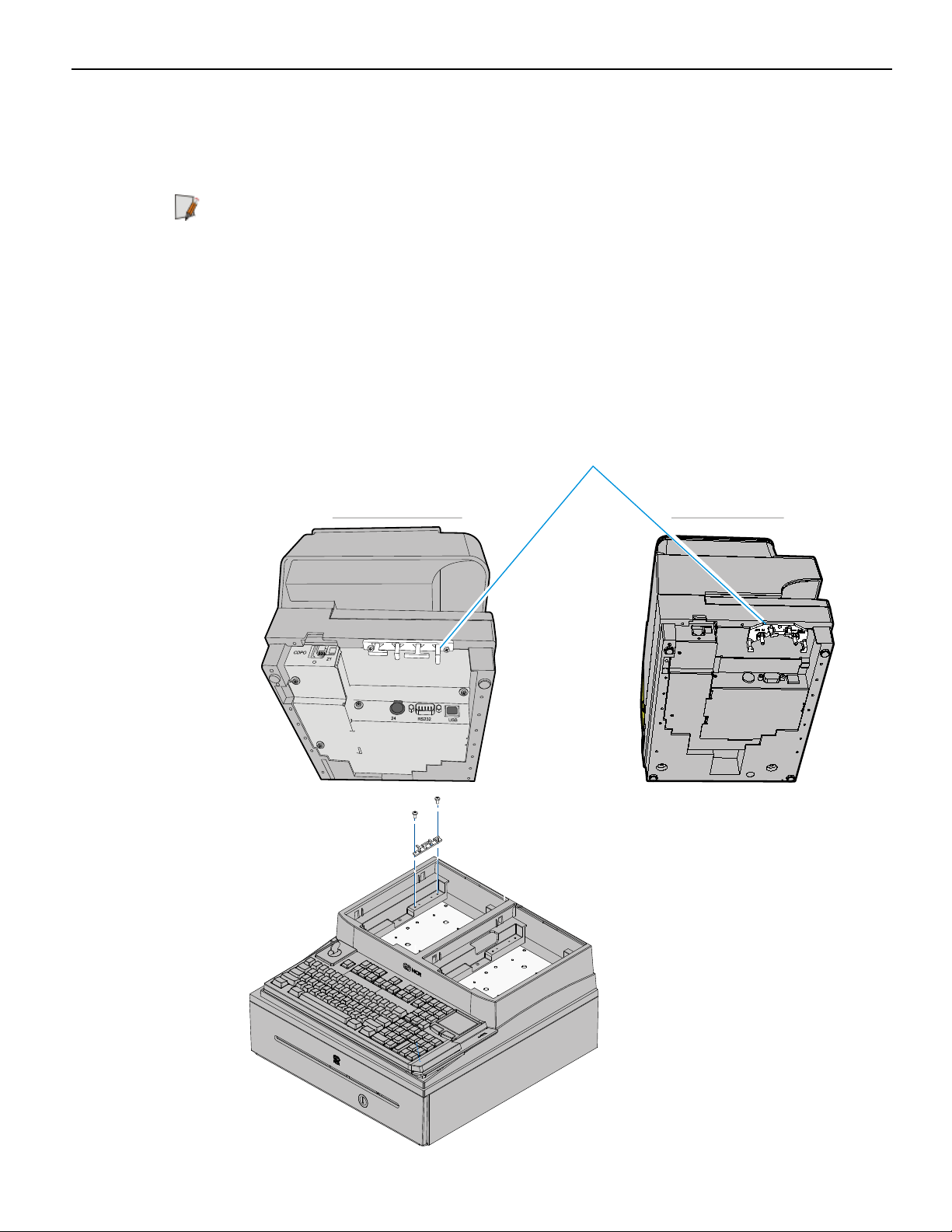

NCR 7167/7168 Release 1.0 Printers Only:
1. Remove the Cable Strain Relief from the back of the printer (2 screws). The printer
will not sit properly in the tray with it installed.
2. Install the Cable Strain Relief on the Integration Tray using the same screws.
Cable Strain Relief
26318a
7167/68 Release 1.0 Printer 7167/68 Series II Printer
Do not remove the Cable Strain Relief
on Series II printers.

14 RealPOS 82XRT Integration Tray Kit Instructions
3. Connect the Printer Cable to the USB and Power connectors.
4. Series II Printers Only: Route the cable through the Cable Strain Relief on the
printer as shown.
33279a

RealPOS 82XRT Integration Tray Kit Instructions 15
5. Route the printer cable out the back of the terminal and set the printer in the tray
opening.
NCR 7197/7198 Only: First install the 7459-K316 Printer Skirt, route the cable out the
back of the terminal, and then set the printer in the cabinet.
NCR 7167/7168 Only: Route the cable through the Cable Strain Relief and then set
the printer in the cabinet.
26319a
Printer Skirt
7459-K316 (Charcoal)
7606-K313 (Black)
7197/7198 Printer
7167/7168 Printer
Release 1.0
To Printer
To Host

16 RealPOS 82XRT Integration Tray Kit Instructions
Printer Cable Connections
The printers can connect through a USB connector or an RS-232 connector. It receives
power through a Powered USB power cable.
USB Installation
Connect the Powered USB Printer Interface Cable to the USB Connector and Power
Connector on the printer and to the 24 V Powered USB Connector on the terminal.
30654
A
B
J
K
L
M
24V USB
24V USB
Power USB
497-0441177 - 1 m
(1432-C088-0010)
497-0473052 - 4 m
(1432-C404-0040)

RealPOS 82XRT Integration Tray Kit Instructions 17
RS-232 Installation w/Power from Powered USB
1. Connect the RS-232 Printer Interface Cable to the RS-232 Connector on the printer
and to an RS-232 Connector on the terminal.
2. Connect the Printer Power Cable to the Power Connector on the printer and to the
24 V Powered USB Connector on the terminal.
A
B
J
K
L
M
30657
Power
RS-232
24V USB 497-0441156 - 1m
(1432-C092-0010)
497-0441157 - 4 m
(1432-C092-0040)
RS-232

18 RealPOS 82XRT Integration Tray Kit Instructions
Installing the Operator Display
The NCR 5964, 5954, and 5942 use the same mount. Since the installation procedures are
nearly identical, only the 5954 is discussed in this section. The primary differences are
with cable connections.
Since the display mounting procedures are identical, only the 5954 is discussed in this
section. The primary differences are with cable connections, which are discussed in the
specific display sections.
The Operator Display can be installed on the right, left, front, or rear of the tray.
Consideration should be given to the total terminal configuration to obtain satisfactory
clearances.
31270
Display Mounting Location Options
