User manual
ND-100M-HDBT2-USB
HDMI USB KVM Extender
over Cat5e/Cat6
(HDBaseT)

ND Audio Visual
WWW.NDAV.IO
Ver1.1 Page 1
Thank you for purchasing this product. For optimum performance and
safety, please read the instruction carefully before connecting, operating
or adjusting this product. Please keep the manual for future reference.
Caution:
The extender using UTP cable termination follows the standard of
IEEE-568B.

ND Audio Visual
WWW.NDAV.IO
Ver1.1 Page 2
1. Introduction
The HDMI USB KVM (Keyboard, Video, Mouse) Extender is a tool which
can extend your HDMI signal over 328fts/100meters to a compatible
display. It is designed to convert HDMI signal to standard HDBaseT
signal which can be transmitted by CAT5e/CAT6/CAT7 cable. It also
supports Transfer Bidirectional Infrared control signal and RS232
control signal. With LAN serving connection and external digital and
analog audio capability that gives users the convenience of additional
audio connection. It also supports the connection of USB host and 2 USB
device ports. So you can control the Source in the Sink side which is
328fts outside, also you can control the Sink in the Source side which is
328fts outside using the HDMI Extender.
2. Features
1. Fully compliant with HDMI 1.4, and compatible with HDMI 2.0
(4K2K@60Hz with YCbCr 4:2:0 ).
2. HDCP2.2 and DVI compatible.
3. Supports HDBaseT 2.0 specification over a single CAT5e/6/7 cable
up to 100m/328ft.
4. Supports pass-through of HD audio formats: LPCM2/5.1/7.1 CH,
Dolby Digital, DTS, Dolby TrueHD, DTS-HD Master Audio and more.
5. POE(Power Over Ethernet)function support, either TX or RX
powered 24V@1A,another don’t need power form the DC jack.
6. Full HD support: 1080p@60Hz@24/36/48bit/pixels.
7. Supports USB 2.0 control.
8. Supports external Bi-Directional SPDIF IN/OUT and available for
multichannel audio.
9. Supports stereo audio with PCM 2CH.
10. Transfer Bidirectional Infrared control signal together with the
HDMI signal.
11. Transfer Bidirectional RS232 control signal together with the HDMI

ND Audio Visual
WWW.NDAV.IO
Ver1.1 Page 3
signal.
12. Transfer Bidirectional Ethernet signal together with the HDMI
signal.
3. Package
1. HDMI USB KVM Extender Transmitter ----------------------------- 1PCS
2. HDMI USB KVM Extender Receiver --------------------------------- 1PCS
3. Wideband IR Tx --------------------------------------------------------- 2PCS
4. Wideband IR Rx --------------------------------------------------------- 2PCS
5. 24V/1A DC power adaptor ---------------------------------------------- 1PCS
6. Operation Manual ------------------------------------------------------ 1PCS
7. Phoenix male jack-------------------------------------------------------2PCS
8. Mounting ears------------------------------------------------------------4PCS
4. Specifications
1. Video Bandwidth 340MHz/10.2Gbps
2. Transmitter
Input Ports 1x HDMI, 1xLAN, 1xUSB-H,
1xIR in, 1x Audio in, 1xRS232,
1xOptical (Spdif in),
Output Ports 1xIR out, 1xOptical (Spdif out),
1xHDBaseT OUT, 2xUSB-D
3. Receiver
Input Ports 1xIR in, 1xOptical (Spdif in),
1xHDBaseT IN, 1xUSB-H
Output Ports 1x HDMI, 1xLAN, 2xUSB,
1xIR out, 1x Audio out,
1xRS232,1xOptical (Spdif out),
4. Power Supply DC 24V 1A
5. ESD Protection ± 8kV (air-gap discharge)
Human Body Model: ± 4kV (contact discharge)
6. Dimensions (mm) 160(W) X 97 (D) X 28 (H)

ND Audio Visual
WWW.NDAV.IO
Ver1.1 Page 4
7. Weight 450g/TX, 450g/RX
8. Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
9. Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
10. Relative Humidity 20~90% RH (Non-condensing)
11. Power Consumption (Max) 12W
5. Operation controls and Functions

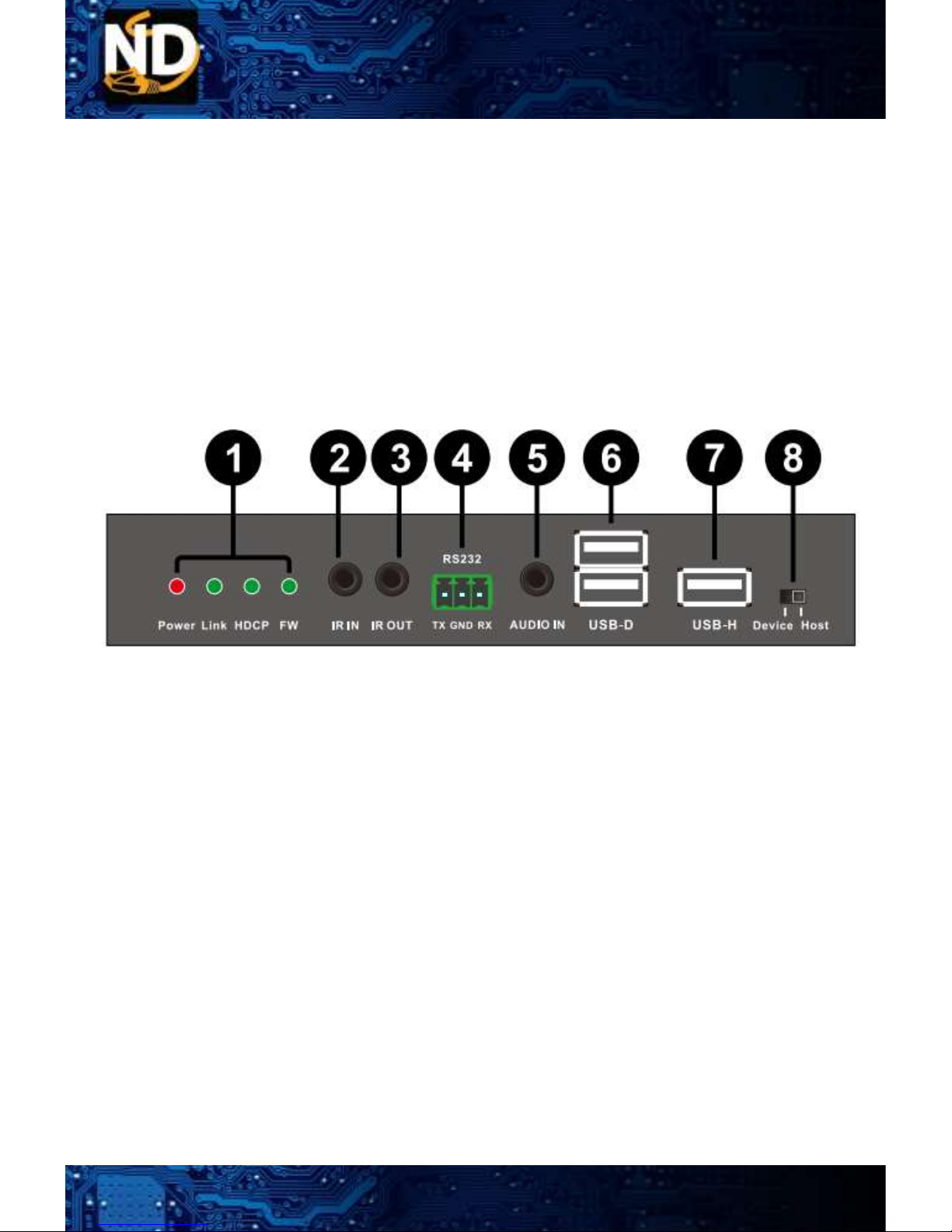

5.1 Transmitter Front Panel
1. Indicator LED:
Power LED: illuminates when power has been supplied to the unit.
Link LED: The connection status indicating lamp.
➢Illuminate: The Transmitter and Receiver is good connections.
➢Flashing: The Transmitter and Receiver is poor connections.
➢Dark: The Transmitter and Receiver is no connections.
HDCP LED: The HDCP status indicating lamp.
➢Illuminate: The HDMI signal with HDCP.
➢Flashing: The HDMI signal without HDCP.
➢Dark: No HDMI signal.
FW LED: Light is flashing on behalf of the unit work normally
2. IR IN: Chanel 1 IR Receiver. Connect with Wideband IR Rx.
3. IR OUT: Chanel 2 IR Transmitter. Connect with Wideband IR Tx.
4. RS232 TX/RX: Connect to a PC or Laptop with 3-pin Relay cable for
the transmission of RS-232 commands.

ND Audio Visual
WWW.NDAV.IO
Ver1.1 Page 5
5. AUDIO IN: Connect to a PC or Laptop stereo output port via 3.5mm
audio cable.
6. USB-D: Connect to USB peripheral devices such as printer, keyboard,
mouse, flash driver or …etc.
7. USB-H: Connect from PC or Laptop for data transmit to or control
from the Receiver’s USB-D slots.
8. USB-H/USB-D SELECT: Select USB host or USB device.
Note: If the unit work to change the state, required again to power
supply.
5.2 Transmitter Rear Panel
9. UPDATE: Reserved for manufacturer use only.
10. HDBaseT OUT: Standard HDBaseT signal output port. Connect
HDBaseT receiver with a Cat5e/6/7 cable.
11. HDMI IN: This slot is where you connect the HDMI source.
12. SPDIF IN(Optical in): Connect to audio source equipment such as
DVD or Blu-ray player for audio signal sending to Receiver’s SPDIF
OUT(Optical out).
13. SPDIF OUT(Optical out): Connect to speaker with coaxial input for
audio signal output from Receiver’s SPDIF IN(Optical in).
14. LAN: This slot provide Internet signal from receiver or to receiver.
15. DC IN: Plug the 24V DC power supply into the unit.

ND Audio Visual
WWW.NDAV.IO
Ver1.1 Page 6
5.3 Receiver Front Panel
1. Indicator LED:
Power LED: illuminates when power has been supplied to the unit.
Link LED: The connection status indicating lamp.
➢Illuminate: The Transmitter and Receiver is good connections.
➢Flashing: The Transmitter and Receiver is poor connections.
➢Dark: The Transmitter and Receiver is no connections.
HDCP LED: The HDCP status indicating lamp.
➢Illuminate: The HDMI signal with HDCP.
➢Flashing: The HDMI signal without HDCP.
➢Dark: No HDMI signal.
FW LED: Light is flashing on behalf of the unit work normally
2. IR IN: Chanel 1 IR Receiver. Connect with Wideband IR Rx.
3. IR OUT: Chanel 2 IR Transmitter. Connect with Wideband IR Tx.
4. RS232 TX/RX: Connect to the devices (project…etc) that is to be
controlled via 3-pin Relay cable by RS-232 commands.
5. AUDIO OUT: Connect to speaker via 3.5mm audio cable.
6. USB-D: Connect to USB peripheral devices such as printer, keyboard,
mouse, flash driver or …etc.
7. USB-H: Connect from PC or Laptop for data transmit to or control
from the Receiver’s USB-D slots.
8. USB-H/USB-D SELECT: Select USB host or USB device.
Note: If the unit work to change the state, required again to power
supply.

ND Audio Visual
WWW.NDAV.IO
Ver1.1 Page 7

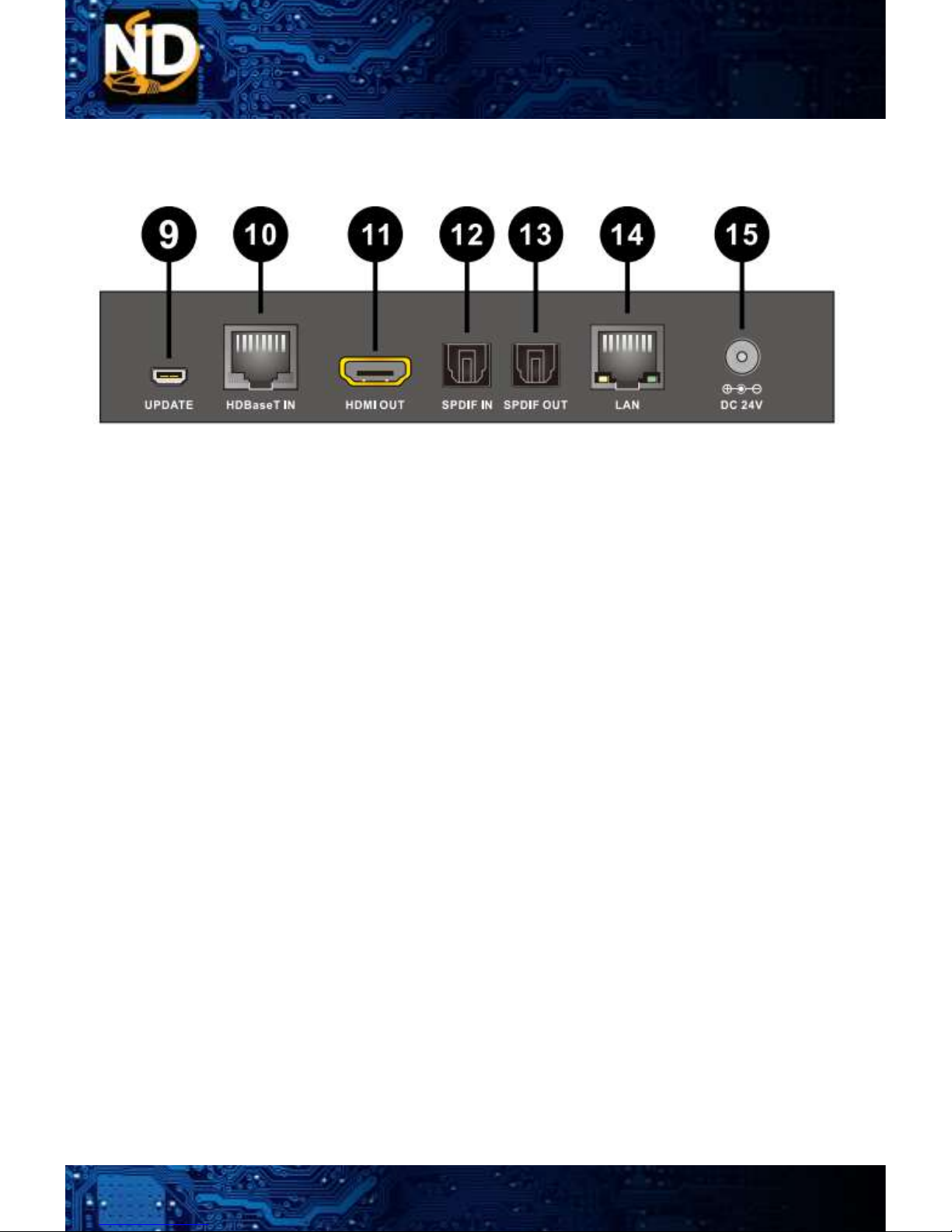

5.4 Receiver Rear Panel
9. UPDATE: Reserved for manufacturer use only.
10. HDBaseT IN: Standard HDBaseT signal output port. Connect
HDBaseT Transmitter with a Cat5e/6/7 cable.
11. HDMI OUT: This slot is where you connect the a HDMI equipped
TV/monitor.
12. SPDIF IN(Optical in): Connect to audio source equipment such as
DVD or Blu-ray player for audio signal sending to Transmitter’s
SPDIF OUT(Optical out).
13. SPDIF OUT(Optical out): Connect to speaker with coaxial input for
audio signal output from Transmitter’s SPDIF IN(Optical in).
14. LAN: This slot provide Internet signal from receiver or to receiver.
15. DC IN: Plug the 24V DC power supply into the unit.

ND Audio Visual
WWW.NDAV.IO
Ver1.1 Page 8
5.5 IR Cable Pin Assignments
6. Connection Diagram
6.1 POE(Power Over Ethernet) Application Example
6.2 Bidirectional Infrared control Application Example

ND Audio Visual
WWW.NDAV.IO
Ver1.1 Page 9
6.3 Bidirectional RS232 control Application Example
6.4 Bidirectional Ethernet signal Application Example

ND Audio Visual
WWW.NDAV.IO
Ver1.1 Page 10

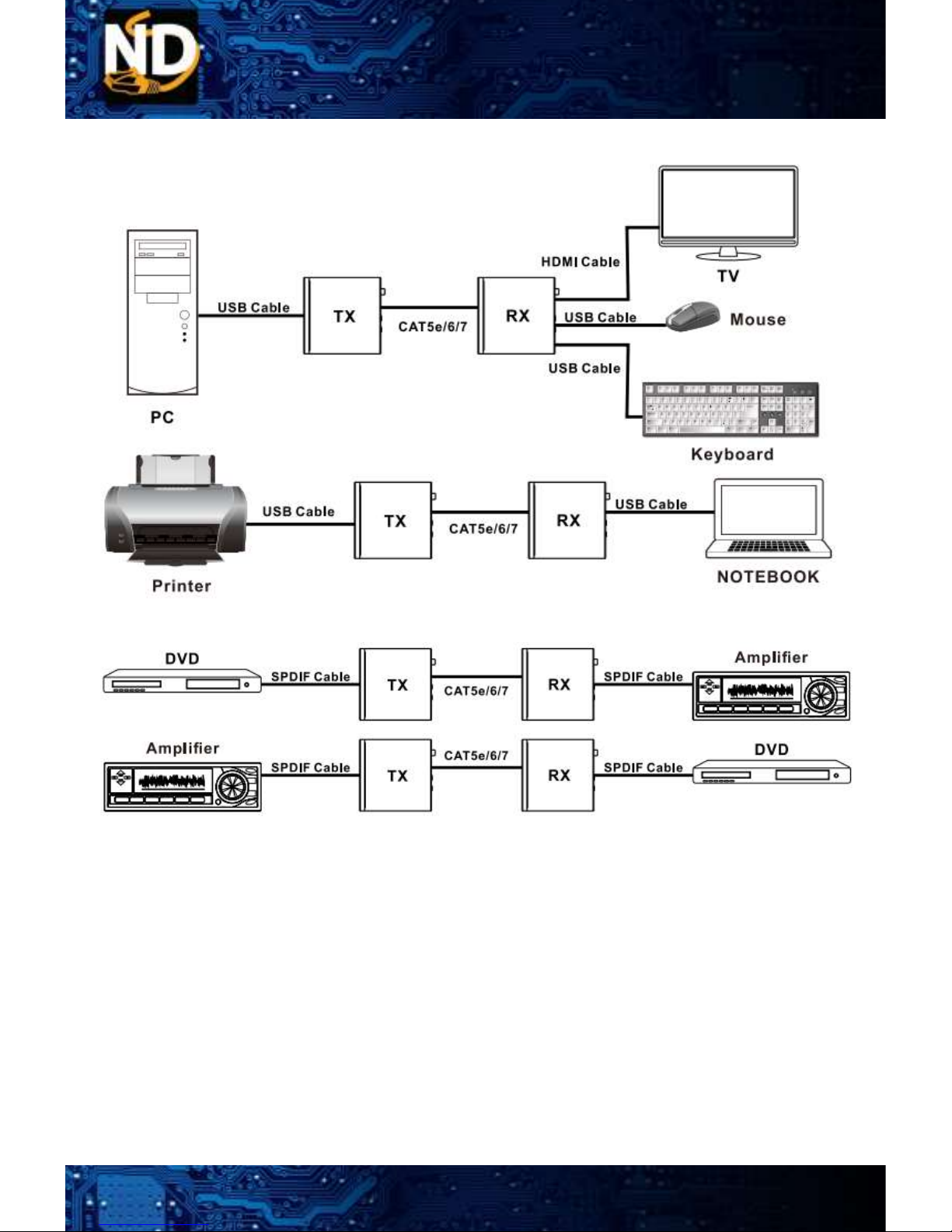

6.5 USB control Application Example
6.6 Digital Audio bidirectional transmission Application Example

ND Audio Visual
WWW.NDAV.IO
Ver1.1 Page 11
7. Application Example
