ND ND-100M-HDBT2-X5 User manual

ND Audio Visual
WWW.NDAV.IO
1 / 11
HDMI 18Gbps Extender
over Cat5e/Cat6

ND Audio Visual
WWW.NDAV.IO
2 / 11
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this manual
for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by
electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
Table of Contents
1. Introduction...........................................................................................................................4
2. Features..................................................................................................................................4
3. Package Contents..............................................................................................................5
4. Specifications .......................................................................................................................5
5. Operation Controls and Functions .................................................................................6
5.1 Transmitter .........................................................................................................................6
5.2 Receiver.............................................................................................................................7
6. Connection Diagram .......................................................................................................11

ND Audio Visual
WWW.NDAV.IO
3 / 11
Caution
The extender using UTP termination, which follows the standard of direct
interconnection method.
Advanced
The extender will start protection mode automatically when using UTP
termination, which follows the standard of cross interconnection method.

ND Audio Visual
WWW.NDAV.IO
4 / 11
1. Introduction
The 18Gbps HDMI Extender is a tool which can extend your HDMI signal over
328fts/100meters to a compatible display. It is designed to convert HDMI signal
to standard HDBaseT signal which can be transmitted by LAN cable. It also
supports Transfer Bidirectional Infrared control signal together with the HDMI
signal, so you can control the Source in the Sink side which is 328fts outside,
also you can control the Sinkin the Source side which is 328fts outside by using
the HDMI Extender.
2. Features
HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
Video resolutions up to 4K2K@50/60Hz (YUV444)
10bits HDR (High Dynamic Range) pass through
Supports HDMI High Bit Rate(HBR) audio pass through
Supports CEC bypass
Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH
POE (Power Over Ethernet) function is supported, either TX or RX is
powered by24V@1A power supply, the another does not need power
supply from the DC jack. POE Power consumption is less than 10W.
※See the description 1
Transfer Bidirectional Infrared control signal together with the HDMI signal.
※See the description 2.
Transfer Bidirectional RS232 control signal together with the HDMI signal.
※See the description 3.
Transfer Bidirectional Ethernet signal together with the HDMI signal.
※See the description 4.
Transmission distance: ※Over CAT6 cable
100 meters: 1080P @60Hz36bit; 3D1080P@30Hz36bit;
70 meters: 1080P @60Hz@48bit; 1080P @120Hz@24bit;
3D1080P@60Hz@36bit; 4K x 2K@30Hz@24bit.
4K2K@50/60Hz (YUV420), 4K2K@50/60Hz (YUV444)

ND Audio Visual
WWW.NDAV.IO
5 / 11
3. Package Contents
1 x HDMI 18Gbps Transmitter
1 x HDMI 18Gbps Receiver
2 x Wideband IR Tx
2 x Wideband IR Rx
1 x 24V/1A Power Adaptor
1 x User Manual
4. Specifications
Technical
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2 and HDCP 1.4
Video Bandwidth
18 Gbps
Video Resolutions
up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P@120Hz,
and 1080P 3D@60Hz
Color Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth
10-bit, 12-bit
HDMI Audio Formats
(Pass-through)
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby
TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Optical Audio
Formats
LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH
ESD Protection
Human body model —±8kV (air-gap discharge) & ±4kV (contact
discharge)
Connections
Inputs
Transmitter :1x HDMI Type A [19-pin female]
1x IR INPUT [3.5mm Stereo Mini-jack]
1x RS232 [Phoenix jack]
1x Service [Mini-USB jack]
1x Ethernet In/Out[RJ45]
Receiver: 1x HDBaseT In [RJ45]
1x Ethernet In/Out[RJ45]
1x IR INPUT [3.5mm Stereo Mini-jack]
1x RS232 [Phoenix jack]
1x Service [Mini-USB jack]

ND Audio Visual
WWW.NDAV.IO
6 / 11
Outputs
Transmitter : 1x HDBaseT Out [RJ45]
1x IR OUTPUT [3.5mm Stereo Mini-jack]
Receiver: 1x HDMI Type A [19-pin female]
1x IR INPUT [3.5mm Stereo Mini-jack]
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
183mm [W] x 88mm [D] x 18mm [H]
Weight
450g
Power Supply
Input: AC100 - 240V 50/60Hz
Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption
24W (Max)
Operation
Temperature
32 - 104°F / 0 - 40°C
Storage temperature
-4 - 140°F / -20 - 60°C
Relative Humidity
20 - 90% RH (no condensation)

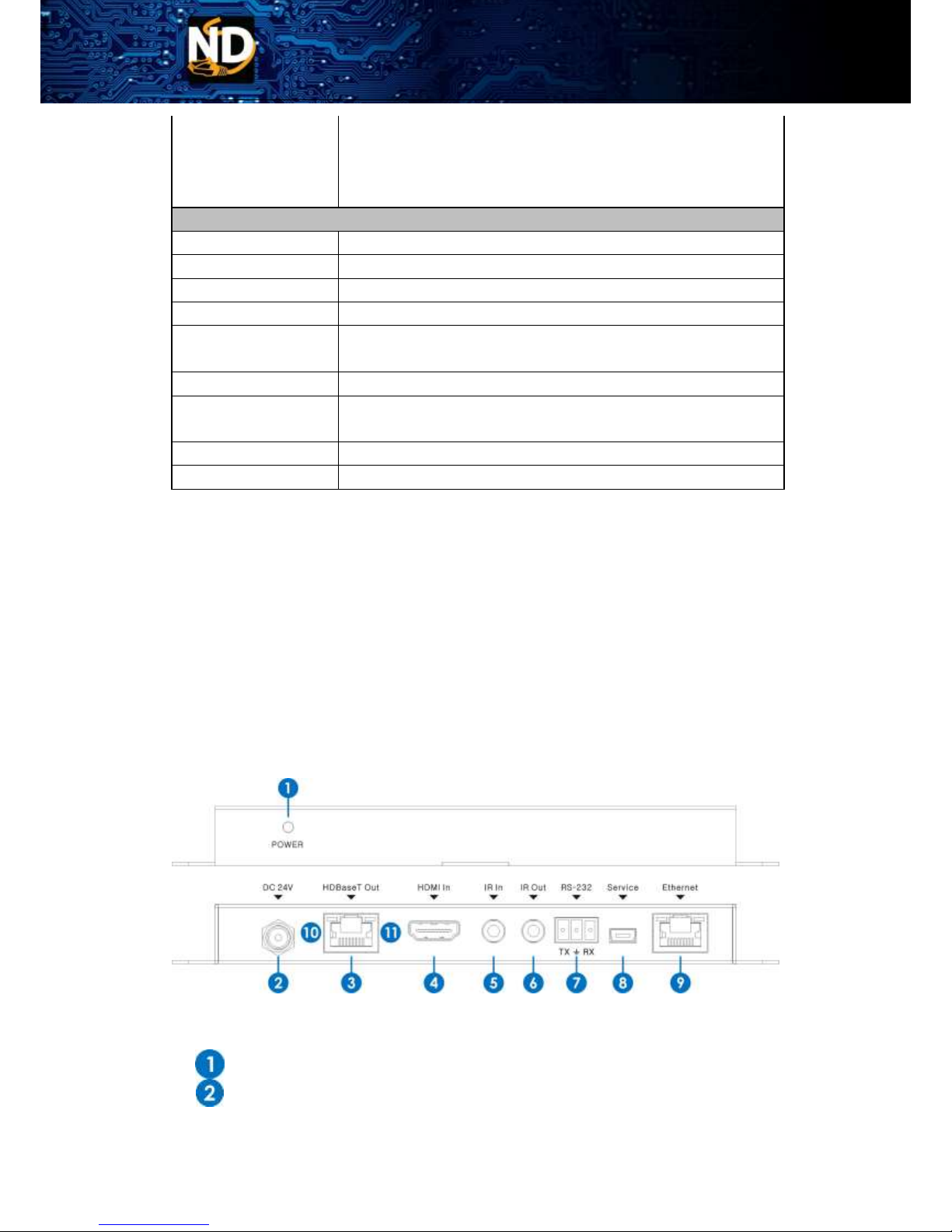

5. Operation Controls and Functions
5.1 Transmitter
Power LED: System power indicator.
DC 24V: Connect 24V/1A adaptor to AC wall outlet for power supply.

ND Audio Visual
WWW.NDAV.IO
7 / 11
HD BaseT Out: Standard HD BaseT signal output port. Connect HD
BaseT receiver with a UTP cable following the standard of direct
interconnection method
HDMI In: Connect this to HDMI source devices such as Blu-ray or PS4
player
IR In: Channel 2 IR Receiver. Connect with Wideband IR Rx.
IR Out:Channel 1 IR Transmitter. Connect with Wideband IR Tx.
RS-232: Phoenix jack provide Serial port control signal from receiver
or to receiver.
SE Service: Manufacturer use only.
Ethernet: This slot provides Internet signal from transmitter or to
transmitter.
Connection Signal Indicator Lamp
※Illuminate: The Transmitter and Receiver are in good connections status.
※Flashing: The Transmitter and Receiver are in poor connections status.
※Dark: The Transmitter and Receiver are not connected.
Data Signal Indicator Lamp
※Illuminate: The HDMI signal with HDCP.
※Flashing: The HDMI signal without HDCP.
※Dark: No HDMI signal.
5.2 Receiver

ND Audio Visual
WWW.NDAV.IO
8 / 11
Power LED: System power indicator.
DC 24V: Connect 24V/1A adaptor to AC wall outlet for power
supply.
HD BaseT In: Standard HD BaseT signal input port. Connect HD
BaseT Transmitter with a UTP cable following the standard of direct
interconnection method
HDMI Out: HDMI output port. This slot is where you connect the
HDTV or monitor with HDMI cable.
IR In: Channel 1 IR Receiver. Connect with Wideband IR Rx
IR Out:Channel 2 IR Transmitter. Connect with Wideband IR Tx.
RS-232: Phoenix jack provide Serial port control signal from
receiver or to receiver.
Service: Manufacturer use only.
Ethernet: This slot provides Internet signal from transmitter or to
transmitter.
Connection Signal Indicator Lamp
※Illuminate: The Transmitter and Receiver are in good connections status.
※Flashing: The Transmitter and Receiver are in poor connections status.
※Dark: The Transmitter and Receiver are not connected.
Data Signal Indicator Lamp
※Illuminate: The HDMI signal with HDCP.
※Flashing: The HDMI signal without HDCP.
※Dark: No HDMI signal.
※Description 1

ND Audio Visual
WWW.NDAV.IO
9 / 11
POE(Power Over Ethernet) Application Example
※Description 2
Bidirectional Infrared control Application Example
※Description 3
Bidirectional RS232 control Application Example

ND Audio Visual
WWW.NDAV.IO
10 / 11
※Description 4 Bidirectional Ethernet signal Application Example

ND Audio Visual
WWW.NDAV.IO
11 / 11
6. Connection Diagram
