Nds surgical imaging Zero Wire Duo User manual

High-Definition Wireless Video System
USER MANUAL
 ENGLISH
Asia Pacic Oces
1st Fl., RISE Building, 5-13,
Asakusabashi 5-Chome,
Taito-Ku, Tokyo, Japan, 111-0053
Tel: + 81 3 6420 3031
Email: [email protected]
ZERO WIRE® DUO

© 2012 NDS Surgical Imaging, LLC. All rights reserved.
Information in this document has been carefully checked for accuracy; however, no guarantee is given to
the correctness of the contents. This document is subject to change without notice. NDSsi provides this
information as reference only. Reference to products from other vendors does not imply any
recommendation or endorsement.
This document contains proprietary information protected by copyright. No part of this manual may be
reproduced by any mechanical, electronic, or other means, in any form, without prior written permission of
NDSsi.
All trademarks are the property of their respective owners.

i
Table of Contents
Tab 1
Warnings and Cautions------------------------------------------------------------------------------ ii
Recycling ------------------------------------------------------------------------------------------------ ii
Declarations of Conformity ------------------------------------------------------------------------iii
Legal Statement ---------------------------------------------------------------------------------------iii
Tab 2
About This Manual------------------------------------------------------------------------------------ 1
Intended Use and Contraindications------------------------------------------------------------ 1
Overview------------------------------------------------------------------------------------------------- 1
Tab 3
Connector Panels-------------------------------------------------------------------------------------- 2
Installation ---------------------------------------------------------------------------------------------- 3
Power Options ----------------------------------------------------------------------------------------- 6
Wiring Diagrams--------------------------------------------------------------------------------------- 7
Cable Bend Radius ------------------------------------------------------------------------------------ 7
Setup------------------------------------------------------------------------------------------------------ 8
Typical Installation ------------------------------------------------------------------------------------ 9
All Channels In Use Indication--------------------------------------------------------------------- 9
Performance -------------------------------------------------------------------------------------------- 9
Positioning and Orientation --------------------------------------------------------------------- 10
Non Line of Sight Operation --------------------------------------------------------------------- 13
Avoiding Co-Channel Interference------------------------------------------------------------- 14
Advanced Features --------------------------------------------------------------------------------- 15
Channel Usage--------------------------------------------------------------------------------------- 16
Multi System Installation-------------------------------------------------------------------------- 16
Signal Strength -------------------------------------------------------------------------------------- 16
Tab 4
Troubleshooting ------------------------------------------------------------------------------------ 17
Tab 5
Drawings and Dimensions ----------------------------------------------------------------------- 18
Tab 6
Specifications ---------------------------------------------------------------------------------------- 19
Supported Video Modes ------------------------------------------------------------------------- 20
Optional Accessories ------------------------------------------------------------------------------ 21
Optional Accessory Kits --------------------------------------------------------------------------- 21
Cleaning and Disinfecting instructions ------------------------------------------------------- 22
Tab 7
Electromagnetic Compatibility (EMC) Tables ----------------------------------------------- 23
Contact---------------------------------------------------------------------------------------------- Back

1
ii
Recycling:
Follow local governing ordinances and recycling plans regarding the recycling or disposal of this
equipment.
Safety Compliance:
This device meets the requirements of EN-60601-1 so as to conform to the Medical Device
Directive 93/42/EEC and 2007/47/EC (general safety information).
Safety Compliance:
This device is T.U.V. approved WITH RESPECT TO ELECTRIC SHOCK, FIRE AND MECHANICAL
HAZARDS ONLY IN ACCORDANCE WITH UL 60601-1/CAN/CSA C22.2 NO. 60601-1 and
ANSI/AAMI ES60601-1.
FCC Identification:
UEZTZM7201
Radio Approval:
This device meets the requirements of EN 302 065 V1.2.1 and conforms to Radio and
Telecommunications Terminal Equipment (R&TTE) Directive 1999/5/EC.
0673
Warnings and Cautions
This product complies to the above standards only when used with the supplied medical grade power
supply.
Power Supply: Ault MW172KB2400F02 or Ault MW172KB2400B02
AC Input: 100 to 240 Volts at 50 to 60 Hz.
DC Output: 24 volts at 0.75 amps
Power Cord: Use a hospital grade power cord with the correct plug for your power source.
Disconnect the power cord from the AC mains. The power cord is the only recognized disconnect device.
The MEDICAL EQUIPMENT should be positioned so that its disconnect device is readily accessible.
The device should be powered from a center tapped circuit when used in the US at voltages over 120
volts. This product is intended for continuous operation.
This symbol alerts the user that important information regarding the installation and / or
operation of this equipment follows. Information preceded by this symbol should be read
carefully in order to avoid damaging the equipment.
This symbol warns user that un-insulated voltage within the unit may have sufficient magnitude
to cause electrical shock. Therefore, it is dangerous to make contact with any part inside the unit.
To reduce the risk of electric shock, DO NOT remove cover (or back). There are no user serviceable
parts inside. Refer servicing to qualified service personnel.
This symbol cautions the user that important information regarding the operation and / or
maintenance of this equipment has been included. Information preceded by this symbol should
be read carefully to avoid damage to the equipment.
This symbol denotes the manufacturer.
This symbol denotes the manufacturer’s European Community representative.
To prevent fire or shock hazards, do not expose this unit to rain or moisture. Also, do not use this unit's
polarized plug with an extension cord receptacle or other outlets unless the prongs can be fully inserted.
The product is designed to meet the medical safety requirements for a patient vicinity device.
This equipment/system is intended for use by healthcare professionals only.

Declarations of Conformity
Legal Statement
iii
FCC and Council Directives of European Standards:
This device complies with Part 15 of FCC rules and 93/42/EEC and 2007/47/EC of the Council Directives of European Standards. Operation is
subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesirable results.
1. Use the attached specified cables with the device so as not to interfere with radio and television reception. Use of other cable and
adapters may cause interference with other electronic equipment.
2. This equipment has been tested and found to comply with the limits pursuant to FCC part 15 and CISPR 11under clause 3.1 and 8.5.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
IEC:
This equipment has been tested and found to comply with the limits for medical devices to the IEC 60601-1-2. These limits are designed to
provide reasonable protection against harmful interference in a typical medical installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to other devices in
the vicinity.
FCC, Council Directives of European Standards and IEC:
There is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
 Reorient or relocate the transmitter and / or the receiver.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
 Consult your dealer or an experienced radio/TV technician for help.
Accessory equipment connected to this device must be certified according to the respective IEC Standards, i.e. IEC 60950-1, for data
processing equipment and IEC 60601-1 for medical equipment. Furthermore, all configurations shall comply with the system standard, IEC
60601-1-1. Anyone who connects additional equipment to the signal input part or signal output part configures a medical system, and is
therefore responsible that the system complies with the requirements of system standard IEC 60601-1-1. Whoever is responsible for securing
the device to a system needs to insure that the mounting equipment used with this device complies to IEC standard 60601-1. If in doubt,
consult with your vendor’s technical service department.
NDS sells its products through other medical device manufacturers, distributors and resellers and therefore, purchasers of this NDS product
should consult with the entity through which this product was originally purchased regarding the terms of any applicable product
warranties provided by such entity, if any.
NDS neither assumes nor authorizes any person to assume for it any other liabilities in conjunction with and/or related to the sale and/or use
of its products. To ensure proper use, handling and care of NDS products, customers should consult the product specific literature,
instruction manual, and/or labeling included with the product or otherwise available.
Customers are cautioned that system configuration, software, the application, customer data and operator control of the system, among
other factors, affect the product’s performance. While NDS products are considered to be compatible with many systems, specific functional
implementation by customers may vary. Therefore, suitability of a product for a specific purpose or application must be determined by the
consumer and is not warranted by NDS.
NDS SPECIFICALLY DISCLAIMS ALL WARRANTIES OF ANY KIND, WHETHER EXPRESS, IMPLIED AND/OR STATUTORY, INCLUDING, BUT NOT
LIMITED TO WARRANTIES OF MERCHANTABILITY, FITNESS AND/OR OF SUITABILITY FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT
WITH RESPECT TO ALL NDS PRODUCTS OR SERVICES. ANY AND ALL OTHER WARRANTIES, REPRESENTATIONS AND/OR GUARANTEES, OF ANY
TYPE, NATURE OR EXTENT, BE IT IMPLIED, EXPRESS AND/OR WHETHER ARISING UNDER OR AS A RESULT OF ANY STATUTE, LAW, COMMERCIAL
USAGE, CUSTOM, TRADE OR OTHERWISE, ARE HEREBY EXPRESSLY EXCLUDED AND DISCLAIMED.
NDS, its suppliers and/or distributors are not liable, directly or by way of indemnity for any special, incidental, consequential, punitive,
exemplary or indirect damages, including but not limited to alleged damages for delayed shipment, non-delivery, product failure, product
design or production, inability to use such products or services, loss of future business (lost profits), or from any other cause, whatsoever, in
connection with or arising from the purchase, sale, lease, rental, installation or use of such NDS products, these terms and conditions, or with
respect to any the terms of any agreement which incorporates these terms and conditions.
SOME JURISDICTIONS DO NOT ALLOW EXCLUSIONS AND DISCLAIMERS OF CERTAIN WARRANTIES OR LIMITATIONS OF LIABILITY, SO THE
LIMITATIONS AND/OR EXCLUSIONS, SET FORTH HEREIN, MAY NOT APPLY. IN THAT EVENT LIABILITY WILL BE LIMITED TO THE GREATEST
EXTENT PERMITTED BY LAW IN THE SUBJECT JURISDICTION.
The information provided in this document, including all designs and related materials, is the valuable property of NDS and / or its licensors
and, as appropriate, they reserve all patent, copyright, and other proprietary rights to this document, including all design, manufacturing
reproduction, use, and sales rights thereto, except to the extent said rights are expressly granted to others.

2
1
About This Manual
This manual is designed to assist the user with installation, setup and operation of the NDS ZeroWire®
HD wireless video system.
A numbered tab on the side of the page denotes the beginning of a section.
The functional descriptions in this manual are representative of:
Part Numbers:
90T2014 = Receiver
90T2015 = Transmitter (Input: DVI)
90T2016 = Transmitter (Input: DVI and 3G-SDI)
Manual Part Number: 60G0374 Rev G
Intended Use and Contraindications
The NDSsi ZeroWire HD Wireless Video System is a paired transmitter and receiver, intended for delivery of
video signals over a radio-frequency link to a video display during endoscopic and general surgical
procedures. The ZeroWire HD Wireless Video System is a non-sterile reusable device not intended for use
in the sterile field. It is intended for use by qualified physicians having complete knowledge of these
surgical procedures.
Contraindications:
1. These units are non-sterile reusable devices and are not intended for use within a sterile field.
2. This equipment may not be used in the presence of flammable anesthetics mixture with air, oxygen
or nitrous oxide.
No part of this product may come in contact with a patient. Never touch the product and a patient at the
same time.
For mission critical applications, we strongly recommend that a replacement ZeroWire transmitter
and receiver pair, a DVI cable be immediately available. Additionally, we recommend that a display
that is hard wired to the video source be immediately available whenever a surgical procedure is in
progress. See typical installation drawing on page 9.
Overview
The ZeroWire transmitter and receiver pair allows wireless delivery of video signals from the DVI or 3G-SDI
output of an endoscopic camera processor or other video source to the DVI input of a video display. It
operates as an unlicensed ultra-wideband (UWB) wireless system in compliance with FCC (Part 15) rules
governing UWB.
The system is composed of a transmitter (Tx) and a receiver (Rx) pair. The Tx unit is designed to be
mounted on the rear top edge of a display on a surgical cart, or on the cart itself. The transmitter may
obtain its input video signal from either an endoscopic camera processor or the display’s re-drive output.
The Tx unit is powered from the provided 24 VDC power supply (“wall-wart”) or through the optional ‘Y’
adapter cable*. The ‘Y’ adapter cable is described on page 6.
The Rx unit is designed to be mounted on the rear top edge of a display, it may also be mounted on a cart,
and is powered from the provided 24 VDC power supply (“wall-wart”) or through the optional ‘Y’ adapter
cable*. The ‘Y’ adapter cable is described on page 6.

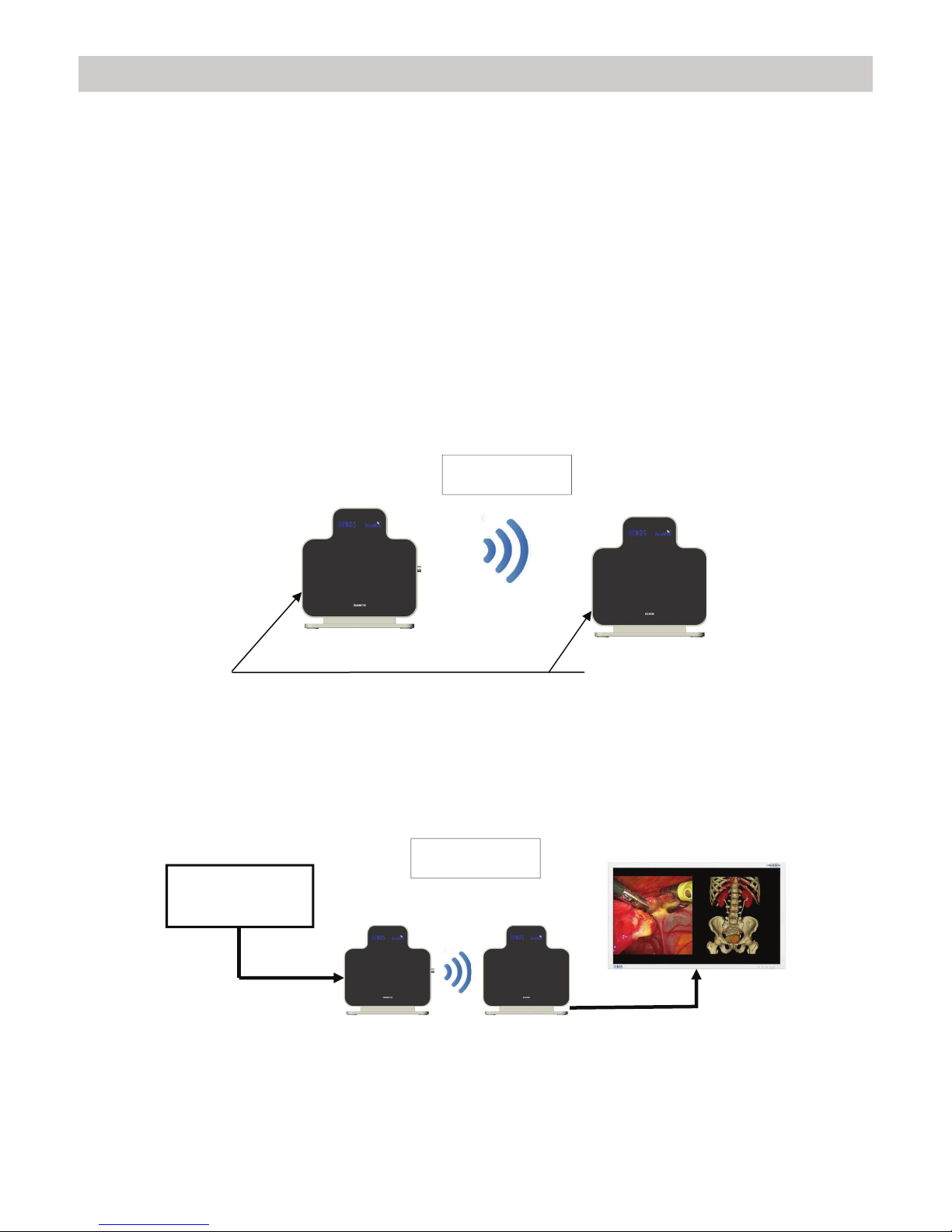

A typical installation is shown on page 9.
*Note: The ‘Y’ adapter cables are for use with displays that are powered by 24 VDC and whose
power connector accepts one of the J2 connectors shown on page 6.

2
3
Connector Panels
ZeroWire Transmitter (Tx) ZeroWire Receiver (Rx)
Tx & Rx Common Connectors
The USB port is used for installing
updates to the Tx or Rx firmware. It
is not a general purpose I/O port
The BOND button allows the
bonding of a transmitter to a
receiver.
On the Tx the BOND button is used
to wake the unit from Deep Sleep.
See page 15.
On the Rx the BOND button is used
to activate the Signal Strength bar.
See page 16.
Power connector
3G– SDI input (90T2016 only)
DVI input DVI output

3
This side faces the
front of the display.
Figure 1

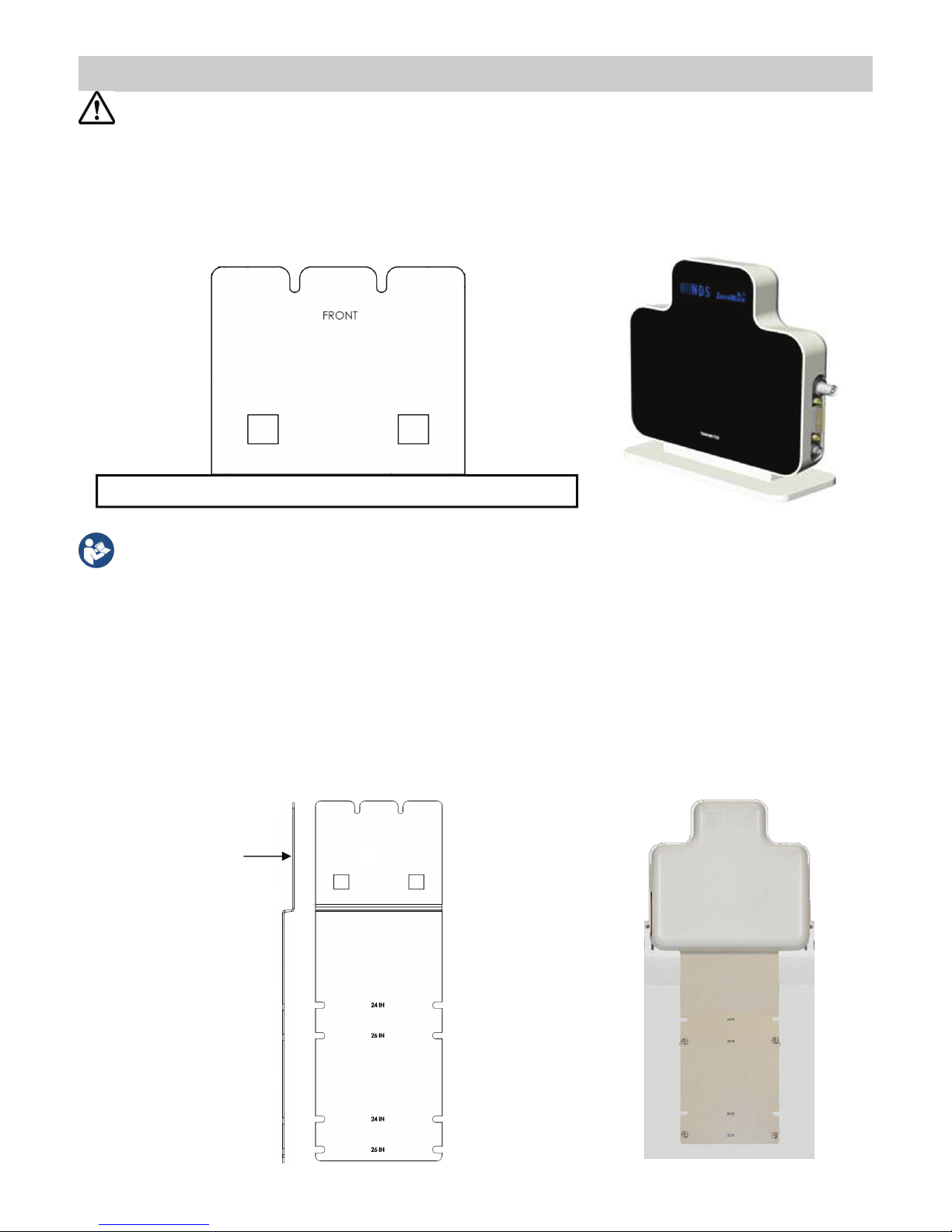

Desktop:
With the side stamped FRONT and the black surface of a ZeroWire Rx or Tx module facing you, insert the
desktop mount into the slot in the bottom of the module and push downwards on the mount until the
module seats.
Install with this side facing the
black side of the Rx or Tx.
Installation
Optional Mounting Brackets:
Extended Height Bracket for 24” and 26” Radiance Displays:
Each step bracket is stamped with a part number (P/N). For Radiance 24” and 26” displays, select the
extended height step bracket P/N 20C0669 . Replace the left hand mounting screws with 2 of the provided
mounting screws. Do not tighten them. Remove the two right hand screws from the VESA mount . With
the side stamped FRONT facing the front of the display, slide the step bracket between the VESA mount
and the back of the display until notches labeled for the display you are working with fit over the two left
hand screws. Replace the right hand screws with the screws provided and tighten all screws. With the
black surface of a ZeroWire Rx or Tx module facing the front of the display, align the slot on the bottom of
the module with the top of the bracket and push the module down on the bracket until the module seats.
Figure 1 shows the completed assembly.
The only mounting bracket included with the Zerowire is the Desktop mount. All other brackets are
sold separately.

4

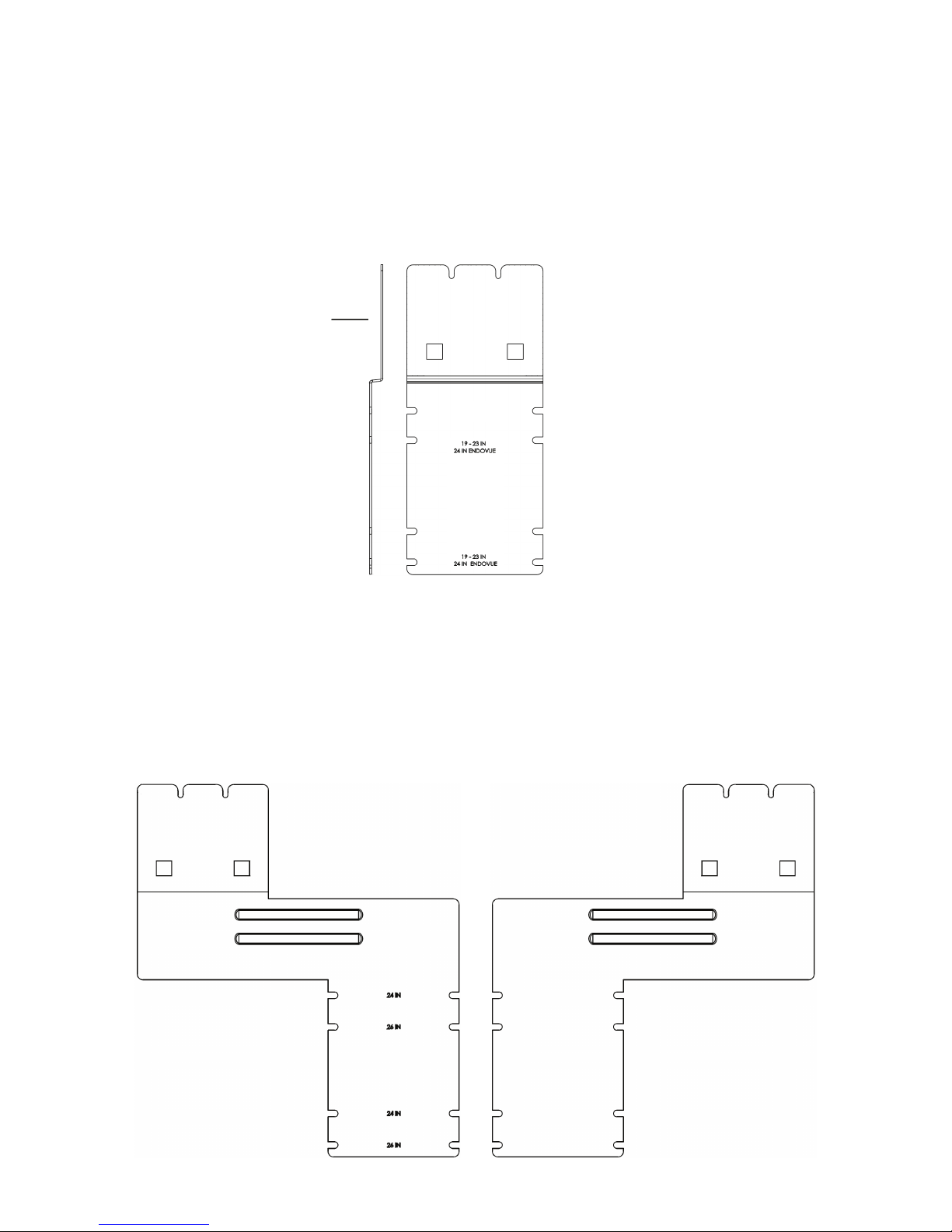

19” and 23” Radiance and 24” EndoVue Display:
Each step bracket is stamped with a part number (P/N). For Radiance 19” and 23” and EndoVue 24”
displays, select step bracket P/N 20C0660. Replace the left hand mounting screws with 2 of the provided
mounting screws. Do not tighten them. Remove the two right hand screws from the VESA mount . With
the side stamped FRONT facing the front of the display, slide the step bracket between the VESA mount
and the back of the display until notches labeled for the display you are working with fit over the two left
hand screws. Replace the right hand screws with the screws provided and tighten all screws. With the
black surface of a ZeroWire Rx or Tx module facing the front of the display, align the slot on the bottom of
the module with the top of the bracket and push the module down on the bracket until the module seats.
“L” Bracket for 24” and 26” Radiance Displays:
The “L” bracket P/N 20C0830, like the Extended Height Bracket (P/N 20C0669), raises the installed height of
the ZeroWire unit by 2.4” (61mm) to improve the ZeroWire transmitter’s coverage and the ZeroWire
receiver’s reception. The “L” bracket also offsets the ZeroWire unit to the left (Figure 1) of the display’s
center for improved boom arm clearance. If desired the “L” bracket may be reversed to offset the ZeroWire
unit to the right (Figure 2) of the display’s center. Installation of the “L” bracket is the same as described on
the previous page for the standard height bracket.
Figure 1 Figure 2
This side faces the
front of the display.

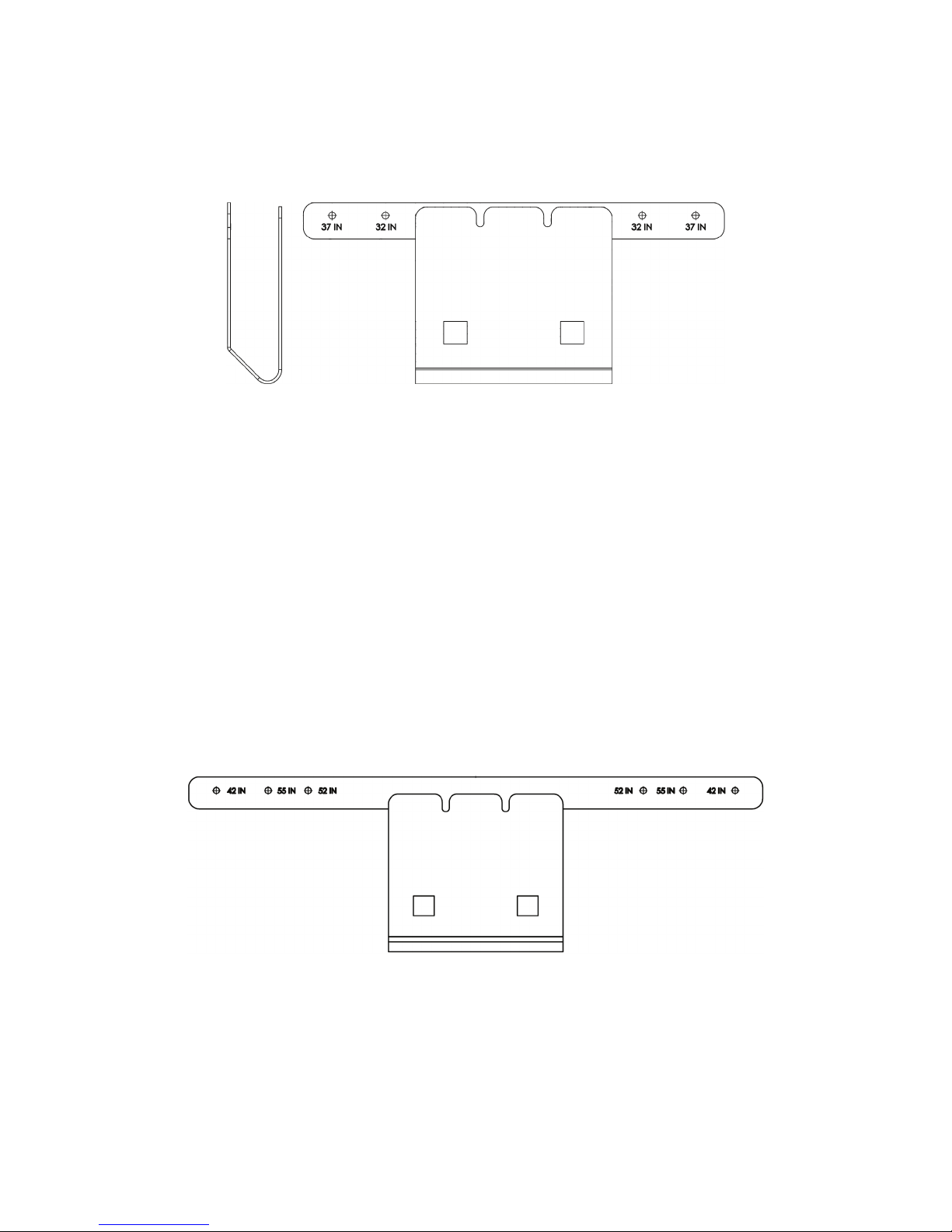

32” and 37” Radiance Displays:
Select ‘T’ bracket (P/N 20C0684). Lay the display face down on a clean surface. Center the ‘T’ bracket on the
top edge of the display and remove the 2 screws that are aligned with the holes in the bracket. Insert the
provided screws through the bracket and case back. Tighten both screws. With the black surface of a
ZeroWire Rx or Tx module facing the front of the display, align the slot on the bottom of the module with
the top of the bracket and push the module down on the bracket until the module seats.
5
42”, 52” and 55” Radiance Displays:
Select ‘T’ bracket (P/N 20C0668). Lay the display face down on a clean surface. Center the ‘T’ bracket on the
top edge of the display and remove the 2 screws that are aligned with the holes in the bracket. Insert the
provided screws through the bracket and case back. Tighten both screws. With the black surface of a
ZeroWire Rx or Tx module facing the front of the display, align the slot on the bottom of the module with
the top of the bracket and push the module down on the bracket until the module seats.

6
ZeroWire transmitters and receivers may be powered from the provided power supply (pictured below), or
when used with an NDS display they may be powered from the display’s power supply via the supplied ‘Y’
adapter cable. ‘Y’ adapter cables, shown below, are available for Radiance 19”, 24”, 26” and 32” displays
and Endovue 24” display. ‘Y’ adapter cables are not available for 37”, 42”, 52” or 55” Radiance displays.
Power Options
‘Y’ adapter cable (35X0097) for Radiance 26 G2 HB, 26 D HB and 32” Radiance Display
‘Y’ adapter cable (35X0096) for 19”, 24” and 26” Radiance Displays and 24” EndoVue Display
Provided power supply or J3 of
the ‘Y’ adapter connects here.
When using the included power supply,
select and install the plug adapter that
matches the wall socket in your OR.

7
Wiring Diagrams
Display Mounted Tx Wiring Diagram
Display Mounted Rx Wiring diagram
Cable Bend Radius
We recommend that the bend radius of metallic cables be no less than 2.5 inches (63 mm) or 7 times
the diameter of the cable whichever is greater. Sharper bends may damage the cable and / or
degrade the video signal.

8
Setup
Bonding the Transmitter (Tx) and Receiver (Rx)
Before the ZeroWire wireless system can be put into service , the Tx and Rx pair must be bonded. Connect
an included power supply or a ‘Y’ Adapter cable to a Tx and an Rx unit. See page 7 for Power Connector
location and ‘Y’ Adapter cable information.
The status indicator LED of each unit should be yellow and blinking slowly. If the LED’s are steady yellow
then the Tx and Rx pair is already bonded, continue at the Passing Video section below. Once a Tx and Rx
pair is bonded, they remain bonded until the Tx is explicitly bonded to another Rx or the Rx is explicitly
bonded to another Tx. Note: If a bonded pair is turned off they will automatically bond to each other when
they are turned on again.
Bonding Procedure:
1. If the Tx’s LED is alternating between blue and yellow, then all ZeroWire channels are in use. See
All Channels In Use Indication section on page 10 for details.
2. Press and hold the “bond” button (see Figure 1 for location) on the Tx unit until its LED begins flashing
rapidly, then release. Next press and hold the “bond” button (see Figure 1 for location) on the Rx unit
until its LED begins flashing rapidly, then release.
3. When the bonding process is complete each unit’s LED will be steady yellow.
Note:
The transmitter and receiver are not limited to line-of-sight operation, i.e., the pair will operate reliably
despite the presence of intervening obstacles. However, neither unit should be completely surrounded by
metallic objects.
Passing Video:
With the bonding completed, connect a DVI or SDI video source to the Tx unit and a display to the Rx unit
via its DVI output (Figure 2). The indicator LED’s should turn blue and the source image should appear on
the display. This completes the basic setup.
Figure 2
Tx Rx
Endoscope
Processor
Figure 1
Tx
Bonding Button
Press here
Rx

9
Performance
Tx Indication:
1. When all channels are in use and a new ZeroWire pair or a new Tx is turned on: The LED on the Tx will
alternate between blue and yellow continuously or until it finds a free channel. If a free channel is
found, then the LED will behave as described in Bonding Procedure on page 8.
2. When all channels are in use and the bonding button is pressed on a new Tx: The LED on the Tx blinks
fast yellow, indicating that the device is attempting to bond. If no channel is found, then the LED blinks
alternately between blue and yellow until the bonding times out. If an available channel is found, then
the LED will behave as described in Bonding Procedure on page 8.
Rx Indication:
Rx is not aware that all channels are in use.
All Channels In Use Indication
Transmitter Receiver
Display hardwired to
image source (processor).
NDSsi recommends ZeroWire for primary and secondary displays. However, for patient safety
a display that is cable connected to the video source shall be immediately available whenever
a surgical procedure is in progress.
Typical Installation
Detailed Installation and Setup information starts on the following page.
Performance:
ZeroWire HD Wireless Video System products are intended and optimized for use in a surgical operating
room (OR). Use outside of an OR environment is not recommended.
The following steps will help you to achieve optimal performance of the ZeroWire system:
1. Mount both components at least 5 feet (1.5 m) from the floor.
2. Ideally, both the transmitter and receiver should be at the same height.
3. For a reliable video link, the distance between transmitter and receiver should be 30 feet (10 m) or less .
4. The black surfaces of the transmitter and receiver should be vertical, facing each other and be visible to
each other in free air space. We do not recommend orienting the modules horizontally.
5. For non line of sight applications, we recommend that the Tx and Rx be located no more than 6 feet
(1.8 m) from the walls of the OR.

10

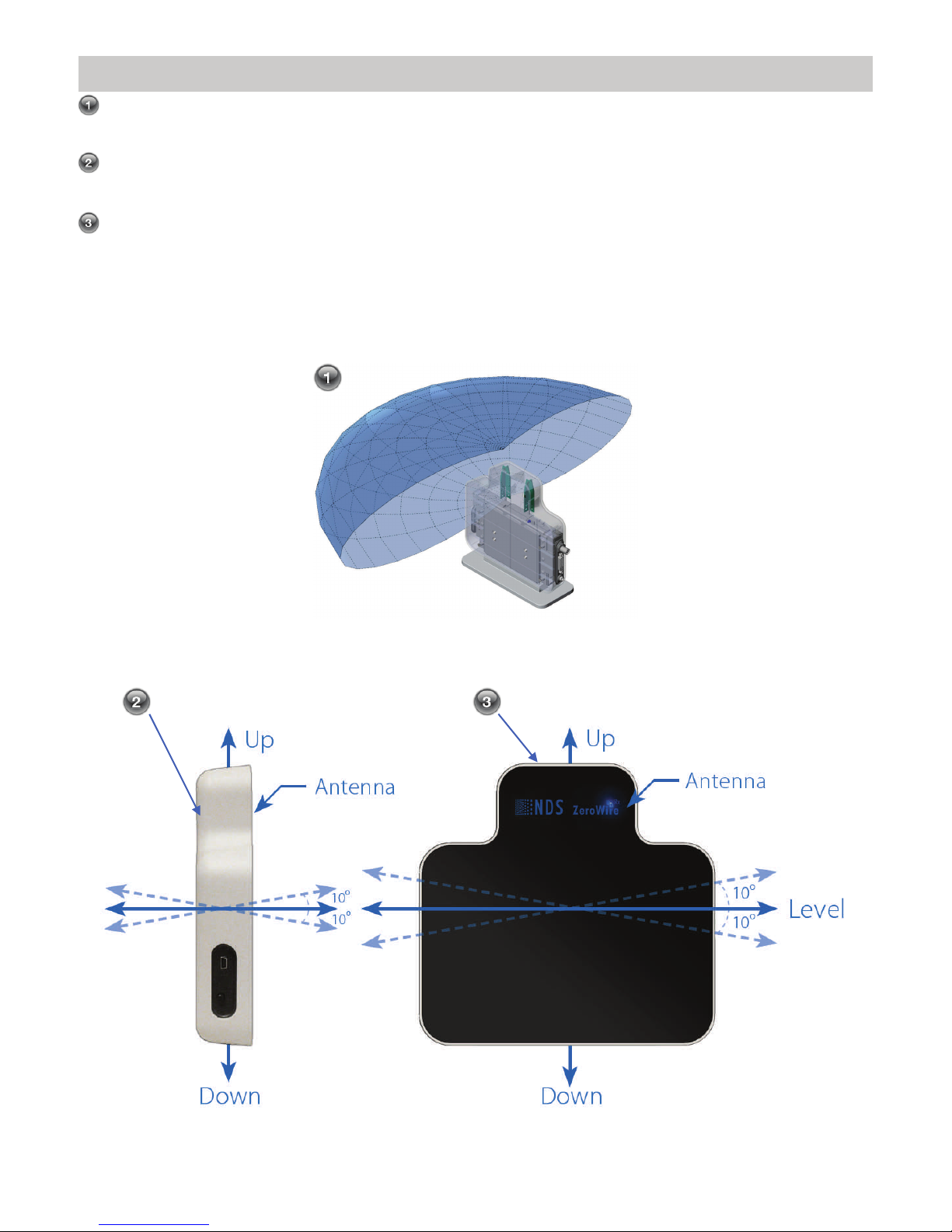

Positioning and Orientation
Due to the shape of the antenna’s signal field (image 1), both Tx and Rx units should be installed so they
are vertical within + or - 10°, and horizontal within + or - 10°.
Vertical Alignment:
Vertical alignment should be within + or - 10° of vertical. See image 2.
Horizontal Alignment:
Horizontal alignment should be within + or - 10° of horizontal. See image 3.
Positioning and Orientation is continues on the following page.

11
Elevation:
The Tx and Rx should be positioned at least 5 feet (1.5 m) above the floor, be at the same height, and,
preferably, with the black (front) surfaces of the Tx and Rx facing directly at each other.
Separation:
ZeroWire operates correctly with a separation of up to 30 feet (10 m). However, in the case of most OR
environments, best results are achieved with a Tx and Rx separation distance of up to 8 feet (2.4 m).
At least 5 ft.
(1.5 m)
Up to 8 ft.
(2.4 m)
5 inches (127 mm) minimum 5 inches (127 mm) minimum
At least 5 ft.
(1.5 m)
Positioning and Orientation is continues on the following page.

12

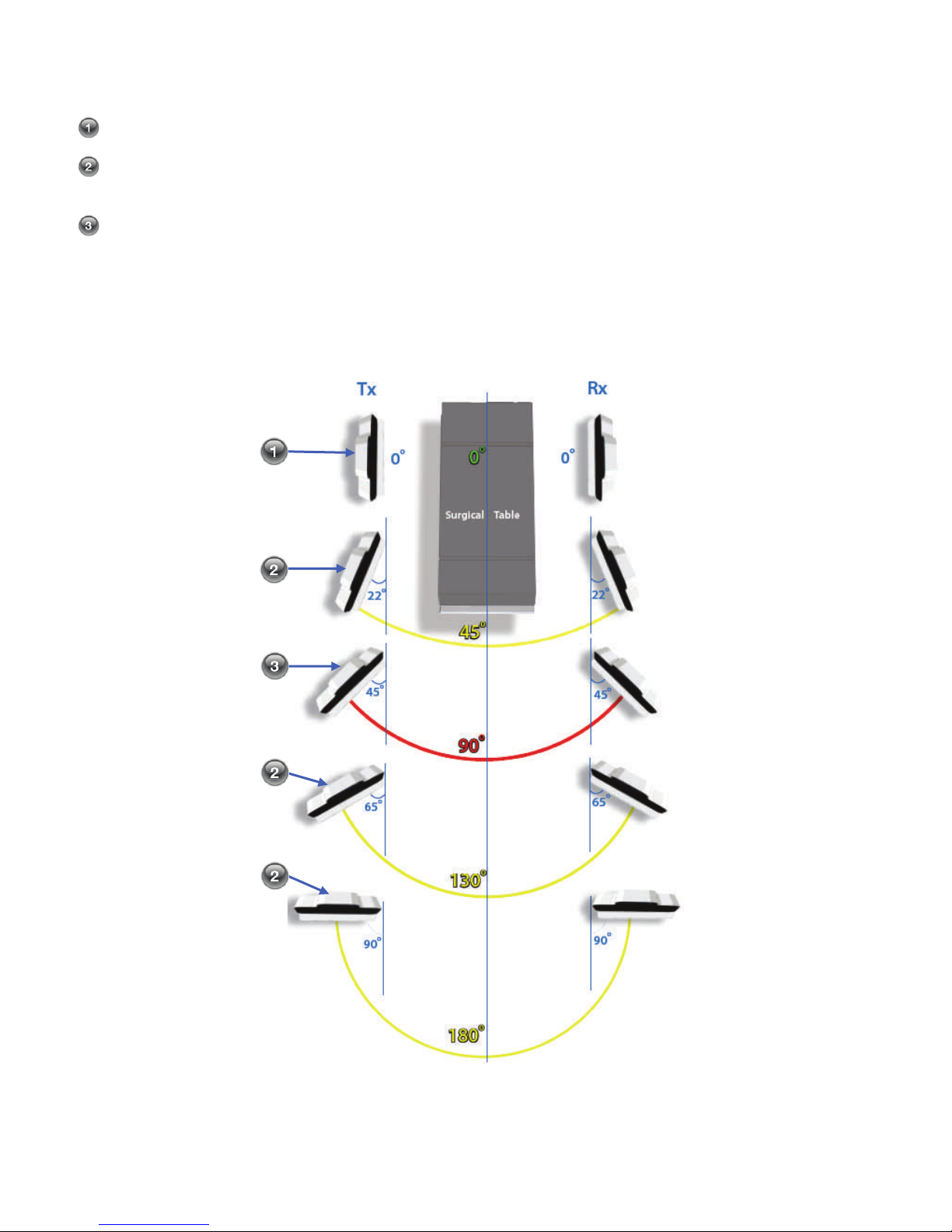

Test results indicate that ZeroWire achieves a better signal-to-noise ratio when the Tx and Rx are oriented
at certain angles relative to one another.
Optimum link quality is achieved when the Tx and Rx are aligned at 0° relative to each other.
Acceptable link quality is achieved when the Tx and Rx are aligned at angles between 0 to 45°, 130° and
180° relative to each other.
Aligning the Tx and Rx at 90° relative to each other provides the least acceptable link quality.

13
Non Line of Sight Operation
The ZeroWire system can maintain a wireless link even with obstructions. However, best performance is
realized with a clear line-of-sight. In an OR environment, the ceiling mounted boom system and its
spring arm junctions, along with surgical light heads, are large metal structures that can potentially
block RF signals if they obstruct the line-of-sight between the Tx and Rx (see image 1 below). Preferably,
the surgical lights should be positioned out of the way or raised above the line-of-sight. If an object
must obstruct the line-of-sight, the best option is to position it half way between the Tx and the Rx.
