NE kids X090 series User manual

STAIRCASE LOFT BED
Assembly Instructions Page 1 of 21
NE kids · 2300 Prospect Dr. Christiansburg, VA 24073 · www.ne-kids.com
NE
k i d s
Item No. X090
1. Follow the information on the warnings appearing on the upper bunk end structure and on the
carton. Do not remove warning label from bed.
2. Always use the recommended size mattress or mattress support, or both, to help prevent
entrapment or falls.
3. Surface of mattress must be at least 5 inches (127 mm) below the upper edge of guardrails.
4. Do not allow children under 6 years of age to use the upper bunk.
5. Prohibit more than one person on the upper bunk.
6. Periodically, check and ensure that the guardrail, stairs, and other components are in their proper
position, free from damage, and that all connectors are tight.
7. Do not allow horseplay on or under the bed and prohibit jumping on the bed.
8. Always use the stairs for entering and leaving the upper bunk.
9. Do not use substitute parts. Contact the manufacturer or dealer for replacement parts.
10. Use of a nightlight may provide added safety precaution for a child using the upper bunk.
11. Always use guardrails on both long sides of the upper bunk. If bunk bed will be placed next to the
wall, the guardrail that runs the full length of the bed should be placed against the wall to prevent
entrapment between the bed and wall.
12. The use of water or sleep otation mattresses is prohibited.
13. Keeptheseinstructionsforfuturereference.
!
!STRANGULATIONHAZARD
Never attach or hang items to any part of the bunk bed that are not designed for use with the bed;
including, but not limited to, hooks, belts and jump ropes
SIZEOFMATTRESSANDFOUNDATION
Use only mattress, foundation and deck combined which is 74-75 inches long and 37 ½-38 ½ inches wide
on upper bunk. Ensure thickness of mattress and foundation combined does not exceed 8 inches and the
mattress is at least 5 inches below upper edge of guardrails.
SAFETYWARNINGS
SAFETYFIRST!
All of NE kid’s Bunkbeds were
designed and manufactured with
yourchild’ssafetyasourtop
priority.
Their unparalleled strength is a
bi-product of the safety design.
Our bunks meet all compliance
with ASTM F 1427-07 “Standard
Consumer Safety Specication
for Bunk Beds” and Code of
Federal Regulations (CFR) 1213
“Safety Standards for Entrapment
Hazards in Bunk Beds” and
(CFR) 1513 “Requirements for
Bunk Beds”.
Safety is a cooperative effort
between us as the manufacturer,
and you as a guardian. Please
readandconsiderthe
warningslistedonthispage
when choosing a mattress and
discussing rules of use with your
child.
REPLACEMENTPARTS
Replacement parts, including
additional guardrails, may be
obtained from any of NE kids’
dealers.

Page 2 of 21
NE kids · 2300 Prospect Dr. Christiansburg, VA 24073 · www.ne-kids.com
NE
k i d s
Enclosedpleasendsimplestep-by-step
instructionstohelpyouquicklyassemble
yourproduct. Before you begin we recommend
that you follow the steps below:
Please read the instructions thoroughly
Identify all parts and hardware
Gather the tool(s) necessary
2 adults required for assembly
Toprotectyourparts during assembly please
place them on a soft surface.To clean surface use
only water on a damp cloth. Do not use window
cleaners or cleaning abrasives as it will scratch
the surface and could damage the protective
coating.
CUSTOMERSUPPORT
If you are missing parts or need assistance with
your product, please contact the retailer from
whom you purchased the product. When you
call or email, please include the Product’s Item
Number and PO Number which is located on
the Production Tracking Sticker. This sticker can
be found on the bottom, inside or back of your
product.
1.
2.
3.
4.
INTRODUCTION
STAIRCASE LOFT BED
Item No. X090
Assembly Instructions

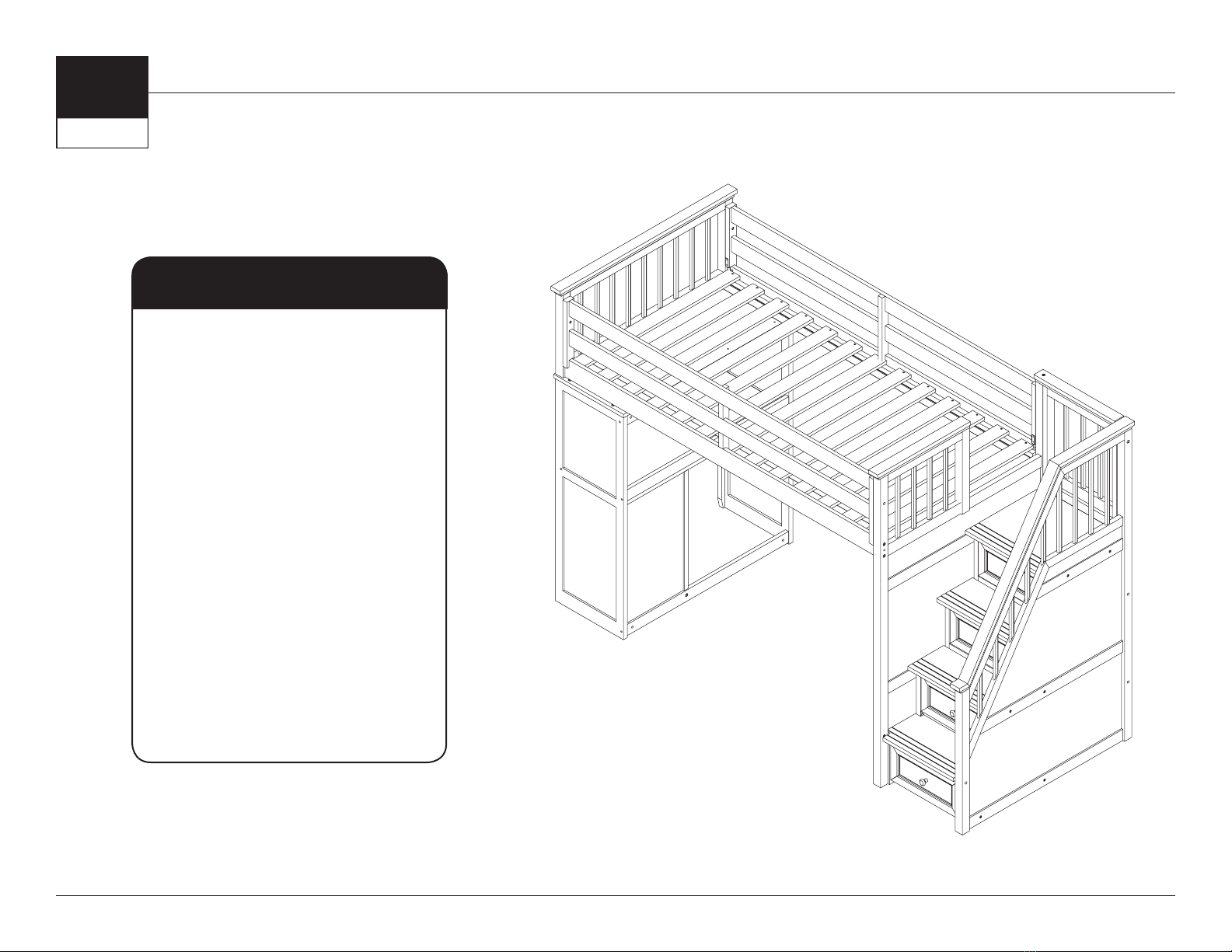

Fully Assembled
Staircase Loft

STAIRCASE LOFT BED - Assembly Instructions
NE kids · 2300 Prospect Dr. Christiansburg, VA 24073 · www.ne-kids.com
NE
k i d s
Page 3 of 21
J10mm Wood Dowels
X4
Allen Wrench
X1
K
L
M
PARTS LIST
Outer Staircase Support Panel
X1
Back Staircase Support Panel
X1
H30mm Screws
X26
1
2
3
4
Toy Box Top Support
X1
Toy Box Side Supports
X2
Toy Box Front
X1
Toy Box Back
X1
Toy Box Sides
X2
Toy Box Bottom
X1
7
8
9
10
5
6
C60mm Bolts
X20
FBarrel Nuts
X26
D40mm Bolts
X34
25mm Bolts
X2
T-Nuts
X2
A110mm Bolts
X2
B90mm Bolts
X8
G8mm Wood Dowels
X12
E40mm Screws
X4
I20mm Screws
X10
Inner Staircase Support Panel
X1
Staircase/Drawers
X1

STAIRCASE LOFT BED - Assembly Instructions
NE kids · 2300 Prospect Dr. Christiansburg, VA 24073 · www.ne-kids.com
NE
k i d s
Page 4 of 21
PARTS LIST (CONTINUED)
Desk Cabinet
X1
Left & Right Desk Hutch Side Panels
X1
Desk top
X1
Desk Hutch Back Supports
X1(of each type)
Desk Hutch Top Panel
X1
Headboard
X1
Bed Side Rails
X2
Guard Rails
X2
Set of Slats
X1
11
12 13
15
16
17
18
19
20
21
22
Other Tools Required
(Not Included)
• Phillips Screwdriver
• Flathead Screwdriver
Top
Bottom

STAIRCASE LOFT BED - Assembly Instructions
NE kids · 2300 Prospect Dr. Christiansburg, VA 24073 · www.ne-kids.com
NE
k i d s
Page 5 of 21
For right-hand side Staircase
assembly, please start at
Step 1 on Page 6.
For left-hand side Staircase
assembly, please skip to
Step 1A on Page 9.

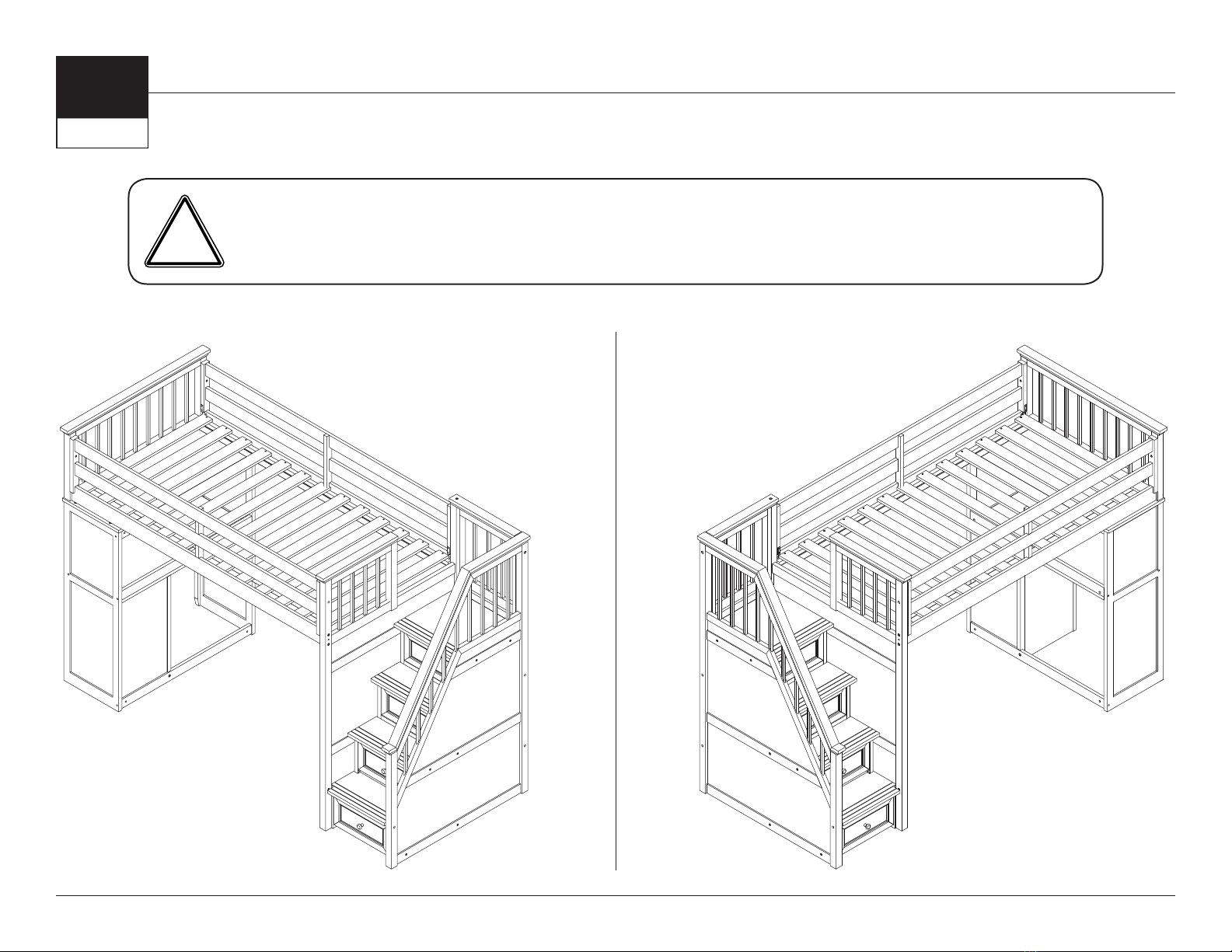

NOTE: Before beginning assembly, decide exactly where the bed is to be placed
and on which ends you would like the the Desk and Staircase. Both the Staircase
and Desk can be placed at either end and reversed. See below.
!

STAIRCASE LOFT BED - Assembly Instructions
NE kids · 2300 Prospect Dr. Christiansburg, VA 24073 · www.ne-kids.com
NE
k i d s
Page 6 of 21
STEP 1STEP 2

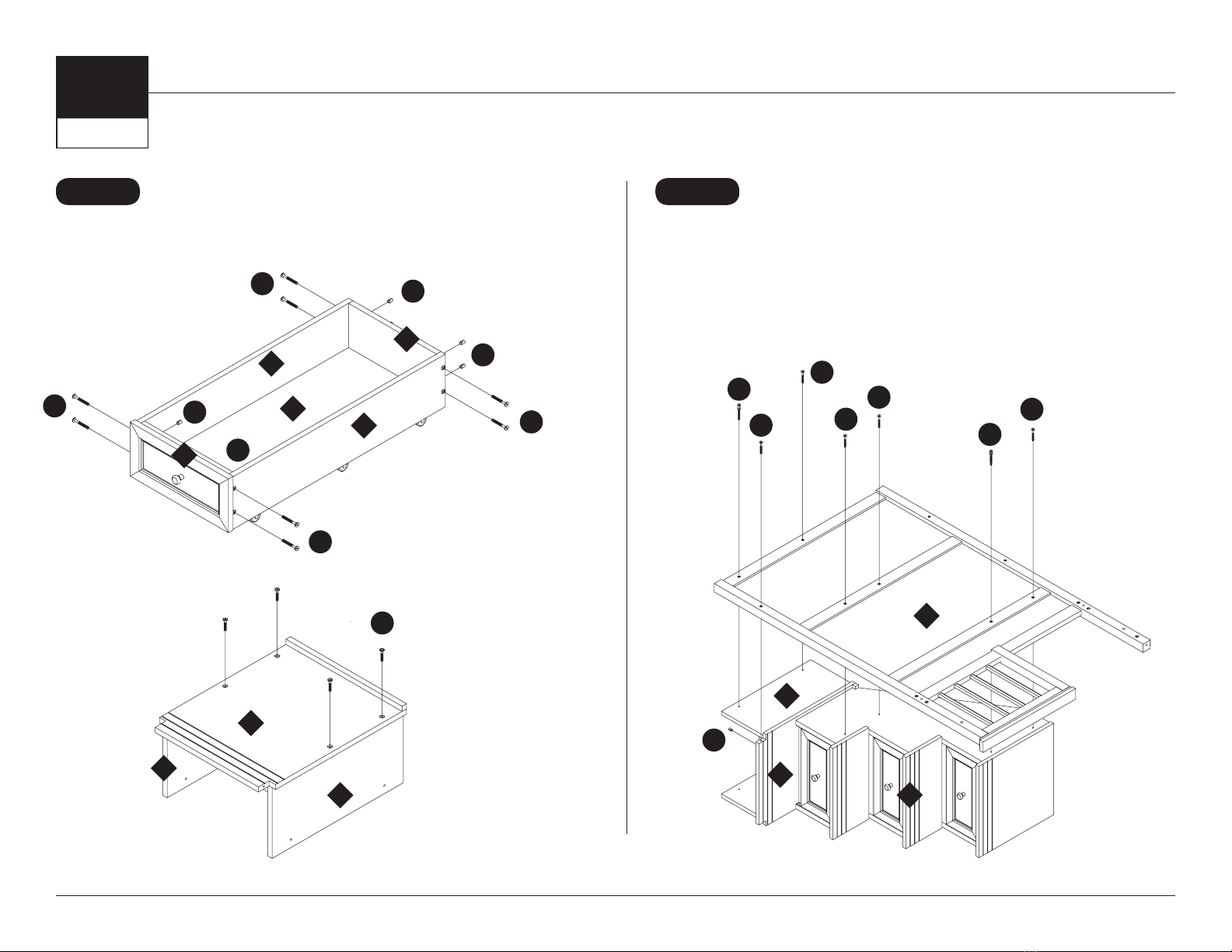

Assemble Toy Box and Support.
Steps 1-5: Right-hand Staircase assembly
Lay Staircase/Drawers at on its side with drawer fronts facing you and
the top facing right. Put Toy Box Support in place with the lip catching the
notch at the bottom of Staircase as shown. Gently lower and attach In-
ner Staircase Support Panel making sure to align the open side with the
top stair. Be careful not to scratch the nish while positioning the panel,
this damage would not be covered under the warranty. We recommend
two adults for this step.
7
7
7
8
9
9
10
5
6
6
C
C
C
C
F
F
F
F
F
D
D
D
D
D
D
D
4
3
B

STAIRCASE LOFT BED - Assembly Instructions
NE kids · 2300 Prospect Dr. Christiansburg, VA 24073 · www.ne-kids.com
NE
k i d s
Page 7 of 21
STEP 3STEP 4
Turn partially assembled Staircase over then gently lower and attach the
Outer Staircase Support Panel. Again, be careful not to scratch the nish
while positioning the panel, this damage would not be covered under the
warranty. We recommend two adults for this step.
Stand Staircase upright and attach Back Staircase Support Panel.
D
D
D
D
D
D
D
D
F
1
1
4
2
3
3
C
C
C
C
B

STAIRCASE LOFT BED - Assembly Instructions
NE kids · 2300 Prospect Dr. Christiansburg, VA 24073 · www.ne-kids.com
NE
k i d s
Page 8 of 21

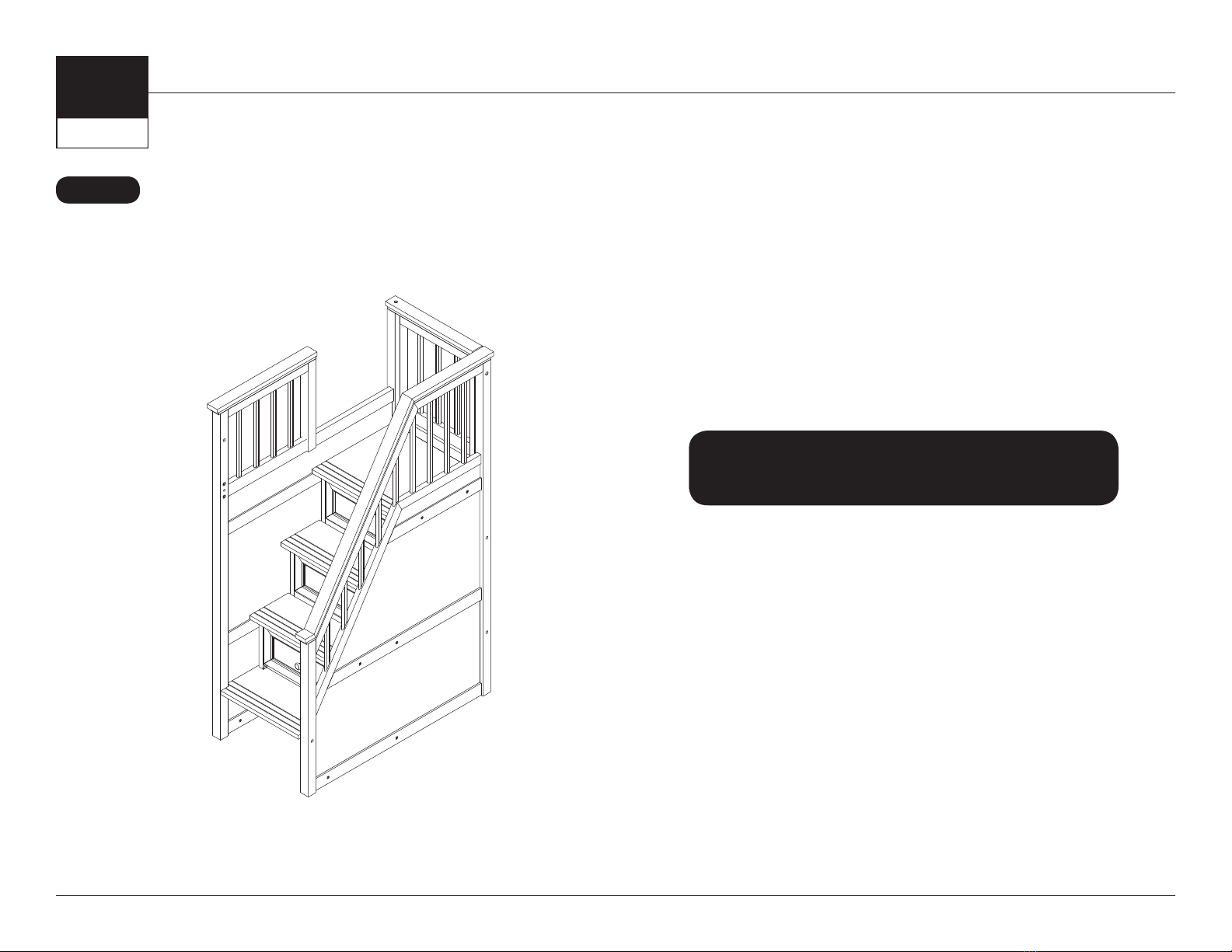

STEP 5
Withtwoadults, lift the Staircase into desired position.
Skip to Step 6 on Page 11

STAIRCASE LOFT BED - Assembly Instructions
NE kids · 2300 Prospect Dr. Christiansburg, VA 24073 · www.ne-kids.com
NE
k i d s
Page 9 of 21
Assemble Toy Box and Support.
7
7
8
9
9
10
5
6
C
C
C
C
F
F
F
F
D

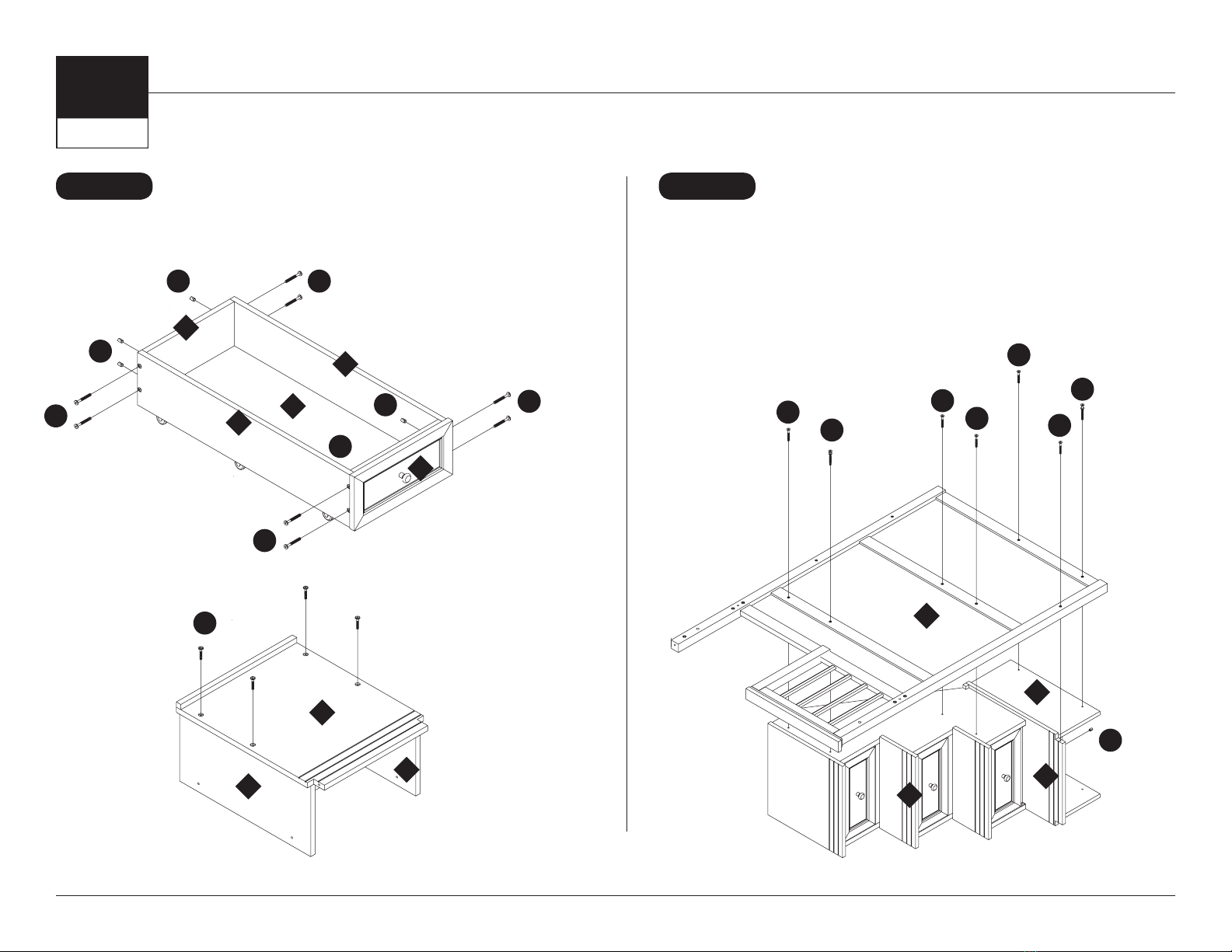

Lay Staircase/Drawers at on its side with drawer fronts facing you and
the top facing left. Put Toy Box Support in place with the lip catching the
notch at the bottom of Staircase as shown. Gently lower and attach In-
ner Staircase Support Panel making sure to align the open side with the
top stair. Be careful not to scratch the nish while positioning the panel,
this damage would not be covered under the warranty. We recommend
two adults for this step.
7
6
F
D
DD
D
D
D
4
3
STEP 1A STEP 2A
Steps 1A-5A: Right-hand Staircase assembly
B

STAIRCASE LOFT BED - Assembly Instructions
NE kids · 2300 Prospect Dr. Christiansburg, VA 24073 · www.ne-kids.com
NE
k i d s
Page 10 of 21
Turn partially assembled Staircase over then gently lower and attach the
Outer Staircase Support Panel. Again, be careful not to scratch the nish
while positioning the panel, this damage would not be covered under the
warranty. We recommend two adults for this step.
Stand Staircase upright and attach Back Staircase Support Panel.
D
D
D
D
D
D
D
D
F
1
1
4
2
3
3
C
C
C
C
STEP 3A STEP 4A
B

STAIRCASE LOFT BED - Assembly Instructions
NE kids · 2300 Prospect Dr. Christiansburg, VA 24073 · www.ne-kids.com
NE
k i d s
Page 11 of 21
STEP 6
11
Steps 6-10: Desk Hutch assembly
Withtwoadults, lift the Staircase into
desired position.
STEP 5A
D
D
11
13
13
X2
X2
C
C
F
F
G
G
Loosely afx Desk Top to Right Desk Hutch Side Panel (do not completely tighten bolts). Remove
drawers from Desk Cabinet, then attach Right Desk Hutch Side Panel to Desk Cabinet.
15

STAIRCASE LOFT BED - Assembly Instructions
NE kids · 2300 Prospect Dr. Christiansburg, VA 24073 · www.ne-kids.com
NE
k i d s
Page 12 of 21
STEP 7
Fit Desk Hutch Back Supports, Desk Top, and Left Desk
Hutch Side Panel together using wood dowels(12).
11
13
12
15
16
17
G
G
G
G
G
G
G
G
G
G
For outside-facing Desk
assembly, please continue with
Step 7 on This Page.
For inside-facing Desk
assembly, please skip to
Step 7A on Page 15.
NOTE: Before continuing assembly, decide whether
you would like the Desk to be outside-facing or
inside-facing and follow instructions below.
!
Steps 7-9: Outside-facing Desk assembly

STAIRCASE LOFT BED - Assembly Instructions
NE kids · 2300 Prospect Dr. Christiansburg, VA 24073 · www.ne-kids.com
NE
k i d s
Page 13 of 21
STEP 8
Secure Desk Hutch Side Panels and
Back Supports as shown and tighten
any bolts that were left loose.
FRONT VIEW
REAR VIEW
C
C
C
C
C
K
K
K
K
C
C
C
C
C
C
C
F
F
F
F
F
F
F
F
F
F
F
F
E
13 13
12
12
L
L
L
L

STAIRCASE LOFT BED - Assembly Instructions
NE kids · 2300 Prospect Dr. Christiansburg, VA 24073 · www.ne-kids.com
NE
k i d s
Page 14 of 21
STEP 9
Attach Desk Hutch Top Panel.
D
D
D
D
E
E
E
Skip to Step 10 on Page 16
18

STAIRCASE LOFT BED - Assembly Instructions
NE kids · 2300 Prospect Dr. Christiansburg, VA 24073 · www.ne-kids.com
NE
k i d s
Page 15 of 21

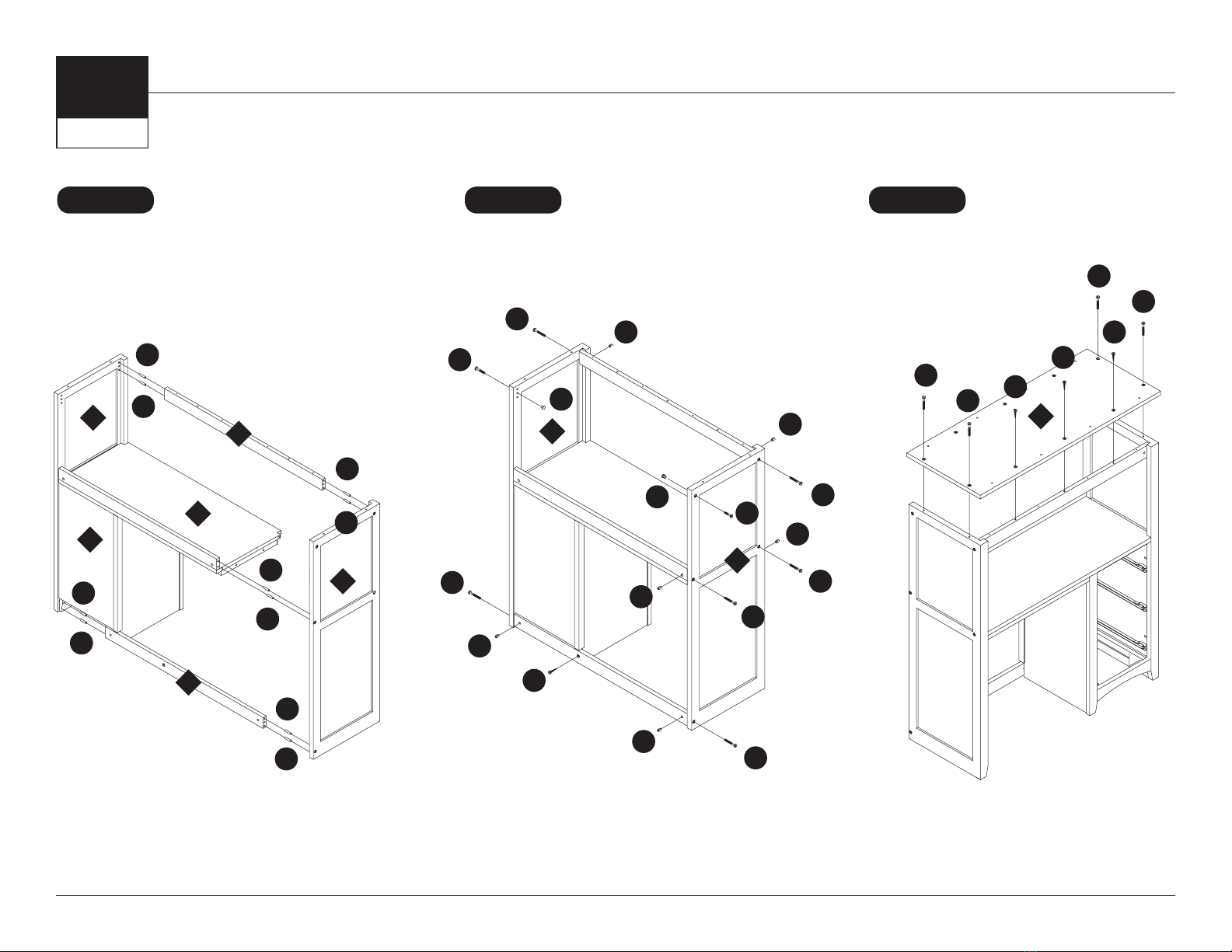

Steps 7A-9A: Inside-facing Desk assembly
STEP 7A STEP 8A STEP 9A
Fit Desk Hutch Back Supports, Desk Top, and
Left Desk Hutch Side Panel together using
wood dowels(12).
Secure Desk Hutch Side Panels and Back
Supports as shown and tighten any bolts that
were left loose.
Attach Desk Hutch Top Panel.
11
13
12
15
16
17
G
G
G
G
G
G
G
G
G
G
C
C
C
C
C
C
F
F
F
F
F
F
E
13
12
D
D
D
D
E
E
E
K
K
L
L
18

STAIRCASE LOFT BED - Assembly Instructions
NE kids · 2300 Prospect Dr. Christiansburg, VA 24073 · www.ne-kids.com
NE
k i d s
Page 16 of 21
STEP 11
Attach Headboard to the top of the Desk Hutch.
D D
D D
D D
D D
Steps 11-14: Upper Bed assembly
STEP 10
Withtwoadults, move the Desk Hutch into position
then replace the drawers.
For inside-facing
Desk assembly
For outside-facing
Desk assembly
19 19

STAIRCASE LOFT BED - Assembly Instructions
NE kids · 2300 Prospect Dr. Christiansburg, VA 24073 · www.ne-kids.com
NE
k i d s
Page 17 of 21
STEP 12
Attach Headboard/Desk
Hutch, Bed Side Rails and
Staircase (do not completely
tighten bolts until Step 14).
F
A
B
B
B
Detail for all four corners
20
20
19 J

STAIRCASE LOFT BED - Assembly Instructions
NE kids · 2300 Prospect Dr. Christiansburg, VA 24073 · www.ne-kids.com
NE
k i d s
Page 18 of 21
STEP 13
Lay slat roll between side rails and screw in slats to slat support as
indicated. Make sure rails are pulled into slats prior to screwing in place.
To help prevent serious or fatal injuries SCREWBOTHSIDES
OFEACHSLATTOTHESLATSUPPORT. Failure to do so
could result in the collapse of the entire slat roll, and will void
your warranty.
WARNING
!
Attach Slats. H
H
H
22
22

STAIRCASE LOFT BED - Assembly Instructions
NE kids · 2300 Prospect Dr. Christiansburg, VA 24073 · www.ne-kids.com
NE
k i d s
Page 19 of 21

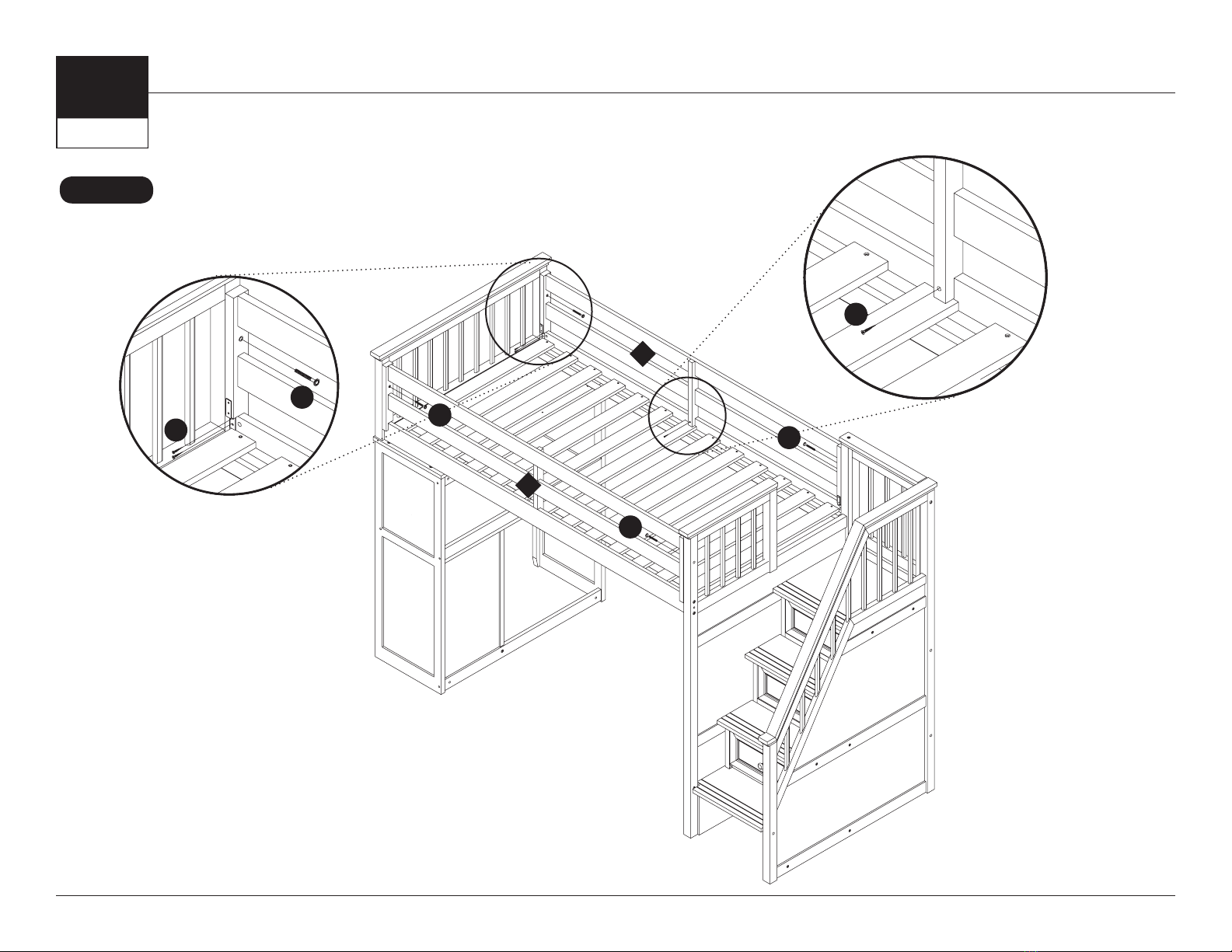

STEP 14
Position Guard Rails in place, tighten all Bed Side Rail
bolts completely, then attach Guard Rails as shown.
Detail for all four corners
Detail for both sides
D
D
D
D
I
I
21
21

STAIRCASE LOFT BED - Assembly Instructions
NE kids · 2300 Prospect Dr. Christiansburg, VA 24073 · www.ne-kids.com
NE
k i d s
Page 20 of 21

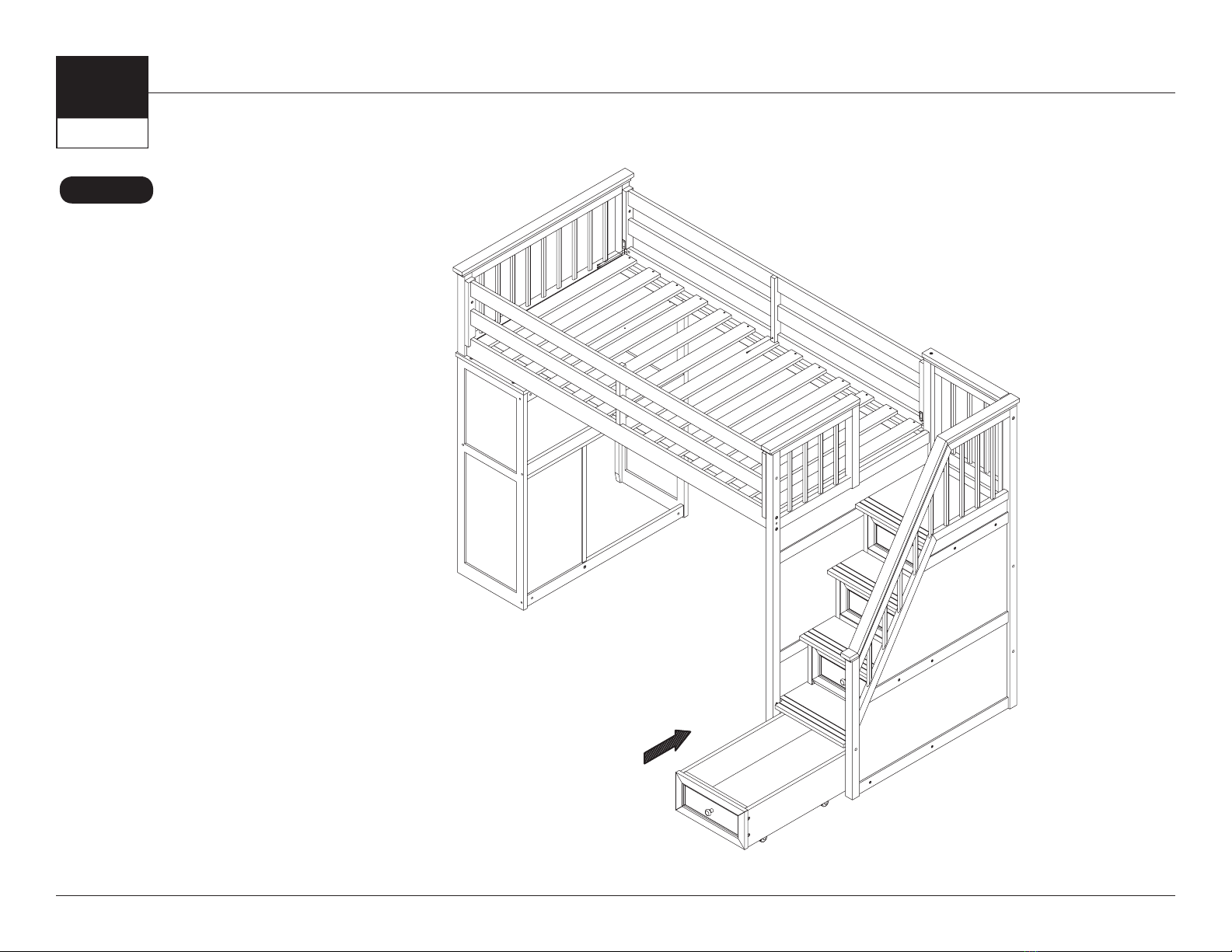

STEP 15
With at least two adults, make sure the
loft is in desired nal position then slide
the Toy Box into place.
