NE kids STUDENT LOFT BED X080 User manual

STUDENT LOFT BED
Assembly Instructions
NE
k i d s
Item No. X080
1. Follow the information on the warnings appearing on the upper bunk end structure and on the
carton. Do not remove warning label from bed.
2. Always use the recommended size mattress or mattress support, or both, to help prevent
entrapment or falls.
3. Surface of mattress must be at least 5 inches (127 mm) below the upper edge of guardrails.
4. Do not allow children under 6 years of age to use the upper bunk.
5. Prohibit more than one person on the upper bunk.
6. Periodicall y, check and ensure that the guardrail, stairs, and other components are in their proper
position, free from damage, and that all connectors are tight.
7. Do not allow horseplay on or under the bed and prohibit jumping on the bed.
8. Always use the stairs for entering and leaving the upper bunk.
9. Do not use substitute parts. Contact the manufacturer or dealer for replacement parts.
10. Use of a nightlight may provide added safety precaution for a child using the upper bunk.
11. Always use guardrails on both long sides of the upper bunk. If bunk bed will be placed next to the
wall, the guardrail that runs the full length of the bed should be placed against the wall to prevent
entrapment between the bed and wall.
12. The use of water or sleep flotation mattresses is prohibited.
13. Keep these instructions for future reference.
!
!STRANGULATION HAZARD
Never attach or hang items to any part of the bunk bed that are not designed for use with the bed;
including, but not limited to, hooks, belts and jump ropes.
SIZE OF MATTRESS AND FOUNDATION
SAFETY WARNINGS
SAFETY FIRST!
All of NE kid ’s Bunkbeds were
designed and manuf actured with
your child’s safety as our top
priority.
Their unparalleled strength is a
bi-product of the safety design.
Our bunks meet all compliance
with ASTM F 1427-13 “Standard
Consumer Safety Specification
for Bunk Beds” and Code of
Federal Regulations (CFR) 1213
“Safety Standards for Entrapment
Hazards in Bunk Beds” and
(CFR) 1513 “Requirements for
Bunk Beds”.
between us as the manufacturer,
and you as a guardian. Please
read and consider the
warnings listed on this page
when choosing a mattress and
discussing rules of use with your
child.
REPLACEMENT PARTS
Replacement parts, including
additional guardrails, may be
obtained from any of NE kids’
dealers.
Page 1 of 19
Use only mattress, foundation and deck combined which is 74-75 inches long and 37 ½-38 ½ inches
wide on upper bunk. Ensure thickness of mattress and foundation combined does not exceed
8 inches and the mattress is at least 5 inches below upper edge of guardrails.
NE kids. 3901 Bishop Lane, Louisville, KY, 40218. www.ne-kids.com

Page 2 of 19
NE
k i d s
Enclosed please simple step-by-step
instructions to help you quickly assemble
your product. Before you begin we recommend
that you follow the steps below:
Please read the instructions thoroughly
Identify all parts and hardware
Gather the tool(s) necessary
Two adults required for assembly
To protect your parts during assembly please
place them on a soft surface. To clean surface use
only water on a damp cloth. Do not use window
cleaners or cleaning abrasives as it will scratch
the surface and could damage the protective
coating.
CUSTOMER SUPPORT
If you are missing parts or need assistance with
your product, please contact the retailer from
whom you purchased the product. When you
call or email, please include the Product s Item
Number and PO Number which is located on
the Production Tracking Sticker. This sticker can
be found on the bottom, inside or back of your
product.
1.
2.
3.
4.
INTRODUCTION
STUDENT LOFT BED
Item No. X080
Assembly Instructions
Fully Assembled
Student Loft
,
NE kids. 3901 Bishop Lane, Louisville, KY, 40218. www.ne-kids.com

STUDENT LOFT BED - Assembly Instructions
NE
k i d s
Page 3 of 19
J
Allen Wrench
X1
K
L

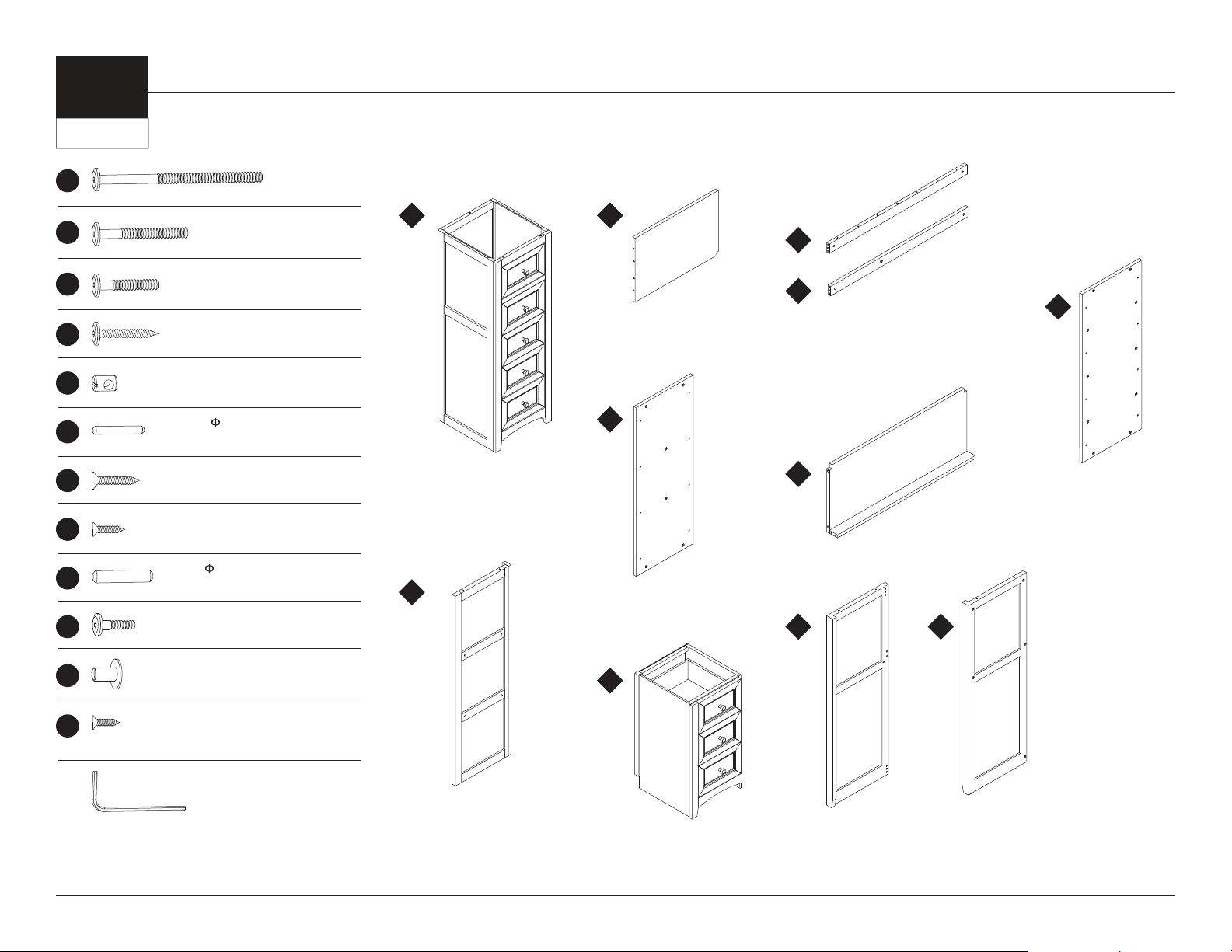

PARTS LIST
H
30mm Screws
X26
1
2
3
4
7
8
9 10
5
6
C
60mm Bolts
X16
F
Barrel Nuts
X24
D
40mm Bolts
X24
19mm Bolts
X2
T-Nuts
X2
A100mm Bolts
X8
B
G
8 x 40 mm W ood Dowels
X20
E
45mm Screws
X4
I
25mm Screws
X2
16mm Screws
X10
11
Top
Bottom
Left & Right Desk Hutch Side Panels
X1 ea.
Desk Hutch
Top Panel
X1
Desk Cabinet
X1
Bookcase
Top Panel
X1
Bookcase
Side Panel
X1
Bookcase
Drawer Chest
X1
Bookcase
Shelves
X2
DeskTop
X1
Desk Hutch Back Supports
X1 (of each type)
10 x 40 mm Wood Dowels
X4
NE kids. 3901 Bishop Lane, Louisville, KY, 40218. www.ne-kids.com

STUDENT LOFT BED - Assembly Instructions
NE
k i d s
Page 4 of 19
PARTS LIST (CONTINUED)
Ladder
X1
Rear Guard Rail
X1
Front Guard Rail
X1
15 16 17
Head/Footboards
X2
12
Set of Slats
X1
14
Rails
X2
13
Other Tools Required
(Not Included)
Phillips Screwdriver
Flathead Screwdriver
NE kids. 3901 Bishop Lane, Louisville, KY, 40218. www.ne-kids.com

STUDENT LOFT BED - Assembly Instructions
NE
k i d s
Page 5 of 19
For left-hand Desk/Ladder
follow directions as indicated.
For right-hand Desk/Ladder
follow directions as indicated but
please note inset drawings.
NOTE: Before beginning assembly, decide exactly where the bed is to be placed
and on which ends you would like the the Desk/Ladder and Bookcase. Both the
Bookcase and Desk can be placed at either end and reversed. See below.
!
NE kids. 3901 Bishop Lane, Louisville, KY, 40218. www.ne-kids.com

STUDENT LOFT BED - Assembly Instructions
NE
k i d s
Page 6 of 19
STEP 1STEP 2
sevlehS,tsehCrewarDelbmessA.tsehcmorfsrewardevomeR
and Bookcase Side Panel
X 2
X 2
X 2
X 2
B
B
B
B
B
B
B
B
E
E
E
E
1
1
2
3
3
F
F
F
F
NE kids. 3901 Bishop Lane, Louisville, KY, 40218. www.ne-kids.com

STUDENT LOFT BED - Assembly Instructions
NE
k i d s
Page 7 of 19
STEP 3STEP 4
With two adults, lift the Bookcase into desired position
then replace the Drawers.
Attach Head/Footboard to Bookcase Top Panel then attach Top Panel to Bookcase.
Left-hand Bookcase
(Right-hand Desk/Ladder)
C
C
C
C
C
C
C
C
4
4
12 12
C
NE kids. 3901 Bishop Lane, Louisville, KY, 40218. www.ne-kids.com

STUDENT LOFT BED - Assembly Instructions
NE
k i d s
Page 8 of 19
STEP 5
For outside-facing Desk assembly,
please continue with
Step 6 on Page 9.
For inside-facing Desk assembly,
please skip to
Step 6A on Page 11.
NOTE: Before continuing assembly, decide whether
you would like the Desk to be outside-facing or
inside-facing and follow instructions below. For use
of the Lower Bed with the Student Loft, Desk must be
outside-facing.
!
(do not completely tighten
bolts). Remove drawers from Desk Cabinet, then attach Right Desk Hutch Side
Panel to Desk Cabinet.
X2
X2
C
C
10
5
5
F
F
B
B
E
E
10
8
NE kids. 3901 Bishop Lane, Louisville, KY, 40218. www.ne-kids.com

STUDENT LOFT BED - Assembly Instructions
NE
k i d s
Page 9 of 18

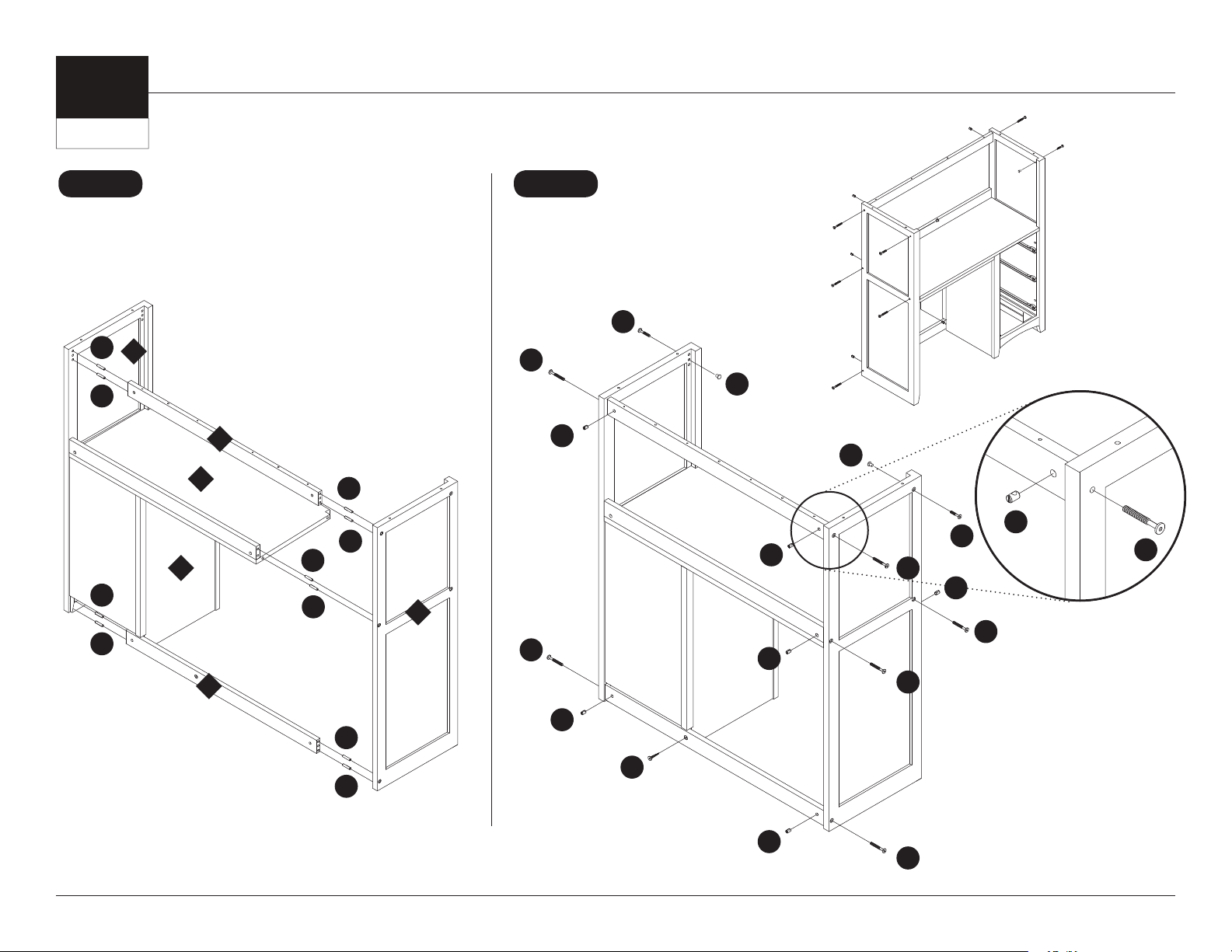

Steps 6-8: Outside-facing Desk assembly
STEP 6
Fit Desk Hutch Back Supports, Desk Top, and
Left Desk Hutch Side Panel together using wood
dowels(12).
STEP 7
Secure Desk Hutch Side Panels and
Back Supports as shown and tighten
any bolts that were left loose.
FRONT VIEW
REAR VIEW
J
J
B
B
B
B
B
B
B
F
F
F
F
F
F
F
F
F
F
E
E
E
E
E
E
E
K
K
D
7
8
9
6
10
5
NE kids. 3901 Bishop Lane, Louisville, KY, 40218. www.ne-kids.com

STUDENT LOFT BED - Assembly Instructions
NE
k i d s
Page 10 of 19
STEP 8
Attach Desk Hutc h Top Panel.
Skip to Step 9 on Page 12
C
C
C
11
C
D
D
D
NE kids. 3901 Bishop Lane, Louisville, KY, 40218. www.ne-kids.com

S
TUDENT L
O
FT BED
-
Assembly Instruction
s
N
E
k
i
d
s
Page 11 of 19
Steps 6A-8A: Inside-facing Desk assembly
Fit Desk Hutch Back Supports, Desk Top, and
Left Desk Hutch Side Panel together using wood
dowels(12).
Secure Desk Hutch Side Panels and Back
Supports as shown and tighten any bolts that
were left loose.
REAR VIEW
J
J
B
B
B
B
B
B
F
F
F
F
F
F
F
F
F
F
E
E
E
E
E
E
E
K
K
D
STEP 8A
STEP 6A STEP 7A
Attach Desk Hutch Top Panel.
C
C
C
C
D
D
D
7
8
9
6
10
5
11
NE kids. 3901 Bishop Lane, Louisville, KY, 40218. www.ne-kids.com

STUDENT LOFT BED - Assembly Instructions
NE
k i d s
Page 12 of 19
STEP 10
Attach Headboard to the top of the Desk Hutch.
Steps 10-14: Upper Bed assembly
STEP 9
With two adults, move the Desk Hutch into position
then replace the drawers.
For inside-facing
Desk assembly
For outside-facing
Desk assembly
CC
CC
CC
CC
12 12
NE kids. 3901 Bishop Lane, Louisville, KY, 40218. www.ne-kids.com

STUDENT LOFT BED - Assembly Instructions
NE
k i d s
Page 13 of 19
STEP 11
Detail for all four corners
I
I
I
I
A
A
A
A
E
E
E
E13
13
Loosely attach Desk Hutch,
Bed Side Rails and Bookcase
(do not completely tighten
bolts until Step 13
NE kids. 3901 Bishop Lane, Louisville, KY, 40218. www.ne-kids.com

STUDENT LOFT BED - Assembly Instructions
NE
k i d s
Page 14 of 19
STEP 12
Lay slat roll between side rails and screw in slats to slat support as
indicated. Make sure rails are pulled into slats prior to screwing in place.
To help prevent serious or fatal injuries SCREW BOTH SIDES
OF EACH SLAT TO THE SLAT SUPPORT. Failure to do so
could result in the collapse of the entire slat roll, and will void
your warranty.
WARNING
!
Attach Slats.
G
G
G
14
14
NE kids. 3901 Bishop Lane, Louisville, KY, 40218. www.ne-kids.com

STUDENT LOFT BED - Assembly Instructions
NE
k i d s
Page 15 of 19
Inside detail
Detail for 3 corners
STEP 13
Right-hand Desk/Ladder
H
L
L
C
15
15
16
16
Position Guard Rails in place, tighten all Bed Side Rail bolts completely, then attach
Guard Rails as shown. Note: Ladder opening must be on the Desk end of the bed.
NE kids. 3901 Bishop Lane, Louisville, KY, 40218. www.ne-kids.com

STUDENT LOFT BED - Assembly Instructions
NE
k i d s
Page 16 of 18
P
age 16 of 19
Attach Ladder to Upper Bed.
Inside detail
STEP 14
L
L
17
Note: Please ensure that
the bolts for Ladder rungs
are tight before using.
NE kids. 3901 Bishop Lane, Louisville, KY, 40218. www.ne-kids.com

STUDENT LOFT BED - Warning label
NE
k i d s
Page 16 of 18
P
age 17 of 19
TO HELP PREVENT SERIOUS OR FATAL INJURIES FROM ENTRAPMENT OR FALLS:
° NEVER ALLOW A CHILD UNDER 6 YEARS ON UPPER BUNK.
° USE ONLY MATTRESS WHICH IS 74”-75” LONG AND 37½”-38½” WIDE ON TWIN UPPER BUNK.
° ENSURE THICKNESS OF MATTRESS AND FOUNDATION COMBINED DOES NOT EXCEED 8"
AND MATTRESS IS AT LEAST 5" BELOW UPPER EDGE OF GUARDRAILS.
° USE GUARDRAILS ON BOTH SIDES OF UPPER BUNK.
° PROHIBIT HORSEPLAY ON OR UNDER BED(S).
° PROHIBIT MORE THAN ONE PERSON ON UPPER BUNK.
° USE LADDER FOR ENTERING AND LEAVING UPPER BUNK.
DO NOT REMOVE THIS LABEL
WARNING
!
STRANGULATION HAZARD - NEVER ATTACH OR HANG ITEMS TO ANY PART OF THE BUNK BED
THAT ARE NOT DESIGNED FOR USE WITH THE BED, FOR EXAMPLE, BUT NOT LIMITED TO,
HOOKS, BELTS, AND JUMPROPES.
NE kids. 3901 Bishop Lane, Louisville, KY, 40218. www.ne-kids.com

1. Do not allow climbing on any dresser/chest.
2. Do not leave drawers open when not in use.
3. Do not allow standing in drawers.
4. Do not allow hanging from drawers.
5. Do not allow standing on top of dresser/
chest.
6. Do not place heavy objects in drawers.
7. Do not place heavy objects on top of the
Dresser/chest which can be pulled down on
top of your child.
8. To avoid head injur y, do not allow your child
to play underneath open drawers.
9. Hutches, mirro r, etc. must be securely
fastened to the dresser according to the
instructions enclosed with those items.
10. Always monitor your child ’s activity when in
the nurser y.
!WARNING
Important Safety Notice
Dresser/chest can tip (fall over) when not used as
intended.This could potentially result in serious injury
or death. Keep your children and others safe by
following these simple rules:
CARE INSTRUCTIONS
It is not
waterproof, clean spills immediately. Dust using a slightly damp cloth,
making sure no standing water is left on the furniture. DO NOT use any
household cleaners, citrus-based polishes, wood soaps, or oils; they can
Do not place furniture in direct sunlight. Natural solid wood furniture
will naturally color as it ages, however, direct sunlight dramatically speeds
up the process.
In natural wood furniture, the variations in texture and grain will affect the
, making it impossible to guarantee an exact match between two
These
differences in character are not defects, but variations that make each
piece of furniture unique and beautiful.
Solid wood naturally expands and contracts. In high humidity you may
This will correct itself, and is not reason
for concern.
Do not place furniture over heating or cooling vents. Dramatic
changes in temperature can cause the wood to split.
If you place objects such as lamps or plants on your case pieces
make sure to move them from time to time.There may be a slight
discoloration where the object was. However, by exposing it to light the
color will catch up to the rest of the case.
Plastic or foam footed items such as phones or clocks can damage this
use trivets under such items.
NE
k i d s
SCHOOLHOUSE
C O LLEC T I O N
Page 18 of 19
NE kids. 3901 Bishop Lane, Louisville, KY, 40218. www.ne-kids.com

Limited 1-Year Warranty
NE
k i d s
WARRANTY LIMITATIONS
Authorized Retailer
This warranty protects you only when you purchase NE Kids products from an
authorized NE Kids Retailer.
Household Use
This warranty applies only when you have purchased a NE Kids product for your
own normal indoor household use (including use as a gift to another for household
purposes) and not for resale or commercial use, which includes rental, business, and
institutional or other non-residential use.
Normal Use
This warranty applies under conditions of normal use only. This warranty does not apply
a manner inconsistent with its intended use. Additionally this warranty does not cover
damage resulting from inadequate maintenance, cleaning, or care or any condition
resulting from other than ordinary residential wear or from any use for which the product
was not designed.
Original Purchaser
This warranty applies only as long as the product continues to be held for use by the
original purchase r. The warranty cannot be transferred to subsequent owners or users
of the product, and it shall be immediately invalidated in the event that the product is
resold, transferred, leased or rented to any third party or person other than the original
owner.
Receipt of your Warranty Registration
The limited warranty set forth herein will be activated on the day of purchase. You must
submit your sales receipt as proof of original purchase as a condition precedent to
coverage under this limited warranty.
Product Modification
Kids will void this warranty.
Floor Samples or Products purchased “AS IS”
of purchase.
Assembly
Product must be assembled according to directions. Failure to assemble product
correctly shall void the warranty. Care instructions are enclosed, failure to follow these
instructions shall void your warranty.
Natural Wood
that do not pose a safety risk to the user are not considered manufacturers defects.
Differences
Because of craftsmanship and use of natural materials in NE Kids products, minor
variations can occur from piece to piece, as in the matching of color , grain, or texture
samples or printed illustrations and your furniture.
Transportation
We do not pay for shipping and handling on warranty items.
Claims
Any claim against this warranty must be presented in writing to the Authorized NE
Kids Retailer. The Authorized NE Kids Retailer will then contact NE Kids. If NE Kids
determines that replacement is impractical you will be furnished a substitute unit of the
same or similar color, design, style and quality unless NE Kids no longer carries the
product.
Digital photography of your furniture and the defective piece/area is absolutely
necessary to determine whether or not a manufacturing defect exists.
OTHER
There are no warranties other than those expressly set forth above. NE Kids
expressly disclaims all implied warranties, including, without limitation, implied
Limitations of damages: The warranties and remedies set forth are exclusive and in
lieu of all others, oral, written, express or implied, in no event will NE Kids be liable to
you for any damages, including incidental or consequential damages, arising out of the
use or inability to use this product. In no event will NE Kids’ responsibility exceed the
purchase price of the product or its replacement.
vary from state to state. Except for such other rights, the remedies provided under this
warranty state the limit of NE Kids ’ responsibilities.
WRITTEN LIMITED WARRANTY
NE Kids warrants to the consumer, who makes the original purchase of NE Kids products, a 1-year warranty against defects in the material or workmanship of furniture
components. NE Kids will repair or replace any piece of furniture, which is defective in materials or workmanship.
imperfections in components, which substantially impair the usability of the product.
to preserving your rights under this warranty.
Page 19 of 19
NE kids. 3901 Bishop Lane, Louisville, KY, 40218. www.ne-kids.com
