Nebula WASH-500ZOOM User manual

WASH-500ZOOM
User Manual
Professional Entertainment Technology
Professional LED
Moving Head Washer
Please read these instructions carefully before use
with Motor Zoom Function

1C
TABLE OF CONTENTS
1. Safety Instructions ...........................................................................................................2
2. Technical Specifications ...................................................................................................3
3. How To Set The Unit ........................................................................................................4
3.1 Control panel ............................................................................................................4
3.2 Main Function...........................................................................................................5

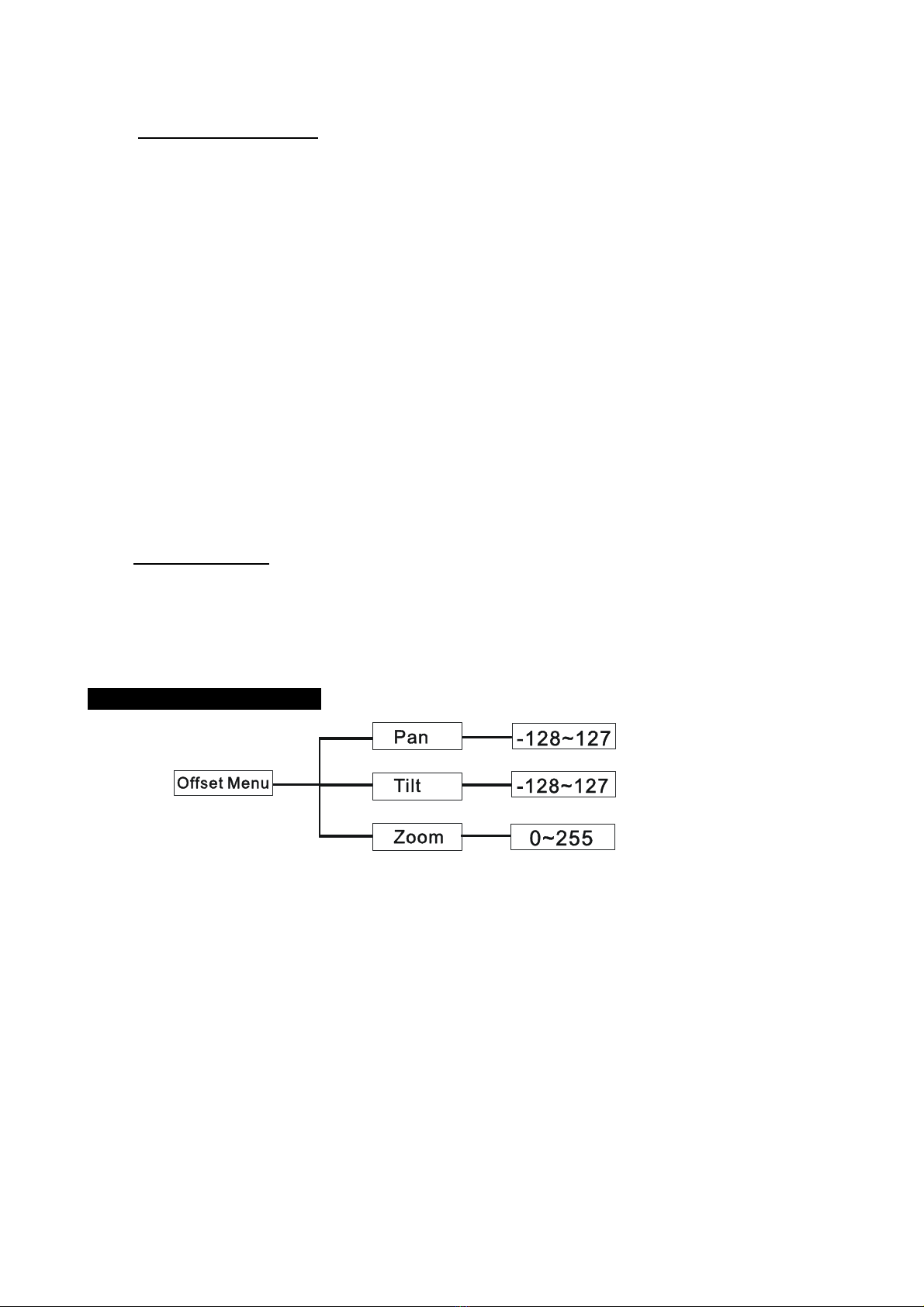

3.3 Home Position Adjust .............................................................................................13
4. Control By Universal DMX Controller.............................................................................14
4.1 DMX 512 Connection .............................................................................................14
4.2 Address Setting ......................................................................................................15

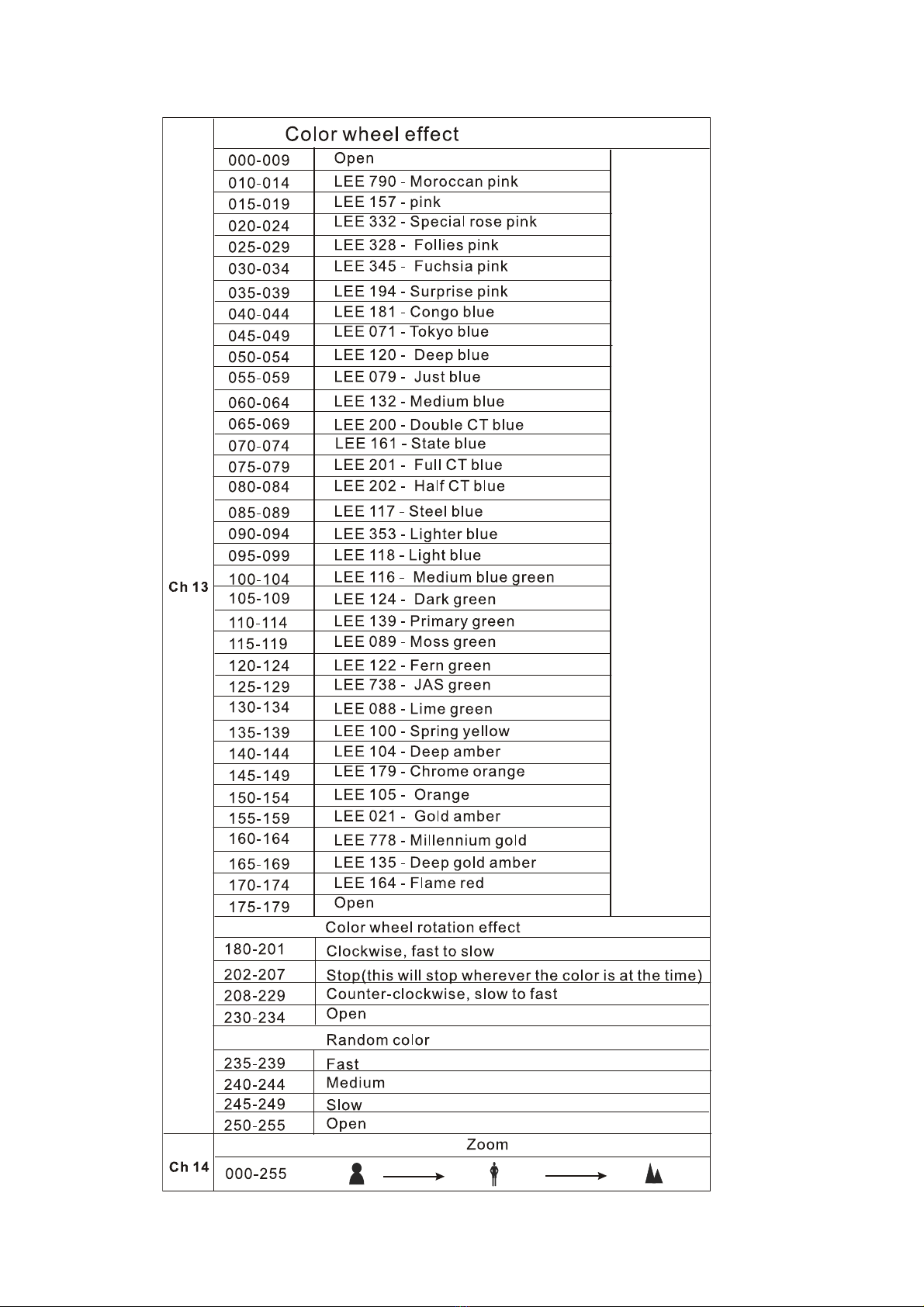

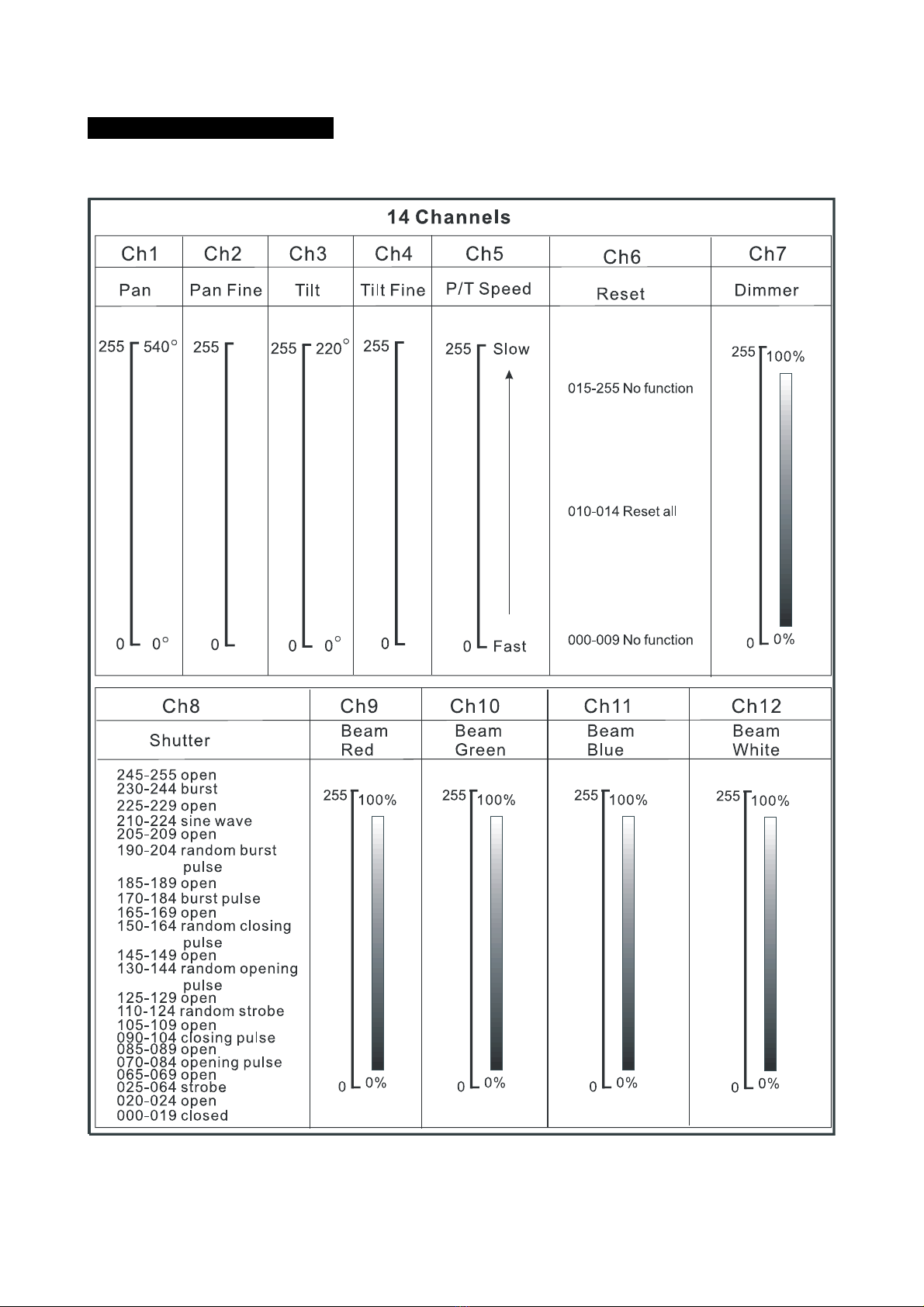

4.3 DMX 512 Configuration ..........................................................................................16
5. Troubleshooting .............................................................................................................18
6. Fixture Cleaning.............................................................................................................18

2C
1. Safety Instructions
WARNING
y Please keep this User Guide for future consultation. If you sell the unit to another user, be
sure that they also receive this instruction booklet.
y Unpack and check carefully there is no transportation damage before using the unit.
y Before operating, ensure that the voltage and frequency of power supply match the
power requirements of the unit.
y It’s important to ground the yellow/green conductor to earth in order to avoid electric
shock.
y The unit is for indoor use only. Use only in a dry location.
y The unit must be installed in a location with adequate ventilation, at least 50cm from
adjacent surfaces. Be sure that no ventilation slots are blocked.
y Disconnect main power before replacement or servicing.
y Make sure there are no flammable materials close to the unit while operating as it is fire
hazard.
y Use safety cable when fixes this unit. DO NOT handle the unit by taking its head only, but
always by taking its base.
y Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the temperature is
higher than this.
y Unit surface temperature may reach up to 85℃. DO NOT touch the housing bare-hand
during its operation. Turn off the power and allow about 15 minutes for the unit to cool
down before replacing or serving.
y In the event of serious operating problem, stop using the unit immediately. Never try to
repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or
malfunction. Please contact the nearest authorized technical assistance center. Always
use the same type spare parts.
y DO NOT touch any wire during operation as high voltage might be causing electric shock.
Please read carefully the instruction, which includes important
information about the installation, usa
g
e and maintenance.

3C
Warning:
y To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
moisture.
y DO NOT open the unit within five minutes after switching off.
y The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly
damaged.
Caution:
There are no user serviceable parts inside the unit. DO NOT open the housing or attempt
any repairs yourself. In the unlikely event your unit may require service, please contact
your nearest dealer.
Installation:
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit
is firmly fixed to avoid vibration and slipping while operating. And make sure that the
structure to which you are attaching the unit is secure and is able to support a weight of 10
times of the unit’s weight. Also always use a safety cable that can hold 12 times of the
weight of the unit when installing the fixture.
The equipment must be fixed by professionals. And it must be fixed at a place where is out
of the touch of people and has no one pass by or under it.
2. Technical Specifications
Extr◇emely small, fast and powerful LED moving beam.
DMX Channels: ◇14 channels mode
Operation modes: DMX◇512, Master/Slave
Great built◇-in lighting shows under Master/Slave mode
Blue LCD display for easy navigation◇
Perfect for stage, theatre, TV◇ studio, rental and discotheques
If using a 230V 50Hz power supply, DO NOT connect in series more than 11 units;
use another main supply for the next 11 fixtures.
If using a 120V 60Hz power supply, DO NOT connect in series more than 5 units;
use another main supply for the next 5 fixtures.

4C
Voltage: AC 100V~240V, 50/60Hz
Power consumption: 245W
LED: 19 X 10W RGBW LED

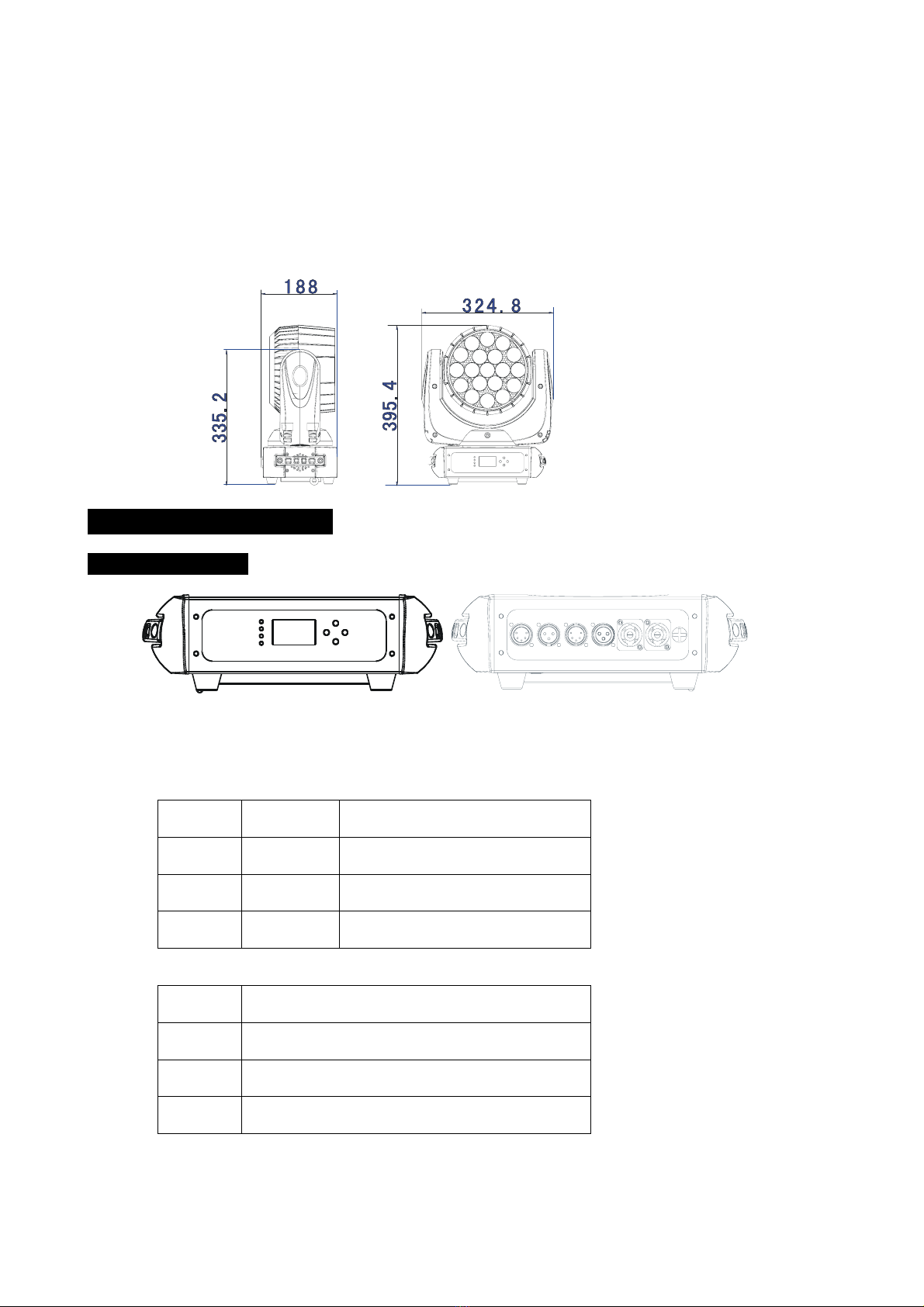

Dimension: 324.8X188X395.4mm
Weight:
9.2Kgs
Beam Angel:
10°~60°
3. How To Set The Unit
3.1 Control panel
Display:
To show the various menus and the selected functions
LED:
POWER ON Power On
NULL No function
NULL No function
DMX ON DMX input present
Button:
MENU To select the programming functions
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To confirm the selected functions

5C

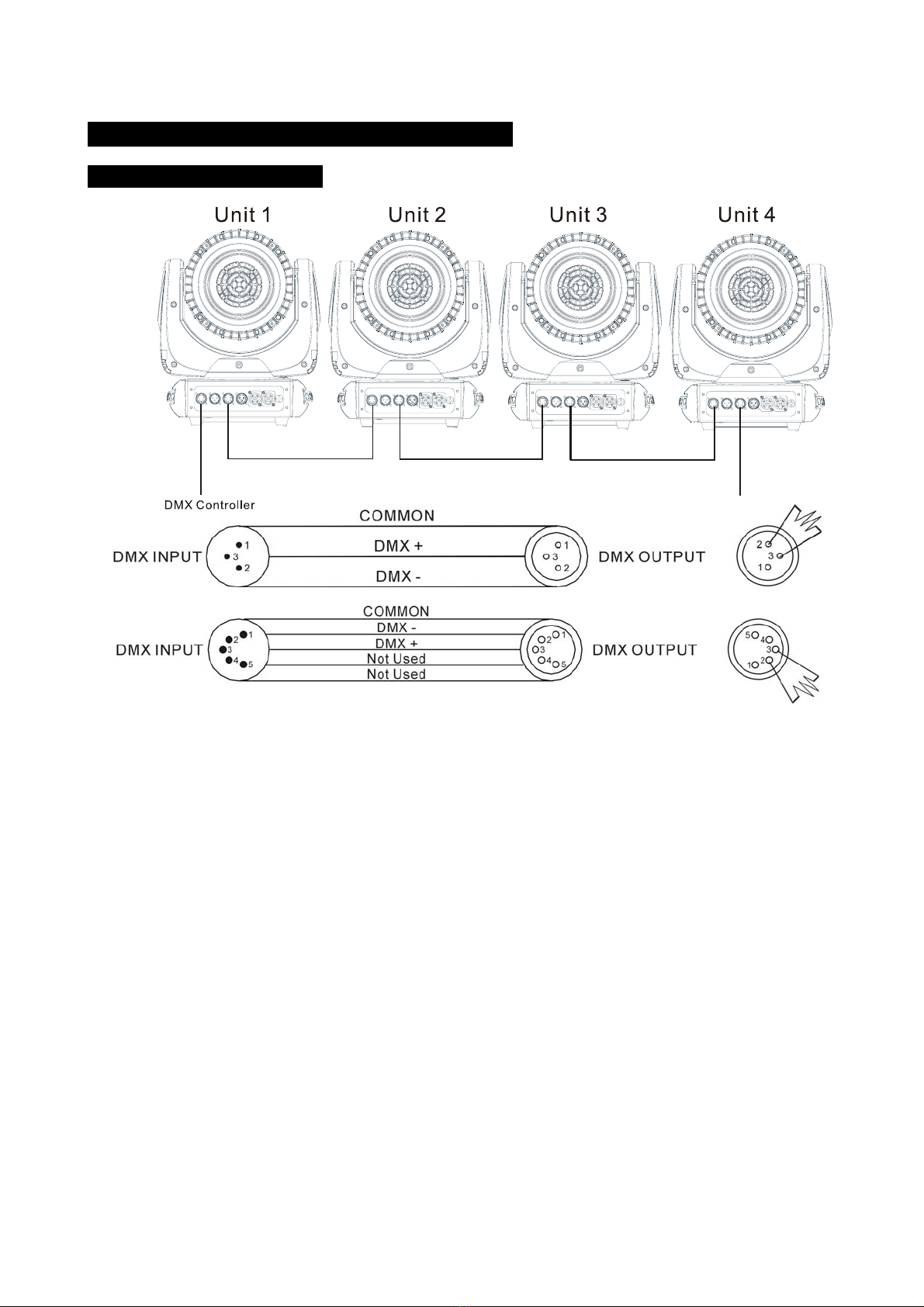

DMX input:
For DMX512 link, use 3/5-pin XLR cable to link the unit together.
DMX output:
For DMX512 link, use 3/5-pin XLR cable to link the unit together.
Mains input:
Connect to power supply.
Mains output:
Connect to supply power to the next unit.
Fuse(T 6.3A):
Protect the unit from damage of the over-current.
3.2 Main Function
To select any of the given functions, press the MENU button up to when the required one is
showing on the display. Select the function by ENTER button and the display will blink. Use
DOWN and UP button to change the mode. Once the required mode has been selected,
press the ENTER button to setup, to go back to the functions without any change press the
MENU button again. Hold and press the MENU button about one second or wait for one
minute to exit the menu mode.

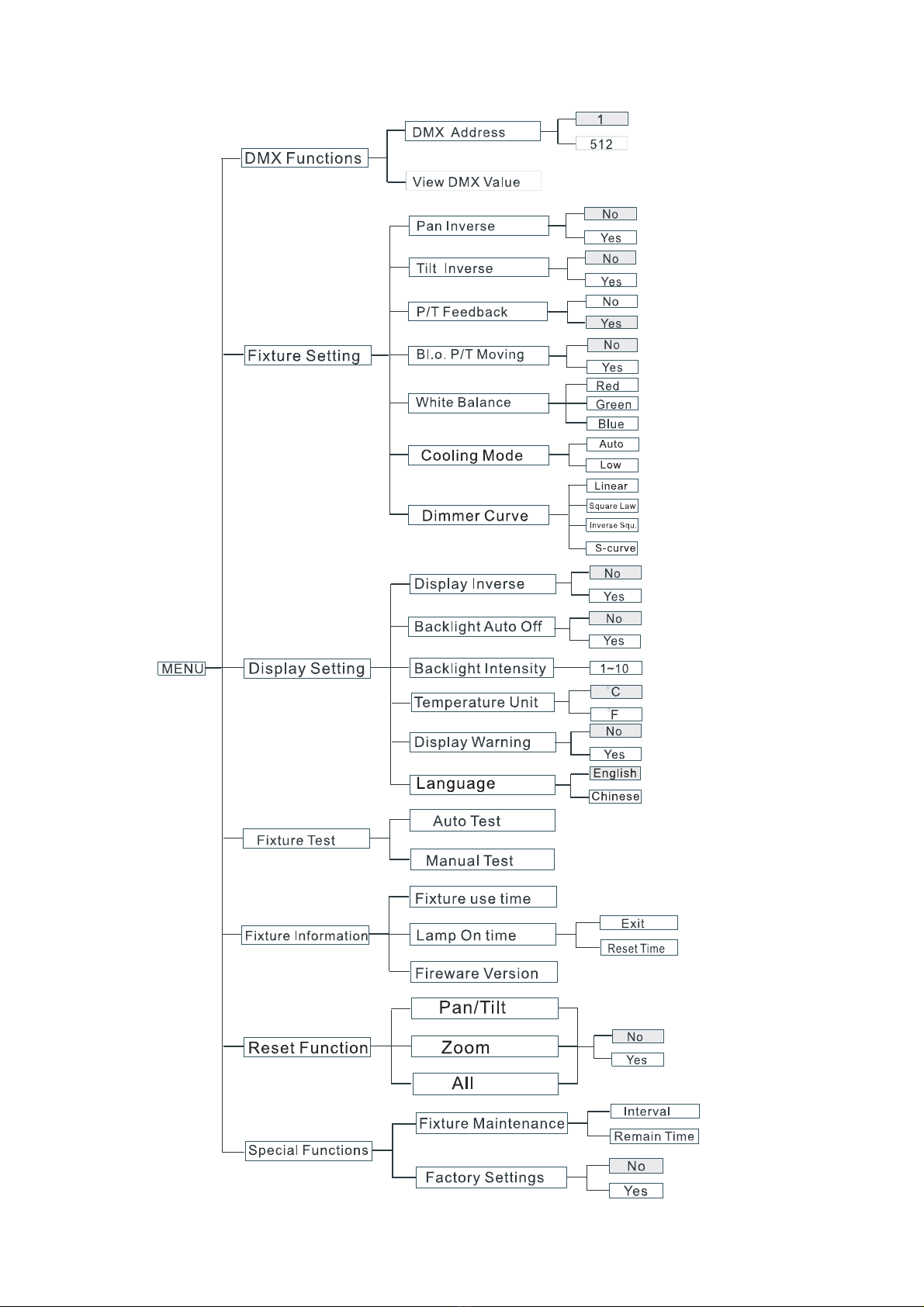

The main functions are showing below:

6C

7C
DMX Functions
Enter MENU mode, select DMX Functions, press ENTER button to confirm, use UP
and DOWN button to select DMX Address, DMX Channel Mode or View DMX Value.
DMX Address
Select DMX Address, press ENTER button to confirm, the present address will blink
on the display, use UP and DOWN button to adjust the address from 1 to 512, press
ENTER button to store. Press MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
View DMX Value
Select View DMX Value, press ENTER button to confirm. Channel function and its
value will show on the display, use UP and DOWN button to view other DMX value.
Press MENU button back to the last menu or let the unit idle one minute to exit menu
mode.
Fixture Setting
Enter MENU mode, select Fixture Setting, press ENTER button to confirm, then use
UP and DOWN button to select Pan Inverse, Tile Inverse, P/T Feedback, BL.O. P/T

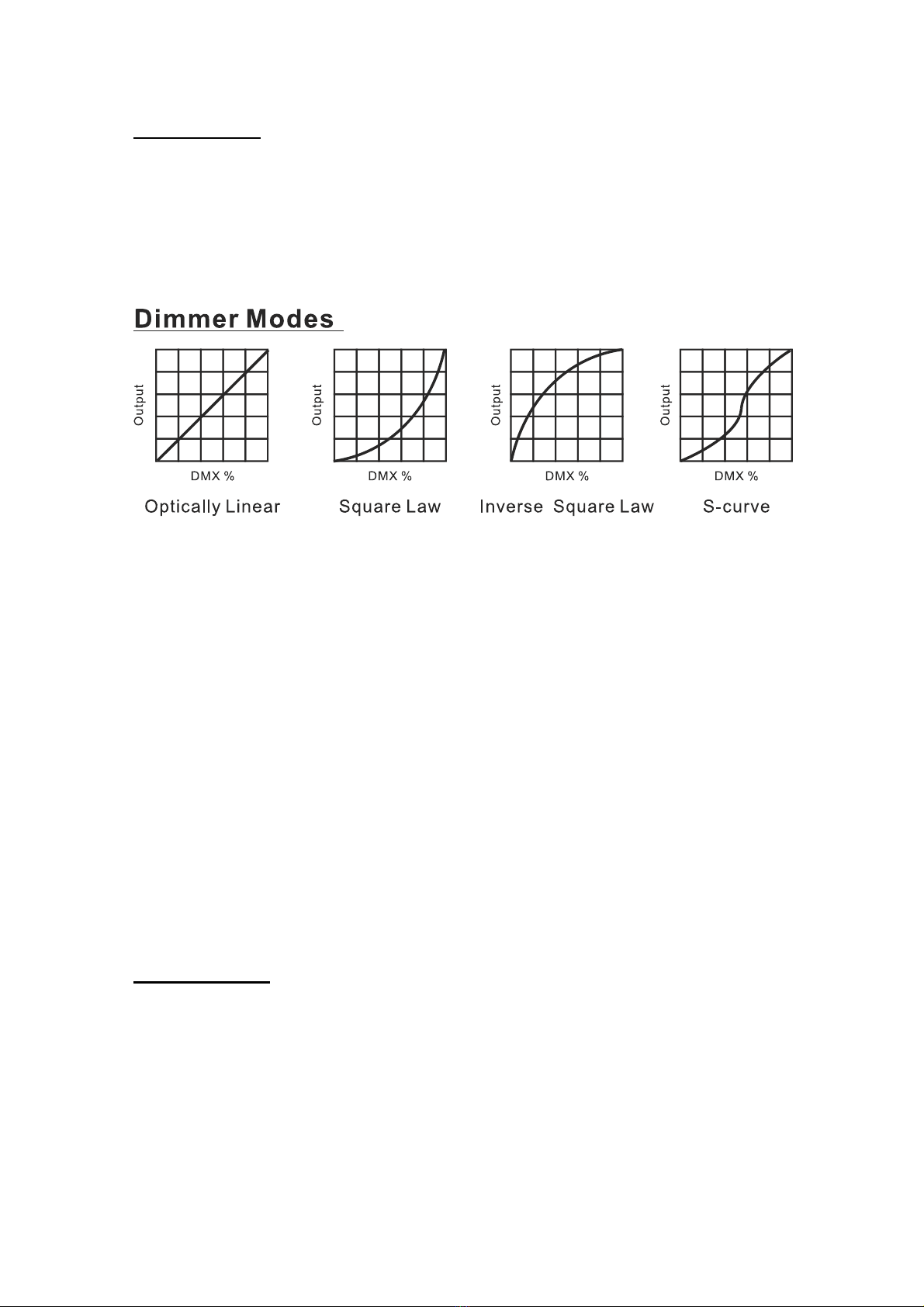

Moving, White Balance, Cooling Mode or Dimmer Curve.
Pan Inverse
Select Pan Inverse, press ENTER button to confirm, present mode will blink on the
display, use UP and DOWN button to select No (normal) or Yes (pan inverse), press
ENTER button to store. Press MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
Tilt Inverse
Select Tilt Inverse, press ENTER button to confirm, present mode will blink on the
display, use UP and DOWN button to select No (normal) or Yes (tilt inverse), press

8C
ENTER button to store. Press MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
P/T Feedback — Pan/Tilt Feedback
Select P/T Feedback, press ENTER button to confirm, present mode will blink on the
display, press UP/DOWN button to select No (Pan or tilt’s position will not feedback
while out of step) or Yes (Feedback while pan/tilt out of step), press ENTER button to
store. Press MENU button back to the last menu or let the unit idle one minute to exit
menu mode.
BL.O. P/T Moving— Blackout while pan/tilt moving
Select BL.O. P/T Moving, Press ENTER button to confirm, present mode will blink on
the display, use UP and DOWN button to select No (normal while pan/tilt moving) or
Yes (blackout while pan/tilt moving), press ENTER button to store. Press MENU button
back to the last menu or let the unit idle one minute to exit menu mode.
White Balance
Select White Balance, press ENTER button to confirm, present mode will blink on the
display, use UP and DOWN button to select Red, Green or Blue, Once selected, press
ENTER button, then use UP and DOWN button to adjust the value from 125 to 255,
press ENTER button to store. Press MENU button back to the last menu or let the unit
idle one minute to exit menu mode.
Cooling Mode
Select Cooling Mode, press ENTER button to confirm, present mode will blink on the
display, use UP and DOWN button to select Auto (Normal) or Low (Low speed), Once
selected, press ENTER button to store. Press MENU button back to the last menu or
let the unit idle one minute to exit menu mode.
