Features
•LED direct backlighting source allows even distribution of light across the panel, resulting in improved
uniformity from bezel-to-bezel
•Professional-grade LCD panel and components meet even the most formidable digital signage industry
requirements, allowing for 24/7 run times
•1920 x 1080 full HD resolution allows for crisper, more lifelike imaging
•Ground-breaking ultra-narrow bezel of 5.7mm (screen-to-screen) creates a nearly seamless video wall
•TileMatrix technology enables video walls (up to 100 displays in a 10x10 matrix)
•Digital loop through includes DVI-D (with HDCP) and DisplayPort
•Simple Network Management Protocol standards are met for controlling the display through LAN
•Built-in expansion slot allows for seamless integration of NEC-branded option cards as well as Intel’s Open
Pluggable Specification (OPS)-certified cards
•Optional color calibration solution ensures color uniformity and fidelity across individual and multiple screens,
creating a perfectly matched image in tiled environments
•Ethernet Control and Communication provides the highest level of remote display management and includes
such features as automatic email notification for diagnostic purposes
•Optional overframe bezel kit simplifies your installation and enhances the aesthetics of your video wall
Transform your video walls.
Ideal for low ambient light
environments, the direct LED-
backlit 46” NEC X462UNV has
a maximum brightness of 450 cd/m2, while maintaining a mere 5.7mm
distance between neighboring displays. Ideal for digital signage and
broadcast applications, the display can be deployed in video wall
configurations up to 10 x 10 (100 displays), creating a total surface area
of approximately 645 sq ft. The barely discernible transition gap between
displays ensures a homogenous picture across the matrix.
Large Screen LCD
NEC X462UNV
46” LED-backlit, ultra-narrow, low-bright,
professional-grade LCD display ideal for video
wall applications

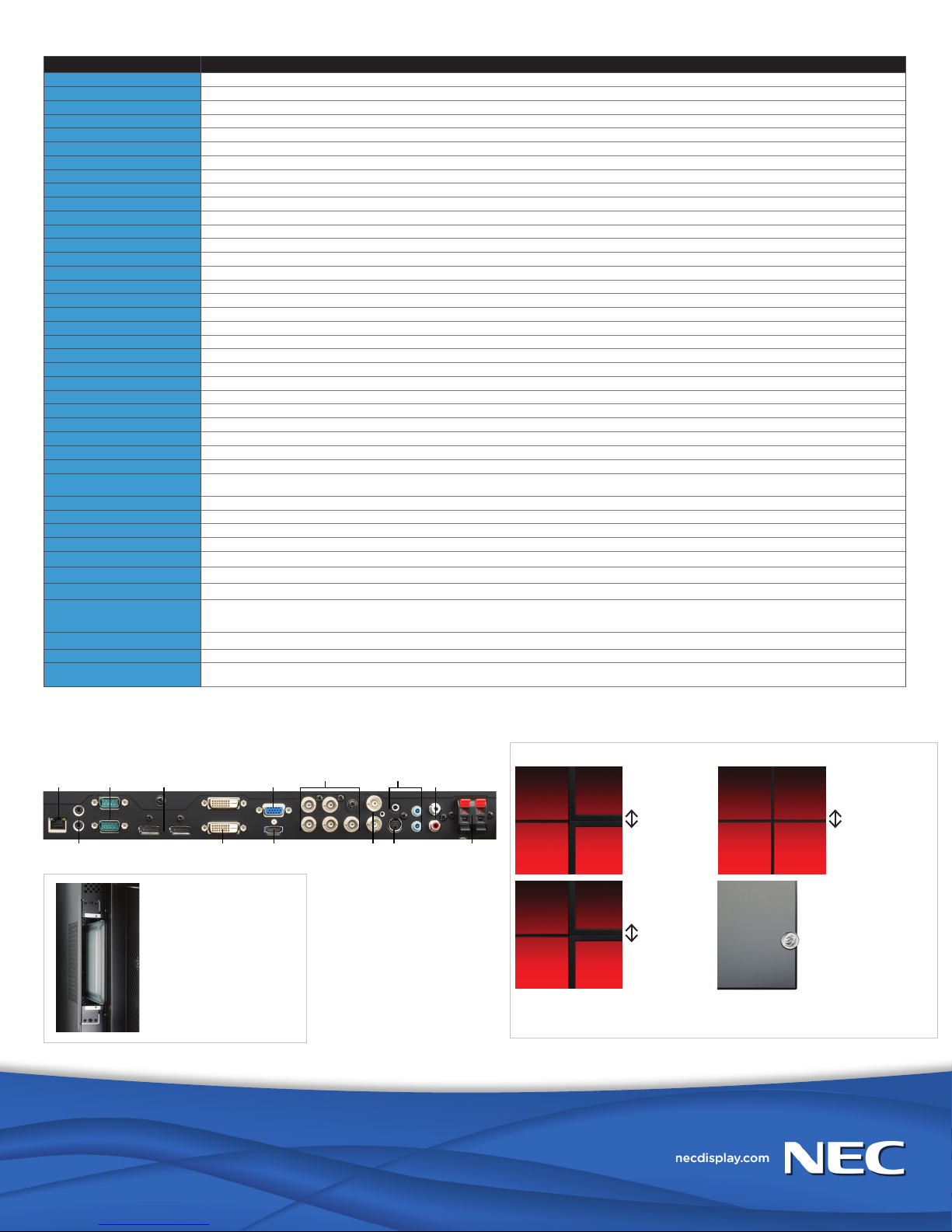

Specifications for X462UNV
* Warranty restrictions apply. Contact your representative for details.
MODEL X462UNV
LCD MODULE
Panel Technology SPVA (P-DID)
Viewable Image Size 46”
Native Resolution 1920 x 1080
Brightness (Typical/Max) 320/450 cd/m2
Contrast Ratio (Typical) 3500:1
Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Response Time (white to black) 8ms
Aspect Ratio 16:9
Active Screen Area (W x H) 40.1 x 22.5 in. / 1018.1 x 572.7mm
Orientation Landscape/Portrait
Displayable Colors More than 16.7 million
CONNECTIVITY
PC/Mac Signal Compatibility Yes
Input Terminals
Digital DisplayPort, HDMI, DVI-D
Analog VGA 15-pin D-sub, 5 BNC (RGBHV, DVD/HD or Video), BNC Composite, S-Video
Audio RCA Audio, Stereo Mini-Jack (2), HDMI Audio
External Control RS-232C, LAN, IR Remote, DDC/CI
Output Terminals
Digital DisplayPort, DVI-D
Analog BNC Composite
Audio Stereo Mini-Jack, External Speaker Jack (2)
External Control RS-232C, IR Remote
POWER CONSUMPTiON
On (Typical) 120W
ECO Mode Standby <1W
PHYSICAL SPECIFICATIONS
Bezel Width (L/R, T/B) 0.15 in./0.075 in., 0.15 in./0.075 in. ; 3.8mm/1.9mm, 3.8mm/1.9mm
Net Dimensions
(without stand; WxHxD) 40.3 x 22.8 x 4.6 in. / 578.6 x 1024 x 118.1mm
Net Weight (without stand) 57.5 lbs. / 26.1 kg
VESA Hole Configuration 300 x 300mm (4-hole)
ENVIRONMENTAL CONDITIONS
Operating Temperature 41-104°F / 5-40°C
Operating Humidity 20 - 80%
Operating Altitude 13,780 ft. / 4200m
LIMITED WARRANTY 3 years parts and labor, including backlight*
ADDITIONAL FEATURES LED direct backlighting; Ultra-narrow bezel; Advanced thermal capabilities; Advanced cooling system; Thin bezel; TileMatrix (10x10); TileComp; Separate group/
Monitor ID function; Ethernet Control and Communication; RS-232 Control and Communication; Landscape/portrait capable; Carbon footprint meter; Plug and Play
(DDC/CI, DDC2B); Scheduler (w/ real-time clock); Sharpness/softness adjustment; Screen saver function; OPS/Expansion slot; Custom detect options
SHIPS WITH Power cord; 1.8m DVI-D cable; Wireless remote control; Batteries; CD-ROM (user manual); Option board slot cover; Screws; Thumbscrews
OPTIONAL ACCESSORIES
NEC Display Wall Calibrator Kit (KT-LFD-CC); External Single Board Computer (TNETPC-ION); NEC OPS computers and accessories
NEC Display Solutions
500 Park Boulevard, Suite 1100
Itasca, IL 60143
866-NEC-MORE
Rapid Response and TileMatrix are trademarks of
NEC Display Solutions. All other brand or product
names are trademarks or registered trademarks
of their respective holders. Product specifications
subject to change.
©2013 NEC Display Solutions of America, Inc.
All rights reserved. 25.NEC.80.GL.UN.147 ver. 10.31.13
33mm 5.7mm
NEC P462 NEC X462UNV
37mm
NEC P552
Image Gap Comparison
The X462UNV supports
Intel’s Open Pluggable
Specification (OPS),
the first industry-wide
standardization in
option slots, simplifying
installation, use and
maintenance of digital
signage.
RS-232 In/Out
Speaker Out
LAN Port
IR In/Out
5 BNC In (RGBHV,
DVD/HD or
Composite Video)
HDMI In
VGA D-Sub In
Audio
Mini-Jack
In/Out
BNC Composite
Video In/Out
DisplayPort
In/Out
DVI-D In/Out
RCA Audio In
S-Video
In
NEC’s ultra-narrow-bezel displays allow for a screen-to-screen distance
between two neighboring displays as thin as 5.5mm, close to 450%
improvement compared to its previously revolutionary P Series displays.
