NEC NHD-2000 User manual

HIGH DEFINITION RECEIVER
Model : NHD-2000
USER’S MANUAL
NEC[NHD-2000]1 2006.3.8 7:11 PM 페이지1 NO.2 2400DPI 175LPI T

HIGH DEFINITION RECEIVER
Model : NHD-2000
USER’S MANUAL
NEC[NHD-2000]1 2006.3.8 7:11 PM 페이지2 NO.2 2400DPI 175LPI T

1
Table of Contents
01
Table of Contents
01.
02.
03.
04.
05.
06.
07.
08.
Table of Contents
Warnings
Supplied Accessories
Controls
Front Panel Control and Display
Rear Panel Connectors
Battery Installation for Remote Control
Installation
Antenna Input
Connection to Digital TV (YPbPr)
Connection to Digital TV (RGB/HV)

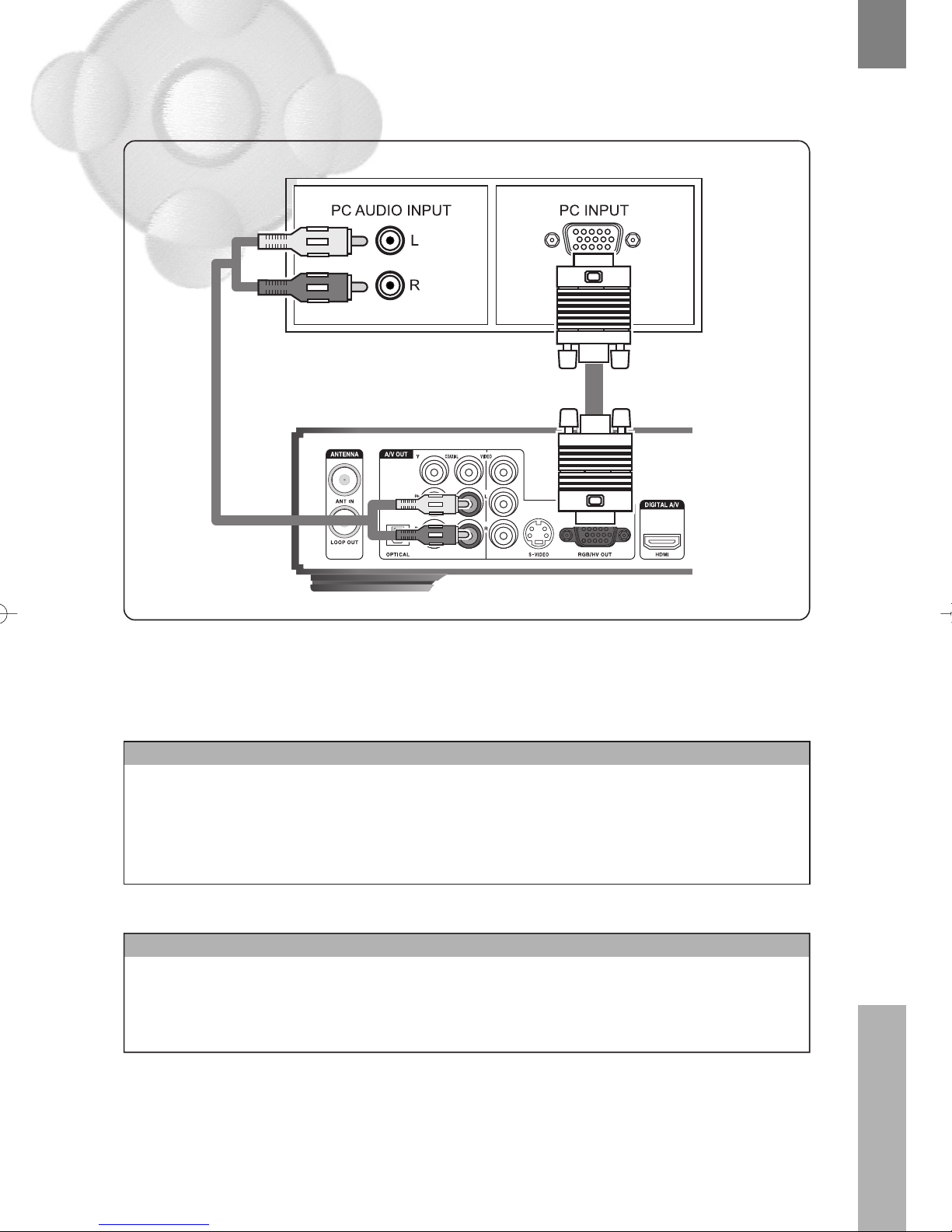

Connection to RGB PC Monitor
Connection to Digital TV (HDMI/DVI)
Connection to HDMI/DVI PC Monitor
Connection to Analog TV (Composite/S-Video)

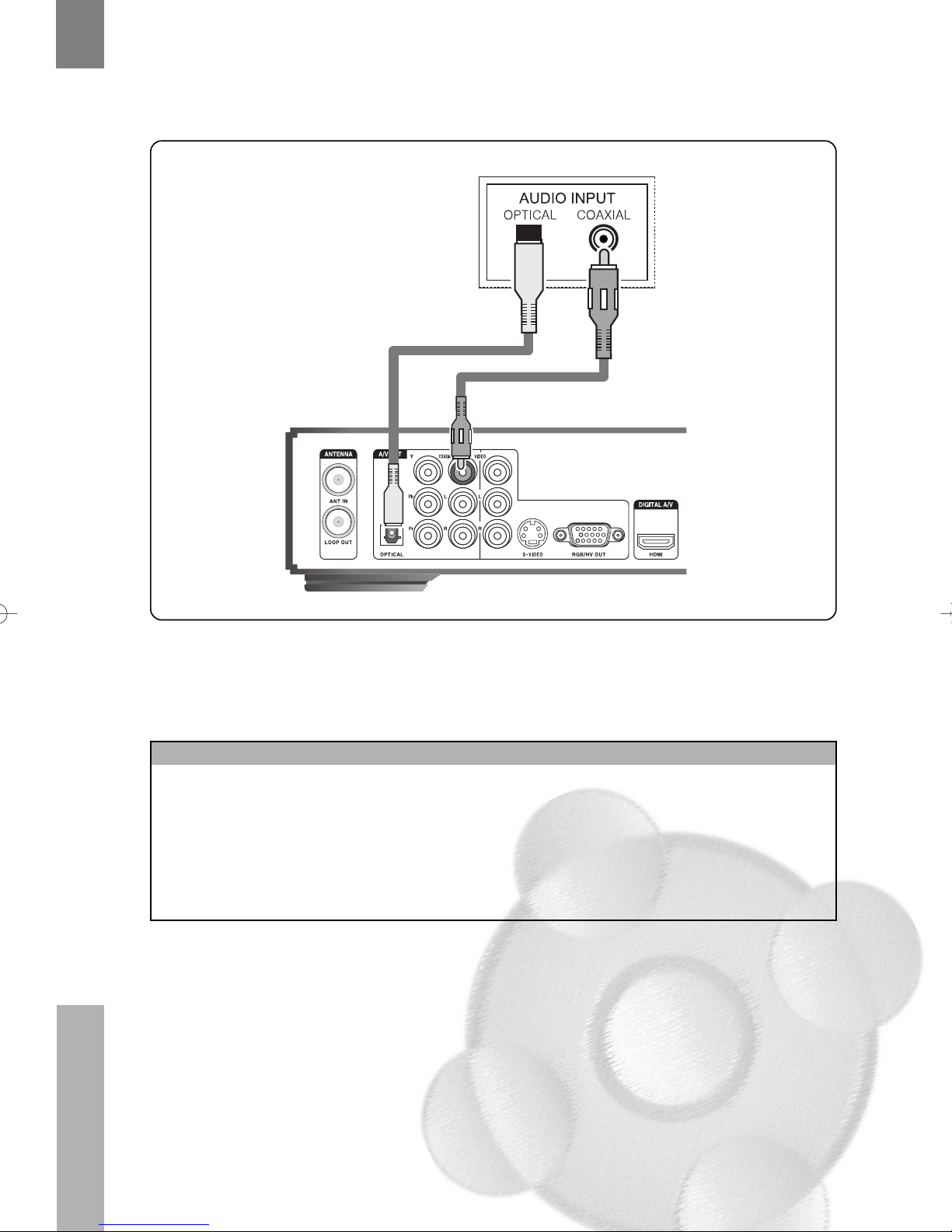

Connection to Digital Audio Amplifier
Basic Operation
Remote Control
Closed Caption
Closed Caption
On Screen Display
Teletext
Channel Guide (EPG)
Channel List
Channel Information
Channel Status
1~2
3~5
6
7
8~9
10
11
12
13
14
15
16
17
18
19~21
22
23
24
25
26
27
NEC[NHD-2000]1 2006.3.8 7:11 PM 페이지4 NO.2 2400DPI 175LPI T

Table of Contents
09.
10.
11.
12.
13.
14.
Setting Up Channel
Channel Edit
Add/Del Favourite Channel
Channel Scan
Manual Scan
Video Control
Monitor Setup
Aspect Ratio
Display Position
Preference
Digital Audio
Volume Control Setup
Opacity
HDMI Audio
Channel Sorting
System
Parental Rating - Set
Parental Rating - New Password
Time Zone
Daylight Saving
Factory Default
About
Specifications
Troubleshooting
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
2
01
Table of Contents
Manufactured under license from Dolby Laboratories, Dolby and the double-D symbol are trademarks of
Dolby Laboratories.
NEC[NHD-2000]1 2006.3.8 7:11 PM 페이지5 NO.2 2400DPI 175LPI T

3
Warnings
02
Warnings
Read Instructions : All the safety and operating instructions should be read before the product is operated.
Retain Instructions : The safety and operating instructions should be retained for future reference.
Heed Warnings : All warnings on the product and in the operating instructions should be adhered to.
Follow Instructions : All operation and use instructions should be followed.
Cleaning : Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or
aerosol cleaner. Use a damp cloth for cleaning.
Attachment : Do not use attachments not recommended by the product manufacturer as they may
cause hazards.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended
to alert the user to the presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
The appliance is not intended for use by young children / infirmed persons without
supervision.
Young children should be supervised to ensure that they do not play with the
appliance.
To prevent electric shock do not use this (polarized) plug with a receptacle or other
outlet unless the blades can be fully inserted to prevent blade exposure.
Change or modification not expressly approved by the party responsible for
compliance could void the factory warranty.
The apparatus shall not be exposed to dripping or splashing and that no objects filled
with liquids, such as vases, shall be placed on the apparatus.
The socket-outlet shall be installed near the equipment and shall be easily accessible.
A warning that an apparatus with class I constructions shall be connected to a mains
socket outlet with a protective earthing connection.
WARNING : To prevent fire of shock hazard, do not expose this appliance to rain or moisture.
CAUTION :
1.
2.
3.
4.
5.
6.
Important Safeguard
NEC[NHD-2000]1 2006.3.8 7:11 PM 페이지6 NO.2 2400DPI 175LPI T

7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
Warnings
4
02
Warnings
Water and Moisture : Do not use the product near water - for example, near a bath tub, wash bowl,
kitchen sink, or laundry tub ; in a wet basement ; or near a swimming pool ; and the like.
Accessories : Do not place this product on an unstable table. The product may fall, causing serious
injury to a child or adult, and serious damage to the product. Use only with a table recommended by
the manufacturer, or sold with the product. Any mounting of the product should follow the
manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.
A product and cart combination should be moved with care. Quick stops, excessive
force, and uneven surface may cause the product and cart combination to overturn.
Please refer to picture on the right.
Ventilation-Slot and openings in the cabinet are provided for ventilation and to ensure
reliable operation of the product and to protect it from overheating, and these openings must not be
blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug,
or other similar surface. This product should not be placed in a built-in installation such as a bookcase
or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
Power Sources : This product should be operated only from the type of power source indicated on the
marking label. If you are not sure of the type of power supply to your home, consult your product dealer
or local power company. For products intended to operate from battery power, or other sources, refer to
the operating instructions.
Grounding or Polarization : This product may be equipped with a polarized alternating-current line plug.
This plug will fit into the power outlet only one way. This is a safety feature. Do not defeat the safety
purpose of the polarized plug.
Alternate Warning : This product is equipped with a three-wire grounding-type plug, a plug having a
third(grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If
you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet.
Do not defeat the safety purpose of the grounding-type plug.
Power-Cord Protection : Power-supply cords should be routed so that they are not likely to be walked
on or pinched by items placed upon or against them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit from the product.
Lighting : For added protection for this product during a lighting storm, or when it is left unattended and
unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable
system. This will prevent damage to the product due to lighting and power-line surges.
Power Lines : An outside antenna system should not be located in the vicinity or overhead power lines
or other electric light or power circuits, or where it can fall into such power lines or circuits. When
installing an outside antenna system, extreme care should be taken to keep from touching such power
lines or circuits as contact with them might be fatal.
Overloading : Do not overload wall outlets, extension cords, or integral convenience receptacles as this
can result in a risk of fire or electric shock.
Object and Liquid Entry : Never push objects of any kind into this product through opening as they may
touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill
liquid of any kind on the product.
Servicing : Do not attempt to service this product yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
NEC[NHD-2000]1 2006.3.8 7:11 PM 페이지7 NO.2 2400DPI 175LPI T

5
19.
20.
21.
22.
23.
Warnings
02
Warnings
Damage Requiring Service : Unplug this product from the wall outlet and refer servicing to qualified
service personnel under the following conditions :
a) When the power-supply cord or plug is damaged.
b) If liquid has been spilled, or objects have fallen into the product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following the operating instructions. Adjust only those
controls that are covered by the operating instructions as an importer adjustment of other controls
may result in damage and will often require extensive work by a qualified technician to restore the
product to its normal operation.
e) If the product has been dropped or damaged in any way.
f) When the product exhibits a distinct change in performance-this indicate a need for service.
Replacement Parts - When replacement parts are required, be sure the service technician has used
replacement parts specified by the manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock, or other hazards.
Safety Check : Upon completion of any service or repairs to this product, ask the service technician to
perform safety checks to determine that the product is in proper operating condition.
Heat : The product should be situated away from heat sources such as radiators, heat registers,
stoves, or other products (including amplifiers) that produce heat.
RF Interference : Do not operate a mobile phone in close proximity, as this may cause picture and
sound breakup and damage to main parts.
NEC[NHD-2000]1 2006.3.8 7:11 PM 페이지8 NO.2 2400DPI 175LPI T

1. Remote Control Handset
3. Component Video Cable
5. HDMI Cable
6
Supplied Accessories
03
Supplied ccessories
∴Make sure the following accessories are provided with product.
2. Batteries
4. Audio Cable(L/R)
6. User’s Guide
NEC[NHD-2000]1 2006.3.8 7:11 PM 페이지9 NO.2 2400DPI 175LPI T

< POWER > Press < > to turn the power ON/OFF.
< MENU > Press < > to pop up MENU, when < > buttons will be used.
< CHANNEL > Press < ▲> or press < ▼> to change channel.
Front Display
< Power On > Channel number is displayed.
C.100 means digital channel number is 100.
A.200 means radio channel number is 200.
< Power Off > Clock is displayed.
< CHANNEL >
< Remote Control Sensor >
< POWER >
< Front Side >
7

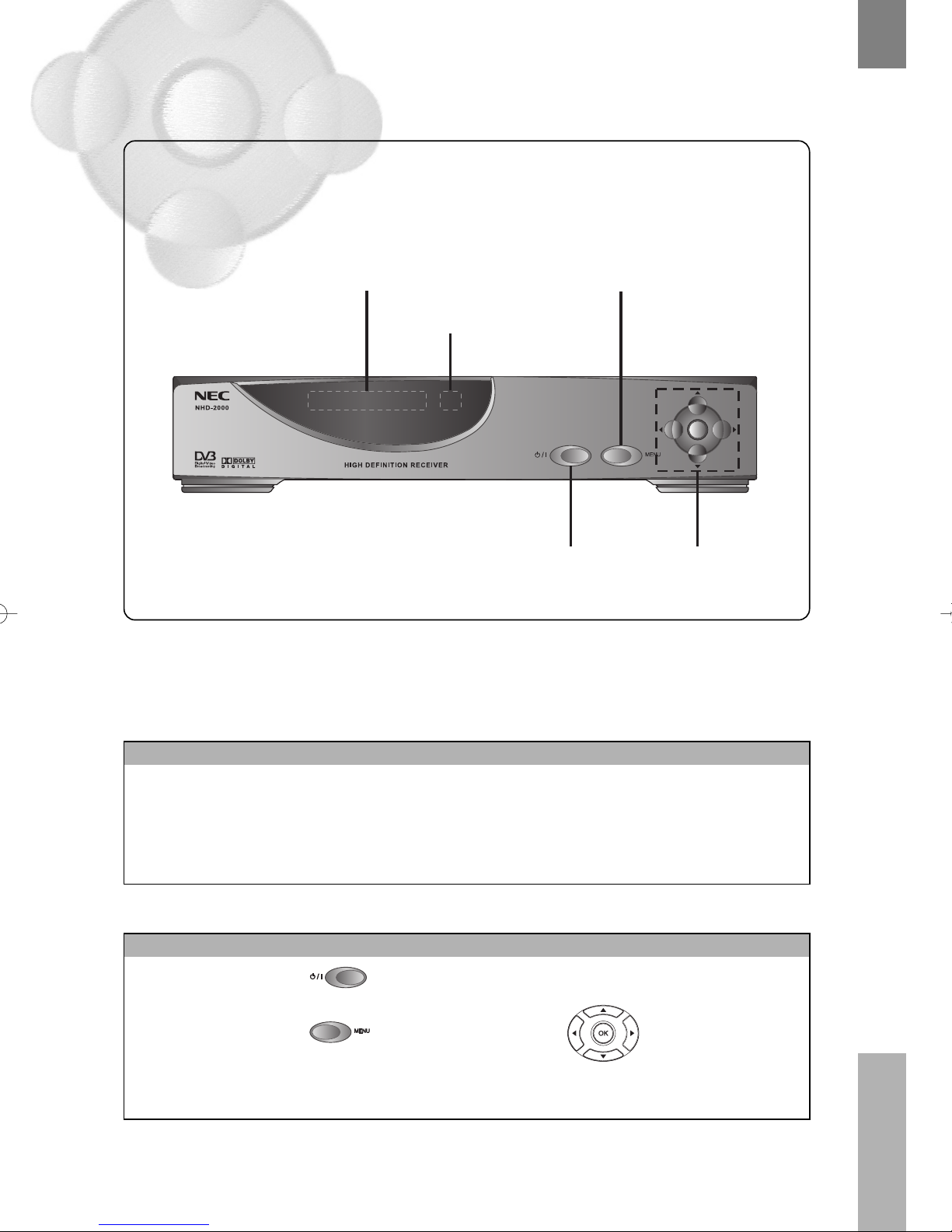

Front Panel Control and Display
04
Controls
Buttons
< MENU >< Front Display >
NEC[NHD-2000]1 2006.3.8 7:11 PM 페이지10 NO.2 2400DPI 175LPI T

8
Controls
∴Note. Connection of input/output connector in re r p nel should be done while power is OFF.

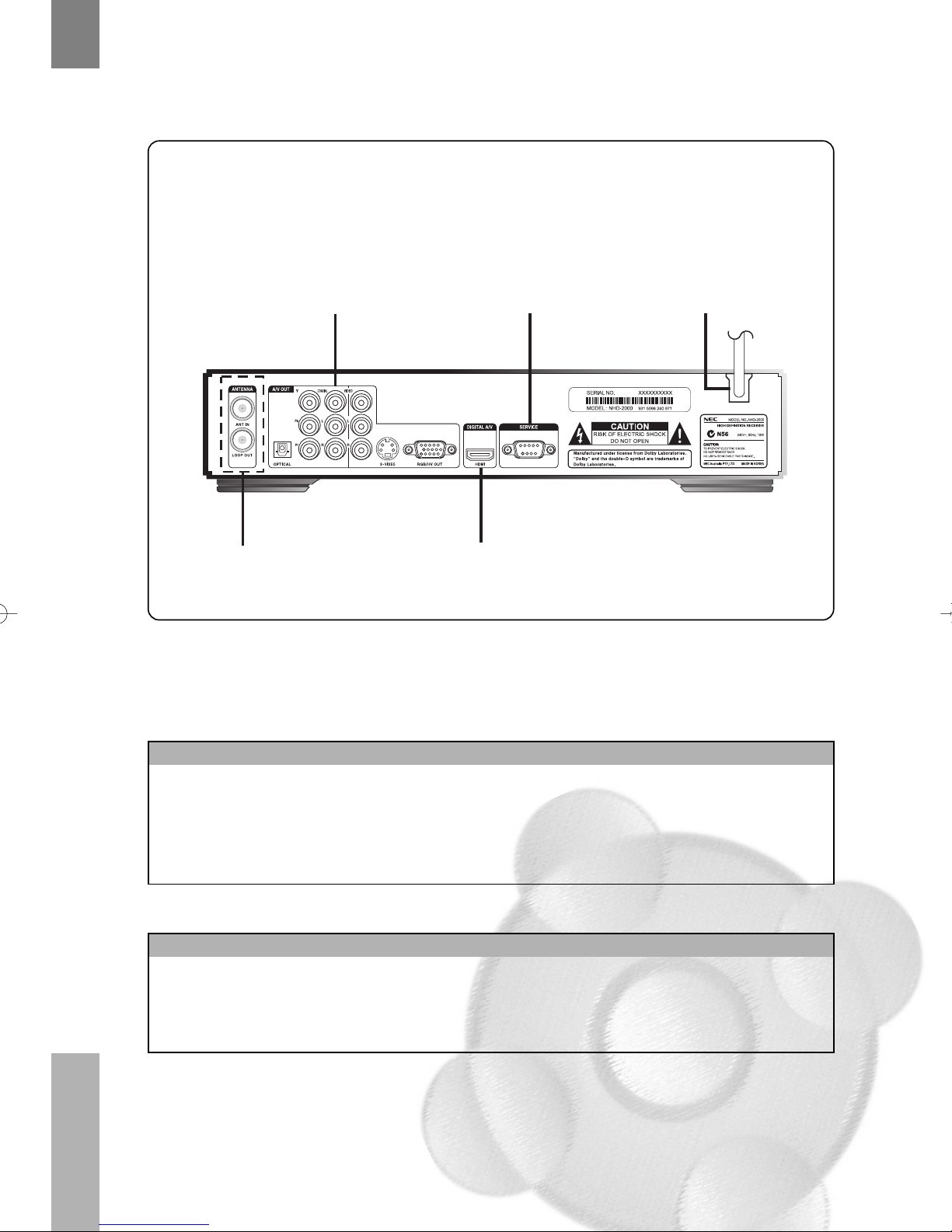

ear Panel Connectors
04
Connect the cable from an off-air TV antenna to this jack.
< Rear Side >
Antenna Input
< Servi e Port >< A/V Output >
< Antenna Input >
< Power Cord >
< HDMI/DVI Output >
Power Cord
Connect to the AC power (AC 240 ~ 250V / 50Hz).
NEC[NHD-2000]1 2006.3.8 7:11 PM 페이지11 NO.2 2400DPI 175LPI T

9
ear Panel Connectors (Cont.)
04
Controls
Service Port
The service port is for maintenance and software upgrade in the future.
A/V Output
The ‘A/V output’ consists of the followings :
< Y, Pb, Pr > : Component video output (576i, 576p, 720p, 1080i)
< RGB/HV > : RGB, PC monitor output (576p, 720p, 1080i)
< HDMI/DVI > : HDMI/DVI output (576p, 720p, 1080i)
< Video or S-Video > : Composite video or S-Video output (576i)
< L, R > : Analog audio output
< COAXIAL > : Digital audio output (Coaxial)
< OPTICAL > : Digital audio output (Optical)
NEC[NHD-2000]1 2006.3.8 7:11 PM 페이지12 NO.2 2400DPI 175LPI T

10
Controls

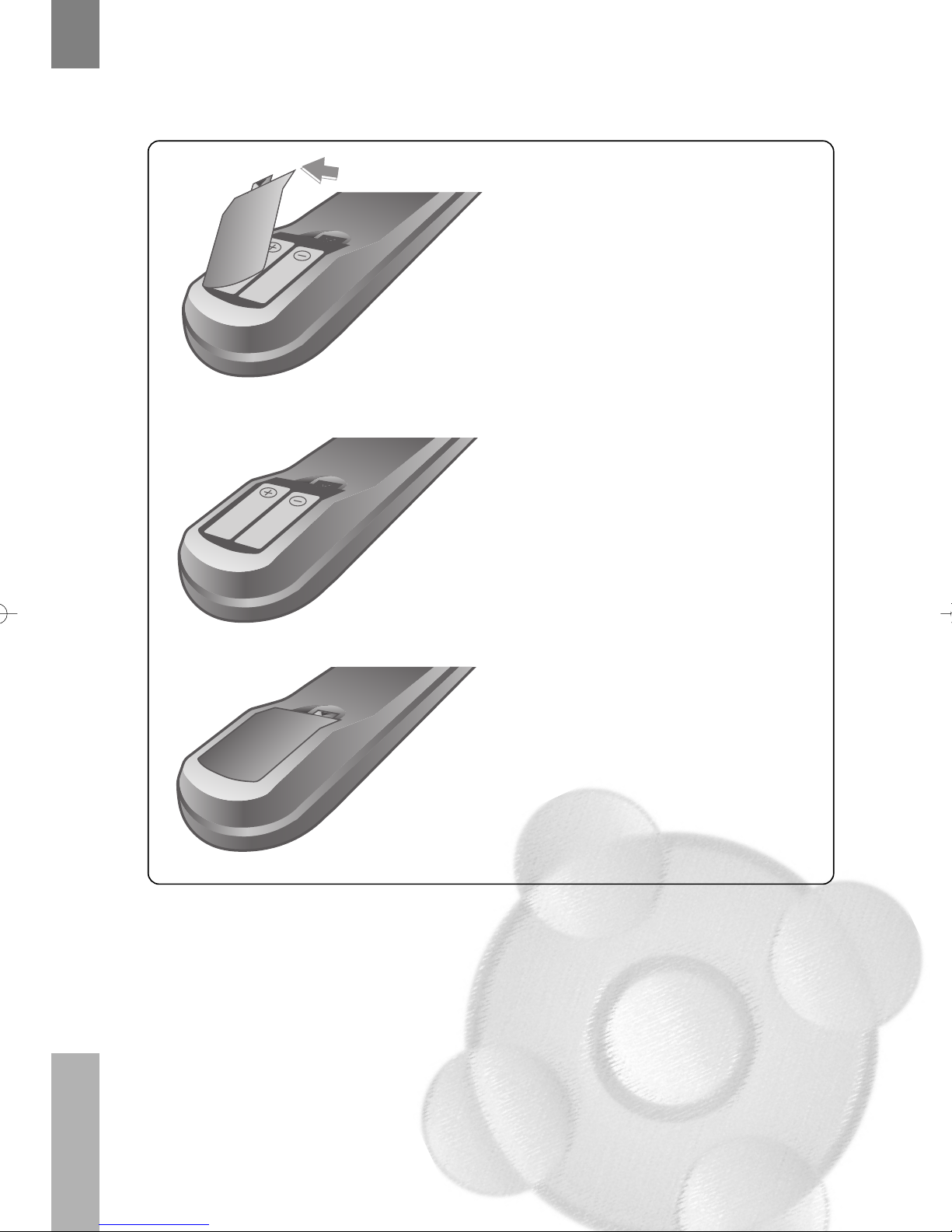

Battery Installation for emote Control
04
∴ Remove the battery cover and install batteries like the diagram below.
1. Unlatch the battery compartment cover
on the back of remote control.
2. Insert 2 AAA batteries as shown, making
sure the + and - ends of each battery
line up with the corresponding marks in
the battery compartment.
3. Snap the cover back to the remote control.
NEC[NHD-2000]1 2006.3.8 7:11 PM 페이지13 NO.2 2400DPI 175LPI T

11
Antenna Input
05
Installation

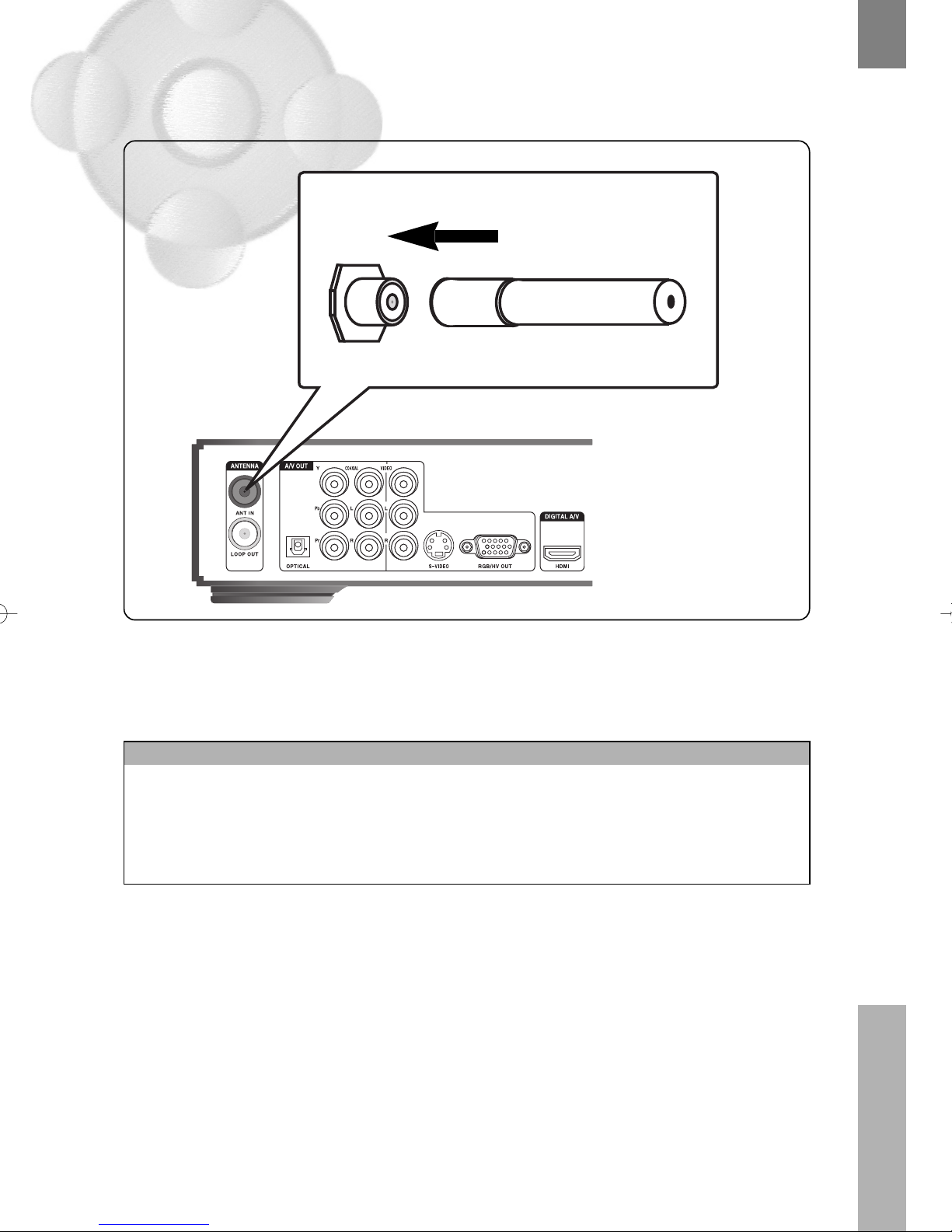

Connecting Antenna
Connect the antenna or RF cable wire directly to ANT IN.
∴Note. The STB(Set Top Box) should be unplugged before connecting ntenn . (Power OFF mode)
NEC[NHD-2000]1 2006.3.8 7:11 PM 페이지14 NO.2 2400DPI 175LPI T

12
Installation
Connection to Digital TV (YPbPr)
05
Connect an audio cable between the L/R Audio output jacks of the STB and the L/R Audio input
jacks of the digital TV or digital audio amplifier. (Refer to page 18)
Connect the Video Cables
Connect a video cable between the Component video output(Y : Green, Pb : Blue, Pr : Red) jacks
of the STB(Set Top Box) and the Component input jacks on the Digital TV according to
corresponding colour. On the Video Out Mode, select YPbPr as Video Output Type and select
one of 1080i, 720p as Video Output Resolution according to your digital TV.
Connect the Audio Cables
< Digital TV >
NEC[NHD-2000]1 2006.3.8 7:11 PM 페이지15 NO.2 2400DPI 175LPI T

13
Connection to Digital TV (RGB/HV)
05
Installation
Connect an audio cable between the L/R Audio output jacks of the STB and the L/R PC Audio
input jacks of the digital TV or digital audio amplifier. (Refer to page 18)
Connect the Video Cables
Connect the RGB/HV output jack of the STB to the RGB input jack of the PC RGB input on the
digital TV. In regard to the Video Out Mode, select RGB as Video Output Type and select one of
1080i, 720p, 576p as Video Resolution according to your digital TV.
Connect the Audio Cables
< Digital TV >
NEC[NHD-2000]1 2006.3.8 7:12 PM 페이지16 NO.2 2400DPI 175LPI T

14
Installation
Connection to RGB PC Monitor
05
Connect an audio cable between the L/R Audio output jacks of the STB and the external
speakers that contain a sound amp. (Purchase separate jacks for PC speakers.)
Connect the Video Cables
Connect RGB/HV video output jack of the STB to the RGB jack of the PC monitor. In regard to
the Video Out Mode, select RGB as Video Output Type and select one of 1080i, 720p, 576p
according to Video Output Resolution of your PC monitor.
Connect the Audio Cables
NEC[NHD-2000]1 2006.3.8 7:12 PM 페이지17 NO.2 2400DPI 175LPI T

15
Connection to Digital TV (HDMI/DVI)
05
Installation
Connect the HDMI Cable
Connect the HDMI/DVI output jack of the STB to the HDMI input jack of the digital TV. In regard
to the Video Out Mode, select one of 1080i, 720p, 576p as Video Resolution according to your
digital TV.
< Digital TV >
NEC[NHD-2000]1 2006.3.8 7:12 PM 페이지18 NO.2 2400DPI 175LPI T

16
Installation
Connection to HDMI/DVI PC Monitor
05
Connect an audio cable between the L/R AUDIO output jacks of the STB and the external
speakers that contain a sound amp. (Purchase separate jacks for PC speakers.)
Connect the Video Cables
Connect HDMI/DVI jack of the STB to the HDMI/DVI jack of the PC monitor. In regard to the
Video Out Mode, select one of 1080i, 720p, 576p according to Video Output Resolution of your
monitor. (Purchase HDMI-to-DVI adapter.)
Connect the Audio Cables
NEC[NHD-2000]1 2006.3.8 7:12 PM 페이지19 NO.2 2400DPI 175LPI T

17
Connection to Analog TV (Composite/ -Video)
05
Installation
Connect an audio cable between the L/R Audio output jacks of the STB and the L/R Audio input
jacks of the analog TV.
Connect the Video Cables
Connect a composite cable between the Video output jack of the STB and the Video input jack of
the analog TV. Or, connect an S-Video cable between the S-Video output jack of the STB and the
S-Video input jack of the analog TV. You can connect either composite Video or S-Video cable. In
regard to the Video Out mode, select TV as Video Output Type as shown above, when the Video
Output Resolution switch has no effect any more.When connecting using Composite Video or S-
Video, please ensure to select 576i of the set top box, by pressing V.FORMAT button on the
remote.
Connect the Audio Cables
< Analog TV >
NEC[NHD-2000]1 2006.3.8 7:12 PM 페이지20 NO.2 2400DPI 175LPI T

18
Installation
Connection to Digital Audio Amplifier
05
Connect the Digital Audio Output
Connect audio cables from the OPTICAL or COAXIAL digital audio output jacks of the STB to the
OPTICAL or COAXIAL digital audio input jacks of the digital audio decoder or the amplifier. Do
not connect the coaxial and optical audio output simultaneously and be sure to connect either
optical or coaxial cable to avoid any damage that may occur to digital audio decoder or amplifier.
It is recommended to use OPTICAL connection if a digital audio decoder or amplifier provides
both OPTICAL and COAXIAL input jacks.
< Audio Amplifier >
NEC[NHD-2000]1 2006.3.8 7:12 PM 페이지21 NO.2 2400DPI 175LPI T
