NEC NAR01 User manual

NAR01(Mobile Router)
Instruction Manual

Contents
Contents ......................................................................................... 2
Important Product Information ....................................................... 3
Safety Instructions ......................................................................... 4
Notice ............................................................................................. 8
1. Package Contents ................................................................. 11
2. Part Names and Functions .................................................... 12
3. Using nanoSIM ...................................................................... 13
4. Charging the Battery Pack .................................................... 14
5. Network Setup ....................................................................... 15
6. Web Setting ........................................................................... 16
7. Products Specifications ......................................................... 20
Windows® and Windows 10® are registered trademarks of Microsoft
Corporation in the United States and other countries.
Windows 10® is an operating system.
Copyright© NEC Platforms, Ltd. 2021

Important Product Information
Important safety information regarding radio frequency (RF)
exposure and use when worn
The product “NAR01(Mobile Router)”is declared to conform with the essential
requirements of European Union Directive 2014/53/EC RE Directive .
This wireless portable device complies with the EU requirements for exposure
to radio waves.
Your wireless portable device is a radio transceiver and receiver. It is
designed not to exceed the SAR*(Specific Absorption Rate) limits** for
exposure to radiofrequency (RF) energy by European Union Directives.
The Max. SAR* value is ****W/kg (10 g) when it is worn on the body. To
comply with the RF Exposure limits
For body-worn operating conditions please use belt-clips, holsters, and/or
accessories that have no metallic component in the assembly and must
provide at least 0.5cm separation between the device and the user's body.
* The exposure standard for wireless portable devices employs a unit of measurement
known as the Specific Absorption Rate, or SAR.
** The SAR limit recommended by the International Commission on Non-Ionizing
Radiation Protection (ICNIRP) is 2W/kg averaged over 10g of tissue.
*** Tests for SAR have been conducted using standard operating positions with the
transmitting at its highest certified power level in all tested frequency bands. Although
the SAR is determined at the highest certified power level, the actual SAR level of the
wireless portable device while operating can be well below the maximum value. This
is because the wireless portable device is designed to operate at multiple power
levels so as to use only the power required to reach the network. In general, the
closer you are to a base station antenna, the lower the power output.
We, NEC Platforms, Ltd. hereby, declare that the residential
gateway model NAR01(Mobile Router) is in compliance with the
essential requirements and other relevant provisions of Directive
2014/53/EC.
RE Directive

Safety Instructions
Please read these Safety Instructions carefully before using this product.
These Safety Instructions show items that must be followed to prevent danger
to any person and damage to property. Alert symbols below are important to
fully understand these Safety Instructions.
Alert symbols in this instruction manual
Warning ：
Indicates a hazardous situation which could
result in death or serious injury.
Caution ：
Indicates a situation which could result in
minor injury or physical damage.
Other alert symbols
Battery
●Do not get any metal objects such as wire come into
contact with the battery terminal.
Do not carry or store the terminal together with any metal
objects such as a necklace.
Ignition, explosion, overheating or leakage of the battery
pack may result.
■ Warnings and cautions
Flammable Electric shock High Temperature
■ Prohibited actions
General No disassembly No water No wet hands No naked flames
Warning

●Do not throw the product into fire.
Ignition, explosion, overheating or leakage of the battery
may result.
●Do not pierce the product with a nail, hit it with a hammer
or step on it.
Ignition, explosion, overheating or leakage of the battery
may result.
●If the battery fluid gets into your eyes, immediately flush
with clean water and consult a doctor. Do not rub the
eyes. Otherwise, blindness may result.
●If the battery leaks or emits unusual odor, immediately
stop using the terminal and keep away from the open
fire.
Otherwise, the leaked battery fluid may ignite, resulting in
fire or burst.
●Be careful not to let your pets bite the product.
Otherwise, Ignition, explosion, overheating or leakage of
the battery may result.
CAUTION : RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN
INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO
THE INSTRUCTIONS
In these cases
●Do not dispose of old batteries with ordinary household
waste.
Ignition or environmental damage may result.
Cover the battery terminals with a non-conductive tape
and dispose of them in accordance with local waste
disposal regulations.
Warning
Caution
Warning

●Do not use or charge a wet product.
Ignition, explosion, overheating or leakage of the battery
may result.
●If the liquid inside the battery leaks out, keep the liquid
away from your skin such as face or hands. Otherwise,
blindness or injury to your skin may result.
If the liquid gets into your eyes or mouth, or attaches to
your skin or clothing, flush with clean water immediately.
If the liquid gets into your eyes or mouth, immediately
flush with water and then consult a doctor.

Other warnings
●Turn off this product in any place where use of a wireless
device is prohibited, for example in an airplane or
hospital. Otherwise, it may influence electronics and
medical devices, and cause an incident.
●Do not place or use this product near high-precision
electronics or devices which handle weak signals, for
example pacemakers. Otherwise, electronics such as
pacemakers may malfunction. Do not use this product
near medical electronics, or in any place where you are
prohibited from using this product, for example in a
hospital.
●Do not place this product near vases, pots, cups,
cosmetics, vessels with chemicals or water, or near any
small metal objects (staples etc.) which could fall through
the ventilation slots. If this product gets wet or a short
circuit occurs, it may cause a fire, electric shock or
malfunction.
●Do not place or use this product in a humid location such
as a bathroom and humidifier. Otherwise, a fire, electric
shock or malfunction may occur.
Warning

Notice
Indicates a situation which could result in this product performing poorly or
malfunctioning.
What you must not do
●Do not drop or hit this product. Otherwise, it may malfunction.
●Do not leave this product in a cold place such as an ice
warehouse. Otherwise, this product may operate abnormally.
●Disconnect all cords before moving this product. Otherwise, it may
malfunction.
●This product may operate abnormally if the connecting cords are
disconnected when it is on, or if the connection is unstable. When
this product is on, do not touch the connecting parts.
●Do not turn on this product immediately after you turn it off. Wait at
least 10 seconds to restart. It may not turn on if you attempt to
turn it back on immediately.

Other warnings
●If you turn off or disconnect this product during data
communication, communication may fail or data may be
damaged. If your data are important, check them against the
original.
Notes on wireless LAN
●The standard values of wireless LAN are the maximum theoretical
values when communication is carried out with other products
with the same configuration as this product. The standard values
may not indicate the actual data transfer rate.
●The interconnectivity of this product with other products is not
guaranteed.
●Wireless LAN transmission distance and transmission speed
varies greatly depending on objects in the surrounding
environment such as walls and furniture.

Security notes on wireless LAN products
Wireless LAN has the advantage of a LAN connection without the
use of LAN cables if the device is placed within the reach of radio
waves. You can send and receive information between devices that
use radio waves such as a computer and the wireless LAN access
point (base unit). On the other hand, you may encounter the
following problems if you do not complete the settings related to
security because the radio waves reach beyond all obstacles such
as walls if within a certain range.
●Interception of information: Some malicious computer users
may intercept radio waves intentionally to discover your IDs,
passwords, credit card numbers, e-mails, etc.
●Unauthorized intrusion: Some malicious computer users may
access personal or office networks to gain personal or
confidential information and send out false data. Also, they may
intercept communication content, rewrite it, and then send it out.
Furthermore, they may send out computer viruses to destroy
data and systems.
Wireless LAN products already have security systems so there is a
low probability that any of the above problems will occur if you use
the product with these settings.
You should be fully aware of problems which may happen to you if
you do not do your security configuration. We recommend that you
use this product only after making the security setting you judge to
be necessary based on a proper understanding of the problems
which may occur if security settings are not configured.
We, NEC Platforms, Ltd., do not take responsibility for any damage
caused by a security problem occurring because of a lack of a
security measure or an unavoidable issue with the wireless LAN
specifications.
In addition, we recommend changing the encryption key and PIN
code of the wireless LAN access point (base unit) on a regular
basis to ensure safe use of the wireless LAN.

1. Package Contents
This product package contains the following items.
□NAR01(Mobile Router) Terminal
□Instruction manual

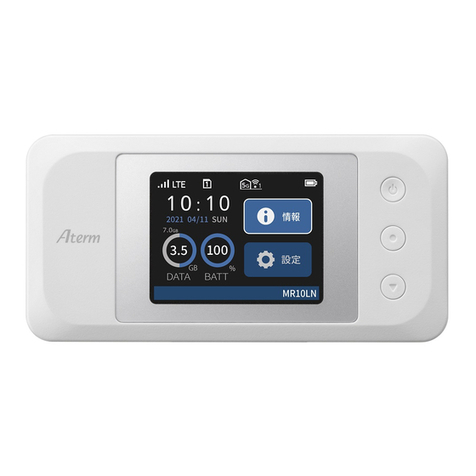

2. Part Names and Functions
TOP Side
<NAR01(Mobile Router)>
Indicators
Name Display Description
(1) Power /set button ● Hold down the button to turn on/off.
Short press the button to enter.
(2) Select button ▲ Slide the menu upward.
(3) Select button ▼ Slide the menu downward
Slot
Name Description
(4) USB slot USB TypeC
(5) nanoIC Card slot Insert nanoSIM card
(1)Power/set button
(2)Select button
(3)Select button
(4)USB slot (5)nanoIC Card
Slot

3. Using nanoSIM Card
A nanoSIM is an IC Card that stores personal information such as your phone number.
Without the nanoSIM installed in this terminal, you cannot use data communication.
For details on handling the nanoSIM, refer to the nanoSIM manual.
When inseting and removing the nanoSIM, hold this terminal with both hands.
<Inseting the nanoSIM>
With the IC chip side up, insert a nanoSIM to the nanoSIM slot.
<Removing the nanoSIM>
Push nanoSIM & Slide the nanoSIM to remove.
nano
SIM slot

4. Charging the Battery Pack
Charging the Battery Pack
(1) Connect to The USB port of this product and PC with an attached USB TypeC cable.

5. Network Setup
Registering the Access Point Setting
(1) In the top menu, click ”Basic settings”
(2) In the submenu, click “Network settings(LTE/3G)”
(3) Confirm “International roaming” settings area, and click “Use”
(4) Confirm pop-up message, and click “OK”
(5) To register International roaming setting, click “Set”
(6) Click “Edit”
(7) On the setting screen, set the required items.
Carrier and service name, Service name, APN, User name, Password, Authentication
type, IP type
(8) To register a new access point, click “Set”
Connecting to Windows PC
For Windows10
(1) Turn on the wireless LAN function of a PC.
(2) Start ⇒ Click “コントロールパネル(Control panel)” ⇒ “ネットワークとインター
ネット(Network and Internet)” ⇒ “ネットワークと共有センター(Network and
sharing center)”
※ネットワークと共有センター(Network and sharing center) windows appears
(3) Click “ネットワークに接続(Connect to a network)”
(4) Click the item witch shows SSID set to this terminal, and click “接続(Connect)”.
※(Default:”aterm-:******)”
(5) In “セキュリティキーまたはパスフレーズ(Security key or pass phrase)”, enter
Security key(AES shared key) set to this terminal and click “OK”
２
G
Wireless LAN
3G/LTE
Laptop computer
Smart Phone
Tablet
NAR01(Mobile Router
)

6. Web Setting
(1) Start the PC and others.
(2) Start a WWW browser, enter "http://192.168.1.1/" and open the
page for Web configurations.
Click “詳細”.
Click “web ページへ移動”.

(2) Enter the password and click “ログイン”.
The password is "525b3442" (Product-specific value)

(3) The "Administrator password changing" screen appears.
Change the administrator's password as you like, and write it
down in the "Administrator's password" box below and
click "変更″. If you do not want to change the administrator
password, click “スキップ”.
Do not forget to write down your administrator's password. The
password is essential to the configuration of this product. You
need to enter the password to open the configuration screen. If
you forget the password, you will need to initialize this product.
Note that all the configurations you have saved will be deleted
during initialization.
Administrator's
password

(5) Select the menu you want to modify, and proceed.

7. Products Specifications
Item Condition
WAN
Antenna Antenna built in
LTE_Band5 Frequency UL:824-849MHz,DL:869-894MHz
LTE_Band17 Frequency UL:704-716MHz,DL:734-746MHz
WCDMA_Band2 Frequency UL:1850-1910MHz,DL:1930-1990MHz
WCDMA_Band5 Frequency UL:824-849MHz,DL:869-894MHz
Wireless LAN
Antenna Antenna built in
IEEE802.11b
Frequency
band/CH 2.4GHz (2412-2472MHz)/1-11ch
Bit rate 1/2/5.5/11Mbps
IEEE802.11g
Frequency
band/CH 2.4GHz (2412-2472MHz)/1-11ch
Bit rate 6/9/12/18/24/36/48/54Mbps
IEEE802.11n
Frequency
band/CH 2.4GHz (2412-2472MHz)/1-11ch
Bit rate 6.5 Mbps to 150 Mbps (HT20/40)
IEEE802.11ax
Frequency
band/CH 2.4GHz (2412-2472MHz)/1-11ch
Bit rate 7.3Mbps to 458.8Mbps (HT20/40)
Bluetooth(*1) BDR/EDR/LE Frequency 2402MHz-2480MHz
USB port
Physical
interface Type C connector
Port 1ports
Type USB2.0
Operating conditions Temperature: -10 to 55 °C
Humidity: 10 to 90%
Dimensions Approx. 136(W) x 68(D) x 14.8(H) mm
Power consumption 7.0W
Weight Approx. 0.175kg
(*1): Bluetooth is supported only remote wake-up function.
Tethering function is not supported.
Battery
Model name GXE-005945, 1ICP6/48/97
Battery type Lithium ion battery
Nominal voltage 3.8V
Nominal capacity 4000mAh
