NED RMSL4K76CL User manual

User’s Manual
Line Scan Camera
Molel：RMSL4K76CL
NIPPON ELECTRO-SENSORY DEVICES CORPORATION

NED
RMSL4K76CL UME-0097-01
2
For Customers in the U.S.A.
This equipment has been tested and found to comply with the limits for a Class A
digital device, in accordance with Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference,
in which case the user will be required to correct the interference at his or her own
expense.
For Customers in the EU
This equipment has been tested and found to comply with the essential requirements
of the EMC Directive 2004/108/EC, based on the following specifications applied:
EU Harmonised Standards
EN55032:2015 Class A
EN55011:2009+A1:2010 Class A
EN61000-6-2:2005
*Group 1 contains all ISM (Industrial, Scientific and medical) equipment in which there
is intentionally generated and/or used conductively coupled radio-frequency energy
which is necessary for the internal functioning of the Equipment itself.
*Class A equipment is equipment suitable for use in all establishments other than
domestic and those directly connected to a low voltage power supply network which
supplies buildings used for domestic purposes.
Directive on Waste Electrical and Electronic Equipment (WEEE)
Please return all End of Life NED products to the distributor from whom the product
was purchased for adequate recycling and / or disposal. All costs of returning the
Product to NED are borne by the shipper.

NED
RMSL4K76CL UME-0097-01
3
Introduction
Thank you for purchasing NED’s Line Scan Camera. We look forward to your
continued custom in the future.
For safety use
For your protection, please read these safety instructions completely before
operating the product and keep this manual for future reference.
The following symbols appear next to important information regarding safe product
handling.
Warning
If the product is not handled properly, this may result in
serious injury or possible death.
Caution
If the product is not handled properly, this may result in
physical injury or cause property damage.
Safety precaution
Warning
Never disassemble or modify this product, unless otherwise specified to do so in
this manual.
When hands are wet, avoid handling this product and do not touch any of the
connection cable pins or other metallic components.
Do not operate this product in an environment that is exposed to rain or other
severe external elements, hazardous gases or chemicals.
If the product is not to be used for an extended period of time, as a safety
precaution, always unplug the connection cable from the camera unit.
If the product installation or inspection must be executed in an overhead location,
please take the necessary measures to prevent the camera unit and its
components from accidentally falling to the ground.
If smoke, an abnormal odor or strange noise is emitted from the camera unit, first
turn off power, then unplug the cable from the camera unit.
This product is not intended for use in a system configuration built for critical
applications.

NED
RMSL4K76CL UME-0097-01
4
Instructions before use
Only operate this product within the recommended environmental temperature
range.
Use only the specified power source and voltage rating.
Do not drop this product.Avoid exposure to strong impact and vibrations.
Install the camera unit in a well-ventilated environment, in order to prevent the
camera from overheating.
If the camera must be installed in an environment containing dust or other particles,
take required measures to protect the camera unit from dust adhesion.
Do not unplug the cable while power is being supplied to the camera unit. To
prevent product damage, always shut down the power supply before unplugging
the power cable.
When the surface of the camera window becomes dirty due to dust or grime, black
smudges appear in the displayed image. Use an air blower to remove the dust
particles. Dip a cotton swab into ethanol alcohol and clean the camera window. Be
careful not to scratch the glass.
Use of non-infrared lighting such as a daylight fluorescent lamp is recommended. If
halogen lighting is employed, always install an infrared filter into your system
configuration.
Note that exposure to long wavelength light outside of the sensors visible optical
range can affect the image.
Sensitivity may fluctuate depending on the spectral response level of the light
source. In cases like this, changing the light source to one with a different spectral
response level may reduce this problem. Moreover, this irregular sensitivity can be
completely lost by using 4.11 pixel correction function. Please refer to 4.11 pixel
correction function for details.
Note that when the sensor is exposed to excessive quantities of light, blooming
may occur, because this product does not have a special Anti-Blooming function.
For stabilized image capturing, turn on the power supply and execute aging for ten
to twenty minutes before actually using the camera unit.
Do not share the power supply with motor units or other devices that generate
noise interference.
Do not disconnect the camera while rewriting the embedded memory.
When you change the exposure mode that is set at the NED factory, input control
signal (CC1) from the capture board.

NED
RMSL4K76CL UME-0097-01
5
Product Warranty
Warranty Period
The product warranty period, as a general rule, is two years from purchase;
however for detailed conditions please contact the sales representative for your
region/country.
However, in some cases due to the usage environment, usage conditions and/or
frequency of use, this warranty period may not be applicable.
Warranty Scope
Product repair will be performed on a Return To Manufacturer basis. On-site
maintenance will incur additional charges.
If defects in material or workmanship occur during the warranty period, the faulty
part will be replaced or repaired by us free of charge. Return shipping charges must
be paid by the sender. However, the following cases fall outside of the scope of this
warranty:
The expired date of the warranty period on the product repaired or replaced during
the warranty period of the original product is the same as the eapired date of the
warranty period on the original product.
Exclusions from Warranty Coverage
We will under no circumstances assume responsibility for the following cases:
damage caused by fire, earthquake, other acts of a third party, other accidents,
negligent or intentional misuse by the user, or other usage under extraordinary
circumstances.
Damages (e.g. loss of business profits, business interruption, etc.) resulting from
use or non-use.
Damages caused by use other than as described in this document.
Damages resulting from malfunction due to a connected device.
Damages resulting from repairs or modifications performed by the customer.
Fault Diagnosis
As a general rule, in the first instance fault diagnosis should take the form of a
telephone call or an email to enable us to assess the circumstances of the
malfunction.
However, depending on the customer’s requests, we, or our agent, may require an
additional fee for this service.

NED
RMSL4K76CL UME-0097-01
6
Exclusion of Liability for Compensation for Missed Opportunities
Regardless of whether within the warranty period or not, our warranty does not
cover compensation for missed opportunities for our customers, or our customers’
customers, caused by a fault of our products, nor for damage to products other
than our own, or related business.
Note about Product Usage
This product has been designed and manufactured as a general-purpose product
for general industry. In applications expected to be life-critical or safety-critical, the
installer or user is requested to install double or triple failsafe systems.
Repair Service Outline
The cost of dispatching engineers etc. for repair service is not included in the price
of purchased and supplied goods. On request, arrangements can be made
separately.
Scope of Repair Service
The above assumes business dealings and usage to take place in the customer’s
region / country. In cases of business dealings and/or usage outside the customer’s
region/country, separate consultation is required.

NED
RMSL4K76CL UME-0097-01
7
Table of Contents
1 Product Outline 10
1.1 Features------------------------------------------------------------------------------------------------------10
1.2 Application--------------------------------------------------------------------------------------------------10
1.3 Image Sensor ----------------------------------------------------------------------------------------------12
1.4 Performance Specifications --------------------------------------------------------------------------12
2 Camera Setting and Optical Interface 15
2.1 Setting the Camera---------------------------------------------------------------------------------------15
2.2 Fixing the Camera----------------------------------------------------------------------------------------15
2.3 Optical Interface-------------------------------------------------------------------------------------------17
3 Hardware 18
3.1 Camera Connection--------------------------------------------------------------------------------------18
3.3 Connectors･Pin Assignments･Cables------------------------------------------------------------21
3.4 Power Supply ----------------------------------------------------------------------------------------------26
4 Camera Control 27
4.1 Flow of Camera Control--------------------------------------------------------------------------------27
4.1.1 Command Overview 27
4.1.2 Camera Receiving Message (PC Sending Command) 27
4.1.3 Camera Sending Message (PC Receiving Message) 28
4.1.4 Camera Control Commands 29
4.2 Details on Commands-----------------------------------------------------------------------------------31
4.2.1 Setting Analog Gain 31
4.2.2 Setting Digital Gain 31
4.2.3 Setting Digital Offset 31
4.2.4 Setting Exposure Mode 32
4.2.5 Setting Scan Rate 32
4.2.6 Setting Exposure Time 32
4.2.7 Setting Pixel Correction mode 33
4.2.8 Setting Pixel Correction Levei 33
4.2.9 Generating Test Pattern 34
4.2.10 Setting the Pixel Readout Direction 34
4.2.11 Setting Data Format 34

NED
RMSL4K76CL UME-0097-01
8
4.2.12 Setting Output Data Clock 34
4.2.13 Setting Tap Geometry 35
4.2.14 Setting Gamma correction 35
4.2.15 Memory Initializing (Initializing Camera Settings) 35
4.2.16 Memory Load 36
4.2.17 Memory Save 37
4.2.18 Capture black pixel correction data 37
4.2.19 Capture white pixel correction data 37
4.2.20 Returning the Cameras Settings to the its original status 37
4.2.21 Selecting the communication speed 38
4.3 Digital Processing flow in FPGA--------------------------------------------------------------------38
4.4 Startup--------------------------------------------------------------------------------------------------------39
4.5 Saving and Loading Camera Settings-------------------------------------------------------------39
4.6 Serial Communication Settings ---------------------------------------------------------------------40
4.7 Video Output Format ------------------------------------------------------------------------------------41
4.8 Exposure Mode and Timing Chart------------------------------------------------------------------43
4.8.1 Free Run Exposure Mode (Programming time setting) 43
4.8.2 External Trigger Exposure Mode (Trigger Edge) 44
4.8.3 External Trigger Exposure Mode (Trigger Level) 45
4.9 Setting Offset ----------------------------------------------------------------------------------------------46
4.10 Setting Gain-----------------------------------------------------------------------------------------------47
4.11 Pixel Correction------------------------------------------------------------------------------------------49
4.11.1 Command Settings 50
4.11.2 How to calibrate the camera 50
4.12 Test Pattern -----------------------------------------------------------------------------------------------51
5 Sensor Handling Instructions 52
5.1 Electrostatic Discharge and the Sensor----------------------------------------------------------52
5.2 Protecting Against Dust, Oil and Scratches ----------------------------------------------------52
5.3 Cleaning the Sensor Window ------------------------------------------------------------------------52
6 Troubleshooting 53
6.1 When there is no Image --------------------------------------------------------------------------------53
6.2 When Noise is present in the Image---------------------------------------------------------------55
6.3 When the Camera becomes hot---------------------------------------------------------------------57

NED
RMSL4K76CL UME-0097-01
9
7 Others 58
7.1 Notice ---------------------------------------------------------------------------------------------------------58
7.2 Contact for support--------------------------------------------------------------------------------------58
7.3 Product Support ------------------------------------------------------------------------------------------59
7.3.1 Warranty card (attach a separate) 59
7.3.2 When you need to repair 59
Revision History 60

NED
RMSL4K76CL UME-0097-01
10
1 Product Outline
1.1 Features
High speed readout(340MHz)
High resolution(4096 pixels)
Choice of 2tap, 4tap or 8tap with 4096 pixels on data format
Choice of 8bit or 10bit on readout of all format
Choice of 40MHz, 60MHz or 85MHz on data output clock speed
Easy control of gain / offset with software outside the camera.
Easy connection with a variety of frame grabber boards via Camera Link
interface
Single power source DC12V to 15 for operation
Flat-field correction –minimizes lens vignetting, non-uniform lighting and
sensor FPN and PRNU
1.2 Application
Inspection of Transparent panels and PCBs
Inspection of high speed moving objects
Flat panel display inspection
Inspection of glass and sheet-like objects
Printed circuit board inspection
This camera utilizes an Intelligent Transportation System
Outdoor surveillance
Wide dynamic range prevents the camera from saturation caused by direct rays
and specular refection rays.

NED
RMSL4K76CL UME-0097-01
11

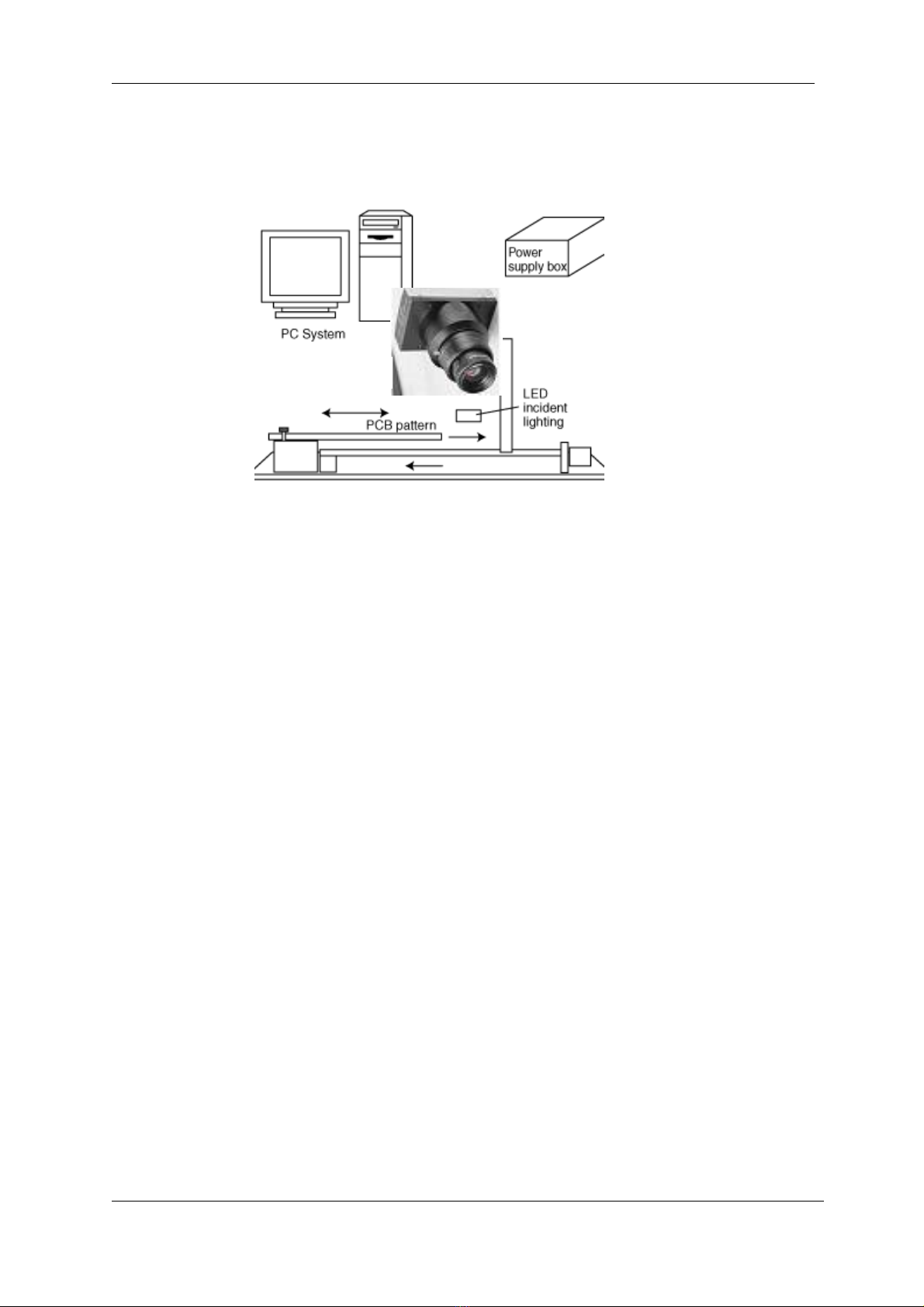

An example of Visual Inspection of PCBs is shown below.
Figure 1-2-1 Visual Inspection of PCBs
Applicable Work
COB, BGAand MCM printed circuit boards
Performance
1. Maximum board size: 100mm×200mm
2. Resolution: 10μm
3. Inspection time: less than 30 seconds
Unit Configuration
1. Camera: Line scan camera
2. Controller: Dedicated software for PC system
3. Size: L930 x D500 x H500 (mm)
Applicable Fields
Inspection of patterns on film PCBs
Line scan camera

NED
RMSL4K76CL UME-0097-01
12
1.3 Image Sensor
The camera adopts a CMOS sensor with the maximum data rate of 320MHz to
acquire high quality images.
The pixels are 7μmx7μm.
The camera outputs its 4096 pixels data through 40MHz-8Tap.
1.4 Performance Specifications
The Performance Specifications are shown in Table 1-1. It shows the data when
the camera is operating at maximum scan rate, unless otherwise specified.

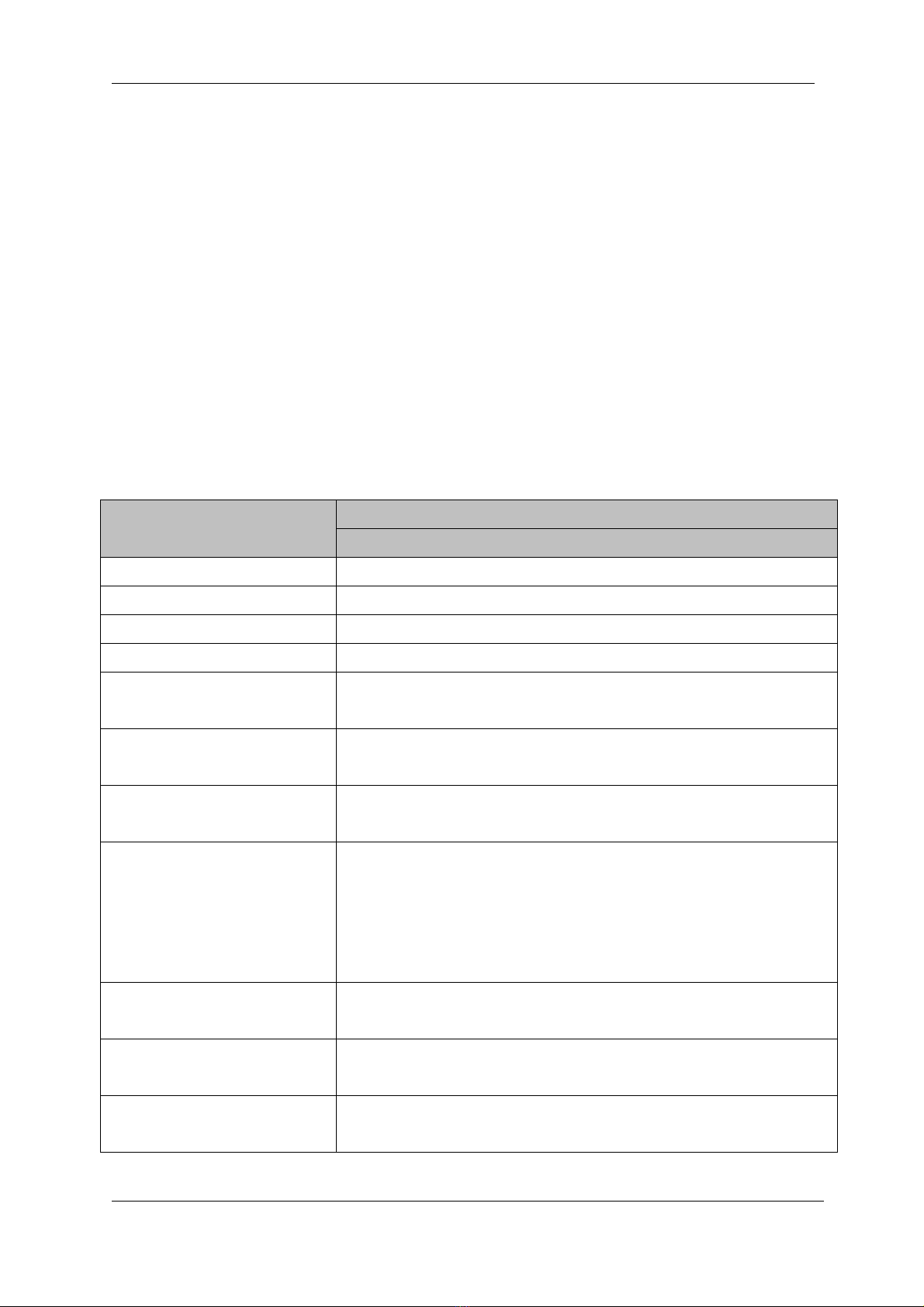

Table 1-4-1 Performance Specifications
Items
Specifications
RMSK4K76CL
Number of Pixels
4096
Pixel Size H x V (μm)
7ｘ7
Sensor Length (mm)
28.672
Spectral Responsivity (nm)
400 -1000 (Peak : 625, See Figure 1-4-1)
Data Rate (MHz)
340/240/160/170/120/80 (Selectable rate)
（85×4/60×4/40×4/85×2/60×2/40×2）
Maximum Scan Rate
(kHz) / (μs)
76.92 / 13.00
（at 340MHz data rate）
Saturation Exposure（lx･s）
(typically)
0.071[Minimum Gain, Pixel Correction Initial Value,
Daylight Fluorescent Light]
Responsivity（typically）
[Minimum Gain, Pixel
Correction Initial Value,
Daylight Fluorescent Light]
Visible Area (400～700nm)
100(V/[lx･s])
Analog 5V Conversion Sensitivity
Gain Adjustable Range
*AnalogAmplifier +Digital
AnalogAmplifier：ｘ1 to ｘ10（8 Steps）
Digital：ｘ1 to ｘ2（512 Steps）
Offset Adjustable Range
*Digital
Digital：-127～127(0.5DN/STEP:8bit)
-127～127(2.0DN/STEP:10bit)
FPN (Fixed Pattern Noise)
Typically 5 DN (without correction, at minimum gain)
2 DN (with correction, at minimum gain)

NED
RMSL4K76CL UME-0097-01
13
PRNU (Photo Response
Non Uniformity)
Typically 20 DN (without correction, at minimum gain)
4 DN (with correction, at minimum gain)
Random Noise
Typically 20 DN (peak value at minimum gain)
Video output
Camera Link Medium Configuration (8or10bit/4tap)
Camera Link Base Configuration (8or10bit/2tap)
Control Input
CC1: External Trigger Signal, CC2-4: Not in use
Connectors
Data/Controller
3M: MDR26 [Camera Link] x 2
Power Supply
Hirose: HR10G(6Pin)
Lens Mount
Nikon F Mount
Operating Temperature (˚C)
No Condensation
0 to 50
Power Supply Voltage (V)
DC12 to 15 [+/-5%]
Consumption Current (mA)
(typically)
250
Size W x H x D (mm)
60 x100 x 70
Mass (g) (Camera only)
Approx. 380
Additional Function
1 Shading Correction
2 Gain/Offset/Video Output(8bit/10bit) Adjustable
3 Test Pattern Output On/Off
4 Programmable Exposure Control
5 Scan Direction Switching
6 Selectable Data Rate
*1) DN : Digital Number (10-bit : 0 -1023)
*2) Measurements were made at room temperature.

NED
RMSL4K76CL UME-0097-01
14

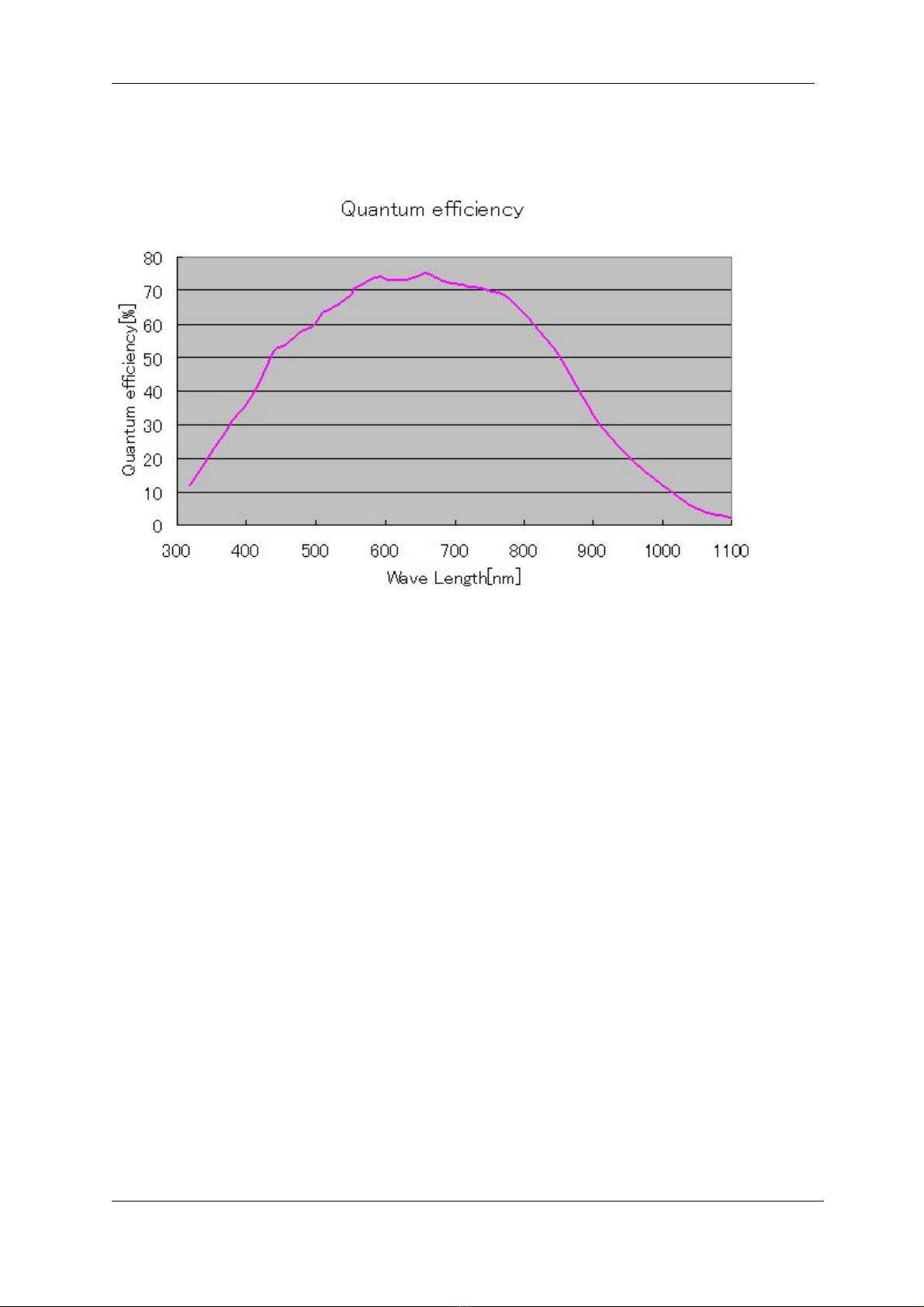

The quantum efficiency is shown below.
Figure 1-4-1 Quantum efficiency

NED
RMSL4K76CL UME-0097-01
15
2 Camera Setting and Optical Interface
2.1 Setting the Camera
Use the M4 screw holes or the tripod screw hole to set the camera.
An optional mounting base (sold separately) is available.
2.2 Fixing the Camera
Use the M4 screw holes (4 on the front, 8 on the side) to set the camera.
Or use the 1/4"-20UNC screw hole for a tripod (1 place at bottom).
If using the front panel M4 mounting holes (4 places at front, 8 places at side), the
screw length for fixing the camera at the front should be less than 8mm, and less
than 6mm for the side.
No X-, Y-axis orientation and tilt adjustment mechanism is available. Please
prepare an adjustment mechanism if required.

NED
RMSL4K76CL UME-0097-01
16

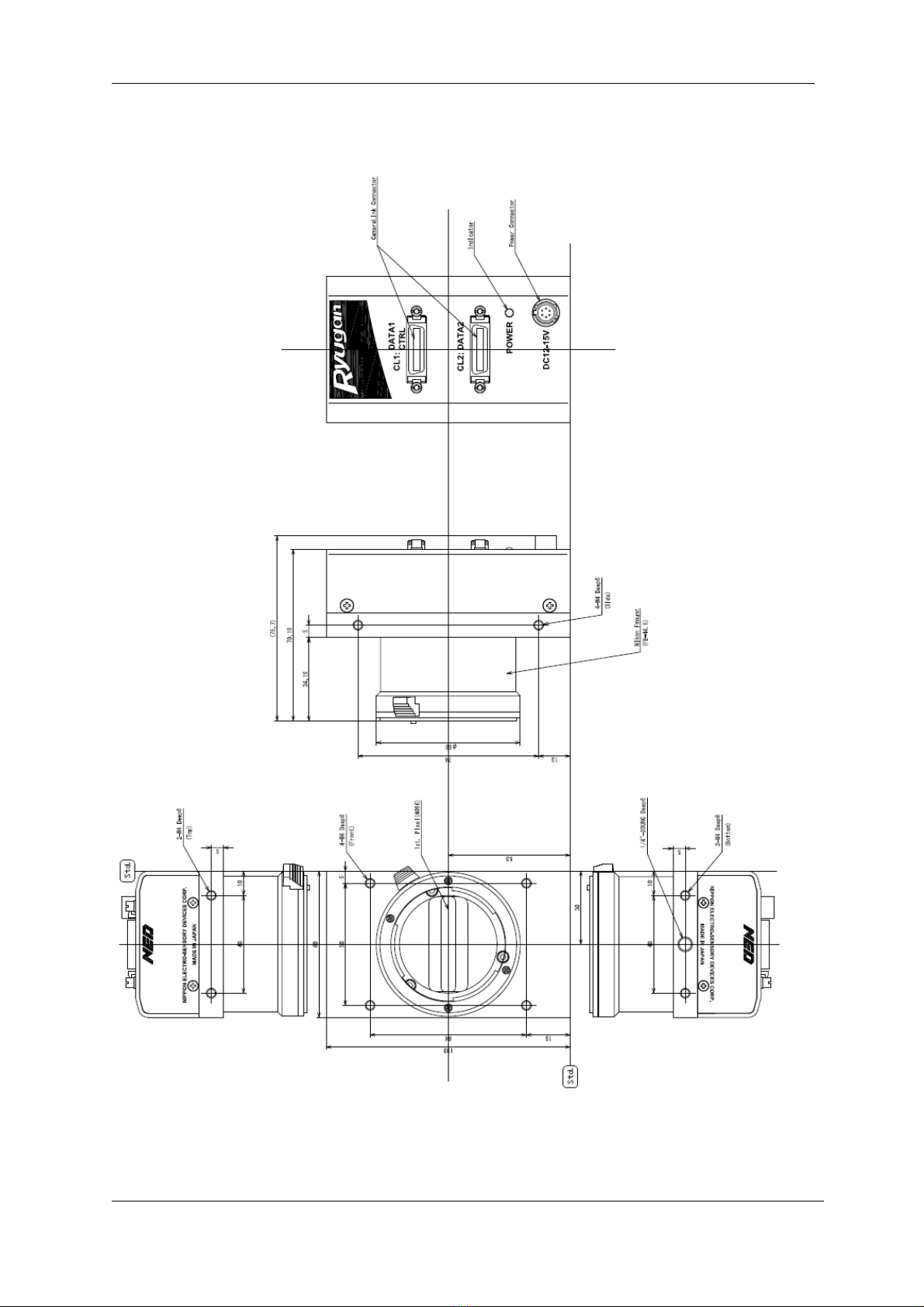

The dimensions of the camera are shown below.
Nikon F mount
Figure 2-2-1 Dimensions of the Camera

NED
RMSL4K76CL UME-0097-01
17
2.3 Optical Interface
The camera is equipped with a Nikon F-mount.
The amount and wavelengths of light required to capture useful images depend on
the intended use. Factors include the property, speed, the objects spectral
characteristics, exposure time, the light source characteristics, the specifications of
the acquisition system and so on.
The exposure amount (exposure time x light amount) is the most important factor in
getting desirable images. Please determine the exposure amount after studying
what is most important to your system.
Keep these guidelines in mind when setting up your light source:
LED light sources are relatively inexpensive, provide a uniform field and longer
life span compared to other light sources. However, they also require a camera
with excellent sensitivity.
Halogen light sources generally provide very little blue light but have high
infrared light (IR) proportions.
Fiber-optic light distribution systems generally transmit very little blue light
relative to IR.
Metal halide light sources are very bright but have a shorter life span compared
to other light sources.
Generally speaking, the brighter the light sources, the shorter the life span.
CMOS image sensors are sensitive to infrared (IR). We recommend using daylight
colour fluorescent lamps that have low IR emissions. If you use a halogen light
source, to prevent infrared from distorting the images use an IR cutoff filter that does
not transmit wavelengths.

NED
RMSL4K76CL UME-0097-01
18
3 Hardware
3.1 Camera Connection
Use the camera in the following way:
(1) Camera Link Full Configuration cables must be used to connect the camera unit
with the frame grabber board.
Use two cables of the same length and the same manufacturer. Use asymmetric
Camera Link Full Configuration cables and connect the camera with the connector
labeled as ”Camera side”.
(2) Connect the camera with the designated power supply.
Use the designated power cable to connect the camera with the power source for
the camera. Insert the plug end of the cable into the camera. Attach the opposite end
(loose wires) to the power unit.
Other than those above, a personal computer, a frame grabber board, a compatible
lens, a lens mount, a light source and an encoder are necessary, depending on the
situation.
Figure 3-1-1 Connections between Camera and Frame Grabber Board and Power Supply
PC
Camera Link
Frame Grabber Board
linescan camera
Camera Link cable
power cable
Camera
Power Supply
DC +12V 15W
CL1
CL2
CL1
CL2

NED
RMSL4K76CL UME-0097-01
19
There are two connectors available for the Camera Link Full Configuration board.
Always check the frame grabber board specifications before making connections.
<Note: Choosing the appropriate Camera Link cable length >
According to the Camera Link Specification, the maximum cable length is 10m. But the
maximum cable length to be able to transfer data depends on the type of cable
performance and clock speed. The actual maximum transmission distance becomes
less than 10m at faster clock speeds, though the transmission distance of 10m is
feasible at slower clock speeds.
The following table shows values being calculated in accordance with the Camera Link
Specification 2007.Version1.2, using a typical cable (14B26-SZLB-xxx-0LC from 3M)
and frame grabber board (Solios from Matrox). Please choose the appropriate Camera
Link cable type and length for your application. We recommend you perform a
connection test in advance.
Table 3-1-1 calculated value of maximum cable length
Solios model
clock speed(MHz)
maximum cable length(m)
SOL 6M CL E*
(20～66MHz)
40
9.8
66
8.0
SOL 6M FC E*
(20～85MHz)
75
7.6
85
5.8

NED
RMSL4K76CL UME-0097-01
20
3.2 Input / Output Connectors and Indicator
The layout of input /output connecters and the LED indicator are as follows.
Figure 3-2-1 Input/Output Connectors and Indicator
