Velleman EtiamPro ECAMIP601 User manual

ECAMIP601/ECAMIP601B·Quick Start Guide
Regulatory Information
FCC Information
Please take attention that changes or modification not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:

ECAMIP601/ECAMIP601B·Quick Start Guide
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied
accessories too are marked with "CE" and comply
therefore with the applicable harmonized European
standards listed under the EMC Directive 2014/30/EU, the RoHS
Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked
with this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or dispose of it at
designated collection points.
2006/66/EC (battery directive): This product
contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union.
See the product documentation for specific battery
information. The battery is marked with this symbol,
which may include lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the battery to your
supplier or to a designated collection point.
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (B)/NMB-3(B) standards
requirements.

ECAMIP601/ECAMIP601B·Quick Start Guide
Safety Instruction
These instructions are intended to ensure that user can use the
product correctly to avoid danger or property loss.
The precaution measure is divided into “Warnings” and “Cautions”
Warnings: Serious injury or death may occur if any of the warnings
are neglected.
Cautions: Injury or equipment damage may occur if any of the
cautions are neglected.
Warnings
●For device with this sticker, this device is intended for
installation in a restricted access location, access
can only be gained by service persons or by users
who have been instructed about the reasons for
the restrictions applied to the location and about any
precautions that shall be taken.
●Proper configuration of all passwords and other security
settings is the responsibility of the installer and/or end-user.
Warnings Follow these
safeguards to prevent
serious injury or death.
Cautions Follow these
precautions to prevent potential
injury or material damage.

ECAMIP601/ECAMIP601B·Quick Start Guide
●In the use of the product, you must be in strict compliance with
the electrical safety regulations of the nation and region. Please
refer to technical specifications for detailed information.
●Input voltage should meet both the SELV (Safety Extra Low
Voltage) and the Limited Power Source with 24 VAC or 12 VDC
according to the IEC60950-1 standard. Please refer to technical
specifications for detailed information.
●Do not connect several devices to one power adapter as
adapter overload may cause over-heating or a fire hazard.
●Please make sure that the plug is firmly connected to the power
socket. When the product is mounted on wall or ceiling, the
device shall be firmly fixed.
●If smoke, odor or noise rise from the device, turn off the power
at once and unplug the power cable, and then please contact
the service center.
Cautions
●Make sure the power supply voltage is correct before using the
camera.
●Do not drop the camera or subject it to physical shock.
●Do not touch sensor modules with fingers. If cleaning is
necessary, use clean cloth with a bit of ethanol and wipe it
gently. If the camera will not be used for an extended period,
please replace the lens cap to protect the sensor from dirt.

ECAMIP601/ECAMIP601B·Quick Start Guide
●Do not aim the camera at the sun or extra bright places.
Blooming or smearing may occur otherwise (which is not a
malfunction) and affect the endurance of sensor at the same
time.
●The sensor may be burned out by a laser beam, so when any
laser equipment is in using, make sure that the surface of
sensor will not be exposed to the laser beam.
●Do not place the camera in extremely hot, cold (the operating
temperature shall be-30°C to +60°C, or -40°C to 60°C if the
camera model has an “H” in its suffix), dusty or damp locations,
and do not expose it to high electromagnetic radiation.
●To avoid heat accumulation, good ventilation is required for
operating environment.
●Keep the camera away from liquid while in use.
●While in delivery, the camera shall be packed in its original
packing, or packing of the same texture.
●Regular part replacement: a few parts (e.g. electrolytic
capacitor) of the equipment shall be replaced regularly
according to their average enduring time. The average time
varies because of differences between operating environment
and using history, so regular checking is recommended for all
the users. Please contact with your dealer for more details.
●Improper use or replacement of the battery may result in
hazard of explosion. Replace with the same or equivalent type
only. Dispose of used batteries according to the instructions
provided by the battery manufacturer.

ECAMIP601/ECAMIP601B·Quick Start Guide
L’utilisation ou le remplacement inadéquats de la pile peuvent
entraîner un risque d’explosion. Remplacez-la par le même type
ou l’équivalent du même type seulement. Jetez les piles
usagées conformément aux directives fournies par le fabricant
de la pile.
●If the product does not work properly, please contact your
dealer or the nearest service center. Never attempt to
disassemble the camera yourself. (We shall not assume any
responsibility for problems caused by unauthorized repair or
maintenance.)

ECAMIP601/ECAMIP601B·Quick Start Guide

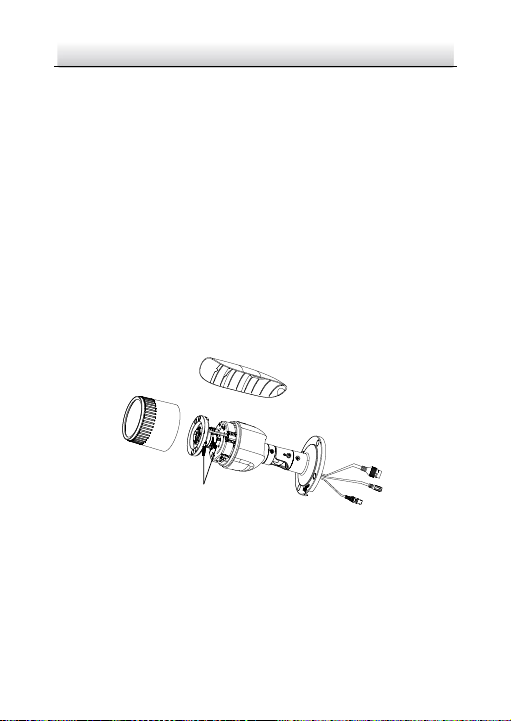

1Appearance
1
10
56
7
3
4
2
89
11*

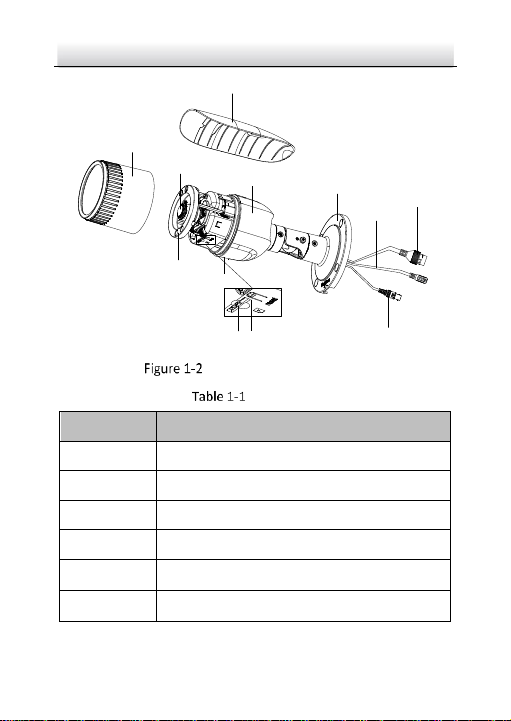

Overview of Type I Camera

ECAMIP601/ECAMIP601B·Quick Start Guide
1
2
3
4
56
78
10
12
9
11*
Overview of Type II Camera
Description
No.
Description
1
Front Cover
2
Sun Shield
3
Lens
4
IR LED
5
Memory Card Slot
6
Reset Button

ECAMIP601/ECAMIP601B·Quick Start Guide
No.
Description
7
Camera Body
8
Bracket
9
Network Interface
10
Power Interface
11*
CVBS Interface
12
Mic
Note:
●The item marked with the "*" is only supported by certain
camera models.
●Press RESET about 10 s when the camera is powering on or
rebooting to restore the default settings, including the
username, password, IP address, port No., etc.

ECAMIP601/ECAMIP601B·Quick Start Guide
2Installation
Before you start:
●Make sure the device in the package is in good condition and all
the assembly parts are included.
●The standard power supply is 12 VDC or PoE. Make sure your
power supply matches with your camera.
●Make sure all the related equipment is power-off during the
installation.
●Check the specification of the products for the installation
environment.
●Make sure that the wall or ceiling is strong enough to withstand
four times the weight of the camera and the mount.
For the camera that supports IR, you are required to pay attention to
the following precaution to prevent IR reflection:
Make sure that there is no reflective surface too close to the
camera lens. The IR light from the camera may reflect back into
the lens causing reflection.
2.1 Memory Card Installation
This series of cameras support memory card installation. Different
camera types share the similar installation steps, and we take type I
camera as the example.

ECAMIP601/ECAMIP601B·Quick Start Guide
Steps:
1. Loosen the lock screw to remove the sun shield.
DC12V
IN
Lock Screw
Figure 2-1 Remove the Sun Shield
2. Rotate the front cover counterclockwise to remove it.
DC12V
IN
Figure 2-2 Remove the Front Cover
3. Insert the memory card into the memory card slot.
DC12V
IN
Figure 2-3 Insert the Memory Card

ECAMIP601/ECAMIP601B·Quick Start Guide

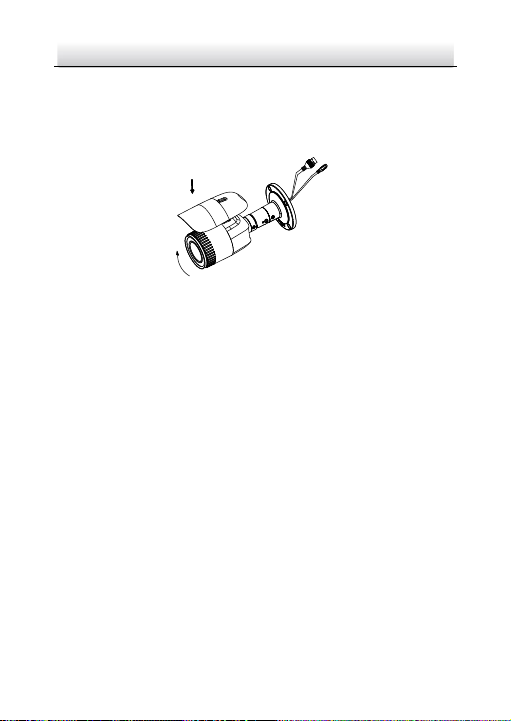

4. Rotate the front cover clockwise back to the camera and replace
the sun shield.
5. Tighten the lock screw clockwise to fix the sun shield.
DC12V
IN
Figure 2-4 Fix the Front Cover
2.2 Camera Mounting
This series of cameras support the ceiling and wall mount. Different
camera types share the similar installation steps, and we take type I
camera as the example.
Steps:
1. Paste the drill template (supplied) to the wall or the ceiling where
you intend to install the camera.
2. Drill screw holes in the wall or ceiling according to the drill
template.

ECAMIP601/ECAMIP601B·Quick Start Guide
Ceiling Mounting
11
11
2
22
2
1:Screw Hole for
Bracket
2:Screw Hole for
Mounting Base
Ø 100 mm
Ø 36 mm
8-Ø 5 mm
Drilling Holes in the Wall/Ceiling
3. If you need to route the cables through the wall (or the ceiling),
dill a cable hole according to the drill template. Skip this step if
you want to route the cables on the surface of the wall (or the
ceiling).
4. Route the cables of the camera.
5. Secure the camera to the wall (or the ceiling) with the supplied
screws.
Drill Template Drill Template
Figure 2-6 Secure the Camera

ECAMIP601/ECAMIP601B·Quick Start Guide
Note:
●The supplied screw package contains self-tapping screws,
and expansion bolts.
●For cement wall (or ceiling), use expansion bolts to secure
the camera. For wooden wall (or ceiling), use self-tapping
screws.
6. Connect the corresponding cables, such as power cord and
network cable.
7. Power on the camera, and set the network configuration (for
details, refer to Set the Network Camera over the LAN and Access
via Web Browser) to check whether the image is gotten from the
optimum angle. If not, adjust the surveillance angle.
Pan Adjustment
Steps:
1). Loosen the lock screw 1.
2). Adjust the panning position of the camera. The adjusting
range is from 0° to 360°.
3). Tighten the lock screw 1.
Tilt Adjustment
Steps:
1). Loosen the lock screw 2.
2). Adjust the tilting position of the camera. The adjusting range is
from 0° to 90°.
3). Tighten the lock screw 2.

ECAMIP601/ECAMIP601B·Quick Start Guide
Rotation Adjustment
Steps:
1). Loosen the lock screw 3.
2). Rotate the rotation position to adjust the azimuth angle of the
image. The adjusting range is from 0° to 360°.
3). Tighten the lock screw 3.
Pan: 0° to 360° 1
2
3
Rotation
0° to 360°
Tilt: 0° to 90°
1 Lock Screw 1
2 Lock Screw 2
3 Lock Screw 3
View Angle Adjustment
8. Adjust zoom and focus (refer to 2.3 Zoom and Focus Adjustment).
9. (Optional) Install the waterproof jacket for network interface.
Refer to 2.4 Waterproof Measures for detailed installation
procedures.
2.3 Zoom and Focus Adjustment
2.3.1 Manually Adjustment
Certain camera models of this series have the lens that zoom and
focus levels must be manually adjusted via zoom/focus lever and you
can use zoom lever and focus lever to adjust the lens.

ECAMIP601/ECAMIP601B·Quick Start Guide
Steps:
1. Remove the sun shield and front cover to expose the zoom lever
and the focus lever.
2. View the camera image on the monitoring screen.
3. Loosen the zoom lever and move the lever between T (Tele) and
W (Wide) to obtain the desired angle of view.
4. Tighten the zoom lever.
5. Loosen the focus lever and move the lever between F (Far) and N
(Near) to obtain the optimum focus.
6. Tighten the focus lever.
7. Install the sun shield and the front cover back to the camera.
DC12VIN
Zoom/Focus Lever
Figure 2-8 Zoom and Focus Adjustment
Note:
If the camera is equipped with a fixed lens, you don’t need to adjust
the zoom and focus.

ECAMIP601/ECAMIP601B·Quick Start Guide
2.3.2 Motor-driven Lens
Certain camera models of this series are equipped with a
motor-driven lens. You can adjust the zoom and focus level on PTZ
control panel by visiting the camera via web browser or client
software.
Zoom and Focus Adjustment via Web Browser
2.4 Waterproof Measures
If the camera is installed outdoor, you should use the waterproof
accessory or tapes to waterproof the cables. Otherwise, the cables
might get wet or a short circuit occurs.

ECAMIP601/ECAMIP601B·Quick Start Guide
2.4.1 Install Network Cable Waterproof Jacket
⑥
④
②③
①④⑤⑥
③①
Align

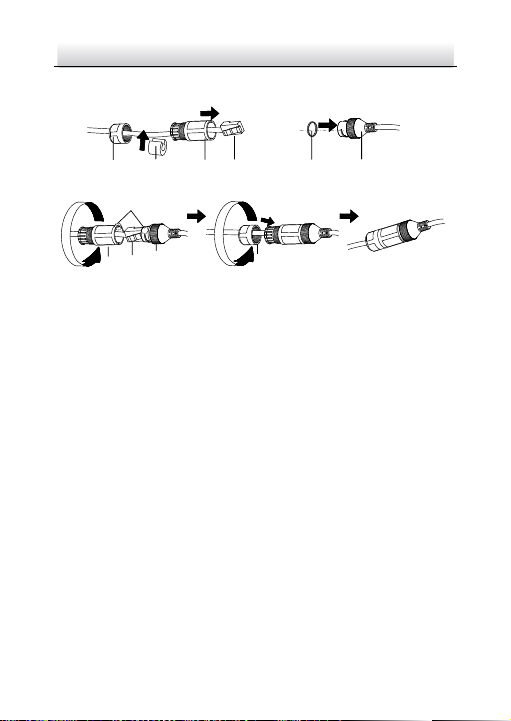

Figure 2-10 Install Waterproof Jacket
Steps:
1. Feed the network cable through ① and ③ in order.
2. Fix ② on the network cable between ① and ③.
3. Place ⑤ onto the end of ⑥ and plug the RJ45 male connector
into RJ45 female connector.
4. Screw ③ to ⑥ clockwise.
5. Push ② into ③.
6. Secure ① with the ③ in clockwise direction.
2.4.2 Waterproof Other Cables
After routing and connecting the cables, use the waterproof tapes to
wrap up the cables. Connected cables and spare cables both should
be wrapped up as the figures below.

ECAMIP601/ECAMIP601B·Quick Start Guide

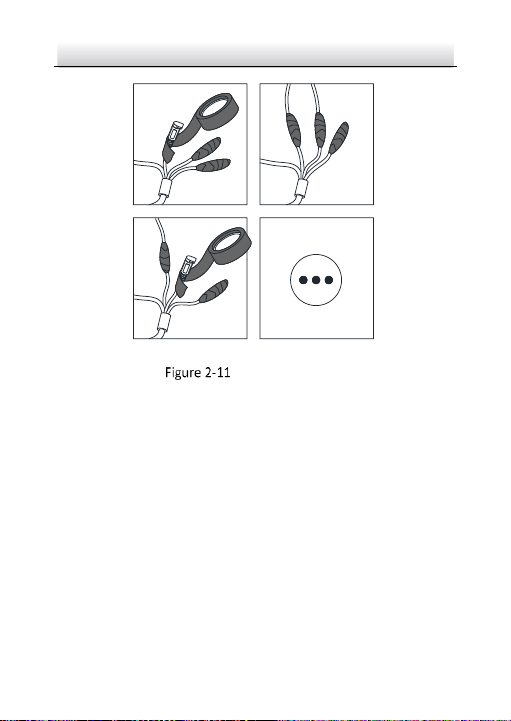

Waterproof Cables
