NEFF K125 User manual

Fridge-freezer
[en] User manual
KI25.., KI24.., KI23.., KI22..

en
2
Table of contents
1 Safety............................................4
1.1 General information....................4
1.2 Intended use...............................4
1.3 Restriction on user group...........4
1.4 Safe transport.............................4
1.5 Safe installation ..........................5
1.6 Safe use .....................................6
1.7 Damaged appliance...................8
2 Preventing material damage .......9
3 Environmental protection and
saving energy...............................9
3.1 Disposing of packaging .............9
3.2 Saving energy.............................9
4 Installation and connection.......10
4.1 Scope of delivery......................10
4.2 Criteria for the installation
location .....................................10
4.3 Installing the appliance ............11
4.4 Preparing the appliance for
the first time..............................11
4.5 Connecting the appliance to
the electricity supply.................11
5 Familiarising yourself with
your appliance............................12
5.1 Appliance .................................12
5.2 Control panel............................13
6 Features......................................14
6.1 Shelf..........................................14
6.2 Variable shelf............................14
6.3 Extendable shelf .......................14
6.4 Fruit and vegetable con-
tainer with humidity control ......14
6.5 Butter and cheese compart-
ment..........................................15
6.6 Door rack..................................15
6.7 Accessories..............................15
7 Basic operation ..........................16
7.1 Switching on the appliance ......16
7.2 Operating tips...........................16
7.3 Switching off the appliance ......16
7.4 Setting the temperature............16
8 Additional functions ..................16
8.1 Super function ..........................16
9 Alarm...........................................17
9.1 Door alarm ...............................17
10 Refrigerator compartment .......17
10.1 Tips for storing food in the
refrigerator compartment .......17
10.2 Chill zones in the refriger-
ator compartment...................17
10.3 "OK" sticker ............................17
11 Freezer compartment...............18
11.1 Freezer compartment door ....18
11.2 Freezing capacity ...................18
11.3 Tips for storing food in the
freezer compartment ..............18
11.4 Tips for freezing fresh food ....18
11.5 Shelf life of frozen food at
−18°C....................................19
11.6 Defrosting methods for
frozen food .............................19
12 Defrosting.................................19
12.1 Defrosting in the refriger-
ator compartment...................19
12.2 Defrosting in the freezer
compartment ..........................20
13 Cleaning and servicing............20
13.1 Preparing the appliance for
cleaning ..................................20
13.2 Cleaning the appliance ..........20
13.3 Cleaning the condensation
channel and drainage hole ....21
13.4 Removing the fittings..............21
13.5 Removing appliance com-
ponents...................................22

en
3
14 Troubleshooting.......................24
15 Storage and disposal...............26
15.1 Taking the appliance out of
operation ................................26
15.2 Disposing of old appliance ....26
16 Customer Service.....................27
16.1 Product number (E-Nr.) and
production number (FD).........27
17 Technical data ..........................27

en Safety
4
1 Safety
Observe the following safety instructions.
1.1 General information
¡Read this instruction manual carefully.
¡Keep the instruction manual and the product information safe
for future reference or for the next owner.
¡Do not connect the appliance if it has been damaged in transit.
1.2 Intended use
This appliance is only intended to be fully fitted in a kitchen.
Only use this appliance:
¡for chilling and freezing food, and for dispensing ice.
¡In private households and in enclosed spaces in a domestic en-
vironment.
¡Up to an altitude of max. 2000m above sea level.
1.3 Restriction on user group
This appliance may be used by children aged 8 or over and by
people who have reduced physical, sensory or mental abilities or
inadequate experience and/or knowledge, provided that they are
supervised or have been instructed on how to use the appliance
safely and have understood the resulting dangers.
Children must not play with the appliance.
Cleaning and user maintenance must not be performed by chil-
dren unless they are being supervised.
Children above the age of three years old and younger than eight
years old may load and unload the the fridge-freezer.
1.4 Safe transport
WARNING‒Risk of injury!
The high weight of the appliance may result in injury when lifted.
▶Do not lift the appliance on your own.

Safety en
5
1.5 Safe installation
WARNING‒Risk of electric shock!
Improper installation is dangerous.
▶Connect and operate the appliance only in accordance with the
specifications on the rating plate.
▶Connect the appliance to a power supply with alternating cur-
rent only via a properly installed socket with earthing.
▶The protective conductor system of the domestic electrical in-
stallation must be properly installed.
▶Never equip the appliance with an external switching device,
e.g. a timer or remote control.
▶When the appliance is installed, the mains plug of the power
cord must be freely accessible. If free access is not possible, an
all-pole isolating switch must be installed in the permanent elec-
trical installation according to the installation regulations.
▶When installing the appliance, check that the power cable is not
trapped or damaged.
If the insulation of the power cord is damaged, this is dangerous.
▶Never let the power cord come into contact with heat sources.
WARNING‒Risk of explosion!
If the appliance's ventilation openings are sealed, a leak in the re-
frigeration circuit may result in a flammable mixture of gas and air.
▶Keep ventilation openings, in the appliance enclosure or in the
built-in structure, clear of obstruction.
WARNING‒Risk of fire!
It is dangerous to use an extended power cord and non-approved
adapters.
▶Do not use extension cables or multiple socket strips.
▶If the power cord is too short, contact Customer Service.
▶Only use adapters approved by the manufacturer.
Portable multiple socket strips or portable power supply units may
overheat and cause a fire.
▶Do not place portable multiple socket strips or power supply
units on the back of the appliance.

en Safety
6
1.6 Safe use
WARNING‒Risk of electric shock!
An ingress of moisture can cause an electric shock.
▶Only use the appliance in enclosed spaces.
▶Never expose the appliance to intense heat or humidity.
▶Do not use steam- or high-pressure cleaners to clean the appli-
ance.
WARNING‒Risk of suffocation!
Children may put packaging material over their heads or wrap
themselves up in it and suffocate.
▶Keep packaging material away from children.
▶Do not let children play with packaging material.
Children may breathe in or swallow small parts, causing them to
suffocate.
▶Keep small parts away from children.
▶Do not let children play with small parts.
WARNING‒Risk of explosion!
Mechanical devices or other devices may damage the refrigera-
tion circuit; flammable refrigerant may escape and explode.
▶To accelerate the defrosting process, do not use any other
mechanical devices or devices other than those recommended
by the manufacturer.
Products which contain flammable propellants and explosive sub-
stances may explode, e.g. spray cans.
▶Do not store products which contain flammable propellants (e.g.
spray cans) or explosive substances in the appliance.
WARNING‒Risk of fire!
Electrical devices within the appliance may cause a fire, e.g. heat-
ers or electric ice makers.
▶Do not operate electrical devices within the appliance.

Safety en
7
WARNING‒Risk of injury!
Containers that contain carbonated drinks may burst.
▶Do not store containers that contain carbonated drinks in the
freezer compartment.
Injury to the eyes caused by escaping flammable refrigerant and
hazardous gases.
▶Do not damage the tubes of the refrigerant circuit or the insula-
tion.
WARNING‒Risk of cold burns!
Contact with frozen food and cold surfaces may cause burns by
refrigeration.
▶Never put frozen food straight from the freezer compartment
into your mouth.
▶Avoid prolonged contact of the skin with frozen food, ice and
surfaces in the freezer compartment.
CAUTION‒Risk of harm to health!
To prevent food from being contaminated, you must observe the
following instructions.
▶If the door is open for an extended period of time, this may lead
to a considerable temperature increase in the compartments of
the appliance.
▶Regularly clean the surfaces that may come into contact with
food and accessible drain systems.
▶Store raw meat and fish in suitable containers in the refrigerator
so that they do not touch or drip on other food.
▶If the fridge/freezer is empty for an extended period of time,
switch off the appliance, defrost it, clean it and leave the door
open to prevent the formation of mould.
Metal or metal-style parts in the appliance may contain aluminium.
If acidic food comes into contact with aluminium in the appliance,
aluminium foil ions may pass into the food.
▶Do not consume soiled food.

en Safety
8
1.7 Damaged appliance
WARNING‒Risk of electric shock!
If the appliance or the power cord is damaged, this is dangerous.
▶Never operate a damaged appliance.
▶Never pull on the power cord to unplug the appliance. Always
unplug the appliance at the mains.
▶If the appliance or the power cord is damaged, immediately un-
plug the power cord or switch off the fuse in the fuse box.
▶Call customer services. →Page27
Incorrect repairs are dangerous.
▶Repairs to the appliance should only be carried out by trained
specialist staff.
▶Only use genuine spare parts when repairing the appliance.
▶If the power cord of this appliance is damaged, it must be re-
placed by the manufacturer, the manufacturer's Customer Ser-
vice or a similarly qualified person in order to prevent any risk.
WARNING‒Risk of fire!
If the tubes are damaged, flammable refrigerant and harmful
gases may escape and ignite.
▶Keep naked flames and ignition sources away from the appli-
ance.
▶Ventilate the room.
▶Switch off the appliance. →Page16
▶Unplug the appliance from the mains or switch off the circuit
breaker in the fuse box.
▶Call after-sales service. →Page27

Preventing material damage en
9
Preventing material damage
2 Preventing material
damage
Preventing material damage
ATTENTION!
Using the base, runners or appliance
doors as a seat surface or climbing
surface may damage the appliance.
▶Do not stand or support yourself
on the base, runners or doors.
Contamination with oil or fat may
cause plastic parts and door seals to
become porous.
▶Keep plastic parts and door seals
free of oil and grease.
Metal or metal-style parts in the appli-
ance may contain aluminium. Alu-
minium reacts when it comes into
contact with acidic foods.
▶Do not store unpackaged food in
the appliance.
Environmental protection and saving energy
3 Environmental protec-
tion and saving energy
Environmental protection and saving energy
3.1 Disposing of packaging
The packaging materials are environ-
mentally compatible and can be re-
cycled.
▶Sort the individual components by
type and dispose of them separ-
ately.
3.2 Saving energy
If you follow these instructions, your
appliance will use less power.
Selecting the installation location
¡Keep the appliance out of direct
sunlight.
¡Install the appliance as far away as
possible from heating elements,
cookers and other heat sources:
– Maintain a 30mm clearance to
electric or gas cookers.
– Maintain a 300mm clearance to
oil or solid-fuel cookers.
¡Use a niche depth of 560mm.
¡Never cover or block the exterior
ventilation grilles.
Saving energy during use
Note:The arrangement of the fittings
does not affect the energy consump-
tion of the appliance.
¡Open the appliance only briefly.
¡Never cover or block the interior
ventilation openings or the exterior
ventilation grilles.
¡Transport purchased food in a
cool bag and place in the appli-
ance quickly.
¡Allow warm food and drinks to
cool down before storing them.
¡Thaw frozen food in the refrigerator
compartment to utilise the low tem-
perature of the food.
¡Always leave some space between
the food and to the back panel.
¡Pack the food airtight.
¡Defrost the freezer compartment
regularly.
¡Open the freezer compartment
door only briefly and then close it
properly.

en Installation and connection
10
Installation and connection
4 Installation and con-
nection
Installation and connection
You can find out where and how best
to install your appliance here. You
will also learn how to connect your
appliance to the power supply.
4.1 Scope of delivery
After unpacking all parts, check for
any transport damage and for com-
pleteness of delivery.
If you have any complaints, contact
your dealer or our after-sales service
→Page27.
The delivery consists of the following:
¡Built-in appliance
¡Equipment and accessories1
¡Installation material
¡Installation instructions
¡User manual
¡Customer service directory
¡Warranty enclosure2
¡Energy label
¡Information on energy consump-
tion and noises
4.2 Criteria for the installation
location
WARNING
Risk of explosion!
If the appliance is in a space that is
too small, a leak in the refrigeration
circuit may result in a flammable mix-
ture of gas and air.
▶Only install the appliance in a
space with a volume of at least
1m3 per 8g refrigerant. The
volume of refrigerant is indicated
on the rating plate. →"Appliance",
Fig. 1/
5
, Page13
The weight of the appliance ex works
may be up to 55kg depending on
the model.
The subfloor must be sufficiently
stable to bear the weight of the appli-
ance.
Permitted room temperature
The permitted room temperature de-
pends on the appliance's climate
class.
The climate class can be found on
the rating plate. →"Appliance", Fig.
1/
5
, Page13
Climate
class
Permitted room tem-
perature
SN 10°C to 32°C
N 16°C to 32°C
ST 16°C to 38°C
T 16°C to 43°C
The appliance is fully functional within
the permitted room temperature.
If an appliance with climate class SN
is operated at colder room temperat-
ures, the appliance will not be dam-
aged up to a room temperature of
5°C.
Niche dimensions
Observe the niche dimensions if you
install your appliance in the niche. If
this is not the case, problems may
occur when installing the appliance.
Niche depth
Install the appliance in the recom-
mended niche depth of 560mm.
1Depending on the appliance specifications
2Not in all countries

Installation and connection en
11
If the niche depth is smaller, the en-
ergy consumption increases slightly.
The niche depth must be a minimum
550mm.
Niche width
An inside niche width of at least
560mm is required for the appli-
ance.
4.3 Installing the appliance
▶Install the appliance in accordance
with the enclosed installation in-
structions.
4.4 Preparing the appliance
for the first time
1. Remove the informative material.
2. Remove the protective foil and
transit bolts, e.g. remove the ad-
hesive strips and carton.
3. Clean the appliance for the first
time. →Page20
4.5 Connecting the appliance
to the electricity supply
1. Insert the mains plug of the appli-
ance's power cable in a socket
nearby.
The connection data of the appli-
ance can be found on the rating
plate. →"Appliance", Fig. 1/
5
,
Page13
2. Check the mains plug is inserted
properly.
aThe appliance is now ready for
use.

en Familiarising yourself with your appliance
12
Familiarising yourself with your appliance
5 Familiarising yourself with your appliance
Familiarising yourself with your appliance
5.1 Appliance
You can find an overview of the parts of your appliance here.
1
2
3
4
5
6
7
A
B
1
A
Freezer compartment
B
Refrigerator compartment
1
Control panel
2
Variable shelf →Page14
3
Extendable shelf →Page14

Familiarising yourself with your appliance en
13
4
Fruit and vegetable container
with humidity control
→Page14
5
Rating plate
6
Butter and cheese compart-
ment →Page15
7
Door storage compartment
for large bottles
Note:Deviations between your appli-
ance and the diagrams may differ
with regard to their features and size.
5.2 Control panel
You can use the control panel to configure all functions of your appliance and
to obtain information about the operating status.
1 2 4 53
2
1
switches the warning
signal off.
2
/ sets the temperature of the
refrigerator compartment.
3
Displays the set temperature
for the refrigerator compart-
ment in°C.
4
switches the Super func-
tion on or off.
5
switches the appliance on
or off.

en Features
14
Features
6 Features
Features
The features of your appliance de-
pend on the model.
6.1 Shelf
To vary the shelf as required, you
can remove the shelf and re-insert it
elsewhere.
→"Removing the shelf", Page21
6.2 Variable shelf
Use the variable shelf to the store tall
items, e.g. cans or bottles, on the
shelf below.
You can remove the front section of
the variable shelf and slide it below
the rear part of the shelf.
6.3 Extendable shelf
In order to achieve an improved over-
view and to remove food more
quickly, remove the shelf.
6.4 Fruit and vegetable con-
tainer with humidity con-
trol
Store fresh fruit and vegetables in the
fruit and vegetable container.
You can adjust the humidity in the
fruit and vegetable container using
the humidity controller and a special
seal. This allows fresh fruit and veget-
ables to be stored for up to twice as
long as with conventional storage.
The air humidity in the fruit and
vegetable container can be set
according to the type and amount of
food to be stored by moving the
humidity control:
¡Low humidity required when
primarily storing fruit or if the appli-
ance is very full.
¡High humidity required when
primarily storing vegetables as well
as when the appliance is filled with
mixed items or is not very full.
Condensation may form in the fruit
and vegetable container depending
on the food and quantity stored.
Remove the condensation with a dry
cloth and adjust the air humidity in
the vegetable container using the hu-
midity controller.
To ensure that the quality and aroma
are retained, store fruit and veget-
ables that are sensitive to cold out-
side of the appliance at temperatures
of approx. 8°C to 12°C, e.g. pine-
apple, bananas, citrus fruits, cucum-
bers, courgettes, peppers, tomatoes
and potatoes.

Features en
15

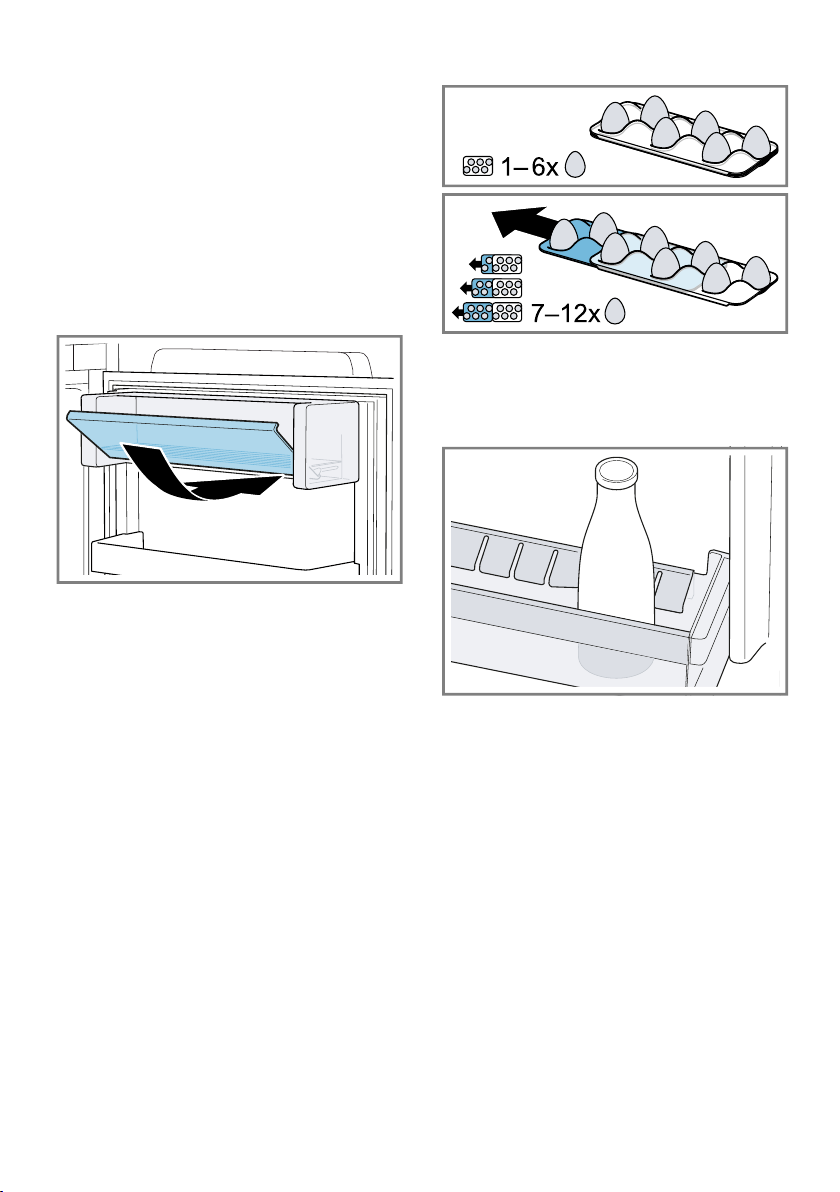

6.5 Butter and cheese com-
partment
Store butter and hard cheese in the
butter and cheese compartment.
To open the butter and cheese com-
partment, press down lightly on the
centre of the flap.
Note:The compartment opens down-
wards. The flap slides under the com-
partment.
6.6 Door rack
To adjust the door racks as required,
you can remove the door rack and
re-insert elsewhere.
→"Removing door rack", Page22
6.7 Accessories
Use original accessories. These have
been made especially for your appli-
ance.
The accessories for your appliance
depend on the model.
Egg tray
Store eggs safely on the egg tray.
To store a different number of eggs,
you can change the egg tray.
Bottle holder
The bottle holder prevents bottles
from falling over when the appliance
door is opened and closed.
Ice cube tray
Use the ice cube tray to make ice
cubes.
Making ice cubes
1. Fill the ice cube tray with water up
to ¾ and place in the freezer com-
partment.
If the ice cube tray is stuck to the
freezer compartment, loosen it with
a blunt implement only (e.g. spoon
handle).
2. To loosen the ice cubes, twist the
ice cube tray slightly or hold it
briefly under flowing water.

en Basic operation
16
Basic operation
7 Basic operation
Basic operation
7.1 Switching on the appli-
ance
1. Press .
aThe appliance begins to cool.
2. Set the required temperature.
→Page16
7.2 Operating tips
¡Once you have switched on the
appliance, the set temperature is
only reached after several hours.
Do not put any food in the appli-
ance until the temperature has
been reached.
¡When you close the door, a va-
cuum may be created. The door is
then difficult to open again. Wait a
moment until the vacuum is offset.
7.3 Switching off the appli-
ance
▶Press .
7.4 Setting the temperature
Setting the refrigerator
compartment temperature
▶Press / repeatedly until the tem-
perature display shows the re-
quired temperature.
The recommended temperature in
the refrigerator compartment is
4°C.
→""OK" sticker", Page17
Setting the freezer compartment
temperature
▶In order to set the freezer compart-
ment temperature, change the re-
frigerator compartment temperat-
ure →Page16.
The refrigerator compartment tem-
perature influences freezer com-
partment temperature. Refrigerator
compartment temperatures that
are set to warm generate warmer
freezer compartment temperatures.
Additional functions
8 Additional functions
Additional functions
8.1 Super function
With the Super function, the refriger-
ator compartment and the freezer
compartment cool more intensively.
Switch on the Super function 4 to
6hours before placing food weighing
2kg or more.
In order to utilise the freezing capa-
city, use the Super function.
→"Freezing capacity", Page18
Note:When the Super function is
switched on, increased noise may
occur.
Switching on Super function
▶Press .
a lights up.
Note:After approx. 36hours, the ap-
pliance switches to normal operation.
Switching off Super function
▶Press .
aThe previously set temperature is
displayed.

Alarm en
17
Alarm
9 Alarm
Alarm
9.1 Door alarm
If the appliance door is open for a
longer period, the door alarm
switches on.
Switching off the door alarm
▶Close the appliance door or press
.
aThe warning tone is switched off.
Refrigerator compartment
10 Refrigerator compart-
ment
Refrigerator compartment
You can keep meat, sausage, fish,
dairy products, eggs, prepared meals
and pastries in the refrigerator com-
partment.
The temperature can be set from
2°C to 8°C.
The recommended temperature in
the refrigerator compartment is 4°C.
→""OK" sticker", Page17
The refrigerator compartment can
also be used to store highly perish-
able foods in the short to medium
term. The lower the selected temper-
ature, the longer the food remains
fresh.
10.1 Tips for storing food in
the refrigerator compart-
ment
¡Only store food when fresh and
undamaged.
¡Observe the best-before date or
use-by date specified by the manu-
facturer.
¡Store food well wrapped or
covered.
¡Allow hot food and drinks to cool
down first before placing in the ap-
pliance.
10.2 Chill zones in the refri-
gerator compartment
The air circulation in the refrigerator
compartment creates different chill
zones.
Coldest zone
The coldest zone is between the ar-
row stamped on the side and the
shelf underneath.
Tip:Store highly perishable food
such as fish, sausages and meat in
the coldest zone.
Warmest zone
The warmest zone is at the very top
of the door.
Tip:Store food that does not spoil
easily in the warmest zone, e.g. hard
cheese and butter. Cheese can then
continue to release its aroma and the
butter will still be easy to spread.
10.3 "OK" sticker
The "OK" sticker lets you check
whether the refrigerator compartment
reaches the safe temperature ranges
of +4°C or colder recommended for
food.
The "OK" sticker is not included with
all models.
If the sticker does not indicate "OK",
gradually reduce the temperature.
→"Setting the refrigerator compart-
ment temperature", Page16
Once the appliance is switched on, it
may take up to 12hours until the set
temperature is reached.

en Freezer compartment
18
Correct setting
Freezer compartment
11 Freezer compartment
Freezer compartment
You can store frozen food, freeze
food and make ice cubes in the
freezer compartment.
The temperature in the freezer com-
partment depends on the temperat-
ure in the refrigerator compartment.
Long-term storage of food should be
at –18°C or lower.
The freezer compartment can be
used to store perishable food long-
term. The low temperatures slow
down or stop the spoilage.
11.1 Freezer compartment
door
To ensure that the frozen food that is
stored does not thaw and the freezer
compartment is not covered in too
much ice, always close the freezer
compartment door.
The position of the handle on the
freezer compartment door indicates
whether or not the freezer compart-
ment is correctly closed.
Note:When you close the freezer
compartment door, you can hear it
engaging.
11.2 Freezing capacity
The freezing capacity indicates the
quantity of food that can be frozen
right through to the centre within a
specific period of time.
Information on freezing capacity can
be found on the rating plate. →"Appli-
ance", Fig. 1/
5
, Page13
Prerequisites for freezing capacity
1. Approx. 6hours before placing
fresh food in the appliance, switch
on Super function.
→"Switching on Super function",
Page16
2. Freeze fresh food at the rear, as
close as possible to the side pan-
els.
11.3 Tips for storing food in
the freezer compartment
¡Spread out the food over a wide
area in the freezer compartment.
¡Do not bring food which is to be
frozen into contact with frozen
food.
11.4 Tips for freezing fresh
food
¡Freeze fresh and undamaged food
only.
¡Freeze food in portions.

Defrosting en
19
¡Cooked food is more suitable than
food that can be eaten raw.
¡Vegetables: Wash, chop up and
blanch before freezing.
¡Fruit: Wash, pit and perhaps peel,
possibly add sugar or ascorbic
acid solution.
¡Food that is suitable for freezing in-
cludes baked items, fish and sea-
food, meat, game, poultry, eggs
without shells, cheese, butter and
quark, ready meals and leftovers.
¡Food that is unsuitable for freezing
includes lettuce, radishes, eggs in
shells, grapes, raw apples and
pears, yoghurt, sour cream, crème
fraîche and mayonnaise.
Packing frozen food
If you select suitable packaging ma-
terial and the correct type of pack-
aging, you can determine the product
quality and prevent freezer burn.
1. Place the food in the packaging.
2. Squeeze out the air.
3. Pack food airtight to prevent it
from losing flavour and drying out.
4. Label the packaging with the con-
tents and the date of freezing.
11.5 Shelf life of frozen food
at −18°C
Food Storage time
Fish, sausages, pre-
pared meals and
baked goods
up to
6months
Poultry, meat up to
8months
Vegetables, fruit up to
12months
11.6 Defrosting methods for
frozen food
CAUTION
Risk of harm to health!
During the thawing process, bacteria
may multiply and spoil the frozen
food.
▶Do not refreeze food after it has
been defrosted or started to de-
frost.
▶Refreeze food only after cooking.
▶These items should no longer be
stored for the maximum storage
period.
¡Defrost animal-based food, such
as fish, meat, cheese, quark, in the
refrigerator compartment.
¡Defrost bread at room temperat-
ure.
¡Prepare food for immediate con-
sumption in the microwave, in the
oven or on the hob.
Defrosting
12 Defrosting
Defrosting
12.1 Defrosting in the refri-
gerator compartment
When the appliance is operating,
condensation droplets or frost form
on the rear panel of the refrigerator
compartment due to functional reas-
ons. The back panel in the refriger-
ator compartment defrosts automatic-
ally.
Condensation runs through the con-
densation channel into the drainage
hole to the evaporation pan and does
not have to be wiped away.
To ensure that the condensation can
drain and odours do not form, ob-
serve the following information:
→"Cleaning the condensation chan-
nel and drainage hole", Page21.

en Cleaning and servicing
20
12.2 Defrosting in the freezer
compartment
The freezer compartment does not
defrost automatically. A layer of hoar-
frost in the freezer compartment im-
pairs refrigeration of the frozen food
and increases power consumption.
Defrosting the freezer compartment
Regularly defrost the freezer com-
partment.
1. Switch on the Super function ap-
prox. fourhours before defrosting.
→"Switching on Super function",
Page16
This means that the food reaches
very low temperatures and it can
be stored for longer at room tem-
perature.
2. Remove the frozen food and tem-
porarily place it in a cool location.
Wrap the frozen food with ice
packs, if available, in coverings or
newspaper.
3. Switch off the appliance.
→Page16
4. Disconnect the appliance from the
power supply.
Unplug the appliance from the
mains or switch off the circuit
breaker in the fuse box.
5. To accelerate the defrosting pro-
cess, place a pan of hot water on
a trivet in the freezer compartment.
6. Wipe up the condensation water
with a soft cloth or sponge.
7. Rub the freezer compartment dry
with a soft, dry cloth.
8. Electrically connect the appliance.
9. Switch on the appliance.
→Page16
10.Put the frozen food in the appli-
ance. →Page18
Cleaning and servicing
13 Cleaning and servi-
cing
Cleaning and servicing
To keep your appliance working effi-
ciently for a long time, it is important
to clean and maintain it carefully.
Customer Service must clean inac-
cessible points. Cleaning by cus-
tomer service can give rise to costs.
13.1 Preparing the appliance
for cleaning
1. Switch off the appliance.
→Page16
2. Disconnect the appliance from the
power supply.
Unplug the appliance from the
mains or switch off the circuit
breaker in the fuse box.
3. Take out all of the food and store it
in a cool place.
Place ice packs (if available) onto
the food.
4. If there is a layer of hoarfrost, allow
this to defrost.
5. Remove all fittings from the appli-
ance. →Page21
6. Remove the following components
from the appliance:
– →"Removing the shelf above
the fruit and vegetable con-
tainer", Page22
13.2 Cleaning the appliance
WARNING
Risk of electric shock!
An ingress of moisture can cause an
electric shock.
▶Do not use steam- or high-pres-
sure cleaners to clean the appli-
ance.
