Neilsen CT2955 Assembly instructions

1

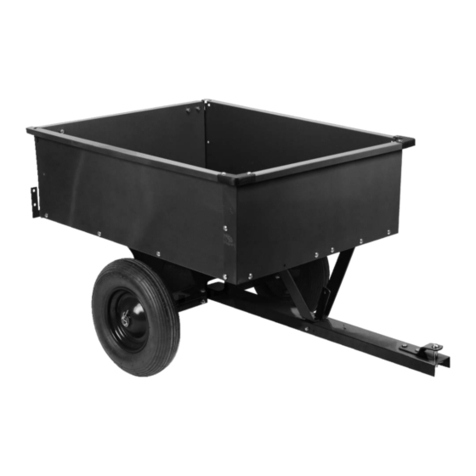

1500LB ATV TRAILER CT2955
Instruction & Assembly
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

2
EC DECLARATION OF CONFORMITY
We CANNON TOOLS LTD
20 Station road, Rowley Regis, West Midlands,B65 0JU.U.K.
Declare that the following machine complies with the appropriate basic
safety and health requirements of the EC Directive based on its design
and type, as brought into circulation by us.
In case of alteration of the machine, not agreed upon by us, this
declaration will lose its validity.
Product description: ATV TRAILER
Model: CT2955
Applicable EC Directives:
EC Machinery Directive 2006/42/EC
20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
Mr. Gurcharan Tony Singh Sanghera
Managing Director
CANNON TOOLS LTD
2016-01-18

3
Com
p
onent Parts

4
STEP 1:Attach the Connect Angle Steel
1. Attach the Connect Angle Steel to the Bottom Panel using Brazier Head Screw M8x16 and
Nylon Lock Nut M8.
STEP 2: Attach Tongue Support
1. Attach the Tongue Support to the Bottom Panel using Brazier Head Screw M8x16 and
Nylon Lock Nut M8.
Assembly Instructions

5
STEP 3:Attach the Wheel Axle Support
1. Attach Wheel Axle Supports to the bottom panel using Hex Bolt M10x20, Lock Washer
Ø10 and Hex Nut M10.
STEP 4: Attach Pin Bracket or Coupler
1. Attach the Pin Bracket to the Hitch Tongue using Round Head Screw M8x70, Flat Washer
Ø8 and Nylon Lock Nut M8, then Insert the Round Pin to the hole of Pin Bracket and Hitch
Tongue, secure with R Pin Ø3.
2. Attach the 50mm Coupler to the Hitch Tongue using Hex Bolt M12x70, Flat Washer Ø12
and Nylon Lock Nut M12.

6
STEP 5: Attach Wheel Axle
1. Center the Hitch Tongue Assembly in the Wheel Axle Support.
2. The rest of the hole on Wheel Axle Support using Hex Bolt M10x20, Flat Washer Ø10 and
Hex Nut M10. Loosely them
3. Insert the Wheel Axle through the hole and slide it through both the Wheel Axle Support ,
Long Bushing and Hitch Tongue Assembly.
STEP 6: Attach the Wheels
1. Put a Short Bushing on the Axle; slide the Wheel over the end, followed by the flat washer
Ø25 and secure with Cotter Pin 4x50.
2. Repeat the process for the other side of the axle.
3. Tighten all hardware in steps 5.

7
STEP 7:Attach Side Panel
1. Attach the Left and Right Side Panel Assemblies to the Bottom Panel using Brazier
Head Screw M6x12 and Nylon Lock Nut M6.
STEP 8:Attach the Front Panel
1. Attach the Front Panel Assembly to the Bottom Panel using Brazier Head Screw
M6x12 and Nylon Lock Nut M6.

8
STEP 9:Attach Rear Frame Weldment
1. Connect the Rear Frame Weldment to the Bottom Panel using Brazier Head Screw M8x16
and Nylon Lock Nut M8.
2. Connect the Rear Frame Weldment to the Side Panel using Brazier Head Screw M6x12
and Nylon Lock Nut M6..
STEP 10:Attach the Rear Panel
1. Slide the Rear Panel through the slots on the Rear Panel.

9
Parts Drawing & Parts List

10
PART
NO. DESCRIPTION QTY PART NO. DESCRIPTION QTY
1 Rear Panel 1 21 Round Pin 1
2 Rear Frame Weldment 1 22 R Pin Ø3 2
3 Side Panel 2 23 Brazier Head Screw M8x16 11
4 Front Panel 1 24 Nylon Lock Nut M8 13
5 Bottom Panel 1 25 Brazier Head Screw M6x12 23
6 Connect Angle Steel 2 26 Nylon Lock Nut M6 26
7 Wheel Axle Support 4 27 Hex Bolt M10x20 16
8 Tongue Support 1 28 Lock Washer Ø10 24
9 Short Bushing 2 29 Hex Nut M10 24
10 Long Bushing 2 30 Hex Bolt M6x65 3
11 Wheel Axle 1 31 Round Head Bolt M8x70 2
12 Hitch Tongue 1 32 Flat Washer Ø8 2
13 Foot Pedal Base 1 33 Hex Bolt M10x30 8
14 Foot Pedal 1 34 Flat Washer Ø10 8
15 Pin Bracket 1 35 Flat Washer Ø25 2
16 Wheel 2 36 Cotter Pin 4x25 2
17 Flange 2 37 50mm Coupler 1
18 Double Metal No Oil Bearing 2 38 Hex Bolt M12x70 2
19 Spring 1 39 Flat Washer Ø12 2
20 Spacer Bushing 2 40 Nylon Lock Nut M12 2
CANNON TOOLS LTD
20 Station road, Rowley Regis, West Midlands,B65 0JU.U.K.
Made in China
