Nelson NW511D User manual



PROFESSIONAL DISHWASHER




NW511

2

CONTENTS

1PRECAUTIONSFORSAFETYANDUSE.............................................................................4
2TECHNICALDATA...........................................................................................................6
3INSTALLATIONANDPOSITIONING.................................................................................8
4INSTRUCTIONSFORTECHNICALSTAFF..........................................................................9
4.1Plumbingconnection...............................................................................................9
4.2Electricalconnection.............................................................................................10
4.3Usingthewatersoftener(onmodelswiththisfeatureonly)...............................13
5SET‐UP.........................................................................................................................15
5.1DisplayContents...................................................................................................15
5.2Noteondisplayoftemperatures..........................................................................15
5.3Parameterprogrammingprocedure.....................................................................15
5.4Modifiableparameters.........................................................................................16
5.5Alarmtriggertimethresholds...............................................................................16
5.6Adjustingdetergentandrinseaiddispensing.......................................................17
5.7Adjustingtheregenerationfrequency(modelswithsofteneronly).....................18
5.8Memorisationprocedure......................................................................................18
5.9Tableofparameters..............................................................................................18
6MALFUNCTIONSSHOWNONTHEDISPLAY(FORTHETECHNICIAN)...........................19
7INSTRUCTIONSFORTHEUSER....................................................................................21
7.1Controlpanel........................................................................................................21
7.2Beforewashing.....................................................................................................22
7.3Firstuseeachday(tankandboilerempty)...........................................................23
7.4Choosingtheprogram..........................................................................................24
7.5Changingtheprogram(notpossibleoncetheprogramhasstarted)...................24
8MAINTENANCEANDCLEANING..................................................................................26

NW511

3
8.1Dailycleaningoffilters..........................................................................................27
8.2Routineinspectionofthesprayarms(twiceaweek)...........................................27
8.3Lengthyperiodsoutofuse...................................................................................27
9MALFUNCTIONSSHOWNONTHEDISPLAY(FORTHEUSER)......................................30










NELSONThanksyouforchoosingoneofitsproducts.

Readalltheinstructionsinthismanualcarefullytobecomefamiliarwiththerightconditionsforthe
properuseofyourwarewasher.


TECHNICALINSTRUCTIONS


Theseareintendedforthequalifiedstaffwhoaretoinstall,commissionandtest
theapplianceandcarryoutanyservicingandrepairs.

INSTRUCTIONSFORTHEUSER



Theseproviderecommendationsforuse,adescriptionofthecontrolsandthe
correctproceduresforcleaningandmaintainingthewarewasher.



NW511

4
1 PRECAUTIONS FOR SAFETY AND USE



THEWAREWASHERISINTENDEDFORPROFESSIONALUSEONLYANDMUSTONLYBEUSEDBY
AUTHORISEDSTAFF.ITISDESIGNEDTOWASHTABLEWARE(PLATES,CUPS,BOWLS,OVENDISHES
GLASSESANDCUTLERY)ANDSIMILARITEMSINTHERESTAURANTANDINSTITUTIONALCATERING
SECTOR,ANDCOMPLIESWITHTHEINTERNATIONALSTANDARDSONELECTRICALANDMECHANICAL
SAFETY(CEI‐EN‐IEC60335‐2‐58/61770)ANDELECTROMAGNETICCOMPATIBILITY(CEI‐IEC‐EN55014‐
1/‐2,61000‐3;4,50366).


THEMANUFACTURERDECLINESALLRESPONSIBILITYFORINJURYORDAMAGECAUSEDBYFAILURE
TOCOMPLYWITHTHEINSTRUCTIONSINTHEMANUAL,BYINCORRECTUSE,BYTAMPERINGWITH
EVENJUSTONEPARTOFTHEAPPLIANCEANDBYTHEUSEOFNON‐ORIGINALSPAREPARTS.


THISAPPLIANCEISMARKEDASREQUIREDBYEUDIRECTIVE2002/96/EC,WASTEELECTRICALAND
ELECTRONICEQUIPMENT(WEE).
BYMAKINGSURETHATTHISPRODUCTISDISPOSEDOFCORRECTLYTHEUSERHELPSTOPREVENT
POTENTIALDETRIMENTALEFFECTSONHEALTHANDTHEENVIRONMENT.
WHENDECOMMISSIONINGTHEAPPLIANCECOMPLYWITHTHELOCALWASTEDISPOSAL
REGULATIONS.
FORFURTHERINFORMATIONONTHETREATMENT,RECOVERYANDRECYCLINGOFTHISPRODUCT,
CONTACTTHECOMPETENTLOCALOFFICE,THEDOMESTICWASTECOLLECTIONSERVICE,ORTHE
SHOPWHERETHEPRODUCTWASPURCHASED.





THISMANUALISANINTEGRALPARTOFTHEWAREWASHERANDMUSTALWAYSBE
KEPTINTACTTOGETHERWITHTHEAPPLIANCE.

POSITIONING,CONNECTION,COMMISSIONING,TROUBLESHOOTINGANDREPLACING
THEPOWERCABLEMUSTALWAYSBECARRIEDOUTBYQUALIFIEDSTAFF.

THEAPPLIANCEMUSTBEEARTHEDASREQUIREDBYELECTRICALEQUIPMENTSAFETY
STANDARDS.

NW511

5



THESYMBOLOFTHERUBBISHBINWITHABARACROSSITONTHEPRODUCTORINTHE
TECHNICALDOCUMENTATIONINDICATESTHATTHISPRODUCTMUSTNOTBETREATED
ASORDINARYDOMESTICWASTEBUTMUSTBECONSIGNEDTOTHESPECIAL
COLLECTIONPOINTFORTHERECYCLINGOFELECTRICALANDELECTRONICEQUIPMENT.


NEVERPLACESOLVENTSSUCHASALCOHOLORTURPENTINE,WHICHMIGHTCAUSEAN
EXPLOSION,INSIDETHEAPPLIANCE.NEVERLOADDISHESDIRTYWITHASH,WAXOR
PAINTS.


NEVERUSETHEWAREWASHERORANYPARTOFITASALADDER,SUPPORTORSTAND
FORPEOPLE,ANIMALSORANYOBJECT.
LEANINGORSITTINGONTHEOPENDOOROFTHEWAREWASHERMIGHTCAUSEITTO
TIPOVER,PUTTINGPEOPLEINDANGER.
NEVERLEAVETHEWAREWASHERDOOROPENSINCEPEOPLEMIGHTTRIPOVERIT.


DONOTDRINKANYWATERLEFTINTHEDISHESORWAREWASHERATTHEENDOFTHE
WASHINGPROGRAM.


THEAPPLIANCEISNOTSUITABLEFORUSEBYJUVENILESORPERSONSWITHREDUCED
PHYSICAL,SENSORIALORMENTALCAPACITIES,ORTHOSEWITHOUTTHENECESSARY
KNOWLEDGEANDEXPERIENCE.SUCHPERSONSMAYONLYUSETHEAPPLIANCEUNDER
THESUPERVISIONOFAPERSONRESPONSIBLEFORTHEIRSAFETY.


NW511

6
2 TECHNICAL DATA
  
SupplyvoltageV400V3N~
SupplyvoltageV
FrequencyHz50
Max.powerabsorptionat400V3N~kW5,2
Max.powerabsorptionat230V1N~kW3.7
Boilerheatingelementpowerat400V3N~kW4.5
Boilerheatingelementpowerat230V1N~kW1,5/3
TankheatingelementpowerkW0,8
WaterintakepressurekPa(bar)100‐600(1÷6)
Waterintaketemperature°C15°C–60°C
Intakewaterhardness(modelswithsoftener)°f15°f‐60°f
Rinsecyclewaterconsumptionl3.2
Boilercapacityl6
Tankcapacityl11
Standardcycledurationwithintakewaterat50°CS90/120/180
NoiseleveldB(A)<70
DegreeofprotectionIPX4
NetweightKg63/60
Powersupplycabletype◄HAR►H07RN‐F
FuseA4



400V3N~230V1N~
CSCC=PowerSupplyCableS=masterswitch
‐‐‐‐ ‐‐‐‐ 2,2kW ‐‐‐‐
‐‐‐‐ ‐‐‐‐ 3.7kW ‐‐‐‐
5x2.516°3P+N5,2kW5x2.5






NW511

7

CAVITYDIMENSIONSFORBUILT‐UNDERINSTALLATION

APPLIANCEDIMENSIONSANDCONNECTIONPOSITIONS
(**N.B.–VALUE“1000”WITHASTERISK:max600ifsiphonwithvalveisused)



NW511

8
KEYTOLETTERSUSEDINDIAGRAM
RLOWERBACKPANEL
CFILLERHOSE
Q

EARTHTERMINAL
EELECTRICITYSUPPLYCABLE
PPERISTALTICHOSES
SDRAINHOSE
TEXTERNALDISPENSERPOWERSUPPLY
CABLEENTRYPOINT

3 INSTALLATION AND POSITIONING
INSTALLATIONandPOSITIONING

BringtheWAREWASHERtotheinstallationsite,removethepackagingandchecktheapplianceand
componentsfordamage;anydamagefoundmustbereportedtothetransporterinwriting.
Thepackagingcomponents(plasticbags,expandedpolystyrene,nails,etc.)mustnotbeleftwithinreach
ofchildrenandpetssincetheyarepotentiallydangerous..Allpackagingmaterialsusedare
environment‐friendly.Theycanbekeptwithoutconstitutinganyhazard,ormaybedisposedofata
specialistwastedisposalcentre.Theplasticcomponentssuitableforrecyclingaremarkedasfollows:PE
polyethylene:externalpackagingfilm,bagcontainingtheinstructions,protectivebags.PP
polypropylene:straps.PSexpandedpolystyrene:cornerguards,topofpackaging.Woodenand
cardboardcomponentscanbedisposedofinaccordancewiththerelevantregulations.Whenthe
productisdecommissioneditmustnotbedumpedintheenvironment;itmustbedisposedofin
accordancewiththerelevantregulations.Allmetalpartsareinstainlesssteelandcanberemoved.The
plasticpartsaremarkedwiththesymbolidentifyingthematerialused.








NW511

9
POSITIONING:

4 INSTRUCTIONS FOR TECHNICAL STAFF
4.1 Plumbingconnection

Watersupplyanddrainconnection
Thewaterpipelinesandelectricitysupplycableleadoutofthebottomright‐
handcorneroftheappliance.Connectthewaterintakehosetoaconnector
with¾”gasthreadedfitting,fittingthefilterAprovided(inmodelswith
aquastop,thefilterandring‐nutformasingleunit).
Theconnectiontothewatermainsmustonlybemadewithnewhoses;the
useofoldorwornhosesisnotpermitted.
Thedynamicwatersupplypressuremustbebetween1and6bar;ifitishigherapressurereducer
mustbeinstalled.
Itisessentialtofitamainstoptaponthewaterintakedeliverpipeline;thetapmustbeaccessible
afterinstallationoftheappliance,sodonotinstallitbehindthewarewasher.Thestatedcycle
durationappliestoappliancessuppliedwithhotwater>50°C<60°CIfthewarewasherissupplied
withcoldwater,thecycledurationmightincreasedependingontheintakewatertemperature.


Caution:theindoorsystemandpremisesinwhichequipmentforinstitutionsisinstalled
mustcomplywiththerelevantregulations.
Themanufacturerdeclinesallliabilityfordirectorindirectinjuryordamagederivingfromfailure
tocomplywiththeseregulations.
Beforeinstallation,checkthattherearenoobjectsormaterialsinthevicinitywhichmaybe
damagedbysteamorsplashesofwashingsolution,orthatanysuchitemsaresuitablyprotected.
Placethewarewasherinthechosenpointandremovetheprotectivefilm.
Levelthewarewasher(withtheaidofaspiritlevel)onitsadjustablefeettoensurethatitis
stable;allothermountingsolutionsmustbeapprovedbythemanufacturer.


NW511

10
Thewarewasherisfittedwithadrainpumpandcanoperatewithdrainconnectionsontheflooror
wall.
Refertotheconnectiondiagramforthemaximumpermittedheightofwalldrains–(seeTECHNICAL
DATA)


Caution:makesurethattheintakeanddrainhosesarenotbent,constrictedorcrushed
afterinstallation.

Wheninstallingthedrainhosetoasiphonwithvalve,themaximumheightofthedrainoutletis
reducedto600mm.
4.2 Electricalconnection


Thewarewasherandanyadditionalequipmentmustbeconnectedtotheelectrical
systembyauthorised,skilledstaff,inaccordancewiththerelevantregulations;also
complywiththetechnicalinstructionsfortheconnection.
Thetotalratedpowerisstatedontheappliance’stechnicaldataplate.
Theelectricalprotectiondevicesfittedforthewarewashermustservethisappliance
only.
Theusermusthaveamasterswitchandadifferentialsafetybreaker,withrating
suitablefortheappliance’scharacteristics,installedontheelectricitysupplylinein
accordancewiththerelevantregulations.
Theseswitchesmustbeinstalledclosetothewarewasher,beeasilyaccessibleafter
installation,andprovidecompletedisconnectionfromtheelectricalmainsin
overvoltageclassIIIconditions.

Warning!!!
Thewarewasherisalwayspoweredupunlessthemasterswitchisturnedoff.

Connecttheappliancetotheuser’searthsystem.Theterminalfortheconnectionis
inthebottomright‐handcorneroftheappliance.
Theearthwire(PE)isyellow‐greenincolour,theneutralwire(N)isblueandthelive
wires(L1,L2,L3)areblack,greyandbrown.
Intheeventofsingle‐phaseconnection(230V‐1N~),theconnectiontotheelectrical
mainsmustbemadeusingacablewithplugcompliantwiththerelevantregulations.

THEPOWERSUPPLYCABLEMUSTBEREPLACEDBYTHEMANUFACTURERORAN
AUTHORISEDSERVICECENTRETOPREVENTALLRISKS.

NW511

11


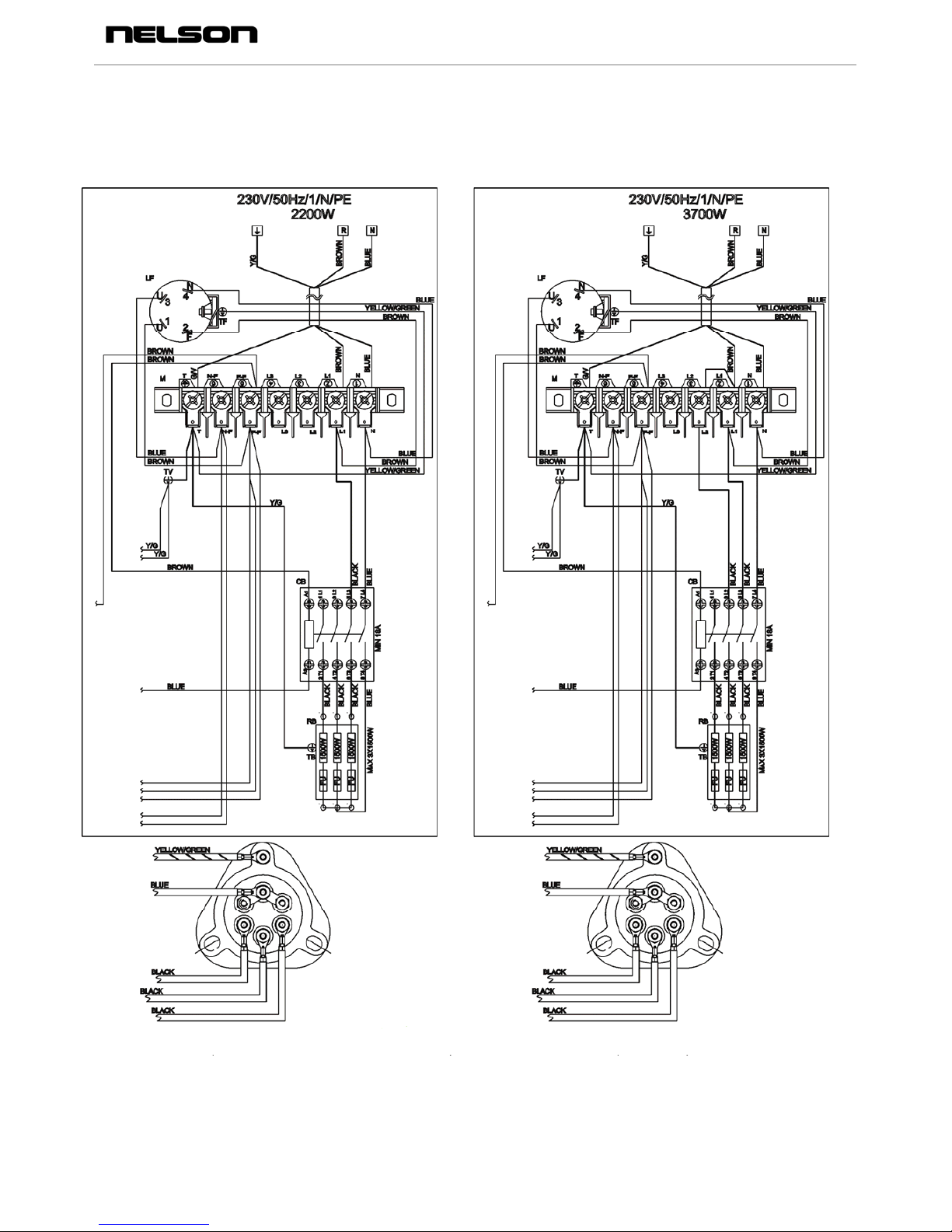

Keytosingle‐phase/three‐phaseelectricalsystemdiagram


NTCBBoilertemperatureprobeEVAAquastopsolenoidvalve
NTCVTanktemperatureprobeEVRRegenerationsolenoidvalve
SDETDetergentsensorEVSBrinedischargesolenoidvalve
SBRILRinseaidsensorPBRinseaidperistalticpump
SFILFiltersensorPDDetergentperistalticpump
FLMTFlowmeterEVFFillersolenoidvalve
SS SaltsensorPSDrainpump
RD DoorsensorPLBBoilerpressureswitch
PR RinsingpumpPLVTanklevelpressureswitch
PL WashingpumpPSVTanksafetypressureswitch
PLB BoilerlevelpressureswitchAQSAquastopmicroswitch
THBBoilersafetythermostatSBMotherboard
M TerminalboardSIInterfaceboard
LF RFIfilterTMTerminalboardground
FUSEMainsfuseTVTankground
CB BoilercontactorTFRFIfilterground
RB BoilerheatingelementTPLWashingpumpground
T‐FUOvertemperaturefuseTPRRinsingpumpground
THRVTanksafetythermostatTRVTankheatingelementground
RV TankheatingelementTBBoilerheatingelementground
Figure–Appliancethree‐phaseelectricalsystemdiagram




NW511

12
Figure1–Appliancesingle‐phaseelectricalsystemdiagram




NW511

13

Firststart‐up
Theelectricalprotectionsystemmustundergoafunctionaltestbeforetheapplianceisputinto
operation.
Theappliancemustbeinstalledand/orinspectedbyqualifiedstaff,whowillstartitupforthefirst
timeandprovidetherelevantoperatinginstructions.


Preparingforuse(important)
Therinseaiddispenserisfittedonallmodels,thedetergentdispenseronlyonsome.
Ifbothdispensersarepresentputtheexternaldetergentandrinseaidcontainersinplaceand
inserttherespectiveintakehosesontherearoftheapplianceintothem.
Redhose:detergent
bluehose:rinseaid



Beforeinsertingthehosesintothecontainers,fittheweights(needed
toensurethattheyalwaysdrawinliquidfromthebottomsofthe
containers)andthefiltersontotheirendsasshown.
Ifthedetergentdispenserisnotfactory‐fitted,itcanberetrofitted
afterorderingtherelativekit.



Asanalternativeanexternaldispensercanbefitted,makingtheelectricalconnectionbymeansof
anH05RN‐F2x0.5mmelectricalcable,whichcanbelaidalongtherouteshownintheTECHNICAL
DATAdiagramandconnectedasshowninthewiringdiagramsuppliedwiththewarewasher.
Thedispensermustoperateon230V/50Hzwithmaximumpowerabsorptionof15W.
Connecttothedetergentdispenseroutsidethewarewasherusingtheredhosementionedabove.

4.3 Usingthewatersoftener(onmodelswiththisfeatureonly)


Thequantityoflimeinthewater(whichindicatesitshardness)causeswhite
marksondrydishesanddishesalsotendtolosetheirshineovertime.
Thewarewasherisequippedwithanautomaticwatersoftenerwhichremoves
thesubstancesthatcausehardnessfromthewaterwiththeaidofregenerating
salt.







NW511

14


Thefirsttimethewarewasherisused,alitreofwatermustbepouredintothe
tankwiththesalt.
Wheneverthetankisfilled,alwaystakecaretoensurethatthecapisfirmly
closed.
Themixtureofwateranddetergentmustnotgetintothesalttank,asthiswould
impairoperationoftheregenerationsystem.
Inthiscasewarrantycoverwillbeforfeited.





IMPORTANT: 

Wheneverthetypeofdetergentorrinseaidischanged,itisABSOLUTELYESSENTIALtoflushout
theperistalticpumpsbyplacingtheexternalintakepipesinwaterforafewcycles.

Alwaysuseonlyproductsspecificallyrecommendedforuseinawarewasher.

Failuretocomplywiththisrecommendationleadstoforfeitureofthewarrantyentitlementon
theappliance’swatersystem.

TheinternalpipesofthedetergentandrinseaidpumpsshouldbereplacedbytheAfter‐Sales
Serviceevery12monthsor15,000washcyclesandoperationofthediaphragmrinseaidpump
shouldbechecked.


NW511

15
5 SET-UP



Aseriesofoperationscanbecarriedoutwhenthewarewasherisfirstinstalledtocustomiseittothe
user'srequirements.Tomodifytheparameters,proceedasfollows.
5.1 DisplayContents

Thetwogreendigitsprovidethefollowinginformation:
Applianceoffbutpoweredup:alldecimalpointsonbothdigits
Applianceon:Boilertemperature
Washingphase:Tanktemperature
Pausephase:Boilertemperature
Rinsephase:Boilertemperature
Programmingphase:Seeparameterprogrammingsection
Errormessage:Seeerrormessagessection

5.2 Noteondisplayoftemperatures
BoththeBoilerandtheTanktemperaturesprovideinstantaneousreadingsofthecurrentvaluepicked
upbytheprobe,butduetothethermalinertiaoftheprobeoritsseat,waitabout1minuteafterthe
heatingelementpowerabsorptionreadingtoobtaintherealtemperature.
5.3 Parameterprogrammingprocedure
Toaccesstheprogrammingmenu,proceedasfollows:
1) switchtheapplianceoffwiththe(OnOff)key
2) Within6seconds,presskeyP1(SHORTwash)7times.Waitforthe6secondstopass;attheend
P0appearsonthedisplay
3) UsekeyP1toselecttheparametertobemodified
4) PressthePUMP‐OUTKEYtodisplaytheparameterformodification
5) ModifytheparameterbypressingkeyP1
6) ConfirmthechangebypressingthePUMP‐OUTkey
7) Selecttheotherparametersformodificationinthesamewayandproceedasdescribedabove
8) Aftersettingalltheapplianceparameters,presstheOnOffkeytoquit.



Set‐up
Duringfirststart‐up,thefunctions/parameterslistedbelowmustbesetoradjusted:

NW511

16
5.4 Modifiableparameters
Thistableliststhemodelchoiceorcycleandtemperatureoptionparameters.
F/MIDDescriptionDefaultNotes
MP0ApplianceType05Constructionversion
Donotmodify
FP1ApplianceModel05Donotmodify
MP2Boilertemperature80CStep1degree
WARNING:Theactualboiler
temperaturedependson
whethertheconnectionis
single‐phaseorthree‐phase.
Withthree‐phaseconnection,
donotsetmorethan85°
MP3Tanktemperature58CStep1degree
MP4Thermostopoption010=off1=on
MP5SoftStartoption010=off1=on
MP6Boilertemperature
offset
00Real=measured+Offset
MP7Tanktemperature
offset
04Real=measured+Offset
MP8Realtemperature
display
010=filtered,1=real
FP9Tankprobetype01Donotmodify

NoteforP6andP7:negativenumbersareindicatedbyilluminationofbothdecimalpoints(e.g.:‐12
“1.2.”)

5.5 Alarmtriggertimethresholds
Thistablelistsallthesafetydevicetriggertimethresholds.
F/
MIDDescriptionDefaultMin .
Max Notes
FA0    
FA1Boilermax.heatingtime20min560Step=1min
FA2Tankmax.heatingtime60min560NotactivewithPLON
FA3Maximumwaterintaketime5min120Step=1min
FA4Maximumemptyingwaittime1min12Step=1min


NW511

17
5.6 Adjustingdetergentandrinseaiddispensing



Caution:ensurethattheapplianceisnotpoweredup‐ELECTRICSHOCKHAZARD

RV
RV
RD





RD:Detergentdispensingregulatorscrew.
(onsomemodelsonly)
Adjustmentsaremadeusingtheadjuster
screwASSHOWN.Thequantitydispensedis
reducedbyturninganticlockwiseand
increasedbyturningclockwise.
RB:Rinseaiddispensingregulatorscrew
AdjustmentsaremadeusingtheadjusterscrewAS
SHOWN.Thequantitydispensedisreducedby
turningclockwiseandincreasedbyturning
anticlockwise.

Itisrecommendedthatperiodicmonitoringofdetergentandrinseaiddispensing;every15.000cycles
suggestedreplacetheinnerperistalticpipe

RDDetergentdispensingregulatorscrew(onsomemodelsonly)
RBRinseaiddispensingregulatorscrew
RVInspectionpanelremovalscrew

NW511

18
5.7 Adjustingtheregenerationfrequency(modelswithsofteneronly)


5.8 Memorisationprocedure

Toaccesstheprogrammingmenu,proceedasfollows:
1) switchtheapplianceoffbypressingtheOnOffkey
2) Holddowntheandkeyssimultaneouslyfor6seconds;H0appearsonthedisplay
3) Usethekeytomodifytheparameter;H0,H1,H2,H3,H4,H5andH0willappearonthedisplay
incyclicsequence
4) PresstheOnOffkeytoconfirmthechangeandquitprogrammingmode.




Withvaluesover60°dFanexternalwatertreatmentdevicemustbeusedandthe
regenerationfrequencymustbesetatH00

5.9 Tableofparameters
Thistableshowstherelationshipbetweentheintakewaterhardnessandthequantitytheresinsare
abletotreat;regenerationisrequiredoncetheappliancehasperformedthesetnumberofcycles.
Regenerationcycleduration:12minutes.

Hardness(°dHGerman
degrees)
Hardness(°dFFrench
degrees)SettinglevelResindurationin washcycles
RegenerationoffRegenerationoffH00Functionoff
8.515H0194washcycles
1120H0283washcycles
1730H0353washcycles
22,540H04default33washcycles
2850H0527washcycles
33.560H0620washcycles





NW511

19
6 MALFUNCTIONS SHOWN ON THE DISPLAY (FOR
THE TECHNICIAN)

Thewarewasherisabletoidentifyanumberofmalfunctionsandshowthemonthedisplay.
Iftheproblempersistsafterthewarewasherhasbeenswitchedoffandbackon,proceedasdescribed
below:


E.1Boilertemperatureprobemalfunction

Boilertemperatureprobedisconnectedornot
working

E.2Tanktemperatureprobemalfunction

Tanktemperatureprobedisconnectedornot
working

E.3WaterintakemalfunctionWaterintakenotcompletedinthemaximumtime
allowed
Checkdynamicpressureinintakesystem,clean
waterintakefilter.
Iftheproblempersists:
‐tankpressureswitchhasfailed(continuousempty
reading)
‐leakfrompipeconnectedtoairtrap
‐drainsiphonblocked‐thetankisemptydueto
siphoningwhenthedrainpumpisnotrunning
alsocontrols:
iftankandboilerpressureswitchproperly
iftherubberpipesareconnectedcorrectly
iftheairtrapisclogged/dirty
iftherinsepumprunningcorrectly


E.4Boileroverheating.Reduceboilertemperature<80°.
Circuitboardrelayfailed,checkcircuitboardand
inspectboilerheatingelementfordamage

E.5TankoverheatingReduceboilertemperature<58°.
Circuitboardrelayfailed,checkcircuitboardand
inspecttankheatingelementfordamage




NW511

20
E.6
Waternotpumpedoutoftank


Inspectthefiltersfordirtandcheckthatthedrain
hoseisnotblocked,bentorcrushed.
Checkthatthedrainpumpisnotblockedbydirtby
removingtheinsertonthesump(frominsidethe
tank)
Iftheproblempersists:
‐withtankempty:tankpressureswitchhasfailed
(continuousfullreading)
‐withtankfull:drainpumpfailure
Ifthesystemfailstopumpoutbecausethedrain
pumpisfouled(asaresultofincorrectfilter
positioning),proceedasfollows:
Baleoutthewarewasherwithabasinand
disconnectitfromtheelectricalmains.
UnscrewthescrewA,releasethetangBandliftit.
Checkthattheimpellerofthedrainpump
underneaththecoverturnsfreely,andisfreefrom
dirt,limescaleresidues,orpiecesofglass.Neveruse
tools,screwdrivers,scissors,etc.

E.7
Boilerheatingmalfunction(doesnot
heatup)
‐circuitboardrelayfailure
‐boilerheatingelementfaultyor"furred"with
limescale
‐boilertemperatureprobefaultyorincorrectly
positioned

E.8
Tankheatingmalfunction(doesnot
heatup)
‐circuitboardrelayfailure
‐tankheatingelementfaultyor"furred"with
limescale
‐tanktemperatureprobefaultyorincorrectly
positioned

E.9MicroprocessorfailureReplacecircuitboard













