Nemesis Mini Typhon Tower User manual

Mini Typhon™ Tower
USER MANUAL
English

Nemesis™ UV-C Typhon™ User Manual_V1.1
2
Table of Contents
Safety
3
Unpacking
9
Customer Support
9
Limited Warranty
10
Benefits of UV-C Technology
11
UV-C Disclaimer
11
General Guidelines
12
Fixture Overview
13
How do I use my Typhon™?
14
Disinfectant Times
15
Cleaning
16
Replacing Radiators
16

Nemesis™ UV-C Typhon™ User Manual_V1.1
3
Safety
HIGH INTENSITY ULTRAVIOLET LIGHT RISK OF EXPOSURE TO ULTRAVIOLET
RADIATION AVOID DIRECT EYE AND SKIN EXPOSURE
WARNING: This product can expose you to chemicals including mercury,
which is known to the State of California to cause cancer. For more
information, go to www.P65Warnings.ca.gov.
All Nemesis™ units are built and registered under our EPA™
registered facility #99690 as a Risk Group 3 UV-C product under 40
CFR 156
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be
followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
a) This equipment is designed for use with germicidal UV radiation sources and must be
installed in compliance with competent technical directions to prevent risk of personal injury
from UV radiation.
b) UV and optical radiation can be reflected by surrounding surfaces such as ceilings and walls.
Since the reflective properties of surfaces can vary widely, it should be considered as part of site
planning. Follow the manufacturer’s recommendations for selecting appropriate ceiling and wall
finishes.
c) IT IS THE RESPONSIBILITY OF THE INSTALLER TO OPERATOR THAT PERSONS WILL NOT BE
EXPOSED TO EXCESSIVE UV OR OPTICAL RADIATION DURING EQUIPMENT OPERATION.
THIS WILL REQUIRE THE OPERATOR TO CONDUCT AN ASSESSMENT OF THE AREA PRIOR TO
USE

Nemesis™ UV-C Typhon™ User Manual_V1.1
4
d) Maintenance and servicing of this UV generating equipment shall be performed by
authorized personnel. Service personnel must wear appropriate Personal Protective Equipment
(PPE) if the equipment will be in operation during the maintenance or servicing work.
Contact Nemesis™ UV-C for PPE recommendations and guidance.
g) When replacing lamps, replace them only with the lamps for which the equipment is
marked and intended.
h) The use of accessory equipment not recommended by the manufacturer may cause an
unsafe condition.
i) Do not use this equipment for other than intended use.
SAVE THESE INSTRUCTIONS
Never allow humans, animals or plants to have direct exposure of UV-C light without proper
PPE. Since UV-C is not visible light, the fixtures have safety protocols built-in to avoid exposure.
Many studies have been done on the effects of UV-C and the results show minimal effect in the
short term. Studies have shown short term, temporary damage to the eye can be an effect of
exposure to UV-C light. Long term exposure may produce fading or degradation of some
materials. Amounts of degradation are completely dependent on types and quality of materials
and if they have UV-C protection built-in. The FDA approved waivers on UV-A, UV-B and UV-C,
more information is available from the FDA at: https://www.fda.gov/media/136533/download
For the proper, safe, and effective use of your device it is ESSENTIAL that the user follows
all guidelines and instructions in this manual. Proper installation and use is essential for the
effectiveness and safety of this product.
Disconnect the device from power source before cleaning the device or replacing radiators
(see page 16 for detailed instructions)
There are no serviceable parts inside the unit. DO NOT attempt to do any repairs beyond
basic cleaning and lamp replacement. Any attempts to repair the unit will void the
warranty. Nemesis™ is not responsible for any damages or harm caused by your repairs. Please
contact Nemesis™ at: (469)-466-2UVC for repair assistance.
WARNING: To guard against injury, basic safety precautions should be observed, including the
following:

Nemesis™ UV-C Typhon™ User Manual_V1.1
5
1. Read and save all notices, warnings and safety instructions received with equipment.
2. Avoid exposure to direct or reflected germicidal ultraviolet rays. Germicidal ultraviolet
rays are harmful to the eyes and skin.
3. Always disconnect power to the equipment and unplug before performing any service
or maintenance.
4. Do not operate without proper electrical ground.
5. Equipment is intended for indoor use only.
6. Do not alter the construction or design. Do not remove safety labels or devices
7. Do not use equipment for other than its intended purpose, as described in the
equipment manual.
8. Keep inlet and outlet vents, clean and clear of objects.
9. Over time germicidal ultraviolet rays may break down plastic, rubber, or other non-
metallic materials, can fade colors, and can be damaging to plant life. Shield all plastic,
rubber, or other non-metallic parts, plant life, etc. which may be exposed to direct or
reflected germicidal ultraviolet rays.
10. Do not operate equipment if the power cord and/or plug are damaged, or if any other
damage to the unit is visible or suspected.
11. Utility power must match power requirements listed on the unit label.
12. Equipment should be protected from the elements and from temperatures below
freezing.
13. Do not exceed equipment’s maximum rated flow capacity and/or operating pressure.
Safety Warnings
All occupants and personnel should be alerted to the potential hazards indicated by the product
safety labeling on this unit.
The following conventions are used to indicate and classify precautions and on product safety

Nemesis™ UV-C Typhon™ User Manual_V1.1
6
labeling. Failure to observe precautions could result in injury to people or damage to property.
This is the safety alert symbol. It is used to alert you to potential personal
injury hazards. Obey all safety messages that follow this symbol to avoid
possible injury or death.
Danger indicates an imminently hazardous situation, which, if not avoided, will
result in death or serious injury.
Warning indicates a potentially hazardous situation, which, if not avoided, could
result in death or serious injury.
Caution indicates a potentially hazardous situation, which, if not avoided, may
result in minor or moderate injury.
Caution used without the safety alert symbol indicates a potentially hazardous
situation, which, if not avoided, may result in property damage.
This symbol / pictorial is used to identify an ELECTRICAL SHOCK or ELECTROCUTION
hazard.
This symbol / pictorial is used to identify an ULTRAVIOLET LIGHT hazard.
This symbol / pictorial is used to identify the need to wear approved ultraviolet
resistant face shield.

Nemesis™ UV-C Typhon™ User Manual_V1.1
7
The symbol / pictorial is used to identify the need to wear approved
ultraviolet resistant eyewear.
This symbol / pictorial is used to identify the need to wear protective
gloves.
*This symbol / pictorial is used to identify components which must not be
disposed of in the trash.
Product safety labels should be periodically inspected and cleaned, as necessary, to maintain
good legibility. Always replace illegible safety labels. Contact the factory to obtain
replacement safety labels.
*Hg – RADIATORS CONTAIN MERCURY, manage in accord with disposal laws; see:
LampRecycle.org OR contact Nemesis™: Email: [e-mail] Phone (469)-466-
2UVC (M-F, 9AM-5PM CST) and ask about our lamp recycling program.

Nemesis™ UV-C Typhon™ User Manual_V1.1
8
Unpacking
Your Typhon™™ fixture has been sent out in perfect working order. If the packaging appears
damaged, carefully inspect your unit. If you find any damage, contact customer support before
attempting to operate your unit.
Contents:
1 Nemesis™ Typhon™ Fixture w/ Nemesis™ Light Guard and 3 UV-C Radiators
1 Typhon™ Yoke
2 Yoke Knobs w/ rubber washers
1 Power Cable
1 Manual
ATTENTION: Operator MUST READ ENTIRE MANUAL before attempting to operate the fixture.
Failure to follow instructions/guidelines laid out in this manual will void the warranty and could
lead to physical harm.
Customer Support
The customer support line is available for any inquiries on your product. Visit
https://www.nemesisuvc.com/ or call (469)-466-2UVC, 8am-5pm CST M-F
For 24/7 support, contact: [email protected]om
For servicing or repairs, contact: (469)-466-2UVC, or go to: https://www.nemesisuvc.com/

Nemesis™ UV-C Typhon™ User Manual_V1.1
9
Limited Warranty
Terms and Conditions: This limited warranty is subject to the terms listed below.
For warranty service - Call: (469)-466-2UVC, 8am-5pm CST M-F
1. This warranty is void if:
a. The product serial number and/or labels are altered or removed
b. The product is modified in any manner that affects the reliability of the product
c. The product has been repaired or serviced by anyone other than a trained
Nemesis™ technician
d. The product is damaged because it is not properly maintained as set forth in the
product instructions, guidelines and/or user manual
2. This is not a service contract, and this warranty does not include routine cleaning or
periodic check-up.
3. Nemesis™ reserves the right to make changes in design and/or performance
improvements upon its products without any obligation to include these changes in any
products manufactured prior.
4. This is the only written warranty applicable to this product and supersedes all prior
warranties and written descriptions of warranty terms and conditions published
5. Warranty is limited to one years from date of purchase.
Activate Your Warranty:
Send the following information to: [email protected]
Name/Company
Product Model/Name
Date of Purchase
Where Purchased
Physical Address
Email Address
Activating your warranty signifies that you have read and understand the limited warranty listed
above. YOU MUST ACTIVATE YOUR WARRANTY WITHIN TWO WEEKS OF THE PURCHASE DATE

Nemesis™ UV-C Typhon™ User Manual_V1.1
10
Benefits of UVC Technology:
• UVC radiation has been proven to be effective against waterborne and airborne pathogenic
micro-organisms including those responsible for cholera, hepatitis, polio, typhoid, giardia,
cryptosporidium and many other bacterial, viral and parasitic diseases
• UVC installations have low capital and operation cost
• UVC installations are easy to operate and to maintain
• UVC radiation works instantly and the effectiveness does not depend on the temperature
• UVC disinfection is a physical process: no substances are added
• The UVC disinfection effect is directly related to the UV dose (which is the product of
intensity and exposure time of the micro-organisms) so it’s effectiveness can be simply
measured once the system design is validated
UV-C Disclaimer
The products being sold pursuant to this Agreement must be installed correctly and used properly
to be effective. Nemesis™ is not responsible for improper installation, usage or damages caused
by the end user. Nemesis™ makes no representations, guarantees or assurances as to the final
effectiveness of using a UV-C lighting system for sanitization. Nemesis™ warrants that with
proper installation and usage, scientific evidence exists proving the effectiveness of UV-C
sanitation. Nemesis™ does not warrant that 100% of viruses, bacteria and germs shall be
eliminated. Effective
UV-C sanitation times are calculated by information provided by the specific radiator
manufacturer. Times vary according to radiator, distance, dosage and type of viruses, bacteria,
germ or mold to be eliminated. Customer understands and accepts that the use of UV-C lighting
can cause fading and discoloration of some materials over extensive prolonged exposure and
that Nemesis™ is not responsible for any damages whatsoever to any materials or equipment
due to the use of the products.

Nemesis™ UV-C Typhon™ User Manual_V1.1
11
General Guidelines:
DO NOT attempt any repairs on the Typhon™. Anything beyond replacing the radiator and basic
cleaning must be done by a trained technician. Attempts to repair the device will void the
warranty.
Ensure the area being disinfected is clear of any occupants, animals or other living things.
Avoid touching the radiators. Oils and moisture from the skin can cause the coating on the
radiator to deteriorate. Light dusting can be done carefully with a fresh, dry, lint-free cloth. Be
careful when replacing radiators.
Check fixtures for dust at least once a month. Routine cleaning can be done with a fresh, dry,
lint-free cloth or with an air compressor at very low psi. See page 16 for more detailed
instructions on cleaning your Typhon™.
Take care when cleaning debris from broken radiators. DO NOT dispose with household waste,
follow your local hazardous waste guidelines.
For any questions or concerns, contact the Nemesis™ Customer Service Line 24/7 at:
(469)-466-2UVC

Nemesis™ UV-C Typhon™ User Manual_V1.1
12

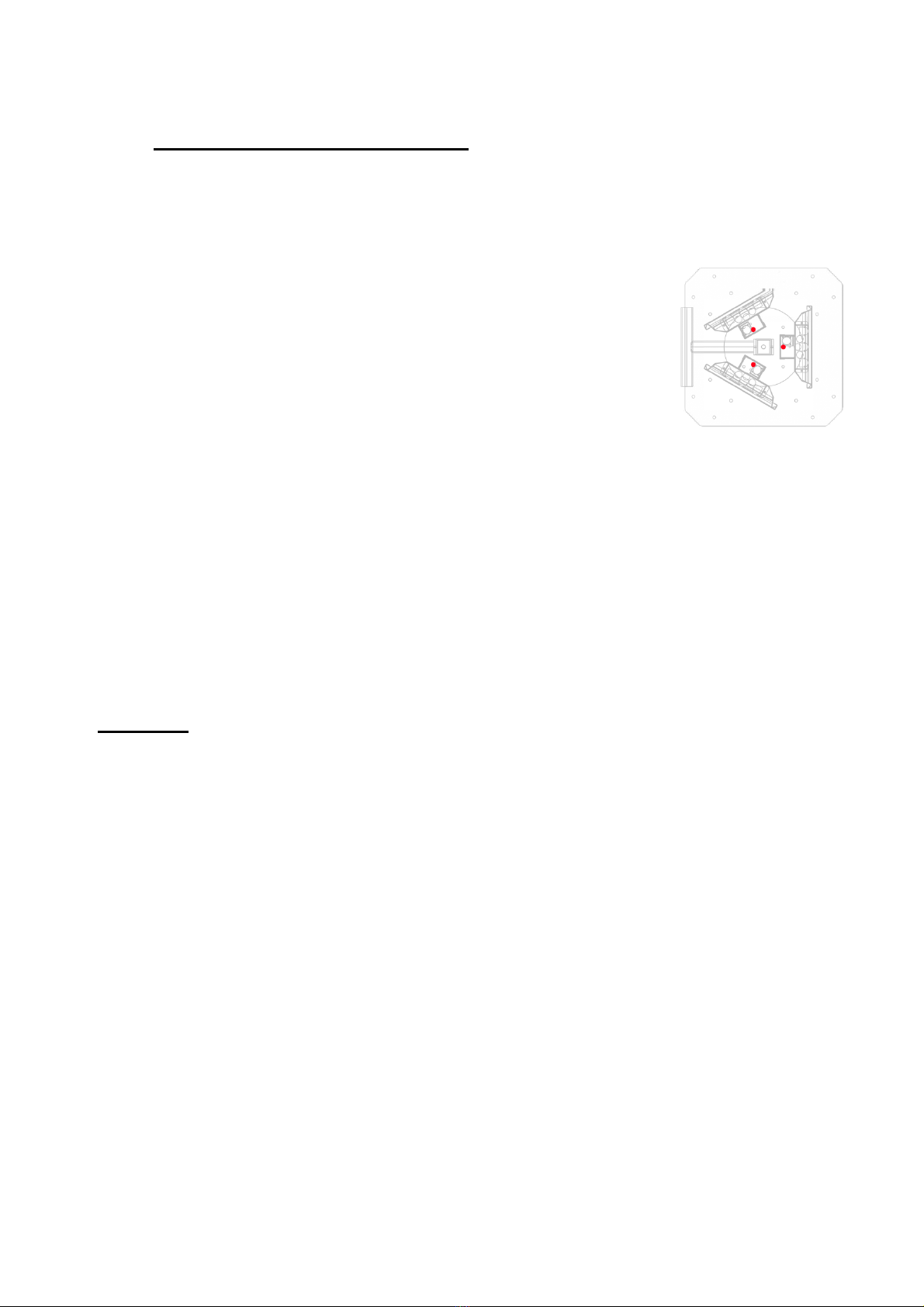

Technical Specifications/Fixture Overview:
Features:
• Emits germicidal wavelength of 254nm.
• Kills 99% of all viruses and bacteria.
• Motion activated temporary shutdown.
• Audible alerts during use.
• Visual alerts during use.
• Safe and environmental- No harsh chemicals, No landfill.
• Designed in the USA. Manufactured in the USA. Ships from the USA.
Lamp Source: TUV 55 W HO lamp technology
Dimensions: Height: 49.5” T x 10.5” W
Weight: 29.5 lbs
Input voltage:
AC 90-120V, 50/60Hz, 1.6 A
Rating: Indoor use only
UV-C Radiator
LED Indicator
True1 Connection IN
True1 Connection OUT
Yoke Knob
Nemesis™ Light Guard

Nemesis™ UV-C Typhon™ User Manual_V1.1
13
How do I use my Nemesis™ Typhon™?
Step 1: Unpack your unit and ensure the fixture is in proper working order.
Step 2: Mount/Place the fixture in the desired location. Utilize the knobs at the top and base of
the unit to adjust the yoke.
Step 3: Determine the distance between the Typhon™ fixture and what you are disinfecting.
See page 10 to determine disinfection time.
Step 4: Ensure the area being disinfected is clear of any occupants, animals or other living
things.
Step 5: Plug in/send power to the fixture to begin disinfection.
Step 6: You will hear an alert running as soon as the system starts. The disinfection time starts
one minute from activation. Then run for the determined amount of time based on distance
and Joules desired.
Step 7: Deactivate the unit at the completion of pre-determined disinfection time before re-
entering the space or moving the fixture.

Nemesis™ UV-C Typhon™ User Manual_V1.1
14
Disinfection Times*
1. Measure the distance from your fixture to the surface(s) being disinfected.
2. A general guideline for time is included below:
*Time calculated to reach 120 Joules of disinfection
*Note: Times are calculated but may not be 100% accurate for specific rooms. A specific
measurement for your space is necessary for complete efficacy and efficiency.
Feet from Typhon: Time (Minutes):
1 1
2 1
3 1
4 2
5 3
6 5
7 7
8 9
911
10 13
11 16
12 19
13 23
14 26
15 30
16 35
17 39
18 44
19 49
20 54
21 60
22 65
23 71
24 78
25 84
120 Joules

Nemesis™ UV-C Typhon™ User Manual_V1.1
15
Cleaning:
• Check all fixtures on the Tower monthly for dust and other contaminates.
• Unplug fixture from AC power before performing any maintenance.
• Never use alcohol or solvents
• Use vacuum or air compressor (on low PSI setting) and soft brush to remove dust on
fixtures & vents
• Clean fixture with a fresh, dry lint-free cloth
• Dust radiators lightly with a microfiber cloth, DO NOT touch the radiators with bare
hands
Replacing Radiators:
• Remove the Nemesis™ light guard by loosening the four thumb screws located at the
corners on the back of the fixture. Then slide the Nemesis™ light guard up and off of the
fixture. This will allow you to access the radiators.
• DO NOT touch radiators with bare hands, oils from the skin will deteriorate the coating
on the outside of the glass, use sterile gloves and eye protection when working with
radiators
• Twist the top and bottom of the radiator ¼ turn to ‘unlock’ the radiator from the socket
• Remove the old radiator
• Place one end of the new radiator into the socket, gently apply pressure to depress the
socket and allow the other end of the radiator to slide into place
• Twist the top and bottom of the radiator ¼ turn to ‘lock’ it into place
• Test the unit to ensure proper installation of radiators.
• For any issues, contact Nemesis™ Customer Support at: (469)-466-2UVC

Nemesis™ UV-C Typhon™ User Manual_V1.1
16
Mini Tower Assembly:
1. Unpack all parts and hardware
2. Assemble the center post by bolting the handle to the top and bottom portions of the
center post
3. Attach the rectangular bottom plate to the center post
4. Attach Typhon™ Fixtures
a. For Three Typhon™ Fixtures use the holes for the
triangular configuration:
b. Ensure the handle will be centered between Typhon™
fixtures as pictured. Ensure the Typhon™ fixtures are
positioned correctly.
5. Bolt Typhon™ fixtures into the bottom plate
6. Once all Typhon™ Fixtures are mounted to the bottom plate, line up the holes at the top
of the fixture with the corresponding holes on the top plate.
7. Utilize the HARDWARE to attach the Typhon™ Fixtures to the Top Plate
8. Once all fixtures are attached to the top plate, secure the top plate with the center bolt.
9. The Mini Tower is built! Take a moment to ensure all hardware is properly attached to
the fixture.
• If you have any issues, contact Nemesis™ Customer Support at: (469)-466-2UVC
Power
1. Included with your Mini Tower is 1 Power Cable and 3 Power Jumpers to power the
Typhon™ fixtures
2. The Power Cable needs to be plugged into the Tru1 POWER IN connection on the side
with the Red Buzzer
3. The Power Jumpers:
a. One end will plug into the “POWER OUT” connection on the sensor side
(opposite the POWER IN on the Buzzer Side)
b. The other will plug into the POWER IN connection on the adjacent fixture.
c. Repeat this process until all Typhon™ units have power
d. one
