NeoQi Dream User manual

NEOQI®
Dream
ENG

2

3
Thank you for choosing NeoQi®

4
Main features in NeoQi® Dream
Ergonomic design
Every part of cocoon is made to suit
your special needs to relax.
Sensor buttons
Functions can be activated by
gentle touch of a button.
Creativity
You can combine a number of
possibilities and create your own small SPA.

5
Main features in NeoQi® Dream
Steam
cleanses the skin and
improves its structure
(elasticity, color),
increases the
receptiveness of the skin
to active ingredients
contained in cosmetic
products.
Infrared radiation
provides deep, safe and
revitalizing warming of all
organs and tissues, improves
the
metabolism, stimulates
sweating, removes toxins
from the body.
Vichy shower
resembling a heavy rain,
provides gentle massage
of reflex zones, improves
blood circulation and has
lymphatic drainage action,
affects the nervous system
in a positive way.
Vibrating table
improves and stimulates
regeneration processes, helps
to eliminate waste products,
has a positive effect on the
neuro-muscular system.
LED light
represents the active
energy that impacts on
our psycho-emotional
processes.
Music system
s
pecially composed music
accompaniment that h
as a
positive impact the
perception of the treatment.

6
Table of Content
PRECONDITIONS. SET UP.
QUALITY REPORT 11
PRECONDITIONS FOR INSTALLATION 15
ELECTRIC CONNECTION 17
WATER CONNECTIONS 17
INITIAL WARM-UP SESSION 20
MAINTENANCE 21
STEAM GENERATOR CLEANING 21
OTHER TECHNICAL DATA 22
TERMS OF WARRANTY 23
MARKINGS ON EQUIPMENT 24
GUIDE FOR ERRORS ON SCREEN 25
INTRODUCTION. CAUTIONS.
INTRODUCTION 29
PHILOSOPHY OF NEOQI® 30
IMPORTANT CAUTIONS AND USER SAFETY INFORMATION 31
HEALTH PRECAUTIONS 32
GETTING STARTED. USING YOUR COCOON.
BASIC COMPONENTS OF YOUR COCOON 37
FUNCTIONS ON CONTROL PANEL A(UPPER PART OF EQUIPMENT) 39
WARM-UP SESSION 39
STEAM SAUNA 41
AROMATHERAPY 42
INFRARED SAUNA 43
FACE FAN 44
VICHY SHOWER 45
VIBROMASSAGE 46
CHROMOTHERAPY 48
ТIMER 49
HAND SHOWER 49

7
BLUETOOTH AUDIO 50
TREATMENTS. ТHERAPIES. AFFECTS.
STEAM SAUNA 55
AROMATHERAPY 57
INFRARED SAUNA 58
HYDROFUSION 61
VICHY SHOWER 62
VIBROMASSAGE 62
CHROMOTHERAPY 65
MUSIC THERAPY 67

8

9
ASASASSSASAAAAAAA
1
Preconditions.
Set up.

10

11
QUALITY REPORT
NeoQi® Energy Cocoon
Serial Number: _
Pre shipment inspection Pre usage inspection
Date:________________
Physical aspects
body surfaces ________________
components ________________
technical condition ________________
________________
________________
________________
________________
________________
________________
________________
________________
Functional test
control panels
steam sauna
infrared sauna
Vichy shower
vibrating table
face fan
hand shower
LED lamps
________________
Checked by: _______________ ________________
Before starting to use the unit, please fill out this form and fax or mail it back to NeoQi AS.
Ph:[phone] Fax:[phone] Add: Piirimäe 15, Tänassilma, Saku vald 76406, Estonia

12

13
∀
NeoQi AS.
Piirimäe 15, Tänassilma SERVICE REQUEST
76406 Saku vald DATE:
Estonia NUMBER:
Ph. [phone]
DISTRIBUTOR´S NAME: CUSTOMER´S NAME:
Equimpent’s Serial Number: Harmony Dream:
Date Equipment Received:
Date Equipment Delivered:
Date Equipment Started operating:
Date Problem Occurred:
Problem Report:
Person Reporting……………………….

14

15
∀
NeoQi AS.
Piirimäe 15, Tänassilma SERVICE REQUEST
76406 Saku vald DATE:
Estonia NUMBER:
Ph. [phone]
DISTRIBUTOR´S NAME: CUSTOMER´S NAME:
Equimpent’s Serial Number: Harmony Dream:
Date Equipment Received:
Date Equipment Delivered:
Date Equipment Started operating:
Date Problem Occurred:
Problem Report:
Person Reporting……………………….

16

17
Preconditions for Installation
Room
Equipment is designed for use in indoor
conditions.
The room, where the equipment is used
should be moisture proof. Ventilation is
recommended, as in the working regime
the machine creates humidity.
It is recommended to have a general
drain on a floor.
Doors must be wide at least 80 cm.
Power
Power cord material at least 3 x 2,5 mm²
copper crosscut.
Power cord should be connected into the
moisture proof junction box which is located
on the equipment frame.
Maximum power consumption for equipment
at a time is 3,5kW.
Protective device current in front of
equipment feeder not less than 16A
Water
WATER CONNECTION
2 water pressure hoses are required one for
hot, another for cold water with one ending
being 1⁄2 threaded.
Length of hoses depend upon the distance
from the water inlets.
DRAINAGE
Drainage connection on the floor should be
at least Ø 32 mm;
Water drainage hose should be of Ø 32 mm.
Length of drainage hose depending on the
distance from drainage opening on the
ground.

18

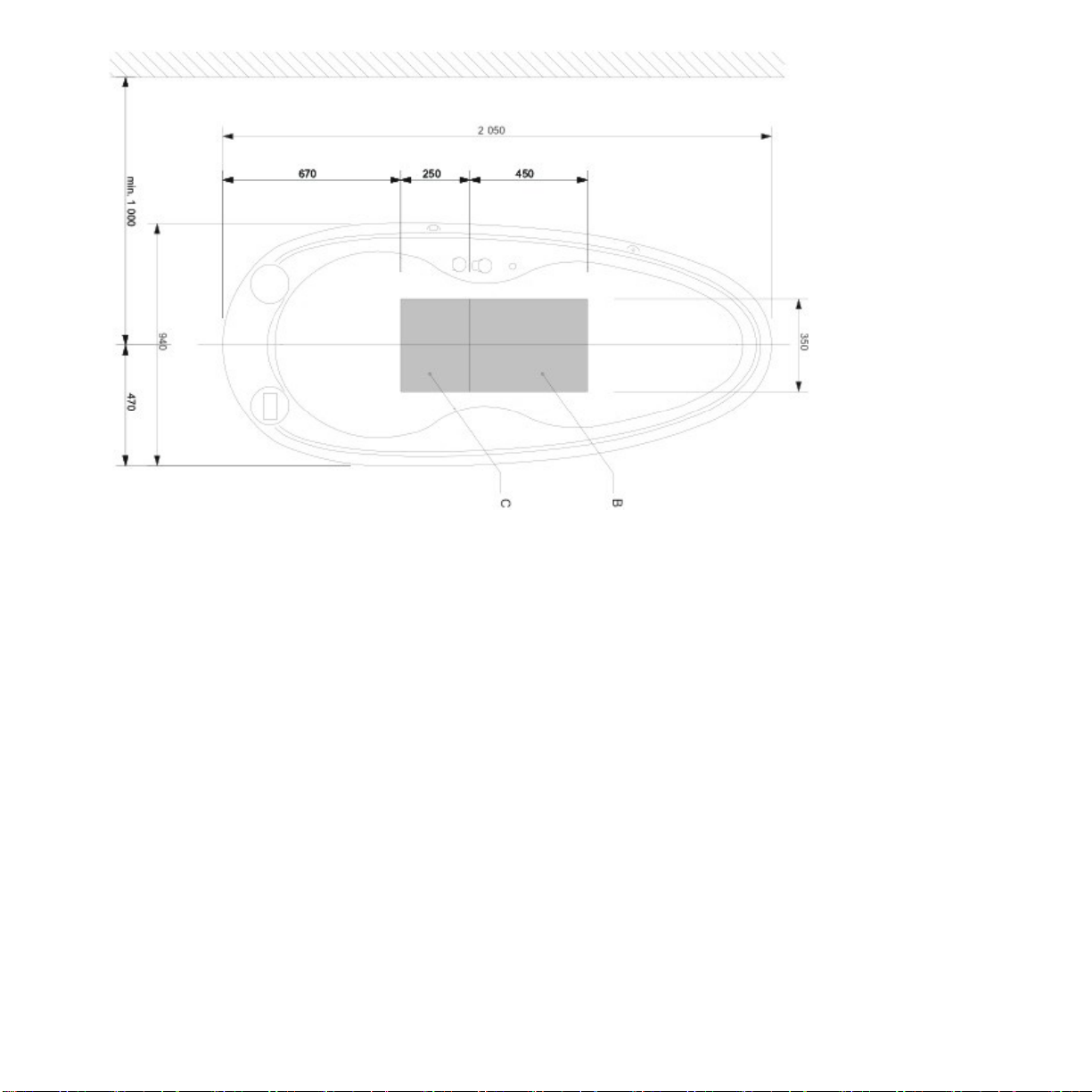

Figure 1
Legend for Figure 1
B- area for the closable water inputs G1/2 and for the water outlet 32mmon the same level
with the floor
C- area for the mains cable 3x2,5 mm² with free cable-end of minimum 2,0 m and the earth-
connection cable 4mm² with free cable-end of minimum 2,0 m

19
Figure 2
Electric Connection
Electric installations of NeoQi® Harmony
Mediq should be carried out by qualified
specialists or official representative of
NeoQi® AS.
NeoQi® Harmony Mediq is CLASS 1
EQUIPMENT in which protection against
electric shock does not rely on BASIC
INSULATION only, but which includes an
additional safety precaution, which implies
that the EQUIPMENT must be connected to a
protective earth conductor in a fixed wiring,
in such a way that accessible metal parts
cannot become live in the event of a failure
of the basic insulation.
NeoQi® Harmony Mediq belongs to the
group of TYPE B EQUIPMENT, which provides
a degree of protection against electric shock,
which implies:
-allowable leakage current (10 mA);
-reliability of the protective earth connection.
NeoQi® Harmony Mediq cannot be used if
the air contains FLAMMABLE ANAESTHETIC
MIXTURE WITH AIR or WITH OXYGEN OR
NITROUS OXIDE.

20
Water Connections
The installation of warm and cold water
inlets and drainage connections of NeoQi®
Harmony equipment should be carried out
by qualified specialist or official
representative of NeoQi® AS.
For proper functioning of equipment only
clean tap water should be used. In case the
tap water contains high percentage of
abrasive substances or rust, it is
recommended to install a water filter.
Initial Warm-Up Session
Turn on the device by pressing main ON/OFF
button.
Close the cover of equipment and switch on
the steam sauna (STEAM) function from
upper control panel. Icon will appear on the
screen in a small frame.
Select the maximum steam temperature by
pressing +/- buttons until steam icon is in
frame. Set temperature to 48º. The timer
will automatically switch on to 30 minutes.
After the steam session has stopped, switch
on the infrared sauna (INFRARED) function
from upper control panel. Icon will appear
on the screen in a small frame.
Select the maximum
infrared temperature by pressing +/-
buttons until display shows 50º C. The timer
will automatically switch on to 30 minutes.
Now turn on the first program of Vichy
shower (VICHY SHOWER) for 5 minutes.
In case if any of above-mentioned functions
will not operate, please contact the local
dealer.
