NeoQi Pro User manual

NEOQI®
Pro
ENG

2

3
Thank you for choosing NeoQi®

4

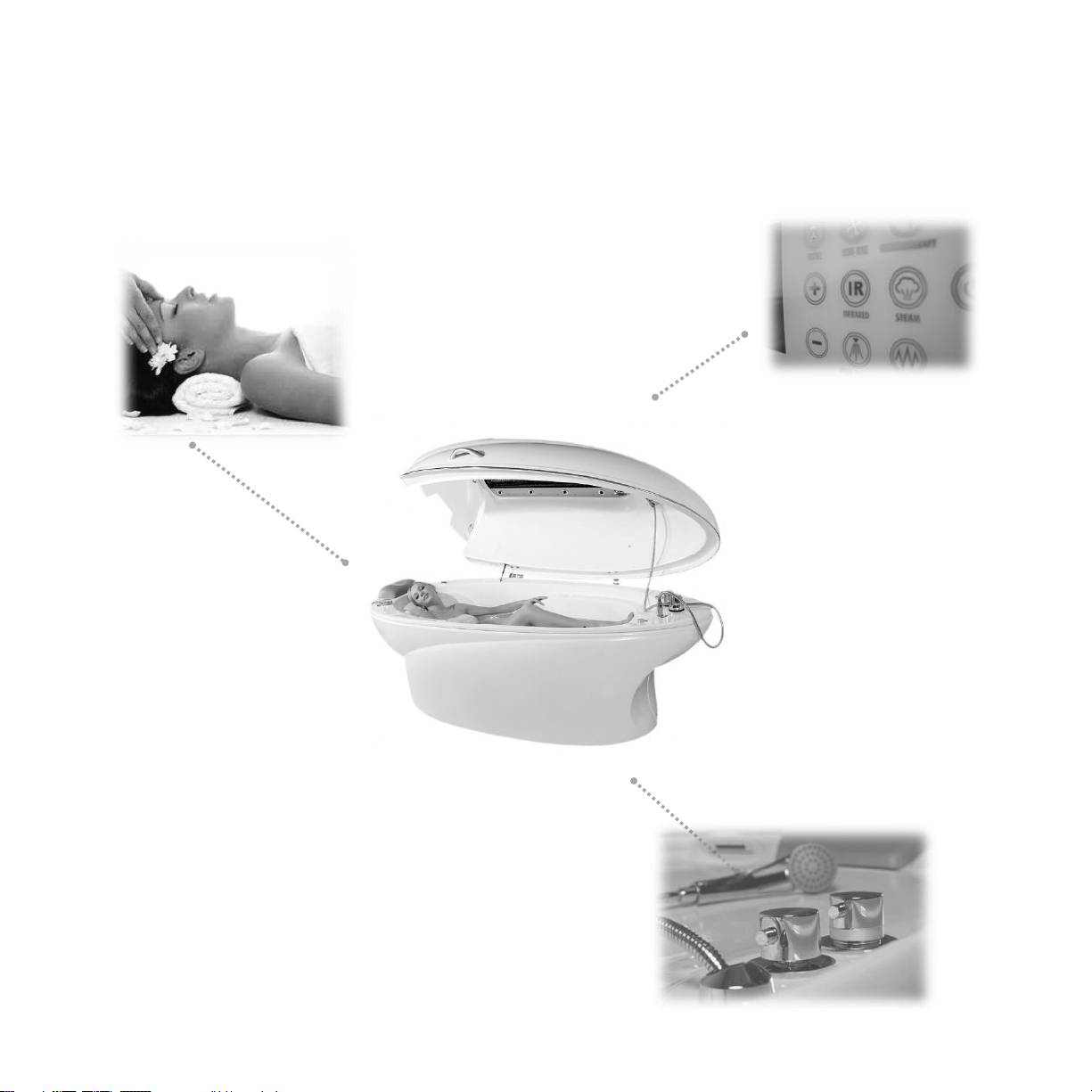

Main features in NeoQi®Pro
Ergonomic design
Every part of cocoon is made to suit
your special needs to relax.
Sensor buttons
Functions can be activated by gentle
touch of a button.
Creativity
You can combine between several
possibilities to have a small SPA.

5
Main features in NeoQi®Pro
Steam
cleanses the skin and
improves its structure
(elasticity, color),
increases the
receptiveness of the
skin to active
ingredients contained in
cosmetic products.
Infrared radiation
provides deep, safe
and revitalizing
warming of all organs
and tissues, improves
the metabolism,
stimulates sweating,
removes toxins from
the body.
Vichy shower
resembling a heavy
rain, provides gentle
massage of reflex
zones, improves blood
circulation and has
lymphatic drainage
action, affects the
nervous system in a
positive way.
Vibrating table
improves and stimulates
regeneration processes,
helps to eliminate waste
products, has a positive
effect on the neuro-
muscular system.
LED light
represents the active
energy that impacts
on our psycho-
emotional processes.
Air bubble massage
gently affects a number
of nerve endings and
receptors, improves
peripheral circulation,
saturates tissues and
organs with oxygen.
Water massage
by means of water jets
with different
direction, forces and
temperatures. Has
restorative, relaxing,
analgesic effect on the
human body.
Music system
specially composed
music accompaniment
that has a positive
impact the perception
of the treatment.

6
Table of content
PRECONDITIONS. SET UP.
QUALITY REPORT 11
PRECONDITIONS FOR INSTALLATION 16
ELECTRIC CONNECTION 19
WATER CONNECTIONS 19
INITIAL WARM-UP SESSION 20
MAINTENANCE 21
WATER SYSTEM CLEANING 22
STEAM GENERATOR CLEANING 22
TERMS OF WARRANTY 23
MARKINGS ON EQUIPMENT 25
GUIDE FOR ERRORS ON SCREEN 25
INTRODUCTION. CAUTIONS.
INTRODUCTION 31
PHILOSOPHY OF NEOQI®32
IMPORTANT CAUTIONS AND USER SAFETY INFORMATION 33
HEALTH PRECAUTION 34
GETTING STARTED. USING YOUR COCOON.
BASIC COMPONENTS OF YOUR COCOON 39
FUNCTIONS ON CONTROL PANEL A(UPPER PART OF EQUIPMENT) 40
WARM-UP SESSION 40
STEAM SAUNA 42
AROMATHERAPY 43
INFRARED SAUNA 44
FACE FAN 45
VICHY SHOWER 46
VIBROMASSAGE 47
CHROMOTHERAPY 48
TIMER 49
HAND SHOWER 49

7
50
50
50
50
50
51
FUNCTIONS ON CONTROL PANEL B(LOWER PART OF EQUIPMENT)
HYDROTHERAPY TUB
WATER MASSAGE (PNEUMATIC BUTTON 1)
BOTTOM AIR (PNEUMATIC BUTTON 2)
CHROMOTHERAPY (PNEUMATIC BUTTON 3)
HAND SHOWER
Bluetooth Audio 52
TREATMENTS. ТHERAPIES. AFFECTS.
STEAM SAUNA 57
AROMATHERAPY 58
INFRARED SAUNA 59
HYDROFUSION 62
VICHY SHOWER 63
VIBROMASSAGE 64
HYDROTHERAPY 66
CHROMOTHERAPY 67
MUSIC THERAPY 69

8

9
ASASASSSASAAAAAAA
1
Preconditions.
Set up.

10

11
QUALITY REPORT
NeoQi Energy Cocoon
Serial Number: _
Pre shipment inspection Pre usage inspection
Date: ________________
Physical aspects
body surfaces ________________
components ________________
technical condition ________________
________________
________________
________________
________________
________________
________________
________________
________________
Functional test
control panels
steam sauna
infrared sauna
Vichy shower
vibrating table
face fan
hand shower
Music System
LED lamps ________________
Checked by: ________________
Before starting to use the unit, please fill out this form and fax or mail it back to NeoQi AS.
Ph:[phone] Fax:[phone] Add: Piirimäe 15, Tänassilma, Saku vald 76406, Estonia

12

13
NeoQi AS
Piirimäe 15, Tänassilma SERVICE REQUEST
76406 Saku vald DATE:
Estonia NUMBER:
Ph. [phone]
DISTRIBUTOR´S NAME: CUSTOMER´S NAME:
Equimpent’s Serial Number: Harmony Pro:
Date Equipment Received:
Date Equipment Delivered:
Date Equipment Started operating:
Date Problem Occurred:
Problem Report:
Person Reporting……………………….

14

15
NeoQi AS
Piirimäe 15, Tänassilma SERVICE REQUEST
76406 Saku vald DATE:
Estonia NUMBER:
Ph. [phone]
DISTRIBUTOR´S NAME: CUSTOMER´S NAME:
Equimpent’s Serial Number: Harmony Pro:
Date Equipment Received:
Date Equipment Delivered:
Date Equipment Started operating:
Date Problem Occurred:
Problem Report:
Person Reporting……………………….

16
Preconditions for Installation
Room
Equipment is designed for use in indoor
conditions.
The room, where the equipment is used
should be moisture proof.
Ventilation is recommended, as in the
working regime, machine creates humidity.
It is recommended to have a general drain
on the floor.
Doors must be wide at least 80 cm.
Power
Power cord material at least 3 x 2,5 mm²
copper crosscut.
Power cord should be connected into the
moisture proof junction box which is located
on the equipment frame.
Maximum power consumption for equipment
at a time is 3,7kW.
Protective device current in front of
equipment feeder not less than 16A
Water
WATER CONNECTION
2 water pressure hoses are required
one for hot, another for cold water
with one ending being 3⁄4 threaded
Length of hoses depend upon the
distance from the water inlets.
DRAINAGE
Drainage connection on the floor
should be Ø 50 mm;
Water drainage hose should be of Ø
50 mm
Length of drainage hose depending
on the distance from drainage
opening on the ground.

17

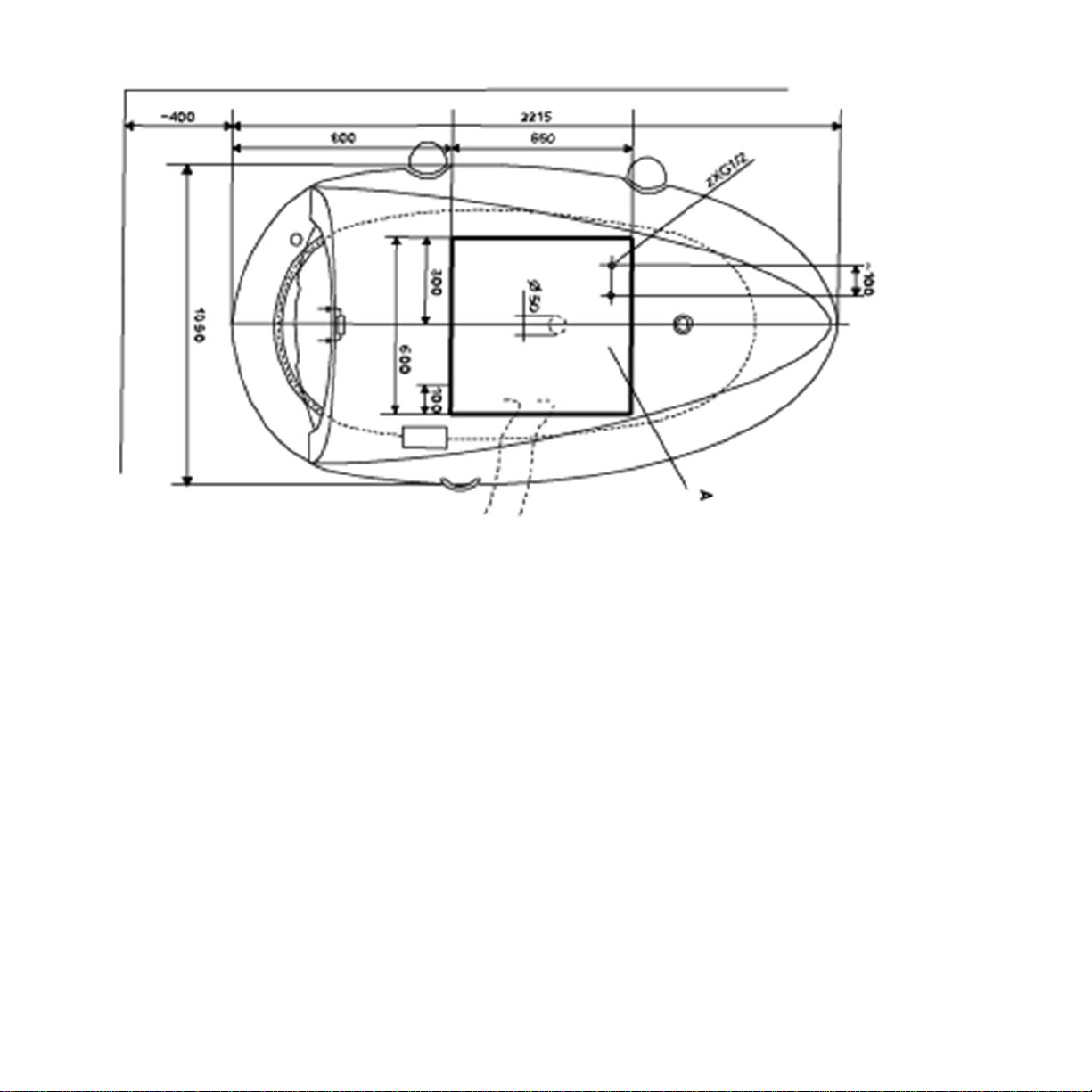

Figure 1
Legend for Figure 1
A- area for the closable water inputs G¾ and for the water outlet 50 mm on the same level with
the floor. Area for the mains cable 3x2,5 mm² with free cable-end of minimum 2,0 m and the
earth-connection cable 4mm² with free cable-end of minimum 2,0 m

18
Figure 2

19
Electric Connection
Electric installations of NeoQi® Harmony Pro
should be carried out by qualified specialists
or official representative of NeoQi® AS.
NeoQi® Harmony Pro is CLASS 1
EQUIPMENT in which protection against
electric shock does not rely on BASIC
INSULATION only, but which includes an
additional safety precaution, which implies
that the EQUIPMENT must be connected to a
protective earth conductor in a fixed wiring,
in such a way that accessible metal parts
cannot become live in the event of a failure
of the basic insulation.
NeoQi® Harmony Pro belongs to the group
of TYPE B EQUIPMENT, which provides a
degree of protection against electric shock,
which implies:
-allowable leakage current (10 mA);
-reliability of the protective earth connection.
NeoQi® Harmony Pro cannot be used if the
air contains FLAMMABLE ANAESTHETIC
MIXTURE WITH AIR or WITH OXYGEN OR
NITROUS OXIDE.
Water Connections
The installation of warm and cold water
inlets and drainage connections of NeoQi®
Harmony equipment should be carried out
by qualified specialist or official
representative of NeoQi® AS.
For proper functioning of the equipment only
clean tap water should be used. In case the
tap water contains high percentage of
abrasive substances or rust, it is
recommended to install a water filter.

20
Initial Warm-Up Session
Turn on the device by pressing main ON/OFF
button.
Close the hood of the equipment and switch
on the steam sauna (STEAM) function from
the upper control panel. The following icon
will appear on the screen in a small frame.
Select the maximum steam temperature by
pressing +/- buttons until the steam icon
appears in the frame. Set temperature to
48º. The timer will automatically set itself to
30 minutes.
After the steam session has stopped, switch
on the infrared sauna (INFRARED) function
from upper control panel. The following icon
will appear on the screen in a small frame.
Select the maximum infrared temperature
by pressing +/- buttons until display shows
50º C. The timer will automatically set itself
to 30 minutes.
Fill the tub with water, closing the tub drain
first by sliding the drainage valve into the
left-side position.
Open the cold and the hot water taps. When
the water level reaches ~ 1 cm above the
back jets, close the water inlet. Now switch
on all the hydrotherapy functions of the tub
from the lower control panel for 5 minutes:
Close the hood of the equipment and turn on
the first program of the Vichy shower
(VICHY SHOWER) for 5 minutes.
Empty the tub and aerate the equipment
(turn on air blower for 1 minute - water will
be thrown out from the bottom jets). Now
the equipment is ready to use. In case any
of the functions will not operate please
contact the local dealer.
