Netceed MUL-HDENC-C-200 Series User manual

www.multicominc.com [phone]
All Rights Reserved © 2023 Netceed [phone]
1
MUL-HDENC-C-200 (-NA, -MX, -CO, -LA)
With AC-3
High Definition Digital Encoder – Deluxe, Kit
User Manual
Netceed
1076 Florida Central Parkway, Longwood, FL 32750
www.multicominc.com / www.netceed.com
October 2023 (Version 1b)
This manual is intended solely for use by purchasers of Netceed HD Digital Encoders and their qualified service
technicians. This document is the property of Netceed and incorporates proprietary subject material and information. The
use of all design, manufacture, reproduction, and all other rights regarding these contents in whole or part without Netceed.

Netceed MUL-HDENC-C-200 User Manual
www.multicominc.com [phone]
All Rights Reserved © 2023 Netceed [phone]
2
i. Safety Precautions
The presence of this symbol is to alert the installer and user to the presence of uninsulated potentially
dangerous voltages within the product’s enclosure that may be of sufficient magnitude to produce a risk of
electric shock.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS DEVICE
TO RAIN OR MOISTURE. DO NOT OPEN THE UNIT. REFER SERVICING TO QUALIFIED
AUTHORIZED PERSONNEL ONLY.
•DO NOT terminate, change or uninstall any wiring without first disconnecting the unit’s power
adapter from the device.
•This device is supplied with the appropriately rated power supply. The use of any other power supply
could cause damage and invalidate the manufacturer’s warranty.
•DO NOT connect the power cord to the device if the power cord or unit is damaged.
•DO NOT cut the power cord.
•DO NOT plug the power cord into an AC outlet until all cables and connections to the device have
been properly connected.
•The device should be installed in an environment consistent with its operating temperature
specifications. Placement next to heating devices and ducts is to be avoided as doing so may cause
damage. The device should not be placed in areas of high humidity.
•DO NOT cover any of the device’s ventilation openings.
•If the device has been in a cold environment allow it to warm to room temperature for at least 2 hours
before connecting to an AC outlet.
IMPORTANT
•ALWAYS remove any network/ethernet connection from the HD Encoder after configuring it to
insure its security and highest performance
•Use high quality cables and connectors and insure all connections are tight
•Test the coaxial cable RF output at the TV to insure the levels are well within the TV input range
•Use Google Chrome, Microsoft Edge, or Mozilla Firefox as the web browser when configuring the
HD Encoder. Google Chrome is preferred.
•During the web browser Admin Reboot process, use a new Google Chrome “Incognito Window” to
eliminate caching-related confusion and issues.
•The factory Default is shown on the outside of the shipping box for RF output. Any unit can be
setup as J.83, or ATSC, or DVB-T, or ISDB-Tb. Example, if DVB-T output is desired
(example: for Colombia installation) then the RF Setup Menu > Channel Type must be
changed to DVB-T. The factory DEFAULT is set on a country by country basis for ease of
each country’s customer.
•The hardware and software product trademarks are the property of their respective owners, including
Google Chrome, Microsoft Edge, and Mozilla Firefox.

Netceed MUL-HDENC-C-200 User Manual
www.multicominc.com [phone]
[phone]
3
All Rights Reserved 2023 Netceed
ii. EAS Support Statement
This equipment is equipped with EAS terminals / connections and CVBS (Composite Video Input) and L/R
audio input connections on the rear panel.
If applicable, connect your EAS Alert Device System outputs to the Encoder. If the encoder receives the
proper Event signal from your EAS device, the normal input audio/video program will be replaced by the
audio and video from the EAS system device. Once the encoder has received the proper signal from your
EAS device the normal input video and audio will return to a normal operating mode.
****THIS DEVICE IS NOT AN EAS RECEIVER****
Note: It is the responsibility of the Installer/User to properly connect, verify, and test the EAS
functionality of this device with the EAS receiver.
Note: It is the responsibility of the Installer/User to properly perform the required EAS tests as
required by the FCC or your specific Government Agency.
If the EAS functions on this device fail for any reason it is the responsibility of the Installer/User to
replace this device as required by the FCC or your specific Government Agency.
iii. FCC Compliance

Netceed MUL-HDENC-C-200 User Manual
www.multicominc.com [phone]
All Rights Reserved © 2023 Netceed [phone]
4
iv.Kit Contents
•MUL-HDENC-C-200 HD Encoder Deluxe
•AC Adapter, US Plug, 12VDC 1.5A, 100-
240VAC, 50/60Hz
•6’ HDMI cable
•4’ RCA L/R to Mini-Jack Audio cable (qty 2)
•Wall/shelf mounting angles, small (qty 4)
•19”, 1 RU Rack Mounting brackets (qty 2)
•Bracket/angles mounting screws

Netceed MUL-HDENC-C-200 User Manual
www.multicominc.com [phone]
All Rights Reserved © 2023 Netceed [phone]
5
iv.English and Spanish Menus
The web interface/GUI supports both English and Spanish. Select the desired language at the bottom of
any admin page after logging in (see below). Note that the LCD display does NOT display Spanish.

Netceed MUL-HDENC-C-200 User Manual
www.multicominc.com [phone]
All Rights Reserved © 2023 Netceed [phone]
6
Table of Contents
i. Safety Precautions.............................................................................................................................................. 2
ii. EAS Support Statement .................................................................................................................................... 3
iii. FCC Compliance ............................................................................................................................................. 3
iv. Kit Contents..................................................................................................................................................... 4
iv. English and Spanish Menus.............................................................................................................................. 5
1.0 HD Encoder Introduction ................................................................................................................................. 7
1.1 Front Panel View..........................................................................................................................................7
1.2 Rear View ....................................................................................................................................................7
2.0 Specifications................................................................................................................................................... 8
3.0 STEP A: HARDWARE INSTALL & CONNECTIONS ..................................................................................11
4.0 HD Encoder Programming/Setup ....................................................................................................................11
4.1 HD Encoder Front Panel Display................................................................................................................11
4.2 Using the HD Encoder Front Panel for Setup..............................................................................................12
4.2.1 LCD Setup Menu Map .......................................................................................................................12
4.2.2 VCN Related Notes: J.83B, ATSC .....................................................................................................15
4.3 Using the HD Encoder Web Interface .........................................................................................................16
4.3.1 Overview of the Process .....................................................................................................................16
4.3.2 Login .................................................................................................................................................16
5.0 STEP B: RF OUTPUT SETUP......................................................................................................................19
5.1 RF Output Setup – QAM / ATSC...............................................................................................................19
5.2 RF Output Setup - DVB-T.........................................................................................................................21
5.3 RF Output Setup - ISDB-Tb ......................................................................................................................23
6.0 STEP C: ENCODER SETUP ........................................................................................................................25
6.1 Encoder Setup – QAM / ATSC ..................................................................................................................25
6.1.1 Closed Captioning: Enable/Disable.....................................................................................................27
6.1.2 EAS Connections ...............................................................................................................................28
6.2 Encoder Setup – DVB-T ...........................................................................................................................29
6.3 Encoder Setup – ISDB-Tb.........................................................................................................................31
7.0 STEP D: USE TV AUTOSCAN CHANNELS................................................................................................32
8.0 Network Setup Tab..........................................................................................................................................32
9.0 Administration Tab..........................................................................................................................................33
9.1 Reboot ..................................................................................................................................................33
9.2 Reset to Default.....................................................................................................................................33
9.3 Saving your configuration files..............................................................................................................33
9.4 Restore/Upload saved file configurations...............................................................................................34
9.5 Change Password ..................................................................................................................................34
10.0 Frequencies/Channels provided .....................................................................................................................35
10.1 J.83B........................................................................................................................................................35
10.2 ATSC .......................................................................................................................................................36
10.3 DVB-T.....................................................................................................................................................37
10.4 ISDB-Tb ..................................................................................................................................................40
11.0 Frequently Asked Questions (FAQ)/Troubleshooting .....................................................................................41
12.0 After-Sales Service........................................................................................................................................43
13.0 Disclaimer.....................................................................................................................................................43

Netceed MUL-HDENC-C-200 User Manual
www.multicominc.com [phone]
All Rights Reserved © 2023 Netceed [phone]
7
1.0 HD Encoder Introduction
The Netceed MUL-HDENC-C-200 is a Multi-Standard Format, single input, High Definition Agile
Digital Encoder/Modulator used to convert a single HDMI, component, or composite video-audio input
of up to 1080i/1080p into a J.83B QAM 64/QAM 256 RF, ATSC (8VSB), DVB-T QAM64 or IDSB-Tb
QAM 64 coaxial output. Its feature rich, high quality, multi-standard format makes it suitable for
Commercial and Residential use in a wide variety of countries.
The Multicom MUL-HDENC-C-200 supports Closed Captions in the J.83 and ATSC output formats,
only. It also supports EAS input with local and remote control. It is feature rich, very flexible and
powerful, while being user friendly and easy to use for both Residential and Commercial applications.
The high quality HD performance allows action packed movies and sports channels on any number of
connected HDTVs and now includes AC-3 audio as default.

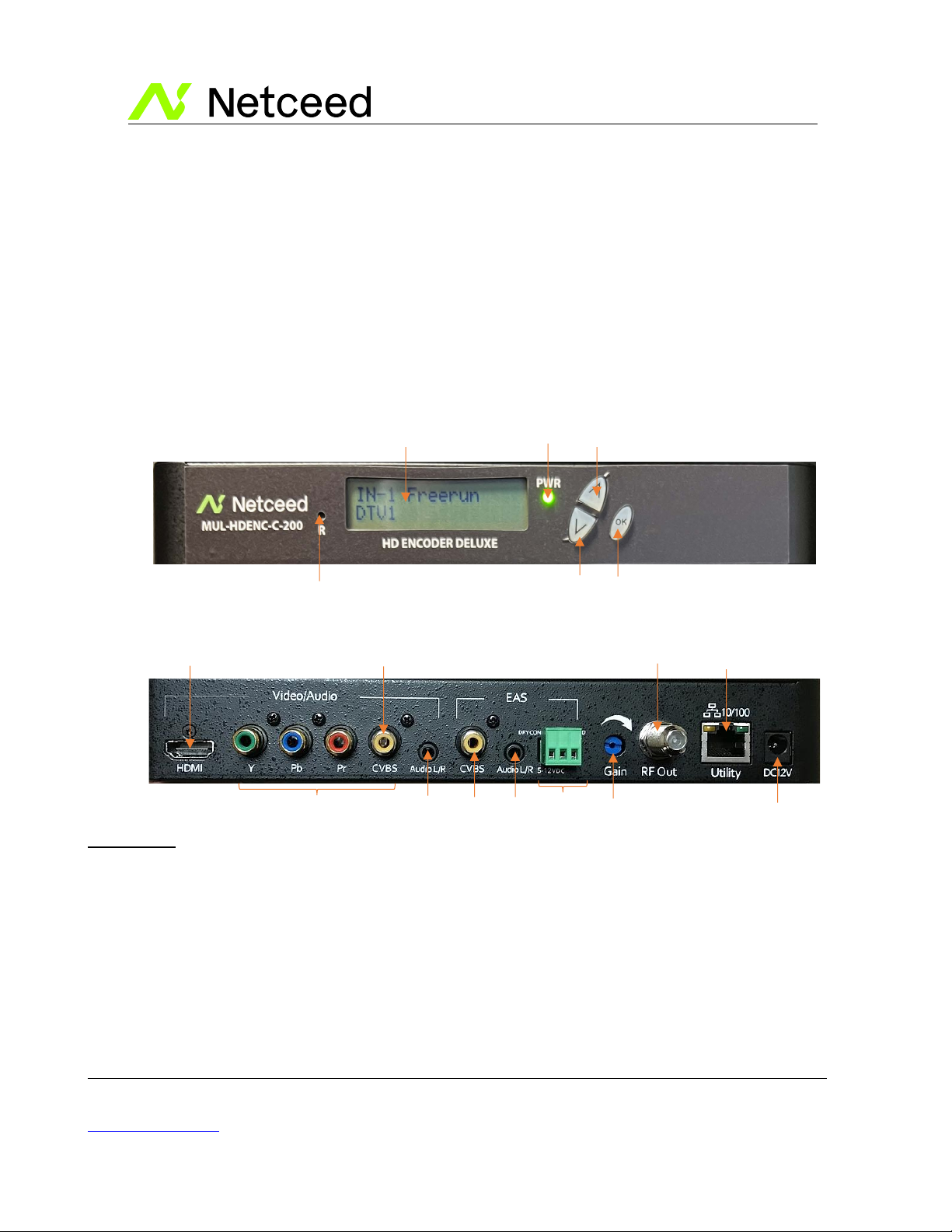

1.1 Front Panel View
1.2 Rear View
FEATURES:
•QAM 64 /256 / ATSC (8VSB) / DVB-T / ISDB-Tb output (user selectable, only one at a time)
•High Resolution up to 1080i/1080p
•3 VCN Modes for QAM output
•GUI for easy setup and control: English or Spanish (user selectable)
•HDMI, Component, or Composite input
•MPEG-2 VBR for Video Output & AC-3 / MPEG-1 / MPEG-4 for Audio Output
•Supports Closed Captioning (QAM/ATSC)
•EAS Supported (QAM)
•> +40dB MER (QAM) output
•Rack, shelf, wall mounting – brackets included
LCD Display
Reboot (use pin/paperclip)
Power LED
UP Arrow
DOWN Arrow
OK/Enter
RF Output
Gain
(Attenuation)
HDMI Input
LAN Port
(Web Management Port)
AC Adapter
Component/Composite
Video Inputs
Audio
Inputs
EAS
Audio
Inputs
EAS
Video
Inputs
Closed
Caption Input
EAS
Control
Inputs

Netceed MUL-HDENC-C-200 User Manual
www.multicominc.com [phone]
All Rights Reserved © 2023 Netceed [phone]
8
2.0 Specifications
General
Local Monitoring
LCD
Web GUI Supported
Firefox, Chrome, Safari, Edge
Password Protected
GUI: User Settable
Power Supply
12 VDC 1.5A, 100-240VAC 50/60Hz,
US Plug
Consumption
5 Watts
Operational
Temperature
0c - +55c
Storage Temperature
-20c - +70c
Dimensions
236mm x 145mm x 34mm
Weight
0.92 kg, 1.88kg packaged
Language
English
Firmware Version
20190925, or later
Net Version
1.2.6, or later
Video / Audio Input
HDMI 1.4
Connectors
Single
Audio
Embedded PCM
Component/Composite
Connector
RCA x 1 Set for
Each
Audio
Analog 3.5mm
EAS
Connector
RCA x 1 Set
Audio
Analog 3.5mm
Trigger Mechanism
5-12VDC and Dry
Contact Closure
(Terminal Strip)
Video / Audio Encoding Profile
Video
Video Codecs
MPEG-2 VBR
Bitrate (Adjustable)
J.83 Annex B:
HD: 12.0 – 24.0 Mbps
SD: 4.0 – 9.0 Mbps
ATSC-8VSB:
HD: 12.0 - 18.0 Mbps
SD: 4.0 – 9.0 Mbps
DVB-T:
HD: 12.0 – 24.0 Mbps
SD: 4.0 – 9.0 Mbps
ISDB-Tb:
HD: 12.0 – 18.0 Mbps
SD: 4.0 – 9.0 Mbps
Resolution Output
Same as input except:
1080p30 in, 1080p25 out
1080i60 in, 1080i50 out
720p60 in, 720p50 out
576p in, 480p out
576i in, 480i out
Audio
Audio Codecs
AC-3 / MPEG1 Layer II / MPEG4 AAC
Closed Captioning
Composite
EIA-608; 1 x RCA (CC)

Netceed MUL-HDENC-C-200 User Manual
www.multicominc.com [phone]
[phone]
9
All Rights Reserved 2023 Netceed.
Output
Standard
J.83 Annex B / ATSC-8VSB / DVB-T / ISDB-Tb
Connector
1 x “F” Female
Output Level
35 dBmV Typical
(With 20dB Range Manually Adjustable)
Flatness Across Full Band
± 2dB Typical
MER
38 dB Typical@ 663.0000 MHz under J.83 Annex B STD Mode
Output Impedance
75 ohm
RF Output Return Loss
10 dB Typical
Modulator STD I / II
J.83 Annex B
ATSC-8VSB
RF Mode
Normal/Inverted
Channel Type
J.83: STD / HRC / IRC
ATSC-8VSB
Frequency Range (Under STD Mode)
57.000 MHz to 861.000MHz
(Channel 2 to Channel 135)
57.000 MHz to 803.000 MHz
(Channel 2 to Channel 69)
Interleaver
I=128, J=1
N/A
Constellation (Output Bitrate, Max)
64-QAM (26.970Mbps) /
256-QAM (38.810Mbps)
8VSB (19.393Mbps)
VCN
Auto (Major & Minor) /
Manual (Major & Minor) /
Manual (One Part)
Auto (Major & Minor) /
Manual (Major & Minor)
Modulator STD III / IV
DVB-T
ISDB-Tb
RF Mode
Normal/Inverted
Frequency Range
50.500 MHz to 858.000 MHz
(Channel 2 to Channel 69 for 6MHz)
(Channel 6 to Channel 69 for 7MHz)
(Channel E2 to Channel E69 for 8MHz)
177.143 MHz to 803.143 MHz
(Channel 7 to Channel 69)
Constellation (Output Bitrate, Max)
16-QAM (15.834Mbps) /
64-QAM (23.751Mbps)
16-QAM (15.490Mbps) /
64-QAM (23.235Mbps)
FEC
1/2, 2/3, 3/4, 5/6, 7/8
LCN Mode (Default)
Colombia
N/A
OFDM Mode
2k, 8k
2k, 4k, 8k
Guard Interval
1/32, 1/16, 1/8, 1/4
Information in this document is subject to change without notice.

Netceed MUL-HDENC-C-200 User Manual
www.multicominc.com [phone]
All Rights Reserved © 2023 Netceed [phone]
10
Factory Defaults for MUL-HDENC-C-200 (-NA, -MX, -CO, -LA)
USA/CA (-NA)
Mexico (-MX)
Colombia (-CO)
LATAM (-LA)
Language
English
Spanish (GUI)
Spanish (GUI)
Spanish (GUI)
RF Output Setup
Modulation
J.83B
ATSC-8VSB
DVB-T
ISDB-Tb
Country / Bandwidth
6
6
6
6
Original Network ID
n/a
n/a
8362
1860
Network ID
n/a
n/a
12289
1860
TS ID
1
1
1
1
Regional Name
USA
Mexico
n/a
n/a
Network Name
n/a
n/a
Colombia
LATAM
RF Output
Normal
Normal
Normal
Normal
Channel Type
J.83B: STD
ATSC: 8VSB
n/a
n/a
Channel
2
2
14
14
Area Code
n/a
n/a
n/a
4080
Remote Key ID
n/a
n/a
n/a
7
Constellation
256 QAM
8VSB
64 QAM
64 QAM
FEC
n/a
n/a
7/8
7/8
Guard Interval
n/a
n/a
1/32
1/32
OFDM Mode
n/a
n/a
8K
8K
Time Interleaved Mode
n/a
n/a
n/a
4
Encoder Setup
VCN
2.1
2.1
n/a
n/a
VCN Mode
Auto(two-part)
n/a
n/a
LCN(Channel Number)
n/a
n/a
101
n/a
LCN Mode
n/a
n/a
Colombia
n/a
Short Name
DTV1
DTV1
n/a
n/a
Long Name
J83-DTV1
ATSC-DTV1
n/a
n/a
Channel Name
n/a
n/a
CHANNEL-1
CHANNEL-1
Provider Name
n/a
n/a
Multicom
Multicom
Source ID
101
101
n/a
n/a
HD Bitrate
24
17
18
18
SD Bitrate
4
4
4
4
Program Number
101
101
101
59520
Test Mode
Disabled
Enabled
Enabled
Enabled
Closed Caption
Enabled
Enabled
Enabled
Enabled
Network Setup
Default IP
192.168.1.9
DHCP
Disabled
Disabled
Disabled
Disabled

Netceed MUL-HDENC-C-200 User Manual
www.multicominc.com [phone]
[phone]
11
All Rights Reserved 2023 Netceed.
3.0 STEP A: HARDWARE INSTALL & CONNECTIONS
Unpacking and Inspection
Each unit is shipped factory tested. Ensure all items are removed from the container prior to discarding
any packing material.
Thoroughly inspect the unit for shipping damage with particular attention to connectors and controls. If
there is any sign of damage to the unit or damaged or loose connectors contact your distributor
immediately. Do not put the equipment into service if there is any indication of defect or damage.
Making the Connections Overview
It is highly recommended that the highest quality cables and connectors be used for all video and audio
source connections.
1.Ensure the video Source has output: including powered up AND NOT IN SLEEP MODE.
2.Connect the HDMI cable/Component cables/Composite cables to the HD Encoder from the Source.
3.Connect the included Audio cable from the source to the 3.5mm Audio L/R connector on the HD
Encoder if analog audio is needed
4.Connect the composite cable to the CVBS input for Closed Caption
5.Connect the included AC power adapter cord to the HD Encoder’s 12VDC Power receptacle at the
rear.
6.Connect the AC adapter to an appropriately rated AC power outlet.
7.Test the RF output with a CATV meter to ensure that it is within the input range of the connected
TV’s. If “Freerun” is shown on the LCD then the Source is not working correctly or connected
8.Connect to the coaxial distribution using the “F” connector at the rear of the HD Encoder. Use a
high quality 75Ω coaxial cable with compression-type “F” connectors from the HD Encoder’s
RF Output. Ensure that all connections are tight.
9.When the HD Encoder configuration is complete – disconnect the HD Encoder from the
network/Ethernet to insure its security and highest performance
4.0 HD Encoder Programming/Setup
To setup and program the Netceed HD ENCODER DELUXE you can use either the device’s LCD
Front Panel and buttons or the Web/GUI Interface. The programming of the settings is easiest by using
the Web Interface in Section 4.3.
4.1 HD Encoder Front Panel Display
Press UP/DOWN ARROW buttons to scroll through the display information.
➢Main Menu: Input information and Output Name >> Short name, and Bitrate
➢Main Menu: VCN information >> VCN, Channel, and Frequency
➢Main Menu: Management IP >> IP Address

Netceed MUL-HDENC-C-200 User Manual
www.multicominc.com [phone]
All Rights Reserved © 2023 Netceed [phone]
12
4.2 Using the HD Encoder Front Panel for Setup
When the unit is powered up it will first go through an internal booting and short self-test and then be
ready for operation or initial setup. The USA factory default is for J.83B RF output. If a different
video output is desired (example: for Mexico installation) then the RF Setup Menu > Channel Type
must be changed to ATSC. The FACTORY DEFAULT is shown on the label.
NOTE: Factory default for Colombia is DVB-T. Factory default for Mexico is ATSC. The rest of
Latin America factory default is ISDB-Tb. ALL VERSIONS ARE USER-SELECTABLE: J.83
QAM, ATSC, DVB-T, or ISDB-Tb – just the factory defaults change depending on the “ship to”
country.
Press “OK” Button to enter the setup MAIN MENU system.
The front panel LCD password is: 0000
Enter the password by adjusting each digit by using the UP/DOWN ARROW buttons – then press “OK”
when the digit is correct. Press “OK” to enter Main Menu. For security purposes the HD Encoder will
timeout and return to a password protected mode if no buttons are pressed for about 10 seconds.
FRONT PANEL:
Login:
➢Press “OK” button
Enter Password
➢Use UP/DOWN arrows to change digit, Press OK to set it and go to next until all 4 digits are
entered – the unit will now be in setup MAIN MENU. Pressing the UP/DOWN ARROWS will scroll
through the menus/settings. Pressing the OK will select/execute the Menu Item or Setting.
4.2.1 LCD Setup Menu Map
Main Menu –J.83B/ATSC-8VSB
RF Setup
Encoder Setup
Network Setup
Change Password
Reset to Default
Exit
Channel
VCN
Host Name
Mod Mode
VCN Mode
IP Setup
Country BW
Short Name
Exit
TSID
Long Name
Regional Name
Source ID
RF
Video Input
Channel Type
HD Bitrate
Constellation
SD Bitrate
Exit
Program Number
Test Mode
Closed Caption
Audio Input
Audio Output
Exit

Netceed MUL-HDENC-C-200 User Manual
www.multicominc.com [phone]
All Rights Reserved © 2023 Netceed [phone]
13
Main Menu –DVB-T
RF Setup
Encoder Setup
Network Setup
Change Password
Reset to Default
Exit
Channel
LCN
Host Name
Mod Mode
VCN Mode
IP Setup
Country BW
Channel Name
Exit
ONID
Provider Name
NID
Video Input
TSID
HD Bitrate
Network Name
SD Bitrate
RF
Program Number
Constellation
Test Mode
FEC
GI
Closed Caption
Audio Input
OFDM Mode
CELL ID
Audio Output
Exit
Exit
Main Menu –ISDB-Tb
RF Setup
Encoder Setup
Network Setup
Change Password
Reset to Default
Exit
Channel
Channel Name
Host Name
Mod Mode
Provider Name
IP Setup
Country BW
Video Input
Exit
ONID
HD Bitrate
NID
SD Bitrate
TSID
Program Number
Network Name
Test Mode
RF
Closed Caption
Area Code
Audio Input
Remote Key ID
Constellation
Audio Output
Exit
FEC
GI
OFDM Mode
Time IL Mode
Exit

Netceed MUL-HDENC-C-200 User Manual
www.multicominc.com [phone]
All Rights Reserved © 2023 Netceed [phone]
14
Press UP/DOWN ARROW to scroll through MAIN MENU and use OK to select a Menu:
➢Main Menu: RF Setup
➢Main Menu: Encoder Setup
➢Main Menu: Network Setup
➢Main Menu: Change Password
➢Main Menu: Reset to Default
➢Main Menu: Exit
#1. Press UP ARROW to scroll through RF SETUP MENU:
➢RF Setup Menu: Channel Factory Default: CH 2 ➔Range 2 – 135
➢RF Setup Menu: Mod Mode Factory Default: J.83B/ATSC ➔DVB-T or ISDB-Tb
➢RF Setup Menu: Country BW Factory Default: 6M
➢RF Setup Menu: TSID Factory Default: 1
➢RF Setup Menu: Regional Name Factory Default: USA
➢RF Setup Menu: RF Factory Default: Normal ➔Inverted
➢RF Setup Menu: Channel Type Factory Default: J.83B:STD ➔ATSC or J.83B
➢RF Setup Menu: Constellation Factory Default: 256 QAM ➔64 QAM
➢RF Setup Menu: Exit
#2. Press UP ARROW to scroll through ENCODER SETUP MENU:
➢Encoder Setup Menu: VCN Factory Default: 2.1
➢Encoder Setup Menu: VCN Mode Factory Default: Auto(two-part) ➔ VCN Notes below
➢Encoder Setup Menu: Short Name Factory Default: DTV1 ➔Up to 7 Char
➢Encoder Setup Menu: Long Name Factory Default: J83-DTV1 ➔Up to 16 Char
➢Encoder Setup Menu: Source ID Factory Default: 00101 ➔Up to 5 Char
➢Encoder Setup Menu: Video Input Factory Default: Auto Detect ➔HDMI/Component/
Composite
➢Encoder Setup Menu: HD Bitrate Factory Default: 24Mbps ➔Range 12 – 24 Mbps
➢Encoder Setup Menu: SD Bitrate Factory Default: 4Mbps ➔Range 1 – 9 Mbps
➢Encoder Setup Menu: ProgramNumberFactory Default: 101 ➔Range 1 – 65534
➢Encoder Setup Menu: Test Mode Factory Default: Disable ➔Enable
➢Encoder Setup Menu: Closed Caption Factory Default: Enable ➔Disable
▪CLOSED CAPTION ONLY AVAILABLE IN J.83 or ATSC MODES
➢Encoder Setup Menu: Audio Input Factory Default: Auto Detect ➔Or Analog
➢Encoder Setup Menu: Audio Output Factory Default: AC-3 ➔MPEG1 Layer 2, or
MPEG4 AAC
➢Encoder Setup Menu: Exit
#3. Press UP ARROW to scroll through NETWORK SETUP MENU:
➢Network Setup Menu: Host Name Factory Default (Based on the S/N): HDENC-xyzXYZ
➢Network Setup Menu: IP Setup Factory Default: DHCP Disable ➔ Enable
➢Factory Default: IP Address: 192.168.1.9
➢Factory Default: Subnet Mask: 255.255.255.0
➢Factory Default: Default Gateway: 000.000.000.000
➢Network Setup Menu: Exit
Note that the HD Encoder will reboot after using the NETWORK SETUP MENU.

Netceed MUL-HDENC-C-200 User Manual
www.multicominc.com [phone]
[phone]
15
All Rights Reserved 2023 Netceed
#4. Press UP ARROW to MAIN MENU: CHANGE PASSWORD
#5. Press UP ARROW to MAIN MENU: RESET TO DEFAULT
Note that the HD Encoder will reboot after using the RESET TO DEFAULT MENU.
#6. Press UP ARROW to MAIN MENU: EXIT
Note that the HD Encoder will lock after selecting the EXIT option
After Selecting the desired Menu – Change Parameter Settings
➢Use UP/DOWN arrows to move and select the desired parameter, Press OK to start editing the
parameter using the UP/DOWN arrows. After changing the setting, pressing the OK will set the
parameter.
4.2.2 VCN Related Notes: J.83B, ATSC
VCN is the Channel number to be shown by the TV. The VCN Modes which will be available depend on
whether the output is selected as J.83B or as ATSC.
VCN Mode: Auto (two-part) - VCN will be set based on the Channel output selected in “RF Output
Menu: RF”.
Example: Output Channel set to 2. VCN for device will be set at 2.1
This is automatically set by the CH output set in the RF Setup section.
VCN Mode (Manual two-part) - VCN Manual 2-part- will allow the installer to control VCN channel
regardless of the CH/freq. selected on the RF Output Setup page of the device.
Examples:
RF CH VCN Channel
57 55.1
101 101.2
VCN Mode: Manual (one-part) - Use ‘VCN (one part) Menu’ to set VCN channel.
Example: VCN can be set to a range 1-999.
VCN Mode (Manual one-part) -VCN Manual 1-part- will allow the installer to control VCN channel
regardless of the CH/freq. selected on the Output Setup page of the device.
Examples:
RF CH VCN Channel
57 2
101 105
134 133

Netceed MUL-HDENC-C-200 User Manual
www.multicominc.com [phone]
All Rights Reserved © 2023 Netceed [phone]
16
4.3 Using the HD Encoder Web Interface
4.3.1 Overview of the Process
Product Factory Default IP: 192.168.1.9 and with DHCP - Disabled
1. Connect an Ethernet cable directly (no Cross Over cable required) to the Web Management
Port on the rear panel of the HD Digital Encoder or connect the device’s Ethernet cable to an
Ethernet switch. Connect Ethernet Cable to your PC/Laptop.
2. Modify your PC/Laptop IP address to static address 192.168.1.10
3. Turn off the WIFI on your PC/Laptop if applicable
4. Enter ‘192.168.1.9’ into your web browser to access the Web Interface of the HD Encoder.
5. Enter the Web Interface and make any required device changes.
6. Save all changes as required and then reboot the device.
7. Verify parameters have changed and then end your web session.
As an alternative, the HD ENCODER static IP Address may be configured (or DHCP enabled) on the
front panel and then the Web Browser can be used for all other configuration changes by using the IP
Address which will be displayed on the LCD. BE VERY CAREFUL WHEN USING THE DEFAULT IP
ADDRESS AND CONNECTING TO AN EXISTING NETWORK – THERE MAY BE CONFLICT
WITH EXISTING INSTALLED HARDWARE – THIS MUST ALWAYS BE AVOIDED.
4.3.2 Login
•Use Google Chrome, Microsoft Edge, or Mozilla Firefox as the web browser when configuring the
HD Encoder. Google Chrome is preferred.
•During the web browser Admin Reboot process, use a new Google Chrome “Incognito Window” to
eliminate caching-related confusion and issues.
Open Your Internet Browser:
Use the PC web browser - type in the HD Encoder Deluxe’s IP Address. The current IP Address can be
viewed on the front panel LCD by pressing the UP ARROW twice to see “Management IP”.
Web Interface Login and Password:
Default User Name: admin
Default Password: Admin123

Netceed MUL-HDENC-C-200 User Manual
www.multicominc.com [phone]
[phone]
17
All Rights Reserved 2023 Netceed
IMPORTANT NOTE: Save all changes before leaving each setup page
Review the Overview Tab
View the current settings, MAC address, Firmware version, etc.
The other tabs (Encoder Setup, RF Output Setup, Network Setup, and Administration) are used to change
the HD Encoder settings and operating parameters.
It is HIGHLY recommended that after all other tabs have been configured that the HD Encoder be
rebooted using the REBOOT button on the ADMINISTRATION tab.
Above: Overview Tab – QAM
Above: Overview Tab – ATSC

Netceed MUL-HDENC-C-200 User Manual
www.multicominc.com [phone]
All Rights Reserved © 2023 Netceed [phone]
18
Above: Overview Tab – DVB-T
Above: Overview Tab – ISDB-Tb

Netceed MUL-HDENC-C-200 User Manual
www.multicominc.com [phone]
[phone]
19
All Rights Reserved 2023 Netceed
5.0 STEP B: RF OUTPUT SETUP
The MUL-HDENC-C-200 is a Multi-Standard Output HD encoder allowing the installer to select from
QAM, ATSC, DVB-T, or ISDB-Tb standards. Select any desired changes, including type of RF output.
This needs to be done before making changes on the “Encoder Setup” tab.
1. Select the “RF Output Setup” tab from the top menu.
2. Use the drop down to select the proper RF standard required for your installation.
3. Modify all parameters as needed.
4. Click on the “Save and Confirm” button at the bottom of the “RF Output Setup” tab
5.1 RF Output Setup – QAM / ATSC
Use the RF Output Setup page to set the RF output type, RF Output CH/frequency, and Constellation.
1. Select and set the Modulation ➔ MUST also make selection in Channel Type
Modulation: J.83B / ATSC-8VSB
Note: Country / Bandwidth will automatically be changed to 6MHz and that is the only option
2. Modify and set TS ID & Regional Name
TS ID: (Factory Default is 1)
Regional Name: (Factory Default is USA)
* If installing multiple units in the same system – ensure each device has a unique TS ID.
3. Select and set the RF Type.
RF: Normal, Inverted (Factory Default is Normal)
4. Select and set Channel Type.
Channel Type: J.83B STD, J.83B HRC, J.83B IRC, ATSC (Factory Default is J.83B STD)
5. Select and set the required CH/Freq.
CH/Freq QAM.: Factory Default is 2 (CH range 2-135, Freq. range: 57 ~ 861MHz)
CH/Freq ATSC.: Factory Default is 2. (CH range: 2-69, Freq. range: 57 ~ 803MHz)
6. Select and set the required Constellation.
Constellation (QAM TYPE): 256 QAM, 64 QAM (Factory Default is 256 QAM)
Constellation (8VSB): (Factory Set: 8VSB)
Save and Confirm all changes settings on RF Output Setup page.
Application Note:
When installing more than 1 device into a system, each device must have a unique RF TS_ID.
We highly recommend you save your encoder configuration files.
See Administration tab for how to backup device settings.

Netceed MUL-HDENC-C-200 User Manual
www.multicominc.com [phone]
All Rights Reserved © 2023 Netceed [phone]
20
Above: RF Output Setup Tab – J.83B / ATSC-8VSB
