iConnectivity mio X Series User manual

mio X-Series
Advanced MIDI Interfaces
User Guide

Mio X-Series User Guide Version 20191209
Compliance Statement
mioXM meets the requirements of the following
standards and directives:
•FCC Part 15 Class B
•CAN ICES-003 (B) / NMB-003 (B)
•CISPR 32 Class B
•EN 61000-4-2
•EN 61000-4-2
mioXL meets the requirements of the following
standards and directives:
•FCC Part 15 Class B
•CAN ICES-003 (B) / NMB-003 (B)
•CISPR 32 Class B
•EN 61000-4-2
•EN 61000-4-2
Communication Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by iConnectivity could void the user’s authority to operate the
equipment.
Declaration of Conformity (mioXM)
We iConnectivity declare that the mioXM
complies with Part 15 of the FCC Rules.
Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
Declaration of Conformity (mioXL)
We iConnectivity declare that the mioXL complies
with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this
device may not cause harmful interference, and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
Disposal of Waste Equipment by Users in the European Union
This symbol on the product or its packaging indicates that this product must not be disposed of
with other waste. Instead, it is your responsibility to dispose of your waste equipment by
handing it over to a designated collection point for the recycling of waste electrical and
electronic equipment. The separate collection and recycling of your waste equipment at the
time of disposal will help conserve natural resources and ensure that it is recycled in a manner
that protects human health and the environment. For more information about where you can
drop off your waste equipment for recycling, please contact your local city recycling office or the
dealer from whom you purchased the product.

Mio X-Series User Guide Version 20191209
Table of Contents
Chapter 1: Introduction......................................................................................................1
What’s in the Box?.............................................................................................................2
System Requirements .......................................................................................................2
Chapter 2: Quick Start Guide ............................................................................................3
Chapter 3: Modes of Operation.........................................................................................4
Power Off...........................................................................................................................4
Normal Mode.....................................................................................................................4
Bootloader Mode...............................................................................................................4
Chapter 4: mioXM Hardware Description.........................................................................5
Front Panel........................................................................................................................5
Rear Panel.........................................................................................................................8
Chapter 5: mioXL Hardware Description........................................................................10
Front Panel......................................................................................................................10
Rear Panel.......................................................................................................................12
mioXL User Interface.......................................................................................................14
Chapter 6: Specifications ................................................................................................18
Power Adapter.................................................................................................................18
Dimensions and Weights.................................................................................................18
Other................................................................................................................................18
Appendix A: Software Installation..................................................................................19
Full-Featured Operation...................................................................................................19
Basic USB MIDI Interface Operation ...............................................................................19
Appendix B: Using Bootloader Mode.............................................................................20
Firmware File Format.......................................................................................................20
Appendix C: More Resources .........................................................................................21

Mio X-Series User Guide Page 1
Chapter 1: Introduction
Congratulations on the purchase of your new mio X-Series interface!
Based on iConnectivity’s robust road-tested technology, the mio X-Series (a.k.a. “mioX”)
interfaces are the most advanced MIDI interfaces ever created, with unrivalled configurability
and network expandability.

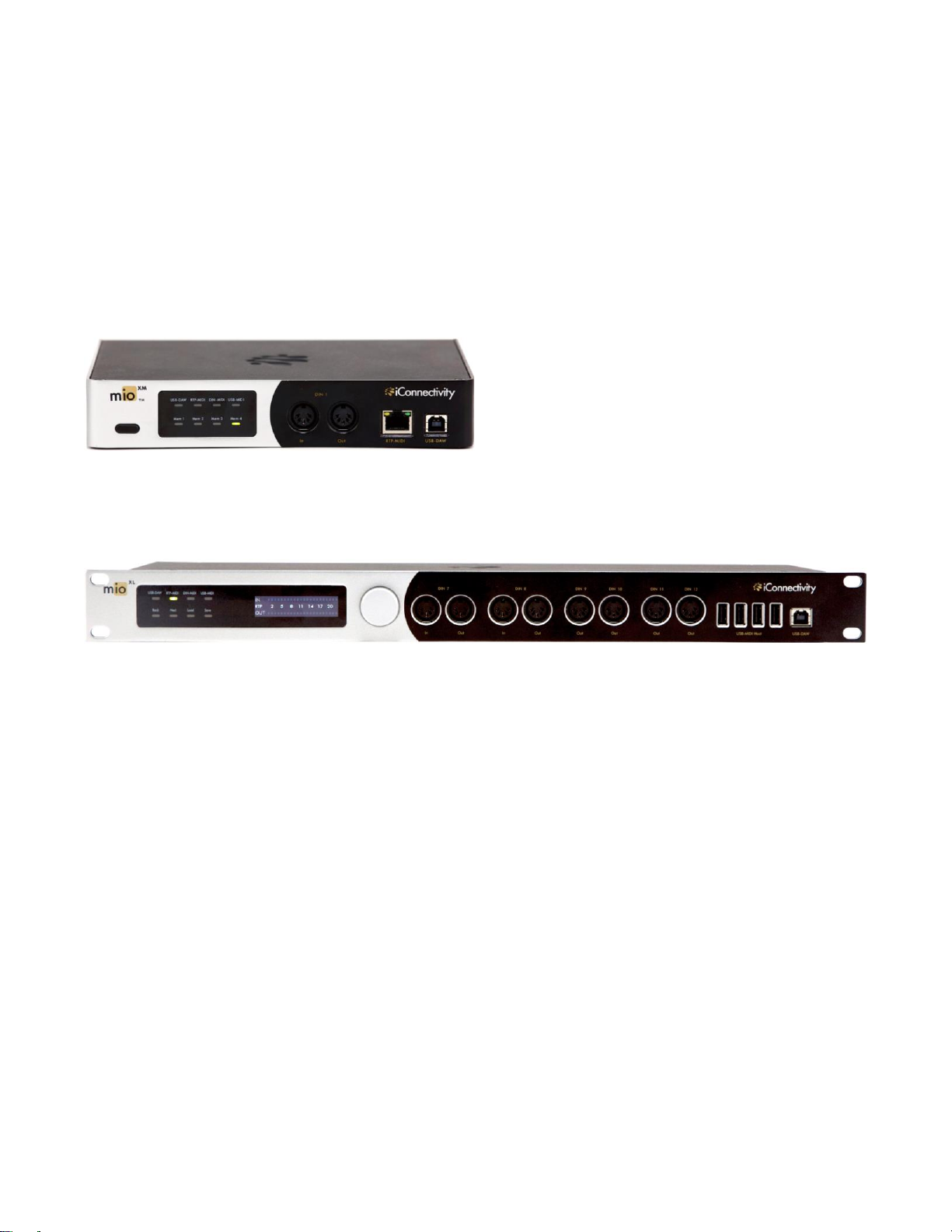

mioXM

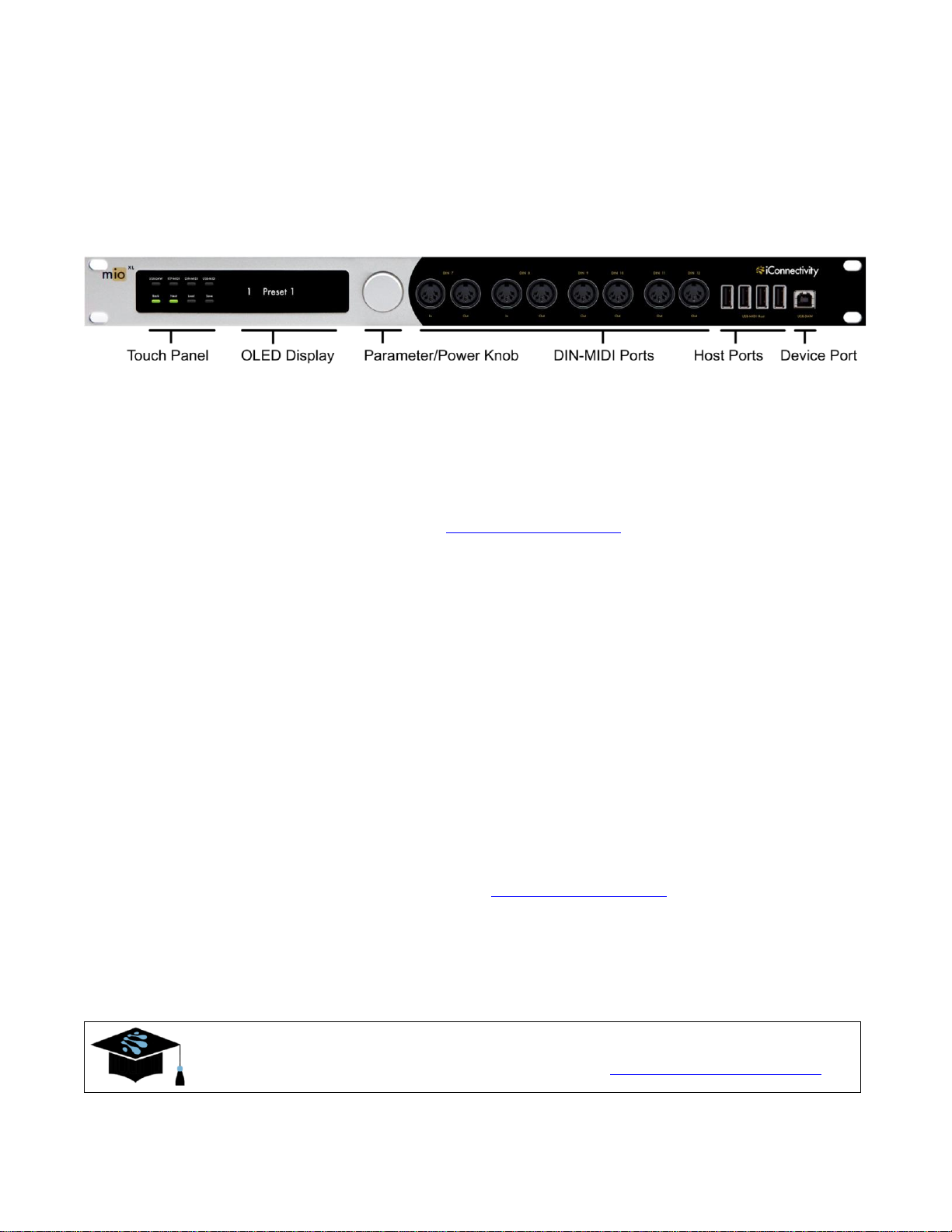

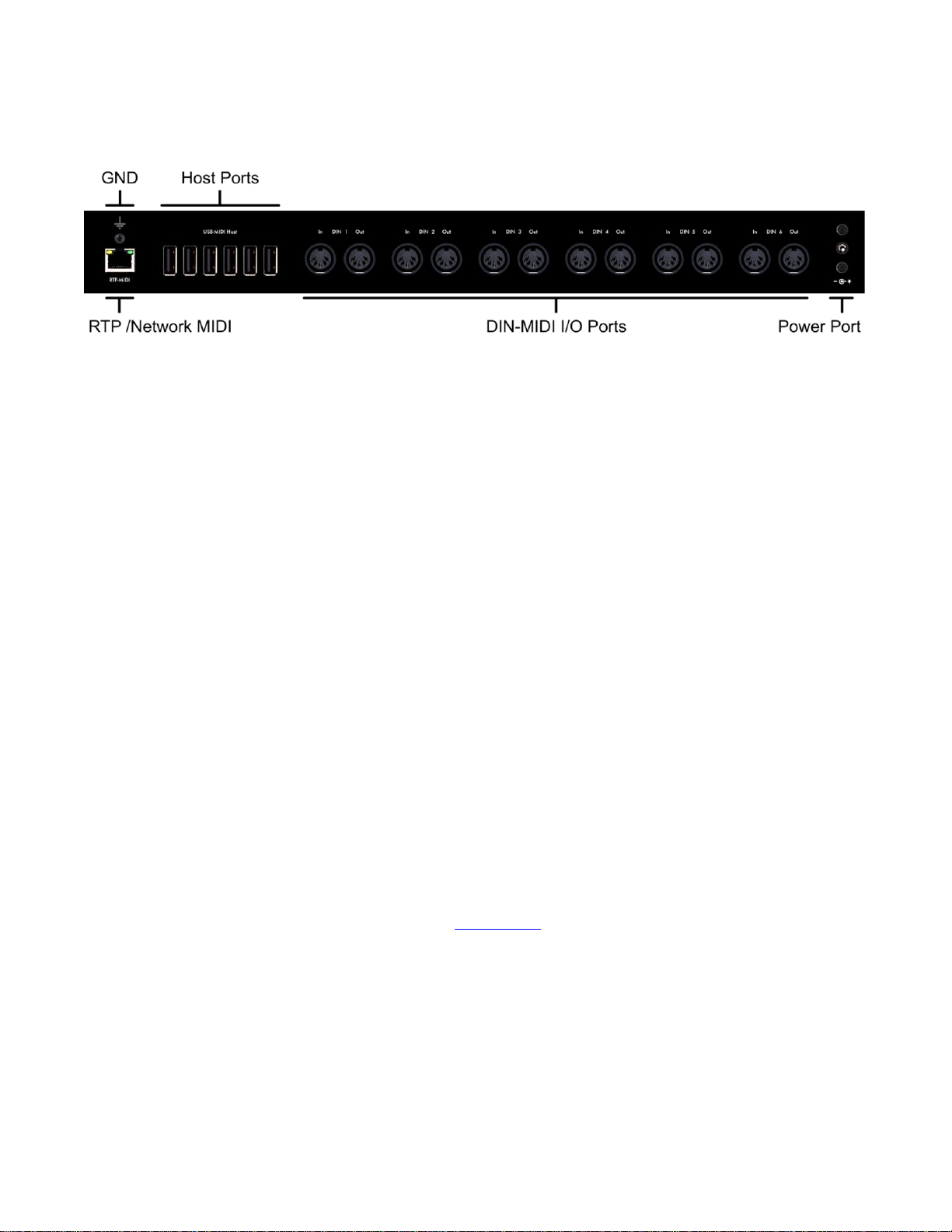

mioXL
iConnectivity makes every effort to develop simple and intuitive hardware and companion
control software. However, because your mioX interface includes so many advanced features,
we strongly recommend that you read this manual carefully, even if you are an experienced
MIDI user.

Mio X-Series User Guide Page 2
What’s in the Box?
•mio X-Series Interface
•Universal Power Adapter: 100V - 240V AC, 50/60 Hz
•USB Cable: Type-A to Type-B
•Ethernet Network Cable
•Optional Rubber Feet (mioXL only, quantity 4)
System Requirements
MacOS
•MacOS X 10.11 (El Capitan) or newer
•One free USB port or Ethernet port
Windows
•Microsoft Windows 7 or Windows 10
•One free USB port or Ethernet port
For more information about these and other products, please visit the
iConnectivity Knowledge Base at the iConnectivity Support Website
Product Features, Specifications, and System Requirements may be subject to change.
Apple logo, macOS, OS X, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries.
iConnectivity, mio, mioX, mioXL, and mioXM are trademarks of iKingdom Corp.
© iKingdom Corp. 2019

Mio X-Series User Guide Page 3
Chapter 2: Quick Start Guide
To start using your mioX interface as a standard USB-MIDI interface right away, follow these
steps:
1. MacOS Users: there are no software drivers to download or install; mioX takes
advantage of the USB MIDI class-compliant drivers built into MacOS.
Windows Users: please download and install the latest version of our Unified Windows
Driver from the iConnectivity web site Windows Drivers page.
2. Using the provided 12V power adapter, connect your mioX interface (power port located
on the rear panel) to your power strip or wall outlet. Depending on your location, you
may need to use one of the included international plug adapters.
3. Using the provided USB cable, connect your mioX to your computer (Type-B end to the
cable to the mioX port marked USB-DAW, Type-A end to the computer). If your
computer does not have USB Type-A ports, you will need to purchase an adapter.
4. Plug your MIDI instruments into the DIN-MIDI ports on your mioX interface.
These steps should get you up and running quickly. However, please note that you will only be
using a fraction of your mioX interface’s potential. In order to unleash the full power of your
mioX, we strongly recommend that you read this entire user guide and install all of the
recommended software. See Appendix A (Software Installation) for more specific information.

Mio X-Series User Guide Page 4
Chapter 3: Modes of Operation
mioX interfaces have three modes of operation:
1. Power Off
2. Normal Mode
3. Bootloader Mode
Power Off
The mioX interface is powered off and not operational.
Normal Mode
As you might guess, this is the normal operational mode that you will use nearly all of the time.
In this mode, the device is powered on and operates as a fully functional interface.
Bootloader Mode
Bootloader Mode is a special service mode used to perform firmware updates. Normally you
will use Auracle for X-Series software to update your firmware and Auracle for X-Series will
automatically switch your mioX between Normal and Bootloader modes as necessary. In rare
situations, mioX users may prefer to manually update their firmware via the bootloader. This
manual process is described in detail in Appendix B (Using Bootloader Mode) of this guide.

Mio X-Series User Guide Page 5

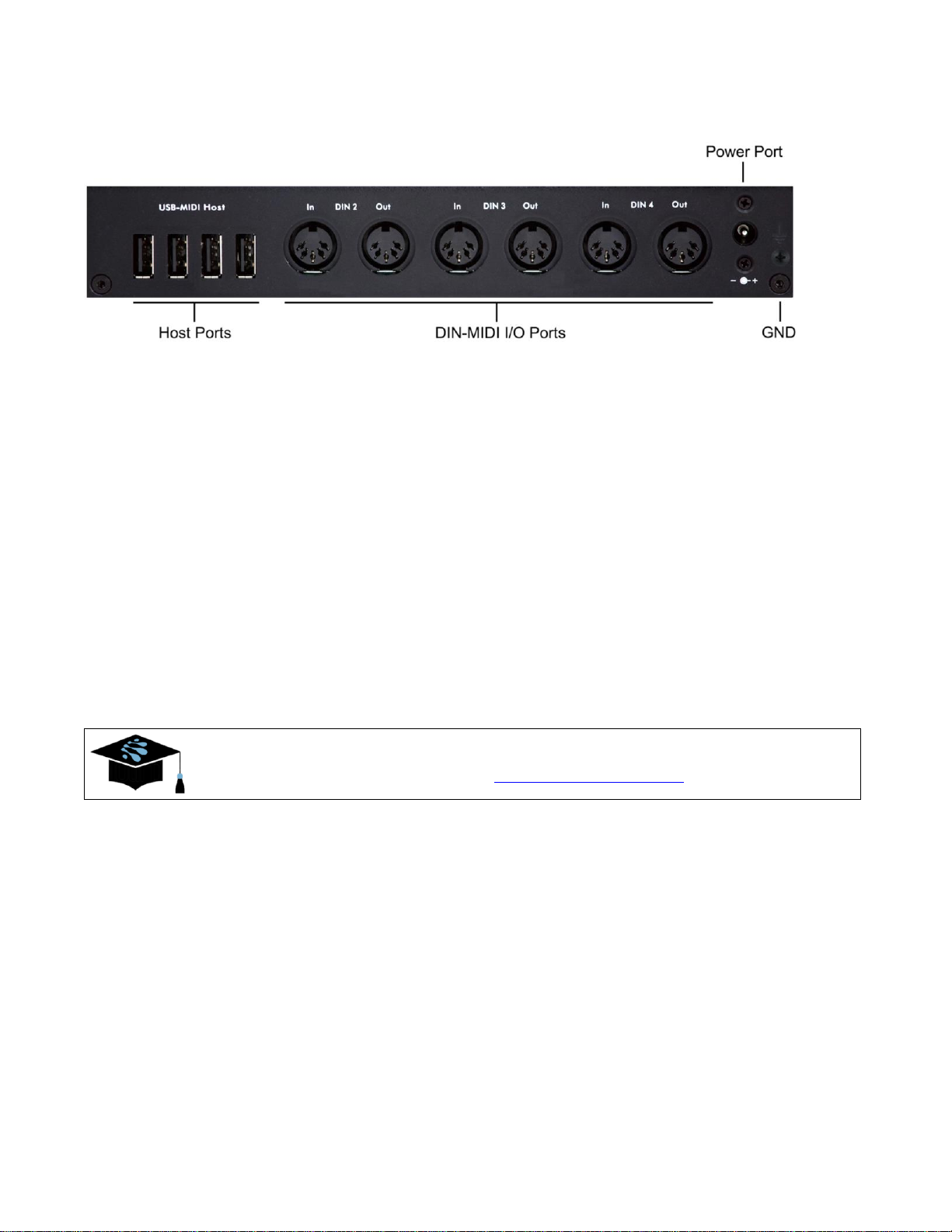

Chapter 4: mioXM Hardware Description

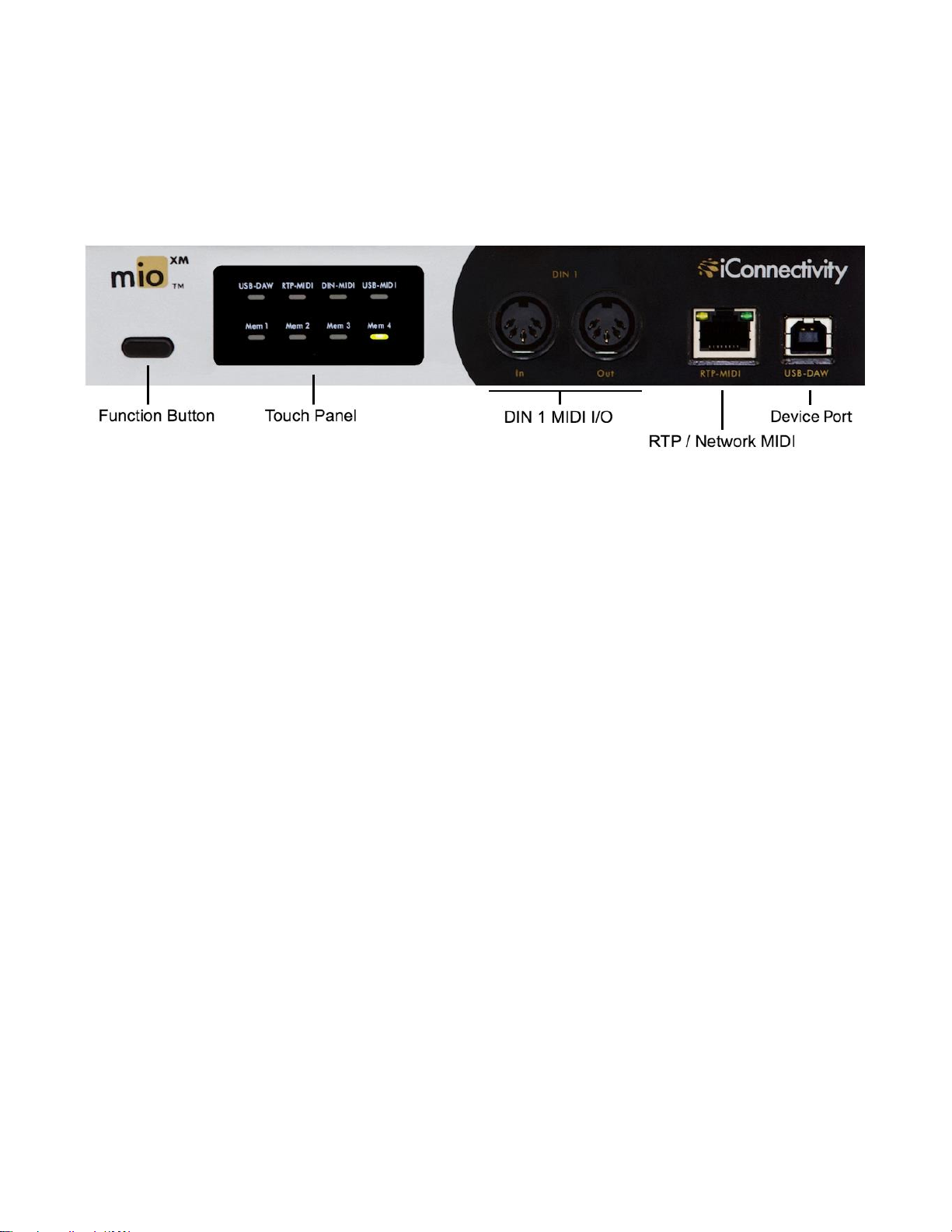

Front Panel
Function Button
The Function Button on the front left of mioXM provides several different functions:
•Powering On
•Powering Off
•Entering Bootloader Mode
Powering On
If the mioXM is currently in a Power Off state, quickly press and release the Function Button to
power up the interface into the Normal Mode of operation. On start-up, mioXM will light the
eight LEDs in a sequence of green then red colors. When start-up is complete, only one of the
four lower row LEDs will remain illuminated; that indicates Normal Mode.
Powering Off
To power off the mioXM, press and hold the Function Button (for 4 to 5 seconds) until all LEDs
are turned off, then immediately release the button.
Entering Bootloader Mode
Bootloader Mode can only be manually entered from the Power Off state. First verify that the
mioX is powered off and then press and hold the Function Button down. The unit will cycle
through green LEDs then red. Once you see red LEDs, immediately release the button.
Bootloader Mode is then indicated by alternately flashing green DIN-MIDI and USB-MIDI
LEDs.

Mio X-Series User Guide Page 6
Touch Panel
The interactive Touch Panel on the front of the mioXM controls several functions of the
interface and displays status on eight LEDs.
Top Row LEDs
The top row LEDs illuminate whenever there is activity on any of the I/O ports:
•USB-DAW (USB MIDI between mioX and your computer)
•RTP-MIDI (RTP/Network MIDI)
•DIN-MIDI (MIDI on DIN Ports)
•USB-MIDI (MIDI on USB Host Ports)
When the mioX transmits data to another device, the corresponding LED will light up green.
When the mioX receives data from another device, the corresponding LED will light up red.
For example: If mioX receives USB MIDI from a connected computer, the USB-DAW LED will
light red. If mioX transmits MIDI out any of the DIN-MIDI ports, the DIN-MIDI
LED will light green.
Bottom Row Controls
The bottom row of the Touch Panel features four touch-sensitive controls, each of which will
load a memory preset (Mem 1 through Mem 4). When you touch the area of a control, the
mioX loads the appropriate memory preset and updates its bottom row LEDs to indicate the
currently active memory.
Note that only one Mem LED will light at a time. The LED color will usually be green, indicating
the preset is loaded and has not been edited by Auracle for X-Series or other control
software. Once a preset has been edited, the LED will turn red; this is to remind you to save
your work before loading another preset. If you do save the preset, or load a new one, the
appropriate LED will turn green.
Front I/O Jacks
The front of the mioXM features several ports that communicate by various MIDI protocols.
If you are not already familiar with the MIDI protocols discussed here, check
out the iConnectivity Knowledge Base at: Intro to MIDI Connections

Mio X-Series User Guide Page 7
DIN 1 MIDI I/O
DIN 1 is a pair of ports (MIDI In and MIDI Out) on 5-pin DIN connectors (where ‘1’ denotes the
first pair of mioX DIN-MIDI ports). Connect these ports to other devices with DIN-type MIDI
connectors. Data flows into the mioX on a MIDI In port and flows out from a MIDI Out port.
Internally, the mioX routes MIDI data between these and all other I/O ports, as configured by
Auracle for X-Series software.
RTP / Network MIDI
The RTP-MIDI port transmits and receives RTP/Network MIDI on a standard ethernet-type
connector. Use the provided ethernet cable to connect to an RTP MIDI network (for example:
your computer or another mioX). If you need a longer run of ethernet cable, you can supply
your own standard ethernet cable of sufficient length. Internally, the mioX routes MIDI data
between this and all other I/O ports, as configured by Auracle for X-Series software.
The RTP-MIDI jack incorporates two useful LEDs:
•The yellow-orange LED lights to indicate the interface is connected to a functioning
network. This LED will stay on continually while you are connected to the network.
•The green LED lights to indicate network traffic, i.e., it will flash each time an ethernet
signal is sent or received via the RTP-MIDI port. Note that it is normal for this LED to
flash occasionally while it is connected to a network, even if you are not currently
sending MIDI at the time.
Device Port
The Device Port labelled USB-DAW is a standard USB Type-B connector. Using the provided
USB cable, connect your mioX to your computer (Type-B end of the cable to the mioX
USB-DAW port and the Type-A end to the computer). If your computer does not have USB
Type-A ports, you will need to purchase an adapter. Once connected, the mioX will appear on
your computer as a USB MIDI interface.
Windows users must first download and install our Unified Windows Driver
from the iConnectivity web site Windows Drivers page.
Internally, the mioX routes MIDI data between this and all other I/O ports, as configured by
Auracle for X-Series software.
