NetPing 886A02 User manual
[Docs] NetPing Converter 0-20mA, 886A02
[Docs] NetPing Converter 0-20mA, 886A02 -
2
Содержание
[ENG] [886A02] Introduction....................................................................................... 4
[ENG] [886A02] Limitation of Liability and Copyright ............................................... 5
[ENG] [886A02] Overview and Main Features ............................................................ 6
The External View of The Sensor ....................................................................................................... 6
Main features...................................................................................................................................... 6
[ENG] [886A02] Connectors and Indications Elements ............................................. 8
Front Panel ......................................................................................................................................... 8
Back Panel.......................................................................................................................................... 9
[ENG] [886A02] Installation and Connection ........................................................... 10
[ENG] [886A02] Loop/Sensor Connection to the Converter.................................... 12
Functions of the converter`s connectors....................................................................................... 12
General information......................................................................................................................... 12
The example of connection ............................................................................................................. 13
Equivalent circuit scheme of a meter input.................................................................................... 14
[ENG] [886A01] Delivery Package ............................................................................. 15
[ENG] [886A02] Warranty .......................................................................................... 16
[ENG] [886A02] Operating and storage conditions ................................................. 17
[ENG] [886A02] Additional Documents and Weblinks............................................. 18
[Docs] NetPing Converter 0-20mA, 886A02 -
–
[Docs] NetPing Converter 0-20mA, 886A02 -[ENG] [886A02] Introduction
[ENG] [886A02] Introduction
–
•
•
•
[ENG] [886A02] Introduction
This manualwill help you get acquainted with the specialities and features of theNetPing Converter 0-20mA,
886A02 model, get an idea of its functionality and technical characteristics and prepare the sensor for operation.
A User Guide is designed for network administrators and users, who set up or operate a device. To work with a
device properly, a user must have an idea about the principles of building and functioning of local networks as well
as possess the next knowledge and skills:
Basic knowledge in the area of local and global networks;
Basicknowledgeintheareaofarchitectureandprinciples of work of TCP/IP networks;
Basic knowledge in the area of architecture and principles of work of Ethernet networks.
[Docs] NetPing Converter 0-20mA, 886A02 -[ENG] [886A02] Limitation of Liability and Copyright
[ENG] [886A02] Limitation of Liability and Copyright
–
[ENG] [886A02] Limitation of Liability and Copyright
The information, contained in this document, can be changed by a manufacturer without a prior notice.Although
every effort was made to make the information in this document accurate and without errors, a manufacturer is not
liable for their possible presence and for the consequences that may result from the errors herein. A manufacturer is
not liable if supplied equipment, software and this user guide does not correspond to expectations of a user and
his/her opinion about where and how to use all the above.All copyrights on supplied devices, described in this User
Guide, as well as firmware and software of devices and this User Guide belong to NetPing global Ltd. Сopying,
replication and translation of this user guide to other languagesare not allowed without a prior written permission
of a rightholder. Copying, replication, changing, disassembling of provided software are not allowed without a prior
written permission of a rightholder. For the part of software that is provided in source codes, there is a separate
license agreement, which defines an order of its use and modification. Other trademarks used in this description
belong to corresponding rightholders.
Developer and manufacturer:
NetPing east Co Ltd.
[Docs] NetPing Converter 0-20mA, 886A02 -[ENG] [886A02] Overview and Main Features
[ENG] [886A02] Overview and Main Features
–
[ENG] [886A02] Overview and Main Features

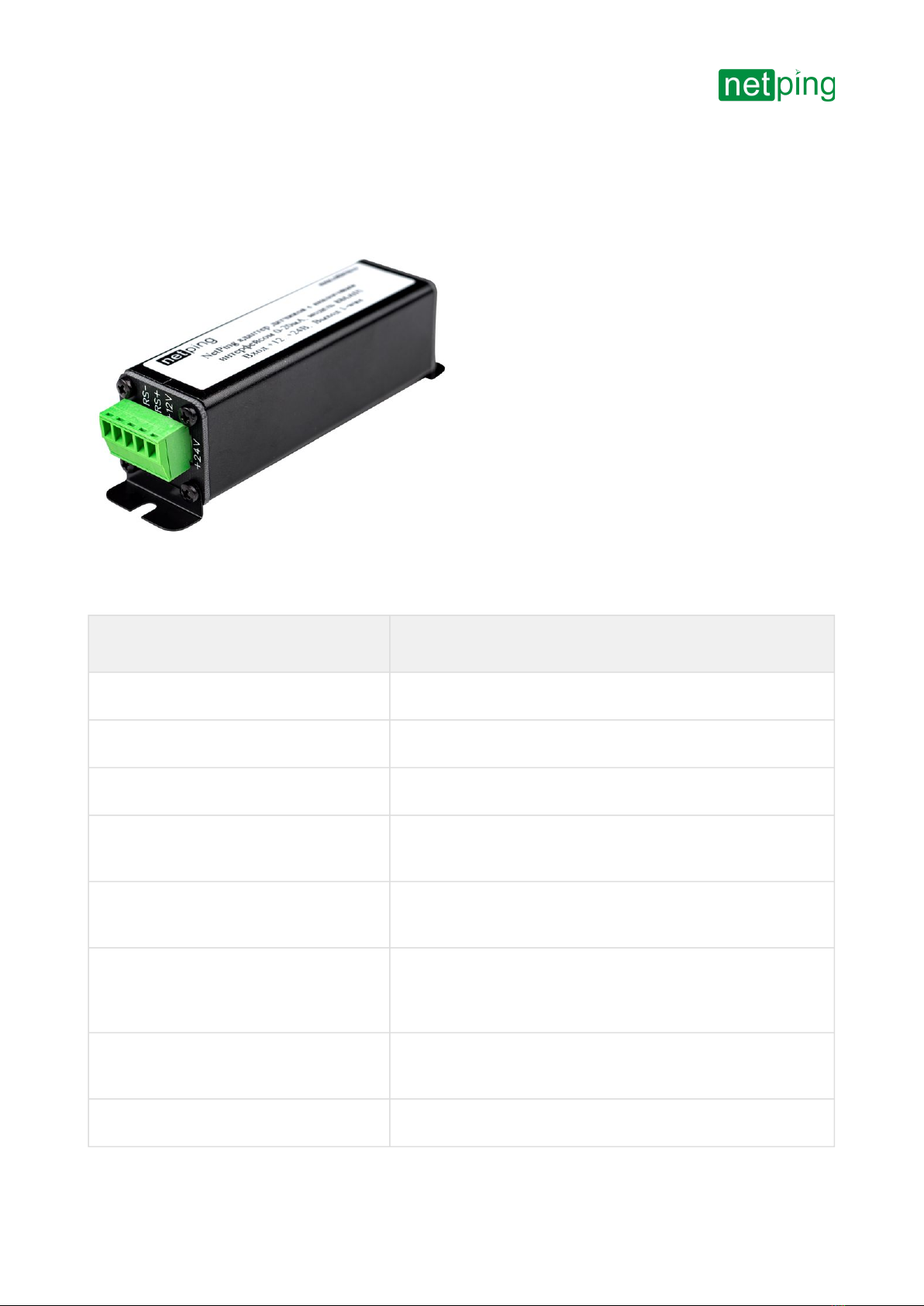

The External View of The Sensor
Main features
Sensor Specifications Values
Сurrent measurement range -30...30 mA ±3%
Мoltage measurement range 0…30 VDC ±3%
Resistance measurement range 0…29999 Ohm ±3%
Current sensor connection type High side (positive polarity), Low side (negative polarity) drop on
the intrumental shunt up to 1V
Loop power supply Built-in 12V with short circuit current 100mA + 24V with output
current up to 30 mA
Power supply From the host device. "Hot" connection to the host is not
provided - it is allowed to reboot the host during the "hot"
connection
Operating Temperature Range -30 °С...+50 °С(without moisture condensation, at normal air
humidity)
Sensor dimentions 95 x 28 x 25
[Docs] NetPing Converter 0-20mA, 886A02 -[ENG] [886A02] Overview and Main Features
[ENG] [886A02] Overview and Main Features
–
Sensor Specifications Values
Sensor weight 70 g
[Docs] NetPing Converter 0-20mA, 886A02 -[ENG] [886A02] Connectors and Indications Elements
[ENG] [886A02] Connectors and Indications Elements
–
[ENG] [886A02] Connectors and Indications Elements

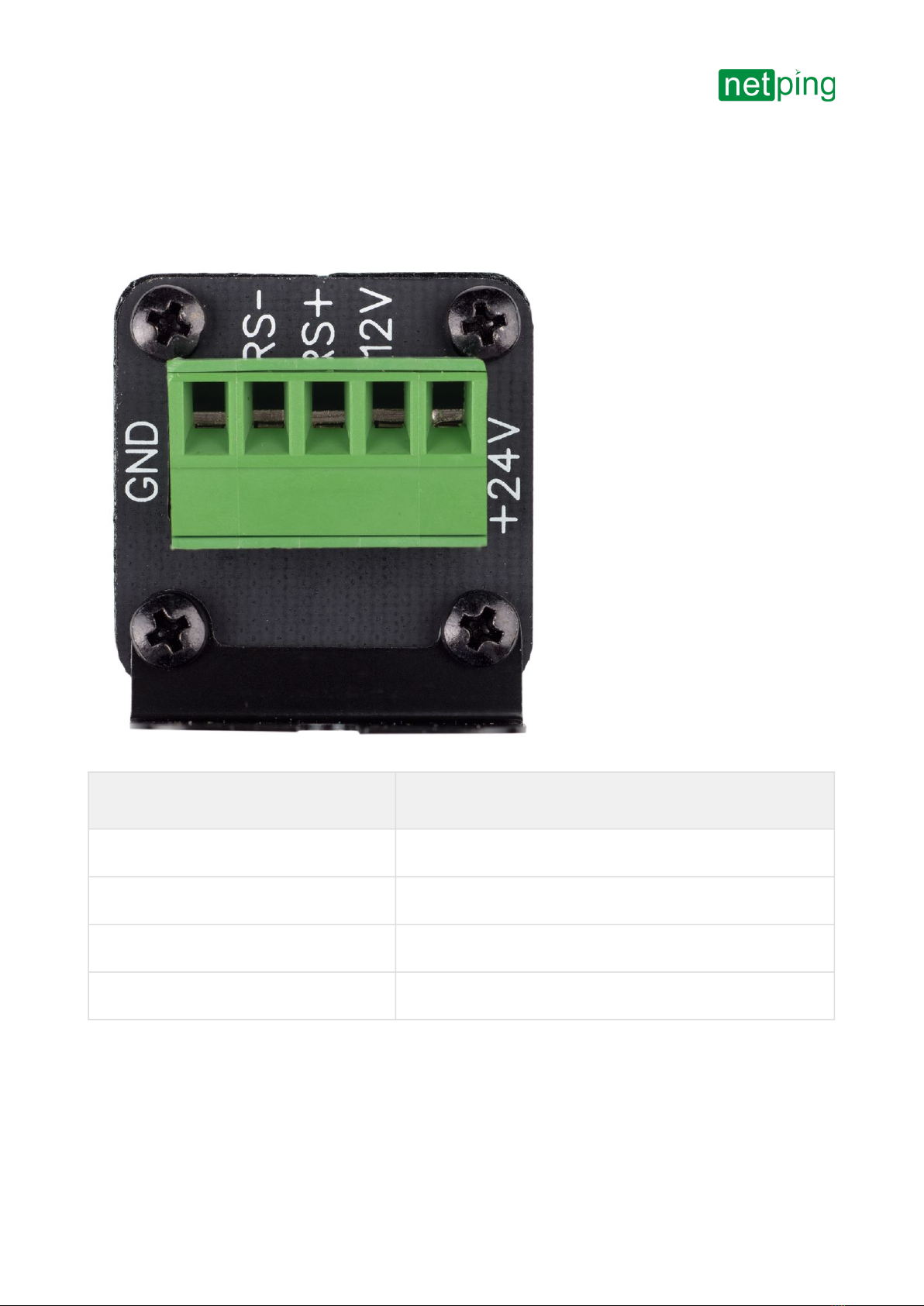

Front Panel
Element Function
GND Common connector
RS- / RS+ Current loop connectors
+12V Power connector +12V
+24V Power connector +24V
[Docs] NetPing Converter 0-20mA, 886A02 -[ENG] [886A02] Connectors and Indications Elements
[ENG] [886A02] Connectors and Indications Elements
–

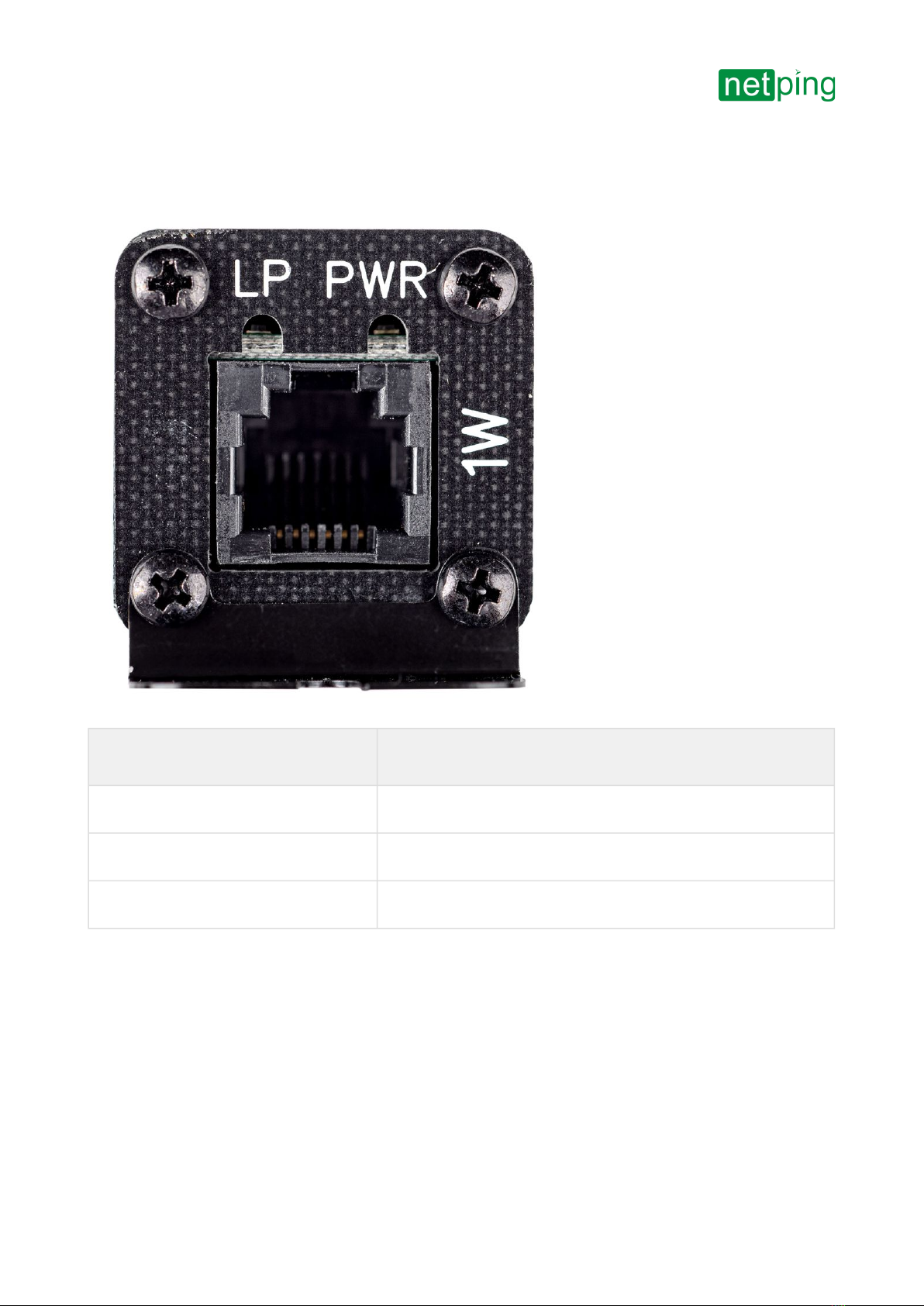

Back Panel
Element Function
LP Loop power indicator
PWR Sensor power indicator
1W Host connector
[Docs] NetPing Converter 0-20mA, 886A02 -[ENG] [886A02] Installation and Connection
[ENG] [886A02] Installation and Connection
–
•
•
•
•
[ENG] [886A02] Installation and Connection
The converter can be mounted on a horizontal or vertical surface. There are mounting holes.
When you install the converter pay attention to the next restrictions:
Do not expose the converter to direct sunlight.
Do not install the converter near heat sources.
Do not open the converter case.
Avoid getting liquid on the converter particularly on the connectors.

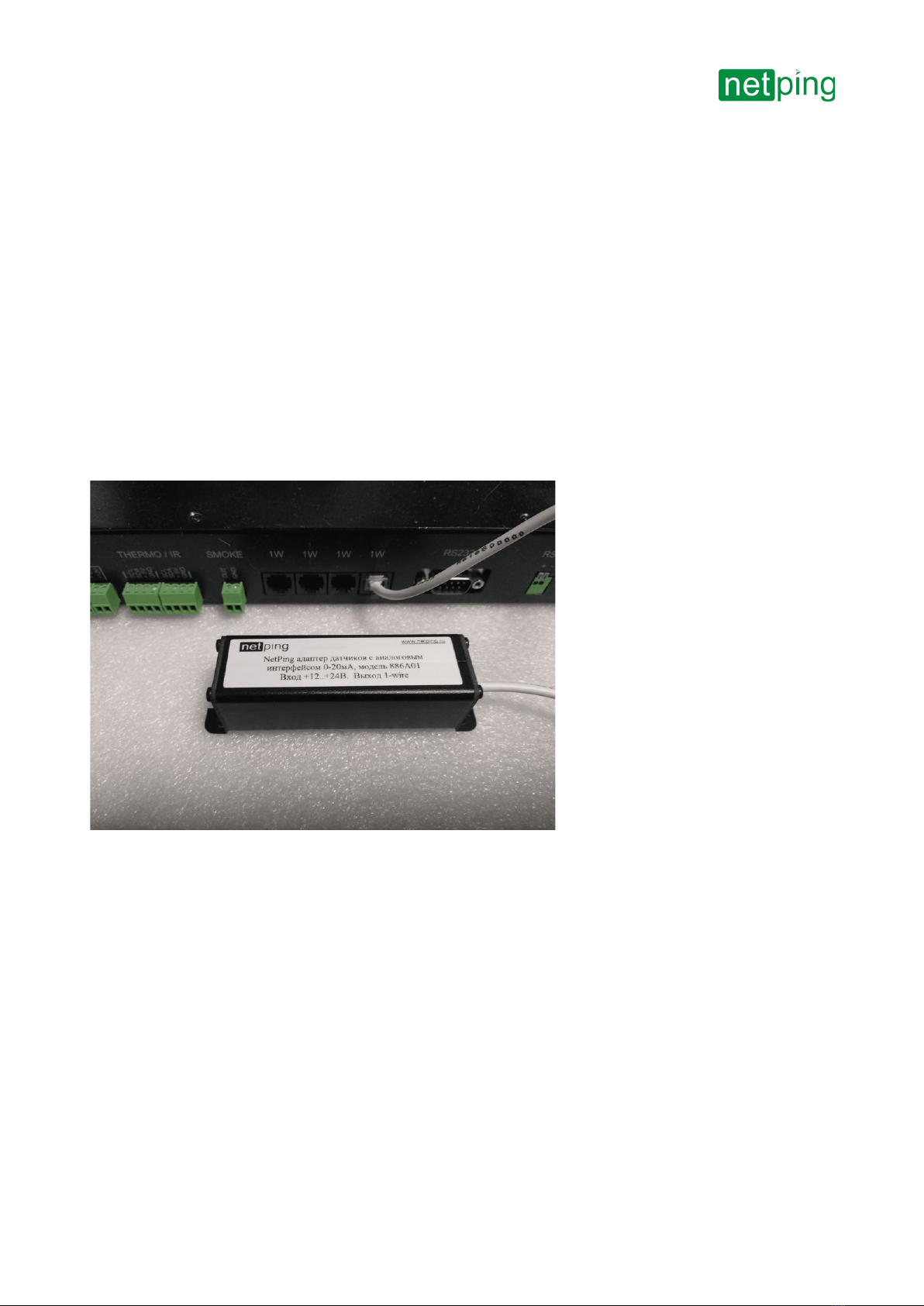

The sequence of connection:
Step 1.
Remove the converter 886A02 from its packaging. Put it onto the place you need.
Step 2.
Connect the converter to the 1-wire port of the device (or through an extension-splitter) to which you are
connecting it. The host device must be disconnected at the time of connection, otherwise it can be rebooted.
Step 3.
Connect the sensor to the converter.
[Docs] NetPing Converter 0-20mA, 886A02 -[ENG] [886A02] Installation and Connection
[ENG] [886A02] Installation and Connection
–
The configuration of the sensor and notifications you can see ina description of a built-in firmware on a connected
host device.
[Docs] NetPing Converter 0-20mA, 886A02 -[ENG] [886A02] Loop/Sensor Connection to the Converter
[ENG] [886A02] Loop/Sensor Connection to the Converter
–
•
•
•
[ENG] [886A02] Loop/Sensor Connection to the Converter
Functions of the converter`s connectors
+24V and +12V — connectors which can give power to the sensor or loop;
RS+ and RS- — «meter» connectors;
GND — common connector.
General information
The main purpose of the converter is to measure the current flowing in the loop. Additionally, the converter can
measure the voltage on RS + and calculate the resistance based on the obtained values.
There are two possible schemes of connection:
Low-side — measuring only the flowing current. Voltage is not measured, resistance is not calculated. The loop is
closer to the power connector, the shunt is on the GND side.
High-side — measuring the flowing current and voltage, calculation of resistance. Voltage measurement error is up
to 60 mV at 30 mA. The loop is closer to GND, the shunt is on the side of the power connector. This scheme is
preferred.
The loop connection must always be in direct polarity - current must flow from RS+ to RS-. Reverse polarity
connection will not damage the device, but the measurement will be incorrect.
[Docs] NetPing Converter 0-20mA, 886A02 -[ENG] [886A02] Loop/Sensor Connection to the Converter
[ENG] [886A02] Loop/Sensor Connection to the Converter
–

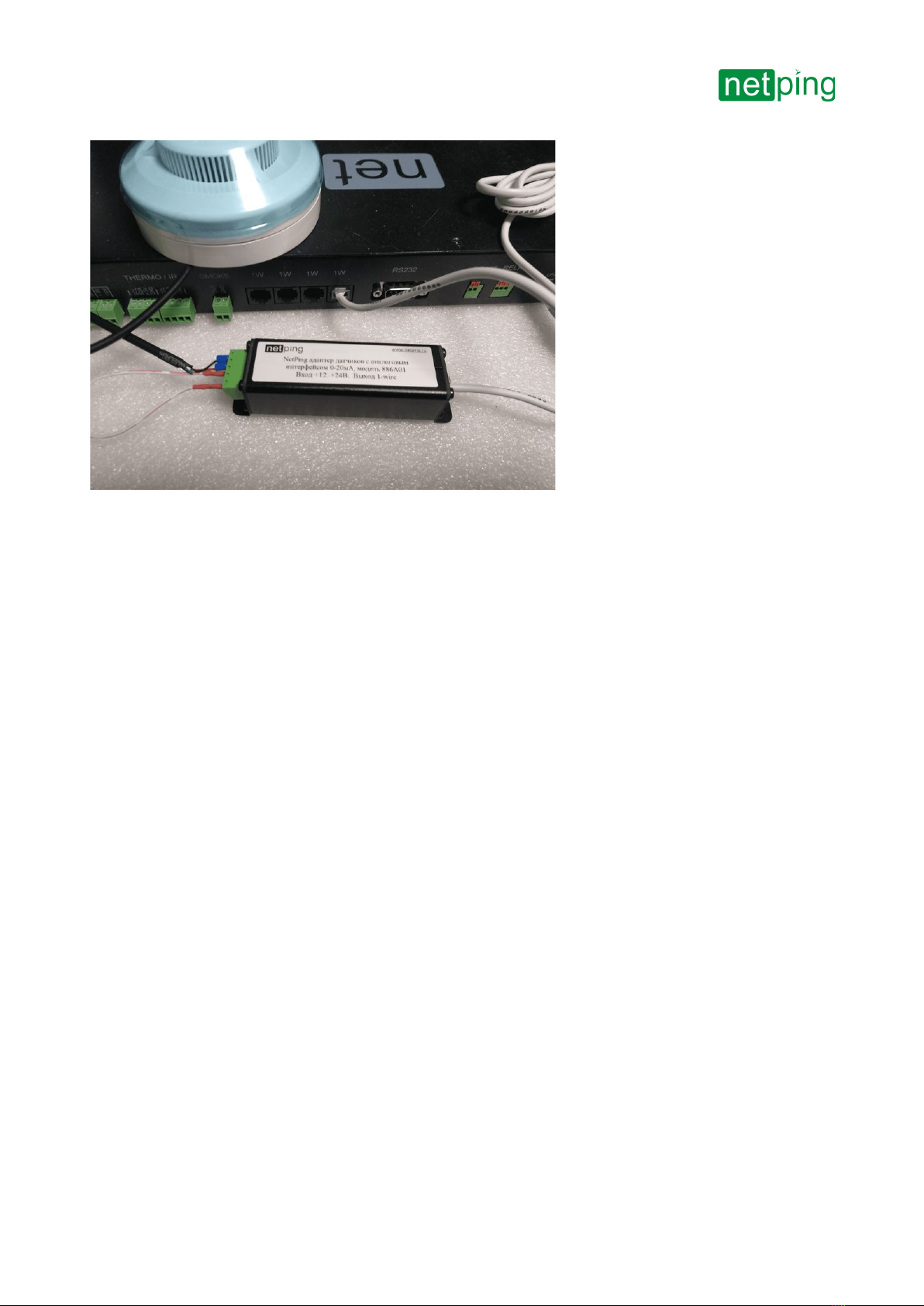

The example of connection
For convenience and clarity, we take a 10 kOhm variable resistor as a sensor, connected according to the High-side
scheme.
Thus, with the "middle" position of the resistor handle: 23,900 mV/4.86 mA = 4918 Ohm.
At the "ultimate" right position: 24,000 mV/2.4 mA = 10,000 Ohm.

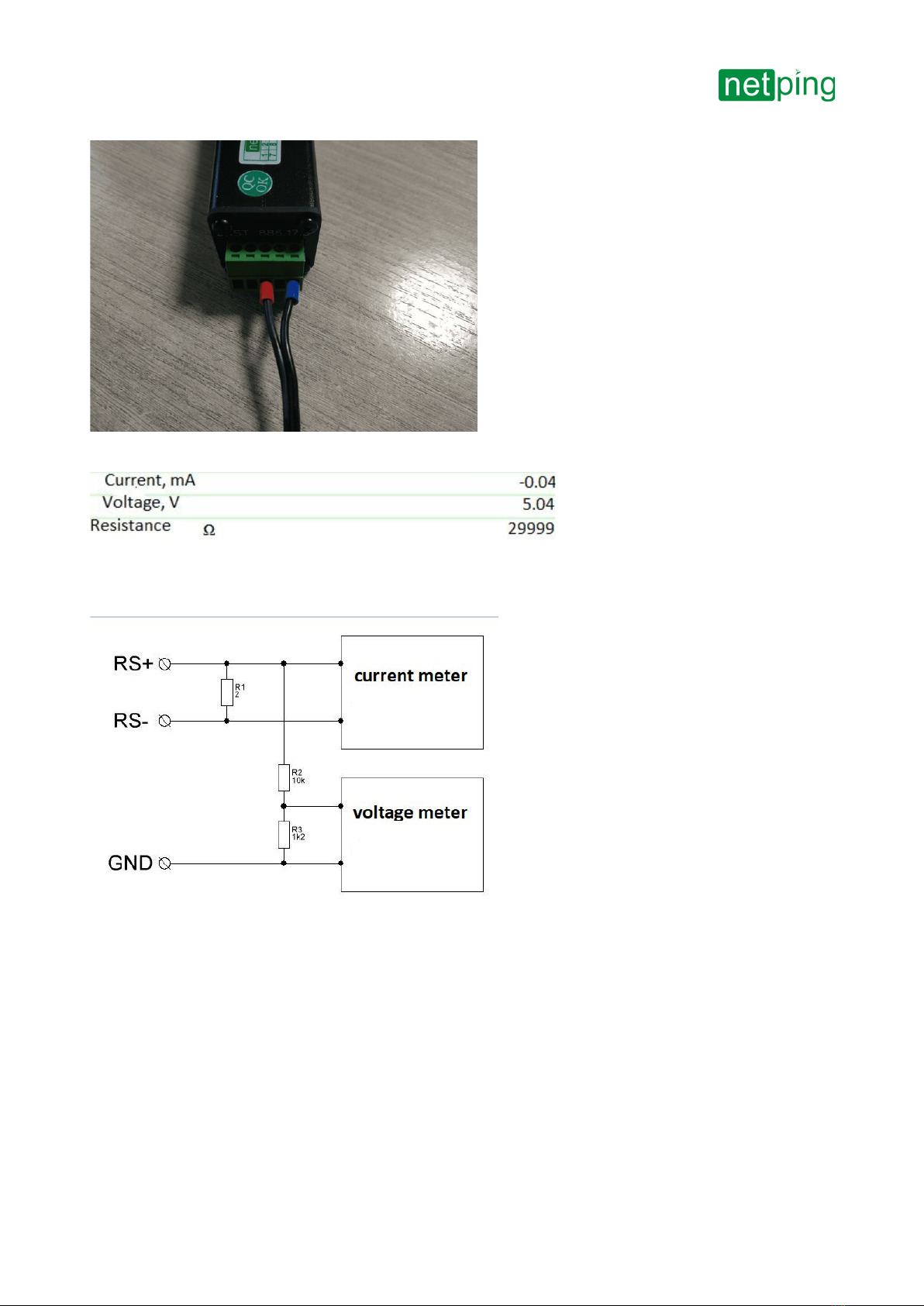

It is possible to measure voltage (0...30V) by connecting the + of the power supply to the RS + connector and
connecting the GND of the power supply and the converter.
Attention!
In case of a short circuit at the output of the current loop power of the converter, it goes into protection. No
further recovery is possible without a power reset.
[Docs] NetPing Converter 0-20mA, 886A02 -[ENG] [886A02] Loop/Sensor Connection to the Converter
[ENG] [886A02] Loop/Sensor Connection to the Converter
–
If you connect it this way, only voltage will be measured.
Equivalent circuit scheme of a meter input
[Docs] NetPing Converter 0-20mA, 886A02 -[ENG] [886A01] Delivery Package
[ENG] [886A01] Delivery Package
–
•
•
•
•
[ENG] [886A01] Delivery Package
The delivery package consists of:
a NetPing Converter with the analogue interface 0–20mA, 886A02 model — 1 pc.;
a Quick Start Guide brochure — 1 pc.;
a flat connecting cable, 6-wire, AWG24, with RJ12 connectors at the ends, 2 meters - 1 pc .;
a terminal block STK-15EDG K-3.5-5P - 1 pc.
[Docs] NetPing Converter 0-20mA, 886A02 -[ENG] [886A02] Warranty
[ENG] [886A02] Warranty
–
•
•
•
•
•
•
•
[ENG] [886A02] Warranty
The manufacturer guarantees normal operation of the product within 24 months from the date specified on the
warranty sticker if a buyer follows operating and storage conditions. Manufacturer warranty applies only to failure
of a device which occurred because of defects in manufacturing process of products and components used. If
during a warranty period the manufacturer receives a notice of such defects, it will repair or exchange the product
(by its own discretion). If the manufacturer is unable to repair or replace a flawed item during a period of time
determined by the current legislation, the manufacturer according to a customer’s wish can return the amount paid
for the product at the time of purchase. The manufacturer provides a limited warranty on firmware and device
configuration software. In case of detecting any errors in the software which became known to the manufacturer on
its own or from a customer, the manufacturer will fix these errors within a reasonable time and provide an update
for the customer. Only the errors that block normal use of the device at conditions and for performing functions
described in this User Guide are a subject to mandatory fix. This warranty does not apply to cases when defects
appear because of: a misuse of a device, any modifications of a device without a written permission of the
manufacturer, opening up a device (a warranty sticker on the case of a device is damaged)except cases foreseen by
this description; repairing by unauthorized personnel, using or storing a device out of the range of allowable
temperature and humidity, pressure, a software modification, and the reasons, listed below:
A device failed because of the problems in a public electric network, plugging a device into power supply
networks with invalid parameters, absence of grounding, etc. (power fluctuations and surges, overloading,
etc.);
A device failed because of having liquid inside;
A device failed as a result of extreme temperatures;
A device failed because of mechanical damage;
A device failed because of connecting a power supply unit with invalid output voltage or a defective power
supply unit;
There are foreign objects, insects, etc inside the enclosure;
During operation a voltage bigger than an allowable voltage range by the Ethernet standard has been
supplied to the ports of a device.
[Docs] NetPing Converter 0-20mA, 886A02 -[ENG] [886A02] Operating and storage conditions
[ENG] [886A02] Operating and storage conditions
–
[ENG] [886A02] Operating and storage conditions
The converter is designed for continuous round-the-clock operation in closed spaces. In operating conditions the
converter is resistant to air temperature from -30°Сup to+50°С(without moisture condensation, at normal
humidity). The converter should be protected from direct sunlight and moisture.
The converter design provides reliable trouble-free operation during a long time without the necessity of special
maintenance.
The storage of converters is carried out at temperatures from -40 °Сup to +70 °С.
The content of dust, vapors of acids and alkalis, corrosive gases and other harmful impurities that cause corrosion
should not exceed the content of corrosive agents for type 1 atmosphere in ctorage rooms.
[Docs] NetPing Converter 0-20mA, 886A02 -[ENG] [886A02] Additional Documents and Weblinks
[ENG] [886A02] Additional Documents and Weblinks
–
[ENG] [886A02] Additional Documents and Weblinks
The page of the converter 886А02:http://www.netpingdevice.com/products/886a02
Manufacturer's website:http://www.netpingdevice.com
Technical support contacts: http://www.netpingdevice.com/support
Phone:+886-2-23121582
E-mail:[email protected]
