INSTALLATION GUIDE FOR THE
DC-DC POWER CONVERTERS
INTRODUCTION
The NTI DC-DC Power Converters convert power from a 24 or 48VDC voltage source (see chart next page) to power many DC
powered devices with various current requirements.
Features:
External DC-DC converter
Used to install NTI products in a Telecom environment
Accepts DC Voltage (see chart)
3-position screw-terminal connection
Accepts positive or negative polarity
3-pole detachable screw terminal for connecting input voltage
2.1x5.5mm male DC power jack for output
Includes a 3-foot female-to-female DC power cable
RoHS compliant
INSTALLATION
Mount the DC-DC Power Converter using the slots in the
mounting ears.

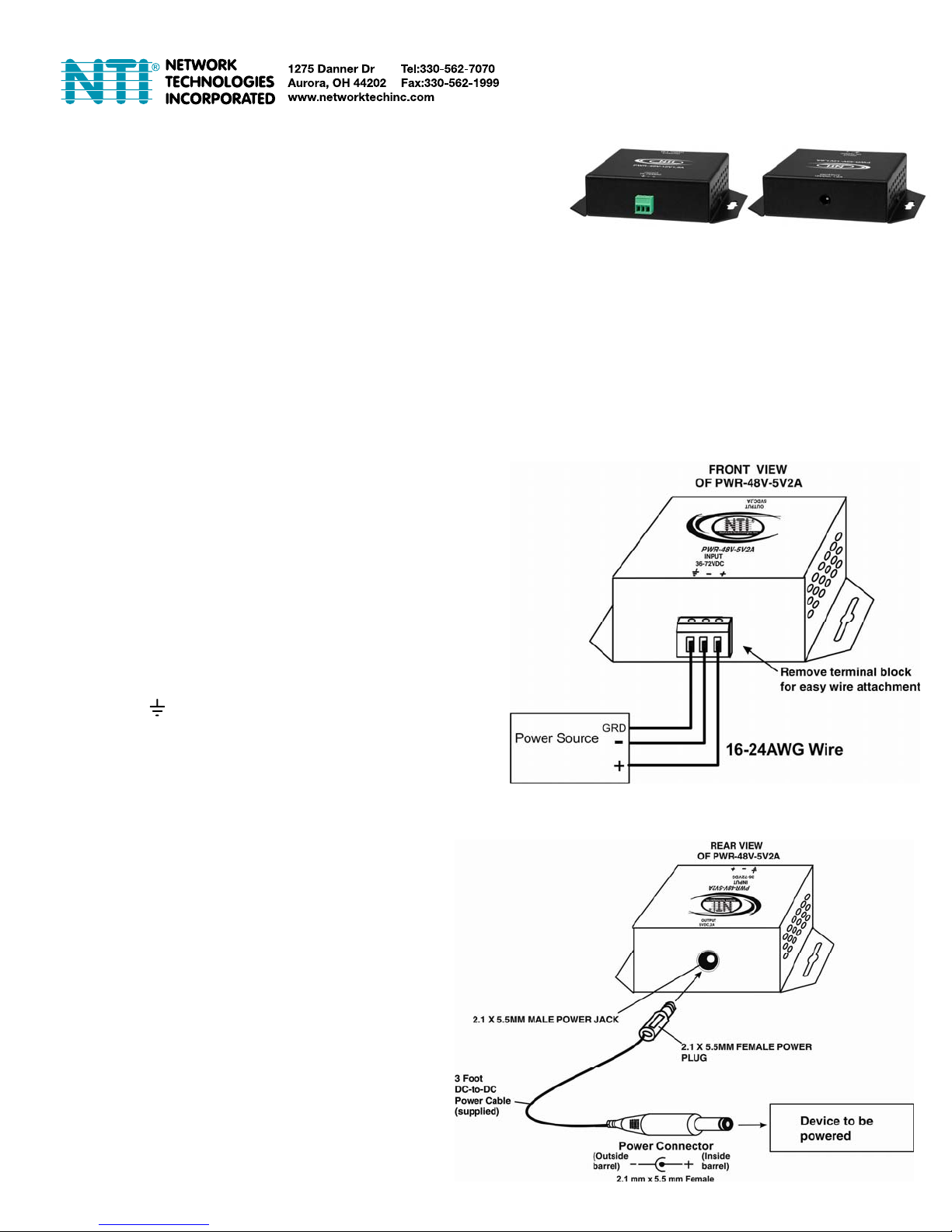

CONNECTION
Note: To prevent damage to the voltage source or the power
converter proper polarity must be observed when making
connections.
Connect a power source using 16-24AWG stranded wire (select
wire size dependant upon your power requirements) to the “+“ ,
“-“ and “ “ (earth ground)connections via the removable
terminal block. Use the chart on the next page (“Input Range”)
to determine the voltage that can be connected to the INPUT
terminals on the power converter.
Note: The wire connection terminal block is easily removed
from the power converter for convenient wire termination.
Connect the 3 foot female-to-female DC power cable
(supplied) between the “Output” port on the power
converter and a device to be powered. Use the chart on
page 2 (“Maximum Current”) to determine the maximum
load that can be placed on the power converter.

2
TECHNICAL SPECIFICATIONS
Model Input
Range
(VDC)
Output
Voltage
(VDC)
Max.
Current
(Amps)
Operating Range Dimensions
WxDxH: (In.)
PWR-48V-5V2A 36-72 5 2 -13 to 158°F (-25 to 70°C) 3.18x3.09x1.08
PWR-48V-5V4A 18-72 5 4 -13 to 158°F (-25 to 70°C) 3.18x3.09x1.08
PWR-48V-12V1-6A 18-72 12 1.6 -13 to 158°F (-25 to 70°C) 3.18x3.09x1.08
PWR-24V-5V2A 18-36 5 2 -13 to 158°F (-25 to 70°C) 3.18x3.09x1.08
Dimensions do not include mounting flanges (add .562 to width for each mounting flange)
COPYRIGHT
Copyright © 2010-2018 Network Technologies Inc All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, OH 44202.
CHANGES
The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the
right to make changes in the product design without reservation and without notification to its users.
WARRANTY INFORMATION
The warranty period on this product (parts and labor) is two (2) years from date of purchase. Please contact Network
Technologies Inc at [phone] or 330-562-7070 for information regarding repairs and/or returns. A return authorization
number is required for all repairs/returns.
MAN128 Rev 9-25-18
