Network Technologies RACKMUX-VS17-T User manual

MAN083 Rev Date 11/15/2007
RACKMUX-VS17-T
RACKMUX-DS17-T
Rackmount Drawer with SUN
Keyboard, LCD Monitor and
Trackball
Installation and Operation Manual
RACKMUX
®
Series
NETWORK
TECHNOLOGIES
INCORPORATED
Tel:[phone]
Fax:[phone]
1275 Danner Dr
Aurora, OH 44202
www.networktechinc.com
NTIR

i
TRADEMARK
RACKMUX is a registered trademark of Network Technologies Inc in the U.S. and other countries.
COPYRIGHT
Copyright © 2007 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
CHANGES
The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the
right to make changes in the product design without reservation and without notification to its users.
Typographic Conventions
The following table describes the typographic changes used in this instruction.
Typeface Meaning Example
AAaaBBaaCCcc123 On-screen computer output C:>
AAaaBBaaCCcc123 What you type, contrasted with on-screen
computer output; keyboard keys to press C:> L
Press the Fn key

ii
TABLE OF CONTENTS
Introduction......................................................................................................................................................................1
Features and Functions...................................................................................................................................................2
Installation .......................................................................................................................................................................3
Rack Mounting Instructions .........................................................................................................................................3
Optional Telco 2-Post Mounting ...............................................................................................................................4
Connect to a CPU........................................................................................................................................................4
Connect Extra Device..................................................................................................................................................5
Connect Power............................................................................................................................................................6
Power Up.....................................................................................................................................................................6
Display Functions............................................................................................................................................................7
Standard Controls........................................................................................................................................................7
OSD Control Menu ......................................................................................................................................................7
OSD Main Menu .......................................................................................................................................................7
Brightness/Contrast Menu........................................................................................................................................8
Color Menu ...............................................................................................................................................................8
Position Menu...........................................................................................................................................................8
Setup Menu...............................................................................................................................................................9
Keyboard Functions ......................................................................................................................................................10
Function Key Operation..........................................................................................................................................10
Number Pad...............................................................................................................................................................11
Other Functions of the "Fn" Key................................................................................................................................12
Power Key .................................................................................................................................................................12
Numeric Keypad Option.............................................................................................................................................13
SAFETY.........................................................................................................................................................................14
RACKMUX-VS17 Drawer Standard Specifications.......................................................................................................15
General Specs...........................................................................................................................................................15
LCD............................................................................................................................................................................15
Display Controller: VGA.............................................................................................................................................15
Display Controller: DVI ..............................................................................................................................................15
OSD Control Board....................................................................................................................................................15
Keyboard....................................................................................................................................................................16
Trackball ....................................................................................................................................................................16
Touchpad (option).....................................................................................................................................................16
DC Power (option).....................................................................................................................................................16
Troubleshooting.............................................................................................................................................................17
Index..............................................................................................................................................................................17
Warranty Information.....................................................................................................................................................17
TABLE OF FIGURES
Figure 1- Mount RACKMUX to a standard rack.................................................................................................................................3
Figure 2- Position RACKMUX with clearance to open.......................................................................................................................3
Figure 3- Mount to Telco post with optional mounting brackets.........................................................................................................4
Figure 4- Connect a SUN USB CPU..................................................................................................................................................4
Figure 5- Cables for DVI video application.........................................................................................................................................5
Figure 6- Connect a USB device to the front (optional)......................................................................................................................5
Figure 7- Connect the power cord .....................................................................................................................................................6
Figure 8- OSD Controls .....................................................................................................................................................................7
Figure 9- US (English) Keyboard Layout .........................................................................................................................................10
Figure 10- Keyboard LED Indications..............................................................................................................................................10
Figure 11- Keys of the Number Pad ................................................................................................................................................11
Figure 12- Additional multi-function keys.........................................................................................................................................12
Figure 13- U.S. SUN Keyboard with numeric keypad......................................................................................................................13

NTI RACKMUX-VS17-T RACKMOUNT LCD MONITOR WITH SUN KEYBOARD AND TRACKBALL MOUSE
1
INTRODUCTION
The RACKMUX-VS17-T Drawer consists of a SUN Keyboard, Trackball, and LCD monitor integrated into a 1RU rack
mountable drawer with wrist pads. When access to a server rack is needed, the drawer can be pulled out and the display lifted up
like a notebook computer, revealing the keyboard and trackball. When the drawer is not in use, the display can be folded forward
and down so the 1RU drawer can be pushed into the cabinet easily and smoothly, helping to organize and streamline busy server
rooms. The NTI RACKMUX product line offers a range of KVM Drawer solutions ideal for rack and server management
applications, which will ensure reliability and serviceability.
The RACKMUX drawer includes an industrial grade 17” LCD monitor, a notebook-style keyboard with SUN extra keys
and a three-button trackball. The standard video format is VGA (-VS17-T), but single-link DVI support is optional (-DS17-T).
The keyboard and mouse interface supports SUN USB protocol and is compatible with SUN platform CPUs.
Installing the RACKMUX into any server environment will offer:
•A space saving 1RU design, easily mountable in any 19” cabinet/rack
•A forward-folding 17” TFT LCD with built-in OSD menu for screen adjustments
•Auto shut-OFF switch: Turns OFF the power to the monitor when the LCD is in a folded-closed position.
•Built-in 83-key (US) or 84-key (Europe) keyboard plus 14 SUN extra keys
•Standard 3-button trackball (3-button touchpad mouse optional)
•Support for USB connection of the keyboard and trackballl.
•Support for VGA or single-link DVI signals
•Front-access USB port for easy accessory USB 1.1 device connection
•An internal cable arm for proper cable management when sliding the drawer open and closed
•Added security with a drawer lock to prevent unwanted access
•Locking rails to prevent movement of the drawer when fully extended
•Built-in universal (100-240VAC) low power consumption power supply
•Multi-language support including: US(English), UK (English), German, French, Italian, Spanish
Materials Included with this kit:
9NTI RACKMUX-VS17-T Drawer
9IEC Power Cord- country specific
9CD with pdf file of this owner's manual
9USB-AB-2M 2 meter USB Type A male-to-USB Type B male cable
92 Keys for Lock
92 Rear Mounting Brackets w/nuts
98 #10-32x3/4” screws and cage nuts for mounting to a rack
9VEXT-THN-6-MM 6 foot VGA video cable (models with VGA Video support only)
9DVI-D-6 6 foot DVI video cable (models with DVI Video support only)
Optional Cable:
USBVEXT-xx-MM for VGA Monitor and USB Keyboard and Mouse input (available in 3,6,10, and 15 foot lengths)
where:
xx is the length of the cable in feet
MM indicates male-to-male connector
Options:
•DC Power option- for use with 36-72VDC input- add “48V” to the part number (i.e. RACKMUX-VS17-T48V )
•Touchpad mouse- drawer will have a touchpad-style mouse instead of a trackball- remove the “-T” from the part number (i.e.
RACKMUX-VS17)
•Rackmounting kit for two-post Telco rack - order RL-T15-TEL
•RACKMUX drawer with DVI support, instead of VGA- order RACKMUX-DS17-T.
•Numeric keypad option- for a separate 17-key numeric keypad, add “-N” to the part number (i.e. RACKMUX-VS17-TN)

NTI RACKMUX-VS17-T RACKMOUNT LCD MONITOR WITH SUN KEYBOARD AND TRACKBALL MOUSE
2
FEATURES AND FUNCTIONS
1. Power Button- press to turn the LCD monitor ON and OFF
2. Power LED- Indicates operation status
Green = Power-ON, Video Input Signal OK
Red = Suspend / Stand-by, or no Video Input Signal
3. Menu Button- press to turn ON the OSD menu
4. Up Arrow Button- press to move the cursor in the OSD menu up
5. Down Arrow Button- press to move the cursor in the OSD menu down
6. Select Button- press to select a menu item (when OSD menu is ON) or press to auto adjust the video quality (when OSD
menu is OFF)
7. NumLock LED- illuminates when the number lock is ON
8. CapsLock LED- illuminates when CapsLock Is ON
9. Scroll Lock LED- illuminates when the Scroll Lock keyboard feature is ON.
10. Fn LED- illuminates when Function Features are enabled (see page 10) .
11. Compose LED- illuminates when the SUN compose feature is locked ON
12. Keyboard- for manual data entry and computer control
13. Keylock- to prevent unauthorized use of the RACKMUX
14. Auto Shut-OFF- switch automatically shuts OFF the LCD display when the monitor is folded down
15. Trackball - for controlling mouse movements on the monitor and controlling the computer
16. USB Port- USB Type A female- for connection of any USB 1.1 compatible device (such as a flashdrive, printer, etc)
17. LCD Display- for viewing the video signal from the connected CPU
18. Wrist Pads- for user comfort
19. IEC Connector- for attachment of the IEC power cord to power the RACKMUX drawer
20. Switch- for powering ON and OFF the RACKMUX drawer
21. Video In- 21A. 15HD Female- for connection of the DVI video cable from the CPU (only in models that support VGA)
21B. DVI-D Female- for connection of a DVI-D video cable from the CPU (only in models that support DVI)
22. USB- USB Type B female- for connection of the USB devices cable from a USB CPU
19 Rear View
RACKMUX-VS17-T
20 22
Front View
RACKMUX-VS17-T
17
15 13
14 1A
9
8
7
Fn
10
16
11
Compose
12
1
2
3
4
5
6
18
(RACKMUX-DS17-T)(RACKMUX-VS17-T)
21A 21B
- or -

NTI RACKMUX-VS17-T RACKMOUNT LCD MONITOR WITH SUN KEYBOARD AND TRACKBALL MOUSE
3
INSTALLATION
Rack Mounting Instructions
The RACKMUX was designed to be mounted to a rack and includes mounting flanges to make attachment easy.
1. Determine the mounting height in the rack for the drawer. It should be a height comfortable to use the keyboard and see the
LCD display. Mark holes in each of the 4 corner cabinet rails at points all level with each other.
2. Secure the rear brackets to the rear rack cabinet rails. Apply the top screws (supplied) for each bracket to the holes marked in
step 1.
3. Lift the keyboard into position and line the studs on the left and right sides up with the slotted openings in the rear bracket.
Apply the nuts (supplied) to the studs but do not tighten the nuts yet.
FYI: There are 4 mounting studs provided on each side of the RACKMUX. Depending on the depth of the rack and
distance apart of the cabinet rails, the position of the rear bracket may make all 4 studs available for use. In this case,
apply the 2 nuts to the studs furthest apart from each other on each side.
4.Slide the drawer in until the top holes in the front bracket flanges line up with the holes marked in step 1. Secure the front
brackets on the drawer to the front cabinet rails with two more screws per bracket. Be sure to tighten the screws securely.
Then tighten the nuts applied in step 3.
5.Apply one more screw to each of the rear brackets to finish.
Figure 1- Mount RACKMUX to a standard rack
Note: To provide sufficient room for the LCD monitor to be opened to a proper viewing angle (a minimum 90 degree
position from the keyboard), ensure that all devices mounted above the RACKMUX extend no more than 1.75” from the
rack frame. (See Fig. 2)
Figure 2- Position RACKMUX with clearance to open
Apply nuts (supplied) to studs and
secure rear brackets to drawer.
Front bracket
flange on drawer
Rear bracket
flange
Drawer
Front Cabinet
Rail Rear Cabinet
Rail
Rear bracket overlapping
drawer (Rear edge
of drawer)
Stud on drawer
Secure bracket
to rail using two
screws and nut
s
(supplied)
Secure bracket
to rail using two
screws and nuts
(supplied)
Side View of RACKMUX
"X" must be
less than 1.75"
for LCD to open
to full 90
X
90
Server mounted
above RACKMUX
in the same rack

NTI RACKMUX-VS17-T RACKMOUNT LCD MONITOR WITH SUN KEYBOARD AND TRACKBALL MOUSE
4

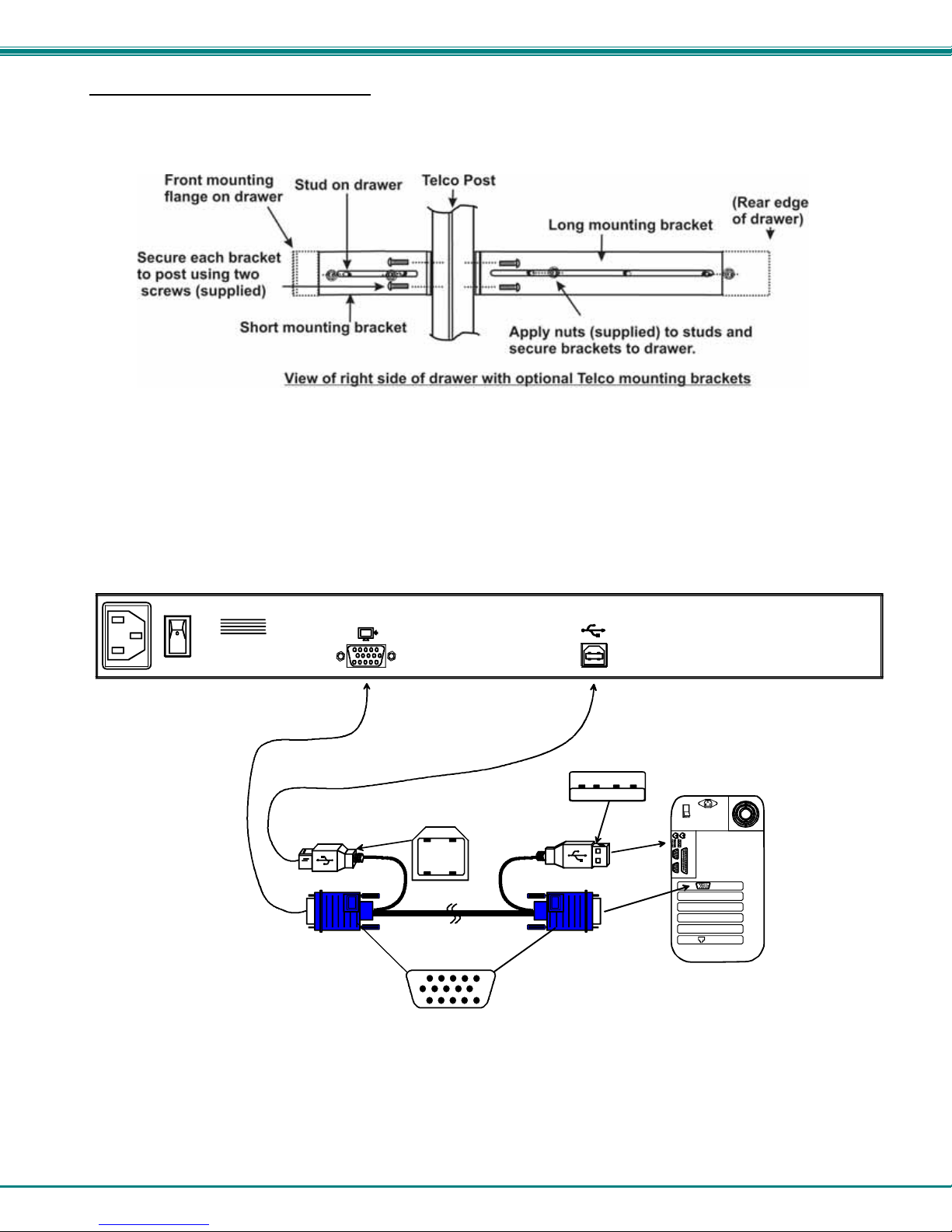

Optional Telco 2-Post Mounting
If the Telco 2-post mounting bracket kit (NTI# RL-T15-TEL)is to be used, secure the short and long brackets to each side of the
drawer as shown in Fig. 2. Apply 2 nuts (supplied) per bracket to secure the brackets to the drawer. Apply two #10-32x3/4”
screws (supplied) per bracket to the post at the desired height. Slots are provided in the brackets to make minor depth
adjustments easy. Be sure to properly tighten all nuts and screws before using the drawer.
Figure 3- Mount to Telco post with optional mounting brackets
Connect to a CPU
The RACKMUX-VS17-T may be connected to a USB CPU with a VGA video port using the USB-AB-2M and VEXT-6-MM cables
provided as shown in Fig. 4.
Figure 4- Connect a SUN USB CPU
USBVEXT-xx-MM
SUN USB CPU
USB Type A Male
USB Type B
Male
15HD Male
Video Connector
REAR VIEW OF RACKMUX-VS17-T
NTI NETWORK
TECHNOLOGIES
INCORPORATED
Tel:[phone]
Fax:[phone]
1275 Danner Dr
Aurora, OH 44202
www.networktechinc.com

NTI RACKMUX-VS17-T RACKMOUNT LCD MONITOR WITH SUN KEYBOARD AND TRACKBALL MOUSE
5
When connecting a CPU with DVI support (RACKMUX-DS17-T) to the single-link DVI port of the RACKMUX, use the DVI-D-6
(supplied with DS17 models) for the DVI video signal and the USB-AB-2M (supplied) for the USB connection between the CPU
and RACKMUX.
Figure 5- Cables for DVI video application
Connect Extra Device
On the front of the RACKMUX-VS17-T is an additional USB Type A port to be used, if desired, for an extra accessory. Any low or
full speed USB device may be connected to this port to be used. This port is fully compliant with USB 1.1 standard.
Note: If a USB keyboard or mouse is connected, operation of the RACKMUX-VS17-T keyboard or trackball may cause
unpredictable results. Do not try to use both mice or both keyboards at the same time.
Figure 6- Connect a USB device to the front (optional)
Note: If a USB 2.0 device is connected to the optional USB device port, it will operate at USB 1.1 speed.
CAMERA
PRINTER SCANNER
Connect optional USB 1.1 or 2.0 device
FLASH DRIVE
FRONT VIEW OF RACKMUX-VS17-T
USB-B - Male
USB-A - Male
DVI-D-Male
USB-AB-2M
(supplied)
DVI-D-6
(supplied with DS17 models)
DVI-D-Male
USB Type B
Male
USB Type A
Male
(.5, 1, 3, and 5 meter cables also available)
(3 and 9 foot cables also available)
DVI-D-Male

NTI RACKMUX-VS17-T RACKMOUNT LCD MONITOR WITH SUN KEYBOARD AND TRACKBALL MOUSE
6
Connect Power
Connect the IEC power cord to the power port as shown below.
Figure 7- Connect the power cord
Power Up
Power up the RACKMUX-VS17-T and connected computer in this order.
1. Power On the RACKMUX-VS17-T
2. Power ON the attached CPU.
If a device is plugged into the USB port on the front of the RACKMUX, it can powered-ON at any time.
REAR VIEW OF RACKMUX-VS17-T
IEC Powercord
NTI NETWORK
TECHNOLOGIES
INCORPORATED
Tel:[phone]
Fax:[phone]
1275 Danner Dr
Aurora, OH 44202
www.networktechinc.com

NTI RACKMUX-VS17-T RACKMOUNT LCD MONITOR WITH SUN KEYBOARD AND TRACKBALL MOUSE
7
DISPLAY FUNCTIONS
Standard Controls
The RACKMUX has 5 standard control buttons and a power LED. The 5 standard control buttons operate as follows:
•The Power button turns the RACKMUX LCD and backlight ON and OFF as desired.
•The Power LED located immediately below the Power button is a dual color
LED. It will illuminate with a green color when the RACKMUX is powered
ON and working properly. It will illuminate with a red color if the RACKMUX
is powered ON but there is no input signal detected.
•The Menu button is used to bring up the OSD menu where the various
settings of the LCD display can be adjusted. Once the OSD screen is
displayed, the Menu button is used to make selections within the menus.
See "OSD Control Menu" (below) for more on LCD display settings.
•The Up and Down Arrow buttons are used to navigate through the menus.
Move the cursor up or down as desired to highlight an item for selection.
Once an item is highlighted, pressing the Menu button will select it.
Figure 8- OSD Controls
•The Select button is used to make selections within the OSD menus when the OSD menu is ON. When the OSD menu is
OFF, the Select button will act as an Auto Adjust button to keep the user from having to use the menus to adjust the quality
of the image on the monitor.
OSD Control Menu
The OSD (On Screen Display) Menu enables the user to select the desired characteristics of the LCD display. To activate the
OSD Menu, press the Menu button (above). To turn the Menu back OFF, either select "EXIT" from the main menu or just wait
10-60 seconds and it will automatically be cleared from the screen.
OSD Main Menu
Selection Purpose Range
Brightness/Contrast Increase/decrease panel brightness/contrast level 1-100
Color R,G,B color temperature control 1-100
Position •Video Image horizontal and vertical position control
•Clock setting
•Phase control
1-100
Setup •Control OSD Image position on screen
•Set time OSD will stay on screen before auto shutoff
•Select the language of the OSD menu
--
10 to 60 seconds
Several languages (see page 8)
Exit Exit from the OSD control menu
Power
ON/OFF
Menu
Up Arrow
Select/
Auto Adjust
Power LED
Down Arrow Controls for the
OSD Menus

NTI RACKMUX-VS17-T RACKMOUNT LCD MONITOR WITH SUN KEYBOARD AND TRACKBALL MOUSE
8
Brightness/Contrast Menu
Selecting the Brightness/Contrast menu will bring up a screen in which the user can adjust the brightness and contrast levels of
the LCD display. With either the BRIGHTNESS or CONTRAST sections highlighted, (use the Up or Down arrow to move
between them), press the Select button to choose the option to adjust. Then use the Up or Down Arrow to adjust the setting.
Select EXIT when finished to return to the Main Menu.
Color Menu
Selecting the Color menu will bring up a screen in which the user can adjust the Red, Green, and Blue color levels (values from 1-
100) of the LCD display. With the RED, GREEN, or BLUE sections highlighted, (use the Up or Down arrow to move between
them), press the Select button to choose the option to adjust. Then use the Up or Down Arrow to adjust the setting.
Select EXIT when finished to return to the Main Menu.
Position Menu
Selecting the Position menu will bring up a screen in which the user can select AUTO ADJUST to automatically adjust the
horizontal and vertical position of the displayed image on the monitor, as well as adjust the clock and phase settings if they are not
correct. The user can also individually adjust these settings if so desired. With any of the sections highlighted, (use the Up or
Down arrow to move between them), press the Select button to choose the option to adjust. Then use the Up or Down Arrow
to adjust the setting as needed. Select EXIT when finished to return to the Main Menu.

NTI RACKMUX-VS17-T RACKMOUNT LCD MONITOR WITH SUN KEYBOARD AND TRACKBALL MOUSE
9
Setup Menu
Selecting the Setup menu will bring up a screen in which the user can adjust
OSD POSITION-the position of the OSD menus on the LCD display
OSD TIME-the length of time the user can be idle before the OSD menu automatically exits (adjustable from 10
to 60 seconds)
LANGUAGE-the language that the OSD menus will be presented in
With the item highlighted, (use the Up or Down arrow to move between them), press the Select button to choose the option to
adjust. Then use the Up or Down Arrow to adjust the setting as needed. Select EXIT when finished to return to the Main
Menu.
OSD Image can be moved
to different points on the
display

NTI RACKMUX-VS17-T RACKMOUNT LCD MONITOR WITH SUN KEYBOARD AND TRACKBALL MOUSE
10
KEYBOARD FUNCTIONS
The main keyboard on the RACKMUX-VS17-T is a standard condensed Windows format. To reduce the keyboard size, some
keys have been assigned multiple functions, accessible via the "Fn" key. This section will describe which keys have multiple
functions and how to enable them. Use the LEDs to know what special features are enabled.
Function Key Operation
The Function (“Fn”) key provides several special functions on the RACKMUX keyboard, including:
enabling otherwise standard keyboard keys to be used as the keys of a numeric keypad
enabling multi-function keys to change operation
enabling the “P” key to perform the function of the SUN Power key
To turn ON (lock) the Function key, press the “Fn” key twice quickly (double-click). The “Fn” LED will illuminate.
To turn OFF (unlock) the Function key, press the “Fn” key twice quickly again. The “Fn” LED will turn OFF.
Note: The "Fn" key will also operate similar to the shift key (with only momentary effect). Press and hold the "Fn" key
prior to pressing the special function key. The "Fn" key will remain active as long as it is depressed.
Figure 9- US (English) Keyboard Layout
Figure 10- Keyboard LED Indications
On= Function
Key is locked
1AFn
On= Compose
is locked
On= CapsLock
is locked
On= NumLock
is locked On= Scroll Lock
is locked
Compose
ESC F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 NUMLCK PRT SC
INSERT DELETE
SYS RQ PAUSE
BREAK
SCR LCK
ENTER
BACKSPACE
\
}
]
{
[
+
=
)
0
(
9
*
8
&
7
^
6
%
5
$
4
#
3
@
2
!
1
~
`
TAB
CAPS LOCK
SHIFT
CTRL ALT
Fn ALT CTRL ENDPG DN
HOME
PG UP
SHIFT
?
/
>
.
<
,
ZXCVBNM
ASDFGH JKL :
;"
'
QWE R TYU I OP
123
654
789
+*
Enter
./0
"Fn" Key to enable additional key functions
Find Cut
Open Paste
Front Copy
Props Undo
Stop Again
Com
pose Alt Graph
Help

NTI RACKMUX-VS17-T RACKMOUNT LCD MONITOR WITH SUN KEYBOARD AND TRACKBALL MOUSE
11
Number Pad
The functionality of a Number Pad on a standard Windows keyboard has been incorporated into this keyboard. To
substitute the keys of the Number Pad
The functionality of a Number Pad on a standard Windows keyboard has been incorporated into the keyboard of the
RACKMUX-VS17-T (see Fig. 9, page 10 ).
To substitute the keys of the Number Pad:
1. Press the "NumLock" key. The NumLock LED ( ) will illuminate.
2. Press the "Fn" key twice quickly (double-click). The "Fn" LED will illuminate.
To turn OFF Number Pad functions:
1. Press the "Fn" key twice quickly (double-click). The "Fn" LED will turn OFF.
2. Press the "NumLock" key. The NumLock LED ( ) will turn OFF.
With the Fn and NumLock LEDs illuminated, pressing some standard keys will result in displaying characters as
indicated in the chart below.
Standard Key Displayed when NumLock is
ON Function when NumLock is OFF
j 1 End
k 2 Down Arrow
l 3 Page Down
u 4 Left Arrow
j 5 ---
o 6 Right Arrow
7 7 Home
8 8 Up Arrow
9 9 Page Up
m 0 Insert
.
(period) . (period) Delete
/
(forward slash) / (forward slash)
;
(semicolon) + (plus sign)
’
(apostrophe) * (asterisk)
-
(hyphen) - (minus sign)
[
(left bracket) ENTER
Figure 11- Keys of the Number Pad
NUMLCK
SCR LCK
{
[
(
9
*
8
&
7
?
/
>
.
M
JKL :
;"
'
UIO
123
654
789
+*
Enter
./0
1
1

NTI RACKMUX-VS17-T RACKMOUNT LCD MONITOR WITH SUN KEYBOARD AND TRACKBALL MOUSE
12
Other Functions of the "Fn" Key
The Function ("Fn") key (page10) will enable other standard keyboard features in addition to the Number Pad keys (page 11) .
Key Function when Fn key is
not locked ("Fn" LED is OFF) Key Function when Fn key is Locked ("Fn" LED is ON)
Numlck (Number lock) Scr Lck (Scroll Lock)
Insert Prt Sc (Print Screen)
Delete Sys Rq (System Requirements)
Pause Break
Up Arrow Page Up
Down Arrow Page Down
Left Arrow Home
Right Arrow End
Figure 12- Additional multi-function keys
Note: The "Fn" key will also operate similar to the shift key (with only momentary effect).
Power Key
To perform the function of the SUN Power key, press the "P" while the "Fn" key is pressed or locked.
NUMLCK PRT SC
INSERT DELETE
SYS RQ PAUSE
BREAK
SCR LCK
ENDPG DN
HOME
PG UP

NTI RACKMUX-VS17-T RACKMOUNT LCD MONITOR WITH SUN KEYBOARD AND TRACKBALL MOUSE
13
Numeric Keypad Option
Models with the Numeric Keypad option (-N) (i.e. RACKMUX-VS17-TN) have a standard Windows keyboard with 17-key numeric
keypad.
Note: The “Fn” key is not an active key on this keyboard.
Figure 13- U.S. SUN Keyboard with numeric keypad
Esc F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 Prt Sc Delete
SysRq Pause
Break
Scroll
Lock
Enter
BackSpace
\
}
]
{
[
+
=
)
0
(
9
*
8
&
7
^
6
%
5
$
4
#
3
@
2
!
1
~
`
Tab
Caps Lock
Shift
Ctrl Alt
Fn Alt
Graph Insert
End
Page
Down
Shift
?
/
>
.
<
,
ZXCVBNM
ASDF GH JK L :
;"
'
QWE R TYU I OP Page
Up
Home
Home Pg Up
Pg Dn
End
Del
Ins
Num
Lock
Enter
+
-
*
/
789
456
123
0.
Help Stop Again Props Front Find Open Cut Copy Paste Undo Com-
pose
Com-
pose

NTI RACKMUX-VS17-T RACKMOUNT LCD MONITOR WITH SUN KEYBOARD AND TRACKBALL MOUSE
14
SAFETY
This NTI product has been designed and fully tested with user safety of the utmost importance. As with all electronic devices, this
NTI product should be handled and operated with care. In order to avoid possible injury and to reduce any risk of damage to this
product, please read and follow each of these safety instructions.
•Follow all instructions found in this manual.
•Follow all instructions found on the product.
•Do not attempt to perform any service on this product unless specifically instructed to in this manual.
•Objects that can damage or be spilled on this product should be kept away from this product. Liquids, if spilled, could come
into contact with voltage points causing a risk of fire or electrical shock.
•Always unplug this product before cleaning it. Do not use any liquid or aerosol cleaners to clean it.
•Do not install or use this product near water
•Be sure to mount this product on a solid, stable surface or in a rack (if applicable)
•Route all cables and the power cord away from sharp edges or objects that could cause damage to them
•Use only the power cord or AC adapter that came with this unit or one that meets the requirements specified in this manual
•Use only a properly grounded 3-wire electrical outlet for power connection
•Unplug this product and contact NTI should any of the following conditions occur:
•The power cord or connection cables have been damaged
•The product has come into contact with any liquids
•The product does not operate properly despite having followed all of the instructions
•The product has been dropped or the case has been damaged in any way
•The product performs distinctly different than it did when first put into service

NTI RACKMUX-VS17-T RACKMOUNT LCD MONITOR WITH SUN KEYBOARD AND TRACKBALL MOUSE
15
RACKMUX-VS17 DRAWER STANDARD SPECIFICATIONS
General Specs
Case Material.................................................Electro-galvanized steel black powdercoated
Dimensions WxDxH (in.)...............................19 x 21.9 x 1.75
Supported Rack Depths………………………..Adjustable 22” – 39”
Weight……………………………………………26 lbs.
Input Power....................................................AC 100-240V, 50 – 60 Hz
LCD (plus controller) Current Draw…………..12V Supply: 3.75A
Operating Temperature..................................0-40˚C
Storage Temperature…………………………..-20-60˚C
Relative Humidity……………………………….. 20-90%, non-condensing
Approvals………............................................ All parts comply with RoHS
LCD
Display area…………………………………….337.92mm (W) x 270.336 (H) (17 inch diagonal)
Panel Type………………………………………TFT Active
Number of Pixels ...........................................1280 (H) x 1024 (V)
Number of Colors...........................................16.2 Million (6 bits + FRC)
Pixel Pitch......................................................0.264(H) x 0.264(V)
Color Pixel Arrangement.................................RGB Vertical Stripe
Brightness......................................................300cd/m^2 (Nits)
Response Time..............................................5.5ms
Viewing Angle................................................Horizontal: 140º; Vertical: 130º (Typ.)
Optimum Viewing Direction............................6 o’clock
Backlight Unit……………………………………CCFL, 4 Tables, Edge-Light (2 Top/2 Bottom)
Operating Lamp Life ......................................40,000 – 50,000 hrs
Contrast Ratio…………………………………..500:1
Display Controller: VGA
Connector………………………………………15HD, female
Video Format.................................................VGA,SVGA, XGA, SXGA
Signal Input (from Video Source…………….Analog RGB
Sync Range...................................................H: 31 ~ 80KHz, V: 55 ~ 76Hz
OSD Control…………………………………….Menu, Up, Down, Select, Power (5 keys)
Plug and Play.................................................VESA DDC 2B Ver1.3
Display Controller: DVI
Connector………………………………………DVI-D, female
Video Format.................................................VGA,SVGA, XGA, SXGA
Signal Input (from Video Source…………….Digital TMDS
Sync Range...................................................H: 31 ~ 80KHz, V: 55 ~ 76Hz
OSD Control…………………………………….Menu, Up, Down, Select, Power (5 keys)
Plug and Play.................................................VESA DDC 2B Ver1.3
OSD Control Board
OSD Control ..................................................5 Keys
Power Key .....................................................Power ON/OFF
Menu Key.......................................................Activates Menu
Up, Down Keys..............................................Navigation Control
Select Key......................................................Select (when in Menu); Auto Adjust (not in menu)
LED................................................................Indicates Operation Status
...............................................................Green = Power-ON, Video Input OK
...............................................................Red = Suspend / Stand-by, or Input Out of Range

NTI RACKMUX-VS17-T RACKMOUNT LCD MONITOR WITH SUN KEYBOARD AND TRACKBALL MOUSE
16
Keyboard
No. Of Keys ...................................................83 Keys (US), 84 keys (UK,German, French, Italian, Spanish)+ 14 Sun keys
Key Switch Type............................................Membrane switch
Keytop Style...................................................Rectangular Cylindrical
Operating Force.............................................50gf +/- 25gf
Stroke ............................................................3.0mm +/- .5mm
Tactile............................................................20 gf typ.
Height ............................................................8.5 mm
Operating Life................................................10M operations, minimum
Key Switch Bounce........................................10 ms, maximum
Supported Platforms......................................USB
CPU Connectors............................................USB Type B (USB);
Trackball
Casing Material..............................................ABS
Ball Material...................................................Phenolic (metal core)
Ball color........................................................Black
Ball diameter..................................................16mm
Tracking force................................................10 grams nominal
Resolution......................................................117 pulse per ball revolution
Mounting Angle..............................................Max. 30’ to horizontal plane
Lifetime-Ball revolutions.................................>= 1 million
Mechanical Buttons .......................................3 Mechanical switches are supported
Touchpad (option)
Motion Detection Method...............................capacitance sensing
X/Y Position Sensing Resolution ...................40 counts/mm
X/Y Position Reporting...................................Relative (Similar to mouse)
Tracking Speed..............................................Up to 1016 mm/sec
Touch Force...................................................No Contact pressure required
Lifetime (Plastic Overlay)...............................Minimum 10,000,000 strokes
Sample Rate..................................................Up to 100 samples/sec
DC Power (option)
Input Power (DC)...........................................36 – 72V

NTI RACKMUX-VS17-T RACKMOUNT LCD MONITOR WITH SUN KEYBOARD AND TRACKBALL MOUSE
17
TROUBLESHOOTING
Each and every piece of every product produced by Network Technologies Inc is 100% tested to exacting specifications. We
make every effort to insure trouble-free installation and operation of our products. If problems are experienced while installing this
product, please look over the troubleshooting chart below to see if perhaps we can answer any questions that arise. If the
answer is not found in the chart, please check the FAQs (Frequently Asked Questions) at our website at
http://www.networktechinc.com or contact us directly for help at 1-800-742-8324 (800-RGB-TECH) in US & Canada or 1-330-562-
7070 worldwide. We will be happy to assist in any way we can.
Problem/Message Cause Solution
"OUT OF FREQUENCY" Input signal is outside the supported
range Lower video frequency to be within specified range
"POWER SAVER MODE" The input signal is not present. This
message will disappear after 5 seconds. Check all cable connections- verify that they are secure
"NO SIGNAL" The input signal is not present
immediately after power ON. Check all cable connections- verify that they are secure
"AUTO CONFIGURATION" The LCD monitor is configuring itself for
proper communication with the CPU. No action is necessary.
Keyboard/trackball not
functioning USB cable is not properly connected Check USB cable connection between the RACKMUX
and the computer. Make sure it is connected to a
working USB port at the CPU.
Front panel USB port is not
working USB cable is not properly connected Check USB cable connection between the RACKMUX
and the computer. Make sure it is connected to a
working USB port at the CPU.
Keys pressed on the keyboard
do not yield the expected result “Fn” function is locked ON. Check to see if the Fn LED is illuminated. If so, press
the “Fn” key twice quickly to unlock the function.
LCD is not displaying image •Image out of range
•LCD Auto-Shut OFF button is
depressed
•LCD is powered OFF
•Lower the resolution
•Make sure nothing is resting on the button
•Turn power to LCD ON
INDEX
accessory, 5
Features and Functions, 2
Fn key, 10, 12
Function key, 10
Keyboard LEDs, 10
Number Pad, 11
numeric keypad, 13
Options, 1
OSD control buttons, 7
OSD Menu, 7
Power Key- SUN, 12
specifications, 15
Telco mount, 4
WARRANTY INFORMATION
The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network
Technologies Inc at [phone] (800-RGB-TECH) or [phone] or visit our website at http://www.networktechinc.com
for information regarding repairs and/or returns. A return authorization number is required for all repairs/returns.
MAN083 Rev. 11/15/07
