Neunaber INSPIRE TRI-CHORUS PLUS User manual

INSPIRE TRI-CHORUS PLUS

Thank you for purchasing our product. We really mean it.
We hope to earn your trust by delivering a quality product
that inspires you to make great music.
Neunaber products are designed and manufactured in
Orange, California USA.
INSPIRE TRI-CHORUS PLUS
USER GUIDE
Please visit www.neunaber.net for more information and support.

input 1 (mono)output 1 (mono)
setting-specific
control
effect selector
depth control
mix control
rate control
9 - 12V DC
input 2
bypass switch
output 2
enabled
LED indicator
PEDAL MAP

CONNECTIONS
We recommend that Inspire be placed after your preamp or drive pedals but
before any delay-based eects (echo, reverb). If you are using the overdrive
channel of your amplifier, the best result will be achieved by placing this eect in
the eects loop.
The POWER JACK accepts a standard (5.5 mm OD x 2.1 mm ID) center-negative
pedal power adapter (not included). The power adapter must be between 9 V and
12 V and capable of supplying at least 100 mA.
Inspire monitors the voltage from your power adapter and will notify you if:
• The voltage is too low, the LED blinks twice per second. Bypass will be enabled
to prevent any unwanted behavior due to insucient voltage.
• The voltage is too high, the LED blinks five times per second. The voltage will be
internally limited to protect the pedal.
The FOOT SWITCH bypasses the eect. The LED lights when the eect is active.
Bypassing the eect does not turn o power to the pedal.
Inspire implements relay bypassing (i.e., “true bypass”). This is the most appropri-
ate type of bypass for this eect in most cases.

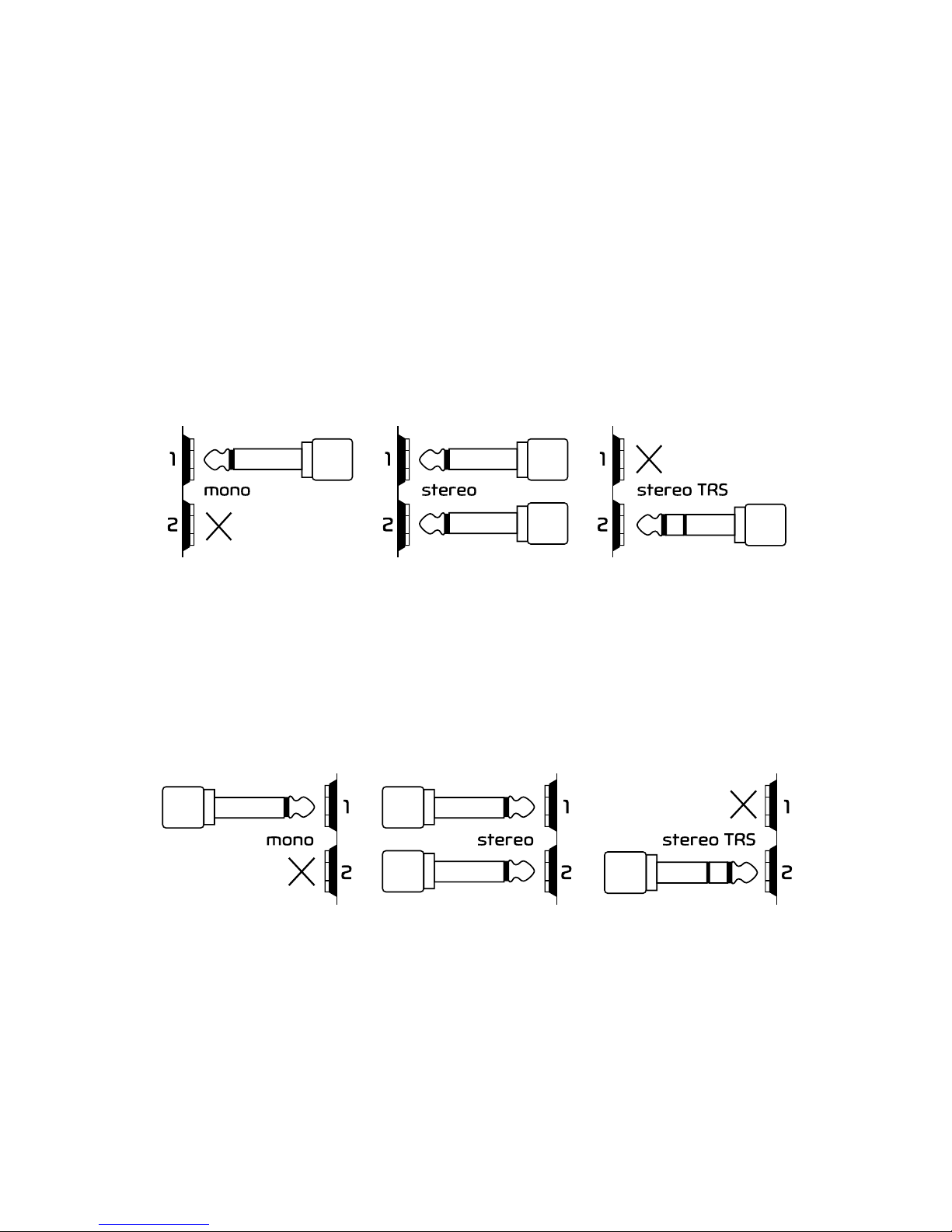

The input and output connections are independent. You may—for example—use a
mono input with stereo outputs or stereo inputs with a stereo TRS output.

The INPUT JACKS (right side) accept inputs directly from your instrument,
amplifier eects loop output, or other eect pedals via standard 1/4” (6.35 mm)
phone connectors.
• Input 1 only accepts a mono input.
• Both Inputs 1 & 2 accept a stereo input.
• Input 2 only accepts a stereo TRS input.
The OUTPUT JACKS (left side) supply output to another eect pedal, an amplifier,
or eects loop return via standard 1/4” (6.35 mm) phone connectors.
• Output 1 only supplies a summed mono output.
• Both Outputs 1 & 2 supply a stereo output. Using both outputs creates
a stereo signal from a mono input.
• Output 2 only supplies a stereo TRS output.
Important Note: input/output 1 and input/output 2 should not be used with two
discrete signals (such as two dierent instruments).

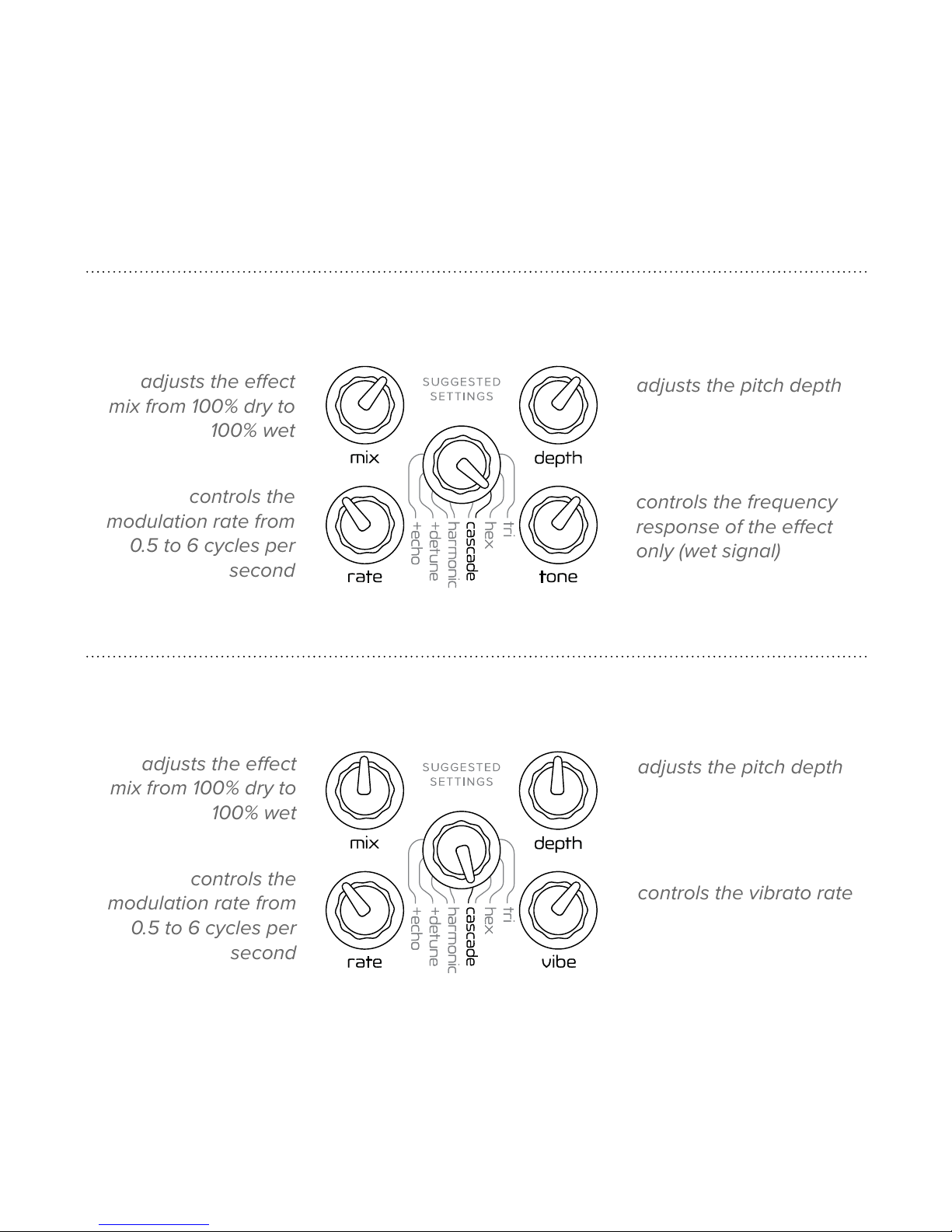

TRI
The classic tri-chorus eect.
HEX
Two tri-chorus eects are paralleled for an ultra-dense eect.
adjusts the eect
mix from 100% dry to
100% wet
adjusts the pitch depth
controls the
modulation rate from
0.5 to 6 cycles per
second
controls the frequency
response of the eect
only (wet signal)
EFFECTS
adjusts the eect
mix from 100% dry to
100% wet
adjusts the pitch depth
controls the
modulation rate from
0.5 to 6 cycles per
second
controls the frequency
response of the eect
only (wet signal)

CASCADE TONE
Two tri-chorus eects in series create a rich, lush eect.
CASCADE VIBE
A tri-chorus and a tri-vibrato in series makes for a complex sound.
adjusts the eect
mix from 100% dry to
100% wet
adjusts the pitch depth
controls the
modulation rate from
0.5 to 6 cycles per
second
controls the frequency
response of the eect
only (wet signal)
adjusts the eect
mix from 100% dry to
100% wet
adjusts the pitch depth
controls the
modulation rate from
0.5 to 6 cycles per
second
controls the vibrato rate

HARMONIC VIBE
Low-frequency tri-chorus and high-frequncy tri-vibrato—more subtle than Casdade
Vibe, this eect works well with overdrive.
HARMONIC DETUNE
Low-frequency detune and high-frequency tri-chorus is even more subtle and
sounds great with heavy overdrive.
adjusts the eect
mix from 100% dry to
100% wet
adjusts the pitch depth
controls the
modulation rate from
0.5 to 6 cycles per
second
controls the pitch oset,
from 0 to -20 cents
adjusts the eect
mix from 100% dry to
100% wet
adjusts the pitch depth
controls the
modulation rate from
0.5 to 6 cycles per
second
controls the vibrato rate

+DETUNE
Tri-chorus plus detune—for the ultimate in lush 80’s chorus tones.
+ECHO
Tri-chorus plus stereo echo is a classic combo.
adjusts the eect
mix from 100% dry to
100% wet
adjusts the pitch depth
controls the
modulation rate from
0.5 to 6 cycles per
second
controls the pitch oset,
from 0 to -20 cents
adjusts the eect
mix from 100% dry to
100% wet
adjusts the echo repeats
controls the
modulation rate from
0.5 to 6 cycles per
second
controls the echo time,
from 50 to 1000 ms

SPECIFICATIONS
Electrical
Nominal input level -10 dBV, instrument level
Max input level 6.7 dBV
Input impedance 1 MΩ (mono), 2 MΩ (stereo)
Output impedance 500 Ω (mono), 1 kΩ (stereo)
Gain, enabled vs. bypass 0 dB (mix @ 0)
Frequency response 20 Hz—20 kHz, +0.1 dB, -0.5 dB
(dry signal or bypassed)
Total harmonic distortion < 0.002% typical (dry signal or bypassed,
22 Hz—22 kHz, 1.0 Vrms, 1 kHz)
Signal-to-noise ratio 106 dB mono, 103 dB stereo (A-weighted),
22 Hz—22 kHz, mix @ 50%
Power
Power adapter input 9-12 V DC, 95 mA
plug: center-negative, 5.5 mm OD x 2.1 mm ID
Physical
Dimensions 2.9” W, 4.6” L, 2.0” H / 73 mm W, 117 mm L, 51 mm H
Weight 8.84 oz / 251 g
*Specifications subject to change without notice.

This product contains no user-serviceable parts.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
California Proposition 65 Warning: This product may contain chemicals known to the State of California
to cause cancer, birth defects or other reproductive harm. While we believe our products are not harmful
when used as designed, we provide this warning to comply with Proposition 65.
© 2017 Neunaber Technology LLC. All rights reserved. Neunaber logo and Inspire™ are trademarks of
Neunaber Technology, LLC.
