1.0 Neurio Sensor W1
!
The Neurio Sensor W1 is a WiFi-enabled electricity sensor that measures whole-home consumption, and
transmits that data to the Neurio Cloud. It utilizes split-core current transformers, and so can be quickly
installed in a breaker panel by an electrician or other qualified professional.
The Neurio Sensor is intended for use in residential or light commercial locations. It is a monitor only, and
should not be used for billing purposes. It should not be used in mission-critical applications, or any instance
where its failure could endanger human life.
1.1 Features
• Monitors instantaneous demand and total electricity consumption of the entire home
• Transfers data to the Neurio Cloud using WiFi
• Quickly installs in a breaker panel
• Certified for use in Canada, the United States, and Europe
• Supports all common worldwide residential and light commercial voltage configurations
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

4
1.2 Meet the Neurio Sensor
Below is a quick guide to your new Neurio Sensor. For more detailed information, see the Installation
Guide and Welcome Guide included in the box, and support.neur.io for videos, FAQs and
troubleshooting tips.

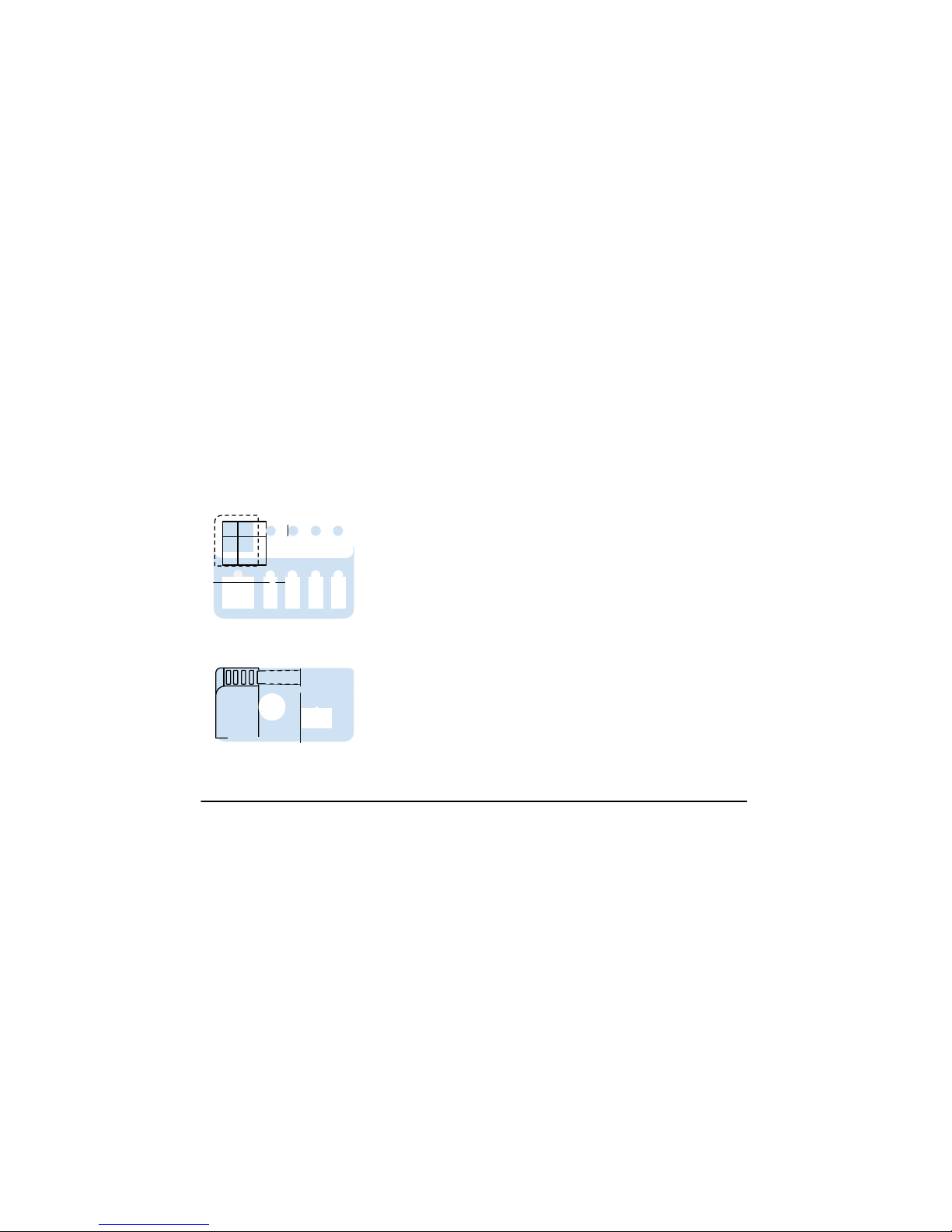

Voltage and Current Ports
On one end of the Neurio Sensor, you’ll find the voltage and current
ports. There is one voltage port, and four current ports. The markings
above the current ports show their relation to the wires on the voltage
cable. For instance, Current Port 1 works with Phase A on the voltage
cable.
Antenna and Expansion Ports
On the other end, you’ll find the Antenna and Expansion Ports. The
Expansion Port allows the Neurio Sensor to control other devices.
 

   

www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

5
Antenna Cable and Mount
The Neurio Sensor’s antenna mount allows you to maximize wireless
range by placing the antenna outside the breaker panel, even if your
panel is flush-mounted in the wall.
Current Transformers and Voltage Cable
The Neurio Sensor uses these to measure the energy consumption of
your home. Installing these correctly is important for accurate
measurements, so follow the directions carefully!
The voltage cable has 4 wires on it. Depending on your installation, not
all wires may be necessary.
Wire Color
Connection
Black
Phase A
Red
Phase B
Blue
Phase C
White
Neutral
