Nevir NVR-8072-434K2S-SMA-N User manual

NVR-8072-434K2S-SMA-N
NVR-8072-434K2S-SMA-B
IMPORTANTE
Please read this manual carefully befare installing
and operating the TV.
Keep this manual handy for further reference

Table of Contents
Caution and Warning ..................................................................................................................................... .
Safety Precautions.......................................................................................................................................... 2
Preparation for Your New TV ...................................................................................................................... 3
Check Accessories ....................................................................................................................................... • • 3
Stand lnstallation Guide ................................................................................................................................
• 3
Wall mount specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
TV Jacks Explanation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

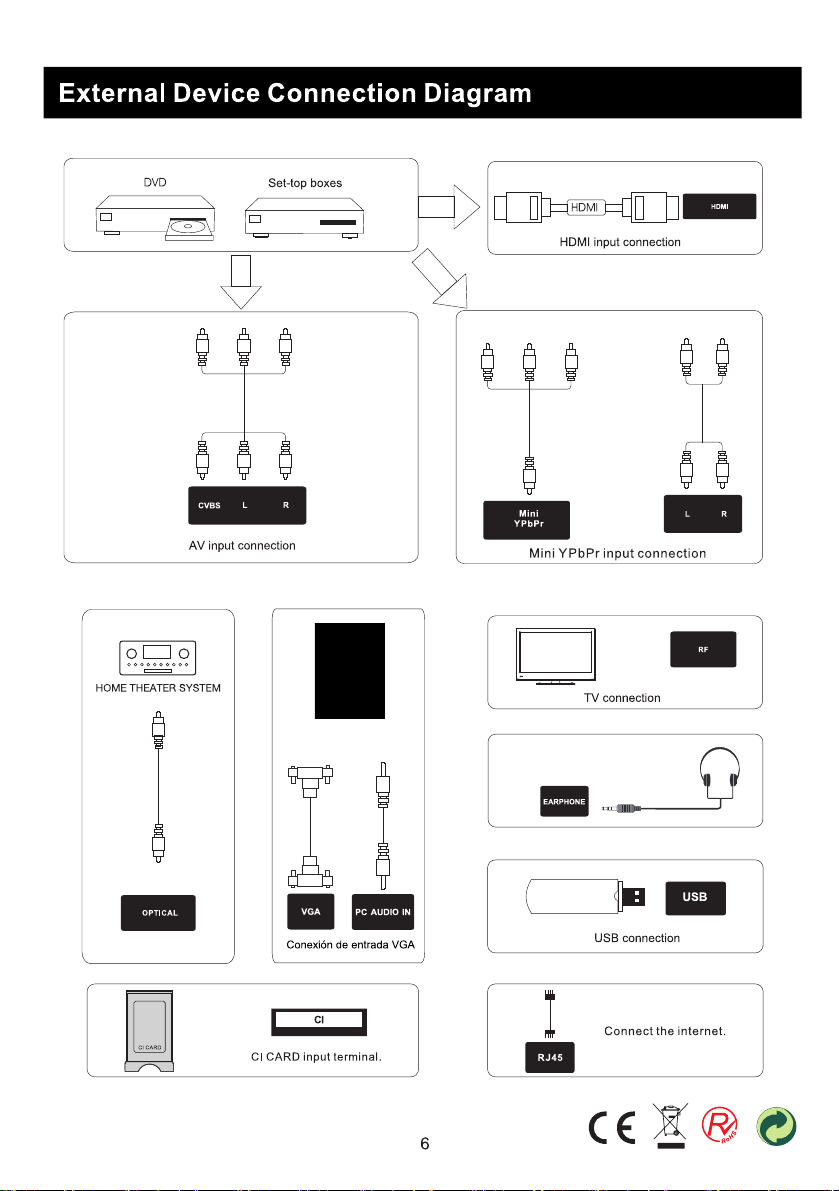

Externa! Device Connection Diagram ... ... .. ... ..... ... ... ..... ..... ..... ... ... ..... ... .. ........ ... ..... ... .. ...... .. ... ..... ... .. ... ... . 6

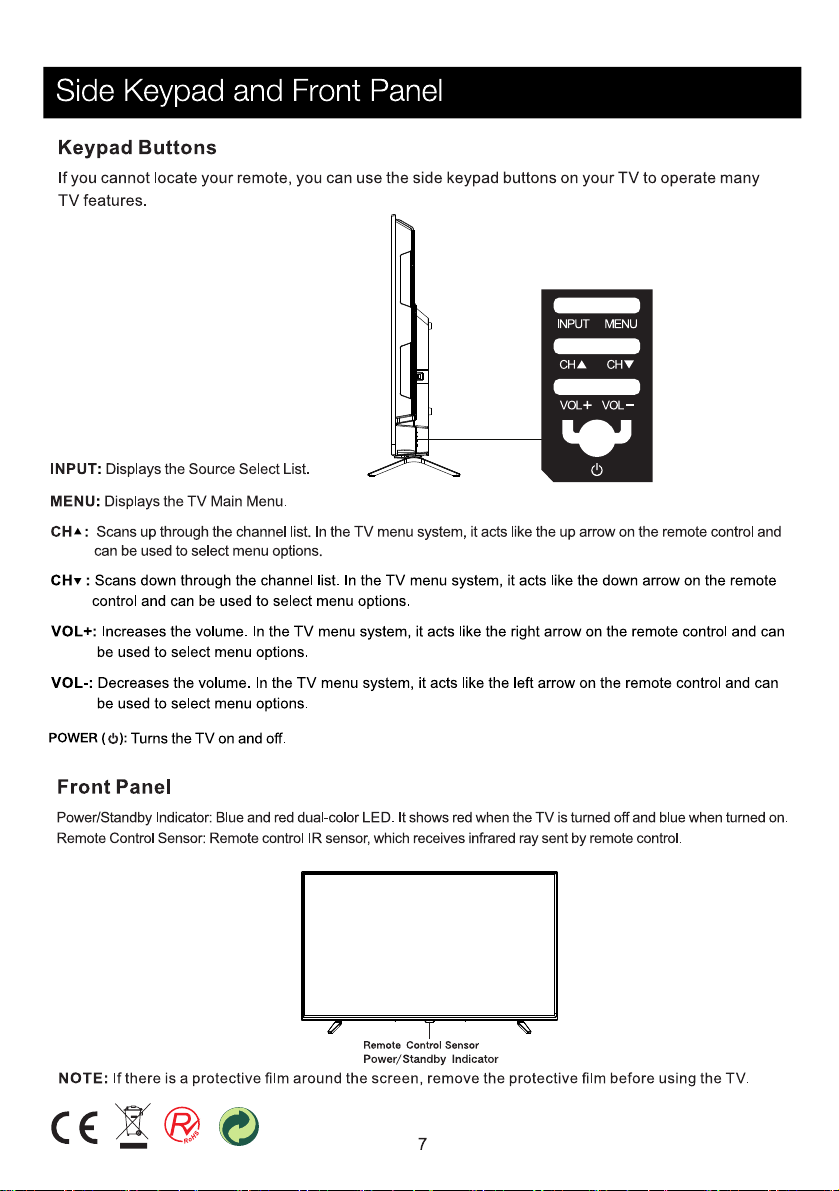

Side Keypad and Front Panel . .. . .. .. . .. . .. .. . .. . .. .. . .. ... .. . .. . .. ... .. .. . .. ... .. . .. . .. ... .. . .. .. .... .. .. . .. ... .. . .. .. .... .. .. . .. ... .. . .. .. . .. . . 7
Keypad Buttons............................................................................................................................................. 7
Front Panel .. .. .. . .. .. . .. . .. .. . .. . .. .. . .. . .. .. . .... . .. . .. .... .. .. .. . .... . .. . .. . .. .. . .. .. . .... . .. . .. . .. .. . .. . .. .... .. .. .. . .. .. . .. . .. .... .. .. .. . ..... .. . .. ... .. . . 7
Remote Control lnstructions.... ... ..... ... .. ...... .. ... ..... ... ... ..... ..... ..... ... ... ..... ... .. ........ ... ..... ... .. ...... .. ... ..... ... .. ... ... .
a
lnserting Batteries in the Remole .. ... ..... ... .. ...... .. ... ..... ... ... ..... ..... ..... ... ... ..... ... .. ........ ... ..... ... .. ...... .. ... ..... ... .. ... ... . 8
Remole Control Reception Angle .. .. . .. .. . .. . .. .. . .. . .. .. . .. . .. .. . .. . .. .. . .. .. . .. . .. .. . .. . .. .. .
.. . .. .. . .. .. . .. . .. .. . .. . .. .. . .. . .. .. . .. .. . .. . .. .. . .. . . 8

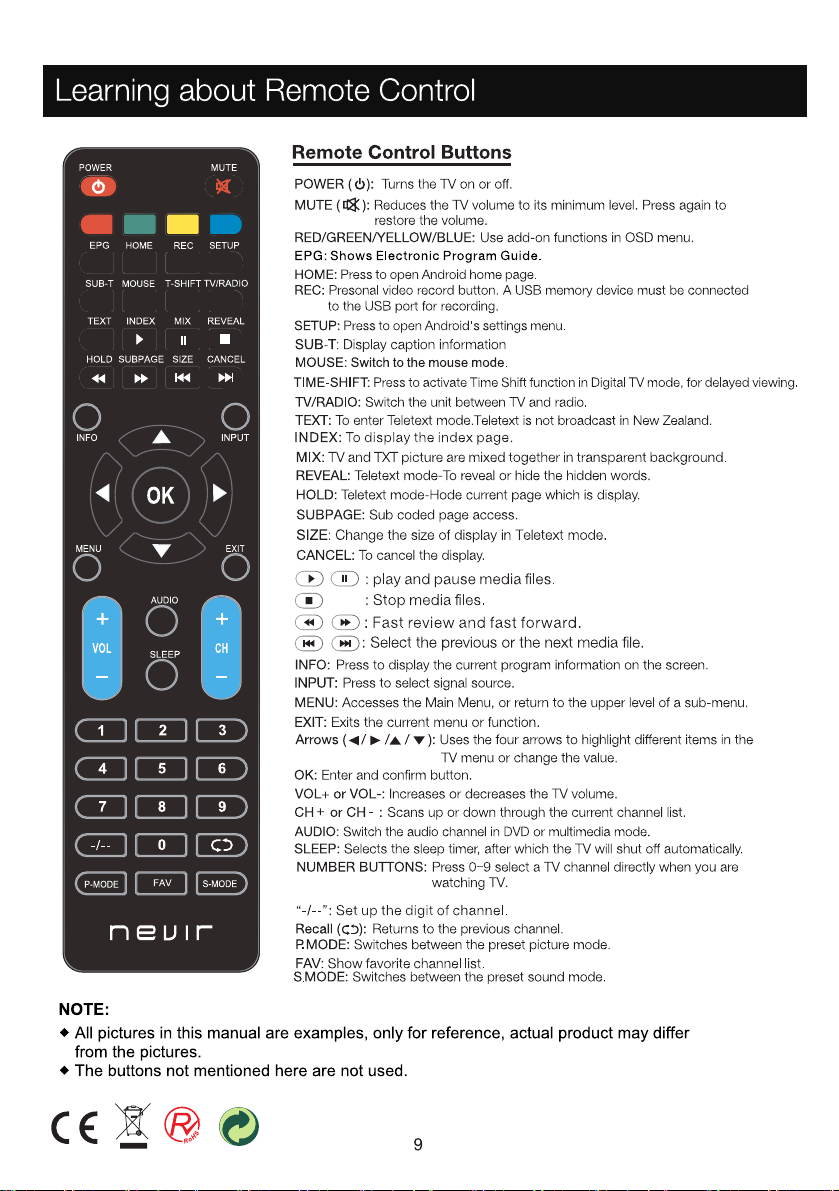

Learning about Remote Control . ..... ... .. ...... .. ... ..... ... ... ..... ..... ..... ... ... ..... ... .. ........ ... ..... ... .. ...... .. ... ..... ... .. ... ... . g
Remole Control Buttons ................................................................................................................................ • • g

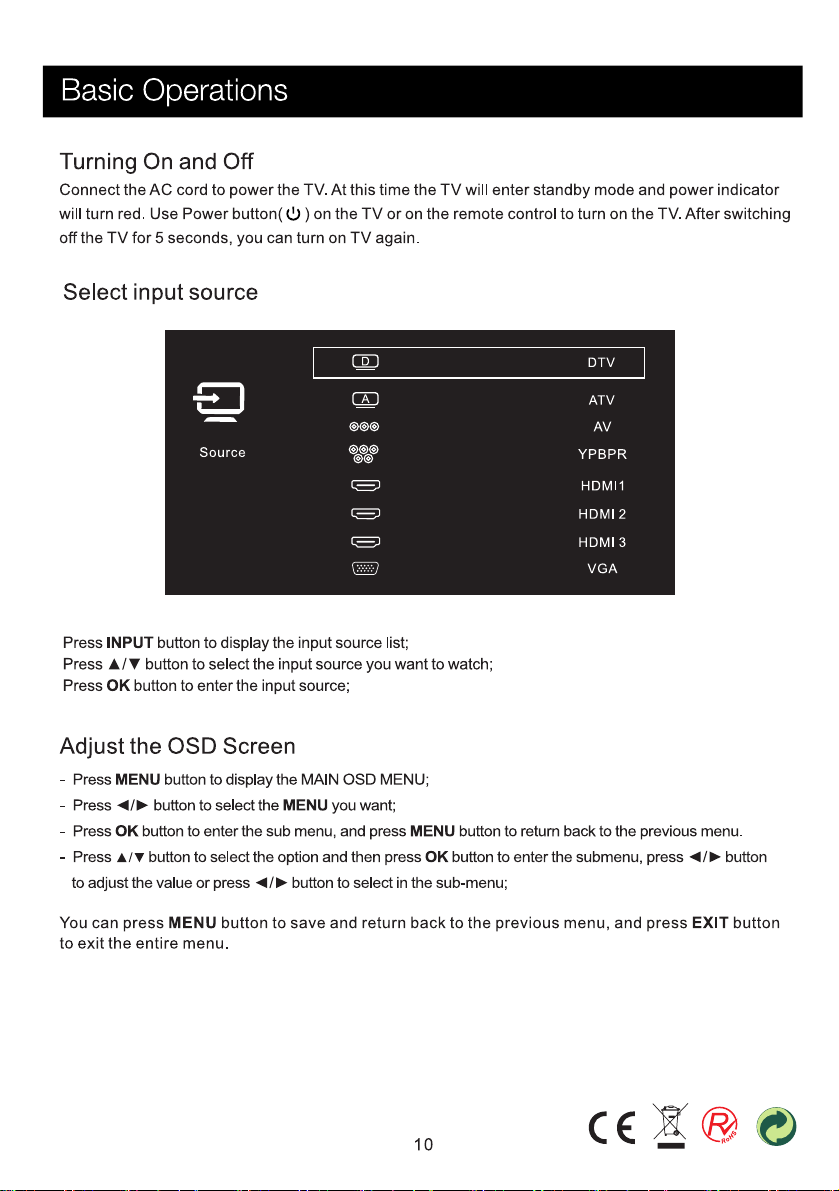

Basic Operations .. .. . .. .. . .. . .. .. .... .. .. . .. ... .. . .. .. .... .. .. . .. ... .. . .. . .. ... .. .. . .. ... .. . .. . .. ... .. . .. .. .... .. .. . .. ... .. . .. .. .... .. .. . .. ... .. . .. .. . .. . . 1 o
Turning On and Off ......................................................................................................................................... 1 o
Select input source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 o
Adjust the OSD Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
o
Smart TV Operation .................................................................................................................................... 11
Media Operation .........................................................................................................................................
16
Main Menu Operation ................................................................................................................................
18
Troubleshooting ................................................................................................................................................ 26
ldentifying Problems ..............................................................................................................................................
26
Specification ................................. ....................................................................................................................
-27
* The pictures, functions and other information provided in the manual are far reference only.
lf it does not match the actual object, please refer to the actual product.

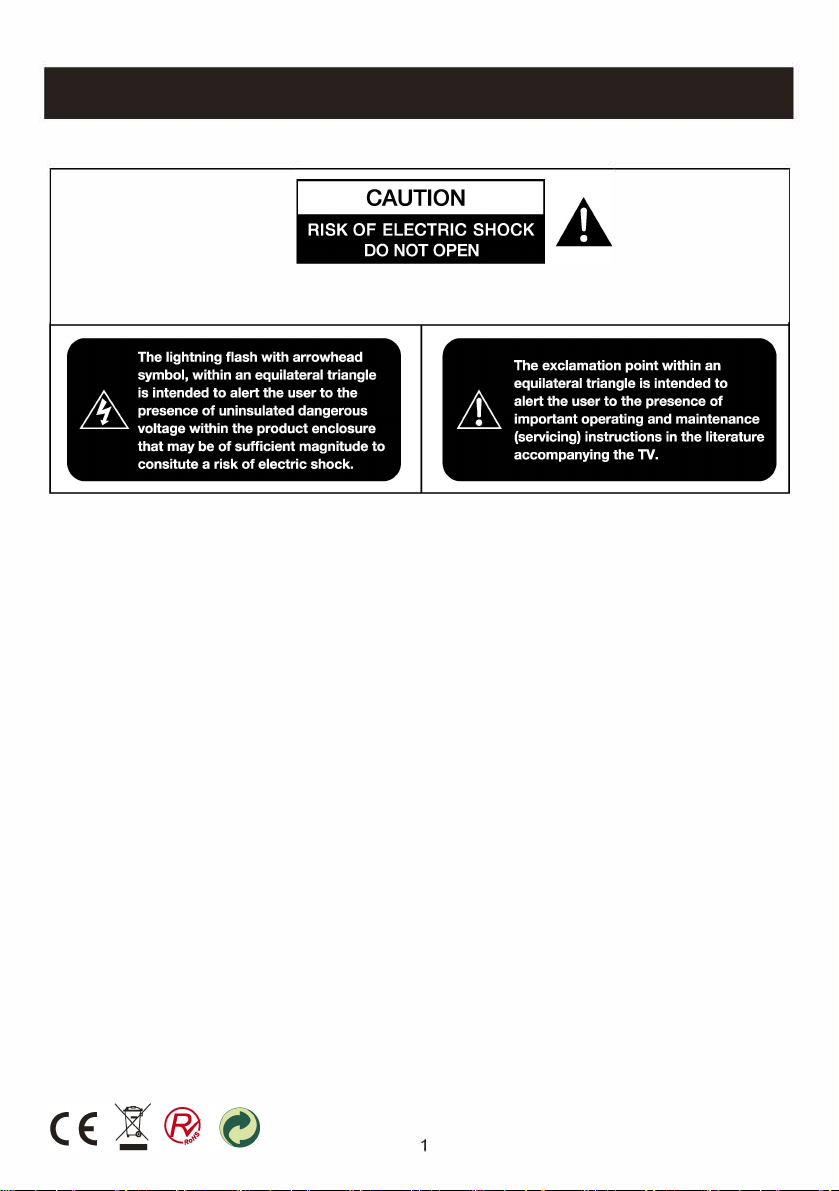

Caution and Warning
A
Caution: To reduce the risk of electric shock, do not remove cover or back. No user-serviceable parts inside.
Refer servicing to qualified service personnel.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE.
CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR
COMPLIANCE WITH THE FCC RULES COULD AVOID THE USERS AUTHORITY TO OPERATE THIS
EQUIPMENT.

Safety Precautions
1
. Read these instructions.
2. Keep these instructions.
3. Notice all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water. For example, do not use near a laundry tub, in a wet basement, ornear a swimming
pool, and the like.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. lnstall in accordance with the manufacturer's instructions. Slots and openings in
the cabinet back or bottom are provided for ventilation, to ensure reliable operation of the 1V and to protect it from
overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the 1V
on a bed, sofa, rug, or other similar surface.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9. Do not modify the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider
than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is
provided for your safety. lf the provided plug does not fil into your outlet, consult an electrician for replacement of the
obsolete outlet.
1 O. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
(1
11 . Only use attachments/accessories specified by the manufacturer.
12. Use only wilh cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with !he
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to .111.
a.)
avoid injury from tip-over. A 1V and cart combination should be moved wilh care. Quick stops, ,..,.,
excessive force, and uneven surfaces may cause the 1V and cart combination to overturn.
13. Unplug this apparatus during lightning storms or when unused for long periods of time. For added protection for this 1V
receiver during a lightning storm, or when it is left unused for long periods of time, unplug it from the wall outlet and
disconnect antenna or cable system. This will preven! damage to the 1V dueto lightning and power line surges.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
appratus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. This 1V should be operated only from the type of power supply indicated on the rating label. lf customer is not sure the
type of power supply in your home, consult your appliance dealer or local power company. For 1V remole control battery
power, refer to the operating instructions.
16. The 1V set shall not be exposed to dripping or splashing. No objects filled with liquids, such as vases, shall be placed on
the1Vset.
17. Never insert objects of any kind into this 1V through openings as they may touch dangerous voltage or other electrical
parts that could result in fire or electric shock. Never spill liquid of any kind into the 1V.
18. Unplug the 1V from the wall outlet before cleaning. Do not use liquid or aero cleaners. Use a damp cloth for cleaning.
19. This 1V should never be placed near or overa radiator or heat resource. This 1V should not be placed in a built-in
installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been
adhered to.
20. Do not place this 1V on an unstable cart, stand, tripod, bracket, or table. The 1V may fall, causing serious injury to
someone, and serious damage to the appliance.
21. Do not attempt to service this 1V by yourself because opening or removing covers may expose you to dangerous high
voltage or other hazards. Refer all servicing to qualified service personnel.
22. WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the
installation instructions.
2

Preparation far Your New TV
Check Accessories
Check the accessories that are packed with your TV.
LEDTV Remole Control & Batteries
Stand lnstallation Guide
TV Stand Base
+
4 x Screws
User's manual
+
Warranty Card
The TV is packaged with the TV stand separated from the cabinet. To setup the TV table stand, please
carry out the installation according to the instructions below.
1. The panel can be scratched easily, so please:
Place a soft cloth on the table and place the TV face down on the cloth.
Note: Always unplug the AC cord first when installing/removing the stand.
2. Take the base. Please align the screw hales of the base and the TV, and then insert the screws into
the hales on the base and tighten them.
Note: To ensure that the TV is stable, please lock all screws.
Please take note ofthe base direction:
The bottom view of the TV
(Front cabinet faces down)
(The illustration is far reference only, Please prevail in kind)
3

Wall Mounting(if available)
VESA 200 x 200 M6x8mm, 4pcs
Note: The length ofthe screw specified is only a recommendation; actual
length required can vary depending on the type ofwall mount used.
200.00 mm
-----
-
' , . . ,
:JI 11 IL:
200.00
l
□
mm
D
.
l
p_ D
. ©
11 11
1 l
11 1
,:;?
Warnings:
1. Do not set up the wall rnount by yourself. Please contact qualified professionals far installation.
2. The TV should not be mounted on walls or surfaces which have an angla more than 1 O degrees with vertical direction.
Otherwise the TV set may fall.
3. The walls for mounting must have enough strength to hold the whole weight of TV set. Far exarnple, concrete wall and brickwork
are eligible. Do not place the mount on solt walls such as earth walls and plasterboard.
4. lf spare parts of different specifications (such as screws) are used during rnounting, consult with qualified professionals to make
sure these parts are safe and effective.
5. Befare attaching the base to wall, ensure the hales far anchors are in keeping with the installing rules. Otherwise there may exist
sorne potential problerns.
6. Do not place any heating source under your television. Or else, it can cause tire.
7. Do not place the TV near anything dripping. Transducers and high voltage wires should be kept far away from the apparatus too.
Or else, it may cause creepage, electric shock or bad resonance.
8. Do not place TV in a location where collision or vibration is liable to happen.
9. In arder to avoid unexpected falling of the TV set, do not put any strong force on TV or wall mount alter installing.
10. Be sure to unplug the TV befare installing. Keep anything hard or sharp away from the screen panel to preven! the scuffing.
11. Alter installing, if there is any need to move the cabinet, please contact the qualified professionals.
4

1V Jacks Explanation
. , . , ' ,
:JI
11
IL:
® ®
íl [].
o-
p® , ®
il 11
1
l
e,
o
HDMl1 HDMl2 HDMl3/ARC
:=
A!f'Jio v'bnJr
Earphon•
RJ45 VGA CVBS L R RF(S ) RF(TZ) OPTICAL
RJ45:Connect the Internet.
VGA: Connect the PC to these jacks.
11 11
CVBS: Connect an AV device that has composite video jacks, such as a VCR ar DVD PI ayer.
L: Left audio channel connection. The left audio connector is usually white.
R: Right audio channel connection. The right audio connector is usually red.
RF: Connect to receive the signal from your antenna ar cable through a coaxial cable.
OPTICAL: Digital TV sound output.
HDMI: (High-Definition Multimedia Interface) Provides an uncompressed digital connection.
USB: Connect the USB device such as the flash disk to access the TV media function.
PC AUDIO IN: Connect the audio output of the PC.
MINI YPbPr: Connect the YPbPr outputjack of the DVD ar VCR.
EARPHONE: Connect a 3.5mm headset far personal audio.
CI: CI card reader.
