New Deal ZicLed W11 Duo User manual

!
!
NEW!DEAL!ZICLED!W11!DUO!(STEREO!SOUND)!
Specification:
●Input Voltage：AC100-240V
●Base：E27
●Frequency：50/60HZ
●Speaker power：5W
●LED Power：6W
●LED Chip：2835*30PCS
●Lumen：400LM
●Bluetooth Transmit distance：10Meters
●Color：Warm White/ White/Cool White
●Life：30000Hours
●Viewing Angle：150°
●Connection: Bluetooth 2.1G
User manual and Bluetooth pairing
!Insert two bulbs on E27 lamp holders, make sure tighten fixed. In order to reach the best stereo
sound effects, install two bulbs between distance 1.5~5 meters.
!Bedroom, living room, cafe, bar, no matter where you are, can enjoy the wonderful music any time.
No need complicated cable connect or batteries, simply plug in the lamp socket.
Our factory configuration have been paired successful for the two brothers bulbs.
Users only need to follow up below operate below 2 step for Bluetooth Pairing.
1. Insert two bulbs on E27 lamp holders. Turn ON the power at same time. After about 3seconds,
you will hear “DO,DO,DO” & “Di, Di, Di” sounds from two bulbs, that means two bulbs are pairing
automatically. After about 10-20 seconds, two bulbs paired successful, then no sounds happen.
2. Point at any one bulb, press , you will hear “Di” sound, then search Bluetooth name
“BT-Speaker 1+1” from your device (such as Mobile), pairing with it. Then play music from your
mobile. You can enjoy music from the bulbs now.

"If you want to pairing difference bulbs, we have not paired them before, yyou need to do below
steps for brothers bulbs pairing at first:
1) Point at bulb #1, press hold for several second, until hear “Di” sound.
2) Point at bulb #2, press hold for several second, until hear “Di” sound.
3) Point at bulb #1, press hold for several second, until hear “Di” sound.
4) Point at bulb #2, press hold for several second, until hear “Di” sound.
Waiting for 5~10 seconds, you will hear “DO,DO,DO” sounds from two bulbs, that means two bulbs
are pairing now. After about 20-30 seconds, two bulbs paired successful and no sound.
#Remark:
1. The default setting is 1/2 brightness and Max. sound volume, you can adjust the brightness from
the remote, adjust the volume from your device (such as mobile).
2. If you just need music, no need light, you can press turn off the light, or press or
adjust the brightness.
3. If you just need bright, no need music, you can press , turn off the Bluetooth.
4. Timed operation: Press “ ”, the bulbs will enters standby mode, after one hour, the bulbs will
shut down and not work, include LED light and bluetooth. If press or , the bulbs will
back for work.
#Package include:
2pcs LED bulb lights; 1pc instruction; 1pc remote control

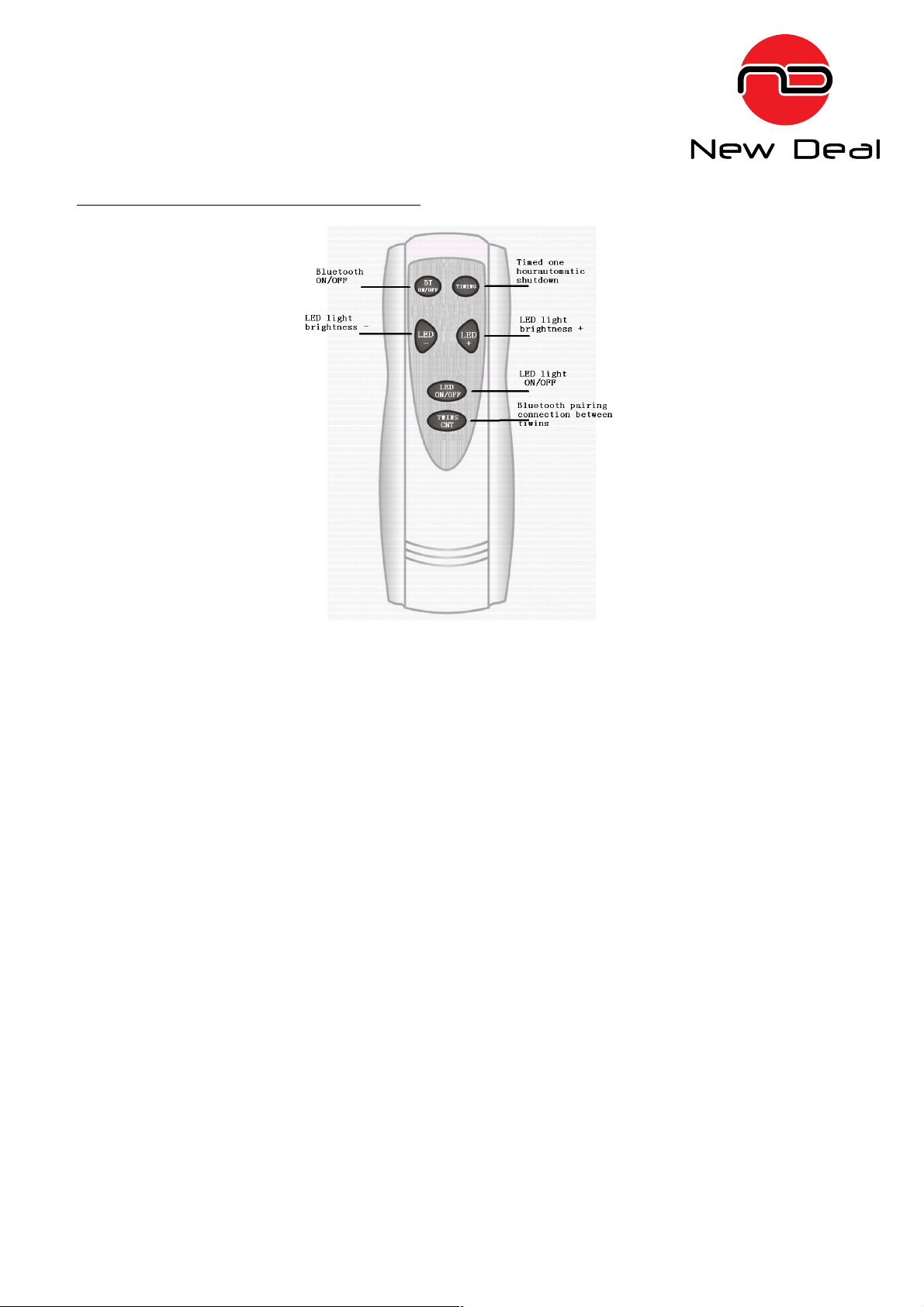

#Remote Control keys functions:
