New World Classic 100G Operating instructions

Stoney Lane, Prescot, Merseyside L35 2XW
08 25220 00 © 3.2003
d
Classic 100G
Freestanding Gas Range Cooker
For Natural Gas & LP Gas Models
User & Installation Instructions
RS2/2

The Gas Consumer Council (GCC) is an independent organisation which protects
the interests of gas users. If you need advice, you will find the telephone number is
your local telephone directory under Gas.

NEW WORLD CUSTOMER CARE
In case of difficulty within the UK and Northern Ireland, please call
New World Customer Care Centre Helpline on
0151 432 7838
When you dial this number you will hear a recorded message and be given a
number of options. This indicates that your call has been accepted and is being
held in a queue. Calls are answered in strict rotation as our Customer Care
Representatives become available.
Opening Hours for Customer Care Centre
Monday to Friday 8am - 8pm
Saturday 8.30am - 6pm
Sunday 10am - 4pm
Enter appliance numbers here for future reference:
Please ensure you have the above details (Model No and Serial No) to
hand when calling New World Customer Care. They are essential to
booking your call.
Outside the UK and Northern Ireland, refer to your local supplier.
Model No
Serial No
24
User’s Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 15
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Storage Compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Be Safe - Not Sorry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Using the Hob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Using the Griddle (if supplied) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Using the Grill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Using the Ovens. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Using the Minute Minder / Clock (if fitted) . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Installation Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 - 21
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
New World Customer Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
1
Please keep this handbook for future reference, or for anyone else
who may use the appliance.
If you smell gas:
Do not try to light any appliance. Do not touch any electrical switch.
Call the Gas Emergency Helpline at TRANSCO on: 0800 111999
In the Republic of Ireland, call the Bord Gaìs emergency line on
1850 205050 or contact your local gas supplier.
CONTENTS

Thank you for choosing a British built
appliance by New World
We hope that the following information
will help you to familiarise yourself
with the features of the appliance, and
to use it successfully and safely.
Our policy is one of constant
development and improvement. Strict
accuracy of illustrations and specifications
is not guaranteed. Modification to
design and materials may be
necessary subsequent to publication.
This appliance must be installed in
accordance with the regulations in
force, and only in a well ventilated
space. Read the instructions before
installing or using this appliance.
Your 1st Year Guarantee
To fulfil the conditions of your guarantee,
this appliance must be correctly
installed and operated, in accordance
with these instructions, and only be
used for normal domestic purposes.
Please refer to your Guarantee Card
for further details.
Please note that the guarantee, and
Service availability, only apply to the
UK and Republic of Ireland.
The User’s Section in this handbook
covers the operation of the ovens, grill,
hotplate and griddle (if supplied), but to
help you make the most of your cooker,
we have produced the accompanying
Cooking Guide which gives more
details of its features and benefits.
Your new appliance is designed to be
installed free-standing or flush to base
units. Certain features, such as the griddle,
are only available on some models.
Before using the appliance for
the first time, remove any protective
polythene film and wash the oven
shelves and furniture in hot soapy
water, to remove their protective
coating of oil. Even so, when you first
turn on the oven or grill you may
notice a smell and some smoke.
Ventilation
The use of a gas cooking appliance
results in the production of heat and
moisture in the room in which it is
installed. Ensure that the kitchen is
well ventilated: keep natural ventilation
holes open or install a mechanical
ventilation device (mechanical extractor
hood). Prolonged intensive use of the
appliance may call for additional
ventilation, for example, opening of a
window, or more effective ventilation,
for example increasing the level of
mechanical ventilation where present.
Stability bracket
If the cooker is to be fitted with a
flexible inlet connection, a stability
bracket should also be fitted to engage
in the back of the cooker. Make sure
this is re-engaged whenever you move
the cooker for cleaning.
2
INTRODUCTION

Data badge
Lower part of front frame.
Type of gas
This cooker must only be used with either
Natural Gas only, or LP Gas only, as
specified on the appliance data badge.
Gas category
Natural Gas - I2H, LP Gas - I3+
Pressure setting
G20 Natural Gas @ 20 mbar
G30 Butane @ 28-30 mbar
G31 Propane @ 37 mbar
Pressure test point
Use the oven injector.
Aeration Fixed.
Appliance class
Class 1, Freestanding appliance
Electrical supply
230 - 240V ~ 50Hz
Warning: This cooker must be earthed.
Spark generators
Two mains powered 6 outlet, one terminal
earthed out to chassis on one generator.
Grill - Grill burner is surface combustion
type. Spark gaps 3 - 4mm.
Hob - Burners have burner heads and
caps which are removable for cleaning.
Concealed electrodes to each burner.
Ovens - Oven burners are sheet steel,
with pierced ports in stainless steel flame
strip. Spark gaps 3 - 4mm. Flame super-
vision - expansion type with fixed low rate
bypass drilling in valve (RHS oven); ther-
moelectric type (LHS oven). Thermostat
phial; front centre of oven roof.
Countries of destination
GB - Great Britain, IE - Ireland
22
Burner Nominal Grammes per hour Injector
Rate Qn Butane Propane size
Natural Gas
Grill 2.4kW - - 1.15mm
Hob small x 2 1.0kW - - 77
medium x 4 2.0kW - - 104
large x 2 3.0kW - - 129
Ovens x 2 2.5kW - - 180 amal
Total heat input ∑Qn 23.4kW - - -
LP Gas
Grill 2.4kW 175g/h 172g/h 0.76mm
Hob small x 2 1.0kW 73g/h 72g/h 50
medium x 4 2.0kW 145g/h 143g/h 70
large x 2 3.0kW 218g/h 215g/h 87
Ovens x 2 2.4kW 175g/h 172g/h 70 amal
Total heat input ∑Qn 23.2kW 1687g/h 1659g/h -
TECHNICAL DATA
Moving the cooker
Do not attempt to move the cooker by
pulling on the doors or handles. Open
the door and grasp the frame of the
cooker, taking care that the door does
not shut on your fingers.
Take care to avoid damage to soft or
uneven floor coverings when moving
the appliance. Some cushioned vinyl
floor coverings may not be designed
to withstand sliding appliances without
marking or damage.
Gas & Electrical connection
Please refer to installation instructions
for the Gas & Electrical Safety Regulations
and the Ventilation Requirements.
In your own interest, and that of safety,
it is the law that all gas appliances be
installed by competent persons. Corgi
registered installers undertake to work
to satisfactory standards.
Disconnection of gas and electric
appliances should always be carried
out by competent persons.
Warning: This appliance must be
earthed.
If the ignition fails:
❍Check there is a spark when the
ignition button is depressed.
❍If there is no spark, check that the
electricity supply is switched on at
the socket.
❍Check that the gas supply is
switched on.
The cooling fan
When the appliance is switched on,
you may hear the cooling fan come
on. This keeps the fascia and control
knobs cool during grilling / cooking
and will continue to operate for up to
15 minutes after the appliance has
been switched off.
During oven use the fan may cycle on
and off. Should any fault occur with
the cooling fan, the appliance will
require servicing. Contact Customer
Support.
Environmental Protection
We are committed to protecting the
environment and operate an
Environmental Management System
which complies with BS EN ISO
14001:1996.
Disposal of packaging
• All our packaging materials are
recyclable and environmentally
friendly.
• Please help us to protect our
environment by disposing of all
packaging in an environmentally
friendly manner.
• Please contact your local authority
for the nearest recycling centre.
Caution: Packaging materials can
pose a risk of suffocation - keep away
from children.
3
INTRODUCTION

Storage compartment
Your appliance has a generous
storage compartment, located beneath
the right-hand side oven.
The storage compartments should only
be used to store oven furniture.
Baking trays and roasting tins may be
stored in the compartment.
Do not store items with plastic or
wooden handles in the compartments,
as they may be damaged by heat
from the oven.
Do not store flammable liquids, even
when cold, in the storage compartments,
as they may catch fire. Do not store
flammable items - ie; chip pans.
Do not store food / canned items in
the storage compartments. Do not
use the compartments as a food
warming facility.
4
STORAGE COMPARTMENT
Commissioning
Burner aeration
All burners have fixed aeration and no
adjustment is possible.
Pressure setting
G20 Natural Gas @ 20 mbar
G30 Butane @ 28-30 mbar
G31Propane @ 37 mbar
Pressure test point
Use the oven injector
Ignition
All burners are ignited by pressing the
ignition switch on the facia. When the
burner has lit release the ignition switch.
Hob - Turn the tap to the ‘full on’
position, wait a second before pressing
the ignition switch.
Grill - Open the grill door. Push in
and turn the tap to the ‘full on’ position.
Hold the control knob in and operate
the ignition button. A few seconds
after the flame has been established
release the control knob.
RHS Oven - Open the oven door.
Turn the tap to the ‘full on’ position and
press the ignition switch. The burner
operates at a low rate for up to 60 sec-
onds until the flame supervision device
opens and full gas rate is obtained.
LHS Oven - Open the oven door.
Push in and turn the control knob to the
full on position. Hold the control knob
in and operate the ignition button. A
few seconds after the flame has
established, the control knob can be
released.
Before leaving the installation
1. Place all the loose parts of the
cooker into position.
2. Show the customer how to operate
the cooker and give them this
handbook.
Thank you.
21
INSTALLATION INSTRUCTIONS

20
Connect to the electricity supply
Warning: This appliance must be
earthed.
The flexible mains lead is supplied
connected to a BS 1363 fused plug,
having a fuse of 3 amp capacity.
If this plug does not fit the socket in
your home, it should be replaced with
a suitable plug as outlined below.
The wires in the mains lead are
coloured in accordance with the
following code:
Green and yellow = Earth,
Blue = Neutral,
Brown = Live.
As the colours of the wires in the
mains lead for the appliance may
not correspond with the coloured
markings identifying the terminals in
your plug, proceed as follows:
1. The wire which is coloured green
and yellow must be connected to
the terminal marked E(Earth)
or coloured Green.
2. The wire which is coloured blue
must be connected to the terminal
marked N(Neutral), or coloured
Black.
3. The wire which is coloured brown
must be connected to the terminal
marked L(Live), or coloured Red.
The plug and socket must be
accessible after installation.
Should the appliance mains lead ever
require replacing, we recommend that
this is carried out by a qualified electrician
who will replace it with a lead of the
same size and temperature rating.
E(Earth)
GREEN / YELLOW
L (Live)
BROWN
N(Neutral)
BLUE
Use a 3 amp fuse
in a 13 amp plug.
INSTALLATION INSTRUCTIONS
5
When you are cooking, keep
children away from the vicinity
of the appliance.
This product is designed as a domestic
cooking appliance for the preparation
and cooking of domestic food
products, and should not be used for
any other purpose.
❍Remove all packaging from the
appliance before using for the
first time.
❍Make sure you read and under-
stand the instructions before using
the appliance.
❍Keep electrical leads short so they
do not drape over the appliance
or the edge of the worktop.
❍Keep all flammable materials (such
as curtains and furnishings) away
from the appliance.
❍Parts of the appliance may be hot
during or immediately after use.
Allow sufficient time for the appli-
ance to cool after switching off.
❍Switch off the electricity supply
before cleaning the appliance, to
avoid the risk of electric shock.
❍Do not drape tea towels over the
flue vents or door handles, as this
creates a fire hazard.
❍When opening the appliance
door, take care to avoid skin
contact with any steam which may
escape from the cooking.
❍Do not use aluminium foil to cover
the grill pan, or put items wrapped
in foil under the grill, as this
creates a fire hazard.
❍Use oven gloves when removing
hot food / dishes from the oven or
grill. The oven / grill and utensils
will be very hot when in use.
❍Do not use foil on oven shelves or
allow it to block the oven flue, as
this creates a fire hazard, and
prevents heat circulation.
❍When cooking heavy items - eg;
turkeys - do not pull the oven shelf
out with the item still on the shelf.
❍Drop-down doors (where fitted):
Do not place items on the door
when open.
❍Never use the appliance for
heating a room.
❍As with all gas appliances, it is
recommended that your appliance
is serviced regularly.
❍Warning: This appliance must
be earthed.
❍All installation, servicing
and maintenance work should
be carried out by a competent
person who will comply with
current Regulations, Standards
and Requirements.
When you have finished
cooking check that all controls
are in the off position.
BE SAFE - NOT SORRY

When you are cooking, keep
children away from the vicinity
of the appliance.
Ignition
Push in and turn the selected control
knob anticlockwise to the large flame
symbol and press the IGNITION SWITCH
until the burner lights. Turn the control
knob to the required setting.
Adjust the burner flame so that it does
not extend over the pan base.
To turn off, push in the control knob
and turn clockwise until the dot on the
control knob is below the line on the
facia panel.
To simmer
The simmer position is marked by the
SMALL FLAME symbol.
Once lit turn the selected control knob
anticlockwise past the LARGE FLAME sym-
bol (FULL ON) to the SMALL FLAME symbol.
You may hear a slight popping noise
when the hob burners are operating
and this is quite normal, but if anything
about the cooker appears unusual,
such as change in flame appearance,
or the operation of controls - seek
expert advice.
Pans
For optimum safety and performance,
we recommend the use of flat bottomed
pans with a base diameter of minimum
100mm (4”) and maximum 250mm
(10”).
Do not use double pans, rim based
pans, old misshapen pans or any pan
which is unstable when placed on a
flat surface.
Turn pan handles to a safe position
so they are out of reach of children,
not overhanging the appliance and
cannot be caught accidentally.
Position pans over the centre of the
burners, resting on the pan supports.
If positioned off centre, smaller pans
may be unstable.
When cooking with fat or oil, never
leave unattended.
Commercial simmering aids should
not be used as they create excessive
temperatures that can damage the
surface and may cause a hazard.
When you have finished
cooking check that all controls
are in the off position.
Pan supports
Always make sure the pan supports
are replaced correctly, and located in
the hob spillage well.
6
USING THE HOB
Connect to the gas supply
The inlet to the cooker is 1⁄2” BSP
internal, situated at the rear centre of
the appliance.
Use a 900mm - 1125mm length of
flexible connector.
Ensure that all pipe work is of the
correct rating for both size and
temperature.
Natural Gas - Flexible connections
should comply with BS 669. Parts of
the appliance likely to come into
contact with a flexible connector have
a temperature rise of less than 70˚C.
LP Gas - For flexible connections, use
a bayonet type hose, suitable for use
on LP Gas up to 50 mbar pressure rise
and 70˚C temperature rise. The
flexible hose should be coloured black
with a red stripe, band or label. If in
doubt, contact your supplier.
After installation, make sure all
connections are gas sound.
Important: - ensure that you route
all mains and electrical cables and
flexible tubing well clear of any
adjacent heat source.
19
INSTALLATION INSTRUCTIONS

Stability bracket
If the cooker is fitted with a flexible
connection, a stability bracket should
be fitted to engage in the back of the
cooker. A stability bracket can be
bought from your local supplier.
A stability bracket can be fitted as
follows:
1. Place the cooker in position and
draw a pencil line level with the
front edge.
2. Mark the centre of the cooker to give
the centre line for the bracket.
3. Remove the cooker and mark off
450mm from the pencil line to
locate the front edge of the lower
bracket.
4. Fix the bracket to the floor.
Measure from floor level to
engagement edge in the back of
the cooker and add 3mm.
5. Assemble the underside of the top
part of the bracket to this height.
Levelling
Place a spirit level on a baking sheet
onto an oven shelf.
The cooker is fitted with levelling feet
and locknuts at the front, and wheels
at the rear.
Adjustment of wheel height can be
made with a screwdriver through the
hexagonal hole in the front plinth.
18
Stability bracket
1Pencil line
on floor
2Centre
line
3
450
mm
Front edge for
lower bracket
45Underside of top bracket
slots into engagement
edge in back of cooker.
Rear wall
60
mm
INSTALLATION INSTRUCTIONS
Caution: Accessible parts may
be hot when the griddle is used.
Young children should be kept
away.
The appliance may be supplied with a
griddle.
Griddle symbol
Only use the griddle which has been
approved for use on this appliance.
Do not use any other griddle, as this
may be hazardous.
Please read these instructions thoroughly
before using the griddle for the first time.
Refer to the cleaning section for
griddle care and cleaning instructions.
For instructions on griddle cooking,
please refer to the accompanying
cooking guide.
Before using the griddle for the
first time
Wash the griddle thoroughly in hot
soapy water (see “Cleaning” section).
Season sparingly with a minimum
amount of cooking oil (see below).
Heat the griddle on full rate for 3 minutes.
The griddle plate is now ready for use.
Seasoning the griddle
The griddle is made of quality cast iron,
and has a non-stick cooking surface.
Regular seasoning will prolong the life
of the griddle and prevent rusting. If
the griddle shows signs of rust, wash
and re-season.
To season;
❍After cleaning, dry the griddle
thoroughly.
❍Rub the cooking side of the griddle
sparingly with a minimum amount
of unsalted vegetable oil. Note that
olive oil is unsuitable for seasoning.
Using the griddle
The griddle should only be positioned
front-to-back over the burners
indicated by the griddle symbol on the
fascia panel.
Do not use the griddle over the large
burners.
Place the griddle carefully on the pan
support over the burners, using the
locating feet on the underside of the
griddle. Take care to avoid damage
to the vitreous enamel surface of the
pan supports.
Before cooking, preheat the griddle
for 3 minutes on full rate, which is
indicated on the control knobs by a
large flame symbol.
After preheating, turn the control
knobs to the small flame symbol.
The griddle is now ready for cooking.
Do not use metal implements, as they
may damage the non-stick surface.
After cooking, allow the griddle to
cool before moving or cleaning it.
7
USING THE GRIDDLE (if fitted)

Caution: Accessible parts may
be hot when the grill is used.
Young children should be kept
away.
Ignition
Open the grill door. Push in and turn
the grill control knob anticlockwise to
the ‘full on’ position. Hold the control
knob in and operate the ignition
button or hold a lighted match or taper
to the burner.
Do not hold the control knob in for
more than 15 seconds. If after 15
seconds the burner has not lit, release
the control knob and wait at least one
minute before attempting a further
ignition of the burner.
Note that on some models it is not
necessary to hold the control in after
turning clockwise to the “full on” position.
In the event of the burner flames being
accidentally extinguished, turn off the
burner control and do not attempt to
reignite the burner for at least one minute.
A few seconds after the flame has
established, the safety valve will open
and the control knob can be released.
Turn the control knob to the required
setting.
Important: Keep the grill door open
when the grill is on.
When slower cooking is required the
grill can be turned down anti-clockwise
to a slightly reduced setting, past the
large flame symbol (full on), to the
small flame symbol. This can be used
in conjunction with use of the different
grilling positions (see below).
Only use the grill burner between the
large and small flame symbol.
To turn off, push in the control knob
and turn it clockwise to the “off” position.
Preheating
For best cooked results, always
preheat the grill for about 3 minutes.
Aluminium foil
Note that using aluminium foil to cover
the grill pan - or putting items wrapped
in foil under the grill - can create a fire
hazard.
8
USING THE GRILL
Whilst every care is taken to eliminate
burrs and raw edges from this product,
please take care when handling - we
recommend the use of protective
gloves during installation.
Moving the cooker
Please note that the weight of this
appliance is approximately 76kg
(unpacked).
Take care if the appliance needs to be
lifted during installation - always use
an appropriate method of lifting.
Do not attempt to move the cooker by
pulling on the doors or handles. Open
the door and grasp the frame of the
cooker, taking care that the door does
not shut on your fingers.
Take care to avoid damage to soft or
uneven floor coverings when moving
the appliance. Some cushioned vinyl
floor coverings may not be designed
to withstand sliding appliances without
marking or damage.
Clearances & Dimensions
Appliance dimensions
All sizes are nominal, and some
variation is to be expected. The
‘depth’ of the cooker, as given below,
is to the front of the door and excluding
knobs and handles.
Width 1000mm
Depth 600mm
Height (adjustable) 900 - 915mm
Clearances
This cooker may be fitted flush to
base units. However, for models with
side opening doors, we recommend
a side clearance of 60mm between
the cooker and any side wall or
protruding cabinet, to allow the door
to open fully.
No shelf or overhang or cooker hood
shall be closer than a minimum of
650mm, but check with cooker hood
manufacturer’s recommendations.
The cooker must have a side clearance
above hob level of 90mm up to a
height of 400mm.
17
90
mm
400
mm
650
mm
90
mm
400
mm
INSTALLATION INSTRUCTIONS

Before you start: Please read the
instructions. Planning your installation will
save you time and effort.
Prior to installation, ensure that the local
distribution conditions (nature of the gas and
gas pressure) and the adjustment of the
appliance are compatible. The adjustment
conditions are stated on the data badge.
This appliance is not connected to a combustion
evacuation device. It shall be installed and
connected in accordance with current
installation regulation. Particular attention
shall be given to the relevant requirements
regarding ventilation.
In your own interest and that of safety, it is
the law that all gas appliances be installed
and serviced by competent persons.
CORGI registered installers undertake to
work to satisfactory standards.
Where regulations or standards have been
revised since this handbook was printed,
always use the latest edition.
In the UK the regulations and
standards are as follows:
1. Gas Safety Regulations 1996
(Installation and Use).
2. Building Regulations - Issued by the
Department of the Environment.
3. Building Standards (Scotland)
(Consolidated) - Issued by the Scottish
Development Department.
4. The current I.E.E. Wiring Regulations.
5. Electricity at Work Regulations 1989.
6. BS 6172 Installation of Domestic Gas
cooking Appliances
Also, for LP Gas, refer to BS 5482
Part 1, Part 2 or part 3 as relevant.
7. Installation & Servicing Instructions for
this appliance.
For installation in countries other than the
UK, the appliance must be connected in
accordance with all local gas and electrical
regulations. In the Republic of Ireland,
Installers should refer to IS813 Domestic
Gas Appliances.
Ventilation Requirements
The room containing the appliance should
have an air supply in accordance with
BS 5440: Part 2: 1989:
• All rooms require an openable window,
or equivalent, and some rooms will
require a permanent vent as well.
• For room volumes up to 5m3an air
vent of 100cm2is required.
•
If the room has a door that opens directly
to the outside, or the room exceeds
10m3, NO AIR VENT is required.
• For room volumes between 5m3and
10m3an air vent of 50cm2is required.
• If there are other fuel burning appliances
in the same room, BS 5440: Part 2:
1989 should be consulted to determine
the air vent requirements.
• This appliance must not be installed in
a bed sitting room of less than 20m3or
in a bathroom or shower room.
Windows and permanent vents should
therefore not be blocked or removed without
first consulting a CORGI gas installer.
LP Gas only - Do not install this appliance
in a room below ground level. This does
not preclude installation into rooms which
are basements with respect to one side of
the building, but open to ground level on
the opposite side.
In the Republic of Ireland, refer to relevant Irish
Standards for correct ventilation requirements.
Failure to install appliances correctly
is
dangerous and could lead to prosecution.
16
INSTALLATION INSTRUCTIONS
9
USING THE GRILL
Detachable grill pan handle
Place the handle over the edge of the
grill pan, at the narrow side edges.
Slide the handle to the centre, and
locate between the handle position
indicators.
The handle should be removed from
the pan during grilling, to prevent
overheating.
The handle is designed for removing /
inserting the grill pan under the grill
when grilling.
If cleaning the grill pan when it is hot,
use oven gloves to move it. Do not use
the handle to pour hot fats from the
grill pan.
Food for grilling should be positioned
centrally on the trivet.
Grilling
Important: Keep the grill door open
when the grill is on.
The grill is variable. The speed of
grilling can also be adjusted by select-
ing a higher or lower shelf position.
We recommend using a higher shelf
position for toasting, and for cooking
foods such as bacon, sausages or
steaks.
For thicker foods such as chops or
chicken joint pieces, use a middle to
low shelf position.
The grill trivet, which is in the grill pan,
may be inverted to give a high or low
position or the trivet may be removed.
1. The HIGH trivet position is suitable
for toasting bread.
2. The LOW trivet position is suitable
for grilling all types of meat and
fish.
3. With the grill trivet removed the
food is placed directly on the base
of the grill pan - eg; when cooking
whole fish or browning dishes
such as cauliflower cheese.
handle grill pan
trivet
handle position
indicators

Caution: Accessible parts may be
hot when the ovens are used. Young
children should be kept away.
The cooker has two conventional gas
ovens. Please refer to the accompanying
cooking guide for instructions on using
the ovens.
Ignition
Open the oven door. Push in and turn
the control knob to the full on position
(gas mark 9). Hold the control knob in
and operate the ignition button (if fitted)
or hold a lighted match or taper to the
burner.
A few seconds after the flame has
established, the control knob can be
released.
Turn the control knob to the required
gas mark setting.
In the event of the burner flames being
accidentally extinguished, turn off the
burner control and do not attempt to
re-ignite the burner for at least one
minute.
To turn off, push in the control knob
and turn clockwise until the dot on the
control knob is below the line on the
facia panel.
Preheating
The oven must be preheated for 15
minutes when cooking frozen or
chilled foods, and we recommend
preheating for yeast mixtures, batters,
soufflés, and whisked sponges.
Notes:
As part of the cooking process, hot air
is expelled through a vent at the top of
the oven(s). When opening the oven
door, care should be taken to avoid
any possible contact with potentially
hot air, since this may cause discom-
fort to people with sensitive skin. We
recommend that you hold the under-
neath of the oven door handle.
If you find that over a period of time,
the oven becomes hotter when used at
a particular gas mark, the thermostat
may need to be replaced.
10
USING THE OVENS
Glass parts (if fitted)
GLASS DOOR PANELS
Do not use abrasives or polishes as
they will scratch and damage the glass.
Use a mild cream cleaner - eg; “Cif”.
Rinse away excess cleaner and dry
with a soft cloth.
Warning: Do not operate the appliance
without the glass panel correctly fitted.
Important: the inner door glass
panel can be removed for cleaning but
it must be replaced the right way up
(so the reflective side - if fitted - faces
inwards), and pushed fully in to the
stop position. To remove the glass
panel, open the door wide, hold the
top and bottom edges and slide out.
Griddle care and cleaning
Do not use metal implements as they
may damage the non stick surface.
After cooking allow the griddle
to cool completely before
attempting to remove or clean.
Once the griddle has cooled, remove
any excess fat with kitchen paper
before moving.
The griddle can be cleaned with hot
soapy water and a nylon brush. If any
food residue is left on the griddle,
leave it to soak for a few minutes in hot
soapy water before attempting to
clean it. Do not use caustic pastes,
abrasive cleaning powders, coarse
wire wool or any hard implements, as
they will damage the surface.
Do not clean in a dishwasher.
After cleaning, dry thoroughly then
re-season the cooking surface by wiping
sparingly with a minimum amount of
oil, and store in a dry place.
15
CLEANING

Chrome plated parts
OVEN SHELF & SHELF RUNNERS, GRILL PAN
RUNNERS, GRILL PAN TRIVET
Use a moist soap pad, eg; “Brillo”.

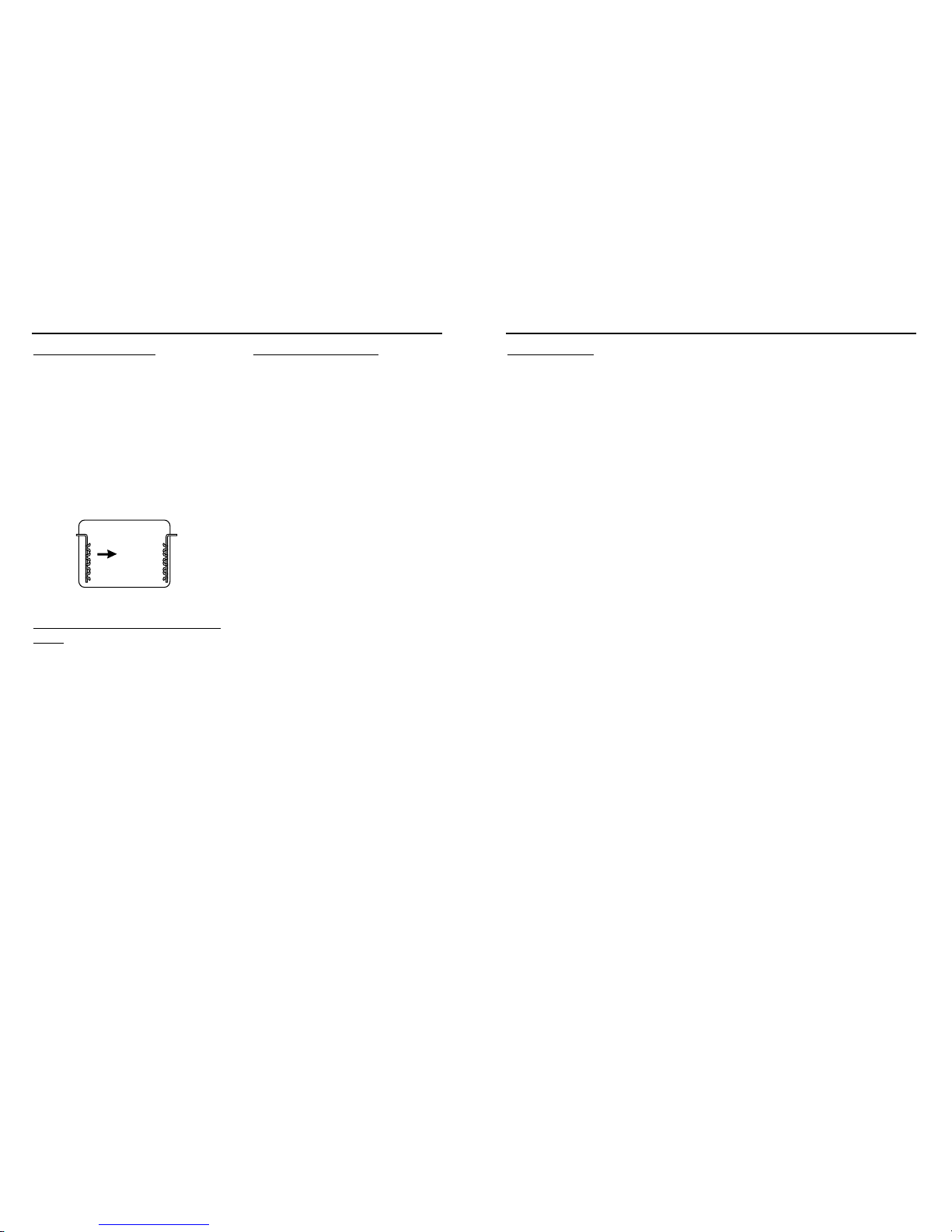

Note: Oven shelf runners (if fitted) can
be removed for cleaning. Grasp the
runners and slide out of the hanging
holes as shown.
Note: These items may also be
cleaned in a dishwasher.
Painted, plastic & metal finish
parts (where fitted)
PAINTED FACIA & METAL DOOR PANELS (if
fitted), SIDE PANELS, HANDLES & CONTROL
KNOBS
Only use a clean cloth wrung out in
hot soapy water.
Ticene® oven interior (if fitted)
OVEN SIDES AND BACK
We recommend that the appliance is
cleaned after open roasting, and also
after roasting at temperatures higher
than gas mark 5, to help prevent a
build up of fats. Use of a trivet in a
roasting tin when roasting will help
reduce fat splashing.
Caution: Most types of cleaning
agent will damage these surfaces.
Only use a few drops of washing up
liquid in hot water. Wipe the surfaces
with a clean cloth wrung out in hot
soapy water - if larger splashes of fat
do not readily disappear scrub the
area with a nylon brush or nylon pan
scourer and hot soapy water. Rinse
well and heat the oven to dry the surfaces.
14
CLEANING
Oven furniture
Shelf positions
The oven shelf must be positioned with
the upstand at the rear of the oven and
facing upwards.
Position baking trays and roasting tins
on the middle of the shelves, and leave
1 clear shelf position between shelves,
to allow for circulation of heat.
Baking tray and roasting tins
For best cooked results and even
browning, the maximum size baking
trays and roasting tins that should be
used are as follows;
Baking tray 290mm x 270mm
This size of baking tray will hold up to
16 small cakes.
Roasting tin 320mm x 270mm
We recommend that you use good
quality cookware. Poor quality trays
and tins may warp when heated,
leading to uneven baking results.
11
USING THE OVENS

12
USING THE MINUTE MINDER / CLOCK (if fitted)
Initial display
The digital timer enables you to set the
time of day (24 hour clock) and the
minute minder alarm.
Setting the “Time of Day”
1. Switch on the electricity supply to
the appliance.
The display will flash.
2. Press and release the time of day
button.
3. Set the time of day with the plus
and minus buttons.
4. The time will be set 7 seconds after
the last plus or minus operation.
Alarm tones
After setting the time of day, you can
select one of three alarm tones. Press
the minus button to listen to the first
tone, then release the minus button
and press it again to listen to the
second tone, etc. Releasing the minus
button after a tone has sounded will
automatically select that tone.
Setting the minute minder
1. Press and release the plus button
to change the display from clock
to minute minder - the bell symbol
will light.
2. Use the plus and minus buttons to
set the length of time before the
alarm tone will sound. The display
will increase in units of 10 seconds,
and decrease in units of 1 second.
The maximum period which may
be set is 99 minutes.
During countdown, the minute
minder has priority on the display,
which will show (in minutes :
seconds) the time remaining.
When countdown is complete, the
tone will sound for 7 minutes, or it
can be reset with one touch of the
plus button.
To cancel the minute minder at
any other time, either;
i. Run down the set time with the
minus button, then press and
release the plus button when the
alarm sounds, or,
ii. Simultaneously press the plus and
minus buttons, releasing the plus
button first.
The display will revert to show the
time of day.
Time of day
button Minus button Plus button
Caution: Any cleaning agent
used incorrectly may damage
the appliance.
Always let the cooker cool
before cleaning.
Some cooking operations generate
considerable amount of grease, this
combined with spillage can become a
hazard if allowed to accumulate on
the appliance through lack of
cleaning. In extreme cases this may
amount to misuse of the appliance and
could invalidate your guarantee.
It is recommended that the appliance
is cleaned after open roasting.
Do not use caustic, corrosive or
abrasive cleaning products, products
containing bleach, coarse wire wool
or any hard implements, as they will
damage the surfaces.
All parts of the cooker can be safely
cleaned with a cloth wrung out in hot
soapy water.
Vitreous Enamel Parts
GRILL PAN & GRILL COMPARTMENT, HOB TOP
& PAN SUPPORTS, OVEN COMPARTMENT FLOOR
Use a mild cream cleaner - eg; “Cif”.
Stubborn marks may be removed
using a moistened “Brillo” pad.
The pan supports and grill pan may be
cleaned in a dishwasher, or with a
nylon brush in hot soapy water.
Burner caps and heads
Important: Allow burners to cool
before cleaning.
Caution: Hotplate burners can be
damaged by soaking, automatic
dishwashers (or dishwasher powders
/ liquids), caustic pastes, hard
implements, coarse wire wool, and
abrasive cleaning pastes.
For the burners to work safely, the slots
in the burner head where the flames
burn need to be kept clear of deposit.
Clean with a nylon brush, rinse, and
dry thoroughly.
Hotplate burners may be cleaned with
a moist soapy pad - eg; “Brillo”.
Important: The burner caps and
heads must be repositioned correctly
so that they sit squarely onto the hob
as shown below.
13
CLEANING
incorrect
burner cap not central
incorrect
angled
correct
parallel
burner cap
burner head
