New World NW 50GSO Whi/444443993 User manual

OPERATING AND INSTALLATION
INSTRUCTIONS OF GAS
FREESTANDING
COOKER
NW 50GSO Whi/444443993
NW 50GSO Blk/444443994

Dear Customer,
Thank you for purchasing this Cooking Appliance. The safety
precautions and recommendations in these instructions are for your
own safety and the safety of others. These instructions will also
allow you to make full use of all the features offered by your
appliance.
Please keep this booklet in a safe place. It may be useful in future,
either to yourself or to others in the event that doubts should arise
relating to its operation.
This appliance must be used only for its intended purpose, that is for
the domestic cooking of foodstuffs. Any other form of usage is to be
considered as inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the event of damage
caused by improper or incorrect use of the appliance.

CONTENTS :
1. LAYOUT OF YOUR COOKER
2. SAFETY WARNINGS
3. INSTALLING AND USING YOUR COOKER
4. USING YOUR COOKER
5. CLEANING AND MAINTENANCE
6. SERVICE AND TRANSPORT

PART 1 : LAYOUT OF YOUR COOKER
9
10
11
12

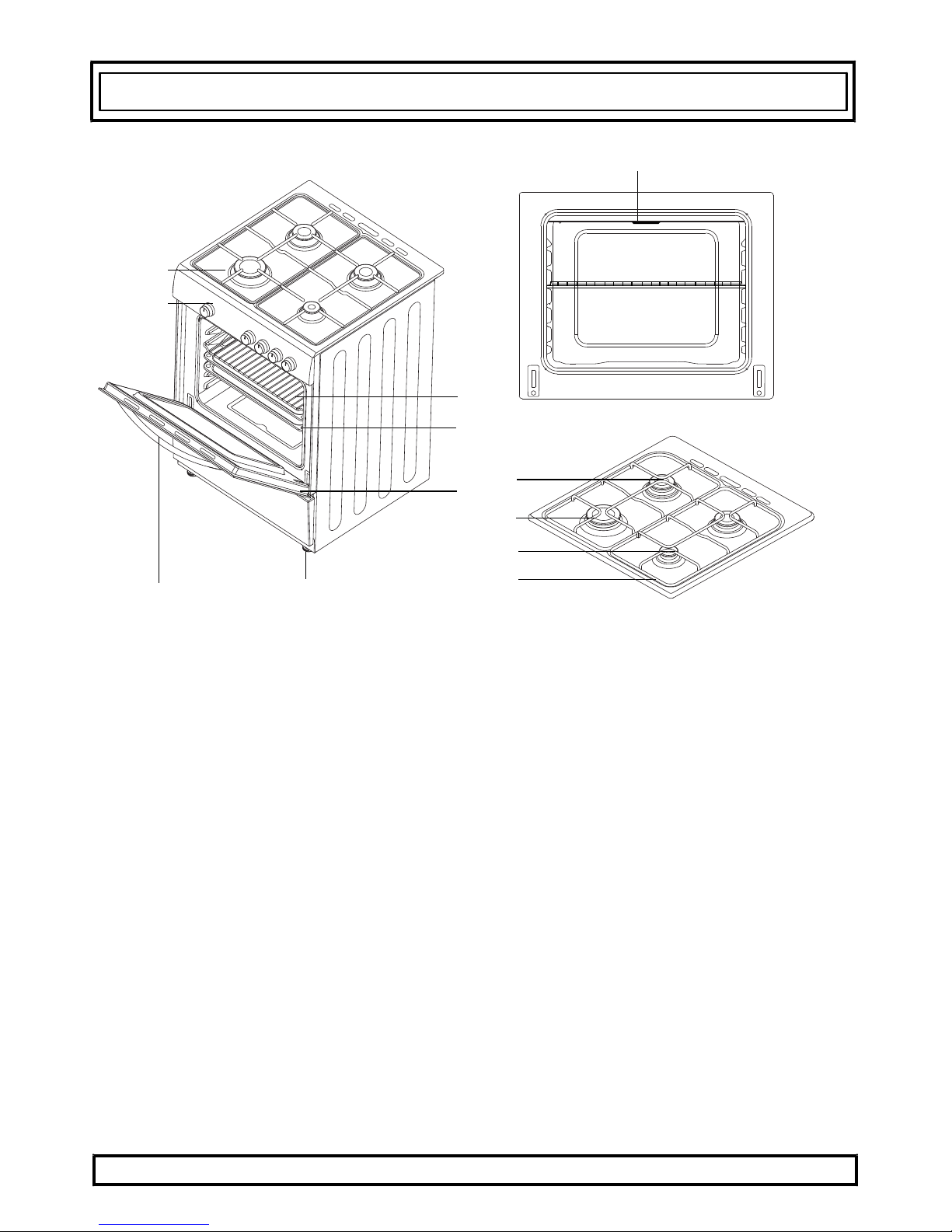

List of Components:
1- Cooktop
2- Control Panel
3- Oven Door Handle
4- Adjustable Feet
5- Oven Door
6- Oven Tray
7- Wire Grid
8- Grill Burner
9- Semi-Rapid Burner
10- Rapid Burner
11- Auxillary Burner
12- Pan Support
8
1
2
34
5
6
7

PLEASE READ THE ENTIRE INSTRUCTION MANUAL CAREFULLY BEFORE USING YOUR
APPLIANCE. MAKE SURE TO KEEP THE MANUAL SOMEWHERE SAFE IN CASE YOU NEED IT
FOR FUTURE REFERENCE.
THIS INSTRUCTION MANUAL HAS BEEN WRITTEN WITH OUR OTHER COOKER MODELS IN
MIND, AS WELL AS YOUR MODEL, THEREFORE SOME OF THE FEATURES THAT YOU SEE
EXPLAINED IN THIS MANUAL WILL NOT BE APPLICABLE TO YOUR COOKER.
PLEASE PAY PARTICULAR ATTENTION TO THE INSTRUCTIONS THAT HAVE ACCOMPANYING
PICTURES WHEN READING THIS MANUAL.
General Safety Warnings
- This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have
been given supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved. Children shall
not play with the appliance. Cleaning and user
maintenance shall not be made by children
without supervision.
- WARNING: The appliance and its accessible
parts become hot during use. Care should be
taken to avoid touching heating elements.
Children less than 8 years of age shall be kept
away unless continuously supervised.
- WARNING: Unattended cooking on a hob with
fat or oil can be dangerous and may result in
fire. NEVER try to extinguish a fire with water,
but switch off the appliance and then cover
flame e.g. with a lid or a fire blanket.
- WARNING: Danger of fire: do not store items
PART 2 : SAFETY WARNINGS

on the cooking surfaces.
- WARNING: If the surface is cracked, switch off
the appliance to avoid the possibility of electric
shock.
- For hobs incorporating a lid, any spillage
should be removed from the lid before opening.
And also the hob surface should be allowed to
cool before closing the lid.
- The appliance is not intended to be operated by
means of an external timer or separate remote-
control system.
- WARNING: In order to prevent tipping of the
appliance, the stabilizing brackets must be
installed. (For detail information please read the
anti-tilting kit set guide.)
- During use, the appliance becomes hot. Care
should be taken to avoid touching heating
elements inside the oven.
- During use, handles held for short periods in
normal use can get hot.
- Do not use harsh abrasive cleaners or sharp
metal scrapers to clean the oven door glass and
other surface since they can scratch the surface,
which may result in shattering of the glass or
damage to the surface.
- Do not use steam cleaners for cleaning the

appliance.
- WARNING: Ensure that the appliance is
switched off before replacing the lamp to avoid
the possibility of electric shock.
- CAUTION: Accessible parts may be hot when
the cooking or grilling is in use. Young children
should be kept away.
• Your appliance is produced in accordance with all applicable local and international standards and
regulations.
• Maintenance and repair work must be made only by authorized service technicians. Installation and
repair work that is carried out by unauthorized technicians may endanger you. It is dangerous to alter or
modify the specifications of the appliance in any way.
• Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure
or electricity voltage and frequency) and the requirements of the appliance are compatible. The
requirements for this appliance are stated on the label.
• CAUTION: This appliance is designed only for cooking food and is intended for indoor domestic
household use only and should not be used for any other purpose or in any other application, such as
for non-domestic use or in a commercial environment or room heating.
• Do not try to lift or move the appliance by pulling the door handle.
• This appliance is not connected to a combustion products evacuation device. It shall be installed and
connected in accordance with current installation regulations. Particular attention shall be given to the
relevant requirements regarding ventilation.
• If after 15 s the burner has not lit, stop operating the device and open the compartment door and/or
wait at least 1 min before attempting a further ignition of the burner.
• These instructions are only valid if the country symbol appears on the appliance. If the symbol does
not appear on the appliance, it is necessary to refer to the technical instructions which will provide the
necessary instructions concerning modification of the appliance to the conditions of use of the country.
• All possible security measures have been taken to ensure your safety. Since the glass may break,
you should be careful while cleaning to avoid scratching. Avoid hitting or knocking on the glass with
accessories.
• Ensure that the supply cord is not wedged during the installation. If the supply cord is damaged, it
must be replaced by the manufacturer, its service agent or similarly qualified persons in order to
prevent a hazard.
• While the oven door is open, do not let children climb on the door or sit on it.
Installation Warnings
• Do not operate the appliance before it is fully installed.
• The appliance must be installed by an authorized technician and put into use. The producer is not
responsible for any damage that might be caused by defective placement and installation by
unauthorized people.
• When you unpack the appliance, make sure that it is not damaged during transportation. In case of any
defect; do not use the appliance and contact a qualified service agent immediately. As the materials used
for packaging (nylon, staplers, styrofoam...etc) may cause harmful effects to children, they should be
collected and removed immediately.
• Protect your appliance against atmospheric effects. Do not expose it to effects such as sun, rain, snow etc.
• The surrounding materials of the appliance (cabinet) must be able to withstand a temperature of min
100°C.

During usage
• When you first run your oven a certain smell will emanate from the insulation materials and the
heater elements. For this reason, before using your oven, run it empty at maximum temperature for
45 minutes. At the same time you need to properly ventilate the environment in which the product is
installed.
• During usage, the outer and inner surfaces of the oven get hot. While opening the oven door, step
back to avoid the hot steam coming out of the oven. There may be a risk of burns.
• Do not put flammable or combustible materials, in or near the appliance when it is operating.
• Always use oven gloves to remove and replace food in the oven.
• Do not leave the cooker while cooking with solid or liquid oils. They may catch fire on condition of
extreme heating. Never pour water on to flames that are caused by oil. Cover the saucepan or frypan with
its cover in order to choke the flame that has occured in this case and turn the cooker off.
• Always position pans over the centre of the cooking zone, and turn the handles to a safe position so they
cannot be knocked or grabbed.
• If you will not use the appliance for a long time, plug it off. Keep the main control switch off. Also when you
do not use the appliance, keep the gas valve off.
• Make sure the appliance control knobs are always in the "0" (stop) position when it is not used.
• The trays incline when pulled out. Be careful not to let hot liquid spill over.
• CAUTION: The use of a gas cooking appliance results in the production of heat, moisture and products
of combustion in the room in which it is installed. Ensure that the kitchen is well ventilated especially when
the appliance is in use, keep natural ventilation holes open or install a mechanical ventilation device
(mechanical extractor hood).
• Prolonged intensive use of the appliance may call for additional ventilation, for example opening of
a window, or more effective ventilation, for example increasing the level of mechanical ventilation
where present.
• While using the grill burner, keep the oven door open and always use the grill deflector shield
supplied with the product. Never use the grill burner with the oven door closed.
• When the door or drawer of the oven is open, do not leave anything on it. You may unbalance your
appliance or break the cover.
• Do not put heavy things or flammable or ignitable goods (nylon, plastic bag, paper, cloth...etc) into
the drawer. This includes cookware with plastic accessories (e.g. handles).
• Do not hang towels, dishcloths or clothes from the appliance or its handles.
During cleaning and maintenance
• Always turn the appliance off before operations such as cleaning or maintenance. You can do it
after plugging the appliance off or turning the main switches off.
• Do not remove the control knobs to clean the control panel.
TO MAINTAIN THE EFFICIENCY AND SAFETY OF YOUR APPLIANCE, WE RECOMMEND YOU
ALWAYS USE ORIGINAL SPARE PARTS AND TO CALL ONLY OUR AUTHORIZED
SERVICE AGENTS IN CASE OF NEED.

PART 3. INSTALLING AND USING YOUR COOKER
Manufactured with the best quality parts and materials, this modern, functional and
practical cooker aims to meet all your cooking needs. Read the manual carefully to
familiarise yourself with the functions of the appliance so that you know how to use it
successfully and safely. The information below contains rules that are necessary for
positioning it correctly and for any service work that may need to be done. All information
should be read without fail, especially by the technician who will position the appliance.
PLEASE CONTACT AN AUTHORIZED SERVICE TO INSTALL THE COOKER FOR YOU
3.1 POSITIONING YOUR APPLIANCE
-Your cooker must be positioned and used in a place where it will always have ventilation.
-There has to be enough natural ventilation to allow the gas to be used in your kitchen.
-The airflow must come directly from air holes/vents that are open to the outside air and let
air flow in and out.
-This ventilation must have an area of at least 100cm² to allow enough air circulation to be
effective (One or more air holes/vents can be opened).
-The air holes/vents must be opened so that it doesn't prevent air from getting in.
-Ideally, they must be placed close to the bottom of the cooker and on the opposite side to
where burned gas is being expelled.
-If it's not possible to place air vents in the same place as the position of the appliance, the
required ventilation can come from an adjacent room, providing that this place isn't a
bedroom or a dangerous area.
Expelling burned gases from the cooking environment
Gas fuelled appliances remove the leftover burned gas from cooking either directly outside
or through a cooker hood that's connected to a chimney that opens directly to the outside. If
it is impossible to install a cooker hood near the cooker, you must set an electric fan on the
nearest window or wall that has access to fresh air.

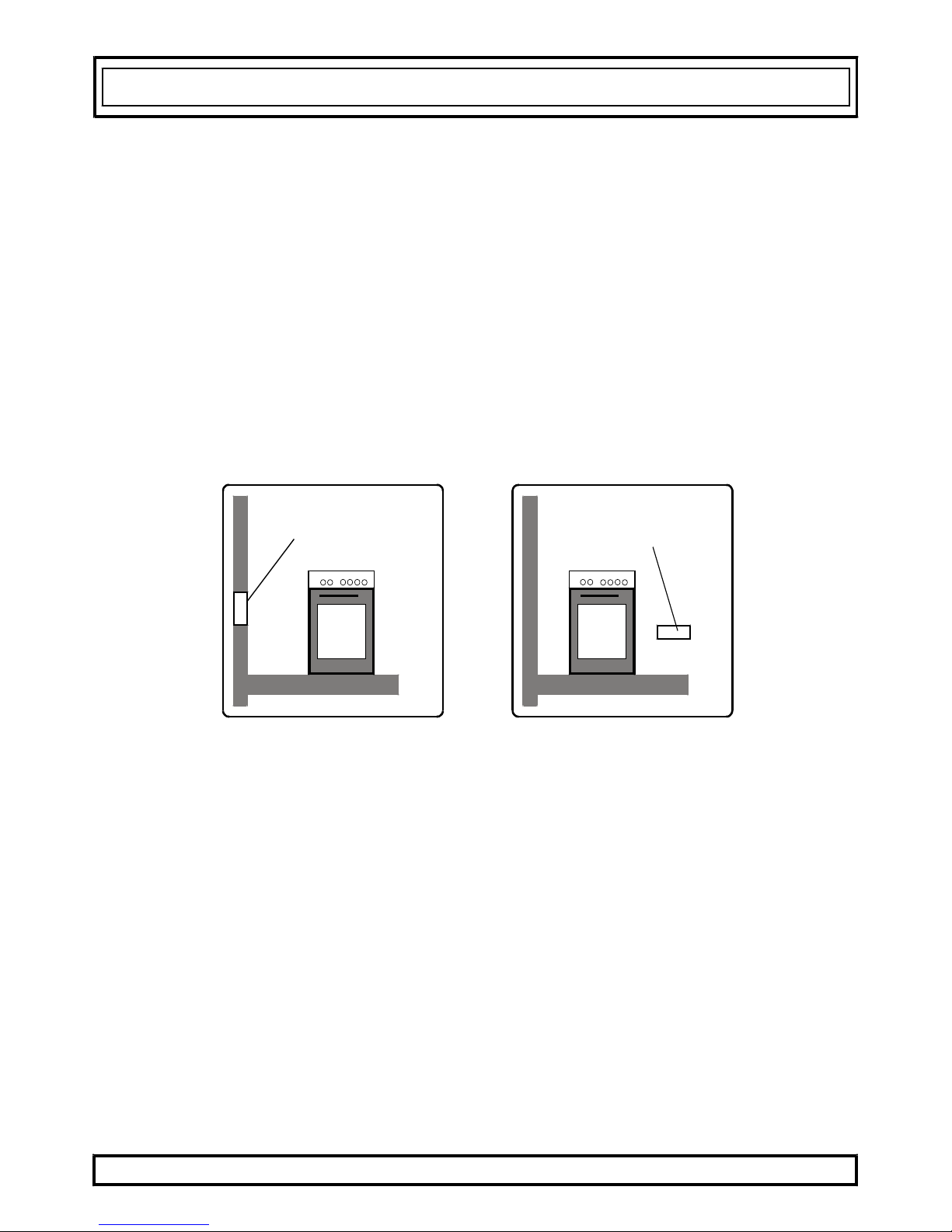

Air inlet section
2
min. 100cm
Air inlet section
2
min. 100cm

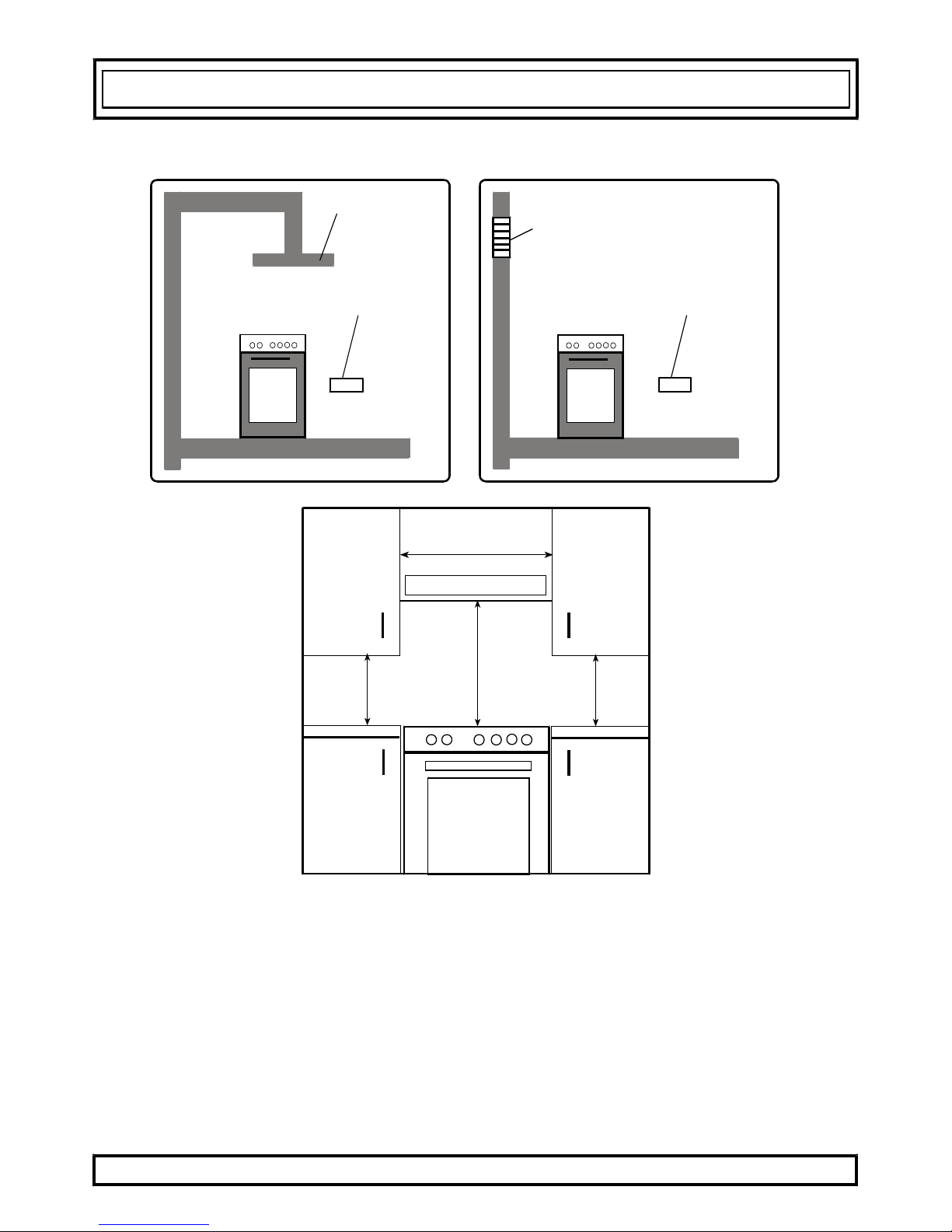

Figure 1 Figure 2

This electric fan must have the capacity to change the air of the kitchen environment 4-5
times of its own volume of air per hour.
Cooker hood flue
Electrical ventilator
Air inlet section
2
min. 100cm
Min. 60cm
COOKER HOOD
Min. 42cm
Min. 42cm
Min. 65cm(with hood)
Min. 70cm(without hood)
Air inlet section
2
min. 100cm
Figure 5
Figure 3 Figure 4
3.2 INSTALLING THE COOKER
There are several factors to consider when choosing a place for your cooker. Follow our
advice below in order to prevent any problems and dangerous situations from happening.
-Furniture can be placed in the surrounding area of the cooker, providing that the furniture's
height does not exceed the height of the cooker panel.

-When choosing a place for your cooker, do not place it near a refrigerator and make sure
there are no flammable or combustible materials in the surrounding area that could catch
fire with a cooker nearby, such as curtains, oil, cloth etc.
-Make sure there is at least a 2cm gap between the back cover of the cooker and the wall
to help the air circulate.
-Any furniture near the cooker must be made of materials that are resistant to heat up to
100°C.
-Any kitchen furniture higher than the cooker top must be at least 10cm away from the
cooker's side.
The minimum height between the cooker top and any existing wall cupboards and extractor
fans with furniture fascias are shown above. Extractor fans inside a kitchen cabinet must be
at a minimum height of 650mm from the cooker top. For exposed extractor fans, this height
must not be less than 700mm.
3.3 ADJUSTING THE FEET
This cooker stands on 4 levelling legs. As the legs are initially on a lower position, you must
adjust them to make sure the cooker is balanced before using it. If you need to balance the
cooker, the legs can be adjusted by turning them clockwise. You can raise the cooker by a
maximum of 30mm with the levelling legs. If you have had to adjust the cooker with the
levelling legs make sure to move the cooker by lifting it rather than dragging it. The levelling
leg can be adjusted by hand or a suitable size coin.
3.4 CONNECTING THE GAS
Connecting this gas appliance must be done according to local and international standards
and the relevant regulations. You can find the information related to correct gas types and
injectors on the technical data table on page 25. If the pressure of the gas is different to the
ones stated on the table or not steady in your area, then you must fix a pressure regulator
onto the gas inlet. You must contact a qualified and certified gas registered technician to
make these changes for you.
The points that must be checked during flexible hose assembly
-If the gas connection is made by a flexible hose that is fixed onto the gas inlet of the
cooker, it must be fitted with a pipe collar as well.
-Connect your appliance with a short and durable hose that is as close as possible to the
gas source.
-The permitted maximum length of the house is 1.5m.
-The hose that supplies the appliance with gas must be changed once a year for your
security.
-The hose must be kept clear from areas that may heat up to temperatures of more than
90°C.
-The hose must not be cracked, torn, bent or folded.
-Keep the hose clear of sharp corners and objects that could move.
-Before you assemble the connection, you must make sure the hose is not damaged with
bubbly water or leakage fluids.
-Do not use a naked flame to check gas leakage.
-All metal items that are used during gas connection must be free from rust, and check
the expiry date of any components used for connections.

As gas is turned on, all connection parts and hoses must be checked with soapy water
or leakage fluids. Do not use naked flame to check for gas leakages. All metal
components used during gas connection must be clear of rust. Also check the expiry dates
of components used.
The gas inlet of this product is on the right side of the appliance. If connection point needs to be
moved to the left side of the appliance, you can request an extension pipe from an
authorized service company.
What to check during fixed gas connection assembly
-During connection, always keep the nut on the gas manifold fixed, whilst rotating the
counter-part.
-Use the correct sized spanners to ensure a secure and safe connection.
-Always use the seals provided in the spare set for all the surfaces between different
components, and these seals must have been approved to be used in gas connections.
-Do not use plumbing seals for gas connections.
You must call a qualified and certified registered gas fitter to connect the gas to
the appliance for you so that it's done safely, appropriately and in compliance
with safety standards.
WARNING: Do not use any match or lighter to control a gas leak.
!

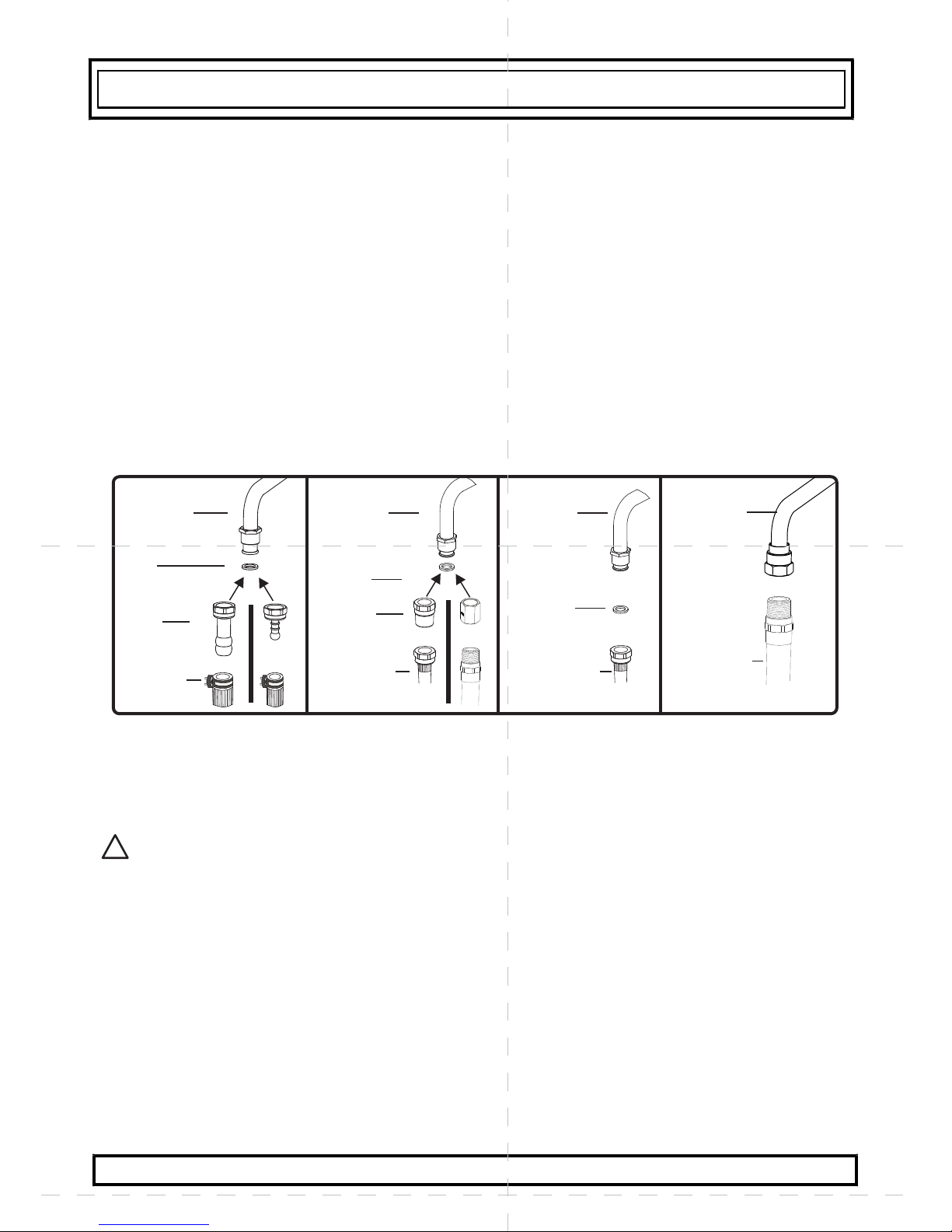

Adapter
Gas Pipe Gas Pipe Gas Pipe Gas Pipe
Seal Seal
Seal
Hose
Fitting
Gas Hose
with Collar
Mechanical
Gas Hose
Mechanical
Gas Hose
Mechanical
Gas Hose
Figure 4

3.5. Electrical connection
When it comes to connecting your appliance, please follow the instructions below carefully:
WARNING: This appliance must be earthed.
-This appliance connects to a 240 volts, 50 Hz AC supply.
-It must be connected to this supply via a 3-pin socket.
-The plug must be suitably earthed and protected by a 3 amp fuse in the plug.
-The appliance is supplied with a 13-amp 3-pin mains plug that has a 3 amp fuse
-If you need to replace the fuse, you must replace it with a fuse rated at 3 amp and
approved to Bs1362
-The plug contains a removable fuse cover that must be refitted when the fuse is replaced
-If the fuse cover is lost or damaged, the plug must not be used until you get a
replacement.
-If the plug is not suitable for the socket in your home, then the fuse should be removed
and the plug disposed of safely to prevent an electric shock.
IMPORTANT: How to wire a 13 amp plug
The wire colours may not always correspond
with the markings on the terminals in your
plug, so these steps must be followed:
-Connect the green and yellow wire
to the terminal in the plug which is either:
I. Marked with the letter E
II. Marked with an Earth symbol
III. Coloured green and yellow
-Connect the blue wire to the terminal in the plug which is marked N
-Connect the brown wire to the terminal marked L
Figure 7
Fuse (3 Amp)
Live (Brown)
Earth
(Green-Yellow)
Neutral (Blue)
Cord Clamp
L
N
BROWN
YELLOW+GREEN
BLUE

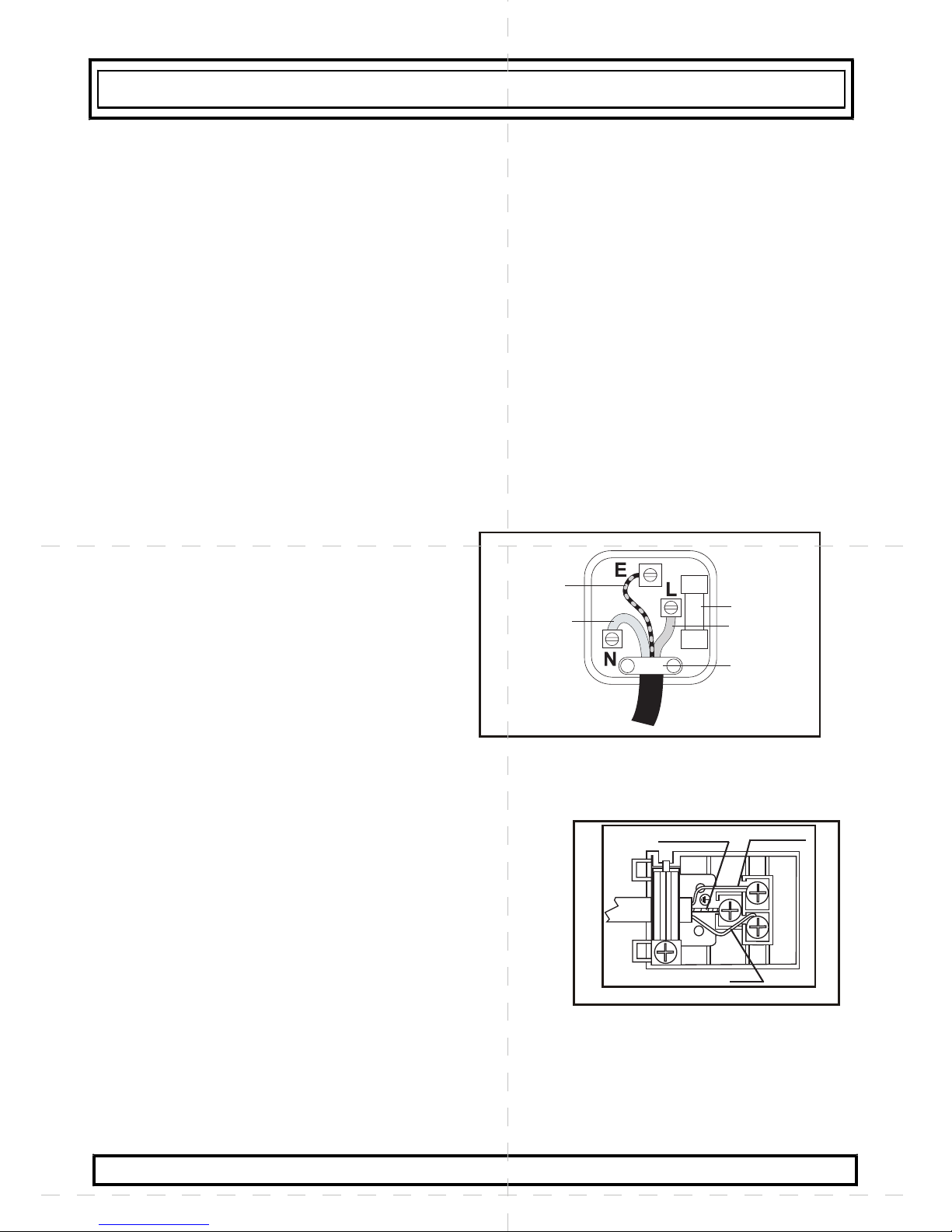

Electrical connection diagram
As the colours may not correspond with the markings
identifying the terminals in your plug proceed as follows.
The green and yellow wire must be connected to the
terminal in the plug, which is marked with the letter E, or
with the earth symbol or coloured green and yellow. The
blue wire must be connected to the terminal marked N.
The brown wire must be connected to the terminal
marked L.

3.7 CONVERTING THE GAS
Caution : The following procedures must be undertaken by authorized service
people.
Your appliance can be adjusted to operate with LPG or Natural Gas. The burners can be
altered to work with different types of gas by switching their injectors and adjusting the
minimum flame length suitable to the gas in use. To change the injectors, these steps must
be followed:
Changing injectors:
Hob Burners:
• Cut off the main gas supply and unplug from the electric mains.
• Remove the burner cap and the adapter(Figure 8).
• Unscrew the injectors. For this, use a 7mm spanner(Figure 9).
• Replace the injector with the ones from the gas conversion kit, with corresponding
diameters suitable to the type of gas that is going to be used, according to the
information chart (which is also supplied in the gas conversion kit).
Changing the oven/grill injectors
The oven and grill injectors are assembled by a single screw that is on the tip of the burner.
Grill injector:
For grill burners, this screw is already visible (Figure 10). Remove the screw and pull the
grill burner towards you and you will see the injector revealed on the rear surface of the
oven cavity (Figure 11 on the next page).

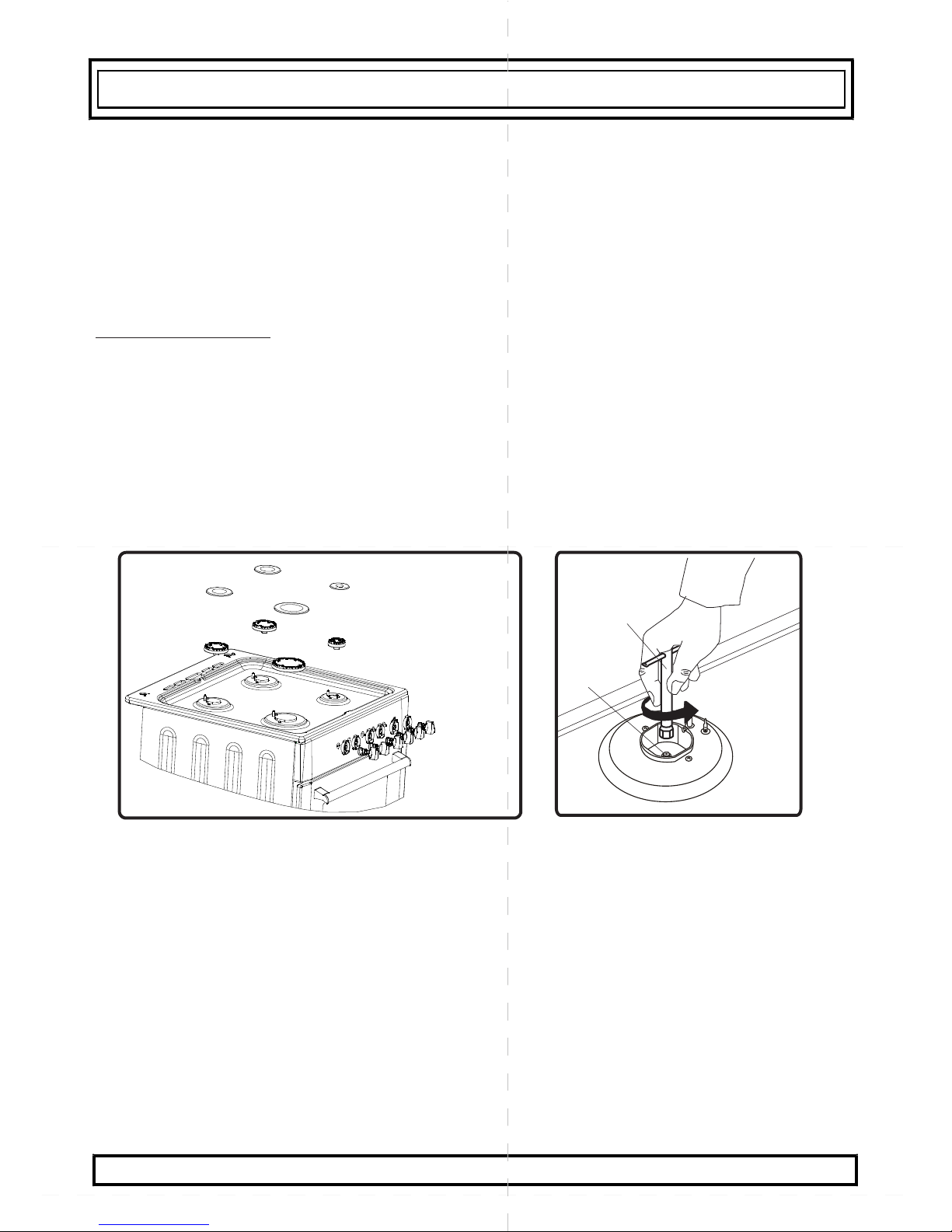

Figure 8 Figure 9
Injector
Spanner

For oven burners, open the drawer compartment and you will see the assembly screw below
the burner (Figure 12. Remove the screw, move the burner diagonally and the injector will be
revealed on the rear side of the burner box (Figure 11.
Remove the injectors with a 7mm spanner and replace the injector with the ones from the
spare set, with corresponding diameters suitable to the type of gas that is going to be used,
according to the information chart (which is also supplied in the gas conversion kit.
Adjusting the minimum flame position:
First of all, make sure that the appliance is unplugged from the electric current and the gas
feed is open. The minimum flame position is adjusted with a flat screw located on the valve.
For valves with a flame failure safety device, the screw is located on the side of the valve
spindle and for valves without a flame failure safety device, the screw is located inside the
valve spindle. To make this easier, we recommend to remove the control panel (and the
micro switch if your model has one) during the alteration. It you want to go from natural gas
to LPG the screw must be tightened and from LPG to natural gas, the screw must be
loosened.
Determining the minimum flame position
To determine the min. position, ignite the burners and leave them on in the minimum
position. Remove the knobs because the screws are accessible only when the knobs are
removed. With the help of a small screwdriver fasten or loosen the bypass screw around 90
degrees. When the flame has a length of at least 4mm, the gas is well distributed. Make sure
that the flame does not die out when passing from the maximum position to the minimum
position. Create an artificial wind with your hand toward the flame to see if the flames are
stable. For the oven burner, operate the oven burner at the min. position for 5 minutes, then
open and close the oven door 2-3 times to check the flame stability of the burner.
Changing the gas inlet:
For some countries, the gas inlet type can be different for NG/LPG gases. In such a case,
remove the current connection components and nuts (if any and connect the new gas
supply accordingly. In all conditions, all components used in gas connections should be
approved by local and/or international authorities. In all gas connections, refer to the
“ASSEMBLY OF GAS SUPPLY AND LEAKAGE CHECK” clause explained before.

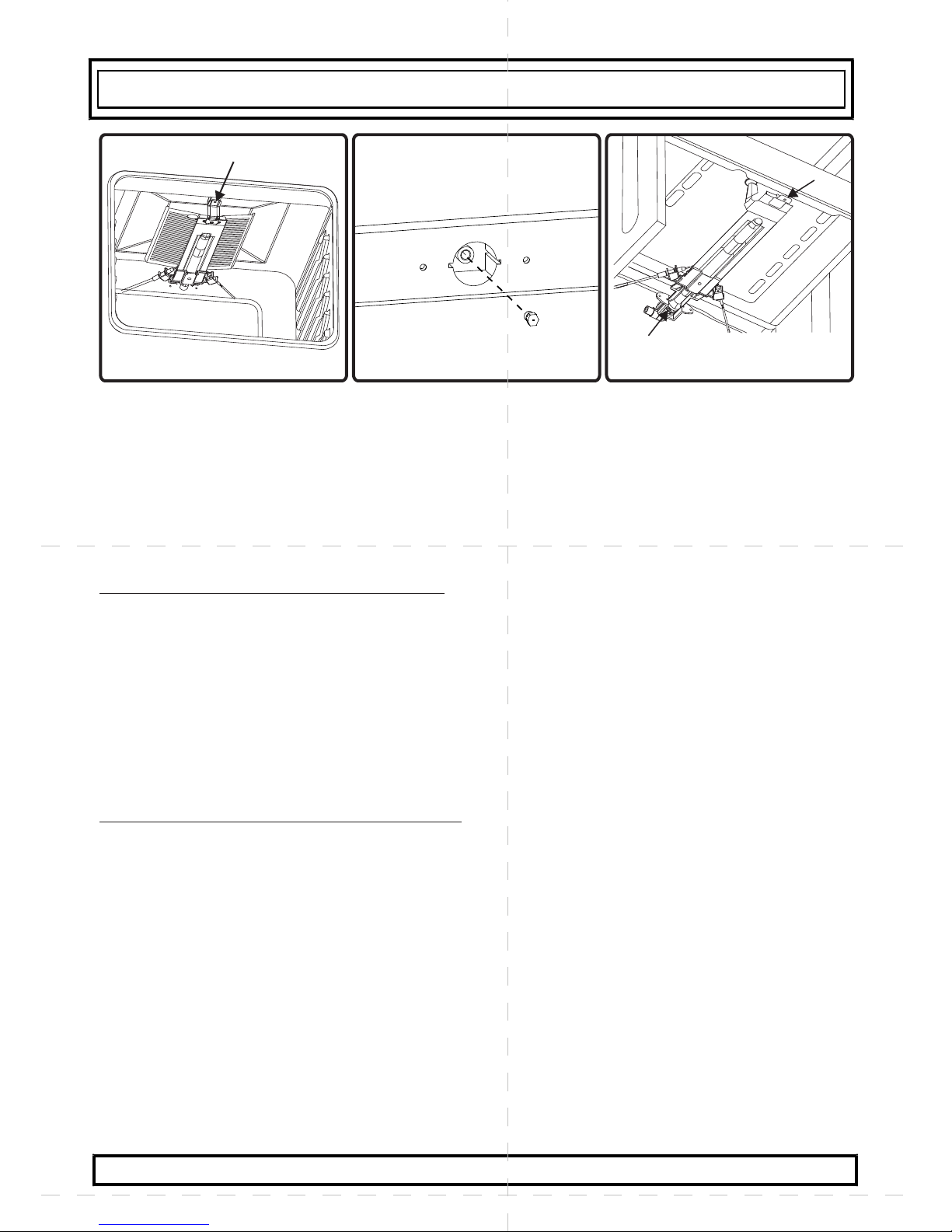

Figure 11
Figure 10
Screw
Figure 12
Screw
Injector

4. USING YOUR COOKER
4.1 Using the gas burners
Ignition of the burners
To determine which knob controls which burner, check the position symbol above the knob.
If your appliance does not come with an automatic ignition or in the event there is a power
cut and the automatic ignition is not working, follow the steps below to ignite the burner:
For Hob Burners: To ignite one of the burners, press and turn one of the knobs counter-
clockwise so that the knob is at the maximum position. Then get a match, candle or other
manual lighter to light the gas and move it away once it ignites.
For Oven Burners: To ignite the oven burner, press and turn one of the knobs
counter-clockwise so that the knob is at the maximum position. Then get a match, candle or
other manual lighter and hold it up to the ignition hole that is located on the front left corner
of the burner and move the light source away once you see a stable flame.
For Grill Burners: To ignite the grill burner, press and turn one of the knobs counter-clockwise
so that the knob is on the grill symbol. Then get a match, candle or other manual lighter and
hold it up to the ignition holes that are located on the burner and move the light source away
once you see a stable flame.
Electrical Ignition
Flame safety device:
Hob Burners
Hob burners that come with a flame failure safety device will give your kitchen extra
security should a gas flame on the hob extinguish during use. If a flame does extinguish,
the device will cut off the gas supply immediately to prevent unburned gas from leaking into
the room. Wait 90 seconds before re-igniting an extinguished gas burner.
Ignition by Spark Button: Press the knob of the burner you want to
operate and turn the knob in the counter-clockwise direction so that the
knob is at the max. position and with your other hand,
press the ignition button at the same time. Press the ignition button
immediately, because if you wait, a build up of gas may cause the flame
to spread. Continue pressing the ignition button until you see a stable flame on
the burner.

Oven / Grill Burners
Regardless of the model of your appliance, all oven burners are equipped with a gas safety
device. For this reason, during ignition, keep the oven knob pressed until you see stable
flames. If the flames cut out after you release the knob, repeat the procedure again. If the
oven burner does not ignite after you keep the burner knob pressed for 30 seconds, open
the oven door and do not attempt re-ignition for at least 90 seconds. When oven flames go
out accidentally, repeat the same procedure.
4.1.1 Control of the hob burners
The knob has 3 positions: Off (0), max (big flame symbol) and min (small flame symbol).
After you ignite the burner in the max. position; you can adjust the flame length between
max. and min. positions. Do not operate the burners when the knob position is between
max. and off positions.
After the ignition, check the flames visually. If you see a yellow tip, lifted or unstable flames;
turn the gas flow off, and check the assembly of burner caps and crowns. Also, make sure
that no liquid has flown into the burner cups. If the burner flames go out accidentally, turn
the burners off, ventilate the kitchen with fresh air, and do not attempt re-ignition for 90 sec.
When turning the hob off, turn the knob in the clockwise direction so that the knob shows
"0" position or the marker on the knob points upwards.
Your hob has different sized burners. The most economic way of using gas is too choose
the correct size gas burners for your cooking pan size and to bring the flame to minimum
position once the boiling point is reached. It is recommended to always cover your cooking
pan.

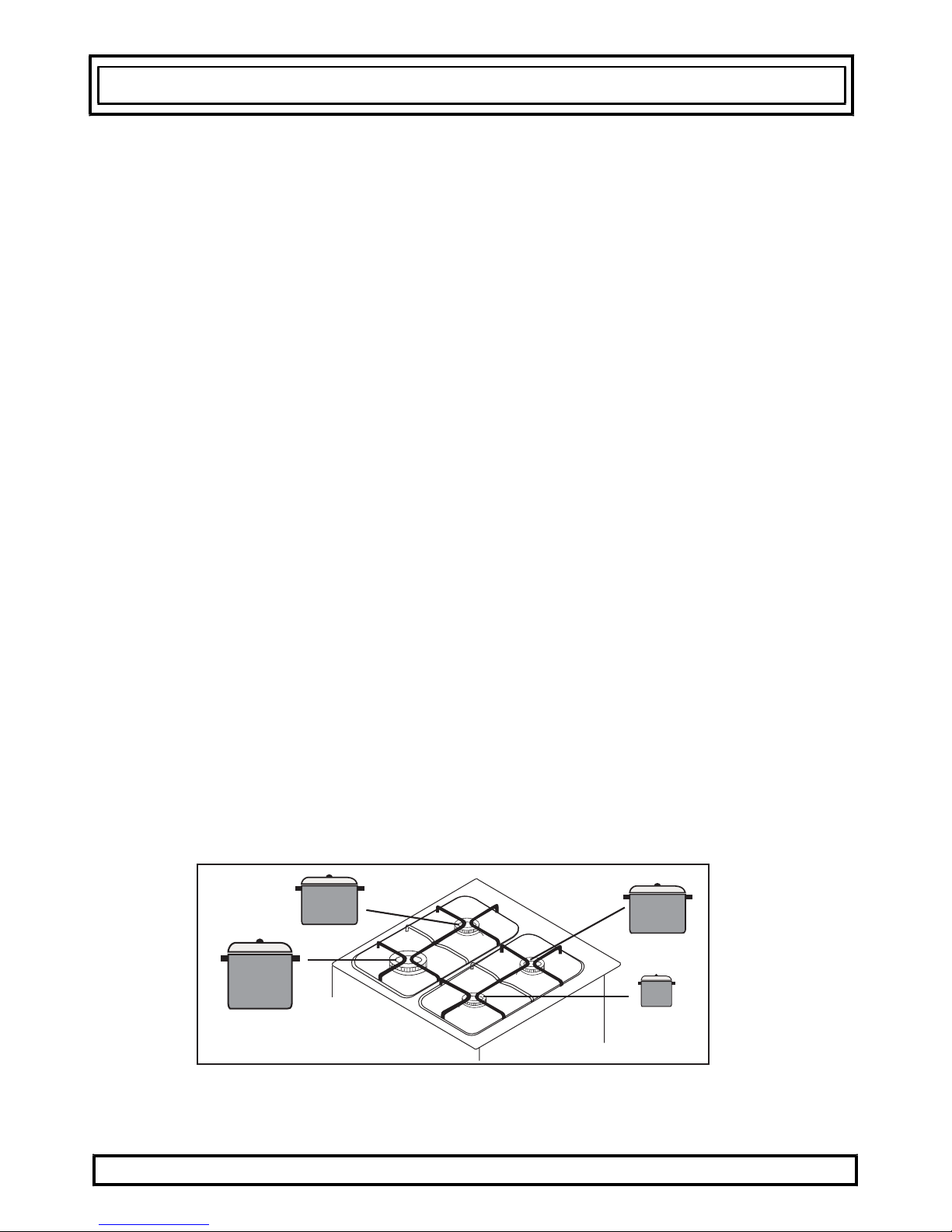

To get the best performance possible from your burners, use pots and pans with the
diameters listed below. These are the dimensions for the flat base of the cookware. Using
smaller pots than the minimum dimensions below will cause flames to escape around the
pan, causing energy loss.
22-26cm 12-18cm
14-22cm
14-22cm

When the burners are not in use for prolonged periods, always turn the main gas control
valve off.
WARNING:
Use only flat pans and with a sufficiently thick base
• Ensure that the base of the pan is dry before placing it on the burners.
• The temperature of accessible parts may be high when the appliance is operating. So it
is imperative to keep children and animals out of the reach of the burners during and
after cooking.
• After use, the hob remains very hot for a prolonged period of time, do not touch it and
do not place any object on top of the hob.
• Never place knives, forks, spoons and lids on the hob as they will get hot and could
cause serious burns.
4.1.2 Control of the oven burner
After you ignite the oven burner as explained before, you can adjust the temperature
inside the oven as you require, using the numbers around the control knob: Bigger
numbers mean higher temperatures, while smaller numbers mean lower temperatures. If
your oven is equipped with an oven thermostat; refer to the temperature table below for the
temperature references of those numbers. Do not operate the appliance between "Off"
position and first temperature marker in the counter-clockwise direction. Always use the
oven between max. and min. numbers on the serigraphy. When turning the oven off, turn
the knob in the clockwise direction so that the knob shows "0" position.
Figure 14

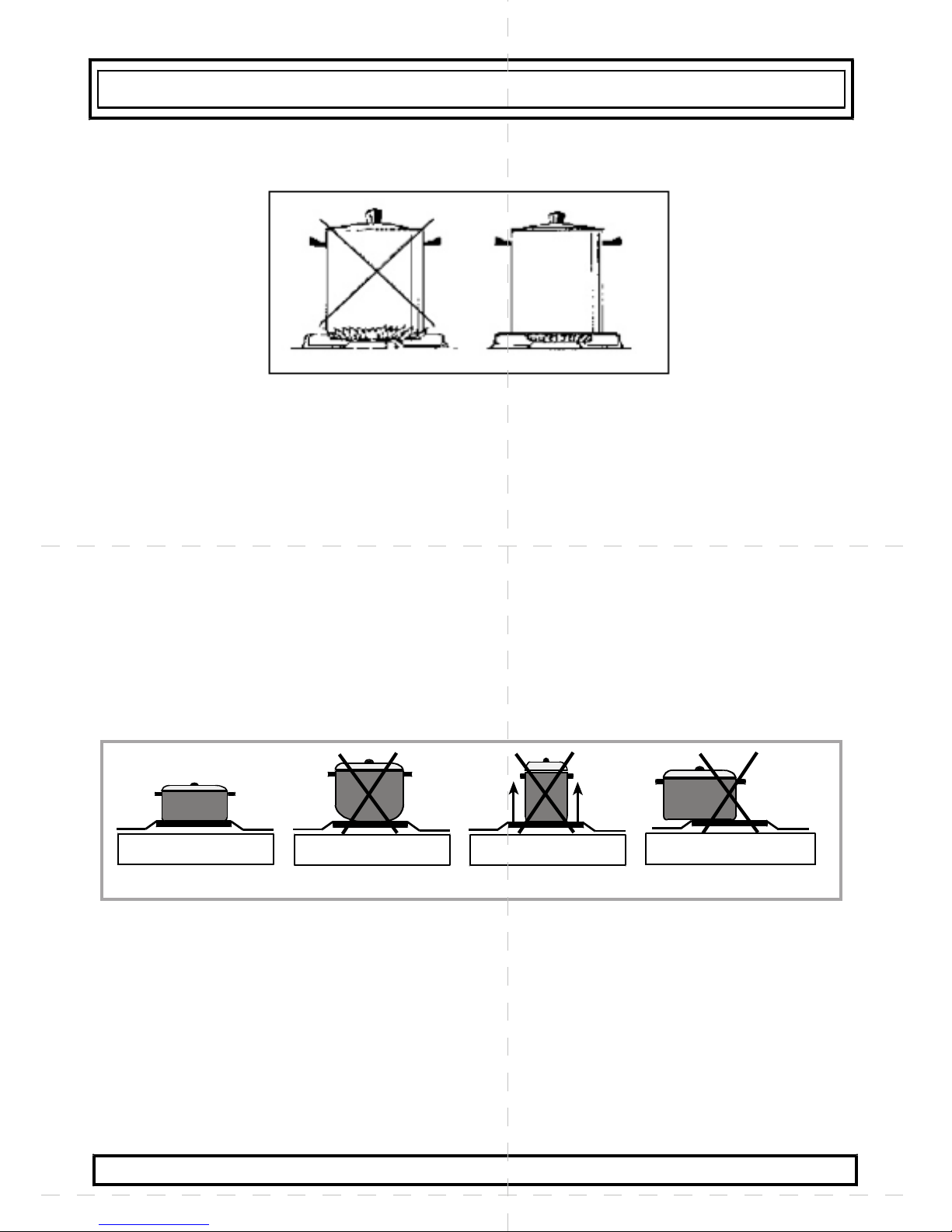

Make sure that the tips of the flames do not spread out of the outer circumference of the
pan, as this may also harm the plastic accessories around the pan (handles etc.).
Do not use cooking containers that overlap the hob surface.
CORRECT WRONG
pot bottom is round WRONG
pot buttom is small WRONG
pot
buttom does not sit well

Preheating
When you need to preheat the oven, we recommend you do so for 10 minutes. For recipes
needing high temperatures, e.g. bread, pastries, scones, soufflés etc., best results are
achieved if the oven is preheated first. For best results when cooking frozen or cooked
chilled ready meals always preheat the oven first.
Cooking
• Ensure that food is placed centrally on the shelf and there is sufficient room around the
baking tray/dish to allow for the heat to circulate evenly around the whole dish.
• Place dishes on a suitably sized baking tray on the shelf so that no food overflows onto
the base of the oven to help reduce cleaning.
• The material and finish of a tray will affect how well the base of a dish browns. Enamel,
dark, heavy or non-stick cookware increase base browning whereas shiny aluminium or
polished steel trays will reflect the heat away and reduce base browning.
• When cooking more than one dish in the oven, place dishes centrally on different
shelves rather than cluster several dishes on one shelf, this will allow the heat to
circulate freely for the best cooking results.
• If you are cooking more than one tray of similar items, for example cakes or biscuits,
swap the trays during cooking or you can remove the top tray when the food is cooked
and move the lower tray to the higher shelf to finish cooking.
• Do not place baking trays directly on the oven base as it interferes with the oven air
circulation and can lead to base burning;use the lower shelf position.
50x60
POSITION
MAX.
•
5
•
3
•
1
MIN.
TEMPERATURE
0
270 C
0
250 C
0
240 C
0
220 C
0
200 C
0
190 C
0
180 C
0
160 C

4.1.4 Control of the grill burner
Caution: Keep young children away from the grill when it is in use because
accessible parts of the grill can get hot.
As soon as you have ignited the grill burner, fit the grill heat shield under the control panel
as shown in the image below. After that, lift the oven door up slowly until it stops at the
semi-open, 30° position and it has touched the heat shield.

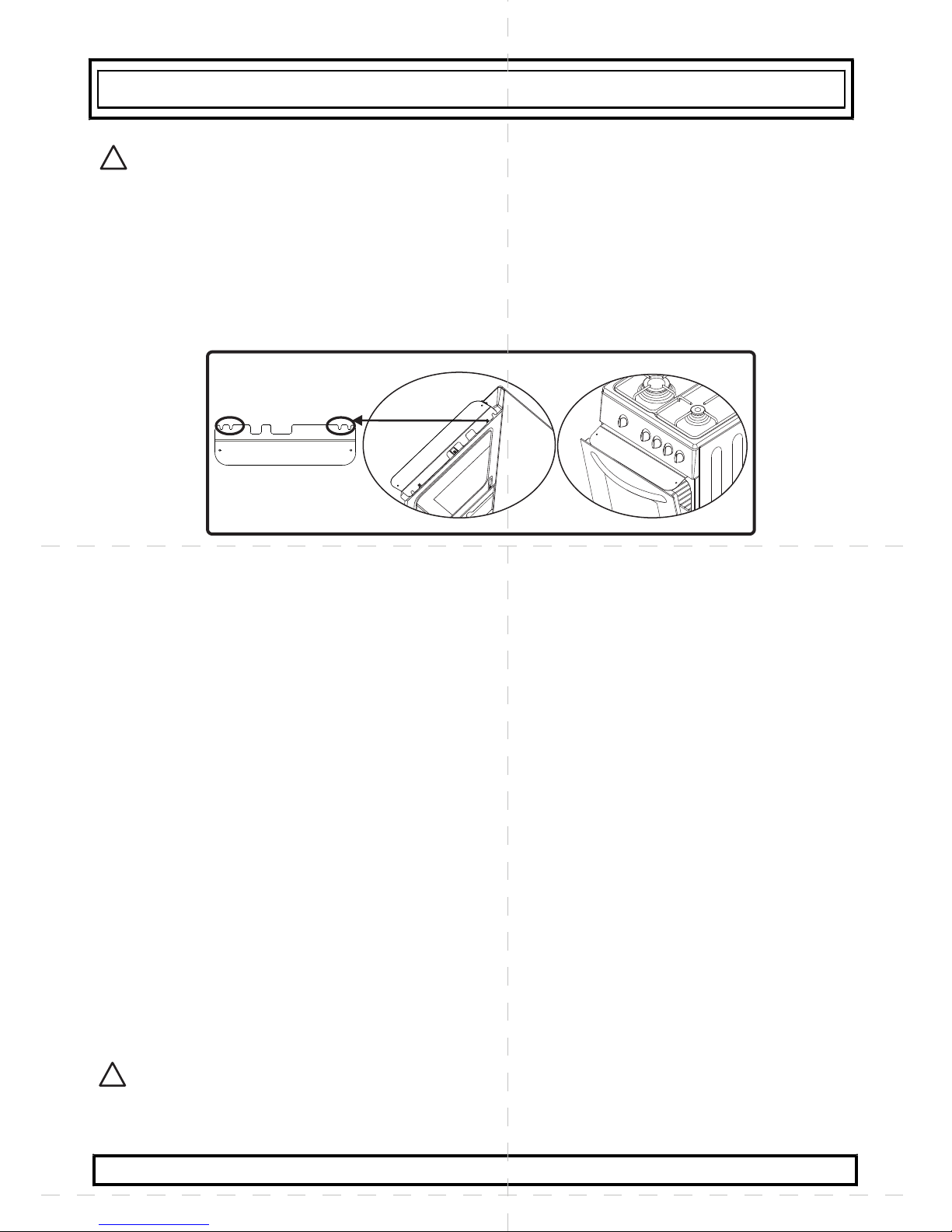

Fixing the grill heat shield to the cooker
Hold the heat shield with the warnings facing upwards. There are two small slots on the
right and left sides of the rear edge of the shield as shown in the image below.
Underneath the control panel on each side there are two screws with bushes. Align the bushes
with the slots on the shield so that the shield is fixed between the control panel and the bush.
Push the shield towards the appliance until it is firmly in its place.
Cooking:
• The grill burner cannot be modulated between maximum and minimum positions and
creates a source of heat at a constant rating.
• When turning the grill burner off, turn the knob in the clockwise direction so that the knob
shows "0" position.
• Place the tray on the shelf below the grid in order to collect the fat during grilling.
•Place the grill pan on the 5th or 6th level shelf, making sure that your food does not touch
the grill burner.
• Preheat the grill on a full setting for a few minutes before sealing steaks or toasting. The
food should be turned over during cooking as required.
• Food should be thoroughly dried before grilling to minimize splashing. Brush lean meats
and fish lightly with a little oil or melted butter to keep them moist during cooking.
•Ensure that food is placed centrally on the shelf and there is sufficient room around the
baking tray/dish to allow for the heat to circulate evenly around the whole dish.
• Never cover the grill pan or grid with foil as this can lead to grill fires.
• If your appliance has a grill pan and handle set as an accessory, refer to accessories
section for its usage.
!
!
WARNING: Ensure that the grill is turned off before closing the door.
