F1666 330mW 3D Laser Light
User Manual

II
Thank you for purchasing RGB 6D laser light, for your personal safety and better use of the product,
please read this manual carefully before use, lest incur any personal injury or damage to the projector
●Package list:
When you unpack the case, please take time to examine the items as follow:
-------------------- Projector 1
-------------------- Power cord 1
-------------------- User manual 1
●Technical Parameters:
Rated Voltage:AC100～240V
Rated frequency:50Hz～60Hz
Power consumption: 80W
Laser power: RGB500mw
Patterns: 2800pcs latest laser patterns
Scanning: 20kpps vibratory mirror system
Scanning angle: ±20 degrees
Channel: 5/34CH
Control mode: DMX-512signal control, music control, automatic, ilda, cell phone APP
Cool system：fan
●Instructions:
After opened the box, check whether the laser show device has been damaged by the rough
transportation or not, such as the screw is loosen, reflective lens is broken. Please check before
connecting power. Check the lighting placement is correct and secure, check the power voltage is the
same with this product, or damage to the lamp is not an example of warranty.
The device is A-grade protection device. While using this laser lighting, green and yellow wire has
to connect the ground properly by professionals. Please examine the electrics and voltage before
connecting the power. We suggest customer apply 110V/230V or a transformer. 20 seconds after
powered on the projector, it will self-check for several minutes and then can be used.
Because the solid semiconductor laser generator got its own characteristic, please terminate it for 10
minutes after have displayed it for 30 minutes. This kind of protection can make sure the laser diodes
work properly in the future operation. Please to avoid being interfered by other signals (such as
wireless interphone & high radiated source) while the lighting is performed by DMX512 mode.

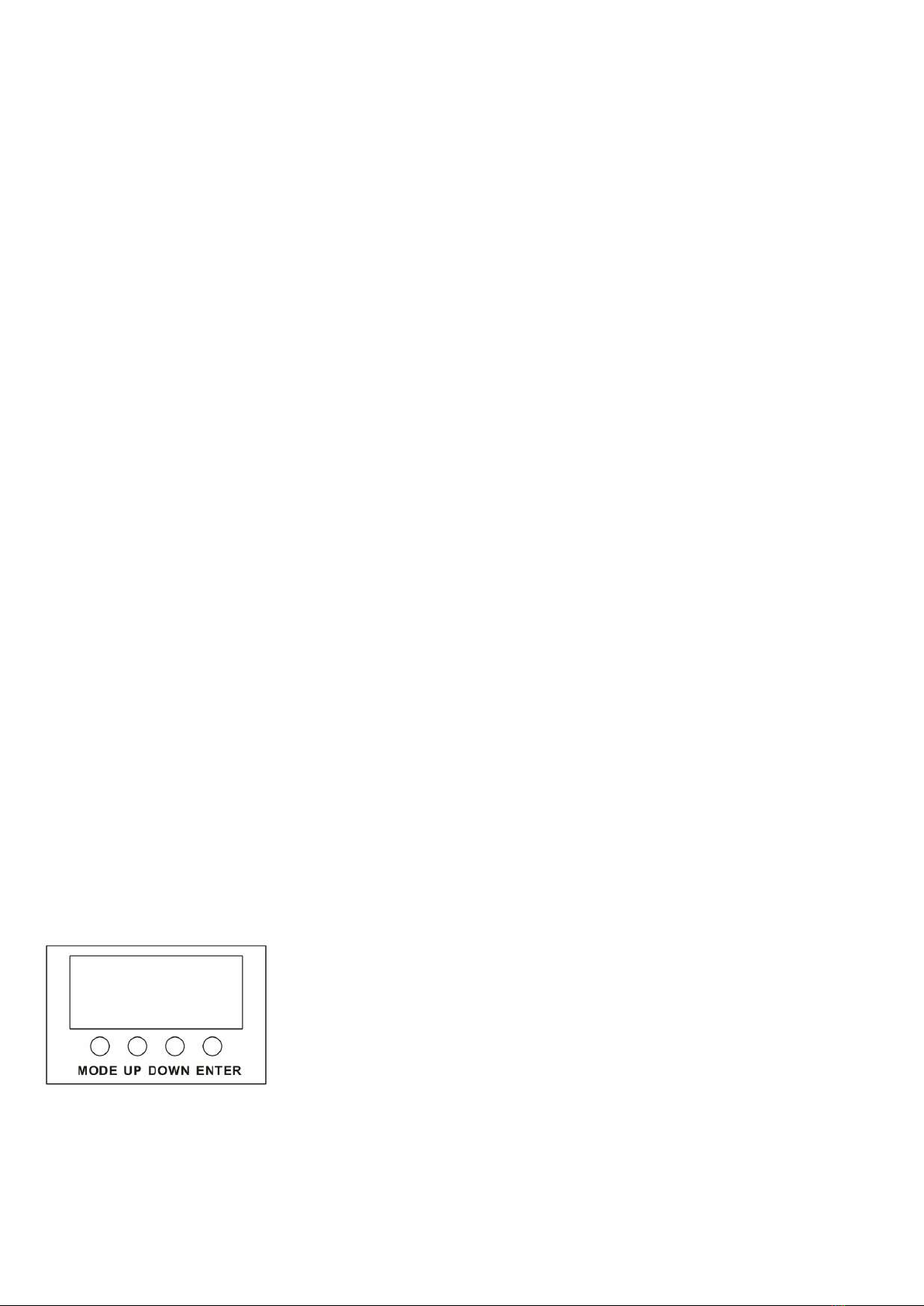

●LCD Display:
MENU It is to switch the menu
UP It is to choose the function
DOWN It is to choose the function
ENTER It is to confirm/save/ go to the next function
●Channel functions:

III
This laser has adopted the standard DMX-512 signal, there are 5CH and 34CH mode for
this light.
5CH content shown as follows:
5CH Content
Channe
l
Function
DMX value
Content
CH1
Light OFF/ON
0
OFF
1-255
ON
CH2
Movement
sound/auto
control
0--127
Auto mode
128-255
Sound mode
CH3
Effect library
selection(15vlaues
as one library)
0--15
1 library
16--31
2 library
……
……
192--223
15 library
224--255
0 library
CH4
Scene seletion
0--255
Every value is corresponding to
each pattern, value is much
bigger than the pattern,system
marked it as the biggest pattern
CH5
Color selection
0-31
Full color
32-63
Red
64-95
Yellow
96-127
Green
128-159
Cyan
160-191
Blue
191-223
Purple
224-255
White
34CH content shown as follows:
34CH Content
Channel
Function
DMX value
Content
CH1
Pattern1 OFF/ON
0
OFF/ON
1-99
Auto mode
100-199
Sound mode
200-254
Reserve
255
Pattern A off light, Pattern B
allowed to be on
CH2
Pattern goes out of
range/Pattern size
0-49
Pattern goes out of the range
50-99
Pattern comes back of the range
100-149
Pattern is hidden when it goes out
of the range
150-199
Pattern zooms in, and hidden when
it goes out of the range
200-255
Reserve
CH3
Effect library
0--15
1 library

IV
selection(15vlaues as
one library)
16--31
2 library
……
……
192--223
15 library
224--255
0 library （cell phone APP effect
library）
CH4
Pattern selection
0--255
Every value is corresponding to
each pattern, value is much bigger
than the pattern,system marked it
as the biggest pattern
CH5
Pattern zoom
0
No zoom
1-31
Zoom effect 1
32-47
Zoom effect 2
……
……
224-255
Zoom effect 8
CH6
Pattern rotation
0-63
Manual control rotation
64-95
Rotation effect 1
96-127
Rotation effect 2
……
……
224-255
Rotation effect 6
CH7
Horizontal movement
0-63
Manual control horizontal
movement
64-95
Horizontal movement effect 1
96-127
Horizontal movement effect 2
……
……
224-255
Horizontal movement effect 6
CH8
Vertical movement
0-63
Manual control vetical movement
64-95
Vertical movement effect 1
96-127
Vertical movement effect 2
……
……
224-255
Vertical movement effect 6
CH9
Horizontal zoom
0-63
Manuanl horizontal zoom
64-95
Manuanl horizontal zoom effect 1
96-127
Manuanl horizontal zoom effect 2
……
……
224-255
Manuanl horizontal zoom effect 6
CH10
Vertical zoom
0-63
Mauanl control Y zoom
64-95
Manuanl vertical zoom effect 1
96-127
Manuanl vertical zoom effect 2
……
……
224-255
Manuanl vertical zoom effect 6
CH11
Compulsive section
color
0
Original color
1-255
The length of section color
CH12
Pattern color
changing
0-7
Original color
8-15
Red
16-23
Yellow
24-31
Green
32-39
Cyan

V
40-47
Blue
48-55
Purple
56-63
White
64-95
Red and green turned into blue
96-127
Pattern cyan, blue, purple color
changing
128-159
Pattern full color changing
160-191
Seven color chaging
192-223
Positive direction color changing
224-255
Negatitve direction color changing
CH13
Dots/Dots
disconnection control
0-63
Regular dot disconnection
64-127
Pattern dots is connected, return
line is disconnected
128-159
Pattern dots is connected, return
line is connected
160-255
Reserve
CH14
Miscellaneous
function of CH15(it
has to work with
CH15)
When CH15
value is 0-63
Manual control gradual drawing
When CH15 is
64-127， 160-191
The retention time when the
pattern is gradual drawing
When CH15 is
192-255
Gradual drawing dots’ counts
CH15
Gradual drawing
control(CH15 has to
work with CH14)
0--31
Positive manual gradual drawing
32—63
Negative manual gradual drawing
64—95
Extension gradual drawing
96—127
Zoom drawing
128—159
Zoom drawing of both ends
160--191
Top to end zoom drawing
respectively
192—223
Gradual drawing
224--255
Section Gradual drawing
CH16
Pattern distortion
effect’s miscellaneous
function control
0--255
The value is bigger, the pattern
distortion is smaller
CH17
Grating gobo
selection(it requires
there is this function
in the
item)/projection
range control
0--19
Number 1 grating gobo
20—39
Number 2 grating gobo
……
……
220--239
Number 12 grating gobo
240--255
Number 13 grating gobo
CH18
Pattern2 OFF/ON
0
Light OFF/ON
1-99
Auto mode
100-199
Sound mode
200-254
Reserve
255
Pattern A off light, Pattern B
allowed to be lighted on
CH19
Pattern goes out of
range/Pattern size
0-49
Pattern goes out of the range
50-99
Pattern comes back of the range

VI
100-149
Pattern is hidden when it goes out
of the range
150-199
Pattern zooms in, and hidden when
it goes out of the range
200-255
Reserve
CH20
Array each unit’s
divergent angle
0--99
The value is smaller, the distance
of each unit’s divergent angle is
larger. The distance is positive
distance
100--199
The value is smaller, the distance
of each unit’s divergent angle is
larger. The distance is negative
distance
200--255
Reserve
CH21
Pattern selection
0--255
Every value is corresponding to
each pattern, value is much
bigger than the pattern,system
marked it as the biggest pattern
CH22
Pattern zoom
0
No zoom
1-31
Zoom effect 1
32-47
Zoom effect 2
……
……
224-255
Zoom effect 8
CH23
Pattern rotation
0-63
Manual rotation
64-95
Rotation effect 1
96-127
Rotation effect 2
……
……
224-255
Rotation effect 6
CH24
Horizontal movement
0-63
Manual horizontal movement
64-95
Manual horizontal movement effect
1
96-127
Manual horizontal movement effect
2
……
……
224-255
Manual horizontal movement effect
6
CH25
Vertical movement
0-63
Manual vertical movement
64-95
Manual vertical movement effect 1
96-127
Manual vertical movement effect 2
……
……
224-255
Manual vertical movement effect 6
CH26
Horizontal zoom
0-63
Maunal horizontal zoom
64-95
horizontal zoom effect 1
96-127
horizontal zoom effect 2
……
……
224-255
horizontal zoom effect 6
CH27
Vertical zoom
0-63
Mauanl control Y zoom
64-95
Manuanl vertical zoom effect 1

VII
96-127
Manuanl vertical zoom effect 2
……
……
224-255
Manuanl vertical zoom effect 6
CH28
Compulsive section
color
0
Original color
1-255
The length of section color
CH29
Pattern chaging
0-7
Orignal color
8-15
Red
16-23
Yellow
24-31
Green
32-39
Cyan
40-47
Blue
48-55
Purple
56-63
White
64-95
Red and Green color changing
96-127
Pattern cyan, blue, purple color
changing
128-159
Pattern full color changing
160-191
Seven color chaging
192-223
Positive direction color changing
224-255
Negatitve direction color changing
CH30
Dots/Dots
disconnection control
0-63
Regular dot disconnection
64-127
Pattern dots is connected, return
line is disconnected
128-159
Pattern dots is connected, return
line is connected
160-191
Pattern B is the starting point of
pattern A, pattern color is to
keep pattern A’s setting
192-255
Pattern B is the starting point of
pattern A, pattern color is for the
dots of pattern B
CH31
CH32 is the
miscellaneous
function for gradual
drawing control (it
has to work with
CH32)
When CH32 is
0-63
Manual control gradual drawing
When CH32is
64-127,160-191
The retention time when the
pattern is gradual drawing
When CH32 is
192-255
Gradual drawing dots’ counts
CH32
Gradual drawing
control(CH32 has to
work with CH31)
0--31
Positive manual gradual drawing
32—63
Negative manual gradual drawing
64—95
Extension gradual drawing
96—127
Zoom drawing
128—159
Zoom drawing of both ends
160--191
Top to end zoom drawing
respectively
192—223
Gradual drawing
224--255
Section Gradual drawing
CH33
Pattern distortion
effect’s miscellaneous
0--255
The value is bigger, the pattern
distortion is smaller

VIII
function control
CH34
Projection range
control
0--19
In every section, the value is
bigger, the projection range is
smaller
20—39
……
220--39
240--255
●Maintenance:
It is very important to keep the laser light clean, therefore please clean reflector lens monthly to
keep the lights away from dust, dirt or fog juice. We suggest that clean the light with professional glass
cleaning lotion and downy cloth. Keep the light clean regularly will not only maintain the maximum
laser output brightness but also will extend the life span of the laser.
