Newline HW86
Multi-functional and professional
mobile cart
User Manual
(Installation instructions)
Edit
：
APAC PM Vincent Huang
Photos
：
APAC PM Vincent Huang and
APAC FAE Ethan Chen
Date
：
2020/12/09

Material No.: 61704NL0000HW86
1
Contents
1. Features .................................................................................................................. 2
2. Product specifications ............................................................................................. 2
3. WARNING! .............................................................................................................. 3
4. Part List: .................................................................................................................. 4
5. Explosive view ......................................................................................................... 5
6. Assembly step ......................................................................................................... 6
Step 1. Assemble base and wheels ....................................................................... 6
Step 2. Start to assemble Columns ........................................................................ 6
Step 3. Screen support fixture to columns installation ............................................ 8
Step 4. Screen support bracket to fixture installation ........................................... 11
Step 5. Rails to Display installation ...................................................................... 12
Step 6. Accessories shelf assemble and installation ............................................ 13
Step 7. Video support tray assemble .................................................................... 15
7. Installation completed views ...................................................................................... 17

Material No.: 61704NL0000HW86
2
1. Features
l For display panels: 55”-100”
l Maximum capacity: 300lbs/136.4kg
l Accessories shelf max load: 25lbs/13.6kg
l Video support tray max load: 10 lbs/4.5kg
l VESA:200*200-1000*600mm

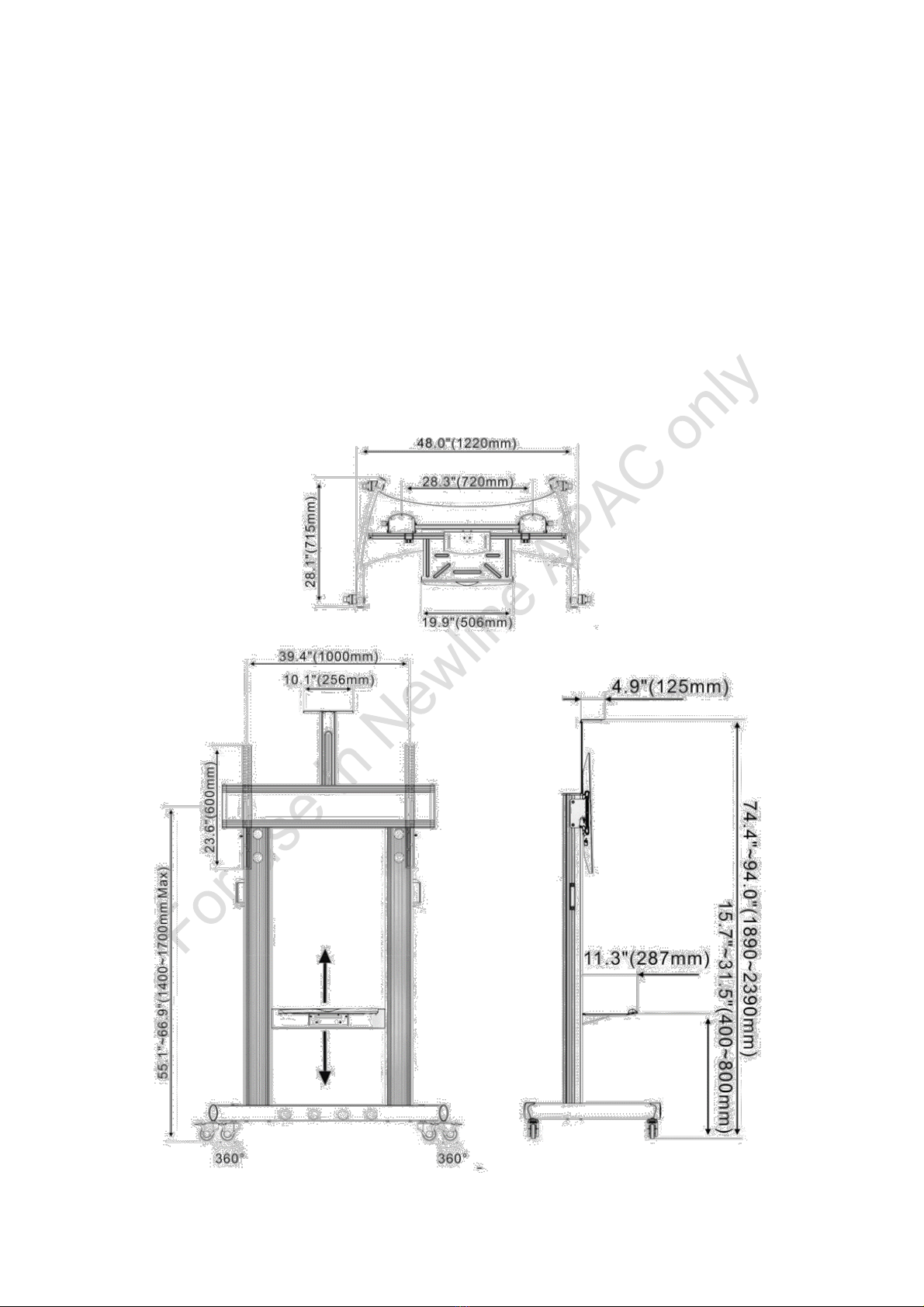

2. Product specifications

Material No.: 61704NL0000HW86
3
Product Weight and
Dimensions
Outline Dimension
L x W x H (mm)
Packing Dimension
L x W x H (mm)
Net Weight (Kg)
Packing Weight (Kg)
Capacity (Kg)
1260 x 715 x 1400-1700
2080 x 720 x 130
32
40
136.4
Outline Dimension
L x W x H (inch)
Packing Dimension
L x W x H (inch)
Net Weight (lbs)
Packing Weight (lbs)
Capacity (lbs)
49.6 x 28.15 x 55.19-66.93
81.89 x 28.35 x 5.12
70.55
88.18
300
Material / color
Aluminum for Columns and Iron for others/ Black

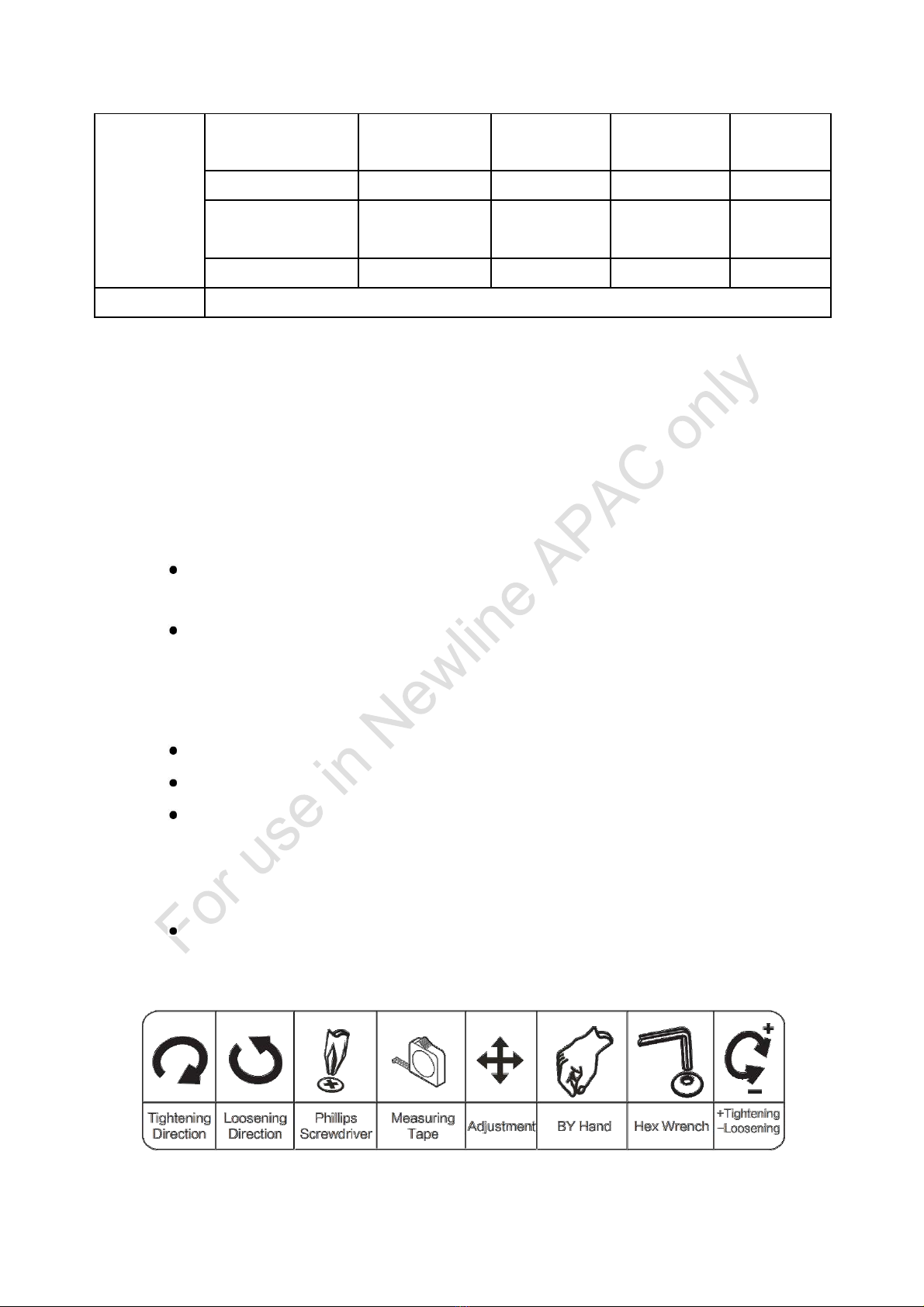

3. WARNING!
Severe personal injury and property damage can result from improper
installation or assembly. Read the following warning carefully before
beginning.
If you do not understand the instructions or have any concerns or
questions, please contact a qualfied local installer.
Do not install or assemble if the product or hardware is damaged or
missing, if you require replacement arts, please contact your local
distributor for assistance.
No exist of stated specifications.
Do not use this product for other than the original designed.
This product contains moving parts, please use with caution
The manufacturer disclaims any liability for the modifications, improper
installation, or installation over the specified weight range. The
manufacturer will not be liable for any damages arising out of the use of,
or inability to use, the product.
All images are for reference, to prevail in product
LEGEND

Material No.: 61704NL0000HW86
4
4. Part List:

Material No.: 61704NL0000HW86
5
5. Explosive view

Material No.: 61704NL0000HW86
6
6. Assembly step
Step 1. Assemble base and wheels
Use nuts to fix the four wheels to the base
Please attach the four wheels with nut lock and cover with dust cover.
Step 2. Start to assemble Columns

Material No.: 61704NL0000HW86
7

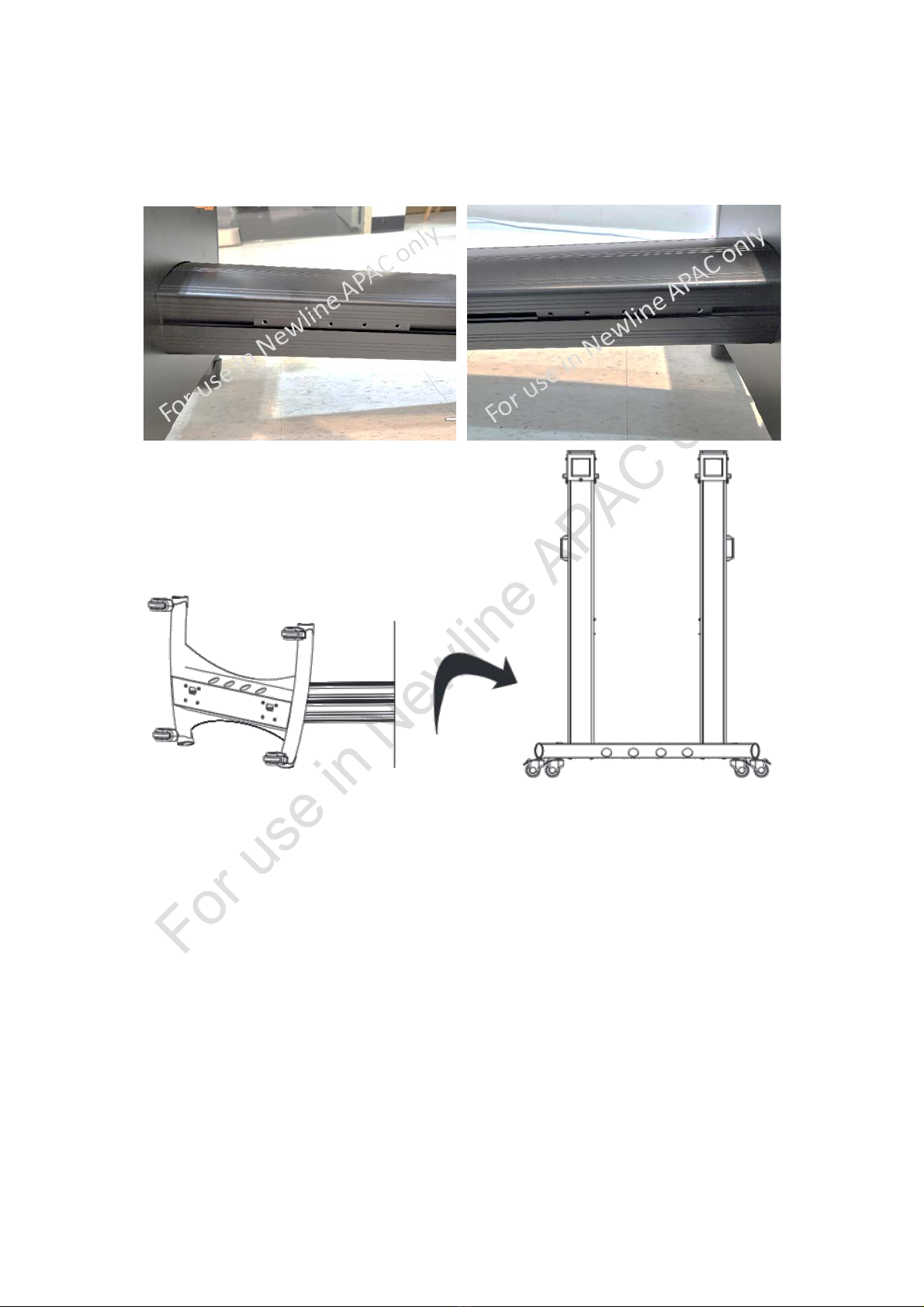

Before the column is installed into the base, put the 3-hole and the 2-hole
fixed iron pieces into the side groove of the column respectively.
Stand the base sideways and aim the column at the base hole. Then tighten
the screws to fix the column.
M8 Hex
Wrench
M8

Material No.: 61704NL0000HW86
8
Please note that the 3-hole and 2-hole fixing iron pieces have been placed in
the grooves.
Step 3. Screen support fixture to columns installation
Usually the handle is already attached to it. If not, please lock it yourself.
Handle locking method: Please put the 2-hole fixed iron piece into the side
groove of the column and lock the fixed handle at the appropriate position.

Material No.: 61704NL0000HW86
9
Please note: In any case, please make sure that the lock positions on both
sides are on the same horizontal line, that is, the same height first.
After fixing the handle, put the 3-hole fixing iron sheet into the groove.
M6 Hex
Wrench
M6

Material No.: 61704NL0000HW86
10
Put on the cover and lock the screws then.
Push up the 3-hole fixing iron piece on the other side, and then lock the
support fixtures. Support fixture
M5

Material No.: 61704NL0000HW86
11

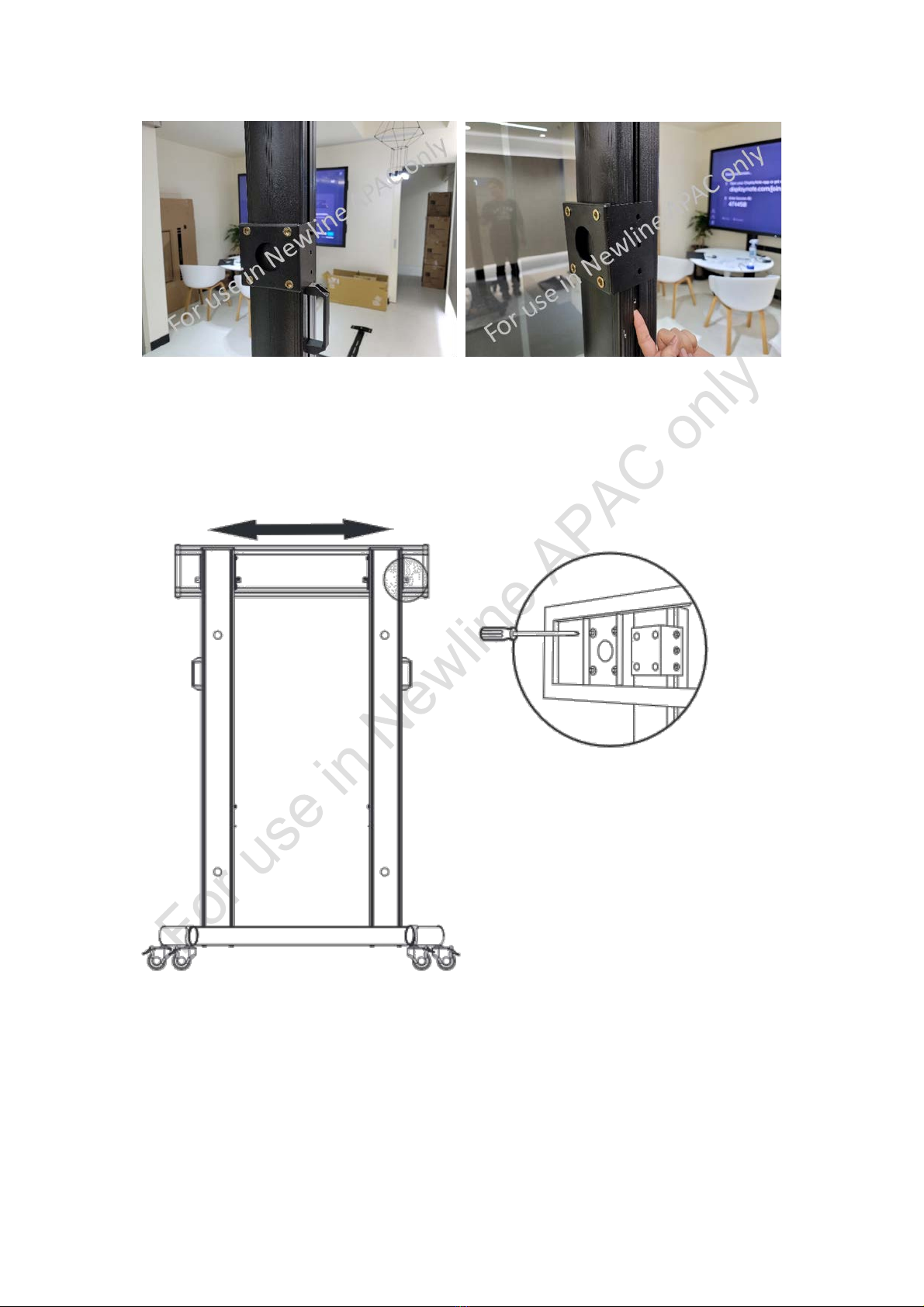

Step 4. Screen support bracket to fixture installation
Lock the screen support bracket.
M8 Hex
Wrench
M8

Material No.: 61704NL0000HW86
12
Step 5. Rails to Display installation
Lock the screen support rails at the appropriate height holes.
Notes: Plastic spacers must be used when assemble adaptor onto your
display to avoid display threaded holes damaged when thread holes are
shallow.

Material No.: 61704NL0000HW86
13
Ask 2-4 people to lift the IFPD and place it on the screen bracket, and move it
left and right to adjust to a proper position.
Lock the buckle to fix the IFPD.
Step 6. Accessories shelf assemble and installation
M5
M5 screwer

Material No.: 61704NL0000HW86
14

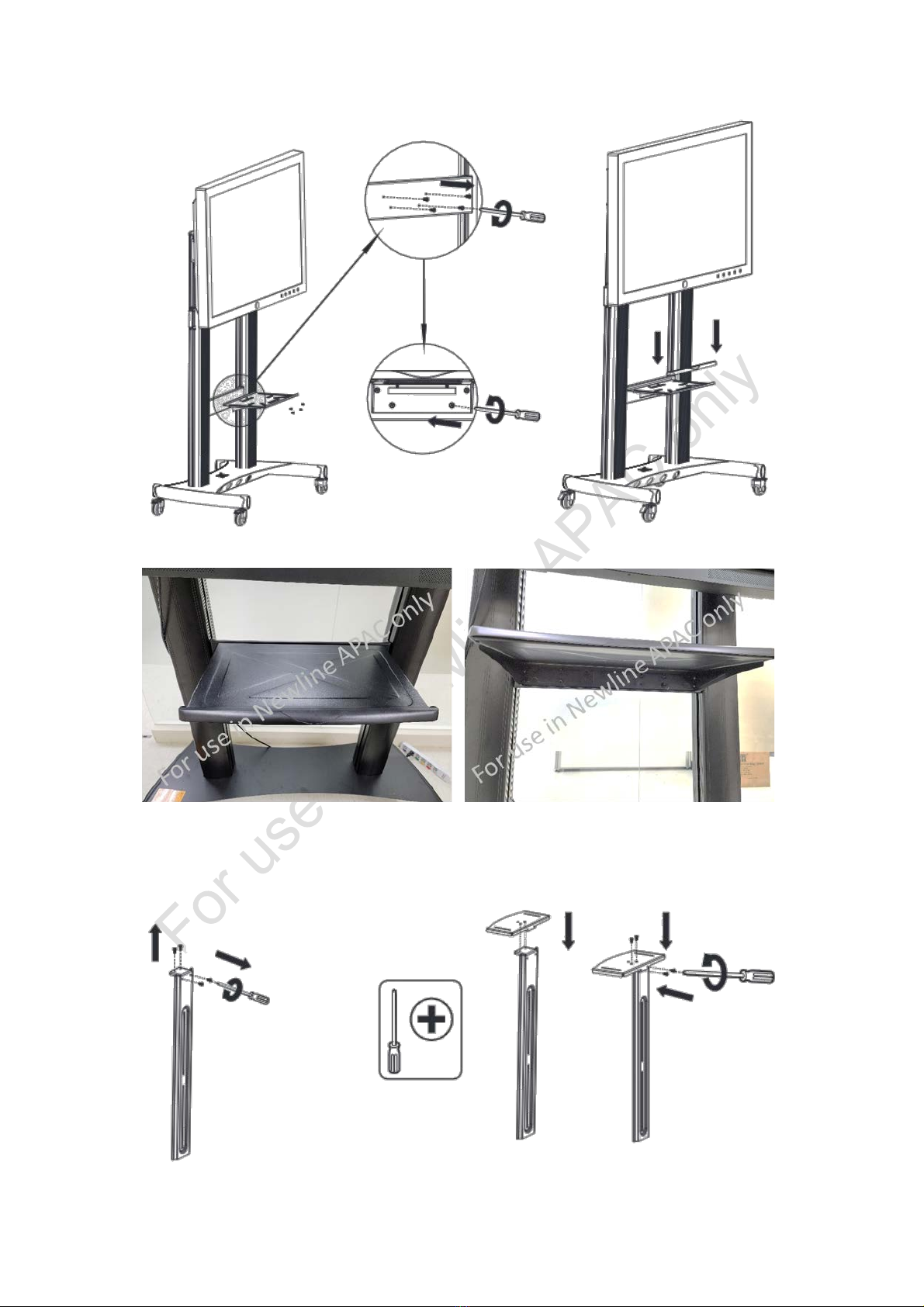

After sliding the 2-hole fixed iron piece to a proper height, lock the horizontal
pillar. At the same time make sure the horizontal piliar is horizontal.
M6 Hex
Wrench
M6
M6

Material No.: 61704NL0000HW86
15
Lock the storage tray then.

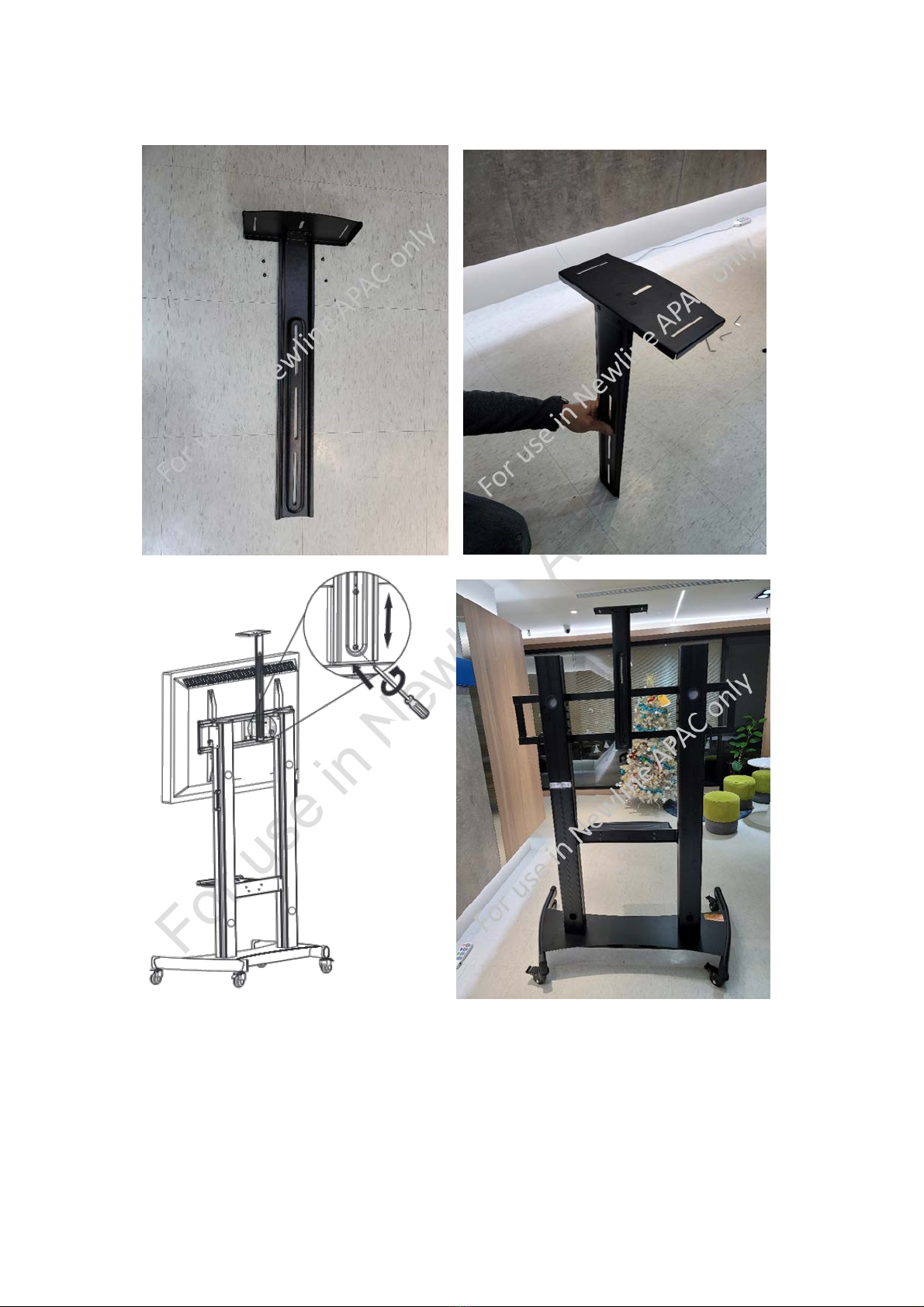

Step 7. Video support tray assemble
M6 Hex
Wrench
M6 Hex
Wrench
M6
M6
M5
M5
M5 screwer

Material No.: 61704NL0000HW86
16
Assemble the video support tray first.
M6 Hex
Wrench
M6
M6

Material No.: 61704NL0000HW86
17
7. Installation completed views
