Humanscale TouchPoint T4 User manual

TouchPoint
T4 Mobile Technology Cart
User Manual
HUMANSCALE HEALTHCARE CUSTOMER SUPPORT
Americas: [phone], Option 4 - [e-mail]
International: [phone], Option 4 - [e-mail]
humanscalehealthcare.com
hshc-t4-hardware-user-manual-en-us-20200817

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tabl of Cont nts
For more information, please contact your local sales representative or
Humanscale Healthcare Customer Support:
Americas: [phone], Option 4 - [e-mail]
International: [phone], Option 4 - [e-mail]
Visit the Humanscale Healthcare website for Terms and Conditions:
https://www.humanscale.com/about/legal-information/terms-conditions-healthcare.cfm
2

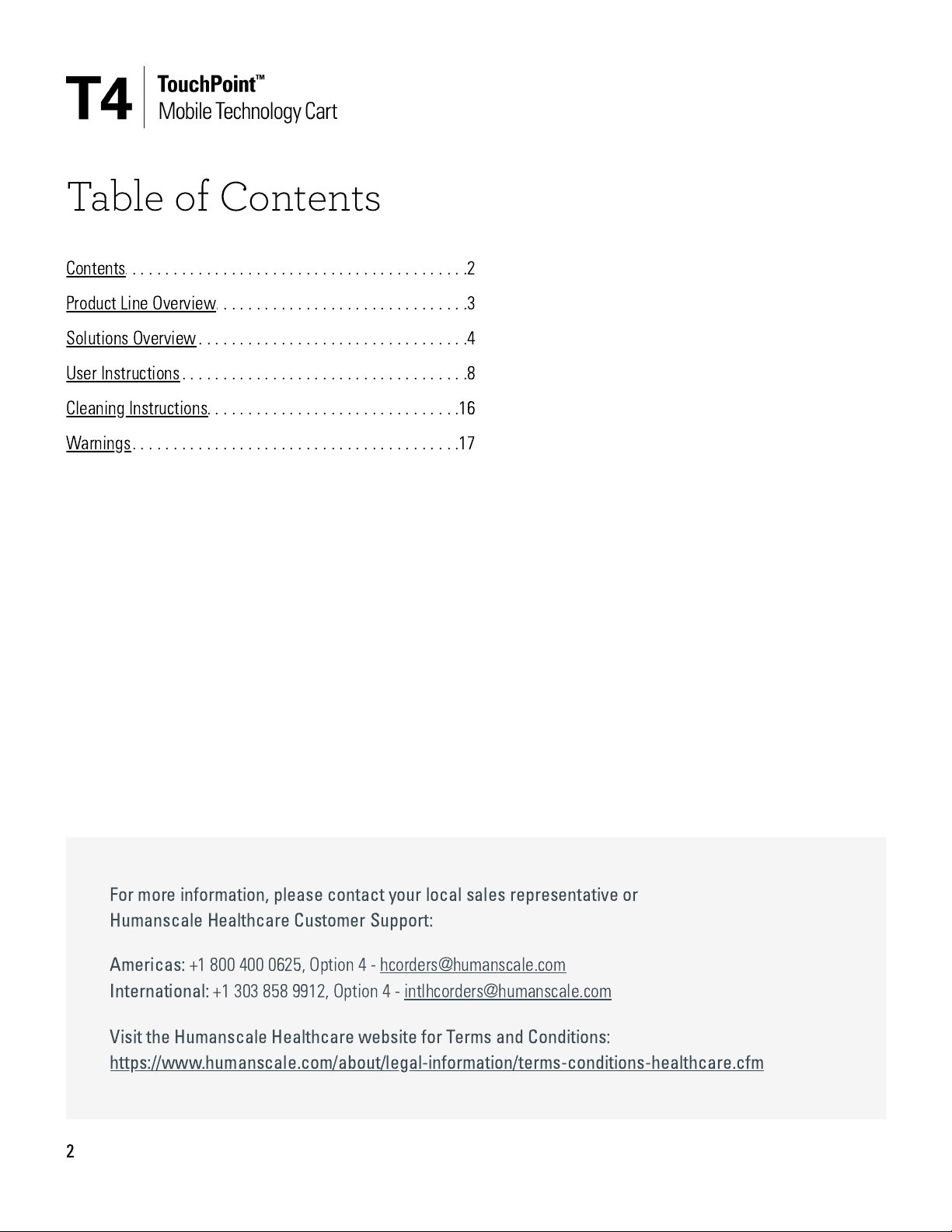

Contents 2
Product Line Overview 3
Solutions Overview 4
User Instructions 8
Cleaning Instructions 16
Warnings 17

3Back to Contents

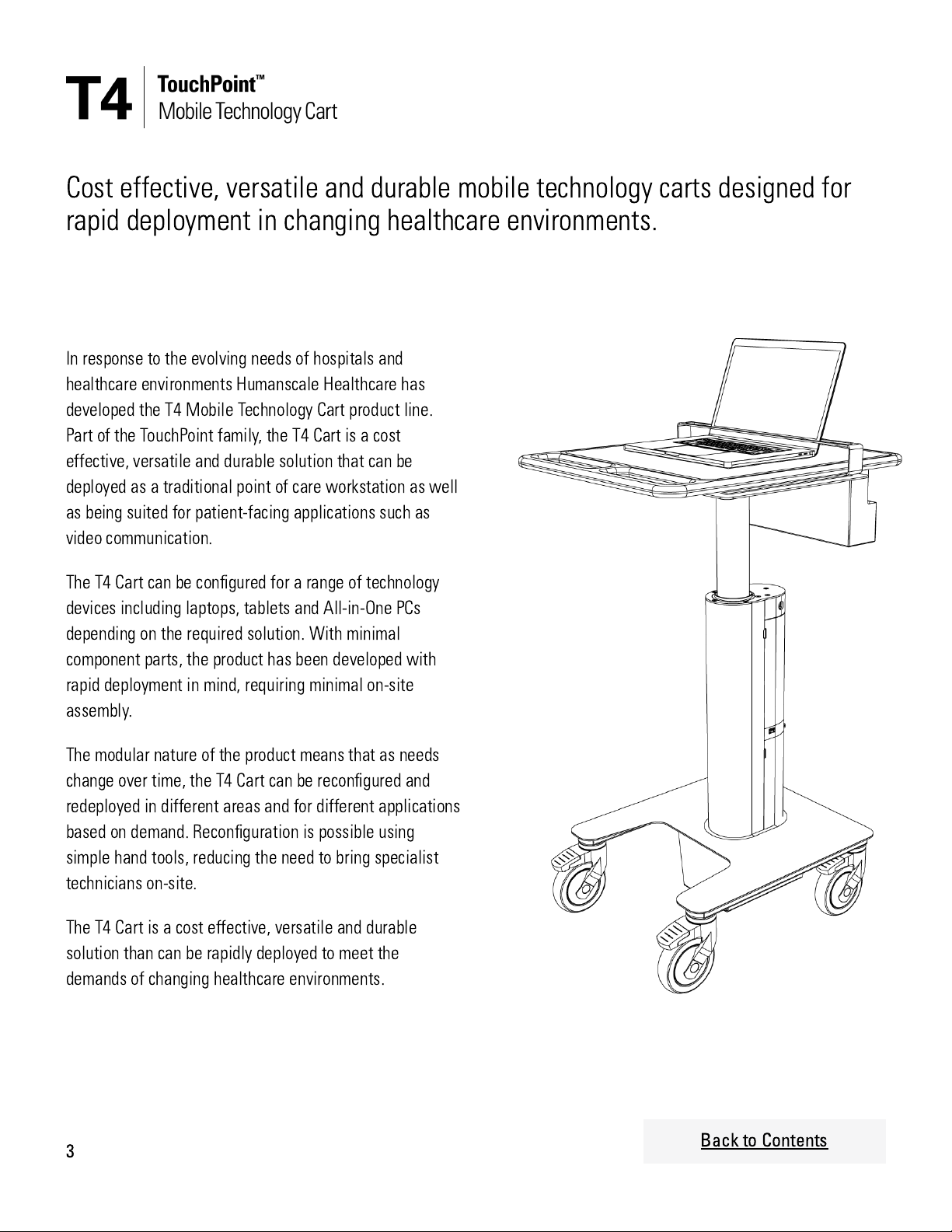

Cost effective, versatile and durable mobile technology carts designed for
rapid deployment in changing healthcare environments.
In response to the evolving needs of hospitals and
healthcare environments Humanscale Healthcare has
developed the T4 Mobile Technology Cart product line.
Part of the TouchPoint family, the T4 Cart is a cost
effective, versatile and durable solution that can be
deployed as a traditional point of care workstation as well
as being suited for patient-facing applications such as
video communication.
The T4 Cart can be congured for a range of technology
devices including laptops, tablets and All-in-One PCs
depending on the required solution. With minimal
component parts, the product has been developed with
rapid deployment in mind, requiring minimal on-site
assembly.
The modular nature of the product means that as needs
change over time, the T4 Cart can be recongured and
redeployed in different areas and for different applications
based on demand. Reconguration is possible using
simple hand tools, reducing the need to bring specialist
technicians on-site.
The T4 Cart is a cost effective, versatile and durable
solution than can be rapidly deployed to meet the
demands of changing healthcare environments.

SOLUTIONS
TOUCHDOWN CART
The Touchdown Cart solution provides a
temporary workstation for doctors on ward
rounds or when multiple specialists need to
gather at the point of care.
The simple, easy to clean surface can be used to
place a laptop or other assessment equipment.
4Back to Contents

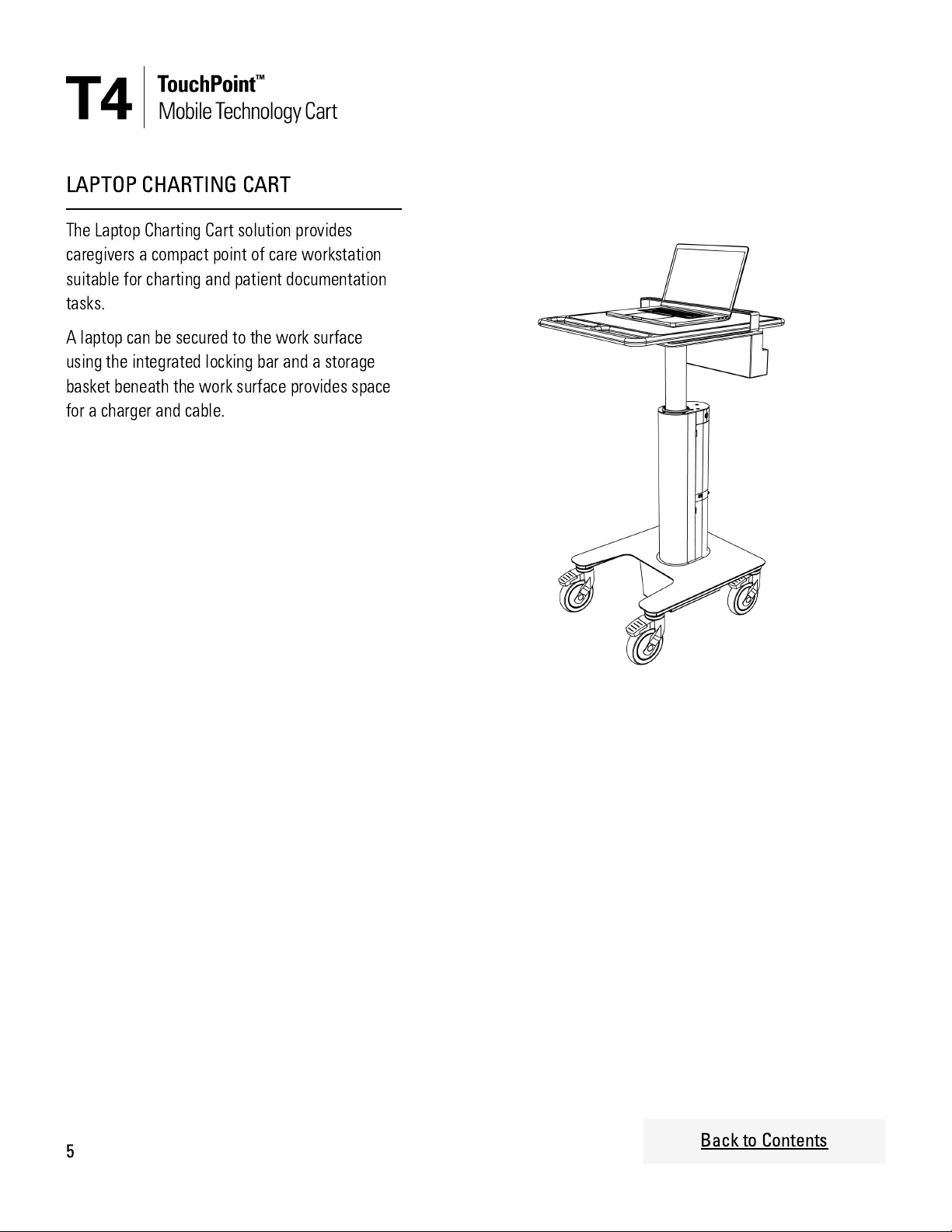

LAPTOP CHARTING CART
The Laptop Charting Cart solution provides
caregivers a compact point of care workstation
suitable for charting and patient documentation
tasks.
A laptop can be secured to the work surface
using the integrated locking bar and a storage
basket beneath the work surface provides space
for a charger and cable.
5Back to Contents

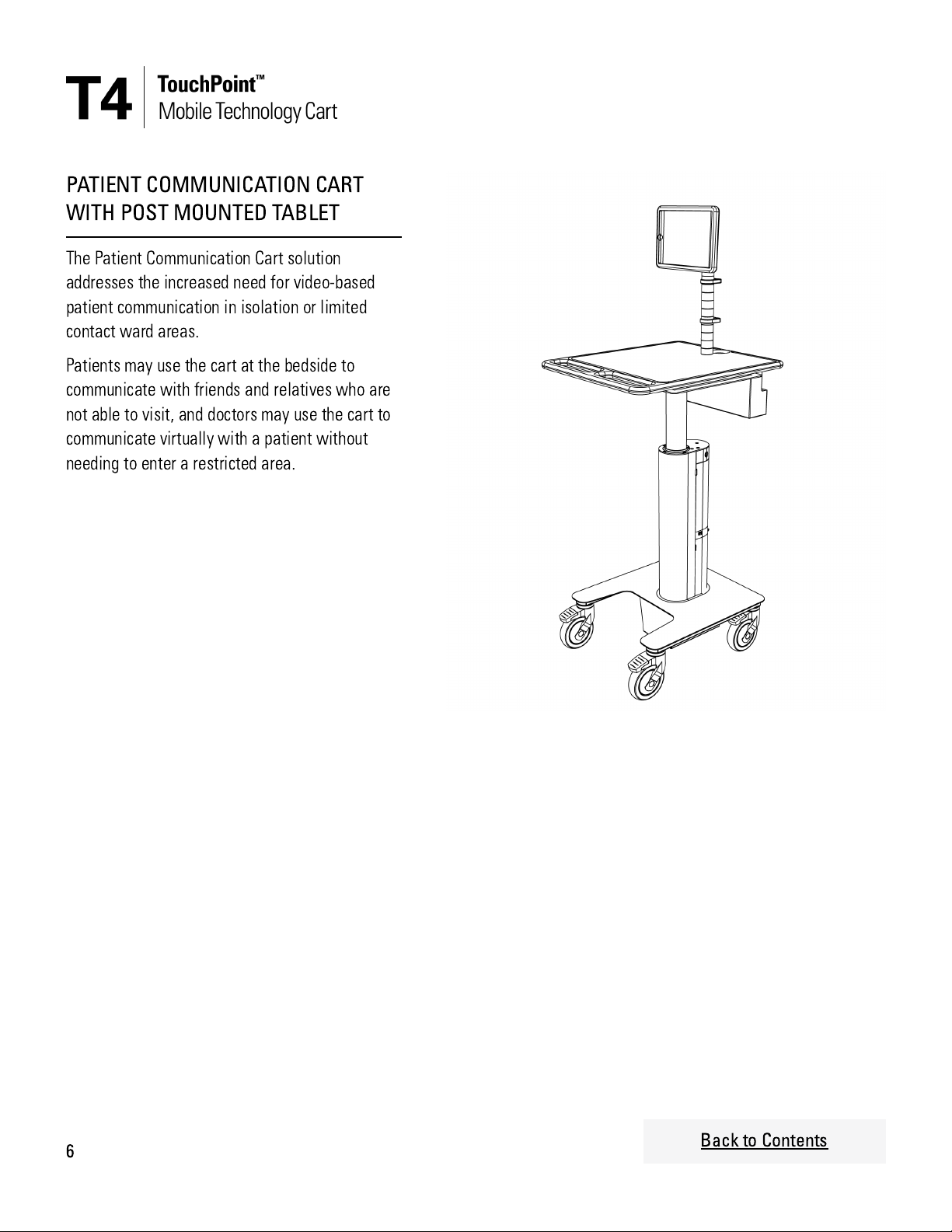

PATIENT COMMUNICATION CART
WITH POST MOUNTED TABLET
The Patient Communication Cart solution
addresses the increased need for video-based
patient communication in isolation or limited
contact ward areas.
Patients may use the cart at the bedside to
communicate with friends and relatives who are
not able to visit, and doctors may use the cart to
communicate virtually with a patient without
needing to enter a restricted area.
6Back to Contents

PATIENT COMMUNICATION CART
WITH ARM MOUNTED TABLET
The Patient Communication Cart solution
addresses the increased need for video-based
patient communication in isolation or limited
contact ward areas.
Patients may use the cart at the bedside to
communicate with friends and relatives who are
not able to visit, and doctors may use the cart to
communicate virtually with a patient without
needing to enter a restricted area.
7Back to Contents

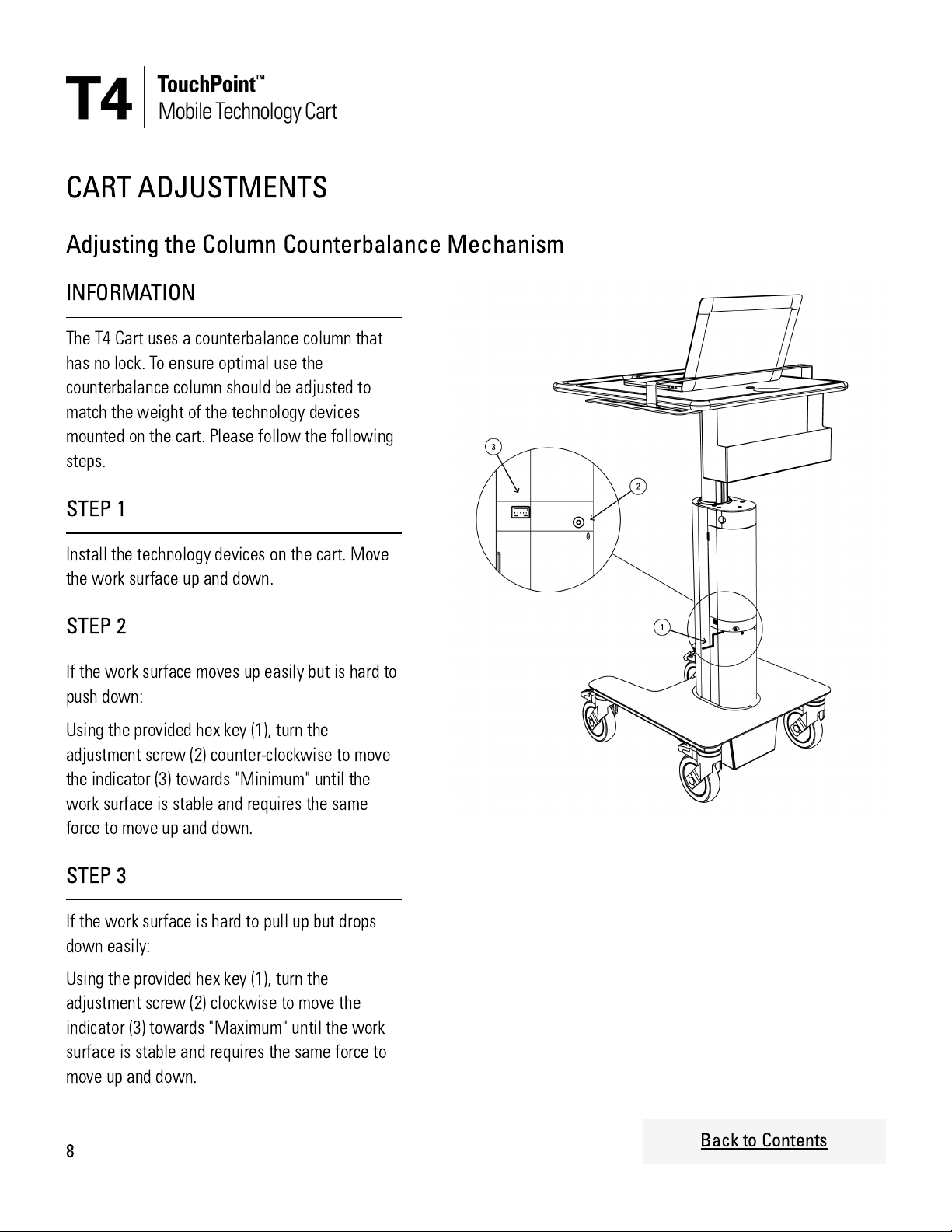

CART ADJUSTMENTS
Adjusting the Column Counterbalance Mechanism
INFORMATION
The T4 Cart uses a counterbalance column that
has no lock. To ensure optimal use the
counterbalance column should be adjusted to
match the weight of the technology devices
mounted on the cart. Please follow the following
steps.
STEP 1
Install the technology devices on the cart. Move
the work surface up and down.
STEP 2
If the work surface moves up easily but is hard to
push down:
Using the provided hex key (1), turn the
adjustment screw (2) counter-clockwise to move
the indicator (3) towards "Minimum" until the
work surface is stable and requires the same
force to move up and down.
STEP 3
If the work surface is hard to pull up but drops
down easily:
Using the provided hex key (1), turn the
adjustment screw (2) clockwise to move the
indicator (3) towards "Maximum" until the work
surface is stable and requires the same force to
move up and down.
8Back to Contents

Adjusting the Work Surface Height
INSTRUCTIONS
T4 Cart uses a counterbalance column that has
no locking mechanism.
To adjust the height of the work surface, grip the
work surface handle rmly (1) and move the work
surface up or down to the desired height.
9Back to Contents

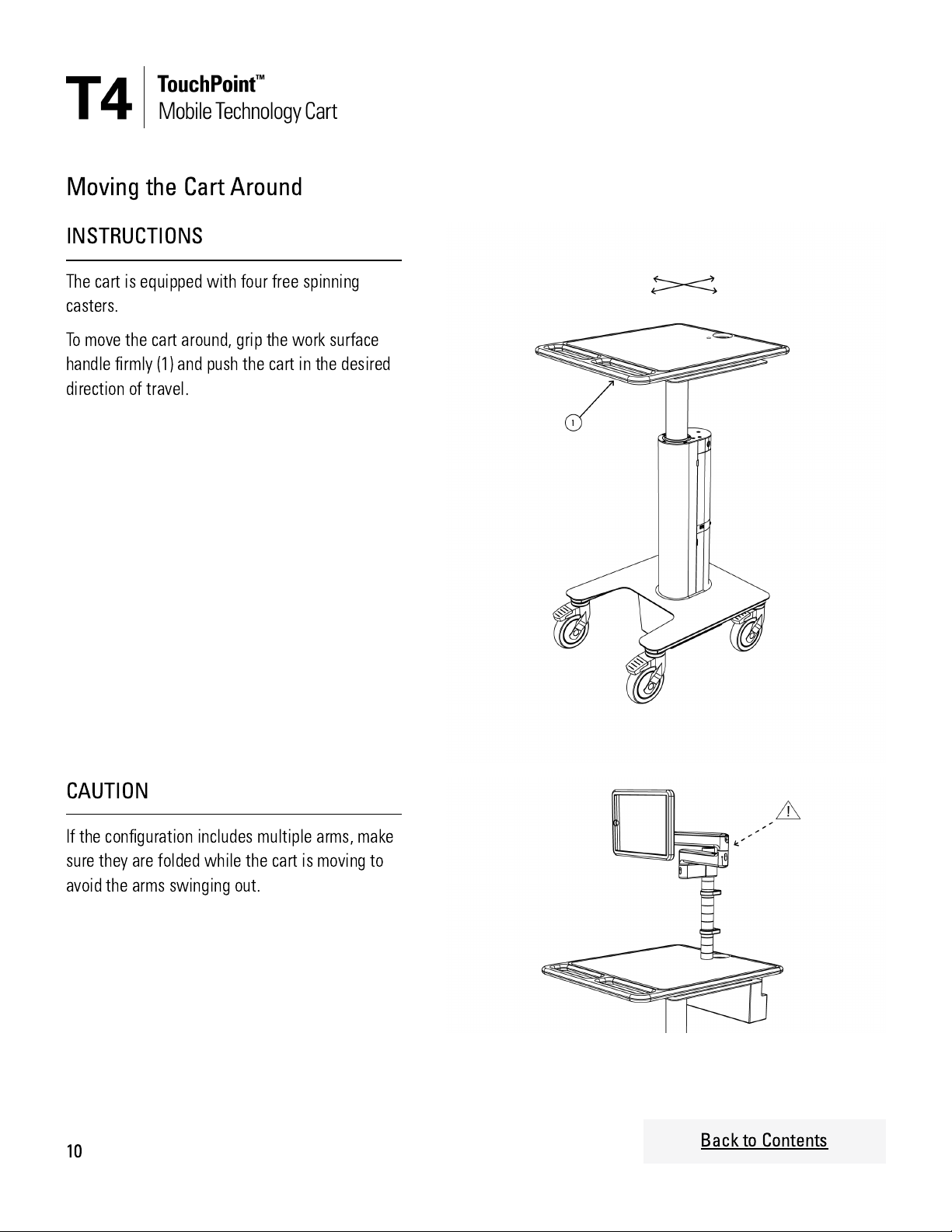

Moving the Cart Around
INSTRUCTIONS
The cart is equipped with four free spinning
casters.
To move the cart around, grip the work surface
handle rmly (1) and push the cart in the desired
direction of travel.
CAUTION
If the conguration includes multiple arms, make
sure they are folded while the cart is moving to
avoid the arms swinging out.
10 Back to Contents

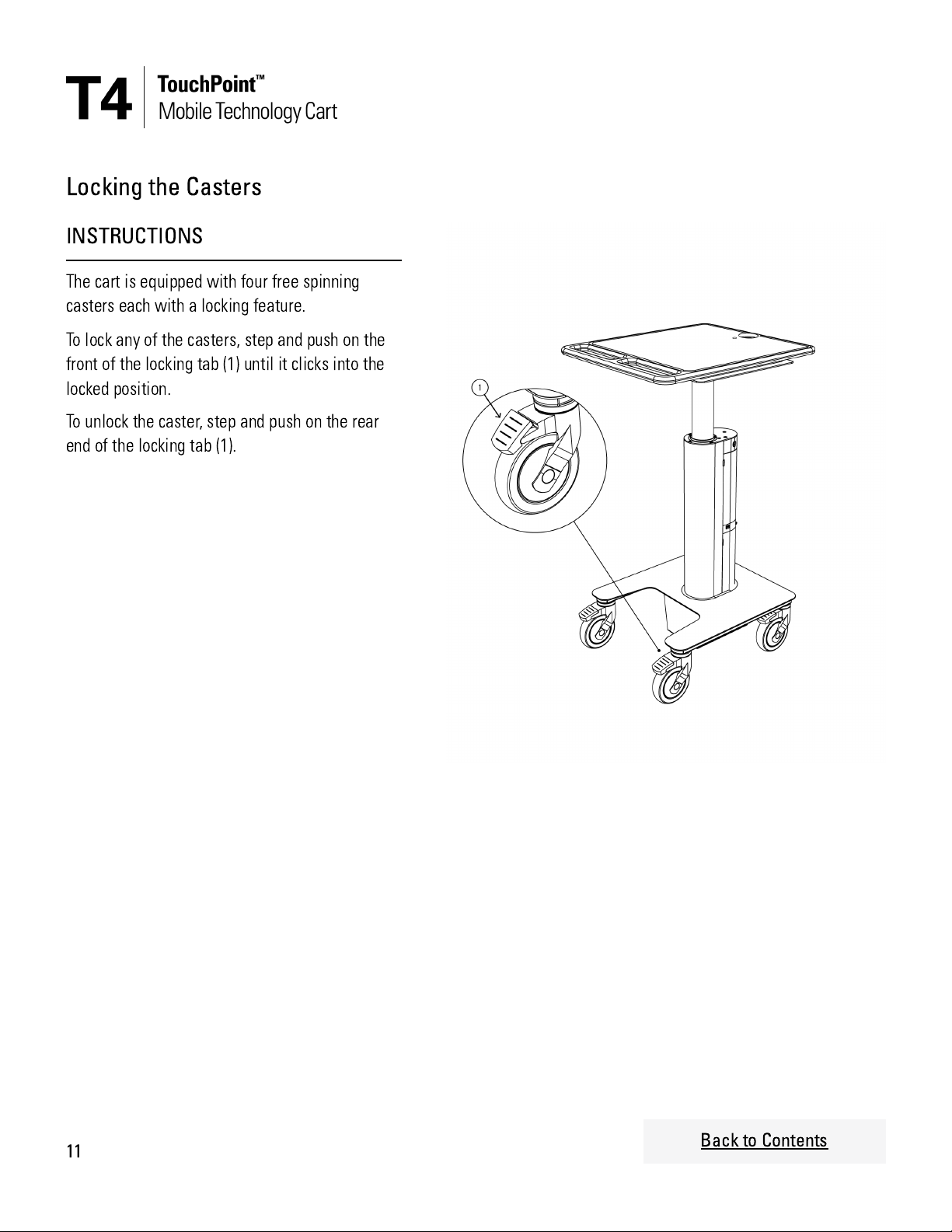

Locking the Casters
INSTRUCTIONS
The cart is equipped with four free spinning
casters each with a locking feature.
To lock any of the casters, step and push on the
front of the locking tab (1) until it clicks into the
locked position.
To unlock the caster, step and push on the rear
end of the locking tab (1).
11 Back to Contents

ADJUSTING TECHNOLOGY - STRAIGHT ARMS
ADJUSTING TABLET OR
TECHNOLOGY DEVICE
The tablet (or other device) can be adjusted
independently from the arm.
To rotate or tilt, grip the tablet on both sides and
adjust it to the orientation of your choice.
ADJUSTING ARMS
The straight arm congurations can be moved on
a horizontal plane to adjust the position of tablet.
Please note that the freedom of movement varies
by conguration.
To adjust the arm(s), grip the tablet with both
hands and position it at the location of your
choice. Straight arms can be panned horizontally.
CAUTION: The vertical position of the straight
arm congurations can be adjusted on the post.
By releasing the locking lever (1), the bracket can
be adjusted up and down. HOLD THE BRACKET
FIRMLY before the lever is released to prevent
the bracket and the arm assembly from dropping.
12 Back to Contents

ADJUSTING TECHNOLOGY - DYNAMIC ARMS
ADJUSTING TABLET OR
TECHNOLOGY DEVICE
The tablet (or other device) can be adjusted
independently from the arm.
To rotate or tilt, grip the tablet on both sides and
adjust it to the orientation of your choice.
ADJUSTING ARMS
Arm congurations with a dynamic link can be
adjusted horizontally and vertically to position
tablet (or other device). Please note that the
freedom of movement varies by conguration.
To adjust the arm(s), grip the tablet with both
hands and move it to the location of your choice.
Dynamic arms can be adjusted vertically and be
panned horizontally.
CAUTION: The vertical position of the dynamic
arm congurations can also be adjusted at the
post. By releasing the locking lever (1), the
bracket can be adjusted up and down. HOLD THE
BRACKET FIRMLY before the lever is released to
prevent the bracket and the arm assembly form
dropping.
13 Back to Contents

CABLE ROUTING
STANDARD CABLE STORAGE BASKET
The optional storage basket mounted at the rear
of the work surface can be used to store cables
and chargers connected to the technology device
on the cart. Cables should be routed from the
cable storage basket, through the grommet hole
at the rear of the work surface to the technology
device.
14 Back to Contents

MOUNTING ACCESSORIES
INSTRUCTIONS
The cart is equipped with an accessory rail (1)
under the work surface on both sides.
To mount an accessory, push the accessory
mounting clip (2) over the accessory rail until it
clicks into position.
To re-position the accessory on the same side,
slide the accessory along the accessory rail
without taking it off.
To re-position the accessory to the other side,
pull accessory clip release tab (3) down and
remove the accessory from the rail. To mount it
on the other side, push the accessory mounting
clip over the accessory rail until it clicks into
position.
15 Back to Contents

Cl aning Instructions
The following Cleaning Agents and Chemical Compounds were tested and approved to have contact with the exterior
surfaces of T4 Mobile Technology Cart.
Cleaning Agents
Quaternary Ammonium Compound Disinfectant
(Used to disinfect medical devices)
Simple green all-purpose cleaner (concentrated)
Bacillol 25 (Bacillol AF/Bacillol 30 Equivalent
Alcohol based cleaning agent)
Mikrobac Forte (Indicine Equivalent and 3rd
generation QAC)
Bacillocid Extra (Formaldehyde based cleaning
agents)
Chemical Compounds
Isopropyl Alcohol (99% or greater concentration)
Betadine (10% Povidone-Iodine solution)
Coffee (solution)
Cola (solution)
Dextrose (5% Glucose solution)
HCl (0.5% solution, pH=1)
Hydrogen Peroxide (6% solution)
NaCl Solution (0.9% solution)
Electrode Gel (98% water, 2% Carbopol 940
solution)
Warnings
Always unplug the cart and power down technology devices before cleaning.
Never clean the cart with steel wool or other abrasive materials that will damage the surface nish.
Do not rub a wet or damp cloth over any electrical components.
Do not immerse the cart or its components in liquid or allow liquids to ow into internal compartments or over any
electrical components.
Thoroughly dry all surfaces after cleaning.
Do not use ammable cleaners on cart surfaces due to close proximity of electrical power and equipment.
It is recommended that any cleaning solution be tested on a small, inconspicuous area to ensure the surface is not
harmed.
16 Back to Contents

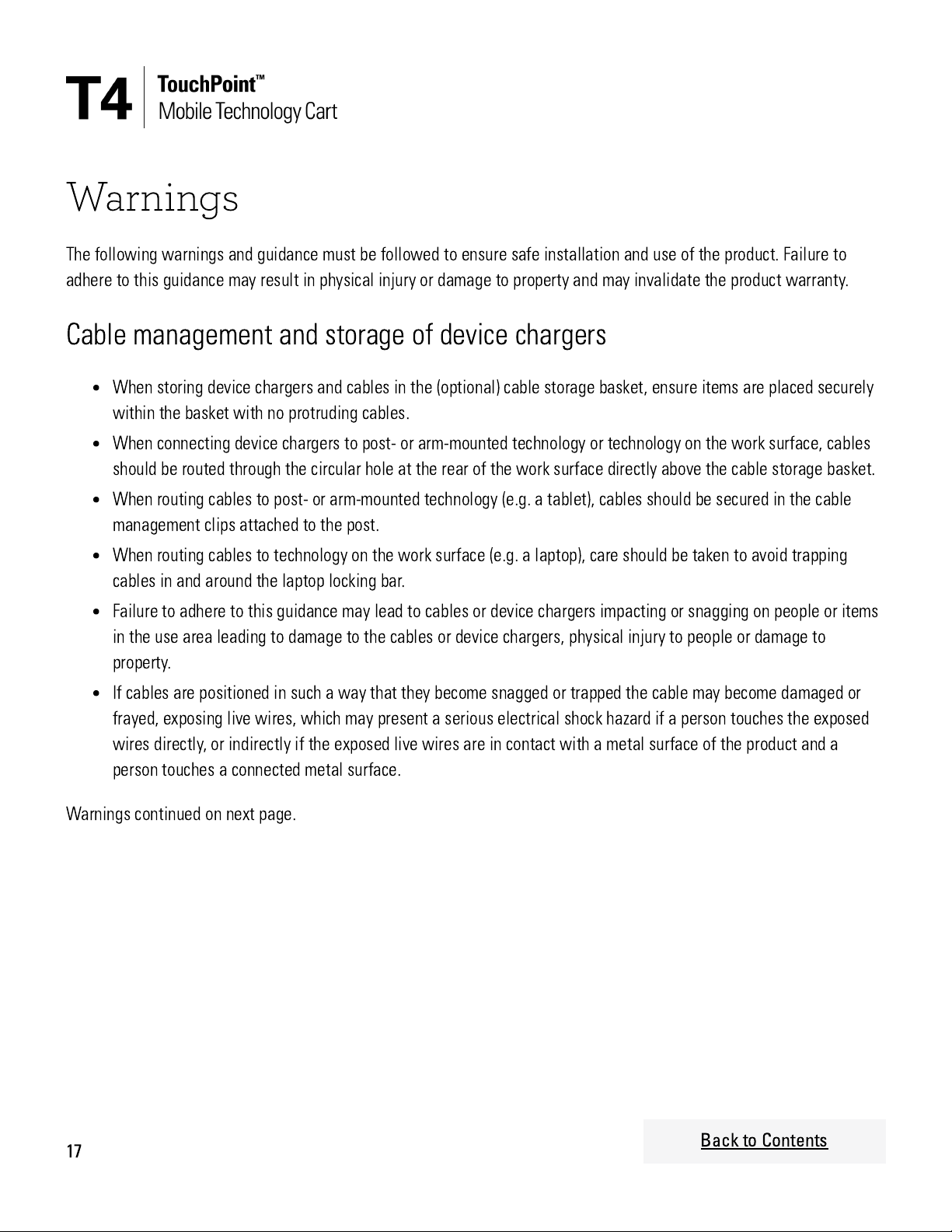

Warnings
The following warnings and guidance must be followed to ensure safe installation and use of the product. Failure to
adhere to this guidance may result in physical injury or damage to property and may invalidate the product warranty.
Cable management and storage of device chargers
When storing device chargers and cables in the (optional) cable storage basket, ensure items are placed securely
within the basket with no protruding cables.
When connecting device chargers to post- or arm-mounted technology or technology on the work surface, cables
should be routed through the circular hole at the rear of the work surface directly above the cable storage basket.
When routing cables to post- or arm-mounted technology (e.g. a tablet), cables should be secured in the cable
management clips attached to the post.
When routing cables to technology on the work surface (e.g. a laptop), care should be taken to avoid trapping
cables in and around the laptop locking bar.
Failure to adhere to this guidance may lead to cables or device chargers impacting or snagging on people or items
in the use area leading to damage to the cables or device chargers, physical injury to people or damage to
property.
If cables are positioned in such a way that they become snagged or trapped the cable may become damaged or
frayed, exposing live wires, which may present a serious electrical shock hazard if a person touches the exposed
wires directly, or indirectly if the exposed live wires are in contact with a metal surface of the product and a
person touches a connected metal surface.
Warnings continued on next page.
17 Back to Contents

Warnings ( continu d )
Tipping hazards
Installing any monitor arm conguration not tested for use with the product (i.e. not listed in the product
Specication Guide) may result in an unsafe product and increase the likelihood of the cart tipping over. Non-
tested monitor arm congurations must not be installed.
When using arm-mounted technology, the arm should always be extended to the front of the cart. Extending the
arm to the side or rear of the cart increases the likelihood of the cart tipping over. Specically, tipping is likely
under the following conditions:
The work surface platform is in the upper quarter of its height adjustment range.
A double arm conguration is extended out from the rear of the cart.
The rear casters are locked.
Weight is biased towards the rear of the cart.
The user applies a forwards push force (from the front of the cart) that is more than 2x the typical push
force.
When connecting power cables from technology on the cart to wall AC outlets or similar the cart must remain
static and not be moved around. If the cart is moved away from the wall outlet while the power cable is still
connected the power cable may reach its maximum extension and cause the cart to become unstable and tip over.
The cable storage basket, its contents, any attached cart accessories and the technology mounted to the cart may
also be damaged or dislodged in this scenario.
The cart may become unstable and increase the likelihood of tipping over when pushed over thresholds or changes
in ooring with a height difference of 1.5" (40mm) or greater.
The work surface should not be loaded beyond the weight limit listed in the product technical information. It
should not be used to support a person's body weight or as a seat.
Failing to adhere to any of the above guidance means the cart is more likely to tip over and cause physical injury or
damage to property.
Warnings continued on next page.
18 Back to Contents

Warnings ( continu d )
Entrapment and impact damage
Take care when moving or adjusting the height of the cart to ensure no hands, ngers or other body parts are
trapped between the moving parts of the height adjustment mechanism, or between the cart and other nearby
objects.
Take care when moving or adjusting the height of the cart that any mounted technology, especially arm-mounted
technology, remains in place and does not start to move or rotate, potentially colliding with a person or nearby
object.
Take special care when moving or adjusting the height of the cart in close proximity to patients.
Take care when moving the care, especially when pushing the cart forward, that the cart or any mounted
technology does not obscure the view in front of the cart to avoid colliding with people or objects in the path of
travel.
If the cart collides or impacts with another hard object it may damage the cart, in particular the edge of the work
surface. If collision damage results in a sharp or rough surface or edge on the cart, the damaged part should be
repaired or replaced to prevent further physical injury or damage.
Failure to adhere to any of the above guidance may result in physical injury or damage to property.
19 Back to Contents
